概述

文章目录

组件启动
- 实现组件类
- - 实现组件头文件
  - 实现组件源文件
- 设置配置文件
- 启动组件
激光感知
- 目录结构
- 源码剖析
- - detection——init
  - - InitAlgorithmPlugin
  - detection——Proc
  - - 点云预处理
    - 高精地图定位信息获取
    - 障碍物检测
    - 障碍物边框构建
    - Bounding_box过滤

本文先以感知模块perception_lidar为例，先讲解组件component如何启动，后对lidar detection 模块代码进行剖析

apollo注释代码链接：https://github.com/Xiao-Hu-Z/apollo_xiaohu，后续会针对某些细节点进一步梳理

组件启动

Perception 是核心的组件之一，但像所有的 C++ 程序一样，每个应用都有一个 Main 函数入口，那么引出本章要探索的 2 个问题：

Perception 入口在哪里
Perception 如何启动

看Perception 模块前，很有必要先去了解下cyber

Apollo Cyber 运行时框架(Apollo Cyber RT Framework) 是基于组件概念来构建的. 每个组件都是Cyber框架的一个构建块, 它包括一个特定的算法模块，此算法模块处理一组输入数椐并产生一组输出数椐。

ROS 应用于自动驾驶领域的不足：

调度的不确定性：各节点以独立进程运行，节点运行顺序无法确定，因而业务逻辑的调度顺序无法保证；
运行效率：ROS 为分布式系统，存在通信开销

Apollo在3.5中引入了Cyber RT，替换了以前基于ROS的变体， CyberRT 删除了master 机制，用自动发现机制代替，此外，Cyber RT的核心设计将调度、任务从内核空间搬到了用户空间。

组件管理

要创建并启动一个算法组件, 需要通过以下4个步骤:

初如化组件的文件结构
实现组件类
设置配置文件
启动组件

一个 component 需要创建以下文件：

Header file: common_component_example.h
Source file: common_component_example.cc
Build file: BUILD
DAG dependency file: common.dag
Launch file: common.launch

Apollo 是多数据融合的，它融合 Camera、Lidar、Radar 目标，而这 3 个都是一个 component。

在这里插入图片描述

感知模块的入口在production目录，通过lanuch加载对应的dag，启动感知模块，感知模块包括多个子模块，在onboard目录中定义。

perception组件路径：

apollo/modules/perception/onboard/component

这个目录下，定义和实现了很多感知相关的组件，本文只关注于 Detection。

实现组件类

实现组件头文件

detection_component.h：

继承 Component 类
定义自己的 Init 和 Proc 函数. Proc 需要指定输入数椐类型。
使用CYBER_REGISTER_COMPONENT宏定义把组件类注册成全局可用。

namespace apollo
{
  namespace perception
  {
    namespace onboard
    {

      class DetectionComponent : public cyber::Component<drivers::PointCloud>
      {
      public:
        DetectionComponent() = default;
        virtual ~DetectionComponent() = default;

        bool Init() override;
        bool Proc(const std::shared_ptr<drivers::PointCloud> &message) override;

      private:
        bool InitAlgorithmPlugin();
        bool InternalProc(
            const std::shared_ptr<const drivers::PointCloud> &in_message,
            const std::shared_ptr<LidarFrameMessage> &out_message);

      private:
        static std::atomic<uint32_t> seq_num_;
        std::string sensor_name_;
        std::string detector_name_;
        bool enable_hdmap_ = true;
        float lidar_query_tf_offset_ = 20.0f;
        std::string lidar2novatel_tf2_child_frame_id_;
        std::string output_channel_name_;
        base::SensorInfo sensor_info_;
        // TransformWrapper类：用于查询不同坐标系之间的变换关系
        TransformWrapper lidar2world_trans_;
        std::unique_ptr<lidar::BaseLidarObstacleDetection> detector_;
        std::shared_ptr<apollo::cyber::Writer<LidarFrameMessage>> writer_;
      };

      // 使用CYBER_REGISTER_COMPONENT宏定义把组件类注册成全局可用
      CYBER_REGISTER_COMPONENT(DetectionComponent);

    } // namespace onboard
  }   // namespace perception
} // namespace apollo

实现组件源文件

对于源文件Init 和 Proc 这两个函数需要实现，代码就不贴了，下面会对该部分代码解析

BUILD 文件地址是：

apollo/modules/perception/onboard/component/BUILD

BUILD 文件定义了 perception 中所有的 component 如 camera,radar,lidar 等的信息，本文只关注 Detection。

cc_library(
    name = "detection_component",
    srcs = ["detection_component.cc"],
    hdrs = ["detection_component.h"],
    deps = [
        ":lidar_inner_component_messages",
        "//cyber/time:clock",
        "//modules/common/util:string_util",
        "//modules/perception/common/sensor_manager",
        "//modules/perception/lib/registerer",
        "//modules/perception/lidar/common",
        "//modules/perception/lidar/app:lidar_obstacle_detection",
        "//modules/perception/lidar/lib/ground_detector/spatio_temporal_ground_detector",
        "//modules/perception/lidar/lib/interface",
        "//modules/perception/lidar/lib/object_builder",
        "//modules/perception/lidar/lib/object_filter_bank/roi_boundary_filter",
        "//modules/perception/lidar/lib/roi_filter/hdmap_roi_filter",
        "//modules/perception/lidar/lib/scene_manager/ground_service",
        "//modules/perception/lidar/lib/scene_manager/roi_service",
        "//modules/perception/lidar/lib/detector/point_pillars_detection:point_pillars_detection",
        "//modules/perception/lidar/lib/detector/cnn_segmentation:cnn_segmentation",
        "//modules/perception/lidar/lib/detector/ncut_segmentation:ncut_segmentation",
        "//modules/perception/onboard/common_flags",
        "//modules/perception/onboard/proto:lidar_component_config_cc_proto",
        "//modules/perception/onboard/transform_wrapper",
        "@eigen",
    ],
)

设置配置文件

一个 Component 的配置文件有 2 种：

DAG
Launch

DAG 定义了模块的依赖关系，Launch 文件定义了模块的启动。

下面看激光雷达感知的Launch 文件：

launch文件：Apollo/modules/perception/production/launch/perception_lidar.launch

<!--this file list the modules which will be loaded dynamicly and
    their process name to be running in -->
<cyber>
    <desc>cyber modules list config</desc>
    <version>1.0.0</version>
    <!-- sample module config, and the files should have relative path like
         ./bin/cyber_launch
         ./bin/mainboard
         ./conf/dag_streaming_0.conf -->

    <module>
        <name>perception_lidar</name>
        <dag_conf>/apollo/modules/perception/production/dag/dag_streaming_perception_lidar.dag</dag_conf>
        <!-- if not set, use default process -->
        <process_name>perception_lidar</process_name>
        <version>1.0.0</version>
    </module>
</cyber>

对应的dag文件：Apollo/modules/perception/production/dag/dag_streaming_perception_lidar.dag其中包括DetectionComponent, RecognitionComponent, FusionComponent, V2XFusionComponent四个组件类，即检测，识别跟踪、融合、车联网融合。单对于lidar模块，主要就是检测和识别跟踪两个组件类的具体实现，融合和车联网融合是lidar模块输出结果的后续处理。

dag_streaming_perception_lidar.dag内容：

module_config {
  module_library : "/apollo/bazel-bin/modules/perception/onboard/component/libperception_component_lidar.so"

  components {
    class_name : "DetectionComponent"
    config {
      name: "Velodyne128Detection"
      config_file_path: "/apollo/modules/perception/production/conf/perception/lidar/velodyne128_detection_conf.pb.txt"
      flag_file_path: "/apollo/modules/perception/production/conf/perception/perception_common.flag"
      readers {
        channel: "/apollo/sensor/lidar128/compensator/PointCloud2"
      }
    }
  }

  components {
    class_name : "RecognitionComponent"
    config {
      name: "RecognitionComponent"
      config_file_path: "/apollo/modules/perception/production/conf/perception/lidar/recognition_conf.pb.txt"
      readers {
        channel: "/perception/inner/DetectionObjects"
      }
    }
  }

  components {
    class_name: "FusionComponent"
    config {
      name: "SensorFusion"
      config_file_path: "/apollo/modules/perception/production/conf/perception/fusion/fusion_component_conf.pb.txt"
      readers {
        channel: "/perception/inner/PrefusedObjects"
      }
    }
  }
}

module_config {
  module_library : "/apollo/bazel-bin/modules/v2x/fusion/apps/libv2x_fusion_component.so"

  components {
    class_name : "V2XFusionComponent"
    config {
      name : "v2x_fusion"
      flag_file_path : "/apollo/modules/v2x/conf/v2x_fusion_tracker.conf"
      readers: [
        {
          channel: "/perception/vehicle/obstacles"
        }
      ]
    }
  }
}

该类配置参数proto定义：modules/perception/onboard/proto/lidar_component_config.proto，
具体实现文件在：modules/perception/production/conf/perception/lidar/velodyne128_detection_conf.pb.txt，每个激光雷达一个实现文件。

通过modules/perception/lidar/app/lidar_obstacle_detection.cc中的LidarObstacleDetection类完成实际激光雷达点云障碍物检测工作；

Apollo7.0的lidar模块的处理过程就是：DetectionComponent(检测) >> RecognitionComponent(识别跟踪)。
component位于：

Apollo/modules/perception/onboard/component/detection_component.cc
Apollo/modules/perception/onboard/component/recognition_component.cc

启动组件

定义了一个 component 相关的文档后，就可以启动组件:

使用launch文件来启动

cyber_launch start apollo/modules/perception/production/launch/perception_lidar.launch

激光感知

先看perception模块的目录结构

.
|-- BUILD      // 基础类
|-- base       // 基础类
|-- camera     // 相机相关
|-- common     // 公共目录
|-- data       // 相机的内参和外参
|-- fusion     // 传感器融合
|-- inference  // 深度学习推理模块
|-- lib        // 一些基础的库，包括线程、文件配置等
|-- lidar      // 激光雷达相关
|-- map        // 地图
|-- onboard    // 各个子模块的入口
|-- production // 感知模块入口 --- 通过cyber启动子模块
|-- proto      // 数据格式，protobuf
|-- radar      // 毫米波雷达
|-- testdata   // 几个模块的测试数据
`-- tool       // 离线测试工具

目录结构

文件夹结构：以下文件夹都是在perception/lidar/下

app——lidar应用类，主处理类，即最终应用程序应该是实例化该文件夹下的类来完成
common——定义lidar感知模块需要用的通用数据结构，例如LidarFrame，通用处理方法等；
lib——激光雷达感知中算法实现库
interface——各种算法类的基类定义，作为算法通用类的接口
lib/roi_filter——包含hdmap_roi_filter和roi_service_filter两个文件夹，前者用来利用高精度地图的信息来对LidarFrame中给出的高精度地图查询信息对点云进行ROI限制。
perception/map/hdmap——用在感知模块用来查询与高精度地图相关的信息。

launch文件：Apollo/modules/perception/production/launch/perception_lidar.launch
对应的dag文件：Apollo/modules/perception/production/dag/dag_streaming_perception_lidar.dag

launch文件用来启动，dag文件描述了整个系统的拓扑关系，也定义了每个Component需要订阅的话题

launch文件和dag文件上面有介绍，就不多赘述了，下面直接看modules/perception/onboard/component/detection_component.cc代码

源码剖析

先看检测部分代码，对应文件：detection_component.cc

detection——init

      bool DetectionComponent::Init()
      {
        // 读取配置文件，配置文件定义：modules/perception/onboard/proto/lidar_component_config.proto
        LidarDetectionComponentConfig comp_config;
        if (!GetProtoConfig(&comp_config))
        {
          return false;
        }
        ADEBUG << "Lidar Component Configs: " << comp_config.DebugString(); // DebugString：打印输出comp_config对象
        output_channel_name_ = comp_config.output_channel_name();
        sensor_name_ = comp_config.sensor_name();
        detector_name_ = comp_config.detector_name();
        lidar2novatel_tf2_child_frame_id_ = comp_config.lidar2novatel_tf2_child_frame_id();
        lidar_query_tf_offset_ = static_cast<float>(comp_config.lidar_query_tf_offset());
        enable_hdmap_ = comp_config.enable_hdmap();
        // 发布消息
        writer_ = node_->CreateWriter<LidarFrameMessage>(output_channel_name_);

        /**配置文件参数
        * Apollo/modules/perception/production/conf/perception/lidar/velodyne128_detection_conf.pb.txt：
        * sensor_name: "velodyne128"
        * enable_hdmap: true
        * lidar_query_tf_offset: 0
        * lidar2novatel_tf2_child_frame_id: "velodyne128"
        * output_channel_name: "/perception/inner/DetectionObjects"
        */
        // 初始化成员算法类
        if (!InitAlgorithmPlugin())
        {
          AERROR << "Failed to init detection component algorithm plugin.";
          return false;
        }
        return true;
      }

LidarDetectionComponentConfig 路径：{apollo/modules/perception/onboard/proto/lidar_component_config.proto

InitAlgorithmPlugin

在调用各模块类的处理逻辑process，先对个模块功能类进行参数初始化，先调用LidarObstacleDetection::Init，后分别分别调用各模块功能类（预处理，根据高精度hdmap获取离定位点一定范围的道路、交叉路口信息，pointpillar目标检测）的init方法

      bool DetectionComponent::InitAlgorithmPlugin()
      {
        // 读取传感器元数据，元数据的读取是通过SensorManager来完成的,SensorManager 类经宏定义 DECLARE_SINGLETON(SensorManager) 修饰成为单例类，单例对象调用GetSensorInfo函数获取传感器名sensor_name_对应的传感器信息SensorInfo
        // 其在初始化时会读取modules/perception/production/data/perception/common/sensor_meta.pt的包含所有传感器元数据的列表
        ACHECK(common::SensorManager::Instance()->GetSensorInfo(sensor_name_,&sensor_info_));
        // apollo/modules/perception/lib/registerer/registerer.h
        // 父类指针detector指向子类LidarObstacleDetection的对象
        lidar::BaseLidarObstacleDetection *detector = lidar::BaseLidarObstacleDetectionRegisterer::GetInstanceByName(detector_name_);     // 调用宏定义类的静态方法
        CHECK_NOTNULL(detector);
        detector_.reset(detector);
        // lidar型号，hdmap是否使用
        lidar::LidarObstacleDetectionInitOptions init_options;
        init_options.sensor_name = sensor_name_;
        // 调用DEFINE_bool宏获取hdmap选择FLAGS_obs_enable_hdmap_input
        // DEFINE_bool宏位于：modules/perception/onboard/common_flags/common_flags.cpp
        init_options.enable_hdmap_input = FLAGS_obs_enable_hdmap_input && enable_hdmap_;
        // 多态性：子类LidarObstacleDetection重写父类BaseLidarObstacleDetection的虚函数init
        // 调用子类LidarObstacleDetection的init函数
        ACHECK(detector_->Init(init_options)) << "lidar obstacle detection init error";
        lidar2world_trans_.Init(lidar2novatel_tf2_child_frame_id_);
        return true;
      }

1.获取传感器信息sensor_info_，对应代码：

        lidar::BaseLidarObstacleDetection *detector = lidar::BaseLidarObstacleDetectionRegisterer::GetInstanceByName(detector_name_);     // 调用宏定义类的静态方法
        CHECK_NOTNULL(detector);
        detector_.reset(detector);

SensorManager类路径：apollo/modules/perception/common/sensor_manager/sensor_manager.cc

common::SensorManager::Instance()会返回SensorManager的唯一实例，同时调用构造函数，而构造函数又调用Init()方法,对传感器元数据初始化，会读取modules/perception/production/data/perception/common/sensor_meta.pt的包含所有传感器元数据，并将传感器名字和传感器信息SensorInfo存储在sensor_info_map_字典

      // glog 提供了CHECK()宏帮助我们检查程序的错误，当CHECK()的条件不满足时，它会记录FATAL日志并终止程序
      SensorManager::SensorManager() { CHECK_EQ(this->Init(), true); }

      bool SensorManager::Init()
      {
        std::lock_guard<std::mutex> lock(mutex_);
        if (inited_)
        {
          return true;
        }

        sensor_info_map_.clear();
        distort_model_map_.clear();
        undistort_model_map_.clear();
        // 传感器元数据(名字，传感器型号，摆放位置)文件路径： apollo/modules/perception/production/data/perception/common/sensor_meta.pt
        // 调用gflags库DEFINE_type宏获取传感器元数据文件路径FLAGS_obs_sensor_meta_path
        const std::string file_path = cyber::common::GetAbsolutePath(lib::ConfigManager::Instance()->work_root(), FLAGS_obs_sensor_meta_path);

        MultiSensorMeta sensor_list_proto;
        // 从文件中读取信息存储到sensor_list_proto中
        if (!GetProtoFromASCIIFile(file_path, &sensor_list_proto))
        {
          AERROR << "Invalid MultiSensorMeta file: " << FLAGS_obs_sensor_meta_path;
          return false;
        }

        auto AddSensorInfo = [this](const SensorMeta &sensor_meta_proto)
        {
          SensorInfo sensor_info;
          sensor_info.name = sensor_meta_proto.name();
          sensor_info.type = static_cast<SensorType>(sensor_meta_proto.type());
          sensor_info.orientation =
              static_cast<SensorOrientation>(sensor_meta_proto.orientation());
          sensor_info.frame_id = sensor_meta_proto.name();
          // sensor_info_map_字典存储传感器名字和传感器信息SensorInfo
          // SensorInfo 结构体类型 位于apollo/modules/perception/base/sensor_meta.h
          auto pair = sensor_info_map_.insert(
              make_pair(sensor_meta_proto.name(), sensor_info));
          if (!pair.second)
          {
            AERROR << "Duplicate sensor name error.";
            return false;
          }

        for (const SensorMeta &sensor_meta_proto : sensor_list_proto.sensor_meta())
        {
          if (!AddSensorInfo(sensor_meta_proto))
          {
            AERROR << "Failed to add sensor_info: " << sensor_meta_proto.name();
            return false;
          }
        }

        inited_ = true;
        AINFO << "Init sensor_manager success.";
        return true;
      }

      // 根据传感器名获取传感器信息SensorInfo
      bool SensorManager::GetSensorInfo(const std::string &name,
                                        SensorInfo *sensor_info) const
      {
        if (sensor_info == nullptr)
        {
          AERROR << "Nullptr error.";
          return false;
        }

        const auto &itr = sensor_info_map_.find(name);
        if (itr == sensor_info_map_.end())
        {
          return false;
        }

        *sensor_info = itr->second;
        return true;
      }

apollo/modules/perception/proto/sensor_meta_schema.proto

传感器信息proto字段

message SensorMeta {
  enum SensorType {
    UNKNOWN_SENSOR_TYPE = -1;
    VELODYNE_64 = 0;
    VELODYNE_32 = 1;
    VELODYNE_16 = 2;
    LDLIDAR_4 = 3;
    LDLIDAR_1 = 4;
    SHORT_RANGE_RADAR = 5;
    LONG_RANGE_RADAR = 6;
    MONOCULAR_CAMERA = 7;
    STEREO_CAMERA = 8;
    ULTRASONIC = 9;
    VELODYNE_128 = 10;
  }

  enum SensorOrientation {
    FRONT = 0;
    LEFT_FORWARD = 1;
    LEFT = 2;
    LEFT_BACKWARD = 3;
    REAR = 4;
    RIGHT_BACKWARD = 5;
    RIGHT = 6;
    RIGHT_FORWARD = 7;
    PANORAMIC = 8;
  }

  optional string name = 1;
  optional SensorType type = 2;
  optional SensorOrientation orientation = 3;
}


message MultiSensorMeta {
  repeated SensorMeta sensor_meta = 1;
}

SensorInfo类型，位于位于apollo/modules/perception/base/sensor_meta.h

struct SensorInfo {
  std::string name = "UNKNONW_SENSOR";
  SensorType type = SensorType::UNKNOWN_SENSOR_TYPE;
  SensorOrientation orientation = SensorOrientation::FRONT;
  std::string frame_id = "UNKNOWN_FRAME_ID";
  void Reset() {
    name = "UNKNONW_SENSOR";
    type = SensorType::UNKNOWN_SENSOR_TYPE;
    orientation = SensorOrientation::FRONT;
    frame_id = "UNKNOWN_FRAME_ID";
  }
};

2.lidar障碍物检测基类对象指针指向子类的对象，对应代码：

        lidar::BaseLidarObstacleDetection *detector = lidar::BaseLidarObstacleDetectionRegisterer::GetInstanceByName(detector_name_);     // 调用宏定义类的静态方法

BaseLidarObstacleDetectionRegistere作为雷达障碍物检测的基类，通过多态形式调用子类的init函数，路径：

apollo/modules/perception/lidar/lib/interface/base_lidar_obstacle_detection.h

lidar::BaseLidarObstacleDetectionRegisterer调用一个宏定义类，类BaseLidarObstacleDetectionRegisterer路径：apollo/modules/perception/lib/registerer/registerer.h

#define PERCEPTION_REGISTER_REGISTERER(base_class)
  class base_class##Registerer {
    typedef ::apollo::perception::lib::Any Any;
    typedef ::apollo::perception::lib::FactoryMap FactoryMap;

   public:
    static base_class *GetInstanceByName(const ::std::string &name) {
      FactoryMap &map =
          ::apollo::perception::lib::GlobalFactoryMap()[#base_class];
      FactoryMap::iterator iter = map.find(name);
      if (iter == map.end()) {
        for (auto c : map) {
          AERROR << "Instance:" << c.first;
        }
        AERROR << "Get instance " << name << " failed.";
        return nullptr;
      }
      Any object = iter->second->NewInstance();
      return *(object.AnyCast<base_class *>());
    }
    static std::vector<base_class *> GetAllInstances() {
      std::vector<base_class *> instances;
      FactoryMap &map =
          ::apollo::perception::lib::GlobalFactoryMap()[#base_class];
      instances.reserve(map.size());
      for (auto item : map) {
        Any object = item.second->NewInstance();
        instances.push_back(*(object.AnyCast<base_class *>()));
      }
      return instances;
    }
    static const ::std::string GetUniqInstanceName() {
      FactoryMap &map =
          ::apollo::perception::lib::GlobalFactoryMap()[#base_class];
      CHECK_EQ(map.size(), 1U) << map.size();
      return map.begin()->first;
    }
    static base_class *GetUniqInstance() {
      FactoryMap &map =
          ::apollo::perception::lib::GlobalFactoryMap()[#base_class];
      CHECK_EQ(map.size(), 1U) << map.size();
      Any object = map.begin()->second->NewInstance();
      return *(object.AnyCast<base_class *>());
    }
    static bool IsValid(const ::std::string &name) {
      FactoryMap &map =
          ::apollo::perception::lib::GlobalFactoryMap()[#base_class];
      return map.find(name) != map.end();
    }
  };

3.初始化雷达型号，是否使用hdmap，作为类LidarObstacleDetection的init函数传入参数

        lidar::LidarObstacleDetectionInitOptions init_options;
        init_options.sensor_name = sensor_name_;
        // 调用DEFINE_bool宏返回FLAGS_obs_enable_hdmap_input,bool类型,表达是否有hdmap输入
        // DEFINE_bool宏位于：modules/perception/onboard/common_flags/common_flags.cpp
        init_options.enable_hdmap_input = FLAGS_obs_enable_hdmap_input && enable_hdmap_;

类LidarObstacleDetectionInitOptions位于

apollo/modules/perception/lidar/lib/interface/base_lidar_obstacle_detection.h

struct LidarObstacleDetectionInitOptions {
  std::string sensor_name = "velodyne64";
  bool enable_hdmap_input = true;
};

4.调用子类LidarObstacleDetection的init函数初始化参数

        // 多态性：子类LidarObstacleDetection重写父类BaseLidarObstacleDetection的虚函数init
        // 调用子类LidarObstacleDetection的init函数
        ACHECK(detector_->Init(init_options)) << "lidar obstacle detection init error";

Init函数位于：apollo/modules/perception/lidar/app/lidar_obstacle_detection.cc

下面看雷达障碍物检测类的初始化函数init，初始化各模块的参数

      bool LidarObstacleDetection::Init(const LidarObstacleDetectionInitOptions &options)
      {
        auto &sensor_name = options.sensor_name; // 传感器名，如"velodyne128"
        // ConfigManager类经宏定义 DECLARE_SINGLETON(ConfigManager) 修饰成为单例类
        auto config_manager = lib::ConfigManager::Instance();
        const lib::ModelConfig *model_config = nullptr;
        // 获取 LidarObstacleDetection 配置参数model_config,第一次调用GetModelConfig将各模块功能类和其配置参数存储在字典，从字典查找LidarObstacleDetection对应的参数信息
        // LidarObstacleDetection在文件中是存储在 apollo/modules/perception/production/conf/perception/lidar/modules/lidar_obstacle_pipeline.config
        ACHECK(config_manager->GetModelConfig(Name(), &model_config));

        const std::string work_root = config_manager->work_root();
        std::string config_file;
        std::string root_path;
        // root_path:./data/perception/lidar/models/lidar_obstacle_pipeline
        ACHECK(model_config->get_value("root_path", &root_path));
        // apollo/modules/perception/production/lidar/models/lidar_obstacle_pipeline
        config_file = cyber::common::GetAbsolutePath(work_root, root_path);
        // apollo/modules/perception/production/data/perception/lidar/models/lidar_obstacle_pipeline/velodyne128
        config_file = cyber::common::GetAbsolutePath(config_file, sensor_name);
        // apollo/modules/perception/production/data/perception/lidar/models/lidar_obstacle_pipeline/velodyne128/lidar_obstacle_detection.conf
        config_file = cyber::common::GetAbsolutePath(config_file, "lidar_obstacle_detection.conf");
        /*
        message LidarObstacleDetectionConfig {
        optional string preprocessor = 1 [default = "PointCloudPreprocessor"];
        optional string detector = 2 [default = "PointPillarsDetection"];
        optional bool use_map_manager = 3 [default = true];
        optional bool use_object_filter_bank = 4 [default = true];
        }
        */
        LidarObstacleDetectionConfig config;
        // 把lidar_obstacle_detection.conf写入proto LidarObstacleDetectionConfig信息中
        ACHECK(cyber::common::GetProtoFromFile(config_file, &config));
        use_map_manager_ = config.use_map_manager();               // true
        use_object_filter_bank_ = config.use_object_filter_bank(); // true
        // PointPillarsDetection
        use_object_builder_ = ("PointPillarsDetection" != config.detector() ||
                               "MaskPillarsDetection" != config.detector());

        use_map_manager_ = use_map_manager_ && options.enable_hdmap_input; // true

        SceneManagerInitOptions scene_manager_init_options;
        ACHECK(SceneManager::Instance().Init(scene_manager_init_options));
        // 是否使用高精度地图
        if (use_map_manager_)
        {
          MapManagerInitOptions map_manager_init_options;
          // hdmap初始化
          if (!map_manager_.Init(map_manager_init_options))
          {
            AINFO << "Failed to init map manager.";
            use_map_manager_ = false;
          }
        }
        // 激光点云预处理：初始化基类对象，让其指针指向子类
        BasePointCloudPreprocessor *preprocessor = BasePointCloudPreprocessorRegisterer::GetInstanceByName(config.preprocessor());
        CHECK_NOTNULL(preprocessor);
        cloud_preprocessor_.reset(preprocessor);

        // 激光雷达的型号
        PointCloudPreprocessorInitOptions preprocessor_init_options;
        preprocessor_init_options.sensor_name = sensor_name;
        // 点云预处理初始化
        ACHECK(cloud_preprocessor_->Init(preprocessor_init_options)) << "lidar preprocessor init error";
        // 激光障碍物检测
        BaseLidarDetector *detector = BaseLidarDetectorRegisterer::GetInstanceByName(config.detector());
        BaseLidarDetectorRegisterer::GetInstanceByName(config.detector());
        detector_.reset(detector);
        LidarDetectorInitOptions detection_init_options;
        detection_init_options.sensor_name = sensor_name;
        // 激光雷达障碍物检测初始化
        ACHECK(detector_->Init(detection_init_options)) << "lidar detector init error";

        if (use_object_builder_)
        {
          // ObjectBuilder：构建障碍物目标包围框类信息
          ObjectBuilderInitOptions builder_init_options;
          ACHECK(builder_.Init(builder_init_options));
        }

        if (use_object_filter_bank_)
        {
          ObjectFilterInitOptions filter_bank_init_options;
          filter_bank_init_options.sensor_name = sensor_name;
          // ObjectFilterBank： 调用ObjectFilterBank：对目标进行ROIBoundaryFilter
          ACHECK(filter_bank_.Init(filter_bank_init_options));
        }

        return true;
      }

1.先定义单例类ConfigManager对象，调用GetModelConfig获取障碍物检测类的配置参数

根据 LidarObstacleDetection类名获取其配置参数，第一次调用GetModelConfig，它将进一步调用init函数将各模块功能类和其配置参数存储在字典中，从字典查找LidarObstacleDetection对应的参数信息，存储在存储在ModelConfig类对象中，然后利用ModelConfig类的get_value函数，就可以对应查询到具体的配置参数数值了

LidarObstacleDetection在文件中是存储在 apollo/modules/perception/production/conf/perception/lidar/modules/lidar_obstacle_pipeline.config

        auto config_manager = lib::ConfigManager::Instance();
        const lib::ModelConfig *model_config = nullptr;
        ACHECK(config_manager->GetModelConfig(Name(), &model_config));
		ACHECK(model_config->get_value("root_path", &root_path));

类ConfigManager位于：apollo/modules/perception/lib/config_manager/config_manager.cc

下面具体解析下GetModelConfig函数，直接看代码：

// 根据类名获取模型配置参数
bool ConfigManager::GetModelConfig(const std::string &model_name,const ModelConfig **model_config) {
  if (!inited_ && !Init()) {
    return false;
  }

  auto citer = model_config_map_.find(model_name);
  if (citer == model_config_map_.end()) {
    return false;
  }
  *model_config = citer->second;
  return true;
}

bool ConfigManager::Init() {
  MutexLock lock(&mutex_);
  return InitInternal();
}

bool ConfigManager::InitInternal() {
  if (inited_) {
    return true;
  }
  // 释放内存
  for (auto iter = model_config_map_.begin(); iter != model_config_map_.end();
       ++iter) {
    delete iter->second;
  }
  model_config_map_.clear();
  // 调用gflags库DEFINE_type宏获取传感器的参数文件路径FLAGS_config_manager_path
  // FLAGS_config_manager_path = "./conf"
  // apollo/modules/perception/production/conf/
  std::string config_module_path = GetAbsolutePath(work_root_, FLAGS_config_manager_path);
  AINFO << "WORK_ROOT: " << work_root_ << " config_root_path: " << config_module_path;

  std::vector<std::string> model_config_files;
  // 递归遍历conf文件夹下所有文件名，返回后缀包含config_manager的所有文件路径model_config_files
  if (!common::GetFileList(config_module_path, "config_manager.config",
                           &model_config_files)) {
    AERROR << "config_root_path : " << config_module_path << " get file list error.";
    return false;
  }

  for (const auto &model_config_file : model_config_files) {
    // 用定义的proto message ModelConfigFileListProto 读取文件 config_manager.config 的model_config_path参数
    ModelConfigFileListProto file_list_proto;
    if (!GetProtoFromASCIIFile(model_config_file, &file_list_proto)) {
      AERROR << "Invalid ModelConfigFileListProto file: " << model_config_file;
      return false;
    }
    // model_config_path : 每一个后缀名为"config_manager.config"的文件
    for (const std::string &model_config_path : file_list_proto.model_config_path()) {
      // 获取绝对路径
      const std::string abs_path = GetAbsolutePath(work_root_, model_config_path);
      // 用定义的proto message MultiModelConfigProto 读取文件 参数信息，存储moudle下所有文件名
      MultiModelConfigProto multi_model_config_proto;
      if (!GetProtoFromASCIIFile(abs_path, &multi_model_config_proto)) {
        AERROR << "Invalid MultiModelConfigProto file: " << abs_path;
        return false;
      }
      // model_config_proto 每一个模块下各功能的配置参数
      for (const ModelConfigProto &model_config_proto : multi_model_config_proto.model_configs()) {
        // // 用定义的proto message ModelConfig 读取moudle下所有文件的参数信息
        ModelConfig *model_config = new ModelConfig();
        if (!model_config->Reset(model_config_proto)) {
          return false;
        }

        AINFO << "load ModelConfig succ. name: " << model_config->name();
        // 将各模块功能类名和配置参数存储在字典 model_config_map_ 中
        auto result = model_config_map_.emplace(model_config->name(), model_config);
        if (!result.second) {
          AWARN << "duplicate ModelConfig, name: " << model_config->name();
          return false;
        }
      }
    }
  }

用Proto读取文件参数，最终会将各模块功能类名和配置参数存储在字典 model_config_map_ ，定义proto message信息位于：apollo/modules/perception/proto/perception_config_schema.proto文件中，如下：

syntax = "proto2";
package apollo.perception;

message KeyValueInt {
  optional string name = 1;
  optional int32 value = 2;
}

message KeyValueString {
  optional string name = 1;
  optional bytes value = 2;
}

message KeyValueDouble {
  optional string name = 1;
  optional double value = 2;
}

message KeyValueFloat {
  optional string name = 1;
  optional float value = 2;
}

message KeyValueBool {
  optional string name = 1;
  optional bool value = 2;
}

message KeyValueArrayInt {
  optional string name = 1;
  repeated int32 values = 2;
}

message KeyValueArrayString {
  optional string name = 1;
  repeated bytes values = 2;
}

message KeyValueArrayDouble {
  optional string name = 1;
  repeated double values = 2;
}

message KeyValueArrayFloat {
  optional string name = 1;
  repeated float values = 2;
}

message KeyValueArrayBool {
  optional string name = 1;
  repeated bool values = 2;
}
message ModelConfigProto {
  optional string name = 1;
  optional string version = 2;

  repeated KeyValueInt integer_params = 3;
  repeated KeyValueString string_params = 4;
  repeated KeyValueDouble double_params = 5;
  repeated KeyValueFloat float_params = 6;
  repeated KeyValueBool bool_params = 7;
  repeated KeyValueArrayInt array_integer_params = 8;
  repeated KeyValueArrayString array_string_params = 9;
  repeated KeyValueArrayDouble array_double_params = 10;
  repeated KeyValueArrayFloat array_float_params = 11;
  repeated KeyValueArrayBool array_bool_params = 12;
}

message MultiModelConfigProto {
  repeated ModelConfigProto model_configs = 1;
}

message ModelConfigFileListProto {
 repeated string model_config_path = 1;
}

每一个message就相当于定义了一个struct，其中包含许多成员变量。其中ModelConfigFileListProto定义了一个向量，用来指定每个具体参数配置文件的位置，而MultiModelConfigProto则定义了一个ModelConfigProto类型的向量，即定义的具体配置参数，从ModelConfigProto类型的message文件不难看出，其实所谓的配置参数，就是string类型到不同数据类型的一个map映射。

拿lidar模块的配置参数为例，首先由apollo/modules/perception/production/conf/perception/lidar/config_manager.config文件实例化上述protobuf文件中定义的message ModelConfigFileListProto：

model_config_path: "./conf/perception/lidar/modules/map_manager.config"
model_config_path: "./conf/perception/lidar/modules/scene_manager.config"
model_config_path: "./conf/perception/lidar/modules/object_filter_bank.config"
model_config_path: "./conf/perception/lidar/modules/pointcloud_preprocessor.config"
model_config_path: "./conf/perception/lidar/modules/roi_boundary_filter.config"
model_config_path: "./conf/perception/lidar/modules/hdmap_roi_filter.config"
model_config_path: "./conf/perception/lidar/modules/cnnseg.config"
model_config_path: "./conf/perception/lidar/modules/ncut.config"
model_config_path: "./conf/perception/lidar/modules/spatio_temporal_ground_detector.config"
model_config_path: "./conf/perception/lidar/modules/lidar_obstacle_pipeline.config"
model_config_path: "./conf/perception/lidar/modules/fused_classifier.config"
model_config_path: "./conf/perception/lidar/modules/multi_lidar_fusion.config"
model_config_path: "./conf/perception/lidar/modules/roi_service.config"
model_config_path: "./conf/perception/lidar/modules/ground_service.config"
model_config_path: "./conf/perception/lidar/modules/ground_service_detector.config"

可以看出其实就是对ModelConfigFileListProto消息中的model_config_path成员变量进行了实例化，指明了参数定义文件的路径。例如lidar_obstacle_pipeline.config，我们打开modules/conti_ars_preprocessor.config看下具体内容：

model_configs {
    name: "LidarObstacleDetection"
    version: "1.0.0"
    string_params {
        name: "root_path"
        value: "./data/perception/lidar/models/lidar_obstacle_pipeline"
    }
}

model_configs {
    name: "LidarObstacleTracking"
    version: "1.0.0"
    string_params {
        name: "root_path"
        value: "./data/perception/lidar/models/lidar_obstacle_pipeline"
    }
}

可以看到，该配置文件包含激光雷达检测和跟踪两个功能，这个文件其实就是对MultiModelConfigProto消息中的model_configs成员变量进行了初始化，name是功能类名

detection——Proc

初始化函数剖析完了，接下来看组件detection_component的Proc函数，主要调用Process() 算法处理逻辑

      bool DetectionComponent::Proc(const std::shared_ptr<drivers::PointCloud> &message)
      {
        AINFO << std::setprecision(16)
              << "Enter detection component, message timestamp: "
              << message->measurement_time()
              << " current timestamp: " << Clock::NowInSeconds();

        auto out_message = std::make_shared<LidarFrameMessage>();

        bool status = InternalProc(message, out_message);
        if (status)
        {
          writer_->Write(out_message);
          AINFO << "Send lidar detect output message.";
        }
        return status;
      }

Proc调用InternalProc方法，InternalProc继续调用apollo/modules/perception/lidar/app/lidar_obstacle_detection.h中的Process() 算法处理逻辑

看InternalProc方法，备注源码如下：

      bool DetectionComponent::InternalProc(
          const std::shared_ptr<const drivers::PointCloud> &in_message,
          const std::shared_ptr<LidarFrameMessage> &out_message)
      /*
      输入：drivers::PointCloud 原始点云
      输出：LidarFrameMessaglidar 处理结果
      */
      { // 序列号
        uint32_t seq_num = seq_num_.fetch_add(1);
        // 时间戳
        const double timestamp = in_message->measurement_time();
        // 当前时间
        const double cur_time = Clock::NowInSeconds();
        const double start_latency = (cur_time - timestamp) * 1e3;
        AINFO << std::setprecision(16) << "FRAME_STATISTICS:Lidar:Start:msg_time["
              << timestamp << "]:sensor[" << sensor_name_ << "]:cur_time[" << cur_time
              << "]:cur_latency[" << start_latency << "]";

        out_message->timestamp_ = timestamp;
        out_message->lidar_timestamp_ = in_message->header().lidar_timestamp();
        out_message->seq_num_ = seq_num;
        // 处理状态：检测
        out_message->process_stage_ = ProcessStage::LIDAR_DETECTION;
        // 错误码
        out_message->error_code_ = apollo::common::ErrorCode::OK;

        auto &frame = out_message->lidar_frame_;
        // 并发对象池，结合单例模式，获取目标的智能指针
        // 思想：一个对象只能有一个池子,用对象从池子里面取,每个池子有一个管理者来管理所对应的池子,取对象从管理者这里申请
        frame = lidar::LidarFramePool::Instance().Get();
        frame->cloud = base::PointFCloudPool::Instance().Get();
        frame->timestamp = timestamp;
        frame->sensor_info = sensor_info_;

        Eigen::Affine3d pose = Eigen::Affine3d::Identity();
        Eigen::Affine3d pose_novatel = Eigen::Affine3d::Identity();
        const double lidar_query_tf_timestamp = timestamp - lidar_query_tf_offset_ * 0.001;
        // 获取当前帧 坐标系到世界坐标系的位置变换，GPS到世界坐标系的位置变换
        // transform_wrapper原理和ROS tf变换一致，首先各传感器的位置关系需要通过广播形式发送出去
        if (!lidar2world_trans_.GetSensor2worldTrans(lidar_query_tf_timestamp, &pose, &pose_novatel))
        {
          out_message->error_code_ = apollo::common::ErrorCode::PERCEPTION_ERROR_TF;
          AERROR << "Failed to get pose at time: " << lidar_query_tf_timestamp;
          return false;
        }
        frame->lidar2world_pose = pose;
        frame->novatel2world_pose = pose_novatel;

        // 传感器名和lidar传感器转GPS的外参转换矩阵
        lidar::LidarObstacleDetectionOptions detect_opts;
        detect_opts.sensor_name = sensor_name_;
        // lidar到世界坐标系的变换 *lidar2world_trans_  =  *detect_opts.sensor2novatel_extrinsics
        lidar2world_trans_.GetExtrinsics(&detect_opts.sensor2novatel_extrinsics);
        // 掉用LidarObstacleDetection类的Process方法
        // frame.get() 获取存储的指针
        lidar::LidarProcessResult ret = detector_->Process(detect_opts, in_message, frame.get());
        if (ret.error_code != lidar::LidarErrorCode::Succeed)
        {
          out_message->error_code_ =
              apollo::common::ErrorCode::PERCEPTION_ERROR_PROCESS;
          AERROR << "Lidar detection process error, " << ret.log;
          return false;
        }

        return true;
      }

看下LidarFrameMessage和LidarFrame，字段需要了解，不然都不知道啥意思

类LidarFrameMessage

class LidarFrameMessage {
 public:
  LidarFrameMessage() : lidar_frame_(nullptr) {
    type_name_ = "LidarFrameMessage";
  }

  ~LidarFrameMessage() = default;

  std::string GetTypeName() const { return type_name_; }

  LidarFrameMessage* New() const { return new LidarFrameMessage; }

 public:
  double timestamp_ = 0.0;
  uint64_t lidar_timestamp_ = 0;
  uint32_t seq_num_ = 0;
  std::string type_name_;
  ProcessStage process_stage_ = ProcessStage::UNKNOWN_STAGE;
  apollo::common::ErrorCode error_code_ = apollo::common::ErrorCode::OK;
  std::shared_ptr<lidar::LidarFrame> lidar_frame_;
};

结构体：LidarFrame

struct LidarFrame {
  EIGEN_MAKE_ALIGNED_OPERATOR_NEW

  // point cloud
  std::shared_ptr<base::AttributePointCloud<base::PointF>> cloud;
  // world point cloud
  std::shared_ptr<base::AttributePointCloud<base::PointD>> world_cloud;
  // timestamp
  double timestamp = 0.0;
  // lidar to world pose
  Eigen::Affine3d lidar2world_pose = Eigen::Affine3d::Identity();
  // lidar to world pose
  Eigen::Affine3d novatel2world_pose = Eigen::Affine3d::Identity();
  // hdmap struct
  std::shared_ptr<base::HdmapStruct> hdmap_struct = nullptr;
  // segmented objects
  std::vector<std::shared_ptr<base::Object>> segmented_objects;
  // tracked objects
  std::vector<std::shared_ptr<base::Object>> tracked_objects;
  // point cloud roi indices
  base::PointIndices roi_indices;
  // point cloud non ground indices
  base::PointIndices non_ground_indices;
  // secondary segmentor indices
  base::PointIndices secondary_indices;
  // sensor info
  base::SensorInfo sensor_info;
  // reserve string
  std::string reserve;

  void Reset() {
    if (cloud) {
      cloud->clear();
    }
    if (world_cloud) {
      world_cloud->clear();
    }
    timestamp = 0.0;
    lidar2world_pose = Eigen::Affine3d::Identity();
    novatel2world_pose = Eigen::Affine3d::Identity();
    if (hdmap_struct) {
      hdmap_struct->road_boundary.clear();
      hdmap_struct->road_polygons.clear();
      hdmap_struct->junction_polygons.clear();
      hdmap_struct->hole_polygons.clear();
    }
    segmented_objects.clear();
    tracked_objects.clear();
    roi_indices.indices.clear();
    non_ground_indices.indices.clear();
    secondary_indices.indices.clear();
  }

  void FilterPointCloud(base::PointCloud<base::PointF> *filtered_cloud,
                        const std::vector<uint32_t> &indices) {
    if (cloud && filtered_cloud) {
      filtered_cloud->CopyPointCloudExclude(*cloud, indices);
    }
  }
};  // struct LidarFrame

#define UNUSED(param) (void)param
假如一个有返回值的函数，如调用时是没有使用它的返回值，编译器会给出一个警告，如果用void强制转换一下，则明确告诉编译器不使用返回值，也就是为了消除警告

接下来看detector_->Process() 算法逻辑

      LidarProcessResult LidarObstacleDetection::Process(
          const LidarObstacleDetectionOptions &options,const std::shared_ptr<apollo::drivers::PointCloud const> &message, LidarFrame *frame)
      {
        const auto &sensor_name = options.sensor_name;
        // 用来屏蔽无效參数的,消除警告
        PERF_FUNCTION_WITH_INDICATOR(options.sensor_name);

        PERF_BLOCK_START();

        PointCloudPreprocessorOptions preprocessor_options;        // 传感器转GPS的外参
        preprocessor_options.sensor2novatel_extrinsics = options.sensor2novatel_extrinsics;
        PERF_BLOCK_END_WITH_INDICATOR(sensor_name, "preprocess");
        // 点云预处理
        if (cloud_preprocessor_->Preprocess(preprocessor_options, message, frame))
        {
          return ProcessCommon(options, frame);          // 模型推理
        }
        return LidarProcessResult(LidarErrorCode::PointCloudPreprocessorError,
                                  "Failed to preprocess point cloud.");
      }

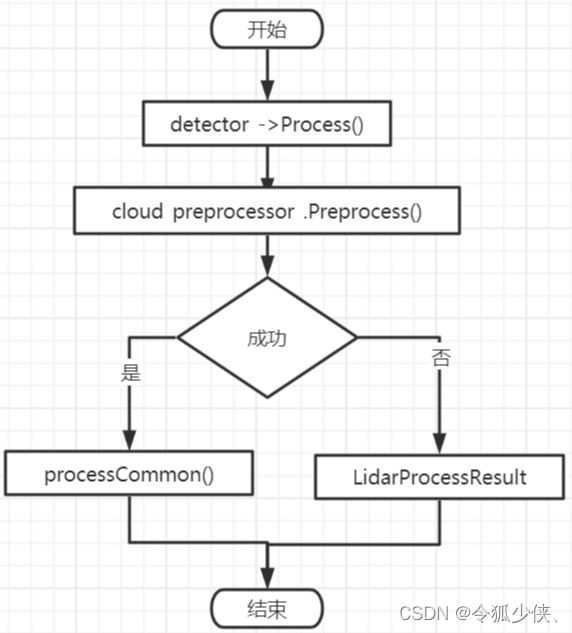

阅读代码，可以得到这样的流程图

在这里插入图片描述

点云预处理

比较简单，就是去除点云中的NaN点，对xyz范围过滤，剔除车身周围点，然后将点云（位置xyz，时间戳，高度height，beam_id，标签label）形式存储到LidarFrame结构体中，后将点云转换到世界坐标系下

bool PointCloudPreprocessor::Preprocess(
    const PointCloudPreprocessorOptions& options,
    const std::shared_ptr<apollo::drivers::PointCloud const>& message,
    LidarFrame* frame) const {
  if (frame == nullptr) {
    return false;
  }
  if (frame->cloud == nullptr) {
    // 点云对象池，结合单例设计模式
    frame->cloud = base::PointFCloudPool::Instance().Get();
  }
  if (frame->world_cloud == nullptr) {
    frame->world_cloud = base::PointDCloudPool::Instance().Get();
  }
  frame->cloud->set_timestamp(message->measurement_time());
  if (message->point_size() > 0) {
    // 设置该帧点云数大小
    frame->cloud->reserve(message->point_size());
    base::PointF point;
    for (int i = 0; i < message->point_size(); ++i) {
      const apollo::drivers::PointXYZIT& pt = message->point(i);
      // 过滤无效点
      if (filter_naninf_points_) {
        if (std::isnan(pt.x()) || std::isnan(pt.y()) || std::isnan(pt.z())) {
          continue;
        }
        // 过滤超范围的点
        if (fabs(pt.x()) > kPointInfThreshold ||
            fabs(pt.y()) > kPointInfThreshold ||
            fabs(pt.z()) > kPointInfThreshold) {
          continue;
        }
      }
      Eigen::Vector3d vec3d_lidar(pt.x(), pt.y(), pt.z());
      // 点在GPS坐标系的xyz位置
      Eigen::Vector3d vec3d_novatel = options.sensor2novatel_extrinsics * vec3d_lidar;
      // 过滤车身范围内的点云，消除车身反射的影响
      if (filter_nearby_box_points_ && vec3d_novatel[0] < box_forward_x_ &&
          vec3d_novatel[0] > box_backward_x_ &&
          vec3d_novatel[1] < box_forward_y_ &&
          vec3d_novatel[1] > box_backward_y_) {
        continue;
      }
      // Z方向点云过滤
      if (filter_high_z_points_ && pt.z() > z_threshold_) {
        continue;
      }
      point.x = pt.x();
      point.y = pt.y();
      point.z = pt.z();
      point.intensity = static_cast<float>(pt.intensity());
      // 点的点云位置xyz，时间戳，高度height（float的最大值），beam_id(点在原始点云中的索引)，标签label
      frame->cloud->push_back(point, static_cast<double>(pt.timestamp()) * 1e-9,std::numeric_limits<float>::max(), i, 0);
    }
    // 将预处理后点云针转换到世界坐标系下
    TransformCloud(frame->cloud, frame->lidar2world_pose, frame->world_cloud);
  }
  return true;
}

高精地图定位信息获取

简单介绍下高精度地图：

传统地图的技术尚未达到自动驾驶的需求，高精地图更类似于自动驾驶的专题组，但国内可能为了称谓方便还是称它为高精地图。高精地图并不是特指精度，它在描述上更加的全面、准确和清晰，对实时性的要求更高。
自动驾驶车辆搭载的传感器类型有很多，但64线激光雷达、Camera和Radar等传感器都有一定局限性，基于这些传感器本身的局限性，高精地图能够提供非常大的帮助。开发者可以把高精地图看作是离线的传感器，高精地图里已标注了道路元素的位置。出现物体的遮挡时，感知模块就可以提前做针对性的检测（感兴趣区域ROI），不仅可以减少感知模块的工作量，而且可以解决Deep Learning 的部分缺陷。识别可能会有些误差，但先验之后可提高识别率。

高精地图的主要特征：描述车道、车道的边界线、道路上各种交通设施和人行横道，即把所有东西、所有人能看到的影响交通驾驶行为的特性全部表述出来。

根据高精度地图hdmap（高度自动驾驶地图），查询当前帧点云的位置（常用采用ndt点云定位，它是一种scan-to-map的点云配准算法），获取高精地图中定位位置后，查找离定位位置距离为roi_search_distance_的所有道路、交叉路口的信息的road_polygons、road_boundary、hole_polygons、junction_polygons存到frame里

代码位置：apollo/modules/perception/lidar/lib/map_manager/map_manager.cc

bool MapManager::Update(const MapManagerOptions& options, LidarFrame* frame) {
  if (!frame) {// 判断点云是否为空
    AINFO << "Frame is nullptr.";
    return false;
  }
  if (!(frame->hdmap_struct)) {
    frame->hdmap_struct.reset(new base::HdmapStruct); // 重置地图
  }
  if (!hdmap_input_)
  { // 看看输入的地图是否为空初始化的时候给它赋的值
    AINFO << "Hdmap input is nullptr";
    return false;
  }
  if (update_pose_) // 是否需要更新位置
  {                 // 获取自身定位
    if (!QueryPose(&(frame->lidar2world_pose))) {
      AINFO << "Failed to query updated pose.";
    }
  }

  base::PointD point; // 设置一个point接收定位信息
  point.x = frame->lidar2world_pose.translation()(0);
  point.y = frame->lidar2world_pose.translation()(1);
  point.z = frame->lidar2world_pose.translation()(2);

  /*
  获取高精地图中，离我们所在定位位置距离为roi_search_distance_的所有道路信息
  的road_polygons、road_boundary、hole_polygons、junction_polygons存到frame里
  如果没有则hdmap_input_->GetRoiHDMapStruct（）返回false，所有的道路信息置空
  */
  if (!hdmap_input_->GetRoiHDMapStruct(point, roi_search_distance_,frame->hdmap_struct)) {
    // 路面的polygons多边形信息
    frame->hdmap_struct->road_polygons.clear();
    // 道路边界线
    frame->hdmap_struct->road_boundary.clear();
    // hole_polygonsm 没太看懂，没怎么用到这个信息
    frame->hdmap_struct->hole_polygons.clear();
    // 交叉路口多边形信息
    frame->hdmap_struct->junction_polygons.clear();
    AINFO << "Failed to get roi from hdmap.";
  }
  return true;
}

具体的GetRoiHDMapStruct()我也没太细看，有空再花点时间理理，代码位置：apollo/modules/perception/map/hdmap/hdmap_input.c

bool HDMapInput::GetRoiHDMapStruct(
    const base::PointD& pointd, const double distance,
    std::shared_ptr<base::HdmapStruct> hdmap_struct_ptr) {
  lib::MutexLock lock(&mutex_);
  if (hdmap_.get() == nullptr) {
    AERROR << "hdmap is not available";
    return false;
  }
  // Get original road boundary and junction
  std::vector<RoadRoiPtr> road_boundary_vec;
  std::vector<JunctionInfoConstPtr> junctions_vec;
  apollo::common::PointENU point;
  point.set_x(pointd.x);
  point.set_y(pointd.y);
  point.set_z(pointd.z);
  // 首先判断判断指针是否非空；接着调用hdmap_对象的GetRoadBoundaries()方法获取路面边界和路口信息
  if (hdmap_->GetRoadBoundaries(point, distance, &road_boundary_vec,
                                &junctions_vec) != 0) {
    AERROR << "Failed to get road boundary, point: " << point.DebugString();
    return false;
  }
  if (hdmap_struct_ptr == nullptr) {
    return false;
  }
  hdmap_struct_ptr->hole_polygons.clear();
  hdmap_struct_ptr->junction_polygons.clear();
  hdmap_struct_ptr->road_boundary.clear();
  hdmap_struct_ptr->road_polygons.clear();

  // Merge boundary and junction
  EigenVector<base::RoadBoundary> road_boundaries;
  // 将存储路面和路口信息的变量整合到hdmap_struct_ptr指向的变量中
  MergeBoundaryJunction(road_boundary_vec, junctions_vec, &road_boundaries,
                        &(hdmap_struct_ptr->road_polygons),
                        &(hdmap_struct_ptr->junction_polygons));
  // Filter road boundary by junction
  // 利用路口信息过滤掉多余的路面信息
  GetRoadBoundaryFilteredByJunctions(road_boundaries,
                                     hdmap_struct_ptr->junction_polygons,
                                     &(hdmap_struct_ptr->road_boundary));
  return true;
}

apollo5.0获取地位信息后，还需要经过高精地图ROI过滤器（HDMap ROI Filter），从高精地图检索到包含路面、路口的可驾驶区域后送入分割，apollo6.0，7.0取消了分割，直接送入3D点云检测模块

障碍物检测

Apollo 7.0 中引入 MaskPointPillar 激光雷达检测算法，本文先看pointPillar 算法，重点阐述下pointpillar的整体流程，具体cuda版Inference细节，之后另开一篇文章阐述，不熟悉pointpillar可以先去看看相关的论文。

代码路径：：apollo/modules/perception/lidar/lib/detector/point_pillars_detection/point_pillars_detection.cc

调用PointPillarsDetection的detect方法

参数都是调用apollo/modules/perception/common/perception_gflags.h封好的宏，这些宏通过调用google的gflags库，解析命令行参数，perception所有的命令行参数在/apollo/modules/perception/production/conf/perception/perception_common.flag配置

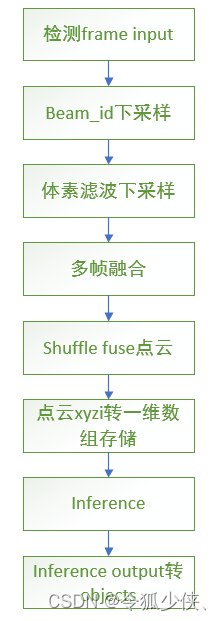

PointPillarsDetection的流程图：
在这里插入图片描述

bool PointPillarsDetection::Detect(const LidarDetectorOptions& options,
                                   LidarFrame* frame) {
  // check input
  if (frame == nullptr) {
    AERROR << "Input null frame ptr.";
    return false;
  }
  if (frame->cloud == nullptr) {
    AERROR << "Input null frame cloud.";
    return false;
  }
  if (frame->cloud->size() == 0) {
    AERROR << "Input none points.";
    return false;
  }

  // record input cloud and lidar frame
  original_cloud_ = frame->cloud;
  original_world_cloud_ = frame->world_cloud;
  lidar_frame_ref_ = frame;

  // check output
  frame->segmented_objects.clear();
  // FLAGS_gpu_id 默认为0，使用0号显卡
  if (cudaSetDevice(FLAGS_gpu_id) != cudaSuccess) {
    AERROR << "Failed to set device to gpu " << FLAGS_gpu_id;
    return false;
  }
  // 调用Tine构造函数，成员变量_start = std::chrono::system_clock::now(); // 获取系统的时间戳，单位微秒
  Timer timer;

  int num_points;
  cur_cloud_ptr_ = std::shared_ptr<base::PointFCloud>(new base::PointFCloud(*original_cloud_));

  // down sample the point cloud through filtering beams
  // FLAGS_enable_downsample_beams 默认 false
  if (FLAGS_enable_downsample_beams) {
    base::PointFCloudPtr downsample_beams_cloud_ptr(new base::PointFCloud());
    // beam_id下采样，下采样因子FLAGS_downsample_beams_factor默认为4，减少点云数据量
    if (DownSamplePointCloudBeams(original_cloud_, downsample_beams_cloud_ptr,FLAGS_downsample_beams_factor)) {
      cur_cloud_ptr_ = downsample_beams_cloud_ptr;
    } else {
      AWARN << "Down-sample beams factor must be >= 1. Cancel down-sampling."
               " Current factor: "
            << FLAGS_downsample_beams_factor;
    }
  }

  // down sample the point cloud through filtering voxel grid
  // 体素滤波下采样，FLAGS_enable_downsample_pointcloud默认为false
  if (FLAGS_enable_downsample_pointcloud) {
    pcl::PointCloud<pcl::PointXYZI>::Ptr pcl_cloud_ptr(new pcl::PointCloud<pcl::PointXYZI>());
    pcl::PointCloud<pcl::PointXYZI>::Ptr filtered_cloud_ptr(new pcl::PointCloud<pcl::PointXYZI>());
    TransformToPCLXYZI(*cur_cloud_ptr_, pcl_cloud_ptr);
    // 下采样尺寸xyz分为默认为0.01
    DownSampleCloudByVoxelGrid(pcl_cloud_ptr, filtered_cloud_ptr, FLAGS_downsample_voxel_size_x,FLAGS_downsample_voxel_size_y, FLAGS_downsample_voxel_size_z);

    // transform pcl point cloud to apollo point cloud
    base::PointFCloudPtr downsample_voxel_cloud_ptr(new base::PointFCloud());
    TransformFromPCLXYZI(filtered_cloud_ptr, downsample_voxel_cloud_ptr);
    cur_cloud_ptr_ = downsample_voxel_cloud_ptr;
  }
  // 计算下采样时间
  downsample_time_ = timer.toc(true);

  num_points = cur_cloud_ptr_->size();
  AINFO << "num points before fusing: " << num_points;

  // fuse clouds of preceding frames with current cloud
  // fuse 的是当前的点云和的点云，作用：当点云比较稀疏时，为了提升检测效果，一般会把当前帧的点云和前几帧点云融合，弥补稀疏效果
  // 点云成员变量points_timestamp_初始化
  cur_cloud_ptr_->mutable_points_timestamp()->assign(cur_cloud_ptr_->size(),0.0);
  if (FLAGS_enable_fuse_frames && FLAGS_num_fuse_frames > 1) {
    // before fusing
    // 将融合时间间隔大于0.5的点过滤
    while (!prev_world_clouds_.empty() && frame->timestamp - prev_world_clouds_.front()->get_timestamp() > FLAGS_fuse_time_interval) {
      prev_world_clouds_.pop_front();
    }
    // transform current cloud to world coordinate and save to a new ptr
    // 将当前帧的点云转到世界坐标系下，包含xyzi信息
    base::PointDCloudPtr cur_world_cloud_ptr = std::make_shared<base::PointDCloud>();
    for (size_t i = 0; i < cur_cloud_ptr_->size(); ++i) {
      auto& pt = cur_cloud_ptr_->at(i);
      Eigen::Vector3d trans_point(pt.x, pt.y, pt.z);
      trans_point = lidar_frame_ref_->lidar2world_pose * trans_point;
      PointD world_point;
      world_point.x = trans_point(0);
      world_point.y = trans_point(1);
      world_point.z = trans_point(2);
      world_point.intensity = pt.intensity;
      cur_world_cloud_ptr->push_back(world_point);
    }
    cur_world_cloud_ptr->set_timestamp(frame->timestamp);

    // fusing clouds
    for (auto& prev_world_cloud_ptr : prev_world_clouds_) {
      num_points += prev_world_cloud_ptr->size();
    }
    // 将过滤后的之前点云加入到当前帧点云中
    FuseCloud(cur_cloud_ptr_, prev_world_clouds_);

    // after fusing
    // FLAGS_num_fuse_frames 默认为5
    while (static_cast<int>(prev_world_clouds_.size()) >= FLAGS_num_fuse_frames - 1) {
      prev_world_clouds_.pop_front();
    }
    prev_world_clouds_.emplace_back(cur_world_cloud_ptr);
  }
  AINFO << "num points after fusing: " << num_points;
  // 计算fuse时间
  fuse_time_ = timer.toc(true);

  // shuffle points and cut off
  // enable_shuffle_points 默认false
  if (FLAGS_enable_shuffle_points) {
    // FLAGS_max_num_points 默认为int的最大值 2^31-1
    num_points = std::min(num_points, FLAGS_max_num_points);
    // 对[0-num_points)之间索引，打乱
    std::vector<int> point_indices = GenerateIndices(0, num_points, true);
    // 获取打乱后的点云
    base::PointFCloudPtr shuffle_cloud_ptr(new base::PointFCloud(*cur_cloud_ptr_, point_indices));
    cur_cloud_ptr_ = shuffle_cloud_ptr;
  }
  // 计算数据shuffle时间
  shuffle_time_ = timer.toc(true);

  // point cloud to array
  float* points_array = new float[num_points * FLAGS_num_point_feature]();
  // FLAGS_normalizing_factor :255
  // 过滤范围外的点云，将点云数据转为一维数组
  CloudToArray(cur_cloud_ptr_, points_array, FLAGS_normalizing_factor);
  cloud_to_array_time_ = timer.toc(true);

  // inference
  std::vector<float> out_detections;
  std::vector<int> out_labels;
  point_pillars_ptr_->DoInference(points_array, num_points, &out_detections,&out_labels);
  inference_time_ = timer.toc(true);

  // transfer output bounding boxes to objects
  GetObjects(&frame->segmented_objects, frame->lidar2world_pose,&out_detections, &out_labels);
  collect_time_ = timer.toc(true);

  delete[] points_array;
  return true;
}

inference以后再细讲，继续看GetObjects方法：

作用：将推理的输出结构detections和labels转换到Object，Object包含信息有：包围框的方向direction，朝向角theta，每个类别概率type_probs，小类型概率（分的更细）sub_type，lidar_supplement结构体（包含包围框8个顶点坐标cloud，8个顶点其在世界坐标系的坐标cloud_world，检测方法的类名raw_classification_methods等。

void PointPillarsDetection::GetObjects(
    std::vector<std::shared_ptr<Object>>* objects, const Eigen::Affine3d& pose,
    std::vector<float>* detections, std::vector<int>* labels) {
  // 目标个数
  int num_objects = detections->size() / FLAGS_num_output_box_feature; // FLAGS_num_output_box_feature 为 7

  objects->clear();
  // 结合单例设计模式，调用并发对象池，创建num_objects个Object对象
  base::ObjectPool::Instance().BatchGet(num_objects, objects);

  for (int i = 0; i < num_objects; ++i) {
    auto& object = objects->at(i);
    object->id = i;

    // read params of bounding box
    float x = detections->at(i * FLAGS_num_output_box_feature + 0);
    float y = detections->at(i * FLAGS_num_output_box_feature + 1);
    float z = detections->at(i * FLAGS_num_output_box_feature + 2);
    float dx = detections->at(i * FLAGS_num_output_box_feature + 4);
    float dy = detections->at(i * FLAGS_num_output_box_feature + 3);
    float dz = detections->at(i * FLAGS_num_output_box_feature + 5);
    float yaw = detections->at(i * FLAGS_num_output_box_feature + 6);
    // 获取预测的偏航角，范围在[-pi/2,pi/2]
    yaw += M_PI / 2;
    yaw = std::atan2(sinf(yaw), cosf(yaw));
    yaw = -yaw;

    // directions
    object->theta = yaw;
    object->direction[0] = cosf(yaw);
    object->direction[1] = sinf(yaw);
    object->direction[2] = 0;
    object->lidar_supplement.is_orientation_ready = true;

    // compute vertexes of bounding box and transform to world coordinate
    object->lidar_supplement.num_points_in_roi = 8;
    object->lidar_supplement.on_use = true;
    object->lidar_supplement.is_background = false;
    float roll = 0, pitch = 0;
    // 欧拉角转旋转向量
    Eigen::Quaternionf quater =
        Eigen::AngleAxisf(roll, Eigen::Vector3f::UnitX()) *
        Eigen::AngleAxisf(pitch, Eigen::Vector3f::UnitY()) *
        Eigen::AngleAxisf(yaw, Eigen::Vector3f::UnitZ());
    Eigen::Translation3f translation(x, y, z);
    // 计算放射变换矩阵，平移向量*旋转向量
    Eigen::Affine3f affine3f = translation * quater.toRotationMatrix();
    // 包围框的8个顶点坐标，8个顶点在世界坐标系下的位置
    for (float vx : std::vector<float>{dx / 2, -dx / 2}) {
      for (float vy : std::vector<float>{dy / 2, -dy / 2}) {
        for (float vz : std::vector<float>{0, dz}) {
          Eigen::Vector3f v3f(vx, vy, vz);
          v3f = affine3f * v3f;
          PointF point;
          point.x = v3f.x();
          point.y = v3f.y();
          point.z = v3f.z();
          object->lidar_supplement.cloud.push_back(point);

          Eigen::Vector3d trans_point(point.x, point.y, point.z);
          trans_point = pose * trans_point;
          PointD world_point;
          world_point.x = trans_point(0);
          world_point.y = trans_point(1);
          world_point.z = trans_point(2);
          object->lidar_supplement.cloud_world.push_back(world_point);
        }
      }
    }

    // classification
    // 枚举 MAX_OBJECT_TYPE = 6 表示大目标
    // raw_probs二维数组，表示每个分类方法的概率
    object->lidar_supplement.raw_probs.push_back(std::vector<float>(static_cast<int>(base::ObjectType::MAX_OBJECT_TYPE), 0.f));
    // Name()返回"PointPillarsDetection" ，raw_classification_methods 存储检测方法的类名
    object->lidar_supplement.raw_classification_methods.push_back(Name());
    // 获取object的子类型，比较细的划分：CAR，PEDESTRIAN，CYCLIST，UNKNOWN
    object->sub_type = GetObjectSubType(labels->at(i));
    // 大类别，分的不是很细：VEHICLE，BICYCLE，UNKNOWN_MOVABLE
    object->type = base::kSubType2TypeMap.at(object->sub_type);
    object->lidar_supplement.raw_probs.back()[static_cast<int>(object->type)] = 1.0f;
    // 每个类别的概率存储在type_probs字段
    object->type_probs.assign(object->lidar_supplement.raw_probs.back().begin(),object->lidar_supplement.raw_probs.back().end());
  }
}

数据结构Object

Object：用于表征一帧检测中每个检测物体/检测框的一些属性，文件位置：Apollo/modules/perception/base/object.h

只看boundingbox相关的字段信息，Object结构体如下：

struct alignas(16) Object {
  EIGEN_MAKE_ALIGNED_OPERATOR_NEW

  Object();
  std::string ToString() const;
  void Reset();

  int id = -1;// 每帧object的id,必要
  // @brief convex hull of the object, required
  PointCloud<PointD> polygon;// object拟合凸多边形的顶点坐标,必要

  // 方向包围框的信息
  Eigen::Vector3f direction = Eigen::Vector3f(1, 0, 0); // 方向向量,必要
  float theta = 0.0f;  // 包围框朝向角，即偏航角yaw
  float theta_variance = 0.0f;  // 角度方差,必要
  Eigen::Vector3d center = Eigen::Vector3d(0, 0, 0);// 包围框中心坐标(cx, cy, cz),必要
  Eigen::Matrix3f center_uncertainty; // center不确定性的协方差矩阵,必要
  Eigen::Vector3f size = Eigen::Vector3f(0, 0, 0);// 包围框的[length, width, height]，length必要的
  Eigen::Vector3f size_variance = Eigen::Vector3f(0, 0, 0);//size 的方差，必要的
  // @brief anchor point, required
  Eigen::Vector3d anchor_point = Eigen::Vector3d(0, 0, 0);

  ObjectType type = ObjectType::UNKNOWN; // 类别，必要的
  std::vector<float> type_probs; // 每个类别的概率，必要的

  ObjectSubType sub_type = ObjectSubType::UNKNOWN; // 子类型，可选
  std::vector<float> sub_type_probs; // 子类型的概率，可选

  float confidence = 1.0f; // 存在置信度，必要的

  // @brief sensor-specific object supplements, optional
  LidarObjectSupplement lidar_supplement;
};

LidarObjectSupplement 结构体提供该Object的一些原始数据，以及不在Object类别定义中的各种传感器特有的东西，Object定义为所有module共用的部分

GetObjects方法分类部分，根据字典映射，将子类别sub_type转为大类别type，kSubType2TypeMap字典如下：

/**
 * ObjectSubType mapping
 */
const std::map<ObjectSubType, ObjectType> kSubType2TypeMap = {
    {ObjectSubType::UNKNOWN, ObjectType::UNKNOWN},
    {ObjectSubType::UNKNOWN_MOVABLE, ObjectType::UNKNOWN_MOVABLE},
    {ObjectSubType::UNKNOWN_UNMOVABLE, ObjectType::UNKNOWN_UNMOVABLE},
    {ObjectSubType::CAR, ObjectType::VEHICLE},
    {ObjectSubType::VAN, ObjectType::VEHICLE},
    {ObjectSubType::TRUCK, ObjectType::VEHICLE},
    {ObjectSubType::BUS, ObjectType::VEHICLE},
    {ObjectSubType::CYCLIST, ObjectType::BICYCLE},
    {ObjectSubType::MOTORCYCLIST, ObjectType::BICYCLE},
    {ObjectSubType::TRICYCLIST, ObjectType::BICYCLE},
    {ObjectSubType::PEDESTRIAN, ObjectType::PEDESTRIAN},
    {ObjectSubType::TRAFFICCONE, ObjectType::UNKNOWN_UNMOVABLE},
    {ObjectSubType::MAX_OBJECT_TYPE, ObjectType::MAX_OBJECT_TYPE},
};

障碍物边框构建

看apollo/modules/perception/lidar/app/lidar_obstacle_detection.cc中的ProcessCommo方法：

        if (use_object_builder_)
        {
          ObjectBuilderOptions builder_options;
          if (!builder_.Build(builder_options, frame))
          {
            return LidarProcessResult(LidarErrorCode::ObjectBuilderError,"Failed to build objects.");
          }
        }

上面代码会调用类ObjectBuilder的Build方法，代码位于：apollo/modules/perception/lidar/lib/object_builder/object_builder.cc

该模块为检测到的障碍物构建边界框。由于遮挡或距离对激光雷达的影响，点云形成障碍物可能存在稀疏或只覆盖了障碍物表面的一部分。因此，边界框构建器的工作就是恢复完整的边界框并给出边界框点。边界框的主要目的是估计障碍物的名称，即便点云数据是稀疏的。同样地，边界框也被用于可视化障碍物。

apollo边框构建主要计算Object结构体的字段信息，如：

拟合凸多边形的顶点坐标polygon ，调用Apollo/modules/perception/common/geometry/convex_hull_2d.h的GetConvexHull
bounding-box的点云的尺寸size和中心center，调用Apollo/modules/perception/common/geometry/common.h的CalculateBBoxSizeCenter2DXY
object其它的信息，包括：object->anchor_point，object->latest_tracked_time

static const float kEpsilonForSize = 1e-2f;
static const float kEpsilonForLine = 1e-3f;
using apollo::perception::base::PointD;
using apollo::perception::base::PointF;
using ObjectPtr = std::shared_ptr<apollo::perception::base::Object>;
using PointFCloud = apollo::perception::base::PointCloud<PointF>;
using PolygonDType = apollo::perception::base::PointCloud<PointD>;

bool ObjectBuilder::Init(const ObjectBuilderInitOptions& options) {
  return true;
}

bool ObjectBuilder::Build(const ObjectBuilderOptions& options,LidarFrame* frame) {
  if (frame == nullptr) {
    return false;
  }
  std::vector<ObjectPtr>* objects = &(frame->segmented_objects);
  for (size_t i = 0; i < objects->size(); ++i) {
    if (objects->at(i)) {
      objects->at(i)->id = static_cast<int>(i);
      // // 计算点云拟合的凸多边形
      ComputePolygon2D(objects->at(i));
      // 计算3d bounding-box的点云的尺寸和中心
      ComputePolygonSizeCenter(objects->at(i));
      // 计算object其它的信息，包括：anchor_point,latest_tracked_time
      ComputeOtherObjectInformation(objects->at(i));
    }
  }
  return true;
}

void ObjectBuilder::ComputePolygon2D(ObjectPtr object) {
  Eigen::Vector3f min_pt;
  Eigen::Vector3f max_pt;
  PointFCloud& cloud = object->lidar_supplement.cloud;
  // 获取object点云的xyz最大和最小值
  GetMinMax3D(cloud, &min_pt, &max_pt);
  // PointPillarsDetection::GetObjects计算cloud.size()为8，代表8个顶点，走不到这部
  if (cloud.size() < 4u) {
    SetDefaultValue(min_pt, max_pt, object);
    return;
  }
  // 判断是否为线程扰动，不是是线性扰动，需要第一个点x加上kEpsilonForLine，第二个点y加上kEpsilonForLine
  LinePerturbation(&cloud);
  common::ConvexHull2D<PointFCloud, PolygonDType> hull;
  // 计算点云拟合的凸多边形顶点坐标，存储在polygon字段中
  hull.GetConvexHull(cloud, &(object->polygon));
}

void ObjectBuilder::ComputeOtherObjectInformation(ObjectPtr object) {
  object->anchor_point = object->center;
  double timestamp = 0.0;
  size_t num_point = object->lidar_supplement.cloud.size();
  for (size_t i = 0; i < num_point; ++i) {
    timestamp += object->lidar_supplement.cloud.points_timestamp(i);
  }
  if (num_point > 0) {
    timestamp /= static_cast<double>(num_point);
  }
  // 最近测量的时间戳，latest_tracked_time是必要的
  object->latest_tracked_time = timestamp;
}

void ObjectBuilder::ComputePolygonSizeCenter(ObjectPtr object) {
  if (object->lidar_supplement.cloud.size() < 4u) {
    return;
  }
  Eigen::Vector3f dir = object->direction;
  // 计算3d bounding-box的点云的尺寸和中心
  common::CalculateBBoxSizeCenter2DXY(object->lidar_supplement.cloud, dir,&(object->size), &(object->center));
  // PointPillarsDetection::GetObject函数中is_background设为false
  if (object->lidar_supplement.is_background) {
    float length = object->size(0);
    float width = object->size(1);
    Eigen::Matrix<float, 3, 1> ortho_dir(-object->direction(1),object->direction(0), 0.0);
    // 保证object的size中第一个值是最大的
    if (length < width) {
      object->direction = ortho_dir;
      object->size(0) = width;
      object->size(1) = length;
    }
  }
  // 对于小于kEpsilonForSize的size，将其设为大小kEpsilonForSize
  for (size_t i = 0; i < 3; ++i) {
    if (object->size(i) < kEpsilonForSize) { // kEpsilonForSize = 1e-2f
      object->size(i) = kEpsilonForSize;
    }
  }
  object->theta = static_cast<float>(atan2(object->direction(1), object->direction(0)));
}

Bounding_box过滤

代码位置：/root/apollo_ws/apollo/modules/perception/lidar/lib/object_filter_bank/object_filter_bank.cc

先看下初始化函数init，直接看代码，注释很详细，参数读取过程都是相同的

bool ObjectFilterBank::Init(const ObjectFilterInitOptions& options) {
  auto config_manager = lib::ConfigManager::Instance();
  const lib::ModelConfig* model_config = nullptr;
  // 第一次调用GetModelConfig已经初始化，直接从字典model_config_map_查找"ObjectFilterBank"文件的信息，以proto存储的
  // apollo/modules/perception/production/conf/perception/lidar/modules/object_filter_bank.config
  ACHECK(config_manager->GetModelConfig(Name(), &model_config));
  const std::string work_root = config_manager->work_root();
  std::string config_file;
  std::string root_path;
  // ./data/perception/lidar/models/object_filter_bank
  ACHECK(model_config->get_value("root_path", &root_path));
  // apollo/modules/perception/production//data/perception/lidar/models/object_filter_bank
  config_file = GetAbsolutePath(work_root, root_path);
  // apollo/modules/perception/production/data/perception/lidar/models/object_filter_bank/velodyne128
  config_file = GetAbsolutePath(config_file, options.sensor_name);
  // apollo/modules/perception/production/data/perception/lidar/models/object_filter_bank/velodyne128/filter_bank.conf
  config_file = GetAbsolutePath(config_file, "filter_bank.conf");
  // proto定义message文件路径：pollo/modules/perception/lidar/lib/object_filter_bank/proto/filter_bank_config.proto
  FilterBankConfig config;
  // 用定义的meaage读取filter_bank.conf文件信息
  ACHECK(apollo::cyber::common::GetProtoFromFile(config_file, &config));
  filter_bank_.clear();
  for (int i = 0; i < config.filter_name_size(); ++i) {
    const auto& name = config.filter_name(i); // ROIBoundaryFilter
    // 通过工厂方法模式获取 ROIBoundaryFilter 类的实例指针，也是多态运用
    BaseObjectFilter* filter = BaseObjectFilterRegisterer::GetInstanceByName(name);
    if (!filter) {
      AINFO << "Failed to find object filter: " << name << ", skipped";
      continue;
    }
    // 调用ROIBoundaryFilter::Init函数
    if (!filter->Init()) {
      AINFO << "Failed to init object filter: " << name << ", skipped";
      continue;
    }
    filter_bank_.push_back(filter);
    AINFO << "Filter bank add filter: " << name;
  }
  return true;
}

类ROIBoundaryFilter的初始化init方法，初始化读取参数过程都是类似的，代码如下：

代码路径：apollo/modules/perception/lidar/lib/object_filter_bank/roi_boundary_filter/roi_boundary_filter.cc

bool ROIBoundaryFilter::Init(const ObjectFilterInitOptions& options) {
  auto config_manager = lib::ConfigManager::Instance();
  const lib::ModelConfig* model_config = nullptr;
  // 第一次调用GetModelConfig已经初始化，直接从字典model_config_map_查找"ROIBoundaryFilter"文件的信息，以proto存储的
  // apollo/modules/perception/production/conf/perception/lidar/modules/roi_boundary_filter.config
  ACHECK(config_manager->GetModelConfig(Name(), &model_config));
  const std::string work_root = config_manager->work_root();
  std::string config_file;zhius
  std::string root_path;
  // data/perception/lidar/models/object_filter_bank
  ACHECK(model_config->get_value("root_path", &root_path));
  // apollo/modules/perception/production/data/perception/lidar/models/object_filter_bank
  config_file = GetAbsolutePath(work_root, root_path);
  // // apollo/modules/perception/production/data/perception/lidar/models/object_filter_bank/roi_boundary_filter.conf
  config_file = GetAbsolutePath(config_file, "roi_boundary_filter.conf");
  // proto定义message文件路径：apollo/modules/perception/proto/roi_boundary_filter_config.proto
  ROIBoundaryFilterConfig config;
  // 用定义的meaage读取roi_boundary_filter.conf文件信息
  ACHECK(cyber::common::GetProtoFromFile(config_file, &config));
  distance_to_boundary_threshold_ = config.distance_to_boundary_threshold(); // -1.0
  confidence_threshold_ = config.confidence_threshold();                     // 0.5
  cross_roi_threshold_ = config.cross_roi_threshold();                       // 0.6
  inside_threshold_ = config.inside_threshold();                             // 1.0
  return true;
}

下面看 ObjectFilterBank的处理逻辑，就是对检测build出的objects目标进行ROIBoundaryFilter，即调用之前找到的激光雷达周围高精度地图感兴趣区域，来限定部分激光雷达目标；

bool ObjectFilterBank::Filter(const ObjectFilterOptions& options,
                              LidarFrame* frame) {
  size_t object_number = frame->segmented_objects.size(); // 包围框bounding_box的数量
  for (auto& filter : filter_bank_) {
    // 调用ROIBoundaryFilter::Filter方法
    if (!filter->Filter(options, frame)) {
      AINFO << "Failed to filter objects in: " << filter->Name(); // ROIBoundaryFilter
    }
  }
  AINFO << "Object filter bank, filtered objects size: from " << object_number
        << " to " << frame->segmented_objects.size();
  return true;
}

根据高精度地图的道路和交叉路口信息对边框构建器ObjectBuilder得到的objects进行过滤，ROIBoundaryFilter::Filter方法具体就不作展开

欢迎大家关注笔者，你的关注是我持续更博的最大动力

最后

以上就是苗条睫毛膏为你收集整理的Apollo 7.0——percception：lidar源码剖析（万字长文）组件启动激光感知的全部内容，希望文章能够帮你解决Apollo 7.0——percception：lidar源码剖析（万字长文）组件启动激光感知所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。

本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。

本文分类：apollo
浏览次数：83 次浏览
发布日期：2023-08-10 23:25:04
本文链接：https://www.kaopuke.com/article/k-p-k_14_uzo_22_f5_12__23__22_x.html

Apollo 7.0——percception：lidar源码剖析（万字长文）组件启动激光感知

概述

文章目录

组件启动

实现组件类

实现组件头文件

实现组件源文件

设置配置文件

启动组件

激光感知

目录结构

源码剖析

detection——init

InitAlgorithmPlugin

detection——Proc

点云预处理

高精地图定位信息获取

障碍物检测

障碍物边框构建

Bounding_box过滤

最后

评论列表共有 0 条评论

发表评论取消回复

Apollo 7.0——percception：lidar源码剖析（万字长文）组件启动激光感知

概述

文章目录

组件启动

实现组件类

实现组件头文件

实现组件源文件

设置配置文件

启动组件

激光感知

目录结构

源码剖析

detection——init

InitAlgorithmPlugin

detection——Proc

点云预处理

高精地图定位信息获取

障碍物检测

障碍物边框构建

Bounding_box过滤

最后

相关文章

评论列表共有 0 条评论

发表评论 取消回复

发表评论取消回复
