结对编程，第二周作业

题目描述

此次编程为结对编程，要求两人合作。因此我选择的对象是尊贵的zffff（周峰同学）。我们的学号分别是201421123087和201421123090.

我们在个人作业1中，用各种语言实现了一个命令行的四则运算小程序。进一步，本次要求把这个程序做成GUI（可以是Windows PC 上的，也可以是Mac、Linux，web，手机上的），成为一个有基本功能、一定价值的程序。在下面的功能需求中实现两个：

1.记录用户的对错总数，程序退出再启动的时候，能把以前的对错数量保存并在此基础上增量计算。
2.有计时功能，能显示用户开始答题后的消耗时间。
3.界面支持中文简体/中文繁体/英语，用户可以选择一种；

需求分析

1.将上次基于控制台的代码改写为GUI界面；
2.需要添加计时的功能方便用户了解自己的做题时间；
3.能够记录历史的对错总数。

码云地址：https://git.oschina.net/dashboard/projects

程序设计

package main;
import java.util.*;
import java.io.*;
import javax.swing.*;
import java.awt.*;
import javax.swing.event.*;
import java.awt.event.*;
class Expression//表达式类，存放表达式
{
    int a;//第一个数
    int b;//第二个数
    int c;//正确答案
    int d;//输入答案
    char operator;//运算符
    boolean is_right;
    public Expression()
    {
        a=b=c=0;
        d = -1;
        is_right = false;
        operator = '+';
    }
}

class NumberTooBigException extends Exception
{
    String message;
    public NumberTooBigException(String ErrorMessage)
    {
        message = ErrorMessage;
    }
    public String getMessage()
    {
        return message;
    }
}

public class ArithmeticTest7
{
    Vector<Expression> v;
    public ArithmeticTest7()
    {
        v = new Vector<Expression>();
    }
    public void produceExpression(int bit,char operator)
    {
        Expression temp = new Expression();
        temp.operator = operator;
        temp.a = (int)(Math.random() * Math.pow(10,bit));
        temp.b = (int)(Math.random() * Math.pow(10,bit));
        switch (operator)
        {
            case '+': temp.c = temp.a + temp.b;break;
            case '-': temp.c = temp.a - temp.b;break;
            case '*': temp.c = temp.a * temp.b;break;
            case '/': temp.b = (temp.b == 0 ? //排除除法被除数为0的情况
                      temp.b = 1 +(int)(Math.random() * Math.pow(10,bit)-1): temp.b);
                      temp.c = temp.a / temp.b;break;
            default : mixExpression(temp,bit);//混合运算
        }

        v.add(temp);
    }
    //混合运算，产生随机数
    public void mixExpression(Expression temp,int bit)
    {
        int rand  = (int)(Math.random()*4);
        switch(rand)
        {
            case 1: temp.c = temp.a + temp.b;temp.operator = '+';break;
            case 2: temp.c = temp.a - temp.b;temp.operator = '-';break;
            case 3: temp.c = temp.a * temp.b;temp.operator = '*';break;
            case 0: temp.b = (temp.b == 0 ? //排除除法被除数为0的情况
                    temp.b = 1 +(int)(Math.random() * Math.pow(10,bit)-1): temp.b);
                    temp.c = temp.a / temp.b;temp.operator = '/';break;
            default :
        }
    }

    public  void writeInfo(int num,String userName)
    {
        File myFile = new File(userName + ".his");
        FileOutputStream fos;
        File saveUserNameAndScore = new File("UserNameAndScore.data");
        try
        {
            fos = new FileOutputStream(myFile,true);
            PrintStream ps  = new PrintStream(fos);
            double score = 0;
            ps.println(String.format("%5s%5s%5s%5s%5s%10s%5s","","","","","正确答案","你的答案","判断"));
            ps.println();
            for(int i = 0 ;i < num ;i++)
            {

                ps.println(String.format("%5d%5s%5d%5s%10d%10d%10s",v.get(i).a,"+",
                v.get(i).b,"=",v.get(i).c,v.get(i).d,(v.get(i).is_right ? "正确":"错误")));
                ps.println();
                if(v.get(i).is_right)
                {
                    score += 100.0/num;
                }
            }
            ps.println("你的总分：" + score);
            ps.close();
            fos.close();
            //下面保存用户名和得分到UserNameAndScore.data文件;
            fos = new FileOutputStream(saveUserNameAndScore,true);
            ps = new PrintStream(fos);
            ps.println(userName);
            ps.println(score);
            ps.close();
            fos.close();
        }
        catch (Exception ex)
        {
            System.out.println (ex.getMessage());
        }

    }
    public static void main(String[] s)
    {
        OverAllFrame oaf = new OverAllFrame("小学生四则运算软件V1.3 By hufeiya ZJUT");
    }
}
//主体框架
class OverAllFrame extends JFrame
{
    TimeThread timer;  //计时器线程
    ArithmeticTest7 ar ;//内部算法
    JPanel headPanel;//头面板
    JLabel welcomeLabel;//欢迎信息
    JLabel timeUse; //用时信息
    StartPanel st;
    String userName;
    RunningPanel rp;
    EndPanel ep;
    Vector<Expression> v;//存放算式
    public OverAllFrame(String s)
    {
        super(s);
        userName = JOptionPane.showInputDialog("请输入用户名","");
        this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        this.initialize();
        setHeadPanel();
        this.setLocation(400, 100);
        this.setLayout(new BorderLayout());
        this.add(headPanel,BorderLayout.NORTH);
        this.add(st,BorderLayout.CENTER);
        this.setSize(500,400);
        this.setVisible(true);
    }
    public void initialize()//初始化控件
    {
        ar = new ArithmeticTest7();
        headPanel= new JPanel();
        welcomeLabel = new JLabel("欢迎!  用户：" + userName);
        st = new StartPanel();
        rp = new RunningPanel();
        ep = new EndPanel();
        timeUse = new JLabel();
    }
    public void setHeadPanel()
    {
        headPanel.setLayout(new FlowLayout());
        headPanel.add(welcomeLabel);
        headPanel.add(timeUse);
    }
    //开始面板
    class TimeThread extends Thread //计时器线程
    {
        int min;
        int sec;
        int millis;
        long oldTime;
        long timeUsed;
        long timeSeted;
        JLabel display;
        boolean stop = false;
        public TimeThread(long timeSeted,JLabel display)
        {
            oldTime = System.currentTimeMillis();
            this.display = display;
            this.timeSeted = timeSeted;
            // TODO Auto-generated constructor stub
        }
        @Override
        public void run() {
            // TODO Auto-generated method stub
            super.run();

            do
            {
                timeUsed = System.currentTimeMillis() - oldTime;
                min = (int)(timeUsed/60000L);
                sec = (int)((timeUsed%60000L)/1000L);
                millis = (int)((timeUsed%60000L)%1000L);
                try {
                    sleep(11);
                } catch (InterruptedException e) {
                    // TODO: handle exception
                }
                display.setText("已用时:" + min+ ":" + sec +":" + millis );
                display.setVisible(true);

            }while(timeUsed <= timeSeted && !stop);
            if(!stop)//如果不是手动停止的就运行complete
                rp.complete();
        }
        public void setStop()
        {
            stop = true;
        }
    }
    class StartPanel extends JPanel
    {
        JPanel inputOptionPanel;         //输入选项面板①
        JPanel selectOperatorOptionPanel;//选择运算符面板②
        JPanel bottomPanel;              //底部面板③

        JLabel inputBitLabel;             //输入位数提示①-1
        JTextField inputBitField;        //输入位数区域①-2
        JLabel inputNumLabel;            //输入题目个数提示①-3
        JTextField inputNumField;        //输入题目个数区域①-4
        JLabel inputTimeLabel;           //输入做题时间提示①-5
        JPanel inputTimePanel;           //输入做题时间区域①-6

        ButtonGroup operatorGroup;
        JRadioButton addButton ;         //加法按钮②-1
        JRadioButton minusButton ;         //减法按钮②-2
        JRadioButton multiplyButton ;     //乘法按钮②-3
        JRadioButton divideButton ;         //除法按钮②-4
        JRadioButton mixButton     ;         //混合运算按钮②-5

        JLabel  errorInfo;               //错误信息③-1
        JButton startButton;             //开始按钮③-2

        JTextField inputByminutes;       //输入分钟区域①-6-1
        JLabel printMinute;                 //打印提示“分”①-6-2
        JTextField inputByseconds;       //输入秒钟区域①-6-3
        JLabel printSecond;              //打印提示“秒”①-6-4
        public StartPanel()
        {
            //this.setLayout(new GridLayout(0,1));
            this.setLayout(new BoxLayout(this,BoxLayout.Y_AXIS));
            this.initialize();
            this.setInputOptionPanel();
            this.setSelectOperatorOptionPanel();
            this.setBottomPanel();
            this.addStartEvent();
            this.add(inputOptionPanel);
            this.add(selectOperatorOptionPanel);
            this.add(bottomPanel);
        }
        public void initialize()              //初始化所有控件
        {
            inputOptionPanel = new JPanel();
            selectOperatorOptionPanel = new JPanel();
            bottomPanel = new JPanel();
            inputBitLabel = new JLabel("输入题目位数:");
            inputBitField = new JTextField("1");//默认一位
            inputNumLabel = new JLabel("输入题目个数:");
            inputNumField = new JTextField("10");//默认产生10题
            operatorGroup = new ButtonGroup();
            addButton = new JRadioButton("加法");
            minusButton = new JRadioButton("减法");
            multiplyButton = new JRadioButton("乘法");
            divideButton = new JRadioButton("除法");
            mixButton = new JRadioButton("混合");
            errorInfo = new JLabel();
            startButton = new JButton("开始做题！");
            inputTimeLabel = new JLabel("输入做题时间:");
            inputTimePanel = new JPanel();
            inputByminutes = new JTextField();
            printMinute = new JLabel("分");
            inputByseconds = new JTextField();
            printSecond = new JLabel("秒");
        }
        //设置做题时间面板
        public void setInputTimePanel()
        {
            inputTimePanel.setLayout(new GridLayout(1,0));
            printMinute.setHorizontalAlignment(SwingConstants.CENTER);
            printSecond.setHorizontalAlignment(SwingConstants.CENTER);
            inputTimePanel.add(inputByminutes);
            inputTimePanel.add(printMinute);
            inputTimePanel.add(inputByseconds);
            inputTimePanel.add(printSecond);
        }
        //设置输入选项面板
        public  void setInputOptionPanel()
        {
            inputOptionPanel.setLayout(new GridLayout(3,2));
            inputBitLabel.setHorizontalAlignment(SwingConstants.CENTER);
            inputNumLabel.setHorizontalAlignment(SwingConstants.CENTER);
            inputTimeLabel.setHorizontalAlignment(SwingConstants.CENTER);
            inputOptionPanel.add(inputBitLabel);
            inputOptionPanel.add(inputBitField);
            inputOptionPanel.add(inputNumLabel);
            inputOptionPanel.add(inputNumField);
            inputOptionPanel.add(inputTimeLabel);
            setInputTimePanel();
            inputOptionPanel.add(inputTimePanel);
        }
        //设置选择运算符面板
        public void setSelectOperatorOptionPanel()
        {
            //selectOperatorOptionPanel.setLayout(new GridLayout(1,0));
            selectOperatorOptionPanel.setLayout(new BoxLayout(selectOperatorOptionPanel,BoxLayout.X_AXIS));

            operatorGroup.add(addButton);
            operatorGroup.add(minusButton);
            operatorGroup.add(multiplyButton);
            operatorGroup.add(divideButton);
            operatorGroup.add(mixButton);
            selectOperatorOptionPanel.add(addButton);
            selectOperatorOptionPanel.add(minusButton);
            selectOperatorOptionPanel.add(multiplyButton);
            selectOperatorOptionPanel.add(divideButton);
            selectOperatorOptionPanel.add(mixButton);
        }
        public void setBottomPanel()
        {
            bottomPanel.setLayout(new GridLayout(0,1));
            bottomPanel.add(errorInfo);
            bottomPanel.add(startButton);
        }
        //添加开始按钮处理事件
        public void addStartEvent()
        {
            startButton.addActionListener(new StartButtonListener());
        }
        //内部类，实现开始事件
        class StartButtonListener implements ActionListener
        {
            public void actionPerformed(ActionEvent e)
            {
                ar.v.clear();//清空向量
                char operator = '+';//默认加法
                if(minusButton.isSelected())
                {
                    operator = '-';
                }
                else if(multiplyButton.isSelected())
                {
                    operator = '*';
                }
                else if (divideButton.isSelected())
                {
                    operator = '/';
                }
                else if (mixButton.isSelected())//混合运算
                {
                    operator = '.';
                }
                try
                {
                    int numOfEquation = Integer.parseInt(inputNumField.getText());
                    int bigOfEquation = Integer.parseInt(inputBitField.getText());
                    int minSeted = Integer.parseInt(inputByminutes.getText());
                    int secSeted = Integer.parseInt(inputByseconds.getText());
                    long millisSeted = (minSeted *60 + secSeted) * 1000;
                    timer = new TimeThread(millisSeted,timeUse);
                    timer.start();
                    if(numOfEquation > 100)
                        throw new NumberTooBigException("这么多题，你做的完吗？");
                    rp.getTotalPage(numOfEquation);//获得总页数
                    rp.setPageLabel();
                    if(bigOfEquation > 9)
                        throw new NumberTooBigException("输入的位数太高了");
                    else if (bigOfEquation == 0)
                        throw new NumberTooBigException("位数不能为0");
                    while(ar.v.size() < numOfEquation)
                    {
                        ar.produceExpression(bigOfEquation,operator);
                    }
                    OverAllFrame.this.v = ar.v;
                    rp.writeEquationToLabel();

                    OverAllFrame.this.st.setVisible(false);//开始面板调为不可见
                    OverAllFrame.this.add(rp,BorderLayout.CENTER);
                    OverAllFrame.this.setVisible(true);//更新窗口
                    OverAllFrame.this.rp.setVisible(true);//显示做题面板
                }
                catch(NumberFormatException  ex)
                {
                    errorInfo.setText("输入数据类型错误！你必须输入数值数据!,请重新输入：");
                }
                catch(NumberTooBigException ex)
                {
                    errorInfo.setText(ex.getMessage());
                }
                catch(Exception ex)
                {

                }

            }
        }
    }

    //做题中的面板
    class RunningPanel extends JPanel
    {
        JPanel contentPanel;//存放题目和答案①
        JPanel buttonsPanel;//存放按钮②
        JLabel pageLabel;   //显示当前页/所有页
        Vector<JLabel> expressionGroup;//显示题目①-1
        Vector<JTextField> answerGroup;//存放答案①-2

        JButton backButton;//上一页②-1
        JButton nextButton;//下一页②-2
        JButton completeButton;  //完成②-3

        int totalPage = 1;  //总页数
        int currentPage = 1;//当前页
        public RunningPanel()
        {
            this.setLayout(new BorderLayout());
            this.initialize();
            this.addItem();
            this.setContentPanel();
            this.setButtonsPanel();
        }
        public void initialize()//初始化
        {
            contentPanel = new JPanel();
            buttonsPanel = new JPanel();
            pageLabel    = new JLabel();
            expressionGroup = new Vector<JLabel>();
            answerGroup     = new Vector<JTextField>();
            for(int i = 0; i < 10 ;i++)
            {
                expressionGroup.add(new JLabel());
                answerGroup.add(new JTextField());
            }
            backButton = new JButton("上一页");
            nextButton = new JButton("下一页");
            completeButton = new JButton("完成!");
            backButton.addActionListener(new BackButtonListener());
            nextButton.addActionListener(new NextButtonListener());
            completeButton.addActionListener(new CompleteButtonListener());

        }
        public void setContentPanel()
        {
            contentPanel.setLayout(new GridLayout(6,2));
            for(int i = 0; i < 10; i++)
            {
                contentPanel.add(expressionGroup.get(i));
                contentPanel.add(answerGroup.get(i));
            }
        }
        public void setPageLabel()
        {
            pageLabel.setText("页码"+currentPage+'/'+totalPage);
        }
        public void setButtonsPanel()
        {
            buttonsPanel.add(backButton);
            buttonsPanel.add(nextButton);
            buttonsPanel.add(completeButton);
        }
        public void writeEquationToLabel()//写入算式
        {
            //因为只有十个标签，n道题目，不能一一对应，下面是标签要加上的数和题目号对应
            int numNeededToAdd = (currentPage-1)*10;
            for(int i = 0; i < 10 ; i++)
            {
                if( i+numNeededToAdd >= v.size())//没有更多题目了
                {
                    expressionGroup.get(i).setText(String.format("%17s","N/A"));
                }
                else
                {
                    String temp = String.format("%5d%5s%5d%5s",v.get(i+numNeededToAdd).a,
                                                v.get(i + numNeededToAdd).operator,
                                                v.get(i + numNeededToAdd).b,"=");
                    expressionGroup.get(i).setText(temp);
                }
            }
        }
        public void addItem()//添加控件
        {
            this.add(pageLabel,BorderLayout.NORTH);
            this.add(contentPanel,BorderLayout.CENTER);
            this.add(buttonsPanel,BorderLayout.SOUTH);
        }
        public  void getTotalPage(int num)//获得总页数
        {
            totalPage = num/10 + (num % 10 == 0 ? 0:1);
        }
        //设置当前页为1，重做和继续的时候用到
        public void setCurrentPageToOne()
        {
            currentPage = 1;
        }
        public void writeInputToVector() throws NumberFormatException//写入答案进向量
        {
            //因为只有十个标签，n道题目，不能一一对应，下面是标签要加上的数和题目号对应
            int numNeededToAdd = (currentPage-1)*10;
            for (int i = 0; i < 10 && i+numNeededToAdd <v.size();i++)
            {
                try
                {
                    if(!answerGroup.get(i).getText().equals(""))//如果不是啥也没写的话
                    {
                        v.get(i+numNeededToAdd).d = Integer.parseInt(answerGroup.get(i).getText());
                        if(v.get(i+numNeededToAdd).d == v.get(i + numNeededToAdd).c)
                            v.get(i+numNeededToAdd).is_right = true;
                    }
                    //否则就是默认的-1

                }
                catch(NumberFormatException  e)
                {
                    answerGroup.get(i).setText("输入数据类型错误！请重新输入：");
                    throw e;//必须这么写才能终止。。
                }
                catch(Exception e)
                {
                    answerGroup.get(i).setText("未知错误！请重新输入：");
                    throw e;//必须这么写才能终止。。
                }
            }
        }
        public void clearAnswer()//清空答案
        {
            for (int i = 0; i < answerGroup.size();i++)
            {
                answerGroup.get(i).setText("");
            }
        }
        //写入答案进输入区，还原上下页做过的答案用
        public void writeAnswerTofield()
        {
            //因为只有十个标签，n道题目，不能一一对应，下面是标签要加上的数和题目号对应
            int numNeededToAdd = (currentPage-1)*10;
            for(int  i = 0; i < 10 && i+numNeededToAdd <v.size(); i ++)
            {
                if(v.get(i+numNeededToAdd).d != -1)//说明有输入过值
                {
                    answerGroup.get(i).setText(Integer.toString(v.get(i+numNeededToAdd).d));
                }
            }
        }
        public void complete()//完成做题，用户点击完成或者 是时间到了
        {
            try
            {
                //因为第一句可能会产生异常，不过在句中已经处理，这里加上
                //try是让它停止进入下一页
                timer.setStop();//计时器线程停止
                OverAllFrame.this.rp.writeInputToVector();//写入答案进向量
                OverAllFrame.this.ar.writeInfo(v.size(), userName);
                OverAllFrame.this.rp.setVisible(false);//设置做题界面不可见
                OverAllFrame.this.ep.setDisplayAnswer(); //设置要显示的结果
                OverAllFrame.this.add(ep,BorderLayout.CENTER);
                OverAllFrame.this.setVisible(true);
                OverAllFrame.this.ep.setVisible(true);//显示答案面板

            }
            catch(Exception e)
            {
                //do nothing
            }

        }
        class CompleteButtonListener implements ActionListener
        {
            public void actionPerformed(ActionEvent ae)
            {
                complete();
            }
        }
        class BackButtonListener implements ActionListener
        {
            public void actionPerformed(ActionEvent ae)
            {

                if(currentPage > 1)
                {
                    writeInputToVector();//保存上页数据
                    clearAnswer();//删除上页答案
                    currentPage --;
                    setPageLabel();//更新页码
                    writeEquationToLabel();//读入下页算式
                    writeAnswerTofield();//读入下页已填写答案
                    RunningPanel.this.setVisible(true);//更新窗口
                }
            }
        }
        class NextButtonListener implements ActionListener
        {
            public void actionPerformed(ActionEvent ae)
            {
                if(currentPage < totalPage)
                {
                    writeInputToVector();
                    clearAnswer();//删除上页答案
                    currentPage ++;
                    setPageLabel();
                    writeEquationToLabel();
                    writeAnswerTofield();
                    RunningPanel.this.setVisible(true);
                }
            }
        }

    }
    //显示结果面板
    class EndPanel extends JPanel
    {
        JScrollPane displayArea;//显示区域
        JPanel bottomArea;      //底部区域，存放按钮
        JTextArea displayAnswer;//显示答案和评分
        JTextArea displayRank;  //显示排名和得分

        JButton reDoButton;//重做
        JButton continueButton;//继续练习
        JButton viewRankButton;//查看排名

        Font answerFont ; //字体属性
        boolean isRankViewed = false;//是否查看过排名
        boolean alreadyWrite = false;//已经写入排名信息
        public EndPanel()
        {
            this.setLayout(new BorderLayout());//边界布局
            this.initialize();
            this.setBottomArea();
            this.addItem();

        }

        public void initialize()//初始化
        {
            answerFont = new Font("宋体",Font.PLAIN,15);
            displayAnswer = new JTextArea();
            displayAnswer.setFont(answerFont);//设置字体
            displayArea = new JScrollPane(displayAnswer);
            displayRank = new JTextArea();
            displayRank.setFont(answerFont);
            bottomArea  = new JPanel();
            reDoButton = new JButton("重做一遍");
            continueButton = new JButton("继续练习");
            viewRankButton = new JButton("查看排名");
            reDoButton.addActionListener(new ReDoButtonListener());
            continueButton.addActionListener( new ContinueButtonListener());
            viewRankButton.addActionListener(new viewRankButtonListener());

        }
        public void setDisplayAnswer()//添加答案
        {
            displayAnswer.setEditable(false);//只显示答案，不可编辑
            String temp ;
            int score = 0;
            temp = (String.format("%5s%5s%5s%5s%5s%10s%5s","","",
                    "","","正确答案","你的答案","判断")) + "rn";
            displayAnswer.append(temp);
            for(int i = 0 ;i < v.size() ;i++)
            {
                temp = (String.format("%5d%5s%5d%5s%10d%10d%10s",v.get(i).a,v.get(i).operator,
                                    v.get(i).b,"=",v.get(i).c,v.get(i).d,(v.get
                                        (i).is_right ? "正确":"错误")))+ "rn";
                displayAnswer.append(temp);
                if(v.get(i).is_right)
                {
                    score += 100.0/v.size();
                }
            }
            temp = ("你的总分：" + score +"rn");
            displayAnswer.append(temp);

        }
        public void setDisplayRank()
        {
            if(alreadyWrite)//如果已经执行过了
                return;
            alreadyWrite = true;
            viewRankButton.setText("查看答案");
            displayRank.setEditable(false);
            FileReader file ;
            BufferedReader bf ;
            String tempString;//临时用户名
            String tempIntedString;//临时分数的String形式
            double tempInt;//临时分数
            //用户名和用户最高分的映射关系
            HashMap<String,Double> map = new HashMap<String,Double>();
            try
            {
                file = new FileReader("UserNameAndScore.data");
                if(!file.ready())
                {
                    displayRank.setText("无有效数据");
                }
                bf = new BufferedReader(file);

                tempString=bf.readLine();
                tempIntedString=bf.readLine();
                while( tempString!= null && tempIntedString != null)
                {
                    tempInt = Double.parseDouble(tempIntedString);
                    //确保显示的为每个人历史所得最高分
                    if(!(map.containsKey(tempString) && tempInt <= map.get(tempString)))
                    {
                        map.put(tempString, tempInt);
                    }
                    tempString=bf.readLine();
                    tempIntedString=bf.readLine();
                }
            } catch (Exception e)
            {
                System.out.println(e.getMessage());
                viewRankButton.setText("文件异常");
            }
            Vector<UserRankInfo> v = new Vector<UserRankInfo>();
            Iterator<String> it = map.keySet().iterator();
            UserRankInfo temp;

            while(it.hasNext())
            {
                tempString = it.next();
                temp = new UserRankInfo(tempString,map.get(tempString));
                v.add(temp);
            }
            Collections.sort(v,new UserRankInfo());
            int rank = 1;
            displayRank.append(String.format("%10s%10s%10s", "排名","用户名","得分")+ "rn");
            for(UserRankInfo u:v)
            {
                displayRank.append(String.format("%10d%15s%15f", rank++,u.userName,u.score)+ "rn");
            }

        }
        public void setBottomArea()//添加底部按钮
        {
            bottomArea.setLayout(new FlowLayout());
            bottomArea.add(reDoButton);
            bottomArea.add(continueButton);
            bottomArea.add(viewRankButton);
        }
        public void addItem()//添加组件
        {

            this.add(displayArea,BorderLayout.CENTER);
            this.add(bottomArea,BorderLayout.SOUTH);
        }
        public void recoverAnswerArea()//恢复答案区域
        {
            viewRankButton.setText("查看排名");
            displayArea.setViewportView(displayAnswer);
            displayAnswer.setVisible(true);
            isRankViewed = false;
        }
        class ReDoButtonListener implements ActionListener
        {
            public void actionPerformed(ActionEvent ae)
            {
                OverAllFrame.this.rp.setCurrentPageToOne();//设置当前页码 为1
                OverAllFrame.this.ep.setVisible(false);//隐藏结果面板
                OverAllFrame.this.rp.clearAnswer();//先清除做题面板的内容
                OverAllFrame.this.rp.setVisible(true);//显示做题面板
                if(isRankViewed)
                    recoverAnswerArea();
            }
        }
        class ContinueButtonListener implements ActionListener
        {
            public void actionPerformed(ActionEvent ae)
            {
                OverAllFrame.this.rp.setCurrentPageToOne();//设置当前页码 为1
                OverAllFrame.this.rp.clearAnswer();//先清除做题面板的内容
                OverAllFrame.this.ep.setVisible(false);//隐藏结果面板
                OverAllFrame.this.st.setVisible(true);//显示开始面板
                if(isRankViewed)
                    recoverAnswerArea();

            }
        }
        class viewRankButtonListener implements ActionListener
        {
            @Override
            public void actionPerformed(ActionEvent e)
            {
                if(!isRankViewed )
                {

                    setDisplayRank();//写入排名信息
                    displayAnswer.setVisible(false);
                    displayArea.setViewportView(displayRank);
                    displayRank.setVisible(true);
                    isRankViewed = true;
                }
                else
                {
                    recoverAnswerArea();
                }

            }
        }
        //实现比较接口的用户排名类
        class UserRankInfo implements Comparator<UserRankInfo>
        {
            public String userName;
            public double score;

            public UserRankInfo(String userName,double score)
            {
                this.userName = userName;
                this.score = score;
            }
            public UserRankInfo()
            {
                //none
            }
            @Override
            public int compare(UserRankInfo arg0, UserRankInfo arg1)
            {
                if(arg0.score < arg1.score)
                    return 1;
                else if(arg0.score > arg1.score)
                    return -1;
                return 0;
            }

        }
    }
}

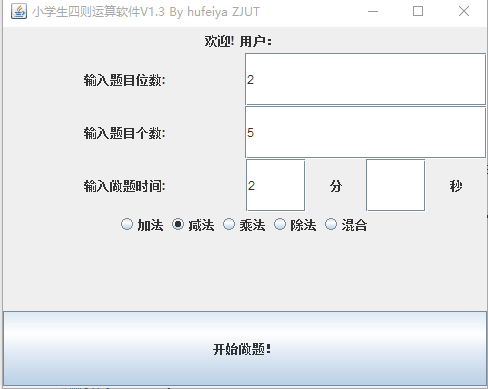

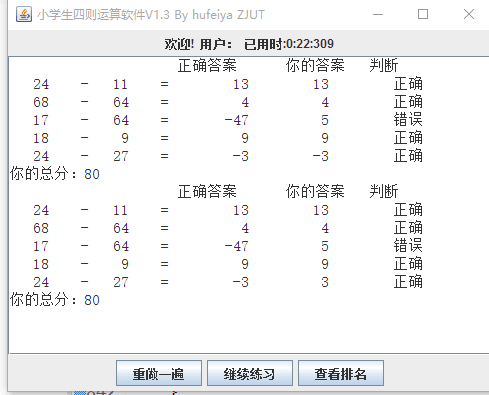

功能展示

团队合作

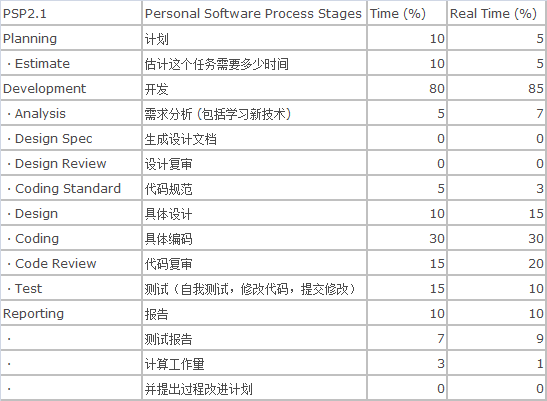

PSP

小结

这次结对编程感觉较为吃力，由于上次实验是用C++语言变写的，这次需要改成java（不会用C++写界面），写界面代码也花费了许多时间，庆幸在各位大神的帮助下能够理解和设计出思路。这次的两人分工合作带给我们一种全新的感受，软件工程一个团队项目，不是仅靠一个人就能完成的，在完成的过程中更重要的是互相监督和互相促进。
