概述
前言
前面的章节讲了嵌入式tomcat使用web.xml启动，这章说说不使用web.xml启动tomcat。有了这个就明白Spring Boot是如何在没有web.xml的的情况下实现web能力的，以后的tomcat容器应用就可以实现jar运行，十分方便。
1. servlet标准
首先看Oracle的javaEE文档Interface ServletContainerInitializer，上面详细讲述了这个接口的作用，使java编码web.xml成为可能，servlet3.0一下是不能实现的。look文档
public interface ServletContainerInitializerInterface which allows a library/runtime to be notified of a web application's startup phase and perform any required programmatic registration of servlets, filters, and listeners in response to it.
第一句就说可以lib jar或者web程序运行时实现servlet，filter，listener的能力
Implementations of this interface may be annotated with HandlesTypes, in order to receive (at their onStartup(java.util.Set<java.lang.Class<?>>, javax.servlet.ServletContext) method) the Set of application classes that implement, extend, or have been annotated with the class types specified by the annotation.
打上HandlesTypes注解，可以在onStartup的集合中拿到class的Set集合，application classes that implement说明HandlesType注解的value=xxx.class必须是接口或者父类才能生效，笔记觉得接口方式更好，Spring Web就是使用接口这种方式（体现面对接口编程）
If an implementation of this interface does not use HandlesTypes annotation, or none of the application classes match the ones specified by the annotation, the container must pass a null Set of classes to onStartup(java.util.Set<java.lang.Class<?>>, javax.servlet.ServletContext).
如何未设置null，不多说
When examining the classes of an application to see if they match any of the criteria specified by the HandlesTypes annontation of a ServletContainerInitializer, the container may run into classloading problems if any of the application's optional JAR files are missing. Because the container is not in a position to decide whether these types of classloading failures will prevent the application from working correctly, it must ignore them, while at the same time providing a configuration option that would log them.
这句意思是ServletContainerInitializer接口条件不满足，就忽略，有些情况会打印日志
Implementations of this interface must be declared by a JAR file resource located inside the META-INF/services directory and named for the fully qualified class name of this interface, and will be discovered using the runtime's service provider lookup mechanism or a container specific mechanism that is semantically equivalent to it. In either case, ServletContainerInitializer services from web fragment JAR files excluded from an absolute ordering must be ignored, and the order in which these services are discovered must follow the application's classloading delegation model.

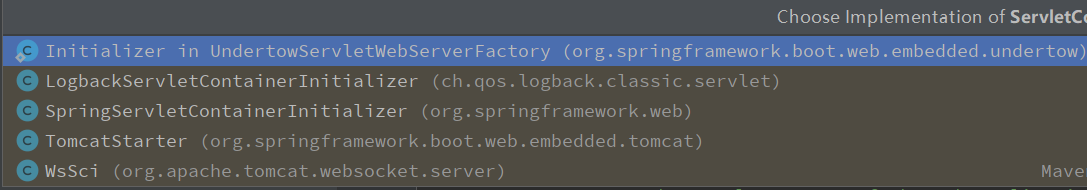

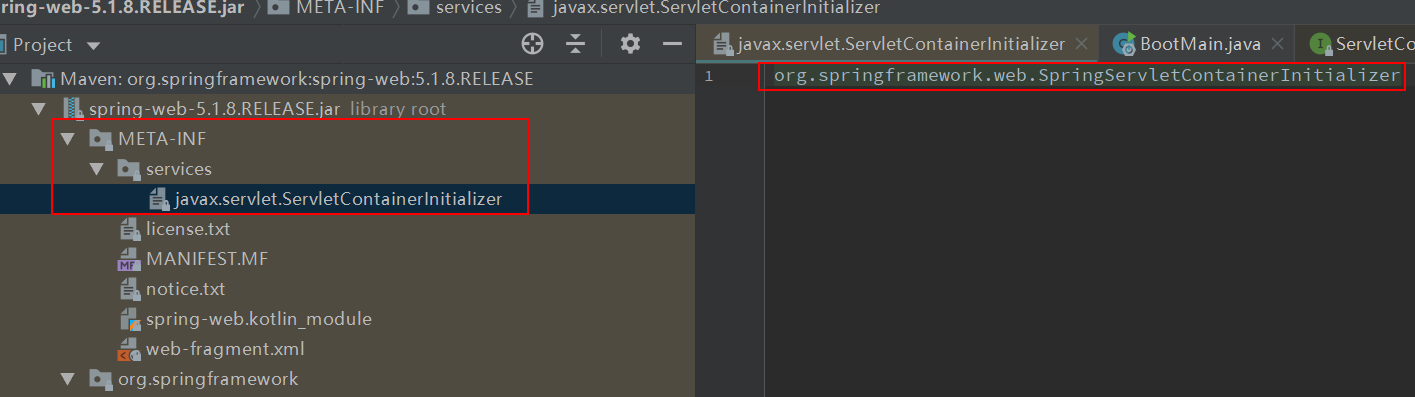

必须配置放在classpath的META-INF/services下，JDK SPI的方式；在ServletContainerInitializer也叫SCI。
/**
* ServletContainerInitializers (SCIs) are registered via an entry in the
* file META-INF/services/javax.servlet.ServletContainerInitializer that must be
* included in the JAR file that contains the SCI implementation.
* <p>
* SCI processing is performed regardless of the setting of metadata-complete.
* SCI processing can be controlled per JAR file via fragment ordering. If
* absolute ordering is defined, then only the JARs included in the ordering
* will be processed for SCIs. To disable SCI processing completely, an empty
* absolute ordering may be defined.
* <p>
* SCIs register an interest in annotations (class, method or field) and/or
* types via the {@link javax.servlet.annotation.HandlesTypes} annotation which
* is added to the class.
*
* @since Servlet 3.0
*/
public interface ServletContainerInitializer {
/**
* Receives notification during startup of a web application of the classes
* within the web application that matched the criteria defined via the
* {@link javax.servlet.annotation.HandlesTypes} annotation.
*
* @param c The (possibly null) set of classes that met the specified
* criteria
* @param ctx The ServletContext of the web application in which the
* classes were discovered
*
* @throws ServletException If an error occurs
*/
void onStartup(Set<Class<?>> c, ServletContext ctx) throws ServletException;
}2. demo尝试
pom
<properties>
<!--<spring.version>4.3.24.RELEASE</spring.version>-->
<embed.tomcat.version>9.0.21</embed.tomcat.version>
</properties>
<dependency>
<groupId>org.apache.tomcat.embed</groupId>
<artifactId>tomcat-embed-core</artifactId>
<version>${embed.tomcat.version}</version>
</dependency>
<dependency>
<groupId>org.apache.tomcat.embed</groupId>
<artifactId>tomcat-embed-jasper</artifactId>
<version>${embed.tomcat.version}</version>
<!--<scope>provided</scope>-->
</dependency>servlet
public class HelloServlet extends HttpServlet {
@Override
public void init() throws ServletException {
System.out.println("----------------------init----------------------");
}
@Override
protected void doGet(HttpServletRequest req, HttpServletResponse response) throws ServletException, IOException {
System.out.println("hello world");
response.setContentType("text/json;charset=UTF-8");
response.setCharacterEncoding("UTF-8");
PrintWriter out = response.getWriter();
String res ="{"hello":"world","hi":"I`m a embed tomcat"}";
out.println(res);
out.flush();
out.close();
}
@Override
protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
super.doPost(req, resp);
}
}ServletContainerInitializer 实现
@HandlesTypes({HelloService.class})
public class HelloServletContainerInitializer implements ServletContainerInitializer {
@Override
public void onStartup(Set<Class<?>> c, ServletContext ctx) throws ServletException {
System.out.println("param classt" + c);
if (c != null) {
for (Class<?> clazz : c ){
System.out.println(clazz.getCanonicalName());
//clazz.con
}
}
ServletRegistration.Dynamic dynamic = ctx.addServlet("hello", new HelloServlet());
dynamic.addMapping("/hello");
}
}@HandlesTypes支持，这里使用接口
public interface HelloService {
public void sayHello();
}
public class HelloServiceImpl implements HelloService {
@Override
public void sayHello() {
System.out.println("ssssssssssssssss");
}
}

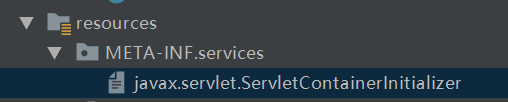

配置
main方法启动
public class TomcatStarter {
private static int port = 8080;
private static String contextPath = "/";
public static void start() throws LifecycleException, IOException, ServletException {
Tomcat tomcat = new Tomcat();
String baseDir = Thread.currentThread().getContextClassLoader().getResource("").getPath();
tomcat.setBaseDir(baseDir);
tomcat.setPort(port);
Connector connector = new Connector("org.apache.coyote.http11.Http11NioProtocol");
connector.setPort(port);
tomcat.setConnector(connector);
tomcat.addWebapp(contextPath, baseDir);
tomcat.enableNaming();
//手动创建
//tomcat.getConnector();
tomcat.start();
tomcat.getServer().await();
}
public static void main(String[] args) throws IOException, LifecycleException, ServletException {
start();
}

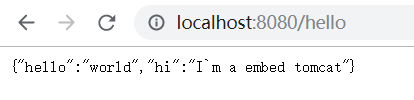

}访问http://localhost:8080/hello
3. 原理分析
启动tomcat的过程中有一个重要的方法，webConfig，就是用来处理配置的，其中有web.xml
/**
* Scan the web.xml files that apply to the web application and merge them
* using the rules defined in the spec. For the global web.xml files,
* where there is duplicate configuration, the most specific level wins. ie
* an application's web.xml takes precedence over the host level or global
* web.xml file.
*/
protected void webConfig() {
/*
* Anything and everything can override the global and host defaults.
* This is implemented in two parts
* - Handle as a web fragment that gets added after everything else so
* everything else takes priority
* - Mark Servlets as overridable so SCI configuration can replace
* configuration from the defaults
*/
/*
* The rules for annotation scanning are not as clear-cut as one might
* think. Tomcat implements the following process:
* - As per SRV.1.6.2, Tomcat will scan for annotations regardless of
* which Servlet spec version is declared in web.xml. The EG has
* confirmed this is the expected behaviour.
* - As per http://java.net/jira/browse/SERVLET_SPEC-36, if the main
* web.xml is marked as metadata-complete, JARs are still processed
* for SCIs.
* - If metadata-complete=true and an absolute ordering is specified,
* JARs excluded from the ordering are also excluded from the SCI
* processing.
* - If an SCI has a @HandlesType annotation then all classes (except
* those in JARs excluded from an absolute ordering) need to be
* scanned to check if they match.
*/
WebXmlParser webXmlParser = new WebXmlParser(context.getXmlNamespaceAware(),
context.getXmlValidation(), context.getXmlBlockExternal());
Set<WebXml> defaults = new HashSet<>();
defaults.add(getDefaultWebXmlFragment(webXmlParser));
Set<WebXml> tomcatWebXml = new HashSet<>();
tomcatWebXml.add(getTomcatWebXmlFragment(webXmlParser));
WebXml webXml = createWebXml();
// Parse context level web.xml
InputSource contextWebXml = getContextWebXmlSource();
if (!webXmlParser.parseWebXml(contextWebXml, webXml, false)) {
ok = false;
}
ServletContext sContext = context.getServletContext();
// Ordering is important here
// Step 1. Identify all the JARs packaged with the application and those
// provided by the container. If any of the application JARs have a
// web-fragment.xml it will be parsed at this point. web-fragment.xml
// files are ignored for container provided JARs.
Map<String,WebXml> fragments = processJarsForWebFragments(webXml, webXmlParser);
// Step 2. Order the fragments.
Set<WebXml> orderedFragments = null;
orderedFragments =
WebXml.orderWebFragments(webXml, fragments, sContext);
// Step 3. Look for ServletContainerInitializer implementations
if (ok) {
processServletContainerInitializers();
}
if (!webXml.isMetadataComplete() || typeInitializerMap.size() > 0) {
// Steps 4 & 5.
processClasses(webXml, orderedFragments);
}
if (!webXml.isMetadataComplete()) {
// Step 6. Merge web-fragment.xml files into the main web.xml
// file.
if (ok) {
ok = webXml.merge(orderedFragments);
}
// Step 7a
// merge tomcat-web.xml
webXml.merge(tomcatWebXml);
// Step 7b. Apply global defaults
// Have to merge defaults before JSP conversion since defaults
// provide JSP servlet definition.
webXml.merge(defaults);
// Step 8. Convert explicitly mentioned jsps to servlets
if (ok) {
convertJsps(webXml);
}
// Step 9. Apply merged web.xml to Context
if (ok) {
configureContext(webXml);
}
} else {
webXml.merge(tomcatWebXml);
webXml.merge(defaults);
convertJsps(webXml);
configureContext(webXml);
}
if (context.getLogEffectiveWebXml()) {
log.info(sm.getString("contextConfig.effectiveWebXml", webXml.toXml()));
}
// Always need to look for static resources
// Step 10. Look for static resources packaged in JARs
if (ok) {
// Spec does not define an order.
// Use ordered JARs followed by remaining JARs
Set<WebXml> resourceJars = new LinkedHashSet<>();
for (WebXml fragment : orderedFragments) {
resourceJars.add(fragment);
}
for (WebXml fragment : fragments.values()) {
if (!resourceJars.contains(fragment)) {
resourceJars.add(fragment);
}
}
processResourceJARs(resourceJars);
// See also StandardContext.resourcesStart() for
// WEB-INF/classes/META-INF/resources configuration
}
// Step 11. Apply the ServletContainerInitializer config to the
// context
if (ok) {
for (Map.Entry<ServletContainerInitializer,
Set<Class<?>>> entry :
initializerClassMap.entrySet()) {
if (entry.getValue().isEmpty()) {
context.addServletContainerInitializer(
entry.getKey(), null);
} else {
context.addServletContainerInitializer(
entry.getKey(), entry.getValue());
}
}
}
}processServletContainerInitializers();//初始化ServletContainerInitializers
protected void processServletContainerInitializers() {
List<ServletContainerInitializer> detectedScis;
try {
WebappServiceLoader<ServletContainerInitializer> loader = new WebappServiceLoader<>(context);
//加载ServletContainerInitializer
detectedScis = loader.load(ServletContainerInitializer.class);
} catch (IOException e) {
log.error(sm.getString(
"contextConfig.servletContainerInitializerFail",
context.getName()),
e);
ok = false;
return;
}
for (ServletContainerInitializer sci : detectedScis) {
//初始化map
initializerClassMap.put(sci, new HashSet<Class<?>>());
HandlesTypes ht;
try {
ht = sci.getClass().getAnnotation(HandlesTypes.class);
} catch (Exception e) {
if (log.isDebugEnabled()) {
log.info(sm.getString("contextConfig.sci.debug",
sci.getClass().getName()),
e);
} else {
log.info(sm.getString("contextConfig.sci.info",
sci.getClass().getName()));
}
continue;
}
if (ht == null) {
continue;
}
Class<?>[] types = ht.value();
if (types == null) {
continue;
}
//解析注释HandlesTypes，根据是不是注解分类
for (Class<?> type : types) {
if (type.isAnnotation()) {
handlesTypesAnnotations = true;
} else {
handlesTypesNonAnnotations = true;
}
Set<ServletContainerInitializer> scis =
typeInitializerMap.get(type);
if (scis == null) {
scis = new HashSet<>();
typeInitializerMap.put(type, scis);
}
scis.add(sci);
}
}
}跟踪loader.load(ServletContainerInitializer.class);
private static final String LIB = "/WEB-INF/lib/";
private static final String SERVICES = "META-INF/services/";
/**
* Load the providers for a service type.
*
* @param serviceType the type of service to load
* @return an unmodifiable collection of service providers
* @throws IOException if there was a problem loading any service
*/
public List<T> load(Class<T> serviceType) throws IOException {
String configFile = SERVICES + serviceType.getName();载入了META-INF/services/下的className文件
然后加载classes文件，
if (!webXml.isMetadataComplete() || typeInitializerMap.size() > 0) {
// Steps 4 & 5.
processClasses(webXml, orderedFragments);
}有jar包有file即class文件，笔者没打成jar，@HandlesTypes({HelloService.class})肯定是classes文件了。
protected void processAnnotationsUrl(URL url, WebXml fragment,
boolean handlesTypesOnly, Map<String,JavaClassCacheEntry> javaClassCache) {
if (url == null) {
// Nothing to do.
return;
} else if ("jar".equals(url.getProtocol()) || url.toString().endsWith(".jar")) {
processAnnotationsJar(url, fragment, handlesTypesOnly, javaClassCache);
} else if ("file".equals(url.getProtocol())) {
try {
processAnnotationsFile(
new File(url.toURI()), fragment, handlesTypesOnly, javaClassCache);
} catch (URISyntaxException e) {
log.error(sm.getString("contextConfig.fileUrl", url), e);
}
} else {
log.error(sm.getString("contextConfig.unknownUrlProtocol",
url.getProtocol(), url));
}
}继续跟踪
/**
* For classes packaged with the web application, the class and each
* super class needs to be checked for a match with {@link HandlesTypes} or
* for an annotation that matches {@link HandlesTypes}.
* @param javaClass the class to check
* @param javaClassCache a class cache
*/
protected void checkHandlesTypes(JavaClass javaClass,
Map<String,JavaClassCacheEntry> javaClassCache) {
// Skip this if we can
if (typeInitializerMap.size() == 0) {
return;
}
if ((javaClass.getAccessFlags() &
org.apache.tomcat.util.bcel.Const.ACC_ANNOTATION) != 0) {
// Skip annotations.
return;
}
String className = javaClass.getClassName();
Class<?> clazz = null;
//HandlesTypes value不是注解类
if (handlesTypesNonAnnotations) {
// This *might* be match for a HandlesType.
populateJavaClassCache(className, javaClass, javaClassCache);
JavaClassCacheEntry entry = javaClassCache.get(className);
if (entry.getSciSet() == null) {
try {
populateSCIsForCacheEntry(entry, javaClassCache);
} catch (StackOverflowError soe) {
throw new IllegalStateException(sm.getString(
"contextConfig.annotationsStackOverflow",
context.getName(),
classHierarchyToString(className, entry, javaClassCache)));
}
}
if (!entry.getSciSet().isEmpty()) {
// Need to try and load the class
clazz = Introspection.loadClass(context, className);
if (clazz == null) {
// Can't load the class so no point continuing
return;
}
for (ServletContainerInitializer sci : entry.getSciSet()) {
Set<Class<?>> classes = initializerClassMap.get(sci);
if (classes == null) {
classes = new HashSet<>();
initializerClassMap.put(sci, classes);
}
classes.add(clazz);
}
}
}
//HandlesTypes的value是注解类
//这种比较简单，解析注解，反射实例
if (handlesTypesAnnotations) {
AnnotationEntry[] annotationEntries = javaClass.getAnnotationEntries();
if (annotationEntries != null) {
for (Map.Entry<Class<?>, Set<ServletContainerInitializer>> entry :
typeInitializerMap.entrySet()) {
if (entry.getKey().isAnnotation()) {
String entryClassName = entry.getKey().getName();
for (AnnotationEntry annotationEntry : annotationEntries) {
if (entryClassName.equals(
getClassName(annotationEntry.getAnnotationType()))) {
if (clazz == null) {
clazz = Introspection.loadClass(
context, className);
if (clazz == null) {
// Can't load the class so no point
// continuing
return;
}
}
for (ServletContainerInitializer sci : entry.getValue()) {
initializerClassMap.get(sci).add(clazz);
}
break;
}
}
}
}
}
}
}HandlesType的value不是注解只能是接口或者父类，它们的实现类或者子类被注入Set集合
private void populateSCIsForCacheEntry(JavaClassCacheEntry cacheEntry,
Map<String,JavaClassCacheEntry> javaClassCache) {
Set<ServletContainerInitializer> result = new HashSet<>();
// Super class
String superClassName = cacheEntry.getSuperclassName();
JavaClassCacheEntry superClassCacheEntry =
javaClassCache.get(superClassName);
// Avoid an infinite loop with java.lang.Object
if (cacheEntry.equals(superClassCacheEntry)) {
cacheEntry.setSciSet(EMPTY_SCI_SET);
return;
}
//可以看出HandlesTypes注解父类可以解析
// May be null of the class is not present or could not be loaded.
if (superClassCacheEntry != null) {
if (superClassCacheEntry.getSciSet() == null) {
populateSCIsForCacheEntry(superClassCacheEntry, javaClassCache);
}
result.addAll(superClassCacheEntry.getSciSet());
}
result.addAll(getSCIsForClass(superClassName));
//可以看出HandlesTypes注解接口可以解析
// Interfaces
for (String interfaceName : cacheEntry.getInterfaceNames()) {
JavaClassCacheEntry interfaceEntry =
javaClassCache.get(interfaceName);
// A null could mean that the class not present in application or
// that there is nothing of interest. Either way, nothing to do here
// so move along
if (interfaceEntry != null) {
if (interfaceEntry.getSciSet() == null) {
populateSCIsForCacheEntry(interfaceEntry, javaClassCache);
}
result.addAll(interfaceEntry.getSciSet());
}
result.addAll(getSCIsForClass(interfaceName));
}
cacheEntry.setSciSet(result.isEmpty() ? EMPTY_SCI_SET : result);
}核心方法
private Set<ServletContainerInitializer> getSCIsForClass(String className) {
for (Map.Entry<Class<?>, Set<ServletContainerInitializer>> entry :
typeInitializerMap.entrySet()) {
Class<?> clazz = entry.getKey();
if (!clazz.isAnnotation()) {
if (clazz.getName().equals(className)) {
return entry.getValue();
}
}
}
return EMPTY_SCI_SET;
}可以如果HandlesTypes的值不是注解，这个值的封装cacheEntry使用superClassCacheEntry 或者cacheEntry.getInterfaceNames()来设置cacheEntry的SciSet即Set<ServletContainerInitializer>
if (ok) {
for (Map.Entry<ServletContainerInitializer,
Set<Class<?>>> entry :
initializerClassMap.entrySet()) {
if (entry.getValue().isEmpty()) {
context.addServletContainerInitializer(
entry.getKey(), null);
} else {
context.addServletContainerInitializer(
entry.getKey(), entry.getValue());
}
}
}这里将HandlesType的结果写进ServletContainerInitializer
/**
* Add a ServletContainerInitializer instance to this web application.
*
* @param sci The instance to add
* @param classes The classes in which the initializer expressed an
* interest
*/
@Override
public void addServletContainerInitializer(
ServletContainerInitializer sci, Set<Class<?>> classes) {
initializers.put(sci, classes);

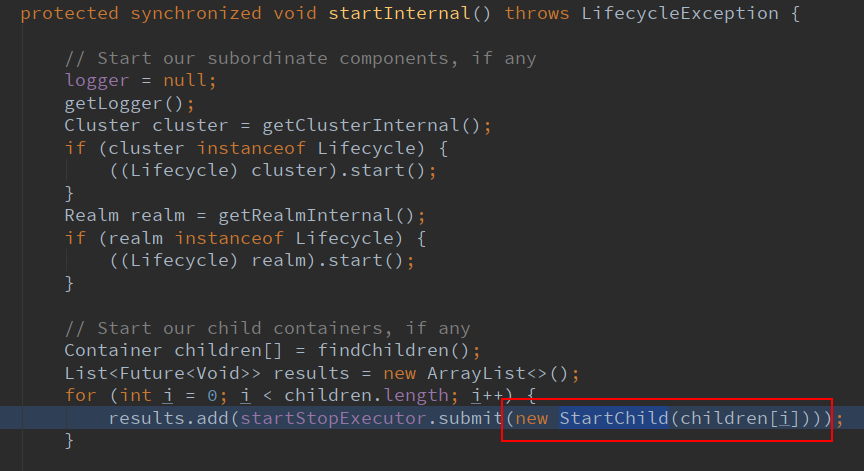

}上一章，我们知道tomcat是线程池启动child Container
里面有代码片段
// Call ServletContainerInitializers
for (Map.Entry<ServletContainerInitializer, Set<Class<?>>> entry :
initializers.entrySet()) {
try {
entry.getKey().onStartup(entry.getValue(),
getServletContext());
} catch (ServletException e) {
log.error(sm.getString("standardContext.sciFail"), e);
ok = false;
break;
}
}用于启动ServletContainerInitializer的onStartup方法
总结
嵌入式tomcat不使用web.xml是由于servlet 3.0的ServletContainerInitializer的引入。Spring Boot也是这样使用的，如下
其中Spring-Web封装了实现，并在HandlesTypes做了一层代理
/*
* Copyright 2002-2018 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.springframework.web;
import java.lang.reflect.Modifier;
import java.util.LinkedList;
import java.util.List;
import java.util.ServiceLoader;
import java.util.Set;
import javax.servlet.ServletContainerInitializer;
import javax.servlet.ServletContext;
import javax.servlet.ServletException;
import javax.servlet.annotation.HandlesTypes;
import org.springframework.core.annotation.AnnotationAwareOrderComparator;
import org.springframework.lang.Nullable;
import org.springframework.util.ReflectionUtils;
/**
* Servlet 3.0 {@link ServletContainerInitializer} designed to support code-based
* configuration of the servlet container using Spring's {@link WebApplicationInitializer}
* SPI as opposed to (or possibly in combination with) the traditional
* {@code web.xml}-based approach.
*
* <h2>Mechanism of Operation</h2>
* This class will be loaded and instantiated and have its {@link #onStartup}
* method invoked by any Servlet 3.0-compliant container during container startup assuming
* that the {@code spring-web} module JAR is present on the classpath. This occurs through
* the JAR Services API {@link ServiceLoader#load(Class)} method detecting the
* {@code spring-web} module's {@code META-INF/services/javax.servlet.ServletContainerInitializer}
* service provider configuration file. See the
* <a href="https://download.oracle.com/javase/6/docs/technotes/guides/jar/jar.html#Service%20Provider">
* JAR Services API documentation</a> as well as section <em>8.2.4</em> of the Servlet 3.0
* Final Draft specification for complete details.
*
* <h3>In combination with {@code web.xml}</h3>
* A web application can choose to limit the amount of classpath scanning the Servlet
* container does at startup either through the {@code metadata-complete} attribute in
* {@code web.xml}, which controls scanning for Servlet annotations or through an
* {@code <absolute-ordering>} element also in {@code web.xml}, which controls which
* web fragments (i.e. jars) are allowed to perform a {@code ServletContainerInitializer}
* scan. When using this feature, the {@link SpringServletContainerInitializer}
* can be enabled by adding "spring_web" to the list of named web fragments in
* {@code web.xml} as follows:
*
* <pre class="code">
* <absolute-ordering>
* <name>some_web_fragment</name>
* <name>spring_web</name>
* </absolute-ordering>
* </pre>
*
* <h2>Relationship to Spring's {@code WebApplicationInitializer}</h2>
* Spring's {@code WebApplicationInitializer} SPI consists of just one method:
* {@link WebApplicationInitializer#onStartup(ServletContext)}. The signature is intentionally
* quite similar to {@link ServletContainerInitializer#onStartup(Set, ServletContext)}:
* simply put, {@code SpringServletContainerInitializer} is responsible for instantiating
* and delegating the {@code ServletContext} to any user-defined
* {@code WebApplicationInitializer} implementations. It is then the responsibility of
* each {@code WebApplicationInitializer} to do the actual work of initializing the
* {@code ServletContext}. The exact process of delegation is described in detail in the
* {@link #onStartup onStartup} documentation below.
*
* <h2>General Notes</h2>
* In general, this class should be viewed as <em>supporting infrastructure</em> for
* the more important and user-facing {@code WebApplicationInitializer} SPI. Taking
* advantage of this container initializer is also completely <em>optional</em>: while
* it is true that this initializer will be loaded and invoked under all Servlet 3.0+
* runtimes, it remains the user's choice whether to make any
* {@code WebApplicationInitializer} implementations available on the classpath. If no
* {@code WebApplicationInitializer} types are detected, this container initializer will
* have no effect.
*
* <p>Note that use of this container initializer and of {@code WebApplicationInitializer}
* is not in any way "tied" to Spring MVC other than the fact that the types are shipped
* in the {@code spring-web} module JAR. Rather, they can be considered general-purpose
* in their ability to facilitate convenient code-based configuration of the
* {@code ServletContext}. In other words, any servlet, listener, or filter may be
* registered within a {@code WebApplicationInitializer}, not just Spring MVC-specific
* components.
*
* <p>This class is neither designed for extension nor intended to be extended.
* It should be considered an internal type, with {@code WebApplicationInitializer}
* being the public-facing SPI.
*
* <h2>See Also</h2>
* See {@link WebApplicationInitializer} Javadoc for examples and detailed usage
* recommendations.<p>
*
* @author Chris Beams
* @author Juergen Hoeller
* @author Rossen Stoyanchev
* @since 3.1
* @see #onStartup(Set, ServletContext)
* @see WebApplicationInitializer
*/
@HandlesTypes(WebApplicationInitializer.class)
public class SpringServletContainerInitializer implements ServletContainerInitializer {
/**
* Delegate the {@code ServletContext} to any {@link WebApplicationInitializer}
* implementations present on the application classpath.
* <p>Because this class declares @{@code HandlesTypes(WebApplicationInitializer.class)},
* Servlet 3.0+ containers will automatically scan the classpath for implementations
* of Spring's {@code WebApplicationInitializer} interface and provide the set of all
* such types to the {@code webAppInitializerClasses} parameter of this method.
* <p>If no {@code WebApplicationInitializer} implementations are found on the classpath,
* this method is effectively a no-op. An INFO-level log message will be issued notifying
* the user that the {@code ServletContainerInitializer} has indeed been invoked but that
* no {@code WebApplicationInitializer} implementations were found.
* <p>Assuming that one or more {@code WebApplicationInitializer} types are detected,
* they will be instantiated (and <em>sorted</em> if the @{@link
* org.springframework.core.annotation.Order @Order} annotation is present or
* the {@link org.springframework.core.Ordered Ordered} interface has been
* implemented). Then the {@link WebApplicationInitializer#onStartup(ServletContext)}
* method will be invoked on each instance, delegating the {@code ServletContext} such
* that each instance may register and configure servlets such as Spring's
* {@code DispatcherServlet}, listeners such as Spring's {@code ContextLoaderListener},
* or any other Servlet API componentry such as filters.
* @param webAppInitializerClasses all implementations of
* {@link WebApplicationInitializer} found on the application classpath
* @param servletContext the servlet context to be initialized
* @see WebApplicationInitializer#onStartup(ServletContext)
* @see AnnotationAwareOrderComparator
*/
@Override
public void onStartup(@Nullable Set<Class<?>> webAppInitializerClasses, ServletContext servletContext)
throws ServletException {
List<WebApplicationInitializer> initializers = new LinkedList<>();
if (webAppInitializerClasses != null) {
for (Class<?> waiClass : webAppInitializerClasses) {
// Be defensive: Some servlet containers provide us with invalid classes,
// no matter what @HandlesTypes says...
//去除接口与抽象类，仅用具体实现
if (!waiClass.isInterface() && !Modifier.isAbstract(waiClass.getModifiers()) &&
WebApplicationInitializer.class.isAssignableFrom(waiClass)) {
try {
//spring web封装类初始化
initializers.add((WebApplicationInitializer)
ReflectionUtils.accessibleConstructor(waiClass).newInstance());
}
catch (Throwable ex) {
throw new ServletException("Failed to instantiate WebApplicationInitializer class", ex);
}
}
}
}
if (initializers.isEmpty()) {
servletContext.log("No Spring WebApplicationInitializer types detected on classpath");
return;
}
servletContext.log(initializers.size() + " Spring WebApplicationInitializers detected on classpath");
AnnotationAwareOrderComparator.sort(initializers);
for (WebApplicationInitializer initializer : initializers) {
//逐一启动
initializer.onStartup(servletContext);
}
}
}
Spring Web的配置
Spring Boot在Spring Web的基础上，下面的代码是spring boot使用war部署的启动模式，先启动servletContext后启动Spring ApplicationContext。当然Spring Boot embed tomcat是先启动Spring ApplicationContext后启动servletContext
/*
* Copyright 2012-2019 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package org.springframework.boot.web.servlet.support;
import java.util.Collections;
import javax.servlet.Filter;
import javax.servlet.Servlet;
import javax.servlet.ServletContext;
import javax.servlet.ServletContextEvent;
import javax.servlet.ServletException;
import org.apache.commons.logging.Log;
import org.apache.commons.logging.LogFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.builder.ParentContextApplicationContextInitializer;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.context.event.ApplicationEnvironmentPreparedEvent;
import org.springframework.boot.web.servlet.ServletContextInitializer;
import org.springframework.boot.web.servlet.context.AnnotationConfigServletWebServerApplicationContext;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationListener;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.AnnotationUtils;
import org.springframework.core.env.ConfigurableEnvironment;
import org.springframework.util.Assert;
import org.springframework.web.WebApplicationInitializer;
import org.springframework.web.context.ConfigurableWebEnvironment;
import org.springframework.web.context.ContextLoaderListener;
import org.springframework.web.context.WebApplicationContext;
/**
* An opinionated {@link WebApplicationInitializer} to run a {@link SpringApplication}
* from a traditional WAR deployment. Binds {@link Servlet}, {@link Filter} and
* {@link ServletContextInitializer} beans from the application context to the server.
* <p>
* To configure the application either override the
* {@link #configure(SpringApplicationBuilder)} method (calling
* {@link SpringApplicationBuilder#sources(Class...)}) or make the initializer itself a
* {@code @Configuration}. If you are using {@link SpringBootServletInitializer} in
* combination with other {@link WebApplicationInitializer WebApplicationInitializers} you
* might also want to add an {@code @Ordered} annotation to configure a specific startup
* order.
* <p>
* Note that a WebApplicationInitializer is only needed if you are building a war file and
* deploying it. If you prefer to run an embedded web server then you won't need this at
* all.
*
* @author Dave Syer
* @author Phillip Webb
* @author Andy Wilkinson
* @since 2.0.0
* @see #configure(SpringApplicationBuilder)
*/
public abstract class SpringBootServletInitializer implements WebApplicationInitializer {
protected Log logger; // Don't initialize early
private boolean registerErrorPageFilter = true;
/**
* Set if the {@link ErrorPageFilter} should be registered. Set to {@code false} if
* error page mappings should be handled via the server and not Spring Boot.
* @param registerErrorPageFilter if the {@link ErrorPageFilter} should be registered.
*/
protected final void setRegisterErrorPageFilter(boolean registerErrorPageFilter) {
this.registerErrorPageFilter = registerErrorPageFilter;
}
@Override
public void onStartup(ServletContext servletContext) throws ServletException {
// Logger initialization is deferred in case an ordered
// LogServletContextInitializer is being used
this.logger = LogFactory.getLog(getClass());
//创建Spring context容器
WebApplicationContext rootAppContext = createRootApplicationContext(servletContext);
if (rootAppContext != null) {
//设置root listener
servletContext.addListener(new ContextLoaderListener(rootAppContext) {
@Override
public void contextInitialized(ServletContextEvent event) {
// no-op because the application context is already initialized
}
});
}
else {
this.logger.debug("No ContextLoaderListener registered, as " + "createRootApplicationContext() did not "
+ "return an application context");
}
}
protected WebApplicationContext createRootApplicationContext(ServletContext servletContext) {
SpringApplicationBuilder builder = createSpringApplicationBuilder();
builder.main(getClass());
//有ApplicationContext，使用父容器
ApplicationContext parent = getExistingRootWebApplicationContext(servletContext);
if (parent != null) {
this.logger.info("Root context already created (using as parent).");
servletContext.setAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE, null);
builder.initializers(new ParentContextApplicationContextInitializer(parent));
}
//这里很重要Spring的applicationContext就是这里埋点与servletContext设置的
builder.initializers(new ServletContextApplicationContextInitializer(servletContext));
builder.contextClass(AnnotationConfigServletWebServerApplicationContext.class);
builder = configure(builder);
//监听web环境资源初始化
builder.listeners(new WebEnvironmentPropertySourceInitializer(servletContext));
SpringApplication application = builder.build();
if (application.getAllSources().isEmpty()
&& AnnotationUtils.findAnnotation(getClass(), Configuration.class) != null) {
application.addPrimarySources(Collections.singleton(getClass()));
}
Assert.state(!application.getAllSources().isEmpty(),
"No SpringApplication sources have been defined. Either override the "
+ "configure method or add an @Configuration annotation");
// Ensure error pages are registered
if (this.registerErrorPageFilter) {
application.addPrimarySources(Collections.singleton(ErrorPageFilterConfiguration.class));
}
//这里有意思了，构造器模式创建了SpringApplication对象，然后run，启动容器
return run(application);
}
/**
* Returns the {@code SpringApplicationBuilder} that is used to configure and create
* the {@link SpringApplication}. The default implementation returns a new
* {@code SpringApplicationBuilder} in its default state.
* @return the {@code SpringApplicationBuilder}.
* @since 1.3.0
*/
protected SpringApplicationBuilder createSpringApplicationBuilder() {
return new SpringApplicationBuilder();
}
/**
* Called to run a fully configured {@link SpringApplication}.
* @param application the application to run
* @return the {@link WebApplicationContext}
*/
protected WebApplicationContext run(SpringApplication application) {
return (WebApplicationContext) application.run();
}
private ApplicationContext getExistingRootWebApplicationContext(ServletContext servletContext) {
Object context = servletContext.getAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE);
if (context instanceof ApplicationContext) {
return (ApplicationContext) context;
}
return null;
}
/**
* Configure the application. Normally all you would need to do is to add sources
* (e.g. config classes) because other settings have sensible defaults. You might
* choose (for instance) to add default command line arguments, or set an active
* Spring profile.
* @param builder a builder for the application context
* @return the application builder
* @see SpringApplicationBuilder
*/
protected SpringApplicationBuilder configure(SpringApplicationBuilder builder) {
return builder;
}
private static final class WebEnvironmentPropertySourceInitializer
implements ApplicationListener<ApplicationEnvironmentPreparedEvent>, Ordered {
private final ServletContext servletContext;
private WebEnvironmentPropertySourceInitializer(ServletContext servletContext) {
this.servletContext = servletContext;
}
@Override
public void onApplicationEvent(ApplicationEnvironmentPreparedEvent event) {
ConfigurableEnvironment environment = event.getEnvironment();
if (environment instanceof ConfigurableWebEnvironment) {
((ConfigurableWebEnvironment) environment).initPropertySources(this.servletContext, null);
}
}
@Override
public int getOrder() {
return Ordered.HIGHEST_PRECEDENCE;
}
}
}
Spring Boot war部署设置方式设置servletContext的地方
builder.initializers(new ServletContextApplicationContextInitializer(servletContext));

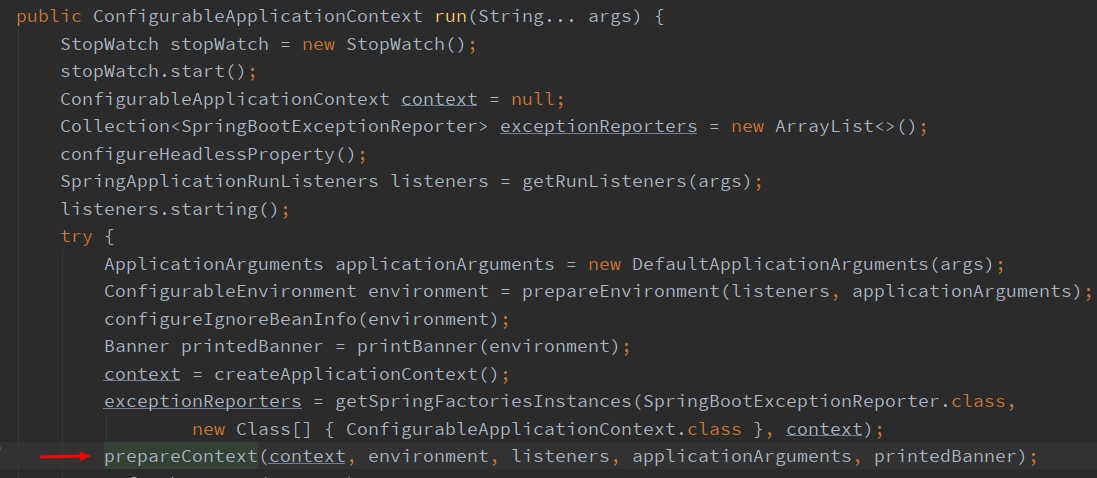

在Spring Boot启动过程
有初始化context的代码
applyInitializers(context);
/**
* Apply any {@link ApplicationContextInitializer}s to the context before it is
* refreshed.
* @param context the configured ApplicationContext (not refreshed yet)
* @see ConfigurableApplicationContext#refresh()
*/
@SuppressWarnings({ "rawtypes", "unchecked" })
protected void applyInitializers(ConfigurableApplicationContext context) {
for (ApplicationContextInitializer initializer : getInitializers()) {
Class<?> requiredType = GenericTypeResolver.resolveTypeArgument(initializer.getClass(),
ApplicationContextInitializer.class);
Assert.isInstanceOf(requiredType, context, "Unable to call initializer.");
initializer.initialize(context);
}
}
最后
以上就是幽默眼睛为你收集整理的嵌入式tomcat的不使用web.xml原理分析的全部内容，希望文章能够帮你解决嵌入式tomcat的不使用web.xml原理分析所遇到的程序开发问题。
如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
