1.SonarQube部署前的内核参数等配置以及java环境配置

1）修改内核参数配置，使满足环境要求

[root@sonarqube ~]# vim /etc/sysctl.conf
vm.max_map_count=262144
fs.file-max=65536
[root@sonarqube ~]# sysctl -p  #生效修改的内核参数
……
vm.max_map_count = 262144
fs.file-max = 65536

2）修改本机安全策略参数限制

[root@sonarqube ~]# vim /etc/security/limits.conf
……
sonarqube - nofile 65536
sonarqube - nproc  2048

3）配置java环境（至少jdk-8或openjdk-8版本）

[root@sonarqube ~]# ls /usr/local/src/
 jdk-8u211-linux-x64.tar.gz
[root@sonarqube src]# tar xvf jdk-8u211-linux-x64.tar.gz
[root@sonarqube src]#ln  -sv jdk1.8.0_211  jdk
[root@sonarqube src]#ln  -sv   jdk
[root@sonarqube src]# ln -sv /usr/local/src/jdk/bin/*  /usr/bin
[root@sonarqube src]# vim /etc/profile
……
export export LANG="en_US.utf-8"
export JAVA_HOME=/usr/local/jdk
export PATH=$JAVA_HOME/bin:$JAVA_HOME/jre/bin:$PATH
export CLASSPATH=$JAVA_HOME/lib:$JAVA_HOME/jre/lib:$JAVA_HOME/lib/tools.jar
[root@sonarqube src]# source /etc/profile  #将java环境变量生效

2.数据库准备（sonarqube7.9版本不再支持mysql，以sonarqube6.7为例，并要求至少mysql5.6以上，这里使用mysql5.7版本）

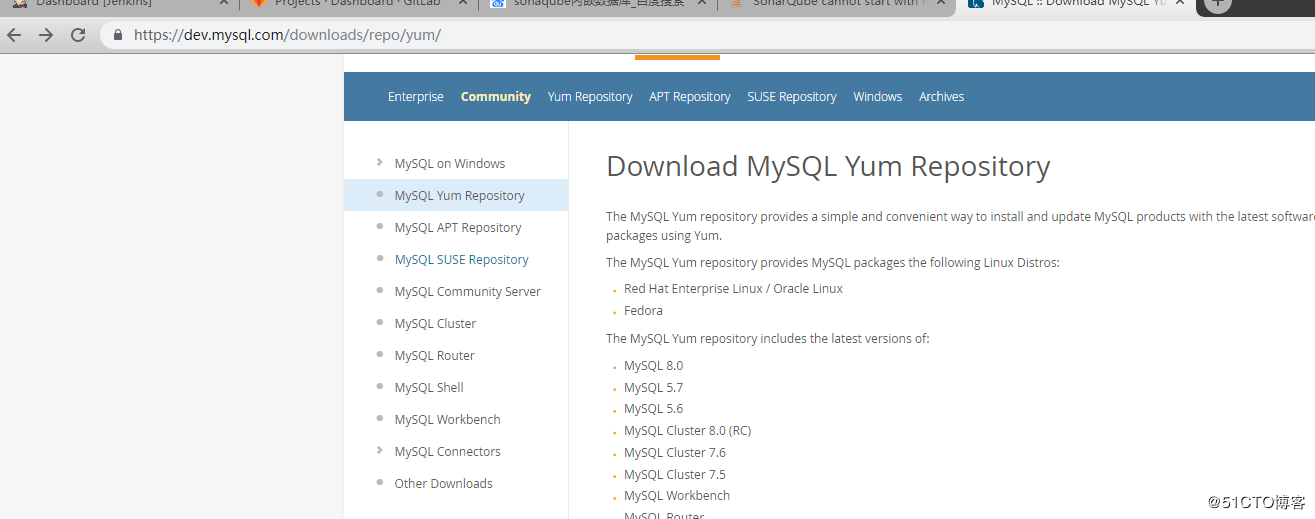

1）官网下载mysql社区版配置yum源仓库的rpm包（下载前需要注册oracle账号）

https://dev.mysql.com/downloads/repo/yum/

2）安装mysql的yum仓库源

[root@sonarqube mysql.repos]# ls
mysql80-community-release-el7-3.noarch.rpm
[root@sonarqube mysql.repos]# rpm -ivh mysql80-community-release-el7-3.noarch.rpm
warning: mysql80-community-release-el7-3.noarch.rpm: Header V3 DSA/SHA1 Signature, key ID 5072e1f5: NOKEY
Preparing...                          ################################# [100%]
Updating / installing...
     1:mysql80-community-release-el7-3  ################################# [100%]

3）查看安装的yum仓库源

root@sonarqube yum.repos.d]# ls
CentOS-Base.repo  epel.repo  mysql-community.repo  mysql-community-source.repo

4）查看yum子仓库中被禁用的和启用的mysql版本，默认最新版 MySQL 8.0是开启的（yum安装时也是默认最新版），其他版本默认禁用

[root@sonarqube yum.repos.d]# yum repolist all | grep mysql
mysql-cluster-7.5-community/x86_64 MySQL Cluster 7.5 Community   disabled
mysql-cluster-7.5-community-source MySQL Cluster 7.5 Community - disabled
mysql-cluster-7.6-community/x86_64 MySQL Cluster 7.6 Community   disabled
mysql-cluster-7.6-community-source MySQL Cluster 7.6 Community - disabled
mysql-cluster-8.0-community/x86_64 MySQL Cluster 8.0 Community   disabled
mysql-cluster-8.0-community-source MySQL Cluster 8.0 Community - disabled
mysql-connectors-community/x86_64  MySQL Connectors Community    enabled:    118
mysql-connectors-community-source  MySQL Connectors Community -  disabled
mysql-tools-community/x86_64       MySQL Tools Community         enabled:     95
mysql-tools-community-source       MySQL Tools Community - Sourc disabled
mysql-tools-preview/x86_64         MySQL Tools Preview           disabled
mysql-tools-preview-source         MySQL Tools Preview - Source  disabled
mysql55-community/x86_64           MySQL 5.5 Community Server    disabled
mysql55-community-source           MySQL 5.5 Community Server -  disabled
mysql56-community/x86_64           MySQL 5.6 Community Server    disabled
mysql56-community-source           MySQL 5.6 Community Server -  disabled
mysql57-community/x86_64           MySQL 5.7 Community Server    disabled
mysql57-community-source           MySQL 5.7 Community Server -  disabled
mysql80-community/x86_64           MySQL 8.0 Community Server    enabled:    129
mysql80-community-source           MySQL 8.0 Community Server -  disabled

5）yum-config-manager命令依赖于yum-utils.noarch包

[root@sonarqube yum.repos.d]# yum install yum-utils.noarch

6）下载mysql-5.7版本，则需启用子仓库的mysql-5.7版本，并将 MySQL 8.0版子仓库禁用，让yum安装默认下载5.7版本

[root@sonarqube yum.repos.d]# yum-config-manager --enable mysql57-community
[root@sonarqube yum.repos.d]# yum-config-manager --disable mysql80-community

7）再次查看子仓库源，发现mysql-5.7版本子仓库源已启用

[root@sonarqube yum.repos.d]# yum repolist all | grep mysql
mysql55-community/x86_64           MySQL 5.5 Community Server    disabled
mysql55-community-source           MySQL 5.5 Community Server -  disabled
mysql56-community/x86_64           MySQL 5.6 Community Server    disabled
mysql56-community-source           MySQL 5.6 Community Server -  disabled
mysql57-community/x86_64           MySQL 5.7 Community Server    enabled:    364
mysql57-community-source           MySQL 5.7 Community Server -  disabled
mysql80-community/x86_64           MySQL 8.0 Community Server    disabled
mysql80-community-source           MySQL 8.0 Community Server -  disabled

8）下载mysql，此时默认下载mysql-5.7版本

[root@sonarqube ~]# yum install mysql mysql-server -y

9）修改mysql数据库默认数据存储路径，准备msyql数据指定的存储目录

[root@sonarqube ~]# mkdir /data/mysql  #数据存储目录
[root@sonarqube ~]# mkdir /data/binlog/bin -pv  #二进制日志存储目录
[root@sonarqube ~]# mkdir /data/socket/    # 套接字目录

10）分别授权

[root@sonarqube ~]# chown mysql.mysql -R /data/mysql
[root@sonarqube ~]#  chown mysql.mysql -R /data/logbin/
[root@sonarqube ~]#  chown mysql.mysql -R /data/socket/

11)查看目录权限

[root@sonarqube ~]# ll /data
total 0
drwxr-xr-x 3 mysql mysql  52 Aug  2 00:15 binlog
drwxr-x--- 5 mysql mysql 314 Aug  2 00:16 mysql
drwxr-xr-x 2 mysql mysql   6 Aug  2 00:19 socket

12）mysql配置文件修改

[root@sonarqube ~]# grep '^[a-z]' /etc/my.cnf
log_bin=/data/binlog/bin
server_id=1
datadir=/data/mysql
socket=/data/socket/mysql.sock
……

13）启动服务

[root@sonarqube ~]# systemctl restart mysqld

14）查看启动的端口服务

[root@sonarqube ~]# ss -tnlp
State       Recv-Q Send-Q                      Local Address:Port                                     Peer Address:Port
LISTEN      0      128                                     *:22                                                  *:*                   users:(("sshd",pid=3710,fd=3))
LISTEN      0      100                             127.0.0.1:25                                                  *:*                   users:(("master",pid=3991,fd=13))
LISTEN      0      80                                     :::3306                                               :::*                   users:(("mysqld",pid=22395,fd=24))
LISTEN      0      128                                    :::22                                                 :::*                   users:(("sshd",pid=3710,fd=4))
LISTEN      0      100                                   ::1:25                                                 :::*                   users:(("master",pid=3991,fd=14))

15）由于套接字路径已改，直接进入数据库是默认是指定套接字路径/var/lib/mysql/mysql.sock，需指定更改后的路径

[root@sonarqube ~]# mysql
ERROR 2002 (HY000): Can't connect to local MySQL server through socket '/var/lib/mysql/mysql.sock' (2)

16）指定更改后的路径，还需要输入数据库临时密码

[root@sonarqube ~]# mysql -S /data/socket/mysql.sock
ERROR 1045 (28000): Access denied for user 'root'@'localhost' (using password: NO)

17）数据库启动后会在日志文件中生成一个临时密码，输入临时密码即可登录数据库

[root@sonarqube ~]# grep 'temporary password' /var/log/mysqld.log
2019-08-01T16:29:12.727126Z 1 [Note] A temporary password is generated for root@localhost: ?B9v5Eg7eost
[root@sonarqube ~]# mysql -S /data/socket/mysql.sock -p?B9v5Eg7eost   #进入数据库访问
……
Server version: 5.7.27-log

Copyright (c) 2000, 2019, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.

mysql>

18）再修改密码替代临时密码，即可访问数据中信息（密码至少8个字符以上且必须包含有字母、数字、字符，至少含有一个大写字母）

mysql> ALTER USER 'root'@'localhost' IDENTIFIED BY 'Jie?123456';
Query OK, 0 rows affected (0.01 sec)
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
4 rows in set (0.00 sec)

19）创建sonarqube数据库并授权sonarque用户

mysql> create database sonarqube default character set utf8 collate utf8_general_ci;
mysql> grant all on sonarqube.* to sonarqube@'192.168.1.31' identified by 'Jie?123456
Query OK, 0 rows affected, 1 warning (0.00 sec)

20）用sonarqube用户登录mysql数据库测试是否能进入数据库

[root@sonarqube ~]# mysql -usonarqube -pJie?123456 -S /data/socket/mysql.sock -h192.168.1.31
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or g.
Your MySQL connection id is 5
Server version: 5.7.27-log MySQL Community Server (GPL)

Copyright (c) 2000, 2019, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or 'h' for help. Type 'c' to clear the current input statement.

mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| information_schema |
| sonarqube          |
+--------------------+
2 rows in set (0.00 sec)

3.sonarqube-6.7的安装配置

1）下载源码压缩包

[root@sonarqube ~]# ls /apps/sonarqube
sonarqube-6.7.7.zip

2）解压sonarqube源码包,并创建软连接

[root@sonarqube sonarqube]# unzip sonarqube-6.7.7.zip
[root@sonarqube sonarqube]# ln -sv sonarqube-6.7.7 sonarqube
‘sonarqube’ -> ‘sonarqube-6.7.7’

3）创建用户以及更改目录的属主属组

[root@sonarqube sonarqube]# useradd  sonarqube
[root@sonarqube sonarqube]# chown sonarqube.sonarqube -R /apps/sonarqube/

4）配置sonarqube配置文件

[root@sonarqube conf]# su - sonarqube
Last login: Mon Jul 29 13:48:33 CST 2019 on pts/1
[sonarqube@sonarqube ~]$ cd /apps/sonarqube/sonarqube
[sonarqube@sonarqube sonarqube]$ grep '^[a-Z]' conf/sonar.properties
sonar.jdbc.username=sonarqube  #登录数据库的授权用户
sonar.jdbc.password=Jie?123456  #登录数据库的密码
sonar.jdbc.url=jdbc:mysql://192.168.1.31:3306/sonarqube?useUnicode=true&characterEncoding=utf8&rewriteBatchedStatements=true&useConfigs=maxPerformance&useSSL=false
#jdbc:mysql://192.168.1.31:3306/sonarqube 中的sonarqube为创建的数据库名称
sonar.web.host=0.0.0.0   #sonarqube服务监听本机所有ip
sonar.web.port=9000   #sonarqube服务启动时监听的端口

5）启动sonarqube服务

[sonarqube@sonarqube sonarqube]$ ./bin/linux-x86-64/sonar.sh  start
Starting SonarQube...
Started SonarQube.

6)在查看sonarqube服务启动状态，发现无法启动，去查看日志文件中的报错

[sonarqube@sonarqube sonarqube]$ ./bin/linux-x86-64/sonar.sh status
SonarQube is not running.

7）查看sonarqube服务的日志文件，发现报错是由于内存分配不足导致服务无法启动，

[root@sonarqube logs]# tail -30 sonar.log
......
Java HotSpot(TM) 64-Bit Server VM warning: INFO: os::commit_memory(0x00000000e0000000, 89653248, 0) failed; error='Cannot allocate memory' (errno=12)
......

8）关闭虚拟机，将内存调大，至少3G以上，在重新启动sonaqube服务并查看运行状态

[sonarqube@sonarqube sonarqube]$ ./bin/linux-x86-64/sonar.sh  start  启动服务
Starting SonarQube...
Started SonarQube.
[sonarqube@sonarqube sonarqube]$ ./bin/linux-x86-64/sonar.sh status  #发现服务已启动
SonarQube is running (5380).

9）查看监听的9000端口

[sonarqube@sonarqube sonarqube]$ ss -tnlp
State      Recv-Q Send-Q Local Address:Port               Peer Address:Port
LISTEN     0      128               *:111                           *:*
LISTEN     0      128               *:22                            *:*
LISTEN     0      100       127.0.0.1:25                            *:*
LISTEN     0      1         127.0.0.1:32000                         *:*
users:(("java",pid=10447,fd=4))
LISTEN     0      25               :::9000                         :::*
users:(("java",pid=10544,fd=116))
LISTEN     0      128    ::ffff:127.0.0.1:9001                         :::*
 users:(("java",pid=10467,fd=100))
LISTEN     0      80               :::3306                         :::*
LISTEN     0      128              :::111                          :::*
LISTEN     0      128              :::22                           :::*
LISTEN     0      100             ::1:25                           :::*
LISTEN     0      50     ::ffff:127.0.0.1:9092                         :::*
 users:(("java",pid=10544,fd=148))

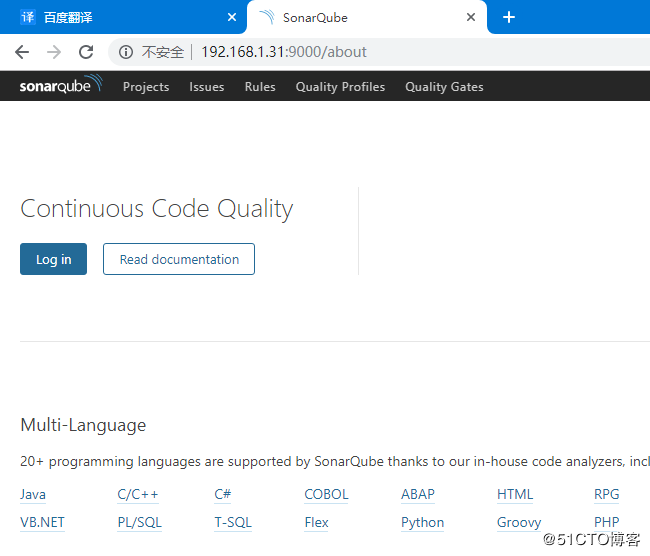

10）浏览器访问sonarqube

11）登录的用户名及密码均默认为admin

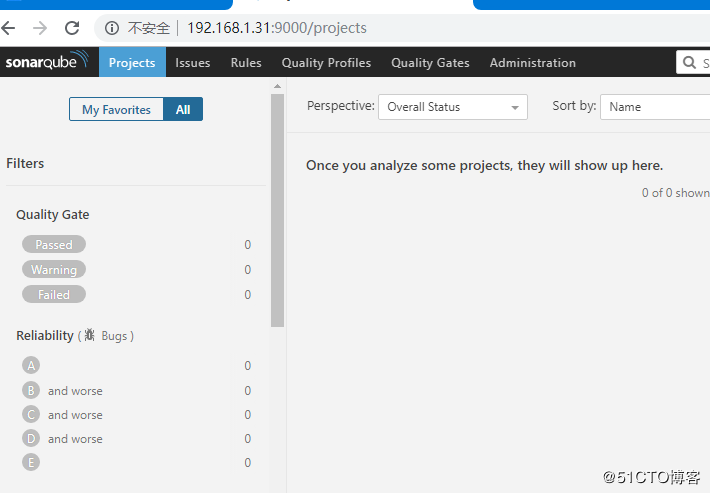

12）成功登录sonarqube的web页面

4.安装中文插件，显示为中文界面

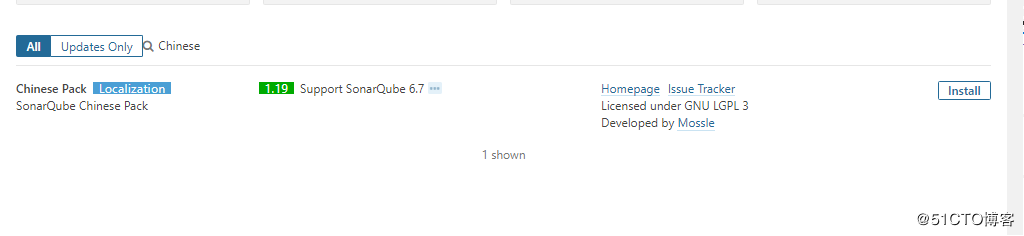

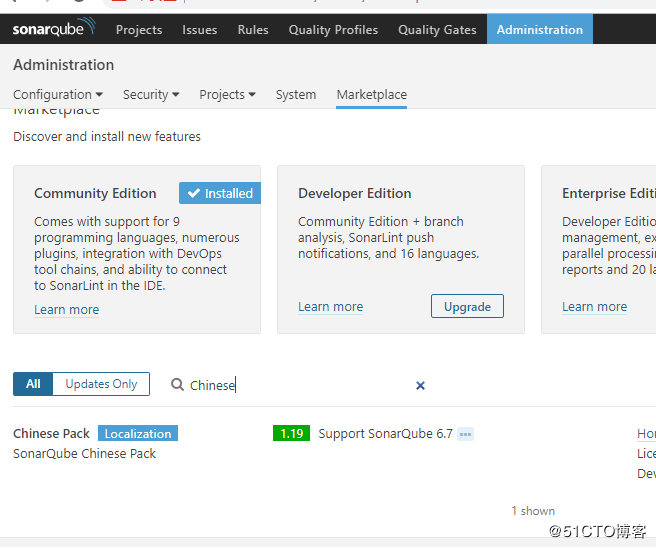

1）点击administration→Marketplace，直接搜索中文插件

2）在点击安装install

3）重新启动服务

[sonarqube@sonarqube linux-x86-64]$ ./sonar.sh restart

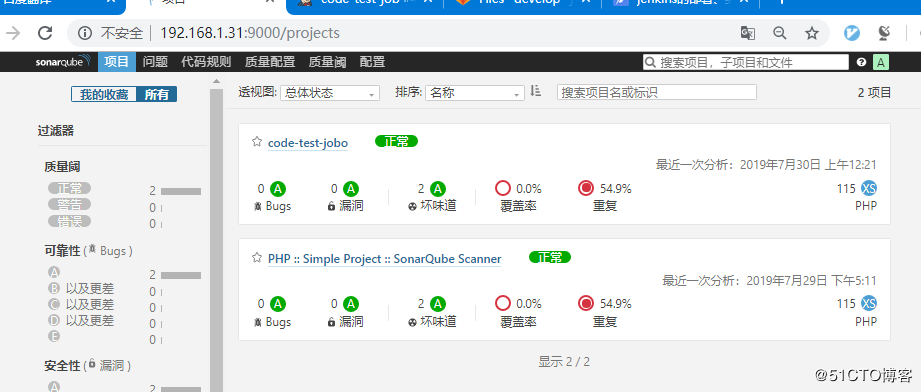

4）再次访问时，显示中文界面

5）查看安装的中文包插件

[sonarqube@sonarqube sonarqube]$ ll extensions/plugins/
……
-rw-r--r-- 1 sonarqube sonarqube   38307 Jul 29 15:05 sonar-l10n-zh-plugin-1.19.jar
……

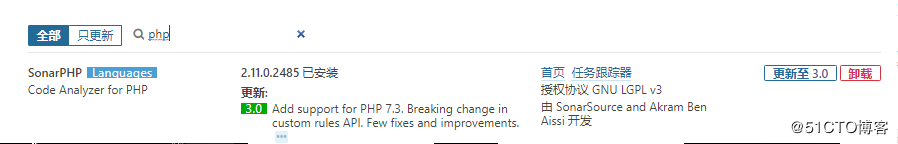

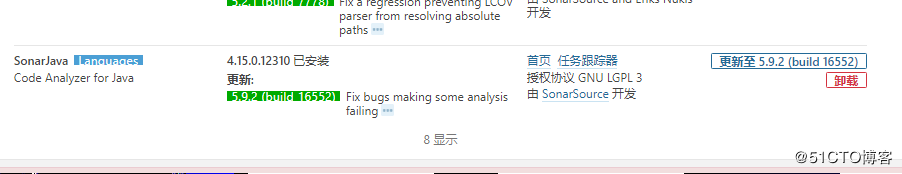

6）安装python、java、php等开发语言插件，才能扫描相关语言代码

5.部署扫描器sonar-scanner（sonarqube通过扫描器扫描代码）

1）scanner二进制×××地址

https://binaries.sonarsource.com/Distribution/sonar-scanner-cli

2）下载扫描器到指定目录下

[root@sonarqube sonarscanner]# pwd
/apps/sonarscanner
[root@sonarqube sonarscanner]# ll -h
total 41M
-rw-r--r-- 1 root root 41M Jul 22 19:31 sonar-scanner-cli-4.0.0.1744-linux.zip

3）解压扫描器二进制源码并创建软连接

[root@sonarqube sonarscanner]# unzip sonar-scanner-cli-4.0.0.1744-linux.zip
[root@sonarqube sonarscanner]# ls
sonar-scanner-4.0.0.1744-linux  sonar-scanner-cli-4.0.0.1744-linux.zip
[root@sonarqube sonarscanner]# ln -sv sonar-scanner-4.0.0.1744-linux sonar-scanner
‘sonar-scanner’ -> ‘sonar-scanner-4.0.0.1744-linux’

4）修改配置文件

[root@sonarqube sonar-scanner]# vim conf/sonar-scanner.properties
……
#----- Default SonarQube server
sonar.host.url=http://192.168.1.31:9000

#----- Default source code encoding
sonar.sourceEncoding=UTF-8

5）准备一个测试代码压缩包并解压到当前目录下

[root@sonarqube code-test]# pwd
/apps/code-test
[root@sonarqube code-test]# ll -h
total 6.5M
-rw-r--r-- 1 root root 6.5M Nov 21  2018 sonar-examples-master.zip
[root@sonarqube code-test]# unzip sonar-examples-master.zip

6）切换到测试源码的路径下

[root@sonarqube php-sonar-runner]# pwd
/apps/code-test/sonar-examples-master/projects/languages/php/php-sonar-runner
[root@sonarqube php-sonar-runner]# ll
total 12
-rw-r--r-- 1 root root 453 Jul 25  2016 README.md
-rw-r--r-- 1 root root 331 Jul 25  2016 sonar-project.properties
drwxr-xr-x 2 root root  22 Jul 25  2016 src
-rw-r--r-- 1 root root 272 Jul 25  2016 validation.txt

7）默认生成的代码配置文件

[root@sonarqube php-sonar-runner]# cat sonar-project.properties
# Required metadata
sonar.projectKey=org.sonarqube:php-simple-sq-scanner  #自定义额项目key
sonar.projectName=PHP :: Simple Project :: SonarQube Scanner #项目的名称
sonar.projectVersion=1.0   #项目的版本号

# Comma-separated paths to directories with sources (required)
sonar.sources=src   #源码路径

# Language
sonar.language=php  #源码的类型为PHP代码

# Encoding of the source files
sonar.sourceEncoding=UTF-8  #编码的格式

8）在当前的代码路径下执行扫描

[root@sonarqube php-sonar-runner]# /apps/sonarscanner/sonar-scanner/bin/sonar-scanner
……
tly specify it.
INFO: Calculating CPD for 1 file
INFO: CPD calculation finished
INFO: Analysis report generated in 213ms, dir size=34 KB
INFO: Analysis reports compressed in 42ms, zip size=10 KB
INFO: Analysis report uploaded in 3108ms
INFO: ANALYSIS SUCCESSFUL, you can browse http://192.168.1.31:9000/dashboard/index/org.sonarqube:php-simple-sq-scanner
INFO: Note that you will be able to access the updated dashboard once the server has processed the submitted analysis report
INFO: More about the report processing at http://192.168.1.31:9000/api/ce/task?id=AWw9AEUVHii-ILef0qYq
INFO: Task total time: 17.226 s
INFO: ------------------------------------------------------------------------
INFO: EXECUTION SUCCESS
INFO: ------------------------------------------------------------------------
INFO: Total time: 29.467s
INFO: Final Memory: 7M/115M
INFO: ------------------------------------------------------------------------

9）web端查看扫描后生成的记录

6.jenkins配置sonarqube-scanner并实现jenkins代码的自动测试、自动部署

1）安装扫描器插件

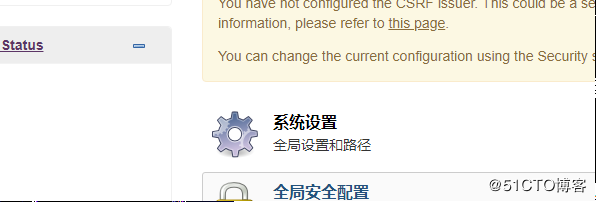

2）点击系统设置设置sonarqube服务

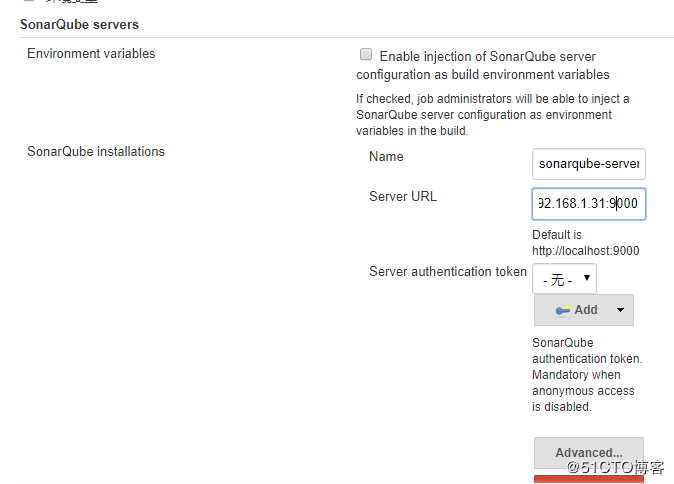

3）添加sonarqube服务并自定义服务名称以及url地址

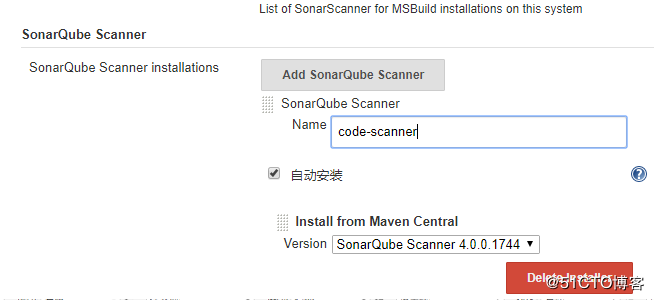

4）自动安装scanner扫描器

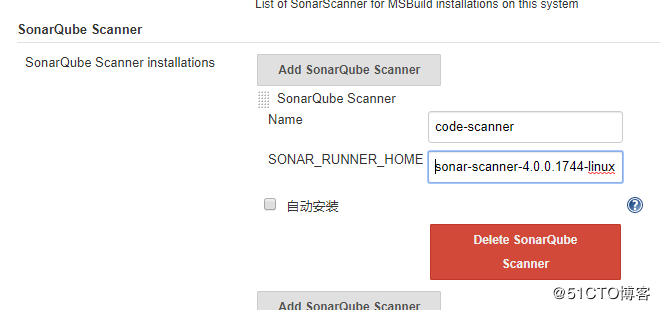

5）若已安装scanner扫描器则无需自动安装，直接添加扫描器的工作目录即可

6）在jenkins创建一个新项目code-test-job

7）配置此项目的configure

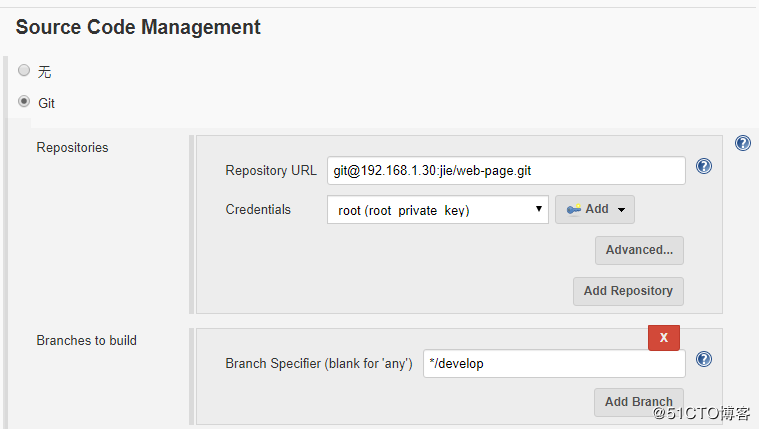

指定gitlab仓库源、认证方式

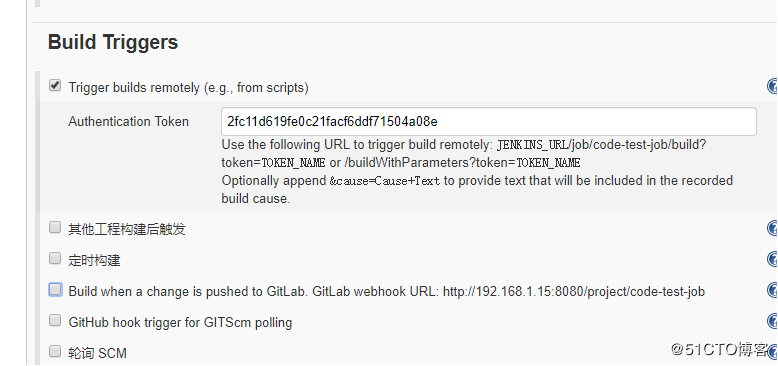

构建触发的口令秘钥

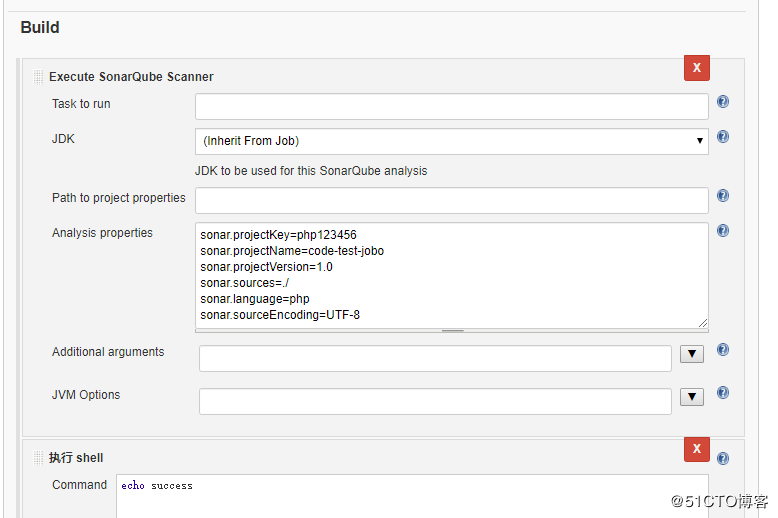

代码扫描的配置参数，其指定检测代码的类型、编码格式、路径等

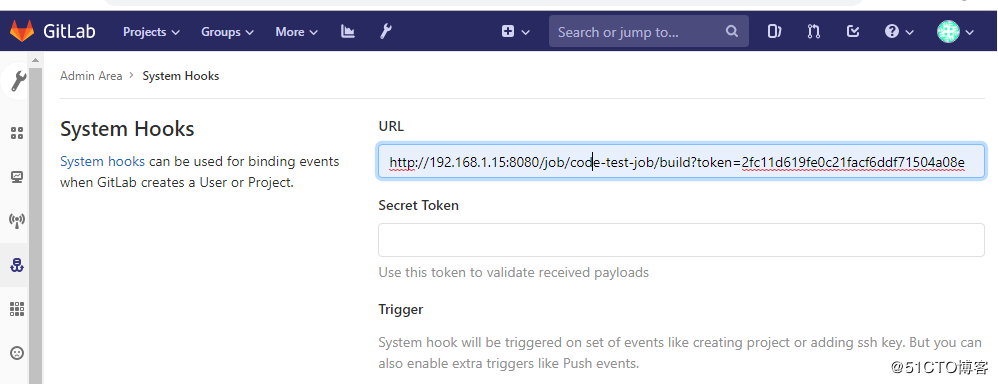

8）在gitlab服务器中对的系统钩子添加jenkins认证地址，以实现自动触发jenkins的项目构建

9）克隆gitlab仓库代码并修改代码，再上传至gitlab仓库触发jenkins项目构建

指定克隆develop分支代码

root@ubuntu1804:/data/src# git clone -b develop http://192.168.1.30/jie/web-page.git
Cloning into 'web-page'...
Username for 'http://192.168.1.30': jie
Password for 'http://jie@192.168.1.30':
remote: Enumerating objects: 30, done.
remote: Counting objects: 100% (30/30), done.
remote: Compressing objects: 100% (13/13), done.
remote: Total 30 (delta 4), reused 27 (delta 4)
Unpacking objects: 100% (30/30), done.

添加一个php源码文件到克隆的目录下

root@ubuntu1804:/data/src/web-page# mv /data/Math.php ./
root@ubuntu1804:/data/src/web-page# ls
index.html  Math.php

代码添加至本地暂存区

root@ubuntu1804:/data/src/web-page# git add ./*

代码提交至工作区并指定提交版本号以便多次提交的区分

root@ubuntu1804:/data/src/web-page# git commit -m 'v11'
[develop 9e106d4] v11
 1 file changed, 214 insertions(+)
 create mode 100644 Math.php

代码上传至gitlab代码库

root@ubuntu1804:/data/src/web-page# git push
Username for 'http://192.168.1.30': jie
Password for 'http://jie@192.168.1.30':
Counting objects: 3, done.
Delta compression using up to 4 threads.
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 1.75 KiB | 893.00 KiB/s, done.
Total 3 (delta 0), reused 0 (delta 0)
remote:
remote: To create a merge request for develop, visit:
remote:   http://192.168.1.30/jie/web-page/merge_requests/new?merge_request%5Bsource_branch%5D=develop
remote:
To http://192.168.1.30/jie/web-page.git
     3fb434f..9e106d4  develop -> develop

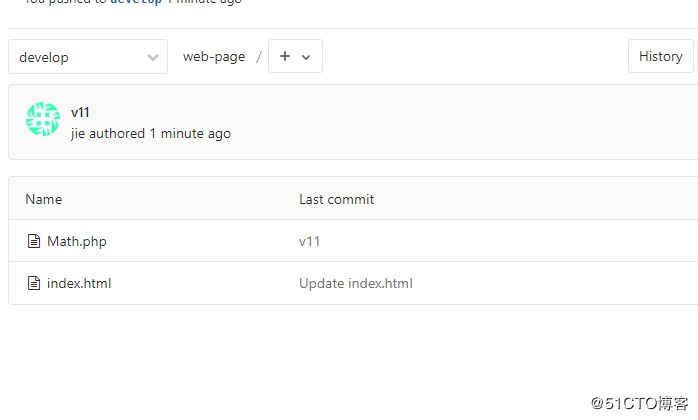

10）在gitlab服务端查看代码已提交成功

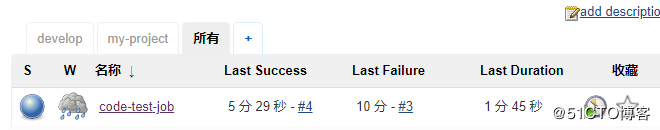

11）提交代码到gitlab后自动触发jenkins项目构建

12）查看项目构建成功的控制台信息输出

13）查看sonarqube-server服务器记录下来的php代码测试结果



最后

以上就是碧蓝啤酒为你收集整理的部署SonarQube代码检测服务以及jenkins实现代码自动测试、自动部署的全部内容，希望文章能够帮你解决部署SonarQube代码检测服务以及jenkins实现代码自动测试、自动部署所遇到的程序开发问题。

如果觉得靠谱客网站的内容还不错，欢迎将靠谱客网站推荐给程序员好友。
