C Construct
switch (u1)
{
case 2:
y1 = u2;
break;
case 3:
u3;
break;
default:
y1 = u4;
break;
}
Modeling Pattern for Switch: Switch Case block
One method to create a switch statement is to use a Switch Case block from the Simulink > Signal Routing library.
1. Open example model ex_switch_SL.

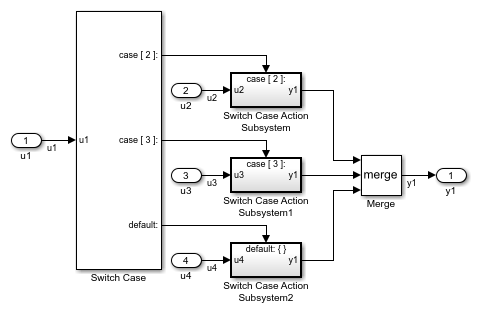

The model contains a Switch Case Action Subsystem. The Switch Case block takes an integer input, therefore, the input signal u1 is type cast to int32.
2. To build the model and generate code, press Ctrl+B.
The code implementing the switch construct is in the ex_switch_SL_step function in ex_switch_SL.c:
/* Exported blo
