概述

使用有人配套的USR-G78x工具，可以方便的在电脑上进行配置，这里记录一下不同的图形化配置和对应的串口配置指令。

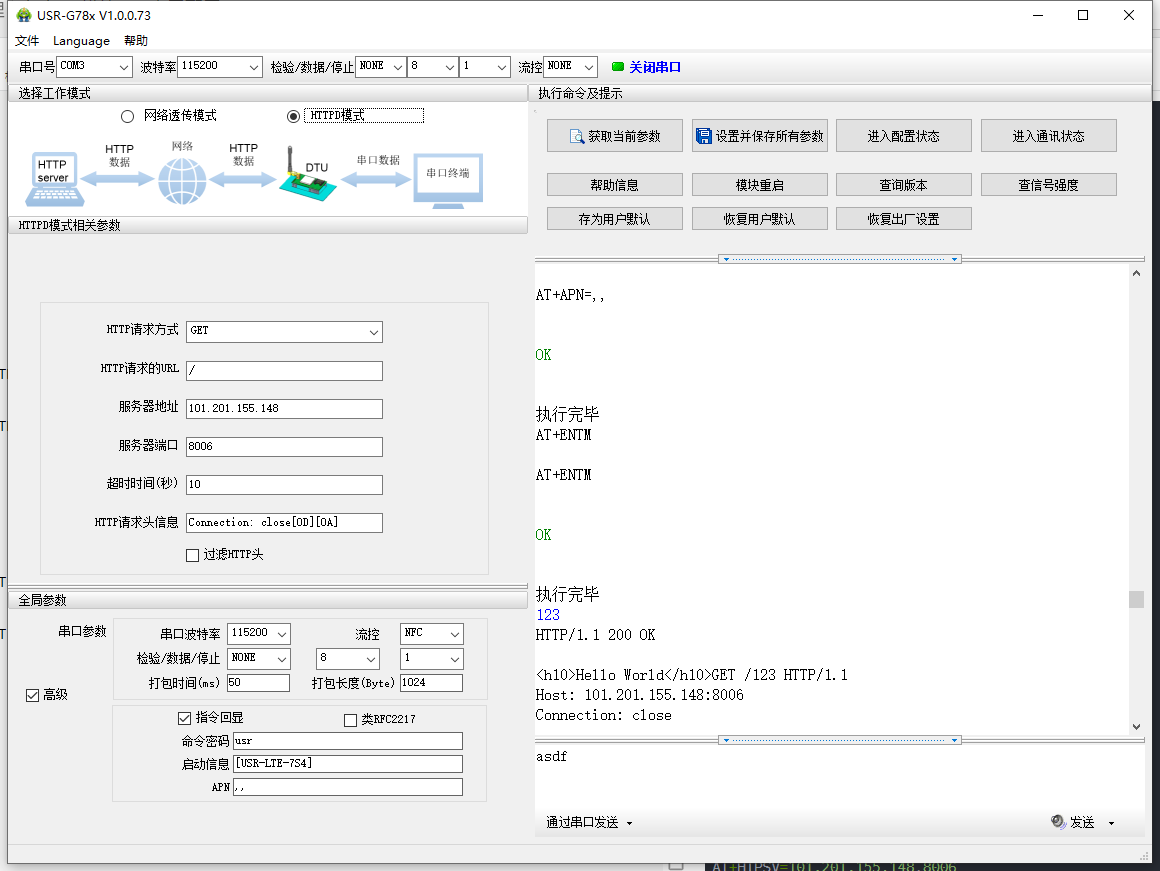

HTTPD模式：
在这里插入图片描述
下面是配置过程中的串口发送和回显数据：

AT+VER?

AT+VER?


+VER:V1.3.2


AT+WKMOD=HTTPD

AT+WKMOD=HTTPD


OK


AT+HTPTP=GET

AT+HTPTP=GET


OK


AT+HTPURL=/

AT+HTPURL=/


OK


AT+HTPSV=101.201.155.148,8006

AT+HTPSV=101.201.155.148,8006


OK


AT+HTPTO=10

AT+HTPTO=10


OK


AT+HTPHD=Connection: close[0D][0A]

AT+HTPHD=Connection: close[0D][0A]


OK


AT+HTPFLT=OFF

AT+HTPFLT=OFF


OK


AT+UART=115200,8,1,NONE,NFC

AT+UART=115200,8,1,NONE,NFC


OK


AT+RFCEN=OFF

AT+RFCEN=OFF


OK


AT+UARTFT=50

AT+UARTFT=50


OK


AT+UARTFL=1024

AT+UARTFL=1024


OK


AT+E=ON

AT+E=ON


OK


AT+CMDPW=usr

AT+CMDPW=usr


OK


AT+STMSG=[USR-LTE-7S4]

AT+STMSG=[USR-LTE-7S4]


OK


AT+APN=,,

AT+APN=,,


OK


执行完毕
AT+ENTM

AT+ENTM


OK


执行完毕

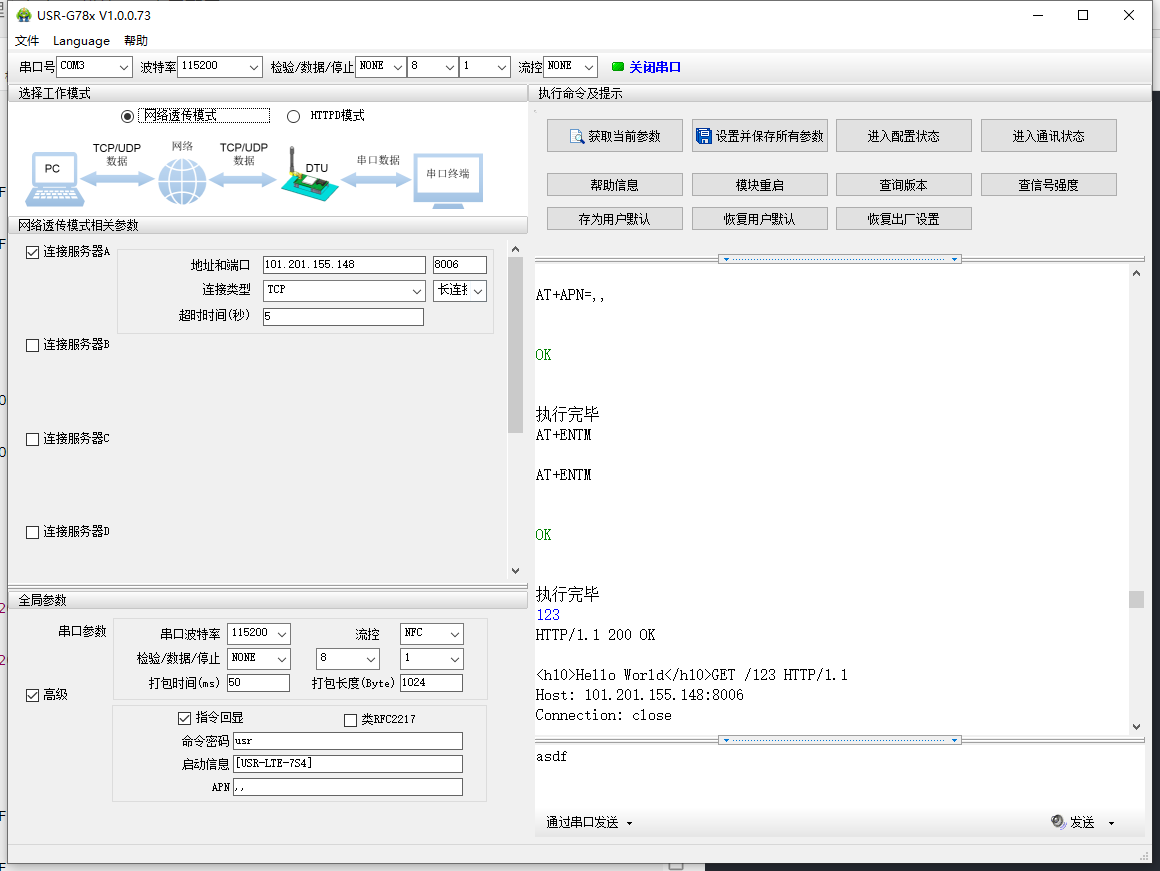

网络透传模式：
在这里插入图片描述

AT+VER?

AT+VER?


+VER:V1.3.2


AT+WKMOD=NET

AT+WKMOD=NET


OK


AT+SOCKAEN=ON

AT+SOCKAEN=ON


OK


AT+SOCKA=TCP,101.201.155.148,8006

AT+SOCKA=TCP,101.201.155.148,8006


OK


AT+SOCKASL=LONG

AT+SOCKASL=LONG


OK


AT+SOCKATO=5

AT+SOCKATO=5


OK


AT+SOCKBEN=OFF

AT+SOCKBEN=OFF


OK


AT+SOCKCEN=OFF

AT+SOCKCEN=OFF


OK


AT+SOCKDEN=OFF

AT+SOCKDEN=OFF


OK


AT+HEARTEN=OFF

AT+HEARTEN=OFF


OK


AT+REGEN=OFF

AT+REGEN=OFF


OK


AT+SOCKIND=OFF

AT+SOCKIND=OFF


OK


AT+UART=115200,8,1,NONE,NFC

AT+UART=115200,8,1,NONE,NFC


OK


AT+RFCEN=OFF

AT+RFCEN=OFF


OK


AT+UARTFT=50

AT+UARTFT=50


OK


AT+UARTFL=1024

AT+UARTFL=1024


OK


AT+E=ON

AT+E=ON


OK


AT+CMDPW=usr

AT+CMDPW=usr


OK


AT+STMSG=[USR-LTE-7S4]

AT+STMSG=[USR-LTE-7S4]


OK


AT+APN=,,

AT+APN=,,


OK


执行完毕
