概述

Matlab制作局部放大图——magnify源码

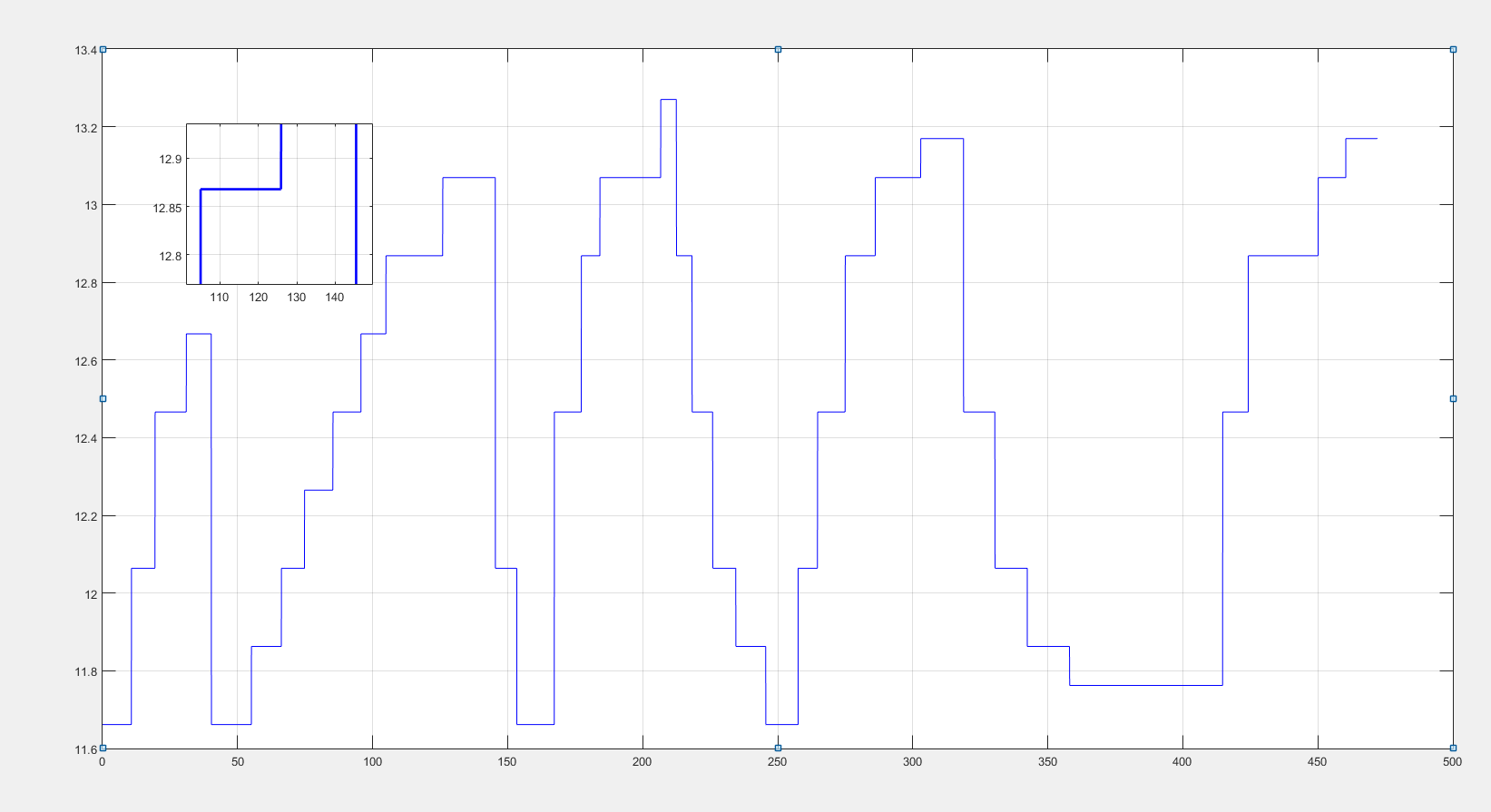

写论文时会遇到需要用matlab做局部放大图的问题，好在matlab给出了magnify局部放大函数。下面是我做的一个小例子。
在这里插入图片描述

步骤：

1、先将magnify.m函数复制到包含图片的文件夹下。
2、plot出你要做局部放大图的图片，运行magnify.m（我没表达清楚的话可以看源码中加粗的Example）
3、右键选中想要放大的区域（按着右键不要动），然后可以使用‘’缩放方法范围，‘+’和‘-’缩放放大比例，看着放大的小图满意后松开右键即可

这是matlab官网magnify(f1)函数的注释

Figure creates a magnification box when under the mouse
position when a button is pressed. Press ‘+’/’-’ while
button pressed to increase/decrease magnification. Press ‘>’/’<’ while button pressed to increase/decrease box size.
Hold ‘Ctrl’ while clicking to leave magnification on figure.

% Example:
% plot(1:100,randn(1,100),(1:300)/3,rand(1,300)), grid on,
% magnify;
下面为 源代码，复制即可使用

// An highlighted block
function magnify(f1)
if (nargin == 0), f1 = gcf; end;
set(f1, ...
   'WindowButtonDownFcn',  @ButtonDownCallback, ...
   'WindowButtonUpFcn', @ButtonUpCallback, ...
   'WindowButtonMotionFcn', @ButtonMotionCallback, ...
   'KeyPressFcn', @KeyPressCallback);
return;

function ButtonDownCallback(src,eventdata)
   f1 = src;
   a1 = get(f1,'CurrentAxes');
   a2 = copyobj(a1,f1);

   set(f1, ...
      'UserData',[f1,a1,a2], ...
      'Pointer','fullcrosshair', ...
      'CurrentAxes',a2);
   set(a2, ...
      'UserData',[2,0.2], ...  %magnification, frame size
      'Color',get(a1,'Color'), ...
      'Box','on');
   xlabel(''); ylabel(''); zlabel(''); title('');
   set(get(a2,'Children'), ...
      'LineWidth', 2);
   set(a1, ...
      'Color',get(a1,'Color')*0.95);
   set(f1, ...
      'CurrentAxes',a1);
   ButtonMotionCallback(src);
return;

function ButtonUpCallback(src,eventdata)
   H = get(src,'UserData');
   f1 = H(1); a1 = H(2); a2 = H(3);
   set(a1, ...
      'Color',get(a2,'Color'));
   set(f1, ...
      'UserData',[], ...
      'Pointer','arrow', ...
      'CurrentAxes',a1);
   if ~strcmp(get(f1,'SelectionType'),'alt'),
      delete(a2);
   end;
return;

function ButtonMotionCallback(src,eventdata)
   H = get(src,'UserData');
   if ~isempty(H)
      f1 = H(1); a1 = H(2); a2 = H(3);
      a2_param = get(a2,'UserData');
      f_pos = get(f1,'Position');
      a1_pos = get(a1,'Position');

      [f_cp, a1_cp] = pointer2d(f1,a1);

      set(a2,'Position',[(f_cp./f_pos(3:4)) 0 0]+a2_param(2)*a1_pos(3)*[-1 -1 2 2]);
      a2_pos = get(a2,'Position');

   	set(a2,'XLim',a1_cp(1)+(1/a2_param(1))*(a2_pos(3)/a1_pos(3))*diff(get(a1,'XLim'))*[-0.5 0.5]);
   	set(a2,'YLim',a1_cp(2)+(1/a2_param(1))*(a2_pos(4)/a1_pos(4))*diff(get(a1,'YLim'))*[-0.5 0.5]);
   end;
return;

function KeyPressCallback(src,eventdata)
   H = get(gcf,'UserData');
   if ~isempty(H)
      f1 = H(1); a1 = H(2); a2 = H(3);
      a2_param = get(a2,'UserData');
      if (strcmp(get(f1,'CurrentCharacter'),'+') | strcmp(get(f1,'CurrentCharacter'),'='))
         a2_param(1) = a2_param(1)*1.2;
      elseif (strcmp(get(f1,'CurrentCharacter'),'-') | strcmp(get(f1,'CurrentCharacter'),'_'))
         a2_param(1) = a2_param(1)/1.2;
      elseif (strcmp(get(f1,'CurrentCharacter'),'<') | strcmp(get(f1,'CurrentCharacter'),','))
         a2_param(2) = a2_param(2)/1.2;
      elseif (strcmp(get(f1,'CurrentCharacter'),'>') | strcmp(get(f1,'CurrentCharacter'),'.'))
         a2_param(2) = a2_param(2)*1.2;
      end;
      set(a2,'UserData',a2_param);
   	ButtonMotionCallback(src);
   end;
return;



% Included for completeness (usually in own file)
function [fig_pointer_pos, axes_pointer_val] = pointer2d(fig_hndl,axes_hndl)
%
%pointer2d(fig_hndl,axes_hndl)
%
%	Returns the coordinates of the pointer (in pixels)
%	in the desired figure (fig_hndl) and the coordinates
%       in the desired axis (axes coordinates)
%
% Example:
%  figure(1),
%  hold on,
%  for i = 1:1000,
%     [figp,axp]=pointer2d;
%     plot(axp(1),axp(2),'.','EraseMode','none');
%     drawnow;
%  end;
%  hold off

% Rick Hindman - 4/18/01

if (nargin == 0), fig_hndl = gcf; axes_hndl = gca; end;
if (nargin == 1), axes_hndl = get(fig_hndl,'CurrentAxes'); end;

set(fig_hndl,'Units','pixels');

pointer_pos = get(0,'PointerLocation');	%pixels {0,0} lower left
fig_pos = get(fig_hndl,'Position');	%pixels {l,b,w,h}

fig_pointer_pos = pointer_pos - fig_pos([1,2]);
set(fig_hndl,'CurrentPoint',fig_pointer_pos);

if (isempty(axes_hndl)),
	axes_pointer_val = [];
elseif (nargout == 2),
	axes_pointer_line = get(axes_hndl,'CurrentPoint');
	axes_pointer_val = sum(axes_pointer_line)/2;
end;
