概述

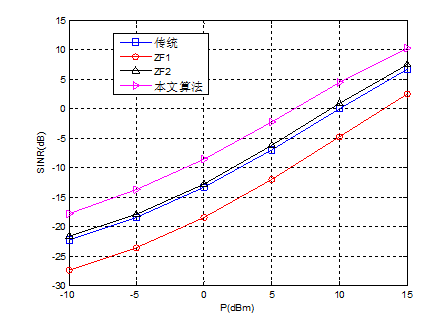

1.仿真预览
2.理论分析
整个仿真一定要有完整的链路结构，波束赋形按照参考要求设计外，其他模块都要有，但可以适当根据理论进行简化，重点是波束赋形部分的matlab程序编写。主要看这部分内容。
具体实现步骤：

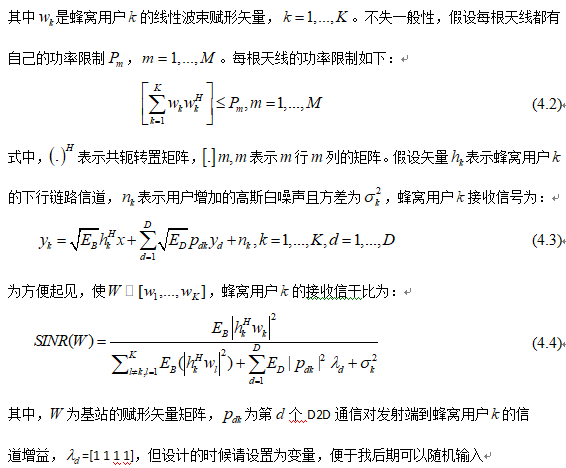

算法一的实现，与参考文献一（算法1）的区别是信干比公式（4.4）增加一个
=[1，1，1，1]，这个因子中的所有变量可以自行根据实际情况设定，各因子的意义在信干比公式中有说明。
链路说明，需5号之前给出完整的仿真链路，发给我熟悉，链路的需要体现波束赋形过程，W矩阵为4x4，先随机给出，算法2需要对比的W矩阵可以先实现，将4种W进行波束赋形，然后经过链路传输输出图中的两幅图，结果暂时不要求，根据实际的W得到。10号之前需要完整的结果图和仿真程序。重点需要检查赋形的算法程序！！！

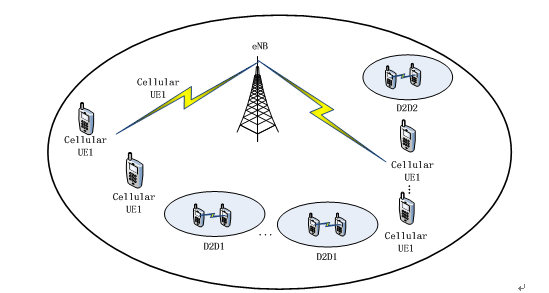

考虑下行链路的蜂窝网络中存在多个D2D通信对和多个蜂窝用户，它们共享相同的频率资源并且蜂窝用户为主用户。如图4.1所示，中心基站配备M根天线，并且传输独立的信号
给单个天线的用户,。每个蜂窝用户包括D2D设备配备单根天线。假设蜂窝网络中存在个蜂窝用户，表示；并且在蜂窝网络中存在D个可能的D2D通信对，用表示。每个D2D通信对由发射端和接收端组成。
3.部分核心代码
clc;
clear;
close all;
warning off;
addpath 'func'
addpath 'funcmodulation'
addpath 'funcestmation'
addpath 'funccp'
addpath 'funcLTEC'
addpath 'funcprecodeing'
P = [-10:5:15];
%P = [15];
D = 6;%设置4个D2D
LL = [1,1,1,1,1,1];
for jj = 1:length(P);
Ps = sqrt(10^(P(jj)/10));
Tx_n = 4;
Rx_n = 4;
%整体信噪比
SNR = 2.4;
Nfft = 1024;
Nid = 17;
Sym_Len = 7;
CP_length = 144;
CPNfft = Nfft+CP_length;
Pdk = [200,200,200,200,200,200]/sqrt(Ps);
for y=1:10
rng(y)
y
jj
noise = SNR;
N0 = 10^(-noise/10);
%SNR转换为sigma
sigmas = 10^(-SNR/20);
%产生信道估计所用的测试信号，功能类似导频
[subframe,data_v,data_v0,data_v1,data_v2,data_v3] = func_data_gen(Tx_n,Rx_n,Sym_Len,Nid);
number_length = length(find(subframe == 0));
%IFFT
data_ifft1 = zeros(Nfft,2*Sym_Len);
data_ifft2 = zeros(Nfft,2*Sym_Len);
data_ifft3 = zeros(Nfft,2*Sym_Len);
data_ifft4 = zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
data_ifft1(:,i) = ifft(data_v0(:,i),Nfft);
data_ifft2(:,i) = ifft(data_v1(:,i),Nfft);
data_ifft3(:,i) = ifft(data_v2(:,i),Nfft);
data_ifft4(:,i) = ifft(data_v3(:,i),Nfft);
end
%插入CP
WithCP_sequence1 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence2 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence3 = zeros(CPNfft,2*Sym_Len);
WithCP_sequence4 = zeros(CPNfft,2*Sym_Len);
for i=1:2*Sym_Len
WithCP_sequence1(:,i) = func_CP_In(data_ifft1(:,i).',CP_length);
WithCP_sequence2(:,i) = func_CP_In(data_ifft2(:,i).',CP_length);
WithCP_sequence3(:,i) = func_CP_In(data_ifft3(:,i).',CP_length);
WithCP_sequence4(:,i) = func_CP_In(data_ifft4(:,i).',CP_length);
end
T1=reshape(WithCP_sequence1,1,CPNfft*2*Sym_Len);
T2=reshape(WithCP_sequence2,1,CPNfft*2*Sym_Len);
T3=reshape(WithCP_sequence3,1,CPNfft*2*Sym_Len);
T4=reshape(WithCP_sequence4,1,CPNfft*2*Sym_Len);
[r1,channel_impulse1,delay_number1,tap_delay1]=func_LTEChan(T1,'EPA');
[r2,channel_impulse2,delay_number2,tap_delay2]=func_LTEChan(T2,'EPA');
[r3,channel_impulse3,delay_number3,tap_delay3]=func_LTEChan(T3,'EPA');
[r4,channel_impulse4,delay_number4,tap_delay4]=func_LTEChan(T4,'EPA');
[r5,channel_impulse5,delay_number5,tap_delay5]=func_LTEChan(T1,'EPA');
[r6,channel_impulse6,delay_number6,tap_delay6]=func_LTEChan(T2,'EPA');
[r7,channel_impulse7,delay_number7,tap_delay7]=func_LTEChan(T3,'EPA');
[r8,channel_impulse8,delay_number8,tap_delay8]=func_LTEChan(T4,'EPA');
R1 = (r1+r2+r3+r4);
R2 = (r5+r6+r7+r8);
%sigmas
a = Ps*R1*sqrt(Nfft) + sigmas*randn(size(R1));
b = Ps*R2*sqrt(Nfft) + sigmas*randn(size(R2));
noise1 = a/sqrt(Nfft)-R1;
noise2 = b/sqrt(Nfft)-R2;
R1 = a/sqrt(Nfft);
R2 = b/sqrt(Nfft);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%去CP
WithCP_sequence_1 = reshape(R1,CPNfft,2*Sym_Len);
WithCP_sequence_2 = reshape(R2,CPNfft,2*Sym_Len);
NoCP_sequence1 = zeros(2*Sym_Len,Nfft);
NoCP_sequence2 = zeros(2*Sym_Len,Nfft);
for i=1:2*Sym_Len
NoCP_sequence1(i,:) = func_CP_del(WithCP_sequence_1(:,i),CP_length);
NoCP_sequence2(i,:) = func_CP_del(WithCP_sequence_2(:,i),CP_length);
end
NoCP_sequence1=NoCP_sequence1.';
NoCP_sequence2=NoCP_sequence2.';
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%FFT
FFTed1=zeros(Nfft,2*Sym_Len);
FFTed2=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
FFTed1(:,i)=fft(NoCP_sequence1(:,i));
FFTed2(:,i)=fft(NoCP_sequence2(:,i));
end
%信道估计
[hb10,hb11,hb12,hb13] = func_channel_estmation(FFTed1,0,Nid,1,Tx_n,Sym_Len,Rx_n);
[hb20,hb21,hb22,hb23] = func_channel_estmation(FFTed2,0,Nid,1,Tx_n,Sym_Len,Rx_n);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%信道估计之后开始在正式的链路的仿真%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%产生随机信号
Din1 = randint(1,number_length*2);
Din2 = randint(1,number_length*2);
%调制
Din_mod1 = func_QPSK(Din1);
Din_mod2 = func_QPSK(Din2);
%码本选择
for i=1:Tx_n*Rx_n*2*Sym_Len
H = [hb10(i) hb11(i) hb12(i) hb13(i);hb20(i) hb21(i) hb22(i) hb23(i)];
[R,snr,SINR0] = func_codebookselect(H,N0,sigmas,Ps,Tx_n,LL,Pdk);
r_withRS(i) = R;
SINR(i) = SINR0;
end
r = func_rs_del(Tx_n,r_withRS,0,Nid,1,Sym_Len,Rx_n);
%预编码
[copreding0,copreding1,copreding2,copreding3,W] = func_Precoding(Din_mod1,Din_mod2,r);
%VRB
k=1;
for i=1:length(subframe)
if data_v(i)==0
data_v0(i)=copreding0(k);
data_v1(i)=copreding1(k);
data_v2(i)=copreding2(k);
data_v3(i)=copreding3(k);
k=k+1;
end
end
IFFTed0_2nd=zeros(Nfft,2*Sym_Len);
IFFTed1_2nd=zeros(Nfft,2*Sym_Len);
IFFTed2_2nd=zeros(Nfft,2*Sym_Len);
IFFTed3_2nd=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
IFFTed0_2nd(:,i)=ifft(data_v0(:,i),Nfft);
IFFTed1_2nd(:,i)=ifft(data_v1(:,i),Nfft);
IFFTed2_2nd(:,i)=ifft(data_v2(:,i),Nfft);
IFFTed3_2nd(:,i)=ifft(data_v3(:,i),Nfft);
end
%加CP
WithCP_sequence0_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence1_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence2_2nd=zeros(CPNfft,2*Sym_Len);
WithCP_sequence3_2nd=zeros(CPNfft,2*Sym_Len);
for i=1:2*Sym_Len
WithCP_sequence0_2nd(:,i)=func_CP_In(IFFTed0_2nd(:,i).',CP_length);
WithCP_sequence1_2nd(:,i)=func_CP_In(IFFTed1_2nd(:,i).',CP_length);
WithCP_sequence2_2nd(:,i)=func_CP_In(IFFTed2_2nd(:,i).',CP_length);
WithCP_sequence3_2nd(:,i)=func_CP_In(IFFTed3_2nd(:,i).',CP_length);
end
T0_2nd=reshape(WithCP_sequence0_2nd,1,CPNfft*2*Sym_Len);
T1_2nd=reshape(WithCP_sequence1_2nd,1,CPNfft*2*Sym_Len);
T2_2nd=reshape(WithCP_sequence2_2nd,1,CPNfft*2*Sym_Len);
T3_2nd=reshape(WithCP_sequence3_2nd,1,CPNfft*2*Sym_Len);
[r1_2nd]=func_LTEChannel2(T0_2nd,channel_impulse1,delay_number1,tap_delay1);
[r2_2nd]=func_LTEChannel2(T1_2nd,channel_impulse2,delay_number2,tap_delay2);
[r3_2nd]=func_LTEChannel2(T2_2nd,channel_impulse3,delay_number3,tap_delay3);
[r4_2nd]=func_LTEChannel2(T3_2nd,channel_impulse4,delay_number4,tap_delay4);
[r5_2nd]=func_LTEChannel2(T0_2nd,channel_impulse5,delay_number5,tap_delay5);
[r6_2nd]=func_LTEChannel2(T1_2nd,channel_impulse6,delay_number6,tap_delay6);
[r7_2nd]=func_LTEChannel2(T2_2nd,channel_impulse7,delay_number7,tap_delay7);
[r8_2nd]=func_LTEChannel2(T3_2nd,channel_impulse8,delay_number8,tap_delay8);
R1_2nd=r1_2nd+r2_2nd+r3_2nd+r4_2nd;
R2_2nd=r5_2nd+r6_2nd+r7_2nd+r8_2nd;
a = Ps*R1_2nd*sqrt(Nfft) + sigmas*randn(size(R1));
b = Ps*R2_2nd*sqrt(Nfft) + sigmas*randn(size(R2));
R1_2nd=a/sqrt(Nfft);
R2_2nd=b/sqrt(Nfft);
%去CP
WithCP_sequence_1_2nd=reshape(R1_2nd,CPNfft,2*Sym_Len);
WithCP_sequence_2_2nd=reshape(R2_2nd,CPNfft,2*Sym_Len);
NoCP_sequence1_2nd=zeros(14,Nfft);
NoCP_sequence2_2nd=zeros(14,Nfft);
for i=1:2*Sym_Len
NoCP_sequence1_2nd(i,:)=func_CP_del(WithCP_sequence_1_2nd(:,i),CP_length);
NoCP_sequence2_2nd(i,:)=func_CP_del(WithCP_sequence_2_2nd(:,i),CP_length);
end
NoCP_sequence1_2nd=NoCP_sequence1_2nd.';
NoCP_sequence2_2nd=NoCP_sequence2_2nd.';
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%FFT
FFTed1_2nd=zeros(Nfft,2*Sym_Len);
FFTed2_2nd=zeros(Nfft,2*Sym_Len);
for i=1:2*Sym_Len
FFTed1_2nd(:,i)=fft(NoCP_sequence1_2nd(:,i));
FFTed2_2nd(:,i)=fft(NoCP_sequence2_2nd(:,i));
end
prb1=zeros(Tx_n*Rx_n,2*Sym_Len);
prb2=zeros(Tx_n*Rx_n,2*Sym_Len);
for i=1:2*Sym_Len
for k=1:Tx_n*Rx_n
prb1(k,i)=FFTed1_2nd(k,i);
prb2(k,i)=FFTed2_2nd(k,i);
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%均衡
vrb_1=reshape(prb1,1,Tx_n*Rx_n*2*Sym_Len);
vrb_2=reshape(prb2,1,Tx_n*Rx_n*2*Sym_Len);
eqed1=zeros(1,Tx_n*12*2*Sym_Len);
eqed2=zeros(1,Tx_n*12*2*Sym_Len);
for i=1:length(vrb_1)
R=r_withRS(i);
H=[hb10(i) hb11(i) hb12(i) hb13(i);hb20(i) hb21(i) hb22(i) hb23(i)];
[eqed1(i),eqed2(i)]=func_Equ(vrb_1(i),vrb_2(i),H,N0,R);
end
Doutf1 = func_rs_del(Tx_n,eqed1,0,Nid,1,Sym_Len,Rx_n);
Doutf2 = func_rs_del(Tx_n,eqed2,0,Nid,1,Sym_Len,Rx_n);
%QPSK解调
out1 = func_DQPSK(Doutf1);
out2 = func_DQPSK(Doutf2);
%计算误码
[En1,En2] = func_error(Din1,Din2,out1,out2);
err(y) =(En1+En2)/2;
%计算SINR
SINRs(y) =sum(SINR);
end
BER(jj) = mean(err)/(length(Din1));
SINRs2(jj) = mean(SINRs);
end
figure;
semilogy(P,BER,'b-s');
grid on
xlabel('P(dBm)');
ylabel('BER');
axis([-10.001,15.001,1e-3,1e0]);
figure;
plot(P,10*log10(SINRs2),'b-s');
grid on
xlabel('P(dBm)');
ylabel('SINR(dB)');
save r1.mat P BER SINRs2
A01-132
