0、说明
- 本教程安装QueenS版本的OpenStack，采用all in one的方式安装（即：所有组件均安装在同一个机器上）
- 本教程亲测可用，已经部署完成
- OpenStack官网安装手册：https://docs.openstack.org/install-guide/
1、搭建基础环境
1.1、安装VMWare
使用VMWare16 pro版本，下载地址：https://www.vmware.com/cn/products/workstation-pro/workstation-pro-evaluation.html
1.2、下载CentoOS7
使用CentOS7系统，下载地址：https://www.vmware.com/cn/products/workstation-pro/workstation-pro-evaluation.html
1.3、安装虚拟机
-
安装教程：https://blog.csdn.net/babyxue/article/details/80970526
-

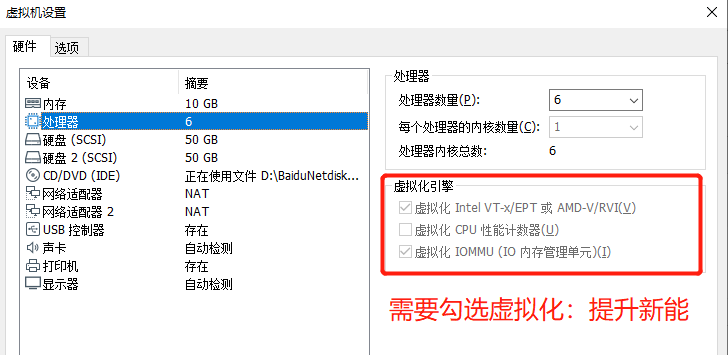

虚拟机配置如下：
RAM：大于10GB，否则OpenStack安装完成后，虚拟机运行会卡顿。
ROM：100GB，分两块磁盘，sda用于存放CentOS系统，sdb用于存放LVM（cinder的数据卷）。
网卡：enss33用于虚拟机访问网络，enss37用于OpenStack组件之间的通信（all in one的方式，实际上不需要用到enss37网卡）
2、准备工作
2.1、禁用SELinux
作用：不禁用SELinux可能会导致openstack newton Apache无法启动。
错误如下："Devstack fail to start apache2 -“Address already in use”:“coild not bind to address”
解决方式：配置/etc/selinux/config，关闭SELINUX
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19[root@controller /]# cat /etc/selinux/config # This file controls the state of SELinux on the system. # SELINUX= can take one of these three values: # enforcing - SELinux security policy is enforced. # permissive - SELinux prints warnings instead of enforcing. # disabled - No SELinux policy is loaded. SELINUX=disabled # SELINUXTYPE= can take one of three values: # targeted - Targeted processes are protected, # minimum - Modification of targeted policy. Only selected processes are protected. # mls - Multi Level Security protection. SELINUXTYPE=targeted
2.2、关闭防火墙
作用：免去配置OpenStack各个节点时，需要不断手动开启端口的麻烦。但是在实际生产环境中绝对不允许这样做，这会引起安全问题。
复制代码
1
2
3[root@controller ~]# systemctl stop firewalld [root@controller ~]# systemctl disable firewalld
2.3、配置网卡
CentOS系统默认使用DHCP（动态主机配置协议）分配网卡IP。此处，建议使用static（静态）网卡IP，因为在VMWare的虚拟机重启之后，虚拟机的网卡IP可能会变化，这就会导致OpenStack其他节点配置的网卡IP无法使用。
-
查看当前网卡IP
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25[root@controller /]# ifconfig ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.83.139 netmask 255.255.255.0 broadcast 192.168.83.255 inet6 fe80::c62f:bd78:ba20:b81 prefixlen 64 scopeid 0x20<link> ether 00:0c:29:5b:0e:1c txqueuelen 1000 (Ethernet) RX packets 15733 bytes 10884363 (10.3 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 11840 bytes 6242032 (5.9 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 -
配置网卡IP
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22[root@controller /]# cat /etc/sysconfig/network-scripts/ifcfg-ens33 TYPE=Ethernet PROXY_METHOD=none BROWSER_ONLY=no DEFROUTE=yes IPV4_FAILURE_FATAL=no IPV6INIT=yes IPV6_AUTOCONF=yes IPV6_DEFROUTE=yes IPV6_FAILURE_FATAL=no IPV6_ADDR_GEN_MODE=stable-privacy NAME=ens33 UUID=038e74ab-c77d-4f83-b67b-dabde3a03c1d DEVICE=ens33 #更改的部分 ONBOOT=yes BOOTPROTO=static IPADDR=192.168.83.139 GATEWAY=192.168.83.2 NETMASK=255.255.255.0 DNS1=114.114.114.114若需要配置第二张网卡enss37，则将上面的NAME、DEVICE更改后，删除UUID，并配置新的IPADDR，即可。
2.4、配置主机名
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13#设置主机名 [root@controller ~]# hostnamectl set-hostname controller #查看设置 [root@controller ~]# hostname controller #修改hosts文件：controller域名，解析时指向本机的网卡IP [root@controller ~]# cat /etc/hosts 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 192.168.83.139 controller
2.5、设置时区
复制代码
1
2
3[root@controller ~]# cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime cp: overwrite ‘/etc/localtime’? y [root@controller ~]# date Tue Jul 20 16:13:44 CST 2021
3、安装软件
注意：安装软件时，如果出现安装失败的情况，可能是因为网络原因导致的。只需要再次执行安装命令即可。
3.1、安装NTP
用于同步各个节点的时间。需要安装Chrony，通常情况下安装在控制器节点，其他节点则同步控制节点的时间，来达到各个节点时间一致的效果。
复制代码
1
2
3
4
5
6
7
8
9#安装chrony [root@controller /]# yum install chrony -y #配置（可选） [root@controller /]# vim /etc/chrony.conf server 0.centos.pool.ntp.org iburst #启动软件、设置开机启动 [root@controller /]# systemctl start chronyd.service [root@controller /]# systemctl enable chronyd.service
3.2、添加OpenStack软件源
网络上发布的OpenStack存在多个不同版本，eg：Victoria、Queens、Train等。本次使用的时Queens版本。
复制代码
1
2
3
4
5
6
7#添加Queens版本源 [root@controller ~]# yum install centos-release-openstack-queens -y #升级软件包 [root@controller ~]# yum upgrade -y #安装OpenStack Client [root@controller ~]# yum install python-openstackclient -y
3.3、安装SQL数据库
通常情况下，数据库安装在控制节点上，用于存储OpenStack的数据。
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18#安装SQL [root@controller ~]# yum install mariadb mariadb-server python2-PyMySQL -y #配置SQL [root@controller /]# vim /etc/my.cnf.d/openstack.cnf [mysqld] #修改为本机的网卡IP bind-address = 192.168.83.139 default-storage-engine = innodb innodb_file_per_table = on max_connections = 4096 collation-server = utf8_general_ci character-set-server = utf8 #设置开机自启、启动SQL [root@controller /]# systemctl enable mariadb.service [root@controller /]# systemctl start mariadb.service #设置SQL数据库的root账号、密码 [root@controller /]# mysql_secure_installation
3.4、安装消息队列
消息队列服务通常安装在控制器节点上。用于协调服务之间的操作和状态信息。
复制代码
1
2
3
4
5
6
7
8
9
10#安装MQ [root@controller /]# yum install rabbitmq-server #设置开机自启、启动MQ [root@controller /]# systemctl enable rabbitmq-server.service [root@controller /]# systemctl start rabbitmq-server.service #添加MQ用户，设置密码 [root@controller /]# rabbitmqctl add_user openstack RABBIT_PASS #允许openstack用户进行配置、写入和读取访问 [root@controller /]# rabbitmqctl set_permissions openstack ".*" ".*" ".*"
3.5、安装Memcached
Memcached 服务通常安装在控制器节点上。服务的身份服务认证机制使用 Memcached 来缓存token令牌。
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14#安装 [root@controller /]# yum install memcached python-memcached #配置 [root@controller /]# vim /etc/sysconfig/memcached PORT="11211" USER="memcached" MAXCONN="1024" CACHESIZE="64" #新增controller域名，其他节点可以通过该域名直接访问 OPTIONS="-l 127.0.0.1,::1,controller" #设置开机自启、启动软件 [root@controller /]# systemctl enable memcached.service [root@controller /]# systemctl start memcached.service
3.6、安装ETCD数据库
用于分布式密钥锁定、存储配置、跟踪服务实时性和其他场景
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20#安装etcd [root@controller /]# yum install etcd #配置etcd： #ETCD_INITIAL_CLUSTER, ETCD_INITIAL_ADVERTISE_PEER_URLS, ETCD_ADVERTISE_CLIENT_URLS,ETCD_LISTEN_CLIENT_URLS设置为控制节点的IP（即：本机的网卡IP） [root@controller /]# vim /etc/etcd/etcd.conf [Member] ETCD_DATA_DIR="/var/lib/etcd/default.etcd" ETCD_LISTEN_PEER_URLS="http://192.168.83.139:2380" ETCD_LISTEN_CLIENT_URLS="http://localhost:2379,http://192.168.83.139:2379" ETCD_NAME="controller" [Clustering] ETCD_INITIAL_ADVERTISE_PEER_URLS="http://192.168.83.139:2380" ETCD_ADVERTISE_CLIENT_URLS="http://192.168.83.139:2379" ETCD_INITIAL_CLUSTER="controller=http://192.168.83.139:2380" ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster-01" ETCD_INITIAL_CLUSTER_STATE="new" #设置开机自启、启动软件 [root@controller /]# systemctl enable etcd [root@controller /]# systemctl start etcd
4、安装OpenStack
注意：本次安装的是Queens版本
4.1、默认密码
本次安装OpenStack所有的组件，均使用默认密码。
| Password name | Description |
|---|---|
| Database password (no variable used) | Root password for the database |
ADMIN_PASS | Password of user admin |
CINDER_DBPASS | Database password for the Block Storage service |
CINDER_PASS | Password of Block Storage service user cinder |
DASH_DBPASS | Database password for the Dashboard |
DEMO_PASS | Password of user demo |
GLANCE_DBPASS | Database password for Image service |
GLANCE_PASS | Password of Image service user glance |
KEYSTONE_DBPASS | Database password of Identity service |
METADATA_SECRET | Secret for the metadata proxy |
NEUTRON_DBPASS | Database password for the Networking service |
NEUTRON_PASS | Password of Networking service user neutron |
NOVA_DBPASS | Database password for Compute service |
NOVA_PASS | Password of Compute service user nova |
PLACEMENT_PASS | Password of the Placement service user placement |
RABBIT_PASS | Password of RabbitMQ user openstack |
4.2、安装Keystone
4.2.1、安装Keystone步骤
-
作用：用于管理身份验证、授权和服务目录。通过身份验证后，最终用户可以使用他们的身份访问其他 OpenStack 服务。
-
创建数据库
复制代码1
2
3
4
5
6
7
8
9
10
11
12#登录数据库 [root@controller /]# mysql -u root -p #创建keystone数据库 MariaDB [(none)]> CREATE DATABASE keystone; #用户登录授权 #本地登录 MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'localhost' IDENTIFIED BY 'KEYSTONE_DBPASS'; #远程登录 MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO 'keystone'@'%' IDENTIFIED BY 'KEYSTONE_DBPASS'; -
安装、配置keystone
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20#安装软件 [root@controller /]# yum install openstack-keystone httpd mod_wsgi #配置keystone.conf [root@controller /]# vim /etc/keystone/keystone.conf [database] connection = mysql+pymysql://keystone:KEYSTONE_DBPASS@controller/keystone [token] provider = fernet #填充keystone数据库 [root@controller /]# su -s /bin/sh -c "keystone-manage db_sync" keystone #初始化Fernet密钥库 [root@controller /]# keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone [root@controller /]# keystone-manage credential_setup --keystone-user keystone --keystone-group keystone #引导身份服务 [root@controller /]# keystone-manage bootstrap --bootstrap-password ADMIN_PASS --bootstrap-admin-url http://controller:5000/v3/ --bootstrap-internal-url http://controller:5000/v3/ --bootstrap-public-url http://controller:5000/v3/ --bootstrap-region-id RegionOne -
配置Apache HTTP服务
复制代码1
2
3
4
5
6#配置httpd.conf [root@controller /]# vim /etc/httpd/conf/httpd.conf ServerName controller #创建软链接 [root@controller /]# /usr/share/keystone/wsgi-keystone.conf -
配置系统环境
复制代码1
2
3
4
5
6
7
8
9
10
11[root@controller /]# systemctl enable httpd.service [root@controller /]# systemctl start httpd.service #配置管理账户 [root@controller /]# export OS_USERNAME=admin export OS_PASSWORD=ADMIN_PASS export OS_PROJECT_NAME=admin export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_DOMAIN_NAME=Default export OS_AUTH_URL=http://controller:5000/v3 export OS_IDENTITY_API_VERSION=3 -
创建域、项目、用户、角色信息
-
此处创建一个示例域：example
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47#创建域 [root@controller /]# openstack domain create --description "An Example Domain" example +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | An Example Domain | | enabled | True | | id | 2f4f80574fd84fe6ba9067228ae0a50c | | name | example | +-------------+----------------------------------+ #创建项目 [root@controller /]# openstack project create --domain default --description "Service Project" service +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | Service Project | | domain_id | default | | enabled | True | | id | 24ac7f19cd944f4cba1d77469b2a73ed | | is_domain | False | | name | service | | parent_id | default | +-------------+----------------------------------+ -
创建一个demo项目
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74#创建demo项目 [root@controller /]# openstack project create --domain default --description "Demo Project" demo +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | Demo Project | | domain_id | default | | enabled | True | | id | 231ad6e7ebba47d6a1e57e1cc07ae446 | | is_domain | False | | name | demo | | parent_id | default | +-------------+----------------------------------+ #创建demo项目的用户 [root@controller /]# openstack user create --domain default --password-prompt demo #填入默认密码：DEMO_PASS User Password: Repeat User Password: +---------------------+----------------------------------+ | Field | Value | +---------------------+----------------------------------+ | domain_id | default | | enabled | True | | id | aeda23aa78f44e859900e22c24817832 | | name | demo | | options | {} | | password_expires_at | None | +---------------------+----------------------------------+ #创建角色 [root@controller /]# openstack role create user +-----------+----------------------------------+ | Field | Value | +-----------+----------------------------------+ | domain_id | None | | id | 997ce8d05fc143ac97d83fdfb5998552 | | name | user | +-----------+----------------------------------+ #为demo项目的用户：demoe，赋予角色：user [root@controller /]# openstack role add --project demo --user demo user
-
4.2.2、验证是否成功安装
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30#取消设置临时OS_AUTH_URL和OS_PASSWORD 环境变量 [root@controller /]# unset OS_AUTH_URL OS_PASSWORD # [root@controller /]# openstack --os-auth-url http://controller:35357/v3 --os-project-domain-name Default --os-user-domain-name Default --os-project-name admin --os-username admin token issue #此处填入的密码为用户demo的密码，默认为DEMO_PASS Password: +------------+-----------------------------------------------------------------+ | Field | Value | +------------+-----------------------------------------------------------------+ | expires | 2016-02-12T20:14:07.056119Z | | id | gAAAAABWvi7_B8kKQD9wdXac8MoZiQldmjEO643d-e_j-XXq9AmIegIbA7UHGPv | | | atnN21qtOMjCFWX7BReJEQnVOAj3nclRQgAYRsfSU_MrsuWb4EDtnjU7HEpoBb4 | | | o6ozsA_NmFWEpLeKy0uNn_WeKbAhYygrsmQGA49dclHVnz-OMVLiyM9ws | | project_id | 343d245e850143a096806dfaefa9afdc | | user_id | ac3377633149401296f6c0d92d79dc16 | +------------+-----------------------------------------------------------------+
4.2.3、创建OpenStack客户端脚本
-
为什么需要使用脚本？
由于之前，配置系统环境时，使用的是export命令，该命令用于临时配置环境变量，当系统重启或者执行export明令的终端关闭后，该环境变量就无法使用了，导致openstack命令无法被执行。
-
需要创建的脚本如下：
为管理（admin）和演示（demo）项目以及用户创建客户端环境脚本。即：获取相应权限的CLI命令(Command Line Interface)，通过命令的方式进行交互。这两个脚本可以存放在同一个目录中。
-
admin-openrc
复制代码1
2
3
4
5
6
7
8
9export OS_PROJECT_DOMAIN_NAME=Default export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_NAME=admin export OS_USERNAME=admin export OS_PASSWORD=ADMIN_PASS export OS_AUTH_URL=http://controller:5000/v3 export OS_IDENTITY_API_VERSION=3 export OS_IMAGE_API_VERSION=2 -
demo-openrc
复制代码1
2
3
4
5
6
7
8
9export OS_PROJECT_DOMAIN_NAME=Default export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_NAME=demo export OS_USERNAME=demo export OS_PASSWORD=DEMO_PASS export OS_AUTH_URL=http://controller:5000/v3 export OS_IDENTITY_API_VERSION=3 export OS_IMAGE_API_VERSION=2
-
-
使用脚本的方式
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25[root@controller /]# . admin-openrc #请求身份验证令牌 [root@controller /]# openstack token issue +------------+-----------------------------------------------------------------+ | Field | Value | +------------+-----------------------------------------------------------------+ | expires | 2016-02-12T20:44:35.659723Z | | id | gAAAAABWvjYj-Zjfg8WXFaQnUd1DMYTBVrKw4h3fIagi5NoEmh21U72SrRv2trl | | | JWFYhLi2_uPR31Igf6A8mH2Rw9kv_bxNo1jbLNPLGzW_u5FC7InFqx0yYtTwa1e | | | eq2b0f6-18KZyQhs7F3teAta143kJEWuNEYET-y7u29y0be1_64KYkM7E | | project_id | 343d245e850143a096806dfaefa9afdc | | user_id | ac3377633149401296f6c0d92d79dc16 | +------------+-----------------------------------------------------------------+
4.3、安装Glance
4.3.1、安装Glance步骤
-
作用：提供发现、注册和检索虚拟机镜像的功能。
-
创建数据库
复制代码1
2
3
4
5
6
7
8
9
10#登录数据库 [root@controller /]# mysql -u root -p #创建glance数据库 MariaDB [(none)]> CREATE DATABASE glance; #授权 MariaDB [(none)]> GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'localhost' IDENTIFIED BY 'GLANCE_DBPASS'; MariaDB [(none)]> GRANT ALL PRIVILEGES ON glance.* TO 'glance'@'%' IDENTIFIED BY 'GLANCE_DBPASS'; -
获取管理员的CLI命令
复制代码1
2[root@controller /]# . admin-openrc -
创建服务凭证：用户、角色信息，镜像服务端点
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52#创建glance用户 [root@controller /]# openstack user create --domain default --password-prompt glance #此处使用默认密码：GLANCE_PASS User Password: Repeat User Password: +---------------------+----------------------------------+ | Field | Value | +---------------------+----------------------------------+ | domain_id | default | | enabled | True | | id | 3f4e777c4062483ab8d9edd7dff829df | | name | glance | | options | {} | | password_expires_at | None | +---------------------+----------------------------------+ #为glance用户添加角色信息 [root@controller /]# openstack role add --project service --user glance admin #创建glance服务实例 [root@controller /]# openstack service create --name glance --description "OpenStack Image" image +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | OpenStack Image | | enabled | True | | id | 8c2c7f1b9b5049ea9e63757b5533e6d2 | | name | glance | | type | image | +-------------+----------------------------------+ -
创建镜像服务的API端点：一共需要创建3种
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97#public类型 [root@controller /]# openstack endpoint create --region RegionOne image public http://controller:9292 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 340be3625e9b4239a6415d034e98aace | | interface | public | | region | RegionOne | | region_id | RegionOne | | service_id | 8c2c7f1b9b5049ea9e63757b5533e6d2 | | service_name | glance | | service_type | image | | url | http://controller:9292 | +--------------+----------------------------------+ #admin类型 [root@controller /]# openstack endpoint create --region RegionOne image admin http://controller:9292 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 0c37ed58103f4300a84ff125a539032d | | interface | admin | | region | RegionOne | | region_id | RegionOne | | service_id | 8c2c7f1b9b5049ea9e63757b5533e6d2 | | service_name | glance | | service_type | image | | url | http://controller:9292 | +--------------+----------------------------------+ #internal类型 [root@controller /]# openstack endpoint create --region RegionOne image internal http://controller:9292 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | a6e4b153c2ae4c919eccfdbb7dceb5d2 | | interface | internal | | region | RegionOne | | region_id | RegionOne | | service_id | 8c2c7f1b9b5049ea9e63757b5533e6d2 | | service_name | glance | | service_type | image | | url | http://controller:9292 | +--------------+----------------------------------+ -
安装、配置glance
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41#安装glance [root@controller /]# yum install openstack-glance #配置glance-api.conf [root@controller /]# vim /etc/glance/glance-api.conf [database] connection = mysql+pymysql://glance:GLANCE_DBPASS@controller/glance [keystone_authtoken] auth_uri = http://controller:5000 auth_url = http://controller:5000 memcached_servers = controller:11211 auth_type = password project_domain_name = Default user_domain_name = Default project_name = service username = glance password = GLANCE_PASS [paste_deploy] flavor = keystone [glance_store] stores = file,http default_store = file filesystem_store_datadir = /var/lib/glance/images/ #配置glance-registry.conf [root@controller /]# vim /etc/glance/glance-registry.conf [database] connection = mysql+pymysql://glance:GLANCE_DBPASS@controller/glance [keystone_authtoken] auth_uri = http://controller:5000 auth_url = http://controller:5000 memcached_servers = controller:11211 auth_type = password project_domain_name = Default user_domain_name = Default project_name = service username = glance password = GLANCE_PASS [paste_deploy] flavor = keystone #填充lance数据库 [root@controller /]# su -s /bin/sh -c "glance-manage db_sync" glance -
配置环境
开机自启动、启动glance
复制代码1
2
3
4
5[root@controller /]# systemctl enable openstack-glance-api.service openstack-glance-registry.service [root@controller /]# systemctl start openstack-glance-api.service openstack-glance-registry.service
4.3.2、验证是否成功安装
使用CirrOS验证 Image 服务是否可用：使用OpenStack 部署一个小型 Linux 映像（eg：cirros-cloud）
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73[root@controller /]# . admin-openrc [root@controller /]# wget http://download.cirros-cloud.net/0.4.0/cirros-0.4.0-x86_64-disk.img [root@controller /]# openstack image create "cirros" --file cirros-0.4.0-x86_64-disk.img --disk-format qcow2 --container-format bare --public +------------------+------------------------------------------------------+ | Field | Value | +------------------+------------------------------------------------------+ | checksum | 133eae9fb1c98f45894a4e60d8736619 | | container_format | bare | | created_at | 2015-03-26T16:52:10Z | | disk_format | qcow2 | | file | /v2/images/cc5c6982-4910-471e-b864-1098015901b5/file | | id | cc5c6982-4910-471e-b864-1098015901b5 | | min_disk | 0 | | min_ram | 0 | | name | cirros | | owner | ae7a98326b9c455588edd2656d723b9d | | protected | False | | schema | /v2/schemas/image | | size | 13200896 | | status | active | | tags | | | updated_at | 2015-03-26T16:52:10Z | | virtual_size | None | | visibility | public | +------------------+------------------------------------------------------+ [root@controller /]# openstack image list +--------------------------------------+--------+--------+ | ID | Name | Status | +--------------------------------------+--------+--------+ | 38047887-61a7-41ea-9b49-27987d5e8bb9 | cirros | active | +--------------------------------------+--------+--------+
4.4、安装Nova
4.4.1、安装、配置控制节点
-
创建Nova数据库
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20#进入数据库 [root@controller /]# mysql -u root -p #创建数据库 MariaDB [(none)]> CREATE DATABASE nova_api; MariaDB [(none)]> CREATE DATABASE nova; MariaDB [(none)]> CREATE DATABASE nova_cell0; #数据库授权 MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'localhost' IDENTIFIED BY 'NOVA_DBPASS'; MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO 'nova'@'%' IDENTIFIED BY 'NOVA_DBPASS'; MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'localhost' IDENTIFIED BY 'NOVA_DBPASS'; MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO 'nova'@'%' IDENTIFIED BY 'NOVA_DBPASS'; MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'localhost' IDENTIFIED BY 'NOVA_DBPASS'; MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO 'nova'@'%' IDENTIFIED BY 'NOVA_DBPASS'; -
获取管理员的CLI命令
复制代码1
2[root@controller /]# . admin-openrc -
创建计算服务凭证
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294#创建nova用户 [root@controller /]# openstack user create --domain default --password-prompt nova #使用默认密码：NOVA_PASS User Password: Repeat User Password: +---------------------+----------------------------------+ | Field | Value | +---------------------+----------------------------------+ | domain_id | default | | enabled | True | | id | 8a7dbf5279404537b1c7b86c033620fe | | name | nova | | options | {} | | password_expires_at | None | +---------------------+----------------------------------+ #为nova用户添加角色 [root@controller /]# openstack role add --project service --user nova admin #创建nova服务实例 [root@controller /]# openstack service create --name nova --description "OpenStack Compute" compute +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | OpenStack Compute | | enabled | True | | id | 060d59eac51b4594815603d75a00aba2 | | name | nova | | type | compute | +-------------+----------------------------------+ #创建计算API端点：3种 [root@controller /]# openstack endpoint create --region RegionOne compute public http://controller:8774/v2.1 +--------------+-------------------------------------------+ | Field | Value | +--------------+-------------------------------------------+ | enabled | True | | id | 3c1caa473bfe4390a11e7177894bcc7b | | interface | public | | region | RegionOne | | region_id | RegionOne | | service_id | 060d59eac51b4594815603d75a00aba2 | | service_name | nova | | service_type | compute | | url | http://controller:8774/v2.1 | +--------------+-------------------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne compute public http://controller:8774/v2.1 +--------------+-------------------------------------------+ | Field | Value | +--------------+-------------------------------------------+ | enabled | True | | id | 3c1caa473bfe4390a11e7177894bcc7b | | interface | public | | region | RegionOne | | region_id | RegionOne | | service_id | 060d59eac51b4594815603d75a00aba2 | | service_name | nova | | service_type | compute | | url | http://controller:8774/v2.1 | +--------------+-------------------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne compute admin http://controller:8774/v2.1 +--------------+-------------------------------------------+ | Field | Value | +--------------+-------------------------------------------+ | enabled | True | | id | 38f7af91666a47cfb97b4dc790b94424 | | interface | admin | | region | RegionOne | | region_id | RegionOne | | service_id | 060d59eac51b4594815603d75a00aba2 | | service_name | nova | | service_type | compute | | url | http://controller:8774/v2.1 | +--------------+-------------------------------------------+ #创建放置服务用户（placement） [root@controller /]# openstack user create --domain default --password-prompt placement #使用默认密码：PLACEMENT_PASS User Password: Repeat User Password: +---------------------+----------------------------------+ | Field | Value | +---------------------+----------------------------------+ | domain_id | default | | enabled | True | | id | fa742015a6494a949f67629884fc7ec8 | | name | placement | | options | {} | | password_expires_at | None | +---------------------+----------------------------------+ #为placement用户添加角色信息 [root@controller /]# openstack role add --project service --user placement admin #在服务目录中创建Placement API条目 [root@controller /]# openstack service create --name placement --description "Placement API" placement +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | Placement API | | enabled | True | | id | 2d1a27022e6e4185b86adac4444c495f | | name | placement | | type | placement | +-------------+----------------------------------+ #创建Placement API服务端点：3种 [root@controller /]# openstack endpoint create --region RegionOne placement public http://controller:8780 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 2b1b2637908b4137a9c2e0470487cbc0 | | interface | public | | region | RegionOne | | region_id | RegionOne | | service_id | 2d1a27022e6e4185b86adac4444c495f | | service_name | placement | | service_type | placement | | url | http://controller:8780 | +--------------+----------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne placement internal http://controller:8780 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 02bcda9a150a4bd7993ff4879df971ab | | interface | internal | | region | RegionOne | | region_id | RegionOne | | service_id | 2d1a27022e6e4185b86adac4444c495f | | service_name | placement | | service_type | placement | | url | http://controller:8780 | +--------------+----------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne placement admin http://controller:8780 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 3d71177b9e0f406f98cbff198d74b182 | | interface | admin | | region | RegionOne | | region_id | RegionOne | | service_id | 2d1a27022e6e4185b86adac4444c495f | | service_name | placement | | service_type | placement | | url | http://controller:8780 | +--------------+----------------------------------+ -
安装、配置Glance服务
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66#安装Nova服务 [root@controller /]# zypper install openstack-nova-api openstack-nova-scheduler openstack-nova-conductor openstack-nova-consoleauth openstack-nova-novncproxy openstack-nova-placement-api iptables #配置nova.conf [root@controller /]# vim /etc/nova/nova.conf [DEFAULT] enabled_apis = osapi_compute,metadata [api_database] connection = mysql+pymysql://nova:NOVA_DBPASS@controller/nova_api [database] connection = mysql+pymysql://nova:NOVA_DBPASS@controller/nova [DEFAULT] transport_url = rabbit://openstack:RABBIT_PASS@controller [api] auth_strategy = keystone [keystone_authtoken] auth_url = http://controller:5000/v3 memcached_servers = controller:11211 auth_type = password project_domain_name = default user_domain_name = default project_name = service username = nova password = NOVA_PASS [DEFAULT] my_ip = 10.0.0.11 use_neutron = True firewall_driver = nova.virt.firewall.NoopFirewallDriver [vnc] enabled = true server_listen = $my_ip server_proxyclient_address = $my_ip [glance] api_servers = http://controller:9292 [oslo_concurrency] lock_path = /var/run/nova [placement] os_region_name = RegionOne project_domain_name = Default project_name = service auth_type = password user_domain_name = Default auth_url = http://controller:5000/v3 username = placement password = PLACEMENT_PASS #填充Nova-api数据库 [root@controller /]# su -s /bin/sh -c "nova-manage api_db sync" nova #注册cell0数据库 [root@controller /]# su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova #创建cell1单元：此处会生成一个UUID [root@controller /]# su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova #填充nova数据库 [root@controller /]# su -s /bin/sh -c "nova-manage db sync" nova #验证novecell0、cell1是否正确注册 [root@controller /]# nova-manage cell_v2 list_cells +-------+--------------------------------------+ | Name | UUID | +-------+--------------------------------------+ | cell1 | 109e1d4b-536a-40d0-83c6-5f121b82b650 | | cell0 | 00000000-0000-0000-0000-000000000000 | +-------+--------------------------------------+
-
配置环境
复制代码1
2
3
4
5
6
7
8
9
10
11
12#重命名配置文件：将源配置文件拿过来使用 [root@controller /]# mv /etc/apache2/vhosts.d/nova-placement-api.conf.sample /etc/apache2/vhosts.d/nova-placement-api.conf #重新加载apache服务 [root@controller /]# systemctl reload apache2.service #开机自启动、启动nova服务 [root@controller /]# systemctl enable openstack-nova-api.service openstack-nova-consoleauth.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service [root@controller /]# systemctl start openstack-nova-api.service openstack-nova-consoleauth.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service
4.4.2、安装、配置计算节点
-
安装、配置Nova-compute
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42#安装软件 [root@controller /]# yum install openstack-nova-compute #配置nova.conf [root@controller /]# vim /etc/nova/nova.conf [DEFAULT] enabled_apis = osapi_compute,metadata transport_url = rabbit://openstack:RABBIT_PASS@controller [api] auth_strategy = keystone [keystone_authtoken] auth_url = http://controller:5000/v3 memcached_servers = controller:11211 auth_type = password project_domain_name = default user_domain_name = default project_name = service username = nova password = NOVA_PASS [DEFAULT] #MANAGEMENT_INTERFACE_IP_ADDRESS：替换为本机的网卡IP my_ip = MANAGEMENT_INTERFACE_IP_ADDRESS use_neutron = True firewall_driver = nova.virt.firewall.NoopFirewallDriver [vnc] enabled = True server_listen = 0.0.0.0 server_proxyclient_address = $my_ip novncproxy_base_url = http://controller:6080/vnc_auto.html [glance] api_servers = http://controller:9292 [oslo_concurrency] lock_path = /var/lib/nova/tmp [placement] os_region_name = RegionOne project_domain_name = Default project_name = service auth_type = password user_domain_name = Default auth_url = http://controller:5000/v3 username = placement password = PLACEMENT_PASS -
配置环境
复制代码1
2
3
4
5
6
7
8
9
10
11
12#判断VMWware的虚拟机是否开启虚拟加速 [root@controller /]# egrep -c '(vmx|svm)' /proc/cpuinfo #若上述命令的输出结果 = 0，则需要执行此步骤（说明未开启虚拟加速，需要配置nova.conf的virt_type ） [root@controller /]# vim /etc/nova/nova.conf [libvirt] # 默认是KVM virt_type = qemu #设置开机自启动、启动nova-compute服务 [root@controller /]# systemctl enable libvirtd.service openstack-nova-compute.service [root@controller /]# systemctl start libvirtd.service openstack-nova-compute.service -
获取管理员的CLI命令
复制代码1
2[root@controller /]# . admin-openrc -
将计算节点添加至cell数据库种
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22#确认数据库中存在host主机 [root@controller /]# openstack compute service list --service nova-compute +----+-------+--------------+------+-------+---------+----------------------------+ | ID | Host | Binary | Zone | State | Status | Updated At | +----+-------+--------------+------+-------+---------+----------------------------+ | 1 | node1 | nova-compute | nova | up | enabled | 2017-04-14T15:30:44.000000 | +----+-------+--------------+------+-------+---------+----------------------------+ #发现计算主机 [root@controller /]# su -s /bin/sh -c "nova-manage cell_v2 discover_hosts --verbose" nova Found 2 cell mappings. Skipping cell0 since it does not contain hosts. Getting compute nodes from cell 'cell1': ad5a5985-a719-4567-98d8-8d148aaae4bc Found 1 computes in cell: ad5a5985-a719-4567-98d8-8d148aaae4bc Checking host mapping for compute host 'compute': fe58ddc1-1d65-4f87-9456-bc040dc106b3 Creating host mapping for compute host 'compute': fe58ddc1-1d65-4f87-9456-bc040dc106b3
4.5、安装Neutron
4.5.1、安装、配置控制节点
-
创建数据库
复制代码1
2
3
4
5
6
7
8
9
10#进入数据库 [root@controller /]# mysql -u root -p #创建数据库 MariaDB [(none)] CREATE DATABASE neutron; #授权 MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'localhost' IDENTIFIED BY 'NEUTRON_DBPASS'; MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO 'neutron'@'%' IDENTIFIED BY 'NEUTRON_DBPASS'; -
获取管理员的CLI命令
复制代码1
2[root@controller /]# . admin-openrc -
创建服务凭证
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52#创建Neutron用户 [root@controller /]# openstack user create --domain default --password-prompt neutron #此处使用默认密码：NEUTRON_PASS User Password: Repeat User Password: +---------------------+----------------------------------+ | Field | Value | +---------------------+----------------------------------+ | domain_id | default | | enabled | True | | id | fdb0f541e28141719b6a43c8944bf1fb | | name | neutron | | options | {} | | password_expires_at | None | +---------------------+----------------------------------+ #添加Neutron用户的juese [root@controller /]# openstack role add --project service --user neutron admin #创建Neutron服务实例 [root@controller /]# openstack service create --name neutron --description "OpenStack Networking" network +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | OpenStack Networking | | enabled | True | | id | f71529314dab4a4d8eca427e701d209e | | name | neutron | | type | network | +-------------+----------------------------------+ -
创建网络服务API端点
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94[root@controller /]# openstack endpoint create --region RegionOne network public http://controller:9696 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 85d80a6d02fc4b7683f611d7fc1493a3 | | interface | public | | region | RegionOne | | region_id | RegionOne | | service_id | f71529314dab4a4d8eca427e701d209e | | service_name | neutron | | service_type | network | | url | http://controller:9696 | +--------------+----------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne network internal http://controller:9696 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 09753b537ac74422a68d2d791cf3714f | | interface | internal | | region | RegionOne | | region_id | RegionOne | | service_id | f71529314dab4a4d8eca427e701d209e | | service_name | neutron | | service_type | network | | url | http://controller:9696 | +--------------+----------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne network admin http://controller:9696 +--------------+----------------------------------+ | Field | Value | +--------------+----------------------------------+ | enabled | True | | id | 1ee14289c9374dffb5db92a5c112fc4e | | interface | admin | | region | RegionOne | | region_id | RegionOne | | service_id | f71529314dab4a4d8eca427e701d209e | | service_name | neutron | | service_type | network | | url | http://controller:9696 | +--------------+----------------------------------+ -
配置网络
此处有两种网络可选：provider networks、self-service networks。本次使用self-service networks。
-
安装组件
复制代码1
2
3[root@controller /]# yum install openstack-neutron openstack-neutron-ml2 openstack-neutron-linuxbridge ebtables -
配置neutron.conf
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35[root@controller /]# vim /etc/neutron/neutron.conf [database] connection = mysql+pymysql://neutron:NEUTRON_DBPASS@controller/neutron [DEFAULT] core_plugin = ml2 service_plugins = router allow_overlapping_ips = true [DEFAULT] transport_url = rabbit://openstack:RABBIT_PASS@controller auth_strategy = keystone [keystone_authtoken] auth_uri = http://controller:5000 auth_url = http://controller:35357 memcached_servers = controller:11211 auth_type = password project_domain_name = default user_domain_name = default project_name = service username = neutron password = NEUTRON_PASS [DEFAULT] notify_nova_on_port_status_changes = true notify_nova_on_port_data_changes = true [nova] auth_url = http://controller:35357 auth_type = password project_domain_name = default user_domain_name = default region_name = RegionOne project_name = service username = nova password = NOVA_PASS [oslo_concurrency] lock_path = /var/lib/neutron/tmp -
配置ml2_conf.ini
配置模块化第 2 层 (ML2) 插件
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13[root@controller /]# vim /etc/neutron/plugins/ml2/ml2_conf.ini [ml2] type_drivers = flat,vlan,vxlan tenant_network_types = vxlan mechanism_drivers = linuxbridge,l2population extension_drivers = port_security [ml2_type_flat] flat_networks = provider [ml2_type_vxlan] vni_ranges = 1:1000 [securitygroup] enable_ipset = true -
配置linuxbridge_agent.ini
配置 Linux 网桥代理
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31#配置文件 [root@controller /]# vim /etc/neutron/plugins/ml2/linuxbridge_agent.ini [linux_bridge] #PROVIDER_INTERFACE_NAME：替换为本机网卡名，eg：ens33 physical_interface_mappings = provider:PROVIDER_INTERFACE_NAME [vxlan] enable_vxlan = true #OVERLAY_INTERFACE_IP_ADDRESS：替换为本机网卡IP local_ip = OVERLAY_INTERFACE_IP_ADDRESS l2_population = true [securitygroup] enable_security_group = true firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver #验证linux系统内核是否支持网桥筛选器，下面的参数输出值均为1，说明支持。 [root@controller /]# sysctl net.bridge.bridge-nf-call-iptables net.bridge.bridge-nf-call-iptables = 1 [root@controller /]# sysctl net.bridge.bridge-nf-call-ip6tables net.bridge.bridge-nf-call-ip6tables = 1 #（可选）若上述的参数不为1，则需要手动配置/etc/sysctl.conf [root@controller /]# vim /etc/sysctl.conf net.bridge.bridge-nf-call-iptables = 1 net.bridge.bridge-nf-call-ip6tables = 1 -
配置第三层代理
为自助服务虚拟网络提供路由和 NAT 服务。
复制代码1
2
3
4[root@controller /]# vim /etc/neutron/l3_agent.ini [DEFAULT] interface_driver = linuxbridge -
配置DHCP代理
为虚拟网络提供 DHCP 服务
复制代码1
2
3
4
5
6[root@controller /]# vim /etc/neutron/dhcp_agent.ini [DEFAULT] interface_driver = linuxbridge dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq enable_isolated_metadata = true
-
-
配置元数据代理
复制代码1
2
3
4
5[root@controller /]# vim /etc/neutron/metadata_agent.ini [DEFAULT] nova_metadata_host = controller metadata_proxy_shared_secret = METADATA_SECRET -
配置Compute服务使用Networking服务
即：配置Nova服务使用Neutron服务
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14[root@controller /]# vim /etc/nova/nova.conf [neutron] url = http://controller:9696 auth_url = http://controller:35357 auth_type = password project_domain_name = default user_domain_name = default region_name = RegionOne project_name = service username = neutron password = NEUTRON_PASS service_metadata_proxy = true metadata_proxy_shared_secret = METADATA_SECRET -
配置环境
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19#网络服务初始化脚本需要一个符号链接/etc/neutron/plugin.ini， #指向ML2插件配置文件/etc/neutron/plugins/ML2/ml2conf.ini [root@controller /]# ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini #填充数据库 [root@controller /]# su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron #重启Nova-API服务 [root@controller /]# systemctl restart openstack-nova-api.service #配置网络服务开机自启、启动网络服务 [root@controller /]# systemctl enable neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service [root@controller /]# systemctl start neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service #配置第三层服务开机自启、启动服务 [root@controller /]# systemctl enable neutron-l3-agent.service [root@controller /]# systemctl start neutron-l3-agent.service
4.5.2、安装、配置计算节点
-
安装组件
复制代码1
2[root@controller /]# yum install openstack-neutron-linuxbridge ebtables ipset -
（该步骤可省略）配置通用组件
该步骤可省略，因为all in one安装方式，计算节点和控制节点在同一台主机中，4.5.1中已经配置了neutron.conf文件。因此该步骤可省略。
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21[root@controller /]# vim /etc/neutron/neutron.conf #（注意：使用all in one的安装方式，此处的数据库不可以注释，使用所有节点均在同一台主机中，注释掉会导致网络组件无法使用） #注释[database]的connection，此处不需要使用数据库 [database] #connection=mysql+pymysql://neutron:NEUTRON_DBPASS@controller/neutron [DEFAULT] transport_url = rabbit://openstack:RABBIT_PASS@controller auth_strategy = keystone [keystone_authtoken] auth_uri = http://controller:5000 auth_url = http://controller:35357 memcached_servers = controller:11211 auth_type = password project_domain_name = default user_domain_name = default project_name = service username = neutron password = NEUTRON_PASS [oslo_concurrency] lock_path = /var/lib/neutron/tmp -
（该步骤可省略）配置网络
该步骤可省略，因为all in one安装方式，计算节点和控制节点在同一台主机中，4.5.1中已经配置了linuxbridge_agent.ini文件。因此该步骤可省略。
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31#配置文件 [root@controller /]# vim /etc/neutron/plugins/ml2/linuxbridge_agent.ini [linux_bridge] #PROVIDER_INTERFACE_NAME：替换为本机网卡名，eg：ens33 physical_interface_mappings = provider:PROVIDER_INTERFACE_NAME [vxlan] enable_vxlan = true #OVERLAY_INTERFACE_IP_ADDRESS：替换为本机网卡IP local_ip = OVERLAY_INTERFACE_IP_ADDRESS l2_population = true [securitygroup] enable_security_group = true firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver #验证linux系统内核是否支持网桥筛选器，下面的参数输出值均为1，说明支持。 [root@controller /]# sysctl net.bridge.bridge-nf-call-iptables net.bridge.bridge-nf-call-iptables = 1 [root@controller /]# sysctl net.bridge.bridge-nf-call-ip6tables net.bridge.bridge-nf-call-ip6tables = 1 #（可选）若上述的参数不为1，则需要手动配置/etc/sysctl.conf [root@controller /]# vim /etc/sysctl.conf net.bridge.bridge-nf-call-iptables = 1 net.bridge.bridge-nf-call-ip6tables = 1验证网络是否配置好
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28[root@controller /]# . admin-openrc #列出加载的扩展以验证neutron-server进程是否成功启动 [root@controller /]# openstack extension list --network +---------------------------+---------------------------+----------------------------+ | Name | Alias | Description | +---------------------------+---------------------------+----------------------------+ | Default Subnetpools | default-subnetpools | Provides ability to mark | | | | and use a subnetpool as | | | | the default | | Availability Zone | availability_zone | The availability zone | ...... ...... -
（该步骤可省略）配置Compute服务使用Networking服务
即：配置Nova服务使用Neutron服务
该步骤可省略，因为all in one安装方式，计算节点和控制节点在同一台主机中，4.5.1中已经配置了nova.conf 文件。因此该步骤可省略。
复制代码1
2
3
4
5
6
7
8
9
10
11
12[root@controller /]# vim /etc/nova/nova.conf [neutron] url = http://controller:9696 auth_url = http://controller:35357 auth_type = password project_domain_name = default user_domain_name = default region_name = RegionOne project_name = service username = neutron password = NEUTRON_PASS -
配置环境
重启、开机自启动
复制代码1
2
3
4[root@controller /]# systemctl restart openstack-nova-compute.service [root@controller /]# systemctl enable neutron-linuxbridge-agent.service [root@controller /]# systemctl start neutron-linuxbridge-agent.service
4.6、安装Horizon
4.6.1、安装Horizon步骤
该组件选用手动安装的方式，不使用source的方式安装
-
安装dashboard软件
复制代码1
2[root@controller /]# yum install openstack-dashboard -
配置local_settings
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40[root@controller /]# vim /etc/openstack-dashboard/local_settings #配置主机名 OPENSTACK_HOST = "controller" #'*' 允许所有主机访问 ALLOWED_HOSTS = ['*', 'two.example.com'] #新增SESSION_ENGINE SESSION_ENGINE = 'django.contrib.sessions.backends.cache' #修改原有的CACHES，为下面的部分 CACHES = { 'default': { 'BACKEND': 'django.core.cache.backends.memcached.MemcachedCache', 'LOCATION': 'controller:11211', } } OPENSTACK_KEYSTONE_URL = "http://%s:5000/v3" % OPENSTACK_HOST OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True #修改原有的OPENSTACK_API_VERSIONS为： OPENSTACK_API_VERSIONS = { "identity": 3, "image": 2, "volume": 2, } OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = "Default" OPENSTACK_KEYSTONE_DEFAULT_ROLE = "user" #（不需要设置）只有在选择网络为provider networks时才需要设置该步骤 OPENSTACK_NEUTRON_NETWORK = { ... 'enable_router': False, 'enable_quotas': False, 'enable_distributed_router': False, 'enable_ha_router': False, 'enable_lb': False, 'enable_firewall': False, 'enable_vpn': False, 'enable_fip_topology_check': False, } #（可选）设置时区 TIME_ZONE = "TIME_ZONE" -
配置openstack-dashboard.conf
复制代码1
2
3
4[root@controller /]# vim /etc/httpd/conf.d/openstack-dashboard.conf #新增 WSGIApplicationGroup %{GLOBAL} -
配置环境
复制代码1
2
3#重启httpd、memcached服务 [root@controller /]# systemctl restart httpd.service memcached.service
4.6.2、验证是否成功安装
-
在浏览器，登录下面的地址
复制代码1
2
3
4
5#方式1： http://controller/dashboard #方式2： http://本机网卡IP/dashboard -
登录选项
-
domain：default
-
username：admin
-
password：ADMIN_PASS
-
-
结果
4.7、安装Cinder
4.7.1、安装、配置存储节点
-
安装LVM
复制代码1
2
3
4
5[root@controller /]# yum install lvm2 device-mapper-persistent-data #设置开机自启动 [root@controller /]# systemctl enable lvm2-lvmetad.service [root@controller /]# systemctl start lvm2-lvmetad.service-
创建LVM物理卷
注意：此处的sdb，表示的是第二块硬盘。（同理，sda表示第一块硬盘）
复制代码1
2
3[root@controller /]# pvcreate /dev/sdb Physical volume "/dev/sdb" successfully created -
创建 LVM 卷组
cinder-volumes：复制代码1
2
3[root@controller /]# vgcreate cinder-volumes /dev/sdb Volume group "cinder-volumes" successfully created -
配置lvm.conf
复制代码1
2
3
4
5
6
7
8
9
10
11
12[root@controller /]# vim /etc/lvm/lvm.conf #设置过滤器，a：接受。 r：拒绝 #下面的filter，只需要选择一个进行配置即可。 #存储节点使用LVM （本教程使用这个） filter = [ "a/sda/", "a/sdb/", "r/.*/"] #计算节点使用LVM filter = [ "a/sda/", "r/.*/"]
-
-
安装cinder组件
复制代码1
2[root@controller /]# yum install openstack-cinder targetcli python-keystone- 配置cinder.conf
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30[root@controller /]# vim /etc/cinder/cinder.conf [database] connection = mysql+pymysql://cinder:CINDER_DBPASS@controller/cinder [DEFAULT] transport_url = rabbit://openstack:RABBIT_PASS@controller auth_strategy = keystone [keystone_authtoken] auth_uri = http://controller:5000 auth_url = http://controller:5000 memcached_servers = controller:11211 auth_type = password project_domain_id = default user_domain_id = default project_name = service username = cinder password = CINDER_PASS [DEFAULT] #配置为本机的网卡IP my_ip = MANAGEMENT_INTERFACE_IP_ADDRESS [lvm] volume_driver = cinder.volume.drivers.lvm.LVMVolumeDriver volume_group = cinder-volumes iscsi_protocol = iscsi iscsi_helper = lioadm [DEFAULT] enabled_backends = lvm glance_api_servers = http://controller:9292 [oslo_concurrency] lock_path = /var/lib/cinder/tmp-
配置环境
复制代码1
2
3[root@controller /]# systemctl enable openstack-cinder-volume.service target.service [root@controller /]# systemctl start openstack-cinder-volume.service target.service
4.7.2、安装、配置控制节点
在控制器节点上安装和配置块存储服务.
-
创建数据库
复制代码1
2
3
4
5
6
7
8
9
10#进入数据库 [root@controller /]# mysql -u root -p #创建cinder数据库 MariaDB [(none)]> CREATE DATABASE cinder; #数据库授权 MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO 'cinder'@'localhost' IDENTIFIED BY 'CINDER_DBPASS'; MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO 'cinder'@'%' IDENTIFIED BY 'CINDER_DBPASS'; -
创建服务凭证
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77#获取管理员的CLI命令 [root@controller /]# . admin-openrc #创建cinde用户 [root@controller /]#openstack user create --domain default --password-prompt cinder #此处使用默认密码：CINDER_PASS User Password: Repeat User Password: +---------------------+----------------------------------+ | Field | Value | +---------------------+----------------------------------+ | domain_id | default | | enabled | True | | id | 9d7e33de3e1a498390353819bc7d245d | | name | cinder | | options | {} | | password_expires_at | None | +---------------------+----------------------------------+ #为cinder用户添角色信息 [root@controller /]# openstack role add --project service --user cinder admin #创建cinder服务实例 #cinderv2 [root@controller /]# openstack service create --name cinderv2 --description "OpenStack Block Storage" volumev2 +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | OpenStack Block Storage | | enabled | True | | id | eb9fd245bdbc414695952e93f29fe3ac | | name | cinderv2 | | type | volumev2 | +-------------+----------------------------------+ #cinderv3 [root@controller /]# openstack service create --name cinderv3 --description "OpenStack Block Storage" volumev3 +-------------+----------------------------------+ | Field | Value | +-------------+----------------------------------+ | description | OpenStack Block Storage | | enabled | True | | id | ab3bbbef780845a1a283490d281e7fda | | name | cinderv3 | | type | volumev3 | +-------------+----------------------------------+ -
创建块存储服务API端点
-
创建v2版本的端点
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97[root@controller /]# openstack endpoint create --region RegionOne volumev2 public http://controller:8776/v2/%(project_id)s +--------------+------------------------------------------+ | Field | Value | +--------------+------------------------------------------+ | enabled | True | | id | 513e73819e14460fb904163f41ef3759 | | interface | public | | region | RegionOne | | region_id | RegionOne | | service_id | eb9fd245bdbc414695952e93f29fe3ac | | service_name | cinderv2 | | service_type | volumev2 | | url | http://controller:8776/v2/%(project_id)s | +--------------+------------------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne volumev2 internal http://controller:8776/v2/%(project_id)s +--------------+------------------------------------------+ | Field | Value | +--------------+------------------------------------------+ | enabled | True | | id | 6436a8a23d014cfdb69c586eff146a32 | | interface | internal | | region | RegionOne | | region_id | RegionOne | | service_id | eb9fd245bdbc414695952e93f29fe3ac | | service_name | cinderv2 | | service_type | volumev2 | | url | http://controller:8776/v2/%(project_id)s | +--------------+------------------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne volumev2 admin http://controller:8776/v2/%(project_id)s +--------------+------------------------------------------+ | Field | Value | +--------------+------------------------------------------+ | enabled | True | | id | e652cf84dd334f359ae9b045a2c91d96 | | interface | admin | | region | RegionOne | | region_id | RegionOne | | service_id | eb9fd245bdbc414695952e93f29fe3ac | | service_name | cinderv2 | | service_type | volumev2 | | url | http://controller:8776/v2/%(project_id)s | +--------------+------------------------------------------+ -
创建v3版本的端点
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97[root@controller /]# openstack endpoint create --region RegionOne volumev3 public http://controller:8776/v3/%(project_id)s +--------------+------------------------------------------+ | Field | Value | +--------------+------------------------------------------+ | enabled | True | | id | 03fa2c90153546c295bf30ca86b1344b | | interface | public | | region | RegionOne | | region_id | RegionOne | | service_id | ab3bbbef780845a1a283490d281e7fda | | service_name | cinderv3 | | service_type | volumev3 | | url | http://controller:8776/v3/%(project_id)s | +--------------+------------------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne volumev3 internal http://controller:8776/v3/%(project_id)s +--------------+------------------------------------------+ | Field | Value | +--------------+------------------------------------------+ | enabled | True | | id | 94f684395d1b41068c70e4ecb11364b2 | | interface | internal | | region | RegionOne | | region_id | RegionOne | | service_id | ab3bbbef780845a1a283490d281e7fda | | service_name | cinderv3 | | service_type | volumev3 | | url | http://controller:8776/v3/%(project_id)s | +--------------+------------------------------------------+ [root@controller /]# openstack endpoint create --region RegionOne volumev3 admin http://controller:8776/v3/%(project_id)s +--------------+------------------------------------------+ | Field | Value | +--------------+------------------------------------------+ | enabled | True | | id | 4511c28a0f9840c78bacb25f10f62c98 | | interface | admin | | region | RegionOne | | region_id | RegionOne | | service_id | ab3bbbef780845a1a283490d281e7fda | | service_name | cinderv3 | | service_type | volumev3 | | url | http://controller:8776/v3/%(project_id)s | +--------------+------------------------------------------+
-
-
安装cinder组件
复制代码1
2[root@controller /]# yum install openstack-cinder-
配置cinder.conf
复制代码1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20[root@controller /]# vim /etc/cinder/cinder.conf [database] connection = mysql+pymysql://cinder:CINDER_DBPASS@controller/cinder [DEFAULT] transport_url = rabbit://openstack:RABBIT_PASS@controller auth_strategy = keystone my_ip = 10.0.0.11 [keystone_authtoken] auth_uri = http://controller:5000 auth_url = http://controller:5000 memcached_servers = controller:11211 auth_type = password project_domain_id = default user_domain_id = default project_name = service username = cinder password = CINDER_PASS [oslo_concurrency] lock_path = /var/lib/cinder/tmp -
填充数据库
复制代码1
2[root@controller /]# su -s /bin/sh -c "cinder-manage db sync" cinder
-
-
配置Nova使用块存储
复制代码1
2[root@controller /]# vim /etc/nova/nova.conf -
配置环境
复制代码1
2
3
4[root@controller /]# systemctl restart openstack-nova-api.service [root@controller /]# systemctl enable openstack-cinder-api.service openstack-cinder-scheduler.service [root@controller /]# systemctl start openstack-cinder-api.service openstack-cinder-scheduler.service
4.7.3、（可选）安装、配置备份服务
本教程没有安装swift组件，因此可省略此步骤
-
安装cinder
复制代码1
2[root@controller /]# yum install openstack-cinder-
配置cinder.conf
复制代码1
2
3
4
5
6
7[root@controller /]# /etc/cinder/cinder.conf [DEFAULT] backup_driver = cinder.backup.drivers.swift #替换SWIFT_URL为；为对象存储服务的 URL #可通过命令查看具体的替换数值：openstack catalog show object-store backup_swift_url = SWIFT_URL
-
-
配置环境
复制代码1
2
3[root@controller /]# systemctl enable openstack-cinder-backup.service [root@controller /]# systemctl start openstack-cinder-backup.service
4.7.4、验证是否成功安装
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18[root@controller /]# . admin-openrc [root@controller /]# openstack volume service list #此处未安装swift组件，因此只有存储节点、控制节点 +------------------+------------+------+---------+-------+----------------------------+ | Binary | Host | Zone | Status | State | Updated_at | +------------------+------------+------+---------+-------+----------------------------+ | cinder-scheduler | controller | nova | enabled | up | 2016-09-30T02:27:41.000000 | | cinder-volume | block@lvm | nova | enabled | up | 2016-09-30T02:27:46.000000 | +------------------+------------+------+---------+-------+----------------------------+
5、常见问题
1、安装keystone后，执行命令：openstack domain create --description “An Example Domain” example
出现错误：
复制代码
1
2
3Failed to discover available identity versions when contacting http://controller:5000/v3. Attempting to parse version from URL. Unable to establish connection to http://controller:5000/v3/auth/tokens: HTTPConnectionPool(host='controller', port=5000): Max retries exceeded with url: /v3/auth/tokens (Caused by NewConnectionError('<urllib3.connection.HTTPConnection object at 0x7fa20bba02b0>: Failed to establish a new connection: [Errno -3] Temporary failure in name resolution',))
解决方式：
关闭SELinux，然后使用命令setnforce 0（或者重启系统）
2、配置网卡时，需要注意的事项
配置网络时，需要先使用dhcp，获取虚拟机网卡ip，然后再使用static的方式，配置网卡ip。如果直接使用dhcp的方式，可能会导致该ip无法使用，无法ping通。
3.2、安装OpenStack各个组件时，使用命令： yum install xxxx -y。
出现错误：
复制代码
1
2
3
4
5
6Error downloading packages: python-dogpile-cache-0.6.2-1.el7.noarch: [Errno 256] No more mirrors to try. python-keyring-5.7.1-1.el7.noarch: [Errno 256] No more mirrors to try. python-dogpile-core-0.4.1-2.el7.noarch: [Errno 256] No more mirrors to try. python-cmd2-0.6.8-8.el7.noarch: [Errno 256] No more mirrors to try.
解决方式：
（1）方式1：再次执行安装命令 yum install python-openstackclient -y
（2）方式2：yum update =》yum install python-openstackclient -y
若还是出现错误：Error downloading packages: lttng-ust-2.10.0-1.el7.x86_64: [Errno 256] No more mirrors to try.
使用yum clean cache、yum makecache，然后再次进行yum update
4、horizon登录注意事项
地址：http://controller/dashboard
不行的话，换成: http://controller对用的IP地址/dashboard
登录填写的资料：
domain：default
username：admin
password：ADMIN_PASS
5、禁用 SELinux
-
**否则会出现错误：**the request you have made requires authentication(HTTPConnection 401)
-
解决方式：
复制代码1
2
3
4[root@controller /]# vim /etc/selinux/config SELINUX=disabled SELINUXTYPE=targeted然后setnforce 0（或者重启系统）
6、VMWare挂载磁盘的注意事项
查看挂载：
复制代码
1
2[root@controller /]# fdisk -l
若新增的磁盘未挂载上，处理方式：
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13#1、查看当前有的磁盘文件： [root@controller /]# cd /sys/class/scsi_host/ #2、获取当前目录下的所有文件名 [root@controller /]# ls host0 host1 host2 #3、逐个执行上面文件中出现的文件 [root@controller /]# echo "- - -" > /sys/class/scsi_host/host0/scan [root@controller /]# echo "- - -" > /sys/class/scsi_host/host1/scan [root@controller /]# echo "- - -" > /sys/class/scsi_host/host2/scan
7、重启虚拟机后，无法使用openstack命令
-
原因：
因为使用export设置环境变量，因此该环境变量只限定于当前执行命令的终端使用。系统关机、开启新的终端均无法使用这个环境变量。
-
解决方式：
需要运行源文件命令，添加环境变量。
复制代码1
2[root@controller /]# . admin-openrc复制代码1
2
3
4
5
6
7
8
9
10
11#admin-openrc文件中的内容 [root@controller /]# vim admin-openrc export OS_PROJECT_DOMAIN_NAME=Default export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_NAME=admin export OS_USERNAME=admin export OS_PASSWORD=ADMIN_PASS export OS_AUTH_URL=http://controller:5000/v3 export OS_IDENTITY_API_VERSION=3 export OS_IMAGE_API_VERSION=2
8、执行openstack volume service list，cinder-volume运行失败
-
原因：
若，存储节点在操作系统磁盘上使用LVM，则需要将关联的设备添加到过滤器中。 -
解决方式：
配置存储节点时，需要挂载相应的卷。复制代码1
2
3
4
5
6
7#修改配置文件：/etc/lvm/lvm.conf [root@controller /]# vim /etc/lvm/lvm.conf devices { ... filter = [ "a/sda/", "a/sdb/", "r/.*/"] }
9、Nova无法启动
-
原因：
防火墙阻止访问5672端口
-
解决方式：
复制代码1
2
3
4
5
6
7
8#查看nova-comput日志：发现端口未启用 cat /var/log/nova/nova-compute.log #关闭防火墙 systemctl stop firewalld systemctl disable firewalld #重启nova服务 systemctl start libvirtd.service openstack-nova-compute.service
执行安装命令 yum install python-openstackclient -y
（2）方式2：yum update =》yum install python-openstackclient -y
若还是出现错误：Error downloading packages: lttng-ust-2.10.0-1.el7.x86_64: [Errno 256] No more mirrors to try.
使用yum clean cache、yum makecache，然后再次进行yum update
4、horizon登录注意事项
地址：http://controller/dashboard
不行的话，换成: http://controller对用的IP地址/dashboard
登录填写的资料：
domain：default
username：admin
password：ADMIN_PASS
5、禁用 SELinux
-
**否则会出现错误：**the request you have made requires authentication(HTTPConnection 401)
-
解决方式：
复制代码1
2
3
4[root@controller /]# vim /etc/selinux/config SELINUX=disabled SELINUXTYPE=targeted然后setnforce 0（或者重启系统）
6、VMWare挂载磁盘的注意事项
查看挂载：
复制代码
1
2[root@controller /]# fdisk -l
若新增的磁盘未挂载上，处理方式：
复制代码
1
2
3
4
5
6
7
8
9
10
11
12
13#1、查看当前有的磁盘文件： [root@controller /]# cd /sys/class/scsi_host/ #2、获取当前目录下的所有文件名 [root@controller /]# ls host0 host1 host2 #3、逐个执行上面文件中出现的文件 [root@controller /]# echo "- - -" > /sys/class/scsi_host/host0/scan [root@controller /]# echo "- - -" > /sys/class/scsi_host/host1/scan [root@controller /]# echo "- - -" > /sys/class/scsi_host/host2/scan
7、重启虚拟机后，无法使用openstack命令
-
原因：
因为使用export设置环境变量，因此该环境变量只限定于当前执行命令的终端使用。系统关机、开启新的终端均无法使用这个环境变量。
-
解决方式：
需要运行源文件命令，添加环境变量。
复制代码1
2[root@controller /]# . admin-openrc复制代码1
2
3
4
5
6
7
8
9
10
11#admin-openrc文件中的内容 [root@controller /]# vim admin-openrc export OS_PROJECT_DOMAIN_NAME=Default export OS_USER_DOMAIN_NAME=Default export OS_PROJECT_NAME=admin export OS_USERNAME=admin export OS_PASSWORD=ADMIN_PASS export OS_AUTH_URL=http://controller:5000/v3 export OS_IDENTITY_API_VERSION=3 export OS_IMAGE_API_VERSION=2
8、执行openstack volume service list，cinder-volume运行失败
-
原因：
若，存储节点在操作系统磁盘上使用LVM，则需要将关联的设备添加到过滤器中。 -
解决方式：
配置存储节点时，需要挂载相应的卷。复制代码1
2
3
4
5
6
7#修改配置文件：/etc/lvm/lvm.conf [root@controller /]# vim /etc/lvm/lvm.conf devices { ... filter = [ "a/sda/", "a/sdb/", "r/.*/"] }
9、Nova无法启动
-
原因：
防火墙阻止访问5672端口
-
解决方式：
复制代码1
2
3
4
5
6
7
8#查看nova-comput日志：发现端口未启用 cat /var/log/nova/nova-compute.log #关闭防火墙 systemctl stop firewalld systemctl disable firewalld #重启nova服务 systemctl start libvirtd.service openstack-nova-compute.service
最后
以上就是高挑魔镜最近收集整理的关于OpenStack安装教程0、说明1、搭建基础环境2、准备工作3、安装软件4、安装OpenStack5、常见问题的全部内容，更多相关OpenStack安装教程0、说明1、搭建基础环境2、准备工作3、安装软件4、安装OpenStack5、常见问题内容请搜索靠谱客的其他文章。
本图文内容来源于网友提供，作为学习参考使用，或来自网络收集整理，版权属于原作者所有。
发表评论 取消回复
