119 fsm1

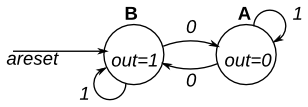

This is a Moore state machine with two states, one input, and one output. Implement this state machine. Notice that the reset state is B.

This exercise is the same as fsm1s, but using asynchronous reset.

Hint...Yes, there are ways to do this other than writing an FSM. But that wasn't the point of this exercise.Hint...

This is a TFF with the T input inverted.

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
module top_module(
    input clk,
    input areset,    // Asynchronous reset to state B
    input in,
    output out);//

    parameter A=1'd0, B=1'd1;
    reg state, next_state;

    always @(*) begin    // This is a combinational always block
        // State transition logic
        case(state)
            A:next_state = (in)?A:B;
            B:next_state = (in)?B:A;
        endcase
    end

    always @(posedge clk, posedge areset) begin    // This is a sequential always block
        // State flip-flops with asynchronous reset
        if(areset)begin
            state<=B;
        end
        else begin
            state<=next_state;
        end
    end

    // Output logic
    assign out = (state == B);

endmodule

120 fsm1s

This is a Moore state machine with two states, one input, and one output. Implement this state machine. Notice that the reset state is B.

This exercise is the same as fsm1, but using synchronous reset.

Hint...Yes, there are ways to do this other than writing an FSM. But that wasn't the point of this exercise.Hint...

This is a TFF with the T input inverted.

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
module top_module(
    input clk,
    input reset,    // Asynchronous reset to state B
    input in,
    output out);//

    parameter A=1'd0, B=1'd1;
    reg state, next_state;

    always @(*) begin    // This is a combinational always block
        // State transition logic
        case(state)
            A:next_state = (in)?A:B;
            B:next_state = (in)?B:A;
        endcase
    end

    always @(posedge clk) begin    // This is a sequential always block
        // State flip-flops with asynchronous reset
        if(reset)begin
            state<=B;
        end
        else begin
            state<=next_state;
        end
    end

    // Output logic
    assign out = (state == B);

endmodule

121 fsm2

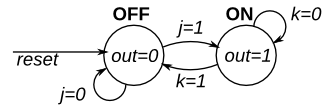

This is a Moore state machine with two states, two inputs, and one output. Implement this state machine.

This exercise is the same as fsm2s, but using asynchronous reset.

Module Declaration

Hint...Yes, there are ways to do this other than writing an FSM. But that wasn't the point of this exercise.Hint...

This is a JK flip-flop.

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
module top_module(
    input clk,
    input areset,    // Asynchronous reset to OFF
    input j,
    input k,
    output out); //

    parameter OFF=1'd0, ON=1'd1;
    reg state, next_state;

    always @(*) begin
        // State transition logic
        case (state)
            ON:next_state = k?OFF:ON;
            OFF:next_state = j?ON:OFF;
        endcase
    end

    always @(posedge clk, posedge areset) begin
        // State flip-flops with asynchronous reset
        if(areset)begin
            state <= OFF;
        end
        else begin
            state <= next_state;
        end
    end

    // Output logic
    assign out = (state == ON);

endmodule

122 fsm2s

This is a Moore state machine with two states, two inputs, and one output. Implement this state machine.

This exercise is the same as fsm2, but using synchronous reset.

Hint...Yes, there are ways to do this other than writing an FSM. But that wasn't the point of this exercise.Hint...

This is a JK flip-flop.

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
module top_module(
    input clk,
    input reset,    // Asynchronous reset to OFF
    input j,
    input k,
    output out); //

    parameter OFF=1'd0, ON=1'd1;
    reg state, next_state;

    always @(*) begin
        // State transition logic
        case (state)
            ON:next_state = k?OFF:ON;
            OFF:next_state = j?ON:OFF;
        endcase
    end

    always @(posedge clk) begin
        // State flip-flops with asynchronous reset
        if(reset)begin
            state <= OFF;
        end
        else begin
            state <= next_state;
        end
    end

    // Output logic
    assign out = (state == ON);

endmodule
