COMTool

A cross platform serial debug tools written by python

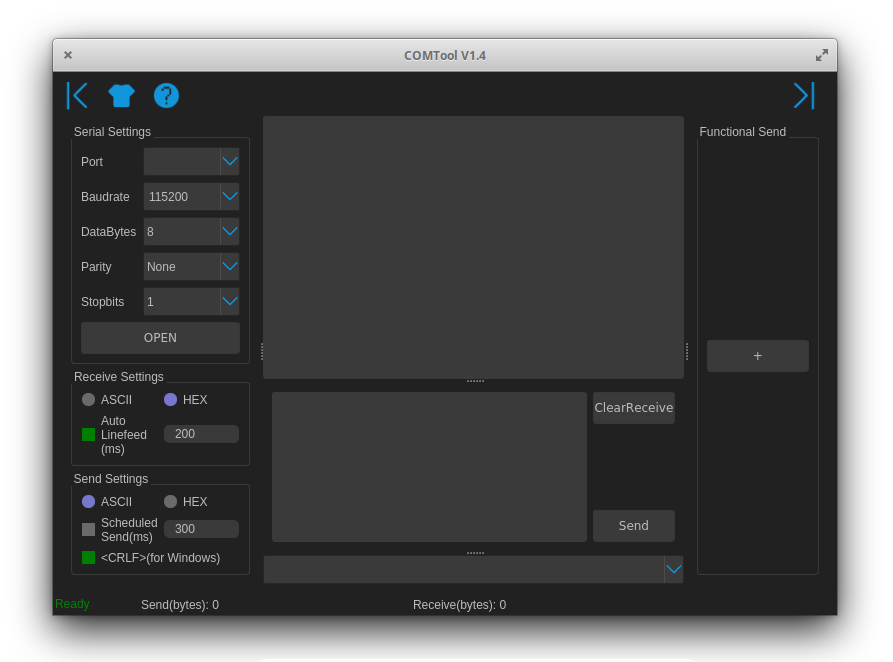

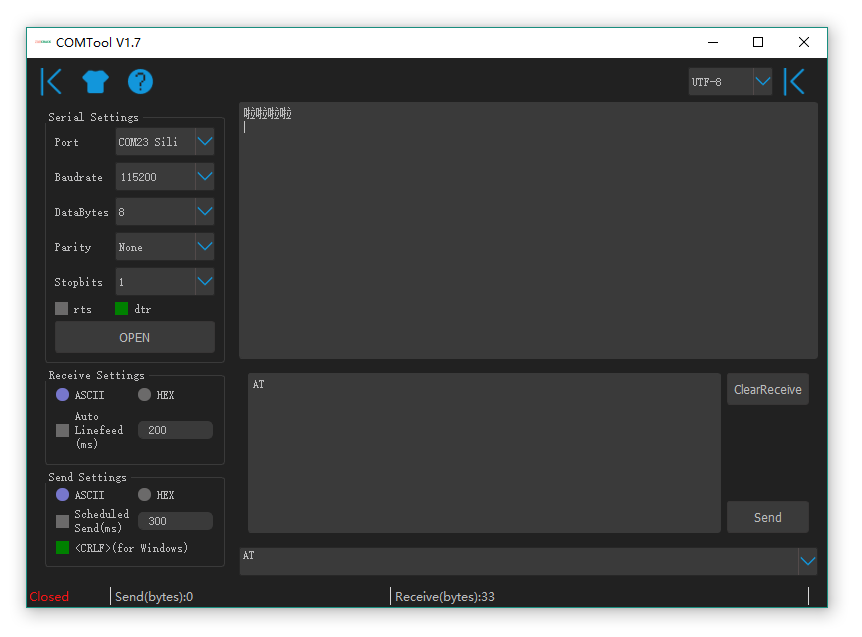

Windows

Linux(Elementry OS)

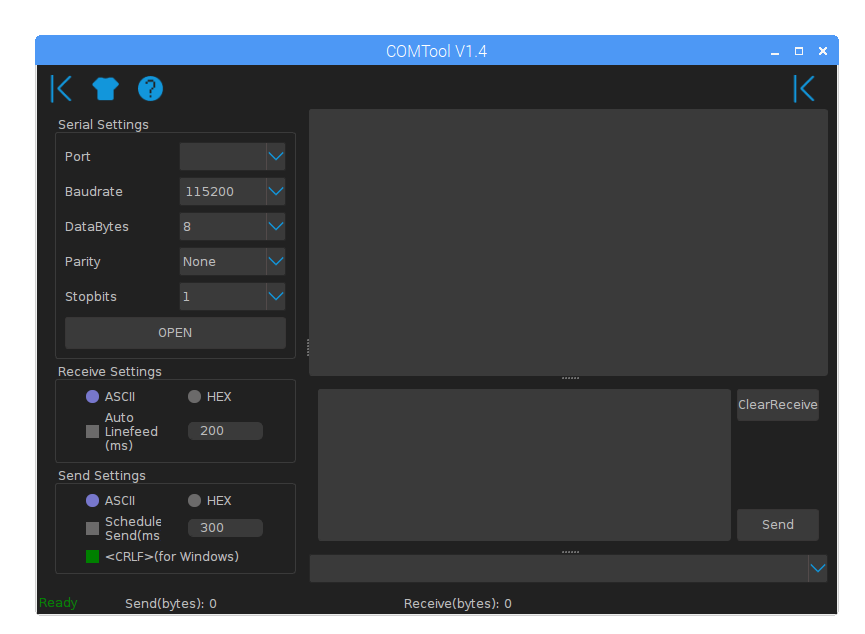

Raspberry Pi3

screenshot shows the version 1.0, the latest may not the same totally! But better performance、more easy to use and more elegant

Features

cross platform (Windows, Linux, MacOS, Raspberry Pi ... ...)

port baudrate bytesize parity stopbits settings

basic send data (ascii and hex)

basic receive data (ascii and hex)

send and receive data count

clear received data area

auto linefeed on every once receive

scheduled auto send

send history and select send again

serial auto detect

CR LF / LF select support

auto save settings

Ctrl+Enter to send

escape character support, like x r n etc.

multiple character encode support(ASII,GBK(Chinese),UTF-8,UTF-16......)

multiple auto send (order and disorder)

unix style terminal color support

night theme and White theme

real time data graphic display

rts & dtr control by hand

Install

Windows

Test pass on Win10

there's three ways:

download excutable bin file, easiest way for one never used python

Download the latest bin file at the release page

unzip, and run comtool.exe

Install Python3 first then install from pypi:

Install by pip,

pip install comtool

comtool

Or you can download source code, then install from source code

download sourcecode

install

python setup.py bdist_wheel

pip install dist/COMTool-*.*.*-py3-none-any.whl

comtool

or

pip3 install pyinstaller

python pack.py

cd dist

Linux

Test on Ubuntu 16 18 and Elementry OS 4

there's many ways to install comtool on linux

(1) Download release (Recommend)

Download release at release page

(2) Download and install from [pypi] by pip

sudo apt install python3

sudo apt install python3-pip

sudo pip3 install comtool

sudo comtool

The installation proccess will automatically install PyQt5, it may takes a long times!!!

you can install pyqt5 manually by command sudo apt install python3-pyqt5 or sudo pip3 install pyqt5

(3) Or get by tool get-pip.py

sudo apt install python3

wget https://bootstrap.pypa.io/get-pip.py

sudo python3 get-pip.py

sudo pip3 install comtool

sudo comtool

be sure python bin path already in the $PATH env.

(4) Just install from github source code by pip

sudo apt install python3 python3-pip

sudo pip3 install git+https://github.com/Neutree/COMTool

sudo comtool

(5) Or you can download source code, then install from source code

python setup.py bdist_wheel

sudo pip3 install dist/COMTool-*.*.*-py3-none-any.whl

or

pip3 install pyinstaller

python3 pack.py

cd dist/comtool

./comtool

We should add current user to dialout group to avoid sudo command

sudo usermod -a -G dialout $USER

grep 'dialout' /etc/group

reboot #must reboot to take effect

macOS

(1) Download release (Recommend)

Download release at release page

(2) Install from pipy

brew install python3 python3-pip

sudo pip3 install COMTool

It will automatically install pyqt5, may takes a lot of time depend on your network

(3) Install from source

pip3 install pyinstaller

python3 pack.py

cd dist

then double click comtool.app

Rasberry Pi

Test pass on Raspberry Pi 3

just open terminal, type the command below:

sudo apt install git

git clone https://github.com/Neutree/COMTool.git

cd COMTool

python setup.py bdist_wheel

sudo pip3 install dist/COMTool-*.*.*-py3-none-any.whl

comtool

then enjoy

Development

Install python3.6 and pip3

Linux:

sudo apt install python3 python3-pip

install pyserial and PyQt5

sudo pip3 install pyserial pyqt5 bs4

On Raspberry:

sudo pip3 install --upgrade pyserial bs4

sudo apt install python3-pyqt5

clone project

git clone https://github.com/Neutree/COMTool.git

code, resolve bugs or add new reatures

Recommended PyCharm IDE to get start

pull request

Issue and improvement

Create issue here
