C++ Opencv imfill孔洞填充函数的实现思路与代码

Mat imfill(Mat cop)
{
	Mat fcop;
	cop.copyTo(fcop);
	vector<Point> upp;//定义四连通点集，有必要可以是八连通
	upp.push_back(Point(-1, 0));
	upp.push_back(Point(0, -1));
	upp.push_back(Point(0, 1));
	upp.push_back(Point(1, 0));
	//upp.push_back(Point(1, 1));
	//upp.push_back(Point(-1,-1));
	//upp.push_back(Point(-1, 1));
	//upp.push_back(Point(1, -1));

	vector<vector<vector<Point>>> lenm;//三维point向量 lenm.size()是连通域的个数
	/*
	int impixel_sum = 0;
	for (int j = 0,j<lenm[i].size();j++)
	{
	    impixel_sum+= lenm[i][j].size();
	}
	//这段循环 表示第i个连通域中 像素点的个数。
	*/
	vector<vector<Point>> numim;
	vector<Point> ssinum;
	vector<vector<int>> Flag;
	vector<int> ce;

	int nmss = 0;//连通域的个数；
	int nums = 0;//中间变量 用来存储 lenm.size();即 在程序运行过程中 nums始终等于 lenm[i][j][k] 中的j 的 值的大小;
	int s1 = 0;
	//标志位 ，每次区域生长后 符合条件的像素个数，当第i个连通域，在经过第j次生长后，s1=lenm[i][j].size(),
	//若s1==0,表示生长结束,不再有符合条件的点，第i连通域中的所有点都已经找到。

	for (int row = 0; row < fcop.rows; row++)
	{
		for (int col = 0; col < fcop.cols; col++)
		{
			if (fcop.at<uchar>(row, col) == 0)
			{
				ce.push_back(1);
				Flag.push_back(ce);
				//vector<vector<Point>> numim;
				//vector<Point> ssinum;
				ssinum.push_back(Point(col, row));
				numim.push_back(ssinum);
				fcop.at<uchar>(row, col) = 255;
				ssinum.clear();
				s1 = 1;
				while (s1 > 0)
				{
					//ce.push_back(1);
					//Flag.push_back(ce);
					//vector<Point> ssinum;
					for (int i = 0; i < numim[nums].size(); i++)
					{
						for (int j = 0; j < upp.size(); j++)
						{
							int X = numim[nums][i].x + upp[j].x;
							int Y = numim[nums][i].y + upp[j].y;
							if (X >= 0 && Y >= 0 && X < fcop.cols && Y < fcop.rows)
							{
								if (fcop.at<uchar>(Y, X) == 0)
								{
									ssinum.push_back(Point(X, Y));
									fcop.at<uchar>(Y, X) = 255;
								}
							}

							if (X == 0 || Y == 0 || X == fcop.cols - 1 || Y == fcop.rows - 1)
							{
								Flag[nmss][0] = 0;

							}
						}
					}
					//Flag.push_back(ce);
					numim.push_back(ssinum);
					s1 = ssinum.size();
					nums++;
					ssinum.clear();
					/*ce.clear();*/
				}
				nums = 0;
				lenm.push_back(numim);
				numim.clear();
				nmss++;
				ce.clear();
			}

		}
	}
	//imshow("1",fcop);
	Mat ffcop;
	cop.copyTo(ffcop);
	//ffcop = Mat::zeros(cop.size(),cop.type());
	for (int i = 0; i < Flag.size(); i++)
	{
		if (Flag[i][0] == 1)
		{
			for (int j = 0; j < lenm[i].size(); j++)
			{
				for (int k = 0; k < lenm[i][j].size(); k++)
				{
					int X = lenm[i][j][k].x;
					int Y = lenm[i][j][k].y;
					ffcop.at<char>(Y, X) = 255;
				}
			}
		}
	}
	return ffcop;
}

#include<opencv2/opencv.hpp>
#include<iostream>

#include"imfill.h"

using namespace std;
using namespace cv;

Mat src;
vector<vector<Point>>  lunk;
vector<Vec4i> level;

//RNG rn;
int main()
{

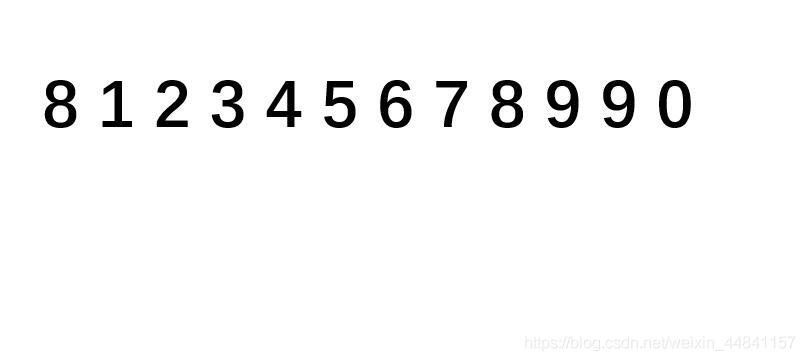

	src = imread("5.jpg");
	//imshow("万丈高楼第一步",src);

	Mat dst, gray, erzhi;
	blur(src, dst, Size(3, 3), Point(-1, -1));
	//imshow("均值滤波",dst);

	cvtColor(dst, gray, COLOR_BGR2GRAY);
	//imshow("灰度图",gray);

	Canny(gray, erzhi, 100, 200, 3, false);
	//imshow("边缘检测",erzhi);

	Mat holef;

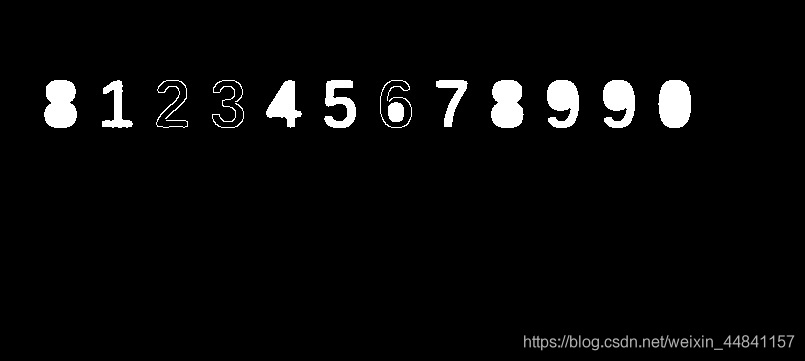

	holef = imfill(erzhi);
	imshow("填洞", holef);

	waitKey(0);
	return 0;
}
