Qt串口通信开发之QSerialPort模块详细使用方法与实例

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
//构造函数
QSerialPort::QSerialPort(QObject *parent = Q_NULLPTR)
QSerialPort::QSerialPort(const QString &name, QObject *parent = Q_NULLPTR)
QSerialPort::QSerialPort(const QSerialPortInfo &serialPortInfo, QObject *parent = Q_NULLPTR)
//如果当前没有数据可读，返回true
[virtual] bool QSerialPort::atEnd() const
//波特率改变后，信号触发
[signal] void QSerialPort::baudRateChanged(qint32 baudRate, QSerialPort::Directions directions)
//返回可读数据的字节数
[virtual] qint64 QSerialPort::bytesAvailable() const
//返回可写数据的字节数
[virtual] qint64 QSerialPort::bytesToWrite() const
//关闭串口
[virtual] void QSerialPort::close()
//设置串口端口信息为serialPortInfo
void QSerialPort::setPort(const QSerialPortInfo &serialPortInfo)
//设置串口名为name
void QSerialPort::setPortName(const QString &name)

1
2
3
4
5
6
7
8
9
#include "mainwindow.h"
#include <QApplication>
int main(int argc, char *argv[])
{
 QApplication a(argc, argv);
 MainWindow w;
 w.show();
 return a.exec();
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QMainWindow>
#include <QtSerialPort/QSerialPort>
#include <QtSerialPort/QSerialPortInfo>
#include <QList>
#include <QDebug>
namespace Ui {
class MainWindow;
}
class MainWindow : public QMainWindow
{
 Q_OBJECT
public:
 explicit MainWindow(QWidget *parent = 0);
 ~MainWindow();
private slots:
 void on_btn_openConsole_clicked();
 void on_btn_send_clicked();
 void on_btn_clearRecv_clicked();
 void on_btn_clearSend_clicked();
 void readData();
private:
 Ui::MainWindow *ui;
 QSerialPort *serial;
};
#endif // MAINWINDOW_H

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144

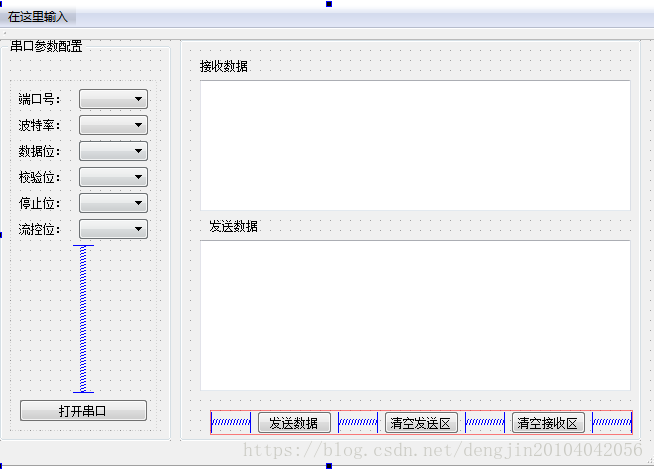

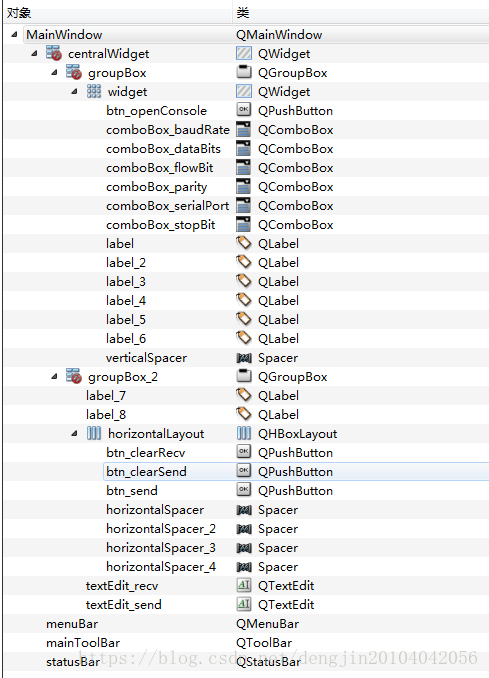

#include "mainwindow.h"
#include "ui_mainwindow.h"
static const char blankString[] = QT_TRANSLATE_NOOP("SettingsDialog", "N/A");
MainWindow::MainWindow(QWidget *parent) :
 QMainWindow(parent),
 ui(new Ui::MainWindow)
{
 ui->setupUi(this);
 serial = new QSerialPort;
 QString description;
 QString manufacturer;
 QString serialNumber;
 //获取可以用的串口
 QList<QSerialPortInfo> serialPortInfos = QSerialPortInfo::availablePorts();
 //输出当前系统可以使用的串口个数
 qDebug() << "Total numbers of ports: " << serialPortInfos.count();
 //将所有可以使用的串口设备添加到ComboBox中
 for (const QSerialPortInfo &serialPortInfo : serialPortInfos)
 {
  QStringList list;
  description = serialPortInfo.description();
  manufacturer = serialPortInfo.manufacturer();
  serialNumber = serialPortInfo.serialNumber();
  list << serialPortInfo.portName()
    << (!description.isEmpty() ? description : blankString)
    << (!manufacturer.isEmpty() ? manufacturer : blankString)
    << (!serialNumber.isEmpty() ? serialNumber : blankString)
    << serialPortInfo.systemLocation()
    << (serialPortInfo.vendorIdentifier() ? QString::number(serialPortInfo.vendorIdentifier(), 16) : blankString)
    << (serialPortInfo.productIdentifier() ? QString::number(serialPortInfo.productIdentifier(), 16) : blankString);
  ui->comboBox_serialPort->addItem(list.first(), list);
 }
 ui->comboBox_serialPort->addItem(tr("custom"));
 //设置波特率
 ui->comboBox_baudRate->addItem(QStringLiteral("9600"), QSerialPort::Baud9600);
 ui->comboBox_baudRate->addItem(QStringLiteral("19200"), QSerialPort::Baud19200);
 ui->comboBox_baudRate->addItem(QStringLiteral("38400"), QSerialPort::Baud38400);
 ui->comboBox_baudRate->addItem(QStringLiteral("115200"), QSerialPort::Baud115200);
 ui->comboBox_baudRate->addItem(tr("Custom"));
 //设置数据位
 ui->comboBox_dataBits->addItem(QStringLiteral("5"), QSerialPort::Data5);
 ui->comboBox_dataBits->addItem(QStringLiteral("6"), QSerialPort::Data6);
 ui->comboBox_dataBits->addItem(QStringLiteral("7"), QSerialPort::Data7);
 ui->comboBox_dataBits->addItem(QStringLiteral("8"), QSerialPort::Data8);
 ui->comboBox_dataBits->setCurrentIndex(3);
 //设置奇偶校验位
 ui->comboBox_parity->addItem(tr("None"), QSerialPort::NoParity);
 ui->comboBox_parity->addItem(tr("Even"), QSerialPort::EvenParity);
 ui->comboBox_parity->addItem(tr("Odd"), QSerialPort::OddParity);
 ui->comboBox_parity->addItem(tr("Mark"), QSerialPort::MarkParity);
 ui->comboBox_parity->addItem(tr("Space"), QSerialPort::SpaceParity);
 //设置停止位
 ui->comboBox_stopBit->addItem(QStringLiteral("1"), QSerialPort::OneStop);
 ui->comboBox_stopBit->addItem(QStringLiteral("2"), QSerialPort::TwoStop);
 //添加流控
 ui->comboBox_flowBit->addItem(tr("None"), QSerialPort::NoFlowControl);
 ui->comboBox_flowBit->addItem(tr("RTS/CTS"), QSerialPort::HardwareControl);
 ui->comboBox_flowBit->addItem(tr("XON/XOFF"), QSerialPort::SoftwareControl);
 //禁用发送按钮
 ui->btn_send->setEnabled(false);
}
MainWindow::~MainWindow()
{
 //delete serial;
 delete ui;
}
//打开串口按钮槽函数
void MainWindow::on_btn_openConsole_clicked()
{
 qDebug() << ui->btn_openConsole->text();
 if (ui->btn_openConsole->text() == tr("打开串口"))
 {
  //设置串口名字
  serial->setPortName(ui->comboBox_serialPort->currentText());
  //设置波特率
  serial->setBaudRate(ui->comboBox_baudRate->currentText().toInt());
  //设置数据位
  serial->setDataBits(QSerialPort::Data8);
  //设置奇偶校验位
  serial->setParity(QSerialPort::NoParity);
  //设置停止位
  serial->setStopBits(QSerialPort::OneStop);
  //设置流控
  serial->setFlowControl(QSerialPort::NoFlowControl);
  //打开串口
  if (serial->open(QIODevice::ReadWrite))
  {
   ui->comboBox_baudRate->setEnabled(false);
   ui->comboBox_dataBits->setEnabled(false);
   ui->comboBox_flowBit->setEnabled(false);
   ui->comboBox_parity->setEnabled(false);
   ui->comboBox_serialPort->setEnabled(false);
   ui->comboBox_stopBit->setEnabled(false);
   ui->btn_send->setEnabled(true);
   ui->btn_openConsole->setText(tr("关闭串口"));
   //信号与槽函数关联
   connect(serial, &QSerialPort::readyRead, this, &MainWindow::readData);
  }
 }
 else
 {
  //关闭串口
  //serial->clear();
  serial->close();
  //serial->deleteLater();
  //恢复设置功能
  ui->comboBox_baudRate->setEnabled(true);
  ui->comboBox_dataBits->setEnabled(true);
  ui->comboBox_flowBit->setEnabled(true);
  ui->comboBox_parity->setEnabled(true);
  ui->comboBox_serialPort->setEnabled(true);
  ui->comboBox_stopBit->setEnabled(true);
  ui->btn_openConsole->setText(tr("打开串口"));
  ui->btn_send->setEnabled(false);
 }
}
//发送数据槽函数
void MainWindow::on_btn_send_clicked()
{
 serial->write(ui->textEdit_send->toPlainText().toLatin1());
}
//清空接收数据槽函数
void MainWindow::on_btn_clearRecv_clicked()
{
 ui->textEdit_recv->clear();
}
//清空发送区槽函数
void MainWindow::on_btn_clearSend_clicked()
{
 ui->textEdit_send->clear();
}
void MainWindow::readData()
{
 QByteArray buf;
 qDebug() << "readData: " << endl;
 buf = serial->readAll();
 if (!buf.isEmpty())
 {
  QString str = ui->textEdit_recv->toPlainText();
  str += tr(buf);
  ui->textEdit_recv->clear();
  ui->textEdit_recv->append(str);
 }
}
