OpenCV实现最小外接正矩形

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
#include "stdafx.h"
#include "cv.h"
#include "highgui.h"
#include "cxcore.h"
#include "math.h"
#include <iostream.h>
int main(int argc, char* argv[])

{

 IplImage *src;
 IplImage *dst;
 IplImage *ROI;
 CvMemStorage* storage=cvCreateMemStorage(0);
 CvSeq* contour=0;
 src=cvLoadImage("I:\test.jpg",0);
 cvNamedWindow("image0",1);
 cvShowImage("image0",src);

 int  hei=src->height;
 int wid=src->width;
 uchar *data;
 data=(uchar*)src->imageData;
 int widstep=src->widthStep;
 int channel=src->nChannels;
 dst=cvCreateImage(cvSize(wid,hei),IPL_DEPTH_8U,3);
 ROI=cvCreateImage(cvSize(wid,hei),IPL_DEPTH_8U,3);

 for (int i=0;i<hei;i++)

 {

   for(int j=0;j<wid;j++)

   {

    if (data[i*widstep+j*channel]>120)

    {

      data[i*widstep+j*channel]=0;

    }

    else

    {

      data[i*widstep+j*channel]=255;

    }

   }

 }

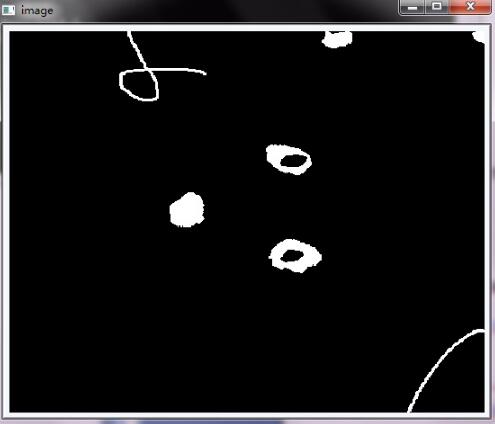

 cvNamedWindow("image",0);
 cvShowImage("image",src);
 printf("图像的高为：%d,宽为：%dnn",hei,wid);
 cvCvtColor(src, dst, CV_GRAY2BGR);;
cvFindContours(src,storage,&contour,sizeof(CvContour),CV_RETR_CCOMP,CV_CHAIN_APPROX_SIMPLE);
 for(;contour!=0;contour=contour->h_next)

 {

   double length =cvArcLength(contour);
   double area =fabs(cvContourArea(contour));
   CvRect rect = cvBoundingRect(contour,1);

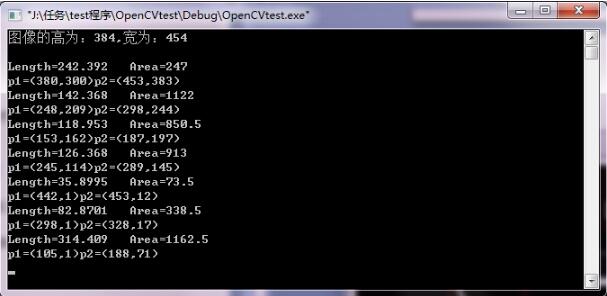

   cout<<"Length="<<length<<"  Area="<<area<<endl;
   CvPoint p1;
   CvPoint p2;
   p1.x=rect.x;
   p1.y=rect.y;
   p2.x=rect.x+rect.width;
   p2.y=rect.y+rect.height;
   cout<<"p1=("<<p1.x<<","<<p1.y<<")";
   cout<<"p2=("<<p2.x<<","<<p2.y<<")"<<endl;

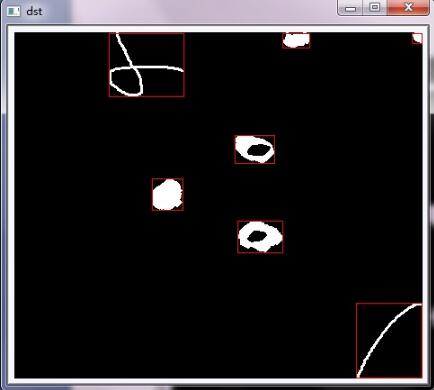

   cvRectangle(dst,p1,p2,CV_RGB(255,0,0),1,8,0);

 }

   cvNamedWindow("dst",1);
   cvShowImage("dst",dst);
   cvWaitKey(0);

 return 0;

}
