概述

本文为大家分享了android实现图片橡皮擦和快速染色的具体代码，供大家参考，具体内容如下

源码地址：Eraselmg

1.染色

关于染色部分，可以分别设置调整画笔的大小和画笔的透明度，画笔已经设置了模糊效果。画笔的特效可以调整下面一行代码：

2.橡皮擦

橡皮擦的实现用了两个canvas,一个临时的，一个是作用在ImageTouchView上显示的，代码里面有注释，这里不再详细介绍。

3.功能展示：

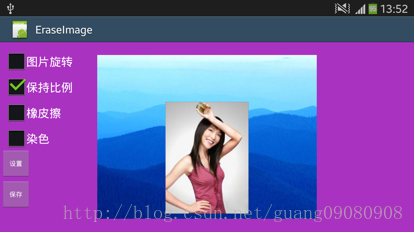

原图：

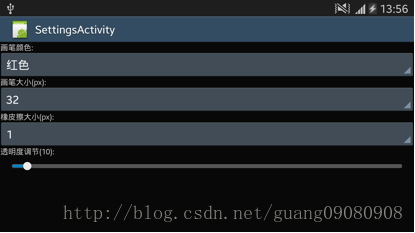

画笔设置界面：

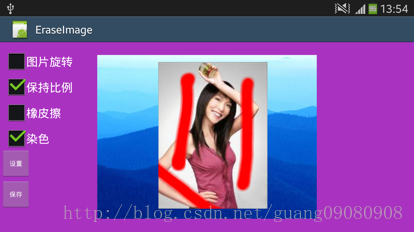

（1）画笔大小为32，透明度为255（不透明）。如下图：

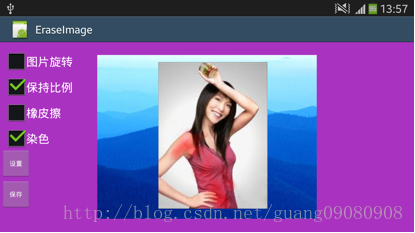

（2）画笔大小为32，透明度为10，如下图：

融合的效果跟画笔的透明度有关系，也跟背景图片的相应区域颜色有关，所以透明度的值自行调整得出满意效果。

（3）擦除

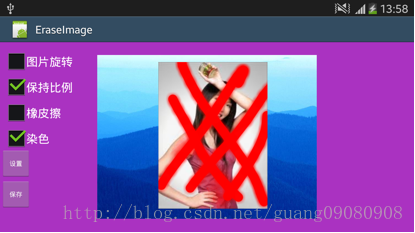

擦除前图像：

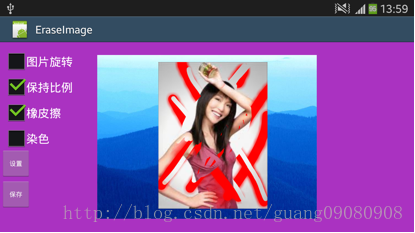

部分擦除后：

4.Bitmap处理相关的类BitmapUtils：

package com.jiangjie.utils;

import java.io.ByteArrayOutputStream;
import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import android.content.Context;
import android.content.res.Resources;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.graphics.Rect;
import android.graphics.Bitmap.Config;
public class BitmapUtils {


 /**
  * 缩放图片
  */
 public static void bitmapScale(Bitmap baseBitmap, Paint paint, float x, float y) {
  // 因为要将图片放大，所以要根据放大的尺寸重新创建Bitmap
  Bitmap scaleBitmap = Bitmap.createBitmap(
    (int) (baseBitmap.getWidth() * x),
    (int) (baseBitmap.getHeight() * y), baseBitmap.getConfig());
  Canvas canvas = new Canvas(scaleBitmap);
  // 初始化Matrix对象
  Matrix matrix = new Matrix();
  // 根据传入的参数设置缩放比例
  matrix.setScale(x, y);
  // 根据缩放比例，把图片draw到Canvas上
  canvas.drawBitmap(baseBitmap, matrix,paint);
 }

 /**
  * 图片旋转
  */
 public static void bitmapRotate(Bitmap baseBitmap, Paint paint,float degrees) {
  // 创建一个和原图一样大小的图片
  Bitmap afterBitmap = Bitmap.createBitmap(baseBitmap.getWidth(),
    baseBitmap.getHeight(), baseBitmap.getConfig());
  Canvas canvas = new Canvas(afterBitmap);
  Matrix matrix = new Matrix();
  // 根据原图的中心位置旋转
  matrix.setRotate(degrees, baseBitmap.getWidth() / 2,
    baseBitmap.getHeight() / 2);
  canvas.drawBitmap(baseBitmap, matrix, paint);
 }

 /**
  * 图片移动
  */
 public static void bitmapTranslate(Bitmap baseBitmap, Paint paint, float dx, float dy) {
  // 需要根据移动的距离来创建图片的拷贝图大小
  Bitmap afterBitmap = Bitmap.createBitmap(
    (int) (baseBitmap.getWidth() + dx),
    (int) (baseBitmap.getHeight() + dy), baseBitmap.getConfig());
  Canvas canvas = new Canvas(afterBitmap);
  Matrix matrix = new Matrix();
  // 设置移动的距离
  matrix.setTranslate(dx, dy);
  canvas.drawBitmap(baseBitmap, matrix, paint);
 }

 /**
  * 倾斜图片
  */
 public static void bitmapSkew(Bitmap baseBitmap, Paint paint, float dx, float dy) {
  // 根据图片的倾斜比例，计算变换后图片的大小，
  Bitmap afterBitmap = Bitmap.createBitmap(baseBitmap.getWidth()
    + (int) (baseBitmap.getWidth() * dx), baseBitmap.getHeight()
    + (int) (baseBitmap.getHeight() * dy), baseBitmap.getConfig());
  Canvas canvas = new Canvas(afterBitmap);
  Matrix matrix = new Matrix();
  // 设置图片倾斜的比例
  matrix.setSkew(dx, dy);
  canvas.drawBitmap(baseBitmap, matrix, paint);
 }

 public static Bitmap decodeFromResource(Context context, int id) {
  Resources res = context.getResources();
  Bitmap bitmap = BitmapFactory.decodeResource(res,id).copy(Bitmap.Config.ARGB_8888, true);
  return bitmap;
 }

 /**
  * 保存图片到SD卡
  */
 public static void saveToSdCard(String path, Bitmap bitmap) {
 if (null != bitmap && null != path && !path.equalsIgnoreCase("")) {
 try {
 File file = new File(path);
 FileOutputStream outputStream = null;
 //创建文件，并写入内容
 outputStream = new FileOutputStream(new File(path), true);
 bitmap.compress(Bitmap.CompressFormat.PNG, 30, outputStream);
 outputStream.flush();
 outputStream.close();
 } catch (FileNotFoundException e) {
 e.printStackTrace();
 } catch (IOException e) {
 e.printStackTrace();
 }

 }
 }

 /**
  * 复制bitmap
  */
 public static Bitmap duplicateBitmap(Bitmap bmpSrc, int width, int height) {
 if (null == bmpSrc) {
 return null;
 }

 int bmpSrcWidth = bmpSrc.getWidth();
 int bmpSrcHeight = bmpSrc.getHeight();

 Bitmap bmpDest = Bitmap.createBitmap(width, height, Config.ARGB_8888);
 if (null != bmpDest) {
 Canvas canvas = new Canvas(bmpDest);
 Rect viewRect = new Rect();
 final Rect rect = new Rect(0, 0, bmpSrcWidth, bmpSrcHeight);
 if (bmpSrcWidth <= width && bmpSrcHeight <= height) {
 viewRect.set(rect);
 } else if (bmpSrcHeight > height && bmpSrcWidth <= width) {
 viewRect.set(0, 0, bmpSrcWidth, height);
 } else if (bmpSrcHeight <= height && bmpSrcWidth > width) {
 viewRect.set(0, 0, width, bmpSrcWidth);
 } else if (bmpSrcHeight > height && bmpSrcWidth > width) {
 viewRect.set(0, 0, width, height);
 }
 canvas.drawBitmap(bmpSrc, rect, viewRect, null);
 }

 return bmpDest;
 }

 /**
  * 复制bitmap
  */
 public static Bitmap duplicateBitmap(Bitmap bmpSrc) {
 if (null == bmpSrc) {
 return null;
 }

 int bmpSrcWidth = bmpSrc.getWidth();
 int bmpSrcHeight = bmpSrc.getHeight();

 Bitmap bmpDest = Bitmap.createBitmap(bmpSrcWidth, bmpSrcHeight,
 Config.ARGB_8888);
 if (null != bmpDest) {
 Canvas canvas = new Canvas(bmpDest);
 final Rect rect = new Rect(0, 0, bmpSrcWidth, bmpSrcHeight);

 canvas.drawBitmap(bmpSrc, rect, rect, null);
 }

 return bmpDest;
 }

 /**
  * bitmap转字节码
  */
 public static byte[] bitampToByteArray(Bitmap bitmap) {
 byte[] array = null;
 try {
 if (null != bitmap) {
 ByteArrayOutputStream os = new ByteArrayOutputStream();
 bitmap.compress(Bitmap.CompressFormat.PNG, 100, os);
 array = os.toByteArray();
 os.close();
 }
 } catch (IOException e) {
 e.printStackTrace();
 }

 return array;
 }

 /**
  * 字节码转bitmap
  */
 public static Bitmap byteArrayToBitmap(byte[] array) {
 if (null == array) {
 return null;
 }

 return BitmapFactory.decodeByteArray(array, 0, array.length);
 }

}

5.图像旋转，缩放，橡皮擦和染色功能如下：

package com.jiangjie.ps;

import com.jiangjie.utils.PaintConstants;

import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.Bitmap.Config;
import android.graphics.BlurMaskFilter;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.PointF;
import android.graphics.PorterDuff.Mode;
import android.graphics.PorterDuffXfermode;
import android.graphics.RectF;
import android.graphics.drawable.BitmapDrawable;
import android.util.AttributeSet;
import android.util.DisplayMetrics;
import android.util.FloatMath;
import android.util.Log;
import android.view.MotionEvent;
import android.view.View;
import android.widget.ImageView;

public class ImageTouchView extends ImageView{
 public Matrix matrix = new Matrix();

 Matrix savedMatrix = new Matrix();
 /** 屏幕的分辨率*/
 private DisplayMetrics dm;
 /** 当前模式*/
 int mode = PaintConstants.MODE.NONE;

 /** 存储float类型的x，y值，就是你点下的坐标的X和Y*/
 PointF prev = new PointF();
 PointF curPosition = new PointF();
 PointF mid = new PointF();
 float dist = 1f;

 float oldRotation = 0;
 float oldDistX = 1f;
 float oldDistY = 1f;

 /**位图对象*/
 private Bitmap bitmap = null;
 private Paint paint;
 private Context context;

 private Path path;
 private Path tempPath;
 //定义一个内存中的图片，该图片将作为缓冲区
 Bitmap cacheBitmap = null;

 //定义cacheBitmap上的Canvas对象
 Canvas cacheCanvas = null;
 private Paint cachePaint = null;

 private String TAG = "APP";

 int x = 0;
 int y = 0;


 public ImageTouchView(Context context) {
 super(context);
 }

 public ImageTouchView(Context context, AttributeSet attrs) {
 super(context, attrs);
 this.context = context;
 Log.i(TAG, "ImageTouchView(Context context, AttributeSet attrs)=>");

 setupView();
 }

 @Override
 protected void onDraw(Canvas canvas) {
 super.onDraw(canvas);

 if(mode == PaintConstants.MODE.COLORING){
 canvas.drawPath(tempPath, paint);
 }

 }

 public void setupView(){

 //获取屏幕分辨率,需要根据分辨率来使用图片居中
 dm = getContext().getResources().getDisplayMetrics();
 //根据MyImageView来获取bitmap对象
 BitmapDrawable bd = (BitmapDrawable)this.getDrawable();
 if(bd != null){
 bitmap = bd.getBitmap();
 // bitmap = setBitmapAlpha(bitmap, 100);
 center(true, true);
 }
 setCoverBitmap(bitmap);
 this.setImageMatrix(matrix);

 this.setOnTouchListener(new OnTouchListener() {
 @Override
 public boolean onTouch(View v, MotionEvent event) {
 Matrix matrixTemp = new Matrix();
 matrixTemp.set(matrix);
 //view的触摸坐标的转换
 matrixTemp.invert(matrixTemp);
 Log.i(TAG, "Touch screen.");

 switch (event.getAction() & MotionEvent.ACTION_MASK) {
 // 主点按下
 case MotionEvent.ACTION_DOWN:
  savedMatrix.set(matrix);
  prev.set(event.getX(), event.getY());

  float[] pointPrevInit = new float[]{prev.x, prev.y};
  matrixTemp.mapPoints(pointPrevInit);
  path.moveTo(pointPrevInit[0], pointPrevInit[1]);
  tempPath.moveTo(event.getX(), event.getY());

  mode = PaintConstants.MODE.DRAG;
  Log.i(TAG, "ACTION_DOWN=>.");
  break;
  // 副点按下
 case MotionEvent.ACTION_POINTER_DOWN:
  dist = spacing(event);
  oldRotation = rotation(event);
  oldDistX = spacingX(event);
  oldDistY = spacingY(event);
  // 如果连续两点距离大于10，则判定为多点模式
  if (spacing(event) > 10f) {
  savedMatrix.set(matrix);
  midPoint(mid, event);
  mode = PaintConstants.MODE.ZOOM;
  }
  break;
 case MotionEvent.ACTION_UP:
  Log.i(TAG, "ACTION_UP=>.");
  if(mode == PaintConstants.MODE.COLORING){
  cachePaint.setColor(PaintConstants.PEN_COLOR);
  cachePaint.setStrokeWidth(PaintConstants.PEN_SIZE);
  cachePaint.setAlpha(PaintConstants.TRANSPARENT);
  cachePaint.setMaskFilter(new BlurMaskFilter(5, PaintConstants.BLUR_TYPE));

  cacheCanvas.drawPath(path, cachePaint);
  path.reset();
  tempPath.reset();
  }
  break;

 case MotionEvent.ACTION_POINTER_UP:
  mode = PaintConstants.MODE.NONE;
  break;

 case MotionEvent.ACTION_MOVE:
  if(!PaintConstants.SELECTOR.KEEP_IMAGE){
  if (mode == PaintConstants.MODE.DRAG) {
  matrix.set(savedMatrix);
  matrix.postTranslate(event.getX() - prev.x, event.getY() - prev.y);
  } else if (mode == PaintConstants.MODE.ZOOM) {
  float rotation = (rotation(event) - oldRotation)/2;
  float newDistX = spacingX(event);
  float newDistY = spacingY(event);
  float scaleX = newDistX-oldDistX;
  float scaleY = newDistY-oldDistY;

  float newDist = spacing(event);
  if (newDist > 10f) {
  matrix.set(savedMatrix);
  float tScale = newDist / dist;
  tScale = tScale>1?1+((tScale-1)/2):1-(1-tScale)/2;
  if(PaintConstants.SELECTOR.KEEP_SCALE){
   matrix.postScale(tScale, tScale, mid.x, mid.y);// 縮放
  }else{
   if(Math.abs(scaleX)>=Math.abs(scaleY)){
   matrix.postScale(tScale, 1, mid.x, mid.y);// 縮放
   }else{
   matrix.postScale(1, tScale, mid.x, mid.y);// 縮放
   }
  }
  if(PaintConstants.SELECTOR.HAIR_RURN)
   matrix.postRotate(rotation, mid.x, mid.y);// 旋轉
  }
  }
  }else{
  float[] pointPrev = new float[]{prev.x, prev.y};
  float[] pointStop= new float[]{event.getX(), event.getY()};


  //view的触摸坐标的转换
  matrixTemp.mapPoints(pointPrev);
  matrixTemp.mapPoints(pointStop);

  if(PaintConstants.SELECTOR.COLORING){
  //染色功能
  mode = PaintConstants.MODE.COLORING;
  paint.reset();
  paint = new Paint(Paint.DITHER_FLAG);
  paint.setColor(Color.RED);
  //设置画笔风格
  paint.setStyle(Paint.Style.STROKE);
  paint.setStrokeWidth(1);
  //反锯齿
  paint.setAntiAlias(true);
  paint.setDither(true);
  paint.setColor(PaintConstants.PEN_COLOR);
  paint.setStrokeWidth(PaintConstants.PEN_SIZE);

  path.quadTo(pointPrev[0],pointPrev[1],pointStop[0],pointStop[1]);
  tempPath.quadTo(prev.x, prev.y,event.getX(), event.getY());

  // 更新开始点的位置
  prev.set(event.getX(), event.getY());

  ImageTouchView.this.setImageBitmap(cacheBitmap);

  }else if(PaintConstants.SELECTOR.ERASE){
  //橡皮擦功能

  mode = PaintConstants.MODE.ERASE;

  paint.reset();
  paint.setColor(Color.TRANSPARENT);
  paint.setAntiAlias(false);
  paint.setStyle(Paint.Style.STROKE);
  paint.setStrokeWidth(16);
  paint.setStrokeJoin(Paint.Join.ROUND);
  paint.setStrokeCap(Paint.Cap.ROUND);
  paint.setAlpha(0);
  paint.setXfermode(new PorterDuffXfermode(Mode.DST_IN));
  paint.setStrokeWidth(PaintConstants.ERASE_SIZE);

  prev.set(event.getX(), event.getY());

  cacheCanvas.drawLine(pointPrev[0],pointPrev[1],pointStop[0],pointStop[1], paint);
  ImageTouchView.this.setImageBitmap(cacheBitmap);
  }
  }
 }
 ImageTouchView.this.setImageMatrix(matrix);
 invalidate();

 return true;
 }
 });
 }

 /**
 * 横向、纵向居中
 */
 protected void center(boolean horizontal, boolean vertical) {
 RectF rect = new RectF(0, 0, bitmap.getWidth(), bitmap.getHeight());

 float height = rect.height();
 float width = rect.width();

 float deltaX = 0, deltaY = 0;

 if (vertical) {
 // 图片小于屏幕大小，则居中显示。大于屏幕，上方留空则往上移，下方留空则往下移
 int screenHeight = dm.heightPixels;
 if (height < screenHeight) {
 deltaY = (screenHeight - height) / 2 - rect.top;
 } else if (rect.top > 0) {
 deltaY = -rect.top;
 } else if (rect.bottom < screenHeight) {
 deltaY = this.getHeight() - rect.bottom;
 }
 }

 if (horizontal) {
 int screenWidth = dm.widthPixels;
 if (width < screenWidth) {
 deltaX = (screenWidth - width) / 2 - rect.left;
 } else if (rect.left > 0) {
 deltaX = -rect.left;
 } else if (rect.right < screenWidth) {
 deltaX = screenWidth - rect.right;
 }
 }
 matrix.postTranslate(deltaX, deltaY);
 }

 private float spacingX(MotionEvent event) {
 float x = event.getX(0) - event.getX(1);
 return x;
 }
 private float spacingY(MotionEvent event) {
 float y = event.getY(0) - event.getY(1);
 return y;
 }
 // 取旋转角度
 private float rotation(MotionEvent event) {
 double delta_x = (event.getX(0) - event.getX(1));
 double delta_y = (event.getY(0) - event.getY(1));
 double radians = Math.atan2(delta_y, delta_x);
 return (float) Math.toDegrees(radians);
 }

 /**
 * 两点的距离
 */
 private float spacing(MotionEvent event) {
 float x = event.getX(0) - event.getX(1);
 float y = event.getY(0) - event.getY(1);
 return FloatMath.sqrt(x * x + y * y);
 }

 /**
 * 两点的中点
 */
 private void midPoint(PointF point, MotionEvent event) {
 float x = event.getX(0) + event.getX(1);
 float y = event.getY(0) + event.getY(1);
 point.set(x / 2, y / 2);
 }


 /**
 *
 * @param bm
 * @note set cover bitmap , which overlay on background.
 */
 private void setCoverBitmap(Bitmap bitmap) {
 // setting paint
 paint = new Paint();

 cacheBitmap = Bitmap.createBitmap(bitmap.getWidth(), bitmap.getHeight(), Config.ARGB_8888);
 cacheCanvas = new Canvas();
 cacheCanvas.setBitmap(cacheBitmap);
 cacheCanvas.drawBitmap( bitmap, 0, 0, null);

 path = new Path();
 tempPath = new Path();

 //设置画笔的颜色
 cachePaint = new Paint();
 //设置画笔风格
 cachePaint.setStyle(Paint.Style.STROKE);
 //反锯齿
 cachePaint.setAntiAlias(true);
 cachePaint.setStrokeJoin(Paint.Join.ROUND);
 cachePaint.setStrokeCap(Paint.Cap.ROUND);
 cachePaint.setXfermode(new PorterDuffXfermode(Mode.SRC_ATOP));
 //设置画笔模糊效果
 cachePaint.setMaskFilter(new BlurMaskFilter(5, PaintConstants.BLUR_TYPE));

 }

}

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持靠谱客。
