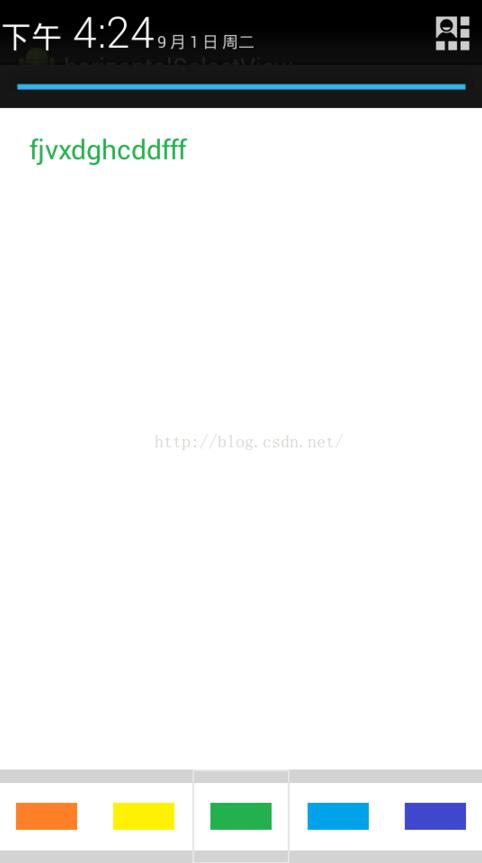

android view实现横向滑动选择

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
public boolean mAlwaysOverrideTouch = true;
  protected ListAdapter mAdapter;
  private int mLeftViewIndex = -1;
  private int mRightViewIndex = 0;
  protected int mCurrentX;
  protected int mNextX;
  private int mMaxX = Integer.MAX_VALUE;
  private int mDisplayOffset = 0;
  protected Scroller mScroller;
  private GestureDetector mGesture;
  private Queue<View> mRemovedViewQueue = new LinkedList<View>();
  private OnItemSelectedListener mOnItemSelected;
  private OnItemClickListener mOnItemClicked;
  private OnItemLongClickListener mOnItemLongClicked;
  private OnScrollListener mScrollListener;
  /**
   * 选中item时图片
   */
  private Drawable mDrawable;
  private boolean mDataChanged = false;
  private Context context;
  private boolean scrollerFalg1 = false;
  private boolean scrollerFalg2 = false;
  private int position = 0x7f020000;


  public HorizontalScrollSelectView(Context context, AttributeSet attrs) {
    super(context, attrs);
    this.context = context;
    initView();
  }

  private synchronized void initView() {
    mLeftViewIndex = -1;
    mRightViewIndex = 0;
    mDisplayOffset = 0;
    mCurrentX = 0;
    mNextX = 0;
    mMaxX = Integer.MAX_VALUE;
    mScroller = new Scroller(getContext());
    mGesture = new GestureDetector(getContext(), mOnGesture);
  }

  public void setMScrollListener(OnScrollListener listener) {
    mScrollListener = listener;
  }

  @Override
  public void setOnItemSelectedListener(OnItemSelectedListener listener) {
    mOnItemSelected = listener;
  }

  @Override
  public void setOnItemClickListener(OnItemClickListener listener) {
    mOnItemClicked = listener;
  }

  @Override
  public void setOnItemLongClickListener(OnItemLongClickListener listener) {
    mOnItemLongClicked = listener;
  }

  /**
   * 设置选中状态时的图片
   *
   * @param mDrawable
   */
  public void setSelectBitmap(Drawable mDrawable) {
    this.mDrawable = mDrawable;
  }

  private DataSetObserver mDataObserver = new DataSetObserver() {

    @Override
    public void onChanged() {
      synchronized (HorizontalScrollSelectView.this) {
        mDataChanged = true;
      }
      invalidate();
      requestLayout();
    }

    @Override
    public void onInvalidated() {
      reset();
      invalidate();
      requestLayout();
    }

  };

  @Override
  public ListAdapter getAdapter() {
    return mAdapter;
  }

  @Override
  public View getSelectedView() {
    //TODO: implement
    return null;
  }

  @Override
  public void setAdapter(ListAdapter adapter) {
    if (mAdapter != null) {
      mAdapter.unregisterDataSetObserver(mDataObserver);
    }
    mAdapter = adapter;
    mAdapter.registerDataSetObserver(mDataObserver);
    reset();
  }

  private synchronized void reset() {
    initView();
    removeAllViewsInLayout();
    requestLayout();
  }

  @Override
  public void setSelection(int position) {
    //TODO: implement
    int positionX = position * this.getWidth();
    int maxWidth = this.getChildCount() * this.getWidth();
    if (positionX <= 0) {
      positionX = 0;
    }
    if (positionX > maxWidth) {
      positionX = maxWidth;
    }
    scrollTo(positionX);
  }

  private void addAndMeasureChild(final View child, int viewPos) {
    LayoutParams params = child.getLayoutParams();
    if (params == null) {
      params = new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.FILL_PARENT);
    }

    addViewInLayout(child, viewPos, params, true);
    child.measure(MeasureSpec.makeMeasureSpec(getWidth(), MeasureSpec.AT_MOST),
        MeasureSpec.makeMeasureSpec(getHeight(), MeasureSpec.AT_MOST));
  }


  @SuppressLint("NewApi")
  @Override
  protected synchronized void onLayout(boolean changed, int left, int top, int right, int bottom) {
    super.onLayout(changed, left, top, right, bottom);

    if (mAdapter == null) {
      return;
    }

    if (mDataChanged) {
      int oldCurrentX = mCurrentX;
      initView();
      removeAllViewsInLayout();
      mNextX = oldCurrentX;
      mDataChanged = false;
    }

    if (mScroller.computeScrollOffset()) {
      int scrollx = mScroller.getCurrX();
      mNextX = scrollx;
    }

// if(mNextX <= 0){
//  mNextX = 0;
//  mScroller.forceFinished(true);
// }
// if(mNextX >= mMaxX) {
//  mNextX = mMaxX;
//  mScroller.forceFinished(true);
// }

    int dx = mCurrentX - mNextX;

    removeNonVisibleItems(dx);
    fillList(dx);
    positionItems(dx);
// Log.e("onlayout", "mLeftViewIndex"+(mLeftViewIndex+1));
    mCurrentX = mNextX;

    if (!mScroller.isFinished()) {
      post(new Runnable() {
        @Override
        public void run() {
          requestLayout();
        }
      });

    } else {
      if (scrollerFalg1 || (!scrollerFalg1 && scrollerFalg2)) {
        View chid = getChildAt(0);
        if (chid != null) {
          mDisplayOffset = 0;
          positionItems(0);
          if (mDrawable != null) {
            getChildAt(2).setBackground(mDrawable);
          }
          if (mScrollListener != null) {
            int position = (int) getChildAt(2).getTag(this.position);
            mScrollListener.onScrollSelectItem(this, position);
          }
        }

      }
    }


  }

  /**
   * 获取屏幕宽度
   *
   * @param context
   * @return
   */
  public static int getSecreenWidth(Context context) {
    DisplayMetrics dm = new DisplayMetrics();
    dm = context.getResources().getDisplayMetrics();
    int screenWidth = dm.widthPixels;
    return screenWidth / 5;
  }

  private void fillList(final int dx) {
    int edge = 0;
    View child = getChildAt(0);
    if (child != null) {
      edge = child.getLeft();
    }
    fillListLeft(edge, dx);

    edge = 0;
    child = getChildAt(getChildCount() - 1);
    if (child != null) {
      edge = child.getRight();
    }
    fillListRight(edge, dx);

  }

  private void fillListRight(int rightEdge, final int dx) {
    //&& mRightViewIndex < mAdapter.getCount()
    while (rightEdge + dx < getWidth()) {
      if (mRightViewIndex >= mAdapter.getCount()) {
        mRightViewIndex = 0;
      }
      View child = mAdapter.getView(mRightViewIndex, mRemovedViewQueue.poll(), this);
      child.setTag(position, mRightViewIndex);
      addAndMeasureChild(child, -1);
      rightEdge += child.getMeasuredWidth();

//  if(mRightViewIndex == mAdapter.getCount()-1) {
//  mMaxX = mCurrentX + rightEdge - getWidth();
//  }
//
//  if (mMaxX < 0) {
//  mMaxX = 0;
//  }
      mRightViewIndex++;
    }

  }

  private void fillListLeft(int leftEdge, final int dx) {
    //&& mLeftViewIndex >= 0
    while (leftEdge + dx > 0) {
      if (mLeftViewIndex <= -1) {
        mLeftViewIndex = mAdapter.getCount() - 1;
      }
      View child = mAdapter.getView(mLeftViewIndex, mRemovedViewQueue.poll(), this);
      child.setTag(position, mLeftViewIndex);
      addAndMeasureChild(child, 0);
      leftEdge -= child.getMeasuredWidth();
      mLeftViewIndex--;
      mDisplayOffset -= child.getMeasuredWidth();
    }
  }

  private void removeNonVisibleItems(final int dx) {
    View child = getChildAt(0);
    while (child != null && child.getRight() + dx <= 0) {
      mDisplayOffset += child.getMeasuredWidth();
      mRemovedViewQueue.offer(child);
      removeViewInLayout(child);
      mLeftViewIndex++;
      if (mLeftViewIndex >= mAdapter.getCount()) {
        mLeftViewIndex = 0;
      }
      child = getChildAt(0);

    }

    child = getChildAt(getChildCount() - 1);
    while (child != null && child.getLeft() + dx >= getWidth()) {
      mRemovedViewQueue.offer(child);
      removeViewInLayout(child);
      mRightViewIndex--;
      if (mRightViewIndex <= -1) {
        mRightViewIndex = mAdapter.getCount() - 1;
      }
      child = getChildAt(getChildCount() - 1);
    }
  }


  private void positionItems(final int dx) {
    if (getChildCount() > 0) {
      mDisplayOffset += dx;
      int left = mDisplayOffset;
      for (int i = 0; i < getChildCount(); i++) {
        View child = getChildAt(i);
        getChildAt(2).setBackground(null);
        int childWidth = child.getMeasuredWidth();
        child.layout(left, 0, left + childWidth, child.getMeasuredHeight());
        left += childWidth + child.getPaddingRight();
      }
    }
  }

  public synchronized void scrollTo(int x) {
    mScroller.startScroll(mNextX, 0, x - mNextX, 0);
    requestLayout();
  }

  @Override
  public boolean dispatchTouchEvent(MotionEvent ev) {
    boolean handled = super.dispatchTouchEvent(ev);
    handled |= mGesture.onTouchEvent(ev);

    switch (ev.getAction()) {
      case MotionEvent.ACTION_UP:
        scrollerFalg2 = true;
        requestLayout();
        break;
      default:
        break;
    }
    return handled;
  }

  protected boolean onFling(MotionEvent e1, MotionEvent e2, float velocityX,
               float velocityY) {
    synchronized (HorizontalScrollSelectView.this) {
      //mNextX
      mScroller.fling(mNextX, 0, (int) -velocityX, 0, Integer.MIN_VALUE, mMaxX, 0, 0);
    }
    requestLayout();
    scrollerFalg1 = true;
    return true;
  }

  protected boolean onDown(MotionEvent e) {
    mScroller.forceFinished(true);
    return true;
  }

  public interface OnScrollListener {
    /**
     * 互动过程中选中的item
     *
     * @param position
     */
    public void onScrollSelectItem(ViewGroup viewGroup, int position);

  }


  private OnGestureListener mOnGesture = new GestureDetector.SimpleOnGestureListener() {

    @Override
    public boolean onDown(MotionEvent e) {
      return HorizontalScrollSelectView.this.onDown(e);
    }

    @Override
    public boolean onFling(MotionEvent e1, MotionEvent e2, float velocityX,
                float velocityY) {
      return HorizontalScrollSelectView.this.onFling(e1, e2, velocityX, velocityY);
    }

    @Override
    public boolean onScroll(MotionEvent e1, MotionEvent e2,
                float distanceX, float distanceY) {

      synchronized (HorizontalScrollSelectView.this) {
        mNextX += (int) distanceX;
      }
      requestLayout();
      scrollerFalg1 = false;
      scrollerFalg2 = false;
      return true;
    }


    @Override
    public void onShowPress(MotionEvent e) {
      super.onShowPress(e);
    }

    @Override
    public boolean onSingleTapUp(MotionEvent e) {
      Log.e("onSingleTapUp", "mLeftViewIndex" + (mLeftViewIndex + 1));
//  scrollerFalg=true;
      return super.onSingleTapUp(e);
    }

    @Override
    public boolean onSingleTapConfirmed(MotionEvent e) {
      for (int i = 0; i < getChildCount(); i++) {
        View child = getChildAt(i);
        if (isEventWithinView(e, child)) {
          if (mOnItemClicked != null) {
            mOnItemClicked.onItemClick(HorizontalScrollSelectView.this, child, mLeftViewIndex + 1 + i, mAdapter.getItemId(mLeftViewIndex + 1 + i));
          }
          if (mOnItemSelected != null) {
            mOnItemSelected.onItemSelected(HorizontalScrollSelectView.this, child, mLeftViewIndex + 1 + i, mAdapter.getItemId(mLeftViewIndex + 1 + i));
          }
          break;
        }

      }
      return true;
    }

    @Override
    public void onLongPress(MotionEvent e) {
      int childCount = getChildCount();
      for (int i = 0; i < childCount; i++) {
        View child = getChildAt(i);
        if (isEventWithinView(e, child)) {
          if (mOnItemLongClicked != null) {
            mOnItemLongClicked.onItemLongClick(HorizontalScrollSelectView.this, child, mLeftViewIndex + 1 + i, mAdapter.getItemId(mLeftViewIndex + 1 + i));
          }
          break;
        }

      }
    }

    private boolean isEventWithinView(MotionEvent e, View child) {
      Rect viewRect = new Rect();
      int[] childPosition = new int[2];
      child.getLocationOnScreen(childPosition);
      int left = childPosition[0];
      int right = left + child.getWidth();
      int top = childPosition[1];
      int bottom = top + child.getHeight();
      viewRect.set(left, top, right, bottom);
      return viewRect.contains((int) e.getRawX(), (int) e.getRawY());
    }
  };
