概述

1、下载glassfish

idea2021最新激活方法

去官网下载glassfish4.1.1(最后发现glassfish5也行)

官网地址：GlassFish

https://javaee.github.io/glassfish/

点击download

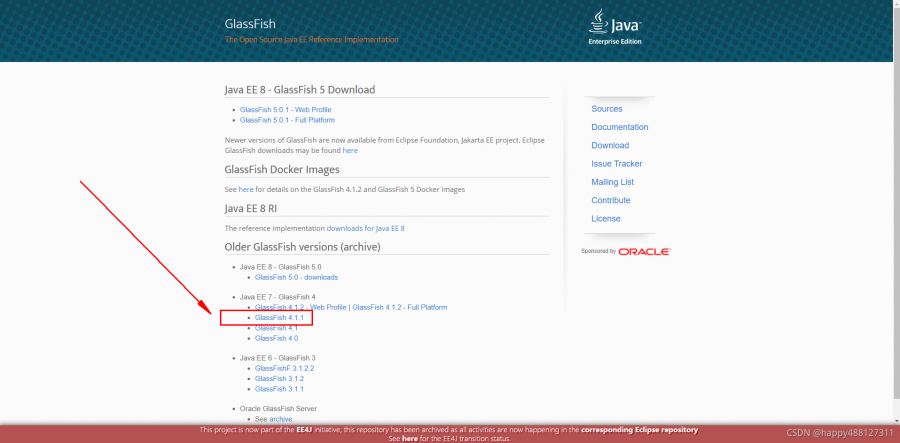

选择图中版本

下载完解压到自己指定的目录即可

2、配置glassfish环境变量

将glassfish的bin目录添加到系统变量path中

3、修改jdk环境变量

将之前系统环境变量path里的jdk1.8的环境变量上移到第一个

注意：jdk一定要是1.8，并且必须移到第一个

4、测试glassfish是否可以正常启动

在cmd里直接输入 asadmin start-domain ，出现下图所示即表明配置成功

再输入 asadmin stop-domain 可以停止glassfish

5、在IDEA中创建一个JSF项目

1.选择 java Enterprise, 点击next

2.勾选 Web Profile，IDEA会自动帮你勾选其他所需要的框架（包括JSF），点击next

3.输入模块名，点击finish

4.IDEA生成默认的项目结构

5.默认pom文件内容

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>jsf-03</artifactId>
    <version>1.0-SNAPSHOT</version>
    <name>jsf-03</name>
    <packaging>war</packaging>

    <properties>
        <maven.compiler.target>1.8</maven.compiler.target>
        <maven.compiler.source>1.8</maven.compiler.source>
        <junit.version>5.6.2</junit.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>javax</groupId>
            <artifactId>javaee-web-api</artifactId>
            <version>8.0.1</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-api</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.junit.jupiter</groupId>
            <artifactId>junit-jupiter-engine</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>3.3.0</version>
            </plugin>
        </plugins>
    </build>
</project>

6.修改默认生成文件,不修改会报错

<faces-config xmlns="http://xmlns.jcp.org/xml/ns/javaee"
              xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
              xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee
        http://xmlns.jcp.org/xml/ns/javaee/web-facesconfig_2_2.xsd"
              version="2.2">

</faces-config>

7.在webapp目录下新建index.xhtml文件

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
        "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
      xmlns:h="http://xmlns.jcp.org/jsf/html"
      xmlns:ui="http://xmlns.jcp.org/jsf/facelets"
      xmlns:f="http://xmlns.jcp.org/jsf/core">
<f:view>
    <h:outputLabel value="Hello, world"/>
</f:view>
</html>

8.配置运行环境

点击运行->编辑配置

9.点击左上角➕，选择glassfish，local

10.点击配置，找到自己解压的glassfish的根目录

11.点击部署，点击➕，点击工件，选择war_explore结尾的

12.点击应用，点击服务器，修改默认生成的url

13.点击确定，启动服务器，在浏览器里输入相应链接进行访问

6.问题：部分标签元素无法显示

1.页面代码如图所示

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en"
      xmlns:h="http://xmlns.jcp.org/jsf/html"
      xmlns:f="http://xmlns.jcp.org/jsf/core">
<head>
    MessagesTags
</head>
<h:head>
</h:head>
<h:body>
    <h:form>
        <h:panelGrid columns="1" width="60%">
            <f:facet name="header">Login</f:facet>
            <f:facet name="footer">
                <h:outputText value="快到中秋节了"/>
                <h:commandButton action="Layoutpage" value="Submit"/>
            </f:facet>
            <h:panelGroup>
                <h:outputText value="Enter ID:"/><h:inputText id="it1" required="true" requiredMessage="ynb"/>
                <h:message for="it1"/>
            </h:panelGroup>
            <h:panelGroup>
                <h:inputSecret required="true">
                    <h:outputLabel value="Enter Password"/>
                </h:inputSecret>
            </h:panelGroup>
        </h:panelGrid>
        <h:messages/>
    </h:form>
</h:body>
</html>

2.运行效果图

3.报错代码：

Error in event handler: Error: Failed to execute 'appendChild' on 'Node': This node type does not support this method.
    at Updater.check (chrome-extension://fhopckooaleifhophcpcakhfkajmnffo/js/gmWrapper.js:4:3204)
    at init (chrome-extension://fhopckooaleifhophcpcakhfkajmnffo/js/jquery-1.7.2.js:1:3311)
    at onReadyGM (chrome-extension://fhopckooaleifhophcpcakhfkajmnffo/js/jquery-1.7.2.js:1:76)
    at Object.onInitializedGM (chrome-extension://fhopckooaleifhophcpcakhfkajmnffo/js/gmWrapper.js:4:636)
    at Object.callbackResponse (chrome-extension://fhopckooaleifhophcpcakhfkajmnffo/js/gmWrapper.js:4:331)
    at chrome-extension://fhopckooaleifhophcpcakhfkajmnffo/js/gmWrapper.js:4:3378

4.原因,web.xml 文件配置错误

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd" version="4.0">
    <display-name>JSF_SE_CH2_html01_0915</display-name>
    <servlet>
        <servlet-name>Faces Servlet</servlet-name>
        <servlet-class>javax.faces.webapp.FacesServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>Faces Servlet</servlet-name>
        <url-pattern>/faces/*</url-pattern>
    </servlet-mapping>
    <context-param>
        <description>State saving method: 'client' or 'server' (=default). See JSF Specification 2.5.2</description>
        <param-name>javax.faces.STATE_SAVING_METHOD</param-name>
        <param-value>client</param-value>
    </context-param>
    <context-param>
        <param-name>javax.servlet.jsp.jstl.fmt.localizationContext</param-name>
        <param-value>resources.application</param-value>
    </context-param>
    <listener>
        <listener-class>com.sun.faces.config.ConfigureListener</listener-class>
    </listener>
    <welcome-file-list>
        <welcome-file>faces/index.xhtml</welcome-file>
    </welcome-file-list>
</web-app>

5.解决办法，将web.xml文件内容删除，只保留 <welcome-file-list> 即可

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd" version="4.0">
    <display-name>JSF_SE_CH2_html01_0915</display-name>

    <welcome-file-list>
        <welcome-file>faces/index.xhtml</welcome-file>
    </welcome-file-list>
</web-app>

6.运行截图，至此，大功告成！
