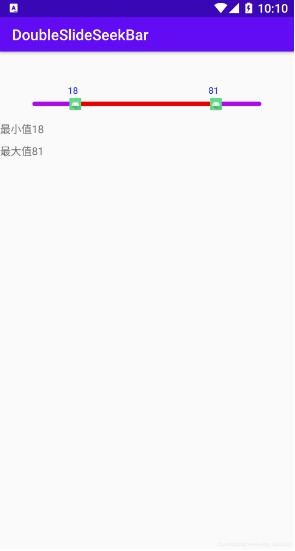

Android双向选择控件DoubleSeekBar使用详解

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
public class DoubleSlideSeekBar extends View {
 /**
 * 线条（进度条）的宽度
 */
 private int lineWidth;
 /**
 * 线条（进度条）的长度
 */
 private int lineLength = 400;
 /**
 * 字所在的高度 100$
 */
 private int textHeight;
 /**
 * 游标 图片宽度
 */
 private int imageWidth;
 /**
 * 游标 图片高度
 */
 private int imageHeight;
 /**
 * 是否有刻度线
 */
 private boolean hasRule;
 /**
 * 左边的游标是否在动
 */
 private boolean isLowerMoving;
 /**
 * 右边的游标是否在动
 */
 private boolean isUpperMoving;
 /**
 * 字的大小 100$
 */
 private int textSize;
 /**
 * 字的颜色 100$
 */
 private int textColor;
 /**
 * 两个游标内部 线（进度条）的颜色
 */
 private int inColor = Color.BLUE;
 /**
 * 两个游标外部 线（进度条）的颜色
 */
 private int outColor = Color.BLUE;
 /**
 * 刻度的颜色
 */
 private int ruleColor = Color.BLUE;
 /**
 * 刻度上边的字 的颜色
 */
 private int ruleTextColor = Color.BLUE;
 /**
 * 左边图标的图片
 */
 private Bitmap bitmapLow;
 /**
 * 右边图标 的图片
 */
 private Bitmap bitmapBig;
 /**
 * 左边图标所在X轴的位置
 */
 private int slideLowX;
 /**
 * 右边图标所在X轴的位置
 */
 private int slideBigX;
 /**
 * 图标（游标） 高度
 */
 private int bitmapHeight;
 /**
 * 图标（游标） 宽度
 */
 private int bitmapWidth;
 /**
 * 加一些padding 大小酌情考虑 为了我们的自定义view可以显示完整
 */
 private int paddingLeft = 100;
 private int paddingRight = 100;
 private int paddingTop = 50;
 private int paddingBottom = 10;
 /**
 * 线（进度条） 开始的位置
 */
 private int lineStart = paddingLeft;
 /**
 * 线的Y轴位置
 */
 private int lineY;
 /**
 * 线（进度条）的结束位置
 */
 private int lineEnd = lineLength + paddingLeft;
 /**
 * 选择器的最大值
 */
 private int bigValue = 100;
 /**
 * 选择器的最小值
 */
 private int smallValue = 0;
 /**
 * 选择器的当前最小值
 */
 private float smallRange;
 /**
 * 选择器的当前最大值
 */
 private float bigRange;
 /**
 * 单位 元
 */
 private String unit = " ";
 /**
 * 单位份数
 */
 private int equal = 20;
 /**
 * 刻度单位 $
 */
 private String ruleUnit = " ";
 /**
 * 刻度上边文字的size
 */
 private int ruleTextSize = 20;
 /**
 * 刻度线的高度
 */
 private int ruleLineHeight = 20;
 private Paint linePaint;
 private Paint bitmapPaint;
 private Paint textPaint;
 private Paint paintRule;

 public DoubleSlideSeekBar(Context context) {
 this(context, null);
 }

 public DoubleSlideSeekBar(Context context, @Nullable AttributeSet attrs) {
 this(context, attrs, 0);
 }

 public DoubleSlideSeekBar(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
 super(context, attrs, defStyleAttr);
 TypedArray typedArray = context.getTheme().obtainStyledAttributes(attrs, R.styleable.DoubleSlideSeekBar, defStyleAttr, 0);
 int size = typedArray.getIndexCount();
 for (int i = 0; i < size; i++) {
  int type = typedArray.getIndex(i);
  switch (type) {
  case R.styleable.DoubleSlideSeekBar_inColor:
   inColor = typedArray.getColor(type, Color.BLACK);
   break;
  case R.styleable.DoubleSlideSeekBar_lineHeight:
   lineWidth = (int) typedArray.getDimension(type, dip2px(getContext(), 10));
   break;
  case R.styleable.DoubleSlideSeekBar_outColor:
   outColor = typedArray.getColor(type, Color.YELLOW);
   break;
  case R.styleable.DoubleSlideSeekBar_textColor:
   textColor = typedArray.getColor(type, Color.BLUE);
   break;
  case R.styleable.DoubleSlideSeekBar_textSize:
   textSize = typedArray.getDimensionPixelSize(type, (int) TypedValue.applyDimension(
    TypedValue.COMPLEX_UNIT_SP, 16, getResources().getDisplayMetrics()));
   break;
  case R.styleable.DoubleSlideSeekBar_imageLow:
   bitmapLow = BitmapFactory.decodeResource(getResources(), typedArray.getResourceId(type, 0));
   break;
  case R.styleable.DoubleSlideSeekBar_imageBig:
   bitmapBig = BitmapFactory.decodeResource(getResources(), typedArray.getResourceId(type, 0));
   break;
  case R.styleable.DoubleSlideSeekBar_imageheight:
   imageHeight = (int) typedArray.getDimension(type, dip2px(getContext(), 20));
   break;
  case R.styleable.DoubleSlideSeekBar_imagewidth:
   imageWidth = (int) typedArray.getDimension(type, dip2px(getContext(), 20));
   break;
  case R.styleable.DoubleSlideSeekBar_hasRule:
   hasRule = typedArray.getBoolean(type, false);
   break;
  case R.styleable.DoubleSlideSeekBar_ruleColor:
   ruleColor = typedArray.getColor(type, Color.BLUE);
   break;
  case R.styleable.DoubleSlideSeekBar_ruleTextColor:
   ruleTextColor = typedArray.getColor(type, Color.BLUE);
   break;
  case R.styleable.DoubleSlideSeekBar_unit:
   unit = typedArray.getString(type);
   break;
  case R.styleable.DoubleSlideSeekBar_equal:
   equal = typedArray.getInt(type, 10);
   break;
  case R.styleable.DoubleSlideSeekBar_ruleUnit:
   ruleUnit = typedArray.getString(type);
   break;
  case R.styleable.DoubleSlideSeekBar_ruleTextSize:
   ruleTextSize = typedArray.getDimensionPixelSize(type, (int) TypedValue.applyDimension(
    TypedValue.COMPLEX_UNIT_SP, 16, getResources().getDisplayMetrics()));
   break;
  case R.styleable.DoubleSlideSeekBar_ruleLineHeight:
   ruleLineHeight = (int) typedArray.getDimension(type, dip2px(getContext(), 10));
   break;
  case R.styleable.DoubleSlideSeekBar_bigValue:
   bigValue = typedArray.getInteger(type, 100);
   break;
  case R.styleable.DoubleSlideSeekBar_smallValue:
   smallValue = typedArray.getInteger(type, 100);
   break;


  default:
   break;
  }
 }
 typedArray.recycle();
 init();
 }

 private void init() {
 /**游标的默认图*/
 if (bitmapLow == null) {
  bitmapLow = BitmapFactory.decodeResource(getResources(), R.mipmap.ic_launcher);
 }
 if (bitmapBig == null) {
  bitmapBig = BitmapFactory.decodeResource(getResources(), R.mipmap.ic_launcher);
 }
 /**游标图片的真实高度 之后通过缩放比例可以把图片设置成想要的大小*/
 bitmapHeight = bitmapLow.getHeight();
 bitmapWidth = bitmapLow.getWidth();
 // 设置想要的大小
 int newWidth = imageWidth;
 int newHeight = imageHeight;
 // 计算缩放比例
 float scaleWidth = ((float) newWidth) / bitmapWidth;
 float scaleHeight = ((float) newHeight) / bitmapHeight;
 Matrix matrix = new Matrix();
 matrix.postScale(scaleWidth, scaleHeight);
 /**缩放图片*/
 bitmapLow = Bitmap.createBitmap(bitmapLow, 0, 0, bitmapWidth, bitmapHeight, matrix, true);
 bitmapBig = Bitmap.createBitmap(bitmapBig, 0, 0, bitmapWidth, bitmapHeight, matrix, true);
 /**重新获取游标图片的宽高*/
 bitmapHeight = bitmapLow.getHeight();
 bitmapWidth = bitmapLow.getWidth();
 /**初始化两个游标的位置*/
 slideLowX = lineStart;
 slideBigX = lineEnd;
 smallRange = smallValue;
 bigRange = bigValue;
 if (hasRule) {
  //有刻度时 paddingTop 要加上（text高度）和（刻度线高度加刻度线上边文字的高度和） 之间的最大值
  paddingTop = paddingTop + Math.max(textSize, ruleLineHeight + ruleTextSize);
 } else {
  //没有刻度时 paddingTop 加上 text的高度
  paddingTop = paddingTop + textSize;
 }
 }

 @Override
 protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
 int width = getMyMeasureWidth(widthMeasureSpec);
 int height = getMyMeasureHeight(heightMeasureSpec);
 setMeasuredDimension(width, height);
 }

 private int getMyMeasureHeight(int heightMeasureSpec) {
 int mode = MeasureSpec.getMode(heightMeasureSpec);
 int size = MeasureSpec.getSize(heightMeasureSpec);
 if (mode == MeasureSpec.EXACTLY) {
  // matchparent 或者 固定大小 view最小应为 paddingBottom + paddingTop + bitmapHeight + 10 否则显示不全
  size = Math.max(size, paddingBottom + paddingTop + bitmapHeight + 10);
 } else {
  //wrap content
  int height = paddingBottom + paddingTop + bitmapHeight + 10;
  size = Math.min(size, height);
 }
 return size;
 }

 private int getMyMeasureWidth(int widthMeasureSpec) {
 int mode = MeasureSpec.getMode(widthMeasureSpec);
 int size = MeasureSpec.getSize(widthMeasureSpec);
 if (mode == MeasureSpec.EXACTLY) {

  size = Math.max(size, paddingLeft + paddingRight + bitmapWidth * 2);

 } else {
  //wrap content
  int width = paddingLeft + paddingRight + bitmapWidth * 2;
  size = Math.min(size, width);
 }
 // match parent 或者 固定大小 此时可以获取线（进度条）的长度
 lineLength = size - paddingLeft - paddingRight - bitmapWidth;
 //线（进度条）的结束位置
 lineEnd = lineLength + paddingLeft + bitmapWidth / 2;
 //线（进度条）的开始位置
 lineStart = paddingLeft + bitmapWidth / 2;
 //初始化 游标位置
 slideBigX = lineEnd;
 slideLowX = lineStart;
 return size;
 }

 @Override
 protected void onDraw(Canvas canvas) {
 super.onDraw(canvas);
 // Y轴 坐标
 lineY = getHeight() - paddingBottom - bitmapHeight / 2;
 // 字所在高度 100$
 textHeight = lineY - bitmapHeight / 2 - 10;
// //是否画刻度
// if (hasRule) {
//  drawRule(canvas);
// }
// if (linePaint == null) {
//  linePaint = new Paint();
// }
 linePaint = new Paint();
 //画内部线
 linePaint.setAntiAlias(true);
 linePaint.setStrokeWidth(lineWidth);
 linePaint.setColor(inColor);
 linePaint.setStrokeCap(Paint.Cap.ROUND);
 canvas.drawLine(slideLowX, lineY, slideBigX, lineY, linePaint);
 linePaint.setColor(outColor);
 linePaint.setStrokeCap(Paint.Cap.ROUND);
 //画 外部线
 canvas.drawLine(lineStart, lineY, slideLowX, lineY, linePaint);
 canvas.drawLine(slideBigX, lineY, lineEnd, lineY, linePaint);
 //画游标
 if (bitmapPaint == null) {
  bitmapPaint = new Paint();
 }
 canvas.drawBitmap(bitmapLow, slideLowX - bitmapWidth / 2, lineY - bitmapHeight / 2, bitmapPaint);
 canvas.drawBitmap(bitmapBig, slideBigX - bitmapWidth / 2, lineY - bitmapHeight / 2, bitmapPaint);
 //画 游标上边的字
 if (textPaint == null) {
  textPaint = new Paint();
 }
 textPaint.setColor(textColor);
 textPaint.setTextSize(textSize);
 textPaint.setAntiAlias(true);
 canvas.drawText(String.format("%.0f" + unit, smallRange), slideLowX - bitmapWidth / 2, textHeight, textPaint);
 canvas.drawText(String.format("%.0f" + unit, bigRange), slideBigX - bitmapWidth / 2, textHeight, textPaint);
 }

 @Override
 public boolean onTouchEvent(MotionEvent event) {
 //事件机制
 super.onTouchEvent(event);
 float nowX = event.getX();
 float nowY = event.getY();
 switch (event.getAction()) {
  case MotionEvent.ACTION_DOWN:
  //按下 在线（进度条）范围上
  boolean rightY = Math.abs(nowY - lineY) < bitmapHeight / 2;
  //按下 在左边游标上
  boolean lowSlide = Math.abs(nowX - slideLowX) < bitmapWidth / 2;
  //按下 在右边游标上
  boolean bigSlide = Math.abs(nowX - slideBigX) < bitmapWidth / 2;
  if (rightY && lowSlide) {
   isLowerMoving = true;
  } else if (rightY && bigSlide) {
   isUpperMoving = true;
   //点击了游标外部 的线上
  } else if (nowX >= lineStart && nowX <= slideLowX - bitmapWidth / 2 && rightY) {
   slideLowX = (int) nowX;
   updateRange();
   postInvalidate();
  } else if (nowX <= lineEnd && nowX >= slideBigX + bitmapWidth / 2 && rightY) {
   slideBigX = (int) nowX;
   updateRange();
   postInvalidate();
  }
  break;
  case MotionEvent.ACTION_MOVE:
  //左边游标是运动状态
  if (isLowerMoving) {
   //当前 X坐标在线上 且在右边游标的左边
   if (nowX <= slideBigX - bitmapWidth && nowX >= lineStart - bitmapWidth / 2) {
   slideLowX = (int) nowX;
   if (slideLowX < lineStart) {
    slideLowX = lineStart;
   }
   //更新进度
   updateRange();
   postInvalidate();
   }

  } else if (isUpperMoving) {
   //当前 X坐标在线上 且在左边游标的右边
   if (nowX >= slideLowX + bitmapWidth && nowX <= lineEnd + bitmapWidth / 2) {
   slideBigX = (int) nowX;
   if (slideBigX > lineEnd) {
    slideBigX = lineEnd;
   }
   //更新进度
   updateRange();
   postInvalidate();

   }
  }
  break;
  //手指抬起
  case MotionEvent.ACTION_UP:
  isUpperMoving = false;
  isLowerMoving = false;
  break;
  default:
  break;
 }

 return true;
 }

 private void updateRange() {
 //当前 左边游标数值
 smallRange = computRange(slideLowX);
 //当前 右边游标数值
 bigRange = computRange(slideBigX);
 //接口 实现值的传递
 if (onRangeListener != null) {
  onRangeListener.onRange(smallRange, bigRange);
 }
 }

 /**
 * 获取当前值
 */
 private float computRange(float range) {
 return (range - lineStart) * (bigValue - smallValue) / lineLength + smallValue;
 }

 public int dip2px(Context context, float dpValue) {
 final float scale = context.getResources().getDisplayMetrics().density;
 return (int) (dpValue * scale + 0.5f);
 }

// /**
// * 画刻度
// */
// protected void drawRule(Canvas canvas) {
// if (paintRule == null) {
//  paintRule = new Paint();
// }
// paintRule.setStrokeWidth(1);
// paintRule.setTextSize(ruleTextSize);
// paintRule.setTextAlign(Paint.Align.CENTER);
// paintRule.setAntiAlias(true);
// //遍历 equal份,画刻度
// for (int i = smallValue; i <= bigValue; i += (bigValue - smallValue) / equal) {
//  float degX = lineStart + i * lineLength / (bigValue - smallValue);
//  int degY = lineY - ruleLineHeight;
//  paintRule.setColor(ruleColor);
//  canvas.drawLine(degX, lineY, degX, degY, paintRule);
//  paintRule.setColor(ruleTextColor);
//  canvas.drawText(String.valueOf(i) + ruleUnit, degX, degY, paintRule);
// }
// }

 /**
 * 写个接口 用来传递最大最小值
 */
 public interface onRangeListener {
 void onRange(float low, float big);
 }

 private onRangeListener onRangeListener;

 public void setOnRangeListener(DoubleSlideSeekBar.onRangeListener onRangeListener) {
 this.onRangeListener = onRangeListener;
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
<?xml version="1.0" encoding="utf-8"?>
<resources>
 <!--线（进度条）宽度-->
 <attr name="lineHeight" format="dimension" />
 <!--字的大小 100元-->
 <attr name="textSize" format="dimension" />
 <!--字的颜色 100元-->
 <attr name="textColor" format="color" />
 <!--两个游标内部 线（进度条）的颜色-->
 <attr name="inColor" format="color" />
 <!--两个游标外部 线（进度条）的颜色-->
 <attr name="outColor" format="color" />
 <!--左边图标的图片-->
 <attr name="imageLow" format="reference"/>
 <!--右边图标 的图片-->
 <attr name="imageBig" format="reference"/>
 <!--游标 图片宽度-->
 <attr name="imagewidth" format="dimension" />
 <!--游标 图片高度-->
 <attr name="imageheight" format="dimension" />
 <!--是否有刻度线-->
 <attr name="hasRule" format="boolean" />
 <!--刻度的颜色-->
 <attr name="ruleColor" format="color" />
 <!--刻度上边的字 的颜色-->
 <attr name="ruleTextColor" format="color" />
 <!--单位 元-->
 <attr name="unit" format="string"/>
 <!--单位份数-->
 <attr name="equal" format="integer"/>
 <!--刻度单位 $-->
 <attr name="ruleUnit" format="string"/>
 <!--刻度上边文字的size-->
 <attr name="ruleTextSize" format="dimension" />
 <!--刻度线的高度-->
 <attr name="ruleLineHeight" format="dimension" />
 <!--选择器的最大值-->
 <attr name="bigValue" format="integer"/>
 <!--选择器的最小值-->
 <attr name="smallValue" format="integer"/>
 <declare-styleable name="DoubleSlideSeekBar">
  <attr name="lineHeight" />
  <attr name="textSize" />
  <attr name="textColor" />
  <attr name="inColor" />
  <attr name="outColor" />
  <attr name="imageLow"/>
  <attr name="imageBig"/>
  <attr name="imagewidth" />
  <attr name="imageheight" />
  <attr name="hasRule" />
  <attr name="ruleColor" />
  <attr name="ruleTextColor" />
  <attr name="unit" />
  <attr name="equal" />
  <attr name="ruleUnit" />
  <attr name="ruleTextSize" />
  <attr name="ruleLineHeight" />
  <attr name="bigValue" />
  <attr name="smallValue" />
 </declare-styleable>
</resources>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:tools="http://schemas.android.com/tools"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 xmlns:custom="http://schemas.android.com/apk/res-auto"
 tools:context=".MainActivity"
 android:orientation="vertical">

 <com.XXX.XXX.DoubleSlideSeekBar
  android:id="@+id/doubleslide_withrule"
  android:layout_marginTop="20dp"
  android:layout_width="match_parent"
  android:layout_height="wrap_content"
  custom:lineHeight="6dp"
  custom:textSize="12sp"
  custom:textColor="#0628e4"
  custom:inColor="#f10a0a"
  custom:outColor="#af08e2"
  custom:imagewidth="20dp"
  custom:imageheight="20dp"
  custom:hasRule="true"
  custom:ruleColor="#0e0e0e"
  custom:ruleTextColor="#f74104"
  custom:equal="10"
  custom:ruleTextSize="8sp"
  custom:ruleLineHeight="10dp"
  />
 <TextView
  android:id="@+id/tv_min_rule"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:text="0"
  android:layout_marginTop="10dp"></TextView>
 <TextView
  android:id="@+id/tv_max_rule"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:text="0"
  android:layout_marginTop="10dp"></TextView>


</LinearLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class MainActivity extends AppCompatActivity {

 private DoubleSlideSeekBar mDoubleslideWithrule;
 private TextView mTvMinRule;
 private TextView mTvMaxRule;

 @Override
 protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_main);
  mDoubleslideWithrule = (DoubleSlideSeekBar) findViewById(R.id.doubleslide_withrule);
  mTvMinRule = (TextView) findViewById(R.id.tv_min_rule);
  mTvMaxRule = (TextView) findViewById(R.id.tv_max_rule);
  setListener();
 }
 private void setListener() {

  mDoubleslideWithrule.setOnRangeListener(new DoubleSlideSeekBar.onRangeListener() {
   @Override
   public void onRange(float low, float big) {
    mTvMinRule.setText("最小值" + String.format("%.0f" , low));
    mTvMaxRule.setText("最大值" + String.format("%.0f" , big));
   }
  });
 }
}
