Android 录制音视频的完整代码

183 阅读 0 评论 121 点赞

我是靠谱客的博主香蕉烤鸡，这篇文章主要介绍Android 录制音视频的完整代码，现在分享给大家，希望可以做个参考。

打开camera

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
private void openCamera(int position) {

if (mCamera == null) {

mCamera = Camera.open(position);

int degree = getResources().getConfiguration().orientation == Configuration.ORIENTATION_LANDSCAPE ? 0 : 90;

mCamera.setDisplayOrientation(degree);

}

}

camera默认是横屏的，所以我们要使用竖屏录制要旋转90度

复制代码

1
2
3
int degree = getResources().getConfiguration().orientation == Configuration.ORIENTATION_LANDSCAPE ? 0 : 90;

mCamera.setDisplayOrientation(degree);

camera预览

我们要选择一个与我们要显示的SurfaceView大小比例最接近的一个camera预览大小，这里要特别注意camera支持的宽高都是宽大于高。

所以就有了下面这段选择代码

复制代码

private Size getBestCameraResolution(Camera.Parameters parameters, Size screenResolution) {

float tmp = 0f;

float mindiff = 100f;

Log.e("yuanVideo", "screen width=" + screenResolution.getWidth() + " height=" + screenResolution.getHeight());

float width_d_height;

if (screenResolution.getWidth() > screenResolution.getHeight()) {

width_d_height = (float) screenResolution.getWidth() / (float) screenResolution.getHeight();

} else {

width_d_height = (float) screenResolution.getHeight() / (float) screenResolution.getWidth();

}

Log.e("yuanVideo", "width_d_height=" + width_d_height);

Camera.Size best = null;

List<Camera.Size> supportedPreviewSizes = parameters.getSupportedPreviewSizes();

for (Camera.Size s : supportedPreviewSizes) {

tmp = Math.abs(((float) s.width / (float) s.height) - width_d_height);

Log.e("yuanVideo", "support width=" + s.width + " height=" + s.height + " ratio=" + tmp);

if (tmp < mindiff) {

mindiff = tmp;

best = s;

}

}

Log.e("yuanVideo", "best width=" + best.width + " height=" + best.height);

return new Size(best.width, best.height);

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
private Size getBestCameraResolution(Camera.Parameters parameters, Size screenResolution) {

float tmp = 0f;

float mindiff = 100f;

Log.e("yuanVideo", "screen width=" + screenResolution.getWidth() + " height=" + screenResolution.getHeight());

float width_d_height;

if (screenResolution.getWidth() > screenResolution.getHeight()) {

width_d_height = (float) screenResolution.getWidth() / (float) screenResolution.getHeight();

} else {

width_d_height = (float) screenResolution.getHeight() / (float) screenResolution.getWidth();

}

Log.e("yuanVideo", "width_d_height=" + width_d_height);

Camera.Size best = null;

List<Camera.Size> supportedPreviewSizes = parameters.getSupportedPreviewSizes();

for (Camera.Size s : supportedPreviewSizes) {

tmp = Math.abs(((float) s.width / (float) s.height) - width_d_height);

Log.e("yuanVideo", "support width=" + s.width + " height=" + s.height + " ratio=" + tmp);

if (tmp < mindiff) {

mindiff = tmp;

best = s;

}

}

Log.e("yuanVideo", "best width=" + best.width + " height=" + best.height);

return new Size(best.width, best.height);

}

初始化MediaRecorder

复制代码

private boolean prepareMediaRecorder() {

// 创建MediaPlayer对象

mCamera.unlock();

mRecorder = new MediaRecorder();

mRecorder.reset();

mRecorder.setCamera(mCamera);

// 设置从麦克风采集声音(或来自录像机的声音AudioSource.CAMCORDER)

mRecorder.setAudioSource(MediaRecorder.AudioSource.MIC);

// 设置从摄像头采集图像

mRecorder.setVideoSource(MediaRecorder.VideoSource.CAMERA);

Log.e("yuanProfile", "QUALITY_LOW=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_LOW));

Log.e("yuanProfile", "QUALITY_HIGH=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_HIGH));

Log.e("yuanProfile", "QUALITY_QCIF=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QCIF));

Log.e("yuanProfile", "QUALITY_480P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_480P));

Log.e("yuanProfile", "QUALITY_720P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_720P));

Log.e("yuanProfile", "QUALITY_1080P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_1080P));

Log.e("yuanProfile", "QUALITY_QVGA=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QVGA));

Log.e("yuanProfile", "QUALITY_2160P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_2160P));

Log.e("yuanProfile", "QUALITY_VGA=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_VGA));

Log.e("yuanProfile", "QUALITY_4KDCI=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_4KDCI));

Log.e("yuanProfile", "QUALITY_QHD=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QHD));

Log.e("yuanProfile", "QUALITY_2K=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_2K));

if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_720P)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_720P));

} else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_480P)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_1080P));

} else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_1080P)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_480P));

} else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_LOW)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_LOW));

} else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_HIGH)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_HIGH));

} else {

return false;

}

// mTempList.add(mCurrentTempRecordData);

mRecorder.setOutputFile(mCurPath);

mRecorder.setPreviewDisplay(activtityVideoRecordBinding.sView.getHolder().getSurface()); // ①

int degree;

if(getResources().getConfiguration().orientation != Configuration.ORIENTATION_LANDSCAPE){

int degree ;

if (cameraPosition == Camera.CameraInfo.CAMERA_FACING_FRONT) {

degree = 270;

} else {

degree = 90;

}

mRecorder.setOrientationHint(degree);

}

try {

mRecorder.prepare();

} catch (Exception e) {

e.printStackTrace();

return false;

}

return true;

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
private boolean prepareMediaRecorder() {

// 创建MediaPlayer对象

mCamera.unlock();

mRecorder = new MediaRecorder();

mRecorder.reset();

mRecorder.setCamera(mCamera);

// 设置从麦克风采集声音(或来自录像机的声音AudioSource.CAMCORDER)

mRecorder.setAudioSource(MediaRecorder.AudioSource.MIC);

// 设置从摄像头采集图像

mRecorder.setVideoSource(MediaRecorder.VideoSource.CAMERA);

Log.e("yuanProfile", "QUALITY_LOW=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_LOW));

Log.e("yuanProfile", "QUALITY_HIGH=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_HIGH));

Log.e("yuanProfile", "QUALITY_QCIF=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QCIF));

Log.e("yuanProfile", "QUALITY_480P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_480P));

Log.e("yuanProfile", "QUALITY_720P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_720P));

Log.e("yuanProfile", "QUALITY_1080P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_1080P));

Log.e("yuanProfile", "QUALITY_QVGA=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QVGA));

Log.e("yuanProfile", "QUALITY_2160P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_2160P));

Log.e("yuanProfile", "QUALITY_VGA=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_VGA));

Log.e("yuanProfile", "QUALITY_4KDCI=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_4KDCI));

Log.e("yuanProfile", "QUALITY_QHD=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QHD));

Log.e("yuanProfile", "QUALITY_2K=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_2K));

if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_720P)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_720P));

} else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_480P)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_1080P));

} else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_1080P)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_480P));

} else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_LOW)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_LOW));

} else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_HIGH)) {

mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_HIGH));

} else {

return false;

}

// mTempList.add(mCurrentTempRecordData);

mRecorder.setOutputFile(mCurPath);

mRecorder.setPreviewDisplay(activtityVideoRecordBinding.sView.getHolder().getSurface()); // ①

int degree;

if(getResources().getConfiguration().orientation != Configuration.ORIENTATION_LANDSCAPE){

int degree ;

if (cameraPosition == Camera.CameraInfo.CAMERA_FACING_FRONT) {

degree = 270;

} else {

degree = 90;

}

mRecorder.setOrientationHint(degree);

}

try {

mRecorder.prepare();

} catch (Exception e) {

e.printStackTrace();

return false;

}

return true;

}

这里也要设置视频的旋转参数

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
if(getResources().getConfiguration().orientation != Configuration.ORIENTATION_LANDSCAPE){

int degree ;

if (cameraPosition == Camera.CameraInfo.CAMERA_FACING_FRONT) {

degree = 270;

} else {

degree = 90;

}

mRecorder.setOrientationHint(degree);

}

下面是完整的代码

复制代码

package com.yuanxuzhen.ffmpeg;

import android.app.Activity;
import android.content.Context;
import android.content.res.Configuration;
import android.graphics.PixelFormat;
import android.hardware.Camera;
import android.media.CamcorderProfile;
import android.media.MediaRecorder;
import android.os.Build;
import android.os.Bundle;
import android.util.DisplayMetrics;
import android.util.Log;
import android.util.Size;
import android.view.SurfaceHolder;
import android.view.View;
import android.view.Window;
import android.view.WindowManager;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.annotation.RequiresApi;

import com.yuanxuzhen.ffmpeg.databinding.ActivtityVideoRecordBinding;

import java.io.File;
import java.io.IOException;
import java.util.List;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

public class VideoRecordActivity extends Activity {
    ActivtityVideoRecordBinding activtityVideoRecordBinding;
    MediaRecorder mRecorder;
    private boolean isRecording = false;

    private int cameraPosition = Camera.CameraInfo.CAMERA_FACING_FRONT;//0代表前置摄像头，1代表后置摄像头
    private Camera mCamera;
    private Camera.Parameters mParameters;
    private String mCurPath = null;
    private VideoTempRecordData mCurrentTempRecordData = null;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,
                WindowManager.LayoutParams.FLAG_FULLSCREEN);
        getWindow().setFormat(PixelFormat.TRANSLUCENT);
        mCurPath = DirUtil.getCacheDir(this) + File.separator + "out.mp4";
        activtityVideoRecordBinding = ActivtityVideoRecordBinding.inflate(getLayoutInflater());
        setContentView(activtityVideoRecordBinding.getRoot());
        activtityVideoRecordBinding.sView.getHolder().setKeepScreenOn(true);
        activtityVideoRecordBinding.sView.getHolder().addCallback(new SurfaceHolder.Callback() {
            @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
            @Override
            public void surfaceCreated(@NonNull SurfaceHolder holder) {
                openPreView();
            }


            @Override
            public void surfaceChanged(SurfaceHolder surfaceHolder, int format, int width, int height) {
                Log.e("yuanVideo", "surfaceChanged width=" + width + " height=" + height);
            }

            @Override
            public void surfaceDestroyed(@NonNull SurfaceHolder holder) {

            }
        });


        activtityVideoRecordBinding.recordOrStop.setText("开始");
        activtityVideoRecordBinding.recordOrStop.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                if (isRecording) {
                    Log.d("TAG", "停止录像");
                    stopRecord();
                } else {
                    startRecord();
                }
            }
        });
        activtityVideoRecordBinding.change.setOnClickListener(new View.OnClickListener() {
            @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
            @Override
            public void onClick(View v) {
                if(isRecording){
                    return;
                }
                releaseCamera();
                cameraPosition = cameraPosition == Camera.CameraInfo.CAMERA_FACING_FRONT ? Camera.CameraInfo.CAMERA_FACING_BACK : Camera.CameraInfo.CAMERA_FACING_FRONT;
                openCamera(cameraPosition);
                openPreView();
            }
        });
    }


    /**
     * 1.打开相机
     */
    private void openCamera(int position) {
        if (mCamera == null) {
            mCamera = Camera.open(position);
            int degree = getResources().getConfiguration().orientation == Configuration.ORIENTATION_LANDSCAPE ? 0 : 90;
            mCamera.setDisplayOrientation(degree);
        }
    }


    /**
     * initCameraAndSurfaceViewHolder初始化hoder后
     * 2.设置预览功能
     */
    @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
    private void openPreView() {
        try {
            if (mCamera != null) {
                mParameters = mCamera.getParameters();
                mCamera.setPreviewDisplay(activtityVideoRecordBinding.sView.getHolder());
                Size screenPoint = getScreenMetrics(VideoRecordActivity.this);
                Size bestPreviewSize = getBestCameraResolution(mCamera.getParameters(), screenPoint);
                mParameters.setPreviewSize(bestPreviewSize.getWidth(), bestPreviewSize.getHeight());
                mCamera.setParameters(mParameters);
                mCamera.startPreview();
                mCamera.autoFocus(new Camera.AutoFocusCallback() {
                    @Override
                    public void onAutoFocus(boolean success, Camera camera) {
                        Log.e("yuanVideo", "autoFocus success=" + success);

                    }
                });

                mCamera.setPreviewCallback(new Camera.PreviewCallback() {
                    @Override
                    public void onPreviewFrame(byte[] data, Camera camera) {
                        Log.i("TAG", "获取预览帧...");
                        Log.d("TAG", "预览帧大小：" + String.valueOf(data.length));
                    }
                });


            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }


    private boolean prepareMediaRecorder() {
        // 创建MediaPlayer对象
        mCamera.unlock();
        mRecorder = new MediaRecorder();
        mRecorder.reset();
        mRecorder.setCamera(mCamera);

        // 设置从麦克风采集声音(或来自录像机的声音AudioSource.CAMCORDER)
        mRecorder.setAudioSource(MediaRecorder.AudioSource.MIC);
        // 设置从摄像头采集图像
        mRecorder.setVideoSource(MediaRecorder.VideoSource.CAMERA);
        Log.e("yuanProfile", "QUALITY_LOW=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_LOW));
        Log.e("yuanProfile", "QUALITY_HIGH=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_HIGH));
        Log.e("yuanProfile", "QUALITY_QCIF=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QCIF));
        Log.e("yuanProfile", "QUALITY_480P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_480P));
        Log.e("yuanProfile", "QUALITY_720P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_720P));
        Log.e("yuanProfile", "QUALITY_1080P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_1080P));
        Log.e("yuanProfile", "QUALITY_QVGA=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QVGA));
        Log.e("yuanProfile", "QUALITY_2160P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_2160P));
        Log.e("yuanProfile", "QUALITY_VGA=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_VGA));
        Log.e("yuanProfile", "QUALITY_4KDCI=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_4KDCI));
        Log.e("yuanProfile", "QUALITY_QHD=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QHD));
        Log.e("yuanProfile", "QUALITY_2K=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_2K));

        if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_720P)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_720P));
        } else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_480P)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_1080P));
        } else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_1080P)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_480P));
        } else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_LOW)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_LOW));
        } else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_HIGH)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_HIGH));
        } else {
            return false;
        }
//        mTempList.add(mCurrentTempRecordData);
        mRecorder.setOutputFile(mCurPath);
        mRecorder.setPreviewDisplay(activtityVideoRecordBinding.sView.getHolder().getSurface()); // ①

        if(getResources().getConfiguration().orientation != Configuration.ORIENTATION_LANDSCAPE){
            int degree ;
            if (cameraPosition == Camera.CameraInfo.CAMERA_FACING_FRONT) {
                degree = 270;
            } else {
                degree = 90;
            }
            mRecorder.setOrientationHint(degree);
        }

        try {
            mRecorder.prepare();
        } catch (Exception e) {
            e.printStackTrace();
            return false;
        }
        return true;

    }

    private void startRecord() {
        if (prepareMediaRecorder()) {
            mRecorder.start();
            isRecording = true;
            activtityVideoRecordBinding.recordOrStop.setText("停止");
        } else {
            releaseMediaRecorder();
            isRecording = false;
            activtityVideoRecordBinding.recordOrStop.setText("开始");
        }

    }

    private void stopRecord() {
        if (mRecorder == null) {
            return;
        }
        mRecorder.stop();
        releaseMediaRecorder();
        isRecording = false;
        activtityVideoRecordBinding.recordOrStop.setText("开始");
    }

    @Nullable
    @Override
    public CharSequence onCreateDescription() {
        return super.onCreateDescription();
    }

    @Override
    protected void onDestroy() {
        releaseCamera();
        releaseMediaRecorder();
        super.onDestroy();
    }

    /**
     * 释放相机资源
     */
    private void releaseCamera() {
        if (mCamera != null) {
            mCamera.setPreviewCallback(null);
            mCamera.stopPreview();
            mCamera.release();
            mCamera = null;
        }
    }

    private void releaseMediaRecorder() {
        if (mRecorder != null) {
            mRecorder.reset();
            mRecorder.release();
            mRecorder = null;
            mCamera.lock();
        }
    }

    @Override
    protected void onResume() {
        super.onResume();
        openCamera(cameraPosition);
    }

    @Override
    protected void onPause() {
        super.onPause();
        releaseMediaRecorder();
        releaseCamera();
    }

    /**
     * 获取最佳预览大小
     *
     * @param parameters       相机参数
     * @param screenResolution 屏幕宽高
     * @return
     */

    @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
    private Size getBestCameraResolution(Camera.Parameters parameters, Size screenResolution) {
        float tmp = 0f;

        float mindiff = 100f;
        Log.e("yuanVideo", "screen width=" + screenResolution.getWidth() + " height=" + screenResolution.getHeight());

        float width_d_height;
        if (screenResolution.getWidth() > screenResolution.getHeight()) {
            width_d_height = (float) screenResolution.getWidth() / (float) screenResolution.getHeight();
        } else {
            width_d_height = (float) screenResolution.getHeight() / (float) screenResolution.getWidth();
        }
        Log.e("yuanVideo", "width_d_height=" + width_d_height);

        Camera.Size best = null;

        List<Camera.Size> supportedPreviewSizes = parameters.getSupportedPreviewSizes();
        for (Camera.Size s : supportedPreviewSizes) {
            tmp = Math.abs(((float) s.width / (float) s.height) - width_d_height);
            Log.e("yuanVideo", "support width=" + s.width + " height=" + s.height + " ratio=" + tmp);

            if (tmp < mindiff) {
                mindiff = tmp;

                best = s;
            }

        }
        Log.e("yuanVideo", "best width=" + best.width + " height=" + best.height);

        return new Size(best.width, best.height);
    }


    /**
     * 获取屏幕宽度和高度，单位为px
     *
     * @param context
     * @return
     */

    @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
    public static Size getScreenMetrics(Context context) {
        DisplayMetrics dm = context.getResources().getDisplayMetrics();

        int w_screen = dm.widthPixels;

        int h_screen = dm.heightPixels;

        return new Size(w_screen, h_screen);
    }


}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
package com.yuanxuzhen.ffmpeg;

import android.app.Activity;
import android.content.Context;
import android.content.res.Configuration;
import android.graphics.PixelFormat;
import android.hardware.Camera;
import android.media.CamcorderProfile;
import android.media.MediaRecorder;
import android.os.Build;
import android.os.Bundle;
import android.util.DisplayMetrics;
import android.util.Log;
import android.util.Size;
import android.view.SurfaceHolder;
import android.view.View;
import android.view.Window;
import android.view.WindowManager;

import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.annotation.RequiresApi;

import com.yuanxuzhen.ffmpeg.databinding.ActivtityVideoRecordBinding;

import java.io.File;
import java.io.IOException;
import java.util.List;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;

public class VideoRecordActivity extends Activity {
    ActivtityVideoRecordBinding activtityVideoRecordBinding;
    MediaRecorder mRecorder;
    private boolean isRecording = false;

    private int cameraPosition = Camera.CameraInfo.CAMERA_FACING_FRONT;//0代表前置摄像头，1代表后置摄像头
    private Camera mCamera;
    private Camera.Parameters mParameters;
    private String mCurPath = null;
    private VideoTempRecordData mCurrentTempRecordData = null;

    @Override
    protected void onCreate(@Nullable Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        requestWindowFeature(Window.FEATURE_NO_TITLE);
        getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,
                WindowManager.LayoutParams.FLAG_FULLSCREEN);
        getWindow().setFormat(PixelFormat.TRANSLUCENT);
        mCurPath = DirUtil.getCacheDir(this) + File.separator + "out.mp4";
        activtityVideoRecordBinding = ActivtityVideoRecordBinding.inflate(getLayoutInflater());
        setContentView(activtityVideoRecordBinding.getRoot());
        activtityVideoRecordBinding.sView.getHolder().setKeepScreenOn(true);
        activtityVideoRecordBinding.sView.getHolder().addCallback(new SurfaceHolder.Callback() {
            @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
            @Override
            public void surfaceCreated(@NonNull SurfaceHolder holder) {
                openPreView();
            }


            @Override
            public void surfaceChanged(SurfaceHolder surfaceHolder, int format, int width, int height) {
                Log.e("yuanVideo", "surfaceChanged width=" + width + " height=" + height);
            }

            @Override
            public void surfaceDestroyed(@NonNull SurfaceHolder holder) {

            }
        });


        activtityVideoRecordBinding.recordOrStop.setText("开始");
        activtityVideoRecordBinding.recordOrStop.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                if (isRecording) {
                    Log.d("TAG", "停止录像");
                    stopRecord();
                } else {
                    startRecord();
                }
            }
        });
        activtityVideoRecordBinding.change.setOnClickListener(new View.OnClickListener() {
            @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
            @Override
            public void onClick(View v) {
                if(isRecording){
                    return;
                }
                releaseCamera();
                cameraPosition = cameraPosition == Camera.CameraInfo.CAMERA_FACING_FRONT ? Camera.CameraInfo.CAMERA_FACING_BACK : Camera.CameraInfo.CAMERA_FACING_FRONT;
                openCamera(cameraPosition);
                openPreView();
            }
        });
    }


    /**

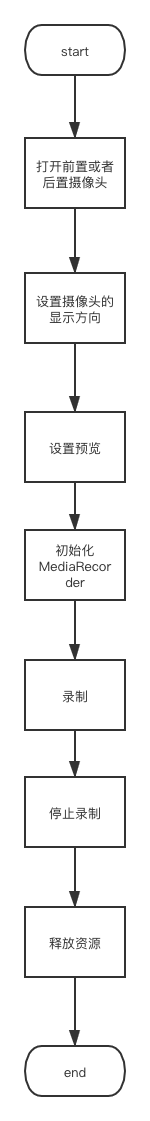

     * 1.打开相机
     */
    private void openCamera(int position) {
        if (mCamera == null) {
            mCamera = Camera.open(position);
            int degree = getResources().getConfiguration().orientation == Configuration.ORIENTATION_LANDSCAPE ? 0 : 90;
            mCamera.setDisplayOrientation(degree);
        }
    }


    /**
     * initCameraAndSurfaceViewHolder初始化hoder后
     * 2.设置预览功能
     */
    @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
    private void openPreView() {
        try {
            if (mCamera != null) {
                mParameters = mCamera.getParameters();
                mCamera.setPreviewDisplay(activtityVideoRecordBinding.sView.getHolder());
                Size screenPoint = getScreenMetrics(VideoRecordActivity.this);
                Size bestPreviewSize = getBestCameraResolution(mCamera.getParameters(), screenPoint);
                mParameters.setPreviewSize(bestPreviewSize.getWidth(), bestPreviewSize.getHeight());
                mCamera.setParameters(mParameters);
                mCamera.startPreview();
                mCamera.autoFocus(new Camera.AutoFocusCallback() {
                    @Override
                    public void onAutoFocus(boolean success, Camera camera) {
                        Log.e("yuanVideo", "autoFocus success=" + success);

                    }
                });

                mCamera.setPreviewCallback(new Camera.PreviewCallback() {
                    @Override
                    public void onPreviewFrame(byte[] data, Camera camera) {
                        Log.i("TAG", "获取预览帧...");
                        Log.d("TAG", "预览帧大小：" + String.valueOf(data.length));
                    }
                });


            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }


    private boolean prepareMediaRecorder() {
        // 创建MediaPlayer对象
        mCamera.unlock();
        mRecorder = new MediaRecorder();
        mRecorder.reset();
        mRecorder.setCamera(mCamera);

        // 设置从麦克风采集声音(或来自录像机的声音AudioSource.CAMCORDER)
        mRecorder.setAudioSource(MediaRecorder.AudioSource.MIC);
        // 设置从摄像头采集图像
        mRecorder.setVideoSource(MediaRecorder.VideoSource.CAMERA);
        Log.e("yuanProfile", "QUALITY_LOW=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_LOW));
        Log.e("yuanProfile", "QUALITY_HIGH=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_HIGH));
        Log.e("yuanProfile", "QUALITY_QCIF=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QCIF));
        Log.e("yuanProfile", "QUALITY_480P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_480P));
        Log.e("yuanProfile", "QUALITY_720P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_720P));
        Log.e("yuanProfile", "QUALITY_1080P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_1080P));
        Log.e("yuanProfile", "QUALITY_QVGA=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QVGA));
        Log.e("yuanProfile", "QUALITY_2160P=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_2160P));
        Log.e("yuanProfile", "QUALITY_VGA=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_VGA));
        Log.e("yuanProfile", "QUALITY_4KDCI=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_4KDCI));
        Log.e("yuanProfile", "QUALITY_QHD=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_QHD));
        Log.e("yuanProfile", "QUALITY_2K=" + CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_2K));

        if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_720P)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_720P));
        } else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_480P)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_1080P));
        } else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_1080P)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_480P));
        } else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_LOW)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_LOW));
        } else if (CamcorderProfile.hasProfile(CamcorderProfile.QUALITY_HIGH)) {
            mRecorder.setProfile(CamcorderProfile.get(CamcorderProfile.QUALITY_HIGH));
        } else {
            return false;
        }
//        mTempList.add(mCurrentTempRecordData);
        mRecorder.setOutputFile(mCurPath);
        mRecorder.setPreviewDisplay(activtityVideoRecordBinding.sView.getHolder().getSurface()); // ①

        if(getResources().getConfiguration().orientation != Configuration.ORIENTATION_LANDSCAPE){
            int degree ;
            if (cameraPosition == Camera.CameraInfo.CAMERA_FACING_FRONT) {
                degree = 270;
            } else {
                degree = 90;
            }
            mRecorder.setOrientationHint(degree);
        }

        try {
            mRecorder.prepare();
        } catch (Exception e) {
            e.printStackTrace();
            return false;
        }
        return true;

    }

    private void startRecord() {
        if (prepareMediaRecorder()) {
            mRecorder.start();
            isRecording = true;
            activtityVideoRecordBinding.recordOrStop.setText("停止");
        } else {
            releaseMediaRecorder();
            isRecording = false;
            activtityVideoRecordBinding.recordOrStop.setText("开始");
        }

    }

    private void stopRecord() {
        if (mRecorder == null) {
            return;
        }
        mRecorder.stop();
        releaseMediaRecorder();
        isRecording = false;
        activtityVideoRecordBinding.recordOrStop.setText("开始");
    }

    @Nullable
    @Override
    public CharSequence onCreateDescription() {
        return super.onCreateDescription();
    }

    @Override
    protected void onDestroy() {
        releaseCamera();
        releaseMediaRecorder();
        super.onDestroy();
    }

    /**
     * 释放相机资源
     */
    private void releaseCamera() {
        if (mCamera != null) {
            mCamera.setPreviewCallback(null);
            mCamera.stopPreview();
            mCamera.release();
            mCamera = null;
        }
    }

    private void releaseMediaRecorder() {
        if (mRecorder != null) {
            mRecorder.reset();
            mRecorder.release();
            mRecorder = null;
            mCamera.lock();
        }
    }

    @Override
    protected void onResume() {
        super.onResume();
        openCamera(cameraPosition);
    }

    @Override
    protected void onPause() {
        super.onPause();
        releaseMediaRecorder();
        releaseCamera();
    }

    /**
     * 获取最佳预览大小
     *
     * @param parameters       相机参数
     * @param screenResolution 屏幕宽高
     * @return
     */

    @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
    private Size getBestCameraResolution(Camera.Parameters parameters, Size screenResolution) {
        float tmp = 0f;

        float mindiff = 100f;
        Log.e("yuanVideo", "screen width=" + screenResolution.getWidth() + " height=" + screenResolution.getHeight());

        float width_d_height;
        if (screenResolution.getWidth() > screenResolution.getHeight()) {
            width_d_height = (float) screenResolution.getWidth() / (float) screenResolution.getHeight();
        } else {
            width_d_height = (float) screenResolution.getHeight() / (float) screenResolution.getWidth();
        }
        Log.e("yuanVideo", "width_d_height=" + width_d_height);

        Camera.Size best = null;

        List<Camera.Size> supportedPreviewSizes = parameters.getSupportedPreviewSizes();
        for (Camera.Size s : supportedPreviewSizes) {
            tmp = Math.abs(((float) s.width / (float) s.height) - width_d_height);
            Log.e("yuanVideo", "support width=" + s.width + " height=" + s.height + " ratio=" + tmp);

            if (tmp < mindiff) {
                mindiff = tmp;

                best = s;
            }

        }
        Log.e("yuanVideo", "best width=" + best.width + " height=" + best.height);

        return new Size(best.width, best.height);
    }


    /**
     * 获取屏幕宽度和高度，单位为px
     *
     * @param context
     * @return
     */

    @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
    public static Size getScreenMetrics(Context context) {
        DisplayMetrics dm = context.getResources().getDisplayMetrics();

        int w_screen = dm.widthPixels;

        int h_screen = dm.heightPixels;

        return new Size(w_screen, h_screen);
    }


}

布局

复制代码

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <com.yuanxuzhen.ffmpeg.ResizeAbleSurfaceView
        android:id="@+id/sView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_centerInParent="true"></com>
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        >
        <TextView
            android:id="@+id/tv_time"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="0秒"
            android:layout_centerInParent="true"
            android:textColor="@color/white"
            ></TextView>
        <Button
            android:id="@+id/change"
            android:layout_width="wrap_content"
            android:layout_height="66dp"
            android:text="切换摄像头"
            android:layout_alignParentEnd="true"
            ></Button>
    </RelativeLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true">
        <Button
            android:id="@+id/record_or_stop"
            android:layout_width="66dp"
            android:layout_height="66dp"
            android:text="录制"
            ></Button>
        <Button
            android:id="@+id/save"
            android:layout_width="66dp"
            android:layout_height="66dp"
            android:text="保存"
            ></Button>
    </LinearLayout>
</RelativeLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">
    <!-- 显示视频预览的SurfaceView -->
    <com.yuanxuzhen.ffmpeg.ResizeAbleSurfaceView
        android:id="@+id/sView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_centerInParent="true"/>
    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        >
        <TextView
            android:id="@+id/tv_time"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="0秒"
            android:layout_centerInParent="true"
            android:textColor="@color/white"
            />
        <Button
            android:id="@+id/change"
            android:layout_width="wrap_content"
            android:layout_height="66dp"
            android:text="切换摄像头"
            android:layout_alignParentEnd="true"
            />
    </RelativeLayout>

    <LinearLayout
        android:orientation="horizontal"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:gravity="center_horizontal"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true">
        <Button
            android:id="@+id/record_or_stop"
            android:layout_width="66dp"
            android:layout_height="66dp"
            android:text="录制"
            />
        <Button
            android:id="@+id/save"
            android:layout_width="66dp"
            android:layout_height="66dp"
            android:text="保存"
            />
    </LinearLayout>
</RelativeLayout>

复制代码

package com.yuanxuzhen.ffmpeg;

import android.content.Context;
import android.util.AttributeSet;
import android.view.SurfaceView;

public class ResizeAbleSurfaceView extends SurfaceView {

    private int mWidth = -1;
    private int mHeight = -1;

    public ResizeAbleSurfaceView(Context context) {
        super(context);
    }

    public ResizeAbleSurfaceView(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public ResizeAbleSurfaceView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        if (-1 == mWidth || -1 == mHeight) {
            super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        }
        else {
            setMeasuredDimension(mWidth, mHeight);
        }
    }

    public void resize(int width, int height) {
        mWidth = width;
        mHeight = height;
        getHolder().setFixedSize(width, height);
        requestLayout();
        invalidate();
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
package com.yuanxuzhen.ffmpeg;

import android.content.Context;
import android.util.AttributeSet;
import android.view.SurfaceView;

public class ResizeAbleSurfaceView extends SurfaceView {

    private int mWidth = -1;
    private int mHeight = -1;

    public ResizeAbleSurfaceView(Context context) {
        super(context);
    }

    public ResizeAbleSurfaceView(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public ResizeAbleSurfaceView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        if (-1 == mWidth || -1 == mHeight) {
            super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        }
        else {
            setMeasuredDimension(mWidth, mHeight);
        }
    }

    public void resize(int width, int height) {
        mWidth = width;
        mHeight = height;
        getHolder().setFixedSize(width, height);
        requestLayout();
        invalidate();
    }

}

复制代码

package com.yuanxuzhen.ffmpeg;

import android.content.Context;
import android.os.Environment;


import java.io.File;

public class DirUtil {
    public static final String WEBVIEW_CACHE = ".webviewCache";
    public static final String IMAGE_PATH = "image";
    public static final String DOWNLOAD_PATH = "download";
    public static final String VIDEO_PATH = ".video";
    public static final String NET_PATH = ".net";


    //image
    public static String getImageDir(Context context) {
        return getCacheDir(context) + File.separator + IMAGE_PATH;
    }

    //webview
    public static String getWebviewCache(Context context) {
        return getCacheDir(context) + File.separator + WEBVIEW_CACHE;
    }

    //download
    public static String getDownloadDir(Context context) {
        return getCacheDir(context) + File.separator + DOWNLOAD_PATH;
    }

    //video
    public static String getVideoPath(Context context) {
        return getCacheDir(context) + File.separator + VIDEO_PATH;
    }

    //net
    public static String getNetPath(Context context) {
        return getCacheDir(context) + File.separator + NET_PATH;
    }


    public static String getCacheDir(Context context) {

        if (context == null) {
            return "";
        }
        String path = null;
        if (context.getExternalCacheDir() != null
                && (Environment.MEDIA_MOUNTED.equals(Environment.getExternalStorageState())
                || !Environment.isExternalStorageRemovable())) {
            //外部存储可用
            path = context.getExternalCacheDir().getPath();
        } else {
            //内部存储不可用
            path = context.getCacheDir().getPath();
        }
        return path;
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
package com.yuanxuzhen.ffmpeg;

import android.content.Context;
import android.os.Environment;


import java.io.File;

public class DirUtil {
    public static final String WEBVIEW_CACHE = ".webviewCache";
    public static final String IMAGE_PATH = "image";
    public static final String DOWNLOAD_PATH = "download";
    public static final String VIDEO_PATH = ".video";
    public static final String NET_PATH = ".net";


    //image
    public static String getImageDir(Context context) {
        return getCacheDir(context) + File.separator + IMAGE_PATH;
    }

    //webview
    public static String getWebviewCache(Context context) {
        return getCacheDir(context) + File.separator + WEBVIEW_CACHE;
    }

    //download
    public static String getDownloadDir(Context context) {
        return getCacheDir(context) + File.separator + DOWNLOAD_PATH;
    }

    //video
    public static String getVideoPath(Context context) {
        return getCacheDir(context) + File.separator + VIDEO_PATH;
    }

    //net
    public static String getNetPath(Context context) {
        return getCacheDir(context) + File.separator + NET_PATH;
    }


    public static String getCacheDir(Context context) {

        if (context == null) {
            return "";
        }
        String path = null;
        if (context.getExternalCacheDir() != null
                && (Environment.MEDIA_MOUNTED.equals(Environment.getExternalStorageState())
                || !Environment.isExternalStorageRemovable())) {
            //外部存储可用
            path = context.getExternalCacheDir().getPath();
        } else {
            //内部存储不可用
            path = context.getCacheDir().getPath();
        }
        return path;
    }

}
