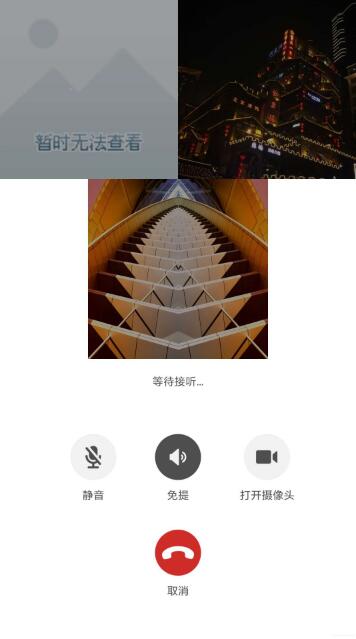

Android仿微信多人音视频通话界面

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
package com.dnaer.android.telephone.widgets;

import android.content.Context;
import android.os.Build;
import android.support.annotation.RequiresApi;
import android.util.AttributeSet;
import android.util.DisplayMetrics;
import android.view.View;
import android.view.ViewGroup;
import android.view.WindowManager;

import com.anbetter.log.MLog;

public class MultiVideoChatLayout extends ViewGroup implements CommLayoutAdapter.OnDataChangedListener {

 private CommLayoutAdapter mCommLayoutAdapter;

 private int mScreenWidth;

 //人数为2,3,4状态下的宽高度
 private int mSizeModel1;

 //人数为5,6,7,8，9状态下的宽高度
 private int mSizeModel2;

 public MultiVideoChatLayout(Context context) {
 this(context, null);
 }

 public MultiVideoChatLayout(Context context, AttributeSet attrs) {
 this(context, attrs, 0);
 }

 public MultiVideoChatLayout(Context context, AttributeSet attrs, int defStyleAttr) {
 super(context, attrs, defStyleAttr);
 initialize(context);
 }

 @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
 public MultiVideoChatLayout(Context context, AttributeSet attrs, int defStyleAttr, int defStyleRes) {
 super(context, attrs, defStyleAttr, defStyleRes);
 initialize(context);
 }

 private void initialize(Context context) {
 WindowManager wm = (WindowManager) context.getSystemService(Context.WINDOW_SERVICE);
 DisplayMetrics metrics = new DisplayMetrics();
 wm.getDefaultDisplay().getMetrics(metrics);
 mScreenWidth = metrics.widthPixels;

 mSizeModel1 = mScreenWidth / 2;
 mSizeModel2 = mScreenWidth / 3;
 }

 @Override
 protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
 //宽度默认给屏幕的宽度，高度直接取宽度，形成一个正方形
 final int width = MeasureSpec.makeMeasureSpec(mScreenWidth, MeasureSpec.EXACTLY);
 final int height = MeasureSpec.makeMeasureSpec(mScreenWidth, MeasureSpec.EXACTLY);
 setMeasuredDimension(width, height);

 MLog.d("width: " + width + ", height:" + height);

 final int childWidth = MeasureSpec.makeMeasureSpec(mScreenWidth / 3, MeasureSpec.EXACTLY);
 final int childHeight = MeasureSpec.makeMeasureSpec(mScreenWidth / 3, MeasureSpec.EXACTLY);

 final int childWidth2 = MeasureSpec.makeMeasureSpec(mScreenWidth / 2, MeasureSpec.EXACTLY);
 final int childHeight2 = MeasureSpec.makeMeasureSpec(mScreenWidth / 2, MeasureSpec.EXACTLY);

 if (getChildCount() > 4) {
 for (int i = 0; i < getChildCount(); i++) {
 View child = getChildAt(i);
 child.measure(childWidth, childHeight);
 }
 } else {
 for (int i = 0; i < getChildCount(); i++) {
 View child = getChildAt(i);
 child.measure(childWidth2, childHeight2);
 }
 }
 }

 @Override
 protected void onLayout(boolean changed, int l, int t, int r, int b) {
 if (getChildCount() <= 4) {
 layoutModel1();
 } else {
 layoutModel2();
 }
 }

 private void layoutModel2() {
 int currentWidth = 0;
 for (int i = 0; i < getChildCount(); i++) {
 View item = getChildAt(i);
 if (i % 3 == 0) {
 currentWidth = 0;
 item.layout(0, i / 3 * mSizeModel2, mSizeModel2, i / 3 * mSizeModel2 + mSizeModel2);
 } else {
 item.layout(currentWidth + mSizeModel2, i / 3 * mSizeModel2, currentWidth + 2 * mSizeModel2, i / 3 * mSizeModel2 + mSizeModel2);
 currentWidth = currentWidth + mSizeModel2;
 }
 }
 }

 private void layoutModel1() {
 if (getChildCount() == 3) {
 for (int i = 0; i < getChildCount(); i++) {
 View item = getChildAt(i);
 MLog.d("width: " + item.getMeasuredWidth() + ", height: " + item.getMeasuredHeight() + ", mSizeModel1: " + mSizeModel1);
 if (i == 0) {
 item.layout(0, 0, mSizeModel1, mSizeModel1);
 } else if (i == 1) {
 item.layout(mSizeModel1, 0, mSizeModel1 * 2, mSizeModel1);
 } else if (i == 2) {
 item.layout(mSizeModel1 / 2, mSizeModel1, mSizeModel1 + mSizeModel1 / 2, mSizeModel1 * 2);
 }
 }
 } else {
 for (int i = 0; i < getChildCount(); i++) {
 View item = getChildAt(i);
 if (i % 2 == 0) {
 item.layout(0, i / 2 * mSizeModel1, mSizeModel1, i / 2 * mSizeModel1 + mSizeModel1);
 } else {
 item.layout(mSizeModel1, i / 2 * mSizeModel1, 2 * mSizeModel1, i / 2 * mSizeModel1 + mSizeModel1);
 }
 }
 }
 }

 public void setAdapter(CommLayoutAdapter adapter) {
 mCommLayoutAdapter = adapter;
 mCommLayoutAdapter.setOnDataChangedListener(this);
 changedAdapter();
 }

 @Override
 public void onChanged() {
 changedAdapter();
 }

 private void changedAdapter() {
 removeAllViews();
 CommLayoutAdapter layoutAdapter = mCommLayoutAdapter;
 for (int i = 0; i < layoutAdapter.getCount(); i++) {
 View view = layoutAdapter.getView(this, i, layoutAdapter.getItem(i));
 view.setDuplicateParentStateEnabled(true);
 addView(view);
 }
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
package org.fireking.customgridlayoutmanager

import android.content.res.Resources
import android.support.v7.widget.RecyclerView
import java.lang.IllegalArgumentException

class MultiChatLayoutManager : RecyclerView.LayoutManager() {

 private var leftMargin = 0
 private var rightMargin = 0
 private var mScreenWidth = 0

 override fun generateDefaultLayoutParams(): RecyclerView.LayoutParams {
 return RecyclerView.LayoutParams(RecyclerView.LayoutParams.WRAP_CONTENT, RecyclerView.LayoutParams.WRAP_CONTENT)
 }

 override fun onLayoutChildren(recycler: RecyclerView.Recycler?, state: RecyclerView.State?) {
 super.onLayoutChildren(recycler, state)
 if (itemCount == 0) {
 detachAndScrapAttachedViews(recycler!!)
 return
 }
 if (childCount == 0 && state!!.isPreLayout) {
 return
 }
 val params = recycler!!.getViewForPosition(0).layoutParams as RecyclerView.LayoutParams
 leftMargin = params.leftMargin
 rightMargin = params.rightMargin
 detachAndScrapAttachedViews(recycler)
 layoutItem(recycler)
 }

 private fun layoutItem(recycler: RecyclerView.Recycler) {

 if (itemCount > 9) {
 throw IllegalArgumentException("${javaClass.simpleName}最多支持9个item布局， 请检查你的item个数是否正确")
 }

 mScreenWidth = Resources.getSystem().displayMetrics.widthPixels

 val itemSize = if (itemCount > 4) {
 mScreenWidth / 3
 } else {
 mScreenWidth / 2
 }

 if (itemCount <= 4) {
 if (itemCount == 3) {
 for (i in 0 until itemCount) {
 val view = recycler.getViewForPosition(i)
 addView(view) // 因为detach过所以重新添加
 measureChildWithMargins(view, 0, 0)
 when (i) {
 0 -> layoutDecoratedWithMargins(view, 0, 0, itemSize, itemSize)
 1 -> layoutDecoratedWithMargins(view, itemSize, 0, itemSize * 2, itemSize)
 else -> layoutDecoratedWithMargins(
 view,
 itemSize / 2,
 itemSize,
 itemSize + itemSize / 2,
 itemSize * 2
 )
 }
 }
 } else {
 for (i in 0 until itemCount) {
 val view = recycler.getViewForPosition(i)
 addView(view) // 因为detach过所以重新添加
 measureChildWithMargins(view, 0, 0)
 if (i % 2 == 0) {
 layoutDecoratedWithMargins(view, 0, i / 2 * itemSize, itemSize, i / 2 * itemSize + itemSize)
 } else {
 layoutDecoratedWithMargins(
 view,
 itemSize,
 i / 2 * itemSize,
 2 * itemSize,
 i / 2 * itemSize + itemSize
 )
 }
 }
 }
 } else {
 var currentWidth = 0
 for (i in 0 until itemCount) {
 val view = recycler.getViewForPosition(i)
 addView(view) // 因为detach过所以重新添加
 measureChildWithMargins(view, 0, 0)
 if (i % 3 == 0) {
 currentWidth = 0
 layoutDecoratedWithMargins(view, 0, i / 3 * itemSize, itemSize, i / 3 * itemSize + itemSize)
 } else {
 layoutDecoratedWithMargins(
 view,
 currentWidth + itemSize,
 i / 3 * itemSize,
 currentWidth + 2 * itemSize,
 i / 3 * itemSize + itemSize
 )
 currentWidth += itemSize
 }
 }
 }
 }

 //因为这个布局不需要有滚动，所以直接将横竖两个方向的滚动全部取消了
 override fun canScrollHorizontally(): Boolean {
 return false
 }

 override fun canScrollVertically(): Boolean {
 return false
 }
}
