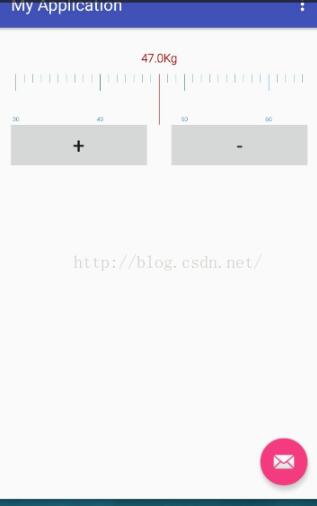

Android自定义控件之刻度尺控件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
package android.tst.com.myapplication;

import android.annotation.SuppressLint;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.text.Layout;
import android.text.TextPaint;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.VelocityTracker;
import android.view.View;
import android.view.ViewConfiguration;
import android.widget.Scroller;

/**
 * 卷尺控件类。由于时间比较紧，只有下班后有时间，因此只实现了基本功能。<br>
 * 细节问题包括滑动过程中widget边缘的刻度显示问题等<br>
 * @version create：2014年8月26日
 */
@SuppressLint("ClickableViewAccessibility")
public class RulerView extends View {

 public interface OnValueChangeListener {
 public void onValueChange(float value);
 }

 public static final int MOD_TYPE_HALF = 2;
 public static final int MOD_TYPE_ONE = 10;
 private static final int ITEM_HALF_DIVIDER = 10;
 private static final int ITEM_ONE_DIVIDER = 10;
 private static final int ITEM_MAX_HEIGHT = 20;
 private static final int ITEM_MIN_HEIGHT = 10;
 private static final int TEXT_SIZE = 7;
 private float mDensity;
 private int mValue = 50, mMaxValue = 100, mModType = MOD_TYPE_HALF,
 mLineDivider = ITEM_HALF_DIVIDER;
 // private int mValue = 50, mMaxValue = 500, mModType = MOD_TYPE_ONE,
 // mLineDivider = ITEM_ONE_DIVIDER;

 private int mLastX, mMove;
 private int mWidth, mHeight;

 private int mMinVelocity;
 private Scroller mScroller;
 private VelocityTracker mVelocityTracker;

 private OnValueChangeListener mListener;

 @SuppressWarnings("deprecation")
 public RulerView(Context context, AttributeSet attrs) {
 super(context, attrs);

 mScroller = new Scroller(getContext());
 mDensity = getContext().getResources().getDisplayMetrics().density;
 mMinVelocity = ViewConfiguration.get(getContext())
 .getScaledMinimumFlingVelocity();
 }

 /**
 *
 * 考虑可扩展，但是时间紧迫，只可以支持两种类型效果图中两种类型
 *
 * @param value
 *  初始值
 * @param maxValue
 *  最大值
 * @param model
 *  刻度盘精度：<br>
 *  {@link MOD_TYPE_HALF}<br>
 *  {@link MOD_TYPE_ONE}<br>
 */
 public void initViewParam(int defaultValue, int maxValue, int model) {
 switch (model) {
 case MOD_TYPE_HALF:
 mModType = MOD_TYPE_HALF;
 mLineDivider = ITEM_HALF_DIVIDER;
 mValue = defaultValue * 2;
 mMaxValue = maxValue * 2;
 break;
 case MOD_TYPE_ONE:
 mModType = MOD_TYPE_ONE;
 mLineDivider = ITEM_ONE_DIVIDER;
 mValue = defaultValue;
 mMaxValue = maxValue;
 break;

 default:
 break;
 }
 invalidate();

 mLastX = 0;
 mMove = 0;
 notifyValueChange();
 }

 /**
 * 设置用于接收结果的监听器
 *
 * @param listener
 */
 public void setValueChangeListener(OnValueChangeListener listener) {
 mListener = listener;
 }

 /**
 * 获取当前刻度值
 *
 * @return
 */
 public float getValue() {
 return mValue;
 }
 public void setValue(int value){
 mValue = value;
 notifyValueChange();
 postInvalidate();
 }
 public void setValueToChange(int what) {
 mValue += what;
 notifyValueChange();
 postInvalidate();
 }

 @Override
 protected void onLayout(boolean changed, int left, int top, int right,
 int bottom) {
 mWidth = getWidth();
 mHeight = getHeight();
 super.onLayout(changed, left, top, right, bottom);
 }

 @Override
 protected void onDraw(Canvas canvas) {
 super.onDraw(canvas);
 drawScaleLine(canvas);
 // drawWheel(canvas);
 drawMiddleLine(canvas);
 }

 /**
 * 从中间往两边开始画刻度线
 *
 * @param canvas
 */
 private void drawScaleLine(Canvas canvas) {
 canvas.save();
 Paint linePaint = new Paint();
 linePaint.setStrokeWidth(2);
 linePaint.setColor(Color.rgb(141, 189, 225));

 TextPaint textPaint = new TextPaint(Paint.ANTI_ALIAS_FLAG);
 textPaint.setColor(Color.rgb(68, 135, 188));
 textPaint.setTextSize(TEXT_SIZE * mDensity);

 int width = mWidth, drawCount = 0;
 float xPosition = 0, textWidth = Layout.getDesiredWidth("0", textPaint);

 for (int i = 0; drawCount <= 4 * width; i++) {
 int numSize = String.valueOf(mValue + i).length();
 // 前
 xPosition = (width / 2 - mMove) + i * mLineDivider * mDensity;
 if (xPosition + getPaddingRight() < mWidth) {
 if ((mValue + i) % mModType == 0) {
 linePaint.setColor(Color.rgb(68, 135, 188));
 canvas.drawLine(xPosition, getPaddingTop(), xPosition,
 mDensity * ITEM_MAX_HEIGHT, linePaint);

 if (mValue + i <= mMaxValue) {
 switch (mModType) {
 case MOD_TYPE_HALF:
 canvas.drawText(
  String.valueOf((mValue + i) / 2),
  countLeftStart(mValue + i, xPosition,
  textWidth),
  getHeight() - textWidth, textPaint);
 break;
 case MOD_TYPE_ONE:
 canvas.drawText(String.valueOf(mValue + i),
  xPosition - (textWidth * numSize / 2),
  getHeight() - textWidth, textPaint);
 break;
 default:
 break;
 }
 }
 } else {
 linePaint.setColor(Color.rgb(141, 189, 225));
 // linePaint.setColor(Color.rgb(68, 135, 188));
 canvas.drawLine(xPosition, getPaddingTop(), xPosition,
 mDensity * ITEM_MIN_HEIGHT, linePaint);
 }
 }
 // 后
 xPosition = (width / 2 - mMove) - i * mLineDivider * mDensity;
 if (xPosition > getPaddingLeft()) {
 if ((mValue - i) % mModType == 0) {
 linePaint.setColor(Color.rgb(68, 135, 188));
 canvas.drawLine(xPosition, getPaddingTop(), xPosition,
 mDensity * ITEM_MAX_HEIGHT, linePaint);

 if (mValue - i >= 0) {
 switch (mModType) {
 case MOD_TYPE_HALF:
 canvas.drawText(
  String.valueOf((mValue - i) / 2),
  countLeftStart(mValue - i, xPosition,
  textWidth),
  getHeight() - textWidth, textPaint);
 break;
 case MOD_TYPE_ONE:
 canvas.drawText(String.valueOf(mValue - i),
  xPosition - (textWidth * numSize / 2),
  getHeight() - textWidth, textPaint);
 break;

 default:
 break;
 }
 }
 } else {
 linePaint.setColor(Color.rgb(141, 189, 225));
 canvas.drawLine(xPosition, getPaddingTop(), xPosition,
 mDensity * ITEM_MIN_HEIGHT, linePaint);
 }
 }

 drawCount += 2 * mLineDivider * mDensity;
 }

 canvas.restore();
 }

 /**
 * 计算没有数字显示位置的辅助方法
 *
 * @param value
 * @param xPosition
 * @param textWidth
 * @return
 */
 private float countLeftStart(int value, float xPosition, float textWidth) {
 float xp = 0f;
 if (value < 20) {
 xp = xPosition - (textWidth * 1 / 2);
 } else {
 xp = xPosition - (textWidth * 2 / 2);
 }
 return xp;
 }

 /**
 * 画中间的红色指示线、阴影等。指示线两端简单的用了两个矩形代替
 *
 * @param canvas
 */
 private void drawMiddleLine(Canvas canvas) {
 // TOOD 常量太多，暂时放这，最终会放在类的开始，放远了怕很快忘记
 int gap = 12, indexWidth = 2, indexTitleWidth = 24, indexTitleHight = 10, shadow = 6;
 String color = "#66999999";

 canvas.save();

 Paint redPaint = new Paint();
 redPaint.setStrokeWidth(indexWidth);
 redPaint.setColor(Color.RED);
 canvas.drawLine(mWidth / 2, 0, mWidth / 2, mHeight, redPaint);

 canvas.restore();
 }

 @Override
 public boolean onTouchEvent(MotionEvent event) {
 int action = event.getAction();
 int xPosition = (int) event.getX();

 if (mVelocityTracker == null) {
 mVelocityTracker = VelocityTracker.obtain();
 }
 mVelocityTracker.addMovement(event);

 switch (action) {
 case MotionEvent.ACTION_DOWN:

 mScroller.forceFinished(true);

 mLastX = xPosition;
 mMove = 0;
 break;
 case MotionEvent.ACTION_MOVE:
 getParent().requestDisallowInterceptTouchEvent(true);
 mMove += (mLastX - xPosition);
 changeMoveAndValue();
 break;
 case MotionEvent.ACTION_UP:
 case MotionEvent.ACTION_CANCEL:
 countMoveEnd();
 countVelocityTracker(event);
 getParent().requestDisallowInterceptTouchEvent(false);
 return false;
 // break;
 default:
 break;
 }

 mLastX = xPosition;
 return true;
 }

 private void countVelocityTracker(MotionEvent event) {
 mVelocityTracker.computeCurrentVelocity(1000);
 float xVelocity = mVelocityTracker.getXVelocity();
 if (Math.abs(xVelocity) > mMinVelocity) {
 mScroller.fling(0, 0, (int) xVelocity, 0, Integer.MIN_VALUE,
 Integer.MAX_VALUE, 0, 0);
 }
 }

 private void changeMoveAndValue() {
 int tValue = (int) (mMove / (mLineDivider * mDensity));
 if (Math.abs(tValue) > 0) {
 mValue += tValue;
 mMove -= tValue * mLineDivider * mDensity;
 if (mValue <= 0 || mValue > mMaxValue) {
 mValue = mValue <= 0 ? 0 : mMaxValue;
 mMove = 0;
 mScroller.forceFinished(true);
 }
 notifyValueChange();
 }
 postInvalidate();
 }

 private void countMoveEnd() {
 int roundMove = Math.round(mMove / (mLineDivider * mDensity));
 mValue = mValue + roundMove;
 mValue = mValue <= 0 ? 0 : mValue;
 mValue = mValue > mMaxValue ? mMaxValue : mValue;

 mLastX = 0;
 mMove = 0;

 notifyValueChange();
 postInvalidate();
 }

 private void notifyValueChange() {
 if (null != mListener) {
 if (mModType == MOD_TYPE_ONE) {
 mListener.onValueChange(mValue);
 }
 if (mModType == MOD_TYPE_HALF) {
 mListener.onValueChange(mValue / 2f);
 }
 }
 }

 @Override
 public void computeScroll() {
 super.computeScroll();
 if (mScroller.computeScrollOffset()) {
 if (mScroller.getCurrX() == mScroller.getFinalX()) { // over
 countMoveEnd();
 } else {
 int xPosition = mScroller.getCurrX();
 mMove += (mLastX - xPosition);
 changeMoveAndValue();
 mLastX = xPosition;
 }
 }
 }

 @Override
 public boolean dispatchTouchEvent(MotionEvent event) {
 getParent().requestDisallowInterceptTouchEvent(true);
 return super.dispatchTouchEvent(event);
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
<TextView
 android:id="@+id/tv_values"
 android:layout_width="match_parent"
 android:layout_height="wrap_content"
 android:padding="10dp"
 android:gravity="center"
 android:textColor="@android:color/holo_red_dark"/>
 <android.tst.com.myapplication.RulerView
 android:id="@+id/rv_view"
 android:layout_width="match_parent"
 android:layout_height="60dp"/>

<LinearLayout
 android:layout_width="match_parent"
 android:orientation="horizontal"
 android:layout_height="wrap_content">

 <Button
 android:id="@+id/btn_jia"
 android:layout_width="0dp"
 android:layout_height="wrap_content"
 android:text="+"
 android:textSize="25sp"
 android:gravity="center"
 android:layout_marginRight="15dp"
 android:layout_weight="1"/>
 <Button
 android:id="@+id/btn_jian"
 android:layout_width="0dp"
 android:layout_height="wrap_content"
 android:text="-"
 android:layout_marginLeft="15dp"
 android:textSize="25sp"
 android:gravity="center"
 android:layout_weight="1"/>
</LinearLayout>

1
2
3
4
5
6
Handler handler = new Handler() {
 @Override
 public void handleMessage(Message msg) {
  tv_values.setText(rv_view.getValue() + "Kg");
 };
 };

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
private void deployRulerView(){
 rv_view= (RulerView) findViewById(R.id.rv_view);
 btn_jia= (Button) findViewById(R.id.btn_jia);
 btn_jian= (Button) findViewById(R.id.btn_jian);
 tv_values= (TextView) findViewById(R.id.tv_values);
 //设置RulerView的初始值
 rv_view.setValue(60);
 //初始化刻度尺范围
 rv_view.initViewParam(60, 200, RulerView.MOD_TYPE_ONE);
 rv_view.setValueChangeListener(new RulerView.OnValueChangeListener() {
  @Override
  public void onValueChange(float value) {
  handler.sendMessage(new Message());
  }
 });
 tv_values.setText(60+"KG");
 //给两个控件添加监听事件
 btn_jia.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  rv_view.setValueToChange(1);
  }
 });
 btn_jian.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  rv_view.setValueToChange(-1);
  }
 });
 }
