我是靠谱客的博主故意钢笔，这篇文章主要介绍android实现截图并动画消失效果的思路详解，现在分享给大家，希望可以做个参考。

整体思路

1、获取要截图的view
2、根据这个view创建Bitmap
3、保存图片，拿到图片路径
4、把图片路径传入自定义view（自定义view实现的功能：画圆角边框，动画缩小至消失）
主要用到的是ObjectAnimator属性动画的缩小和平移

核心代码

得到图片的路径

复制代码

private String getFilePath() {
 Bitmap bitmap = createViewBitmap(picImg);
 if (bitmap != null) {
  try {
  // 首先保存图片
  String storePath = Environment.getExternalStorageDirectory().getAbsolutePath() + File.separator + "HIS";
  File appDir = new File(storePath);
  if (!appDir.exists()) {
   appDir.mkdir();
  }
  String fileName = System.currentTimeMillis() + ".jpg";
  File file = new File(appDir, fileName);

BufferedOutputStream bos = new BufferedOutputStream(new FileOutputStream(file));
  bitmap.compress(Bitmap.CompressFormat.JPEG, 80, bos);
  bos.flush();
  bos.close();
  Intent intent = new Intent(Intent.ACTION_MEDIA_SCANNER_SCAN_FILE);
  Uri uri = Uri.fromFile(file);
  intent.setData(uri);
  sendBroadcast(intent);
  return file.getAbsolutePath();
  } catch (Exception e) {
  return null;
  }
 } else {
  return null;
 }

}
public Bitmap createViewBitmap(View v) {
 Bitmap bitmap = Bitmap.createBitmap(v.getWidth(), v.getHeight(), Bitmap.Config.ARGB_8888);
 Canvas canvas = new Canvas(bitmap);
 v.draw(canvas);
 return bitmap;
 }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
private String getFilePath() {
 Bitmap bitmap = createViewBitmap(picImg);
 if (bitmap != null) {
  try {
  // 首先保存图片
  String storePath = Environment.getExternalStorageDirectory().getAbsolutePath() + File.separator + "HIS";
  File appDir = new File(storePath);
  if (!appDir.exists()) {
   appDir.mkdir();
  }
  String fileName = System.currentTimeMillis() + ".jpg";
  File file = new File(appDir, fileName);

  BufferedOutputStream bos = new BufferedOutputStream(new FileOutputStream(file));
  bitmap.compress(Bitmap.CompressFormat.JPEG, 80, bos);
  bos.flush();
  bos.close();
  Intent intent = new Intent(Intent.ACTION_MEDIA_SCANNER_SCAN_FILE);
  Uri uri = Uri.fromFile(file);
  intent.setData(uri);
  sendBroadcast(intent);
  return file.getAbsolutePath();
  } catch (Exception e) {
  return null;
  }
 } else {
  return null;
 }

 }
public Bitmap createViewBitmap(View v) {
 Bitmap bitmap = Bitmap.createBitmap(v.getWidth(), v.getHeight(), Bitmap.Config.ARGB_8888);
 Canvas canvas = new Canvas(bitmap);
 v.draw(canvas);
 return bitmap;
 }

把图片路径传入自定义view

复制代码

1
2
3
4
String filePath = getFilePath();
 mDisplayScreenshotSnv.setVisibility(View.GONE);
 mDisplayScreenshotSnv.setPath(filePath, picImg.getMeasuredWidth(), picImg.getMeasuredHeight(), true);
 mDisplayScreenshotSnv.setVisibility(View.VISIBLE);

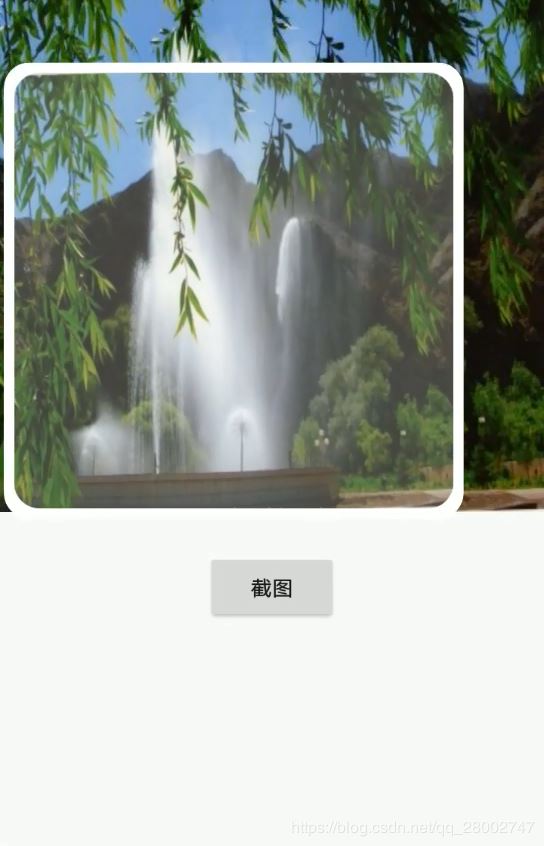

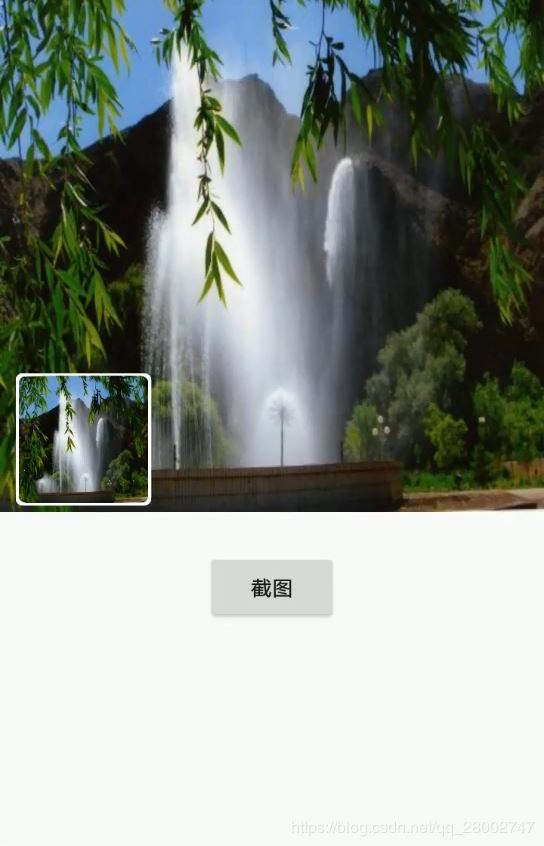

截图实现圆角边框和动画消失

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
//实现截图动画（添加圆角边框）
  Glide.with(getContext())
   .load(new File(path))
   .transform(new CenterCrop(getContext()), new GlideRoundTransform(getContext(), radius))
   .crossFade()
   .listener(new RequestListener<File, GlideDrawable>() {
    @Override
    public boolean onException(Exception e, File model, Target<GlideDrawable> target, boolean isFirstResource) {
    if (anim) {
     anim(thumb, true);
    }
    return false;
    }

    @Override
    public boolean onResourceReady(GlideDrawable resource, File model, Target<GlideDrawable> target, boolean isFromMemoryCache, boolean isFirstResource) {
    if (thumb.getDrawable() == null) {
     // 避免截图成功时出现短暂的全屏白色背景
     thumb.setImageDrawable(resource);
    }
    if (anim) {
     anim(thumb, true);
    }
    return false;
    }
   }).into(thumb);

  //启动延时关闭截图（显示5秒消失截图）
  startTick(true);

动画设置

复制代码

/**
 * 动画设置
 * @param view
 * @param start
 */
 private void anim(final ImageView view, boolean start) {
 if (!start) {
  if (getChildCount() > 0) {
  // 快速点击截图时，上一次添加的子视图尚未移除，需重置视图
  resetView();
  }
  setScaleX(1f);
  setScaleY(1f);
  setTranslationX(0f);
  setTranslationY(0f);
  clearAnimation();
  if (mScaleXAnim != null) {
  mScaleXAnim.cancel();
  mScaleXAnim = null;
  }
  if (mScaleYAnim != null) {
  mScaleYAnim.cancel();
  mScaleYAnim = null;
  }
  if (mTranslationXAnim != null) {
  mTranslationXAnim.cancel();
  mTranslationXAnim = null;
  }
  if (mTranslationYAnim != null) {
  mTranslationYAnim.cancel();
  mTranslationYAnim = null;
  }
  return;
 }

view.post(new Runnable() {
  @Override
  public void run() {
  if (!view.isAttachedToWindow()) {
   // 子视图已被移除
   return;
  }
  setCardBackgroundColor(Color.WHITE);

//等待cross fade动画
  float margins = DisplayUtil.dip2px(getContext(), 10);
  float scaleToX = (float) mFinalW / getMeasuredWidth();
  float scaleToY = (float) mFinalH / getMeasuredHeight();
  float translateToX = -(getMeasuredWidth() / 2f - (mFinalW / 2 + margins));
  float translateToY = getMeasuredHeight() / 2f - (mFinalH / 2f + margins);

//以当前view为中心，x轴右为正，左为负；y轴下为正，上为负

mScaleXAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "scaleX", 1.0f, scaleToX);
  mScaleYAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "scaleY", 1.0f, scaleToY);

mTranslationXAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "translationX", 1.0f, translateToX);
  mTranslationYAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "translationY", 1.0f, translateToY);

//设置速度
  mScaleXAnim.setDuration(500);
  mScaleYAnim.setDuration(500);
  mTranslationXAnim.setDuration(500);
  mTranslationYAnim.setDuration(500);

//缩放
  mScaleXAnim.start();
  mScaleYAnim.start();
  //平移
  mTranslationXAnim.start();
  mTranslationYAnim.start();
  setEnabled(false);
  mScaleXAnim.addListener(new AnimatorListenerAdapter() {
   @Override
   public void onAnimationCancel(Animator animation) {
   super.onAnimationCancel(animation);
   setEnabled(true);
   }

@Override
   public void onAnimationEnd(Animator animation) {
   super.onAnimationEnd(animation);
   setEnabled(true);
   setClickable(true);
   }

@Override
   public void onAnimationStart(Animator animation) {
   super.onAnimationStart(animation);
   }
  });

}
 });
 }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
/**
 * 动画设置
 * @param view
 * @param start
 */
 private void anim(final ImageView view, boolean start) {
 if (!start) {
  if (getChildCount() > 0) {
  // 快速点击截图时，上一次添加的子视图尚未移除，需重置视图
  resetView();
  }
  setScaleX(1f);
  setScaleY(1f);
  setTranslationX(0f);
  setTranslationY(0f);
  clearAnimation();
  if (mScaleXAnim != null) {
  mScaleXAnim.cancel();
  mScaleXAnim = null;
  }
  if (mScaleYAnim != null) {
  mScaleYAnim.cancel();
  mScaleYAnim = null;
  }
  if (mTranslationXAnim != null) {
  mTranslationXAnim.cancel();
  mTranslationXAnim = null;
  }
  if (mTranslationYAnim != null) {
  mTranslationYAnim.cancel();
  mTranslationYAnim = null;
  }
  return;
 }

 view.post(new Runnable() {
  @Override
  public void run() {
  if (!view.isAttachedToWindow()) {
   // 子视图已被移除
   return;
  }
  setCardBackgroundColor(Color.WHITE);

  //等待cross fade动画
  float margins = DisplayUtil.dip2px(getContext(), 10);
  float scaleToX = (float) mFinalW / getMeasuredWidth();
  float scaleToY = (float) mFinalH / getMeasuredHeight();
  float translateToX = -(getMeasuredWidth() / 2f - (mFinalW / 2 + margins));
  float translateToY = getMeasuredHeight() / 2f - (mFinalH / 2f + margins);

  //以当前view为中心，x轴右为正，左为负；y轴下为正，上为负

  mScaleXAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "scaleX", 1.0f, scaleToX);
  mScaleYAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "scaleY", 1.0f, scaleToY);

  mTranslationXAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "translationX", 1.0f, translateToX);
  mTranslationYAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "translationY", 1.0f, translateToY);

  //设置速度
  mScaleXAnim.setDuration(500);
  mScaleYAnim.setDuration(500);
  mTranslationXAnim.setDuration(500);
  mTranslationYAnim.setDuration(500);

  //缩放
  mScaleXAnim.start();
  mScaleYAnim.start();
  //平移
  mTranslationXAnim.start();
  mTranslationYAnim.start();
  setEnabled(false);
  mScaleXAnim.addListener(new AnimatorListenerAdapter() {
   @Override
   public void onAnimationCancel(Animator animation) {
   super.onAnimationCancel(animation);
   setEnabled(true);
   }

   @Override
   public void onAnimationEnd(Animator animation) {
   super.onAnimationEnd(animation);
   setEnabled(true);
   setClickable(true);
   }

   @Override
   public void onAnimationStart(Animator animation) {
   super.onAnimationStart(animation);
   }
  });

  }
 });
 }

完整代码

ScreenshotNotifyView.java

复制代码

package com.lyw.myproject.widget;
import android.animation.Animator;
import android.animation.AnimatorListenerAdapter;
import android.animation.ObjectAnimator;
import android.content.Context;
import android.graphics.Color;
import android.os.Handler;
import android.os.Looper;
import android.util.AttributeSet;
import android.view.Gravity;
import android.widget.FrameLayout;
import android.widget.ImageView;
import com.bumptech.glide.Glide;
import com.bumptech.glide.load.resource.bitmap.CenterCrop;
import com.bumptech.glide.load.resource.drawable.GlideDrawable;
import com.bumptech.glide.request.RequestListener;
import com.bumptech.glide.request.target.Target;
import com.lyw.myproject.screenshot.GlideRoundTransform;
import com.lyw.myproject.utils.DisplayUtil;
import java.io.File;
import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.cardview.widget.CardView;

public class ScreenshotNotifyView extends CardView {
 private int mFinalW;
 private int mFinalH;

private Handler mHandler;

private ObjectAnimator mScaleXAnim = null;
 private ObjectAnimator mScaleYAnim = null;

private ObjectAnimator mTranslationXAnim = null;
 private ObjectAnimator mTranslationYAnim = null;

public ScreenshotNotifyView(@NonNull Context context) {
 super(context);
 init(context);
 }

public ScreenshotNotifyView(@NonNull Context context, @Nullable AttributeSet attrs) {
 super(context, attrs);
 init(context);
 }

public ScreenshotNotifyView(@NonNull Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
 super(context, attrs, defStyleAttr);
 init(context);
 }

@Override
 public void setVisibility(int visibility) {
 super.setVisibility(visibility);
 if (visibility == GONE) {
  resetView();
 }
 }

@Override
 protected void onDetachedFromWindow() {
 super.onDetachedFromWindow();
 anim(null, false);
 startTick(false);
 }

private void init(Context context) {
 mHandler = new Handler(Looper.getMainLooper());
 setCardElevation(0);
 }

public void setPath(final String path, int w, int h, final boolean anim) {
 setClickable(false);
 anim(null, false);
 final ImageView thumb = new ImageView(getContext());
 FrameLayout.LayoutParams thumbParams = new FrameLayout.LayoutParams(FrameLayout.LayoutParams.MATCH_PARENT, FrameLayout.LayoutParams.MATCH_PARENT);
 FrameLayout.LayoutParams params = (FrameLayout.LayoutParams) getLayoutParams();
 int padding = (int) DisplayUtil.dip2px(getContext(), 2);
 int margins = (int) DisplayUtil.dip2px(getContext(), 8);

//设置截图之后的宽度，高度按照比例设置
 mFinalW = (int) DisplayUtil.dip2px(getContext(), 90);
 mFinalH = (int) ((float) mFinalW * h) / w;
 if (!anim) {
  //设置边框
  params.setMargins(margins, margins, margins, margins);
  margins = (int) DisplayUtil.dip2px(getContext(), 2);
  params.width = mFinalW + margins * 2;
  params.height = mFinalH + margins * 2;
  params.gravity = Gravity.START | Gravity.BOTTOM;

thumbParams.width = mFinalW;
  thumbParams.height = mFinalH;
  thumbParams.gravity = Gravity.CENTER;
  setLayoutParams(params);
  requestLayout();
 } else {
  //设置边框
  thumbParams.setMargins(margins, margins, margins, margins);
  params.setMargins(0, 0, 0, 0);
  params.width = FrameLayout.LayoutParams.MATCH_PARENT;
  params.height = FrameLayout.LayoutParams.MATCH_PARENT;
  setLayoutParams(params);
  requestLayout();
 }
 thumb.setScaleType(ImageView.ScaleType.FIT_XY);
 thumb.setLayoutParams(thumbParams);
 addView(thumb);
 post(new Runnable() {
  @Override
  public void run() {
  float scale = (float) mFinalW / getMeasuredWidth();
  int radius = 5;
  if (anim) {
   radius = (int) (5f / scale);
  }
  setRadius((int) DisplayUtil.dip2px(getContext(), radius));

//显示截图（添加圆角）
  Glide.with(getContext())
   .load(new File(path))
   .transform(new CenterCrop(getContext()), new GlideRoundTransform(getContext(), radius))
   .crossFade()
   .listener(new RequestListener<File, GlideDrawable>() {
    @Override
    public boolean onException(Exception e, File model, Target<GlideDrawable> target, boolean isFirstResource) {
    if (anim) {
     anim(thumb, true);
    }
    return false;
    }

@Override
    public boolean onResourceReady(GlideDrawable resource, File model, Target<GlideDrawable> target, boolean isFromMemoryCache, boolean isFirstResource) {
    if (thumb.getDrawable() == null) {
     // 避免截图成功时出现短暂的全屏白色背景
     thumb.setImageDrawable(resource);
    }
    if (anim) {
     anim(thumb, true);
    }
    return false;
    }
   }).into(thumb);

//启动延时关闭截图（显示5秒消失截图）
  startTick(true);
  }
 });
 }

view.post(new Runnable() {
  @Override
  public void run() {
  if (!view.isAttachedToWindow()) {
   // 子视图已被移除
   return;
  }
  setCardBackgroundColor(Color.WHITE);

//以当前view为中心，x轴右为正，左为负；y轴下为正，上为负

mScaleXAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "scaleX", 1.0f, scaleToX);
  mScaleYAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "scaleY", 1.0f, scaleToY);

//设置速度
  mScaleXAnim.setDuration(500);
  mScaleYAnim.setDuration(500);
  mTranslationXAnim.setDuration(500);
  mTranslationYAnim.setDuration(500);

@Override
   public void onAnimationEnd(Animator animation) {
   super.onAnimationEnd(animation);
   setEnabled(true);
   setClickable(true);
   }

@Override
   public void onAnimationStart(Animator animation) {
   super.onAnimationStart(animation);
   }
  });

}
 });
 }

private void resetView() {
 setCardBackgroundColor(Color.TRANSPARENT);
 removeAllViews();
 startTick(false);
 }

private void startTick(boolean start) {
 if (!start) {
  mHandler.removeCallbacksAndMessages(null);
  return;
 }
 mHandler.postDelayed(new Runnable() {
  @Override
  public void run() {
  setVisibility(GONE);
  }
 }, 5 * 1000);
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
package com.lyw.myproject.widget;
import android.animation.Animator;
import android.animation.AnimatorListenerAdapter;
import android.animation.ObjectAnimator;
import android.content.Context;
import android.graphics.Color;
import android.os.Handler;
import android.os.Looper;
import android.util.AttributeSet;
import android.view.Gravity;
import android.widget.FrameLayout;
import android.widget.ImageView;
import com.bumptech.glide.Glide;
import com.bumptech.glide.load.resource.bitmap.CenterCrop;
import com.bumptech.glide.load.resource.drawable.GlideDrawable;
import com.bumptech.glide.request.RequestListener;
import com.bumptech.glide.request.target.Target;
import com.lyw.myproject.screenshot.GlideRoundTransform;
import com.lyw.myproject.utils.DisplayUtil;
import java.io.File;
import androidx.annotation.NonNull;
import androidx.annotation.Nullable;
import androidx.cardview.widget.CardView;

public class ScreenshotNotifyView extends CardView {
 private int mFinalW;
 private int mFinalH;

 private Handler mHandler;

 private ObjectAnimator mScaleXAnim = null;
 private ObjectAnimator mScaleYAnim = null;

 private ObjectAnimator mTranslationXAnim = null;
 private ObjectAnimator mTranslationYAnim = null;

 public ScreenshotNotifyView(@NonNull Context context) {
 super(context);
 init(context);
 }

 public ScreenshotNotifyView(@NonNull Context context, @Nullable AttributeSet attrs) {
 super(context, attrs);
 init(context);
 }

 public ScreenshotNotifyView(@NonNull Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
 super(context, attrs, defStyleAttr);
 init(context);
 }

 @Override
 public void setVisibility(int visibility) {
 super.setVisibility(visibility);
 if (visibility == GONE) {
  resetView();
 }
 }

 @Override
 protected void onDetachedFromWindow() {
 super.onDetachedFromWindow();
 anim(null, false);
 startTick(false);
 }

 private void init(Context context) {
 mHandler = new Handler(Looper.getMainLooper());
 setCardElevation(0);
 }

 public void setPath(final String path, int w, int h, final boolean anim) {
 setClickable(false);
 anim(null, false);
 final ImageView thumb = new ImageView(getContext());
 FrameLayout.LayoutParams thumbParams = new FrameLayout.LayoutParams(FrameLayout.LayoutParams.MATCH_PARENT, FrameLayout.LayoutParams.MATCH_PARENT);
 FrameLayout.LayoutParams params = (FrameLayout.LayoutParams) getLayoutParams();
 int padding = (int) DisplayUtil.dip2px(getContext(), 2);
 int margins = (int) DisplayUtil.dip2px(getContext(), 8);

 //设置截图之后的宽度，高度按照比例设置
 mFinalW = (int) DisplayUtil.dip2px(getContext(), 90);
 mFinalH = (int) ((float) mFinalW * h) / w;
 if (!anim) {
  //设置边框
  params.setMargins(margins, margins, margins, margins);
  margins = (int) DisplayUtil.dip2px(getContext(), 2);
  params.width = mFinalW + margins * 2;
  params.height = mFinalH + margins * 2;
  params.gravity = Gravity.START | Gravity.BOTTOM;

  thumbParams.width = mFinalW;
  thumbParams.height = mFinalH;
  thumbParams.gravity = Gravity.CENTER;
  setLayoutParams(params);
  requestLayout();
 } else {
  //设置边框
  thumbParams.setMargins(margins, margins, margins, margins);
  params.setMargins(0, 0, 0, 0);
  params.width = FrameLayout.LayoutParams.MATCH_PARENT;
  params.height = FrameLayout.LayoutParams.MATCH_PARENT;
  setLayoutParams(params);
  requestLayout();
 }
 thumb.setScaleType(ImageView.ScaleType.FIT_XY);
 thumb.setLayoutParams(thumbParams);
 addView(thumb);
 post(new Runnable() {
  @Override
  public void run() {
  float scale = (float) mFinalW / getMeasuredWidth();
  int radius = 5;
  if (anim) {
   radius = (int) (5f / scale);
  }
  setRadius((int) DisplayUtil.dip2px(getContext(), radius));

  //显示截图（添加圆角）
  Glide.with(getContext())
   .load(new File(path))
   .transform(new CenterCrop(getContext()), new GlideRoundTransform(getContext(), radius))
   .crossFade()
   .listener(new RequestListener<File, GlideDrawable>() {
    @Override
    public boolean onException(Exception e, File model, Target<GlideDrawable> target, boolean isFirstResource) {
    if (anim) {
     anim(thumb, true);
    }
    return false;
    }

    @Override
    public boolean onResourceReady(GlideDrawable resource, File model, Target<GlideDrawable> target, boolean isFromMemoryCache, boolean isFirstResource) {
    if (thumb.getDrawable() == null) {
     // 避免截图成功时出现短暂的全屏白色背景
     thumb.setImageDrawable(resource);
    }
    if (anim) {
     anim(thumb, true);
    }
    return false;
    }
   }).into(thumb);

  //启动延时关闭截图（显示5秒消失截图）
  startTick(true);
  }
 });
 }

 /**
 * 动画设置
 * @param view
 * @param start
 */
 private void anim(final ImageView view, boolean start) {
 if (!start) {
  if (getChildCount() > 0) {
  // 快速点击截图时，上一次添加的子视图尚未移除，需重置视图
  resetView();
  }
  setScaleX(1f);
  setScaleY(1f);
  setTranslationX(0f);
  setTranslationY(0f);
  clearAnimation();
  if (mScaleXAnim != null) {
  mScaleXAnim.cancel();
  mScaleXAnim = null;
  }
  if (mScaleYAnim != null) {
  mScaleYAnim.cancel();
  mScaleYAnim = null;
  }
  if (mTranslationXAnim != null) {
  mTranslationXAnim.cancel();
  mTranslationXAnim = null;
  }
  if (mTranslationYAnim != null) {
  mTranslationYAnim.cancel();
  mTranslationYAnim = null;
  }
  return;
 }

 view.post(new Runnable() {
  @Override
  public void run() {
  if (!view.isAttachedToWindow()) {
   // 子视图已被移除
   return;
  }
  setCardBackgroundColor(Color.WHITE);

  //等待cross fade动画
  float margins = DisplayUtil.dip2px(getContext(), 10);
  float scaleToX = (float) mFinalW / getMeasuredWidth();
  float scaleToY = (float) mFinalH / getMeasuredHeight();
  float translateToX = -(getMeasuredWidth() / 2f - (mFinalW / 2 + margins));
  float translateToY = getMeasuredHeight() / 2f - (mFinalH / 2f + margins);

  //以当前view为中心，x轴右为正，左为负；y轴下为正，上为负

  mScaleXAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "scaleX", 1.0f, scaleToX);
  mScaleYAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "scaleY", 1.0f, scaleToY);

  mTranslationXAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "translationX", 1.0f, translateToX);
  mTranslationYAnim = ObjectAnimator.ofFloat(ScreenshotNotifyView.this, "translationY", 1.0f, translateToY);

  //设置速度
  mScaleXAnim.setDuration(500);
  mScaleYAnim.setDuration(500);
  mTranslationXAnim.setDuration(500);
  mTranslationYAnim.setDuration(500);

  //缩放
  mScaleXAnim.start();
  mScaleYAnim.start();
  //平移
  mTranslationXAnim.start();
  mTranslationYAnim.start();
  setEnabled(false);
  mScaleXAnim.addListener(new AnimatorListenerAdapter() {
   @Override
   public void onAnimationCancel(Animator animation) {
   super.onAnimationCancel(animation);
   setEnabled(true);
   }

   @Override
   public void onAnimationEnd(Animator animation) {
   super.onAnimationEnd(animation);
   setEnabled(true);
   setClickable(true);
   }

   @Override
   public void onAnimationStart(Animator animation) {
   super.onAnimationStart(animation);
   }
  });

  }
 });
 }

 private void resetView() {
 setCardBackgroundColor(Color.TRANSPARENT);
 removeAllViews();
 startTick(false);
 }

 private void startTick(boolean start) {
 if (!start) {
  mHandler.removeCallbacksAndMessages(null);
  return;
 }
 mHandler.postDelayed(new Runnable() {
  @Override
  public void run() {
  setVisibility(GONE);
  }
 }, 5 * 1000);
 }
}

GlideRoundTransform.java

复制代码

package com.lyw.myproject.screenshot;

import android.content.Context;
import android.content.res.Resources;
import android.graphics.Bitmap;
import android.graphics.BitmapShader;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.RectF;

import com.bumptech.glide.load.engine.bitmap_recycle.BitmapPool;
import com.bumptech.glide.load.resource.bitmap.BitmapTransformation;

/**
 * Created on 2018/12/26.
 *
 * @author lyw
 **/
public class GlideRoundTransform extends BitmapTransformation {

private static float radius = 0f;

/**
 * 构造函数 默认圆角半径 4dp
 *
 * @param context Context
 */
 public GlideRoundTransform(Context context) {
 this(context, 4);
 }

/**
 * 构造函数
 *
 * @param context Context
 * @param dp 圆角半径
 */
 public GlideRoundTransform(Context context, int dp) {
 super(context);
 radius = Resources.getSystem().getDisplayMetrics().density * dp;
 }

@Override
 protected Bitmap transform(BitmapPool pool, Bitmap toTransform, int outWidth, int outHeight) {
 return roundCrop(pool, toTransform);
 }

private static Bitmap roundCrop(BitmapPool pool, Bitmap source) {
 if (source == null) {
  return null;
 }

Bitmap result = pool.get(source.getWidth(), source.getHeight(), Bitmap.Config.ARGB_8888);
 if (result == null) {
  result = Bitmap.createBitmap(source.getWidth(), source.getHeight(), Bitmap.Config.ARGB_8888);
 }

Canvas canvas = new Canvas(result);
 Paint paint = new Paint();
 paint.setShader(new BitmapShader(source, BitmapShader.TileMode.CLAMP, BitmapShader.TileMode.CLAMP));
 paint.setAntiAlias(true);
 RectF rectF = new RectF(0f, 0f, source.getWidth(), source.getHeight());
 canvas.drawRoundRect(rectF, radius, radius, paint);
 return result;
 }

@Override
 public String getId() {
 return getClass().getName() + Math.round(radius);
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
package com.lyw.myproject.screenshot;

import android.content.Context;
import android.content.res.Resources;
import android.graphics.Bitmap;
import android.graphics.BitmapShader;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.RectF;

import com.bumptech.glide.load.engine.bitmap_recycle.BitmapPool;
import com.bumptech.glide.load.resource.bitmap.BitmapTransformation;

/**
 * Created on 2018/12/26.
 *
 * @author lyw
 **/
public class GlideRoundTransform extends BitmapTransformation {

 private static float radius = 0f;

 /**
 * 构造函数 默认圆角半径 4dp
 *
 * @param context Context
 */
 public GlideRoundTransform(Context context) {
 this(context, 4);
 }

 /**
 * 构造函数
 *
 * @param context Context
 * @param dp 圆角半径
 */
 public GlideRoundTransform(Context context, int dp) {
 super(context);
 radius = Resources.getSystem().getDisplayMetrics().density * dp;
 }

 @Override
 protected Bitmap transform(BitmapPool pool, Bitmap toTransform, int outWidth, int outHeight) {
 return roundCrop(pool, toTransform);
 }

 private static Bitmap roundCrop(BitmapPool pool, Bitmap source) {
 if (source == null) {
  return null;
 }

 Bitmap result = pool.get(source.getWidth(), source.getHeight(), Bitmap.Config.ARGB_8888);
 if (result == null) {
  result = Bitmap.createBitmap(source.getWidth(), source.getHeight(), Bitmap.Config.ARGB_8888);
 }

 Canvas canvas = new Canvas(result);
 Paint paint = new Paint();
 paint.setShader(new BitmapShader(source, BitmapShader.TileMode.CLAMP, BitmapShader.TileMode.CLAMP));
 paint.setAntiAlias(true);
 RectF rectF = new RectF(0f, 0f, source.getWidth(), source.getHeight());
 canvas.drawRoundRect(rectF, radius, radius, paint);
 return result;
 }

 @Override
 public String getId() {
 return getClass().getName() + Math.round(radius);
 }
}

activity_screen_shot1.xml

复制代码

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:orientation="vertical">

<com.lyw.myproject.widget.ScreenshotNotifyView
  xmlns:app="http://schemas.android.com/apk/res-auto"
  android:id="@+id/display_screenshot_snv"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:visibility="gone"
  app:cardBackgroundColor="@color/src_trans" ></com>

</FrameLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 android:orientation="vertical">

 <FrameLayout
 android:layout_width="match_parent"
 android:layout_height="wrap_content">
 <ImageView
  android:id="@+id/pic_iv"
  android:layout_width="match_parent"
  android:layout_height="wrap_content"
  android:scaleType="fitXY"
  android:src="@mipmap/picture" />

 <com.lyw.myproject.widget.ScreenshotNotifyView
  xmlns:app="http://schemas.android.com/apk/res-auto"
  android:id="@+id/display_screenshot_snv"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:visibility="gone"
  app:cardBackgroundColor="@color/src_trans" />

 </FrameLayout>

 <Button
 android:id="@+id/screen_btn"
 android:text="截图"
 android:layout_gravity="center"
 android:layout_marginTop="20dp"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"/>
</LinearLayout>

ScreenShotActivity1.java

复制代码

package com.lyw.myproject.screenshot;
import android.content.Intent;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.net.Uri;
import android.os.Bundle;
import android.os.Environment;
import android.util.Log;
import android.view.View;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.Toast;

import com.lyw.myproject.BaseActivity;
import com.lyw.myproject.R;
import com.lyw.myproject.utils.LoadingLayout;
import com.lyw.myproject.utils.MemoryUtils;
import com.lyw.myproject.utils.PermissionUtil;
import com.lyw.myproject.widget.ScreenshotNotifyView;

import java.io.BufferedOutputStream;
import java.io.File;
import java.io.FileOutputStream;

import androidx.annotation.Nullable;

/**
 * 功能描述:截图
 */
public class ScreenShotActivity1 extends BaseActivity {
 private ImageView picImg;
 private Button screenBtn;
 private ScreenshotNotifyView mDisplayScreenshotSnv;
 @Override
 protected void onCreate(@Nullable Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_screen_shot1);
 initView();
 initEvent();
 }
 private void initView() {
 picImg = (ImageView) findViewById(R.id.pic_iv);
 mDisplayScreenshotSnv = (ScreenshotNotifyView) findViewById(R.id.display_screenshot_snv);
 screenBtn = (Button) findViewById(R.id.screen_btn);
 }

private void initEvent() {
 screenBtn.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  handleScreenShot();
  }
 });
 }

/**
 * 处理截屏的业务
 */
 private void handleScreenShot() {
 if (!PermissionUtil.isHasSDCardWritePermission(this)) {
  Toast.makeText(ScreenShotActivity1.this, "没有权限", Toast.LENGTH_SHORT).show();
  PermissionUtil.requestSDCardWrite(this);
  return;
 }
 if (!MemoryUtils.hasEnoughMemory(MemoryUtils.MIN_MEMORY)) {
  Toast.makeText(ScreenShotActivity1.this, "内存不足，截图失败", Toast.LENGTH_SHORT).show();
  return;
 }
 String filePath = getFilePath();
 mDisplayScreenshotSnv.setVisibility(View.GONE);
 mDisplayScreenshotSnv.setPath(filePath, picImg.getMeasuredWidth(), picImg.getMeasuredHeight(), true);
 mDisplayScreenshotSnv.setVisibility(View.VISIBLE);
 }

BufferedOutputStream bos = new BufferedOutputStream(new FileOutputStream(file));
  bitmap.compress(Bitmap.CompressFormat.JPEG, 80, bos);
  bos.flush();
  bos.close();

Intent intent = new Intent(Intent.ACTION_MEDIA_SCANNER_SCAN_FILE);
  Uri uri = Uri.fromFile(file);
  intent.setData(uri);
  sendBroadcast(intent);
  return file.getAbsolutePath();
  } catch (Exception e) {
  return null;
  }
 } else {
  return null;
 }
 }

public Bitmap createViewBitmap(View v) {
 Bitmap bitmap = Bitmap.createBitmap(v.getWidth(), v.getHeight(), Bitmap.Config.ARGB_8888);
 Canvas canvas = new Canvas(bitmap);
 v.draw(canvas);
 return bitmap;
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
package com.lyw.myproject.screenshot;
import android.content.Intent;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.net.Uri;
import android.os.Bundle;
import android.os.Environment;
import android.util.Log;
import android.view.View;
import android.view.animation.Animation;
import android.view.animation.AnimationUtils;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.Toast;

import com.lyw.myproject.BaseActivity;
import com.lyw.myproject.R;
import com.lyw.myproject.utils.LoadingLayout;
import com.lyw.myproject.utils.MemoryUtils;
import com.lyw.myproject.utils.PermissionUtil;
import com.lyw.myproject.widget.ScreenshotNotifyView;

import java.io.BufferedOutputStream;
import java.io.File;
import java.io.FileOutputStream;

import androidx.annotation.Nullable;

/**
 * 功能描述:截图
 */
public class ScreenShotActivity1 extends BaseActivity {
 private ImageView picImg;
 private Button screenBtn;
 private ScreenshotNotifyView mDisplayScreenshotSnv;
 @Override
 protected void onCreate(@Nullable Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_screen_shot1);
 initView();
 initEvent();
 }
 private void initView() {
 picImg = (ImageView) findViewById(R.id.pic_iv);
 mDisplayScreenshotSnv = (ScreenshotNotifyView) findViewById(R.id.display_screenshot_snv);
 screenBtn = (Button) findViewById(R.id.screen_btn);
 }

 private void initEvent() {
 screenBtn.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  handleScreenShot();
  }
 });
 }

 /**
 * 处理截屏的业务
 */
 private void handleScreenShot() {
 if (!PermissionUtil.isHasSDCardWritePermission(this)) {
  Toast.makeText(ScreenShotActivity1.this, "没有权限", Toast.LENGTH_SHORT).show();
  PermissionUtil.requestSDCardWrite(this);
  return;
 }
 if (!MemoryUtils.hasEnoughMemory(MemoryUtils.MIN_MEMORY)) {
  Toast.makeText(ScreenShotActivity1.this, "内存不足，截图失败", Toast.LENGTH_SHORT).show();
  return;
 }
 String filePath = getFilePath();
 mDisplayScreenshotSnv.setVisibility(View.GONE);
 mDisplayScreenshotSnv.setPath(filePath, picImg.getMeasuredWidth(), picImg.getMeasuredHeight(), true);
 mDisplayScreenshotSnv.setVisibility(View.VISIBLE);
 }

 private String getFilePath() {
 Bitmap bitmap = createViewBitmap(picImg);
 if (bitmap != null) {
  try {
  // 首先保存图片
  String storePath = Environment.getExternalStorageDirectory().getAbsolutePath() + File.separator + "HIS";
  File appDir = new File(storePath);
  if (!appDir.exists()) {
   appDir.mkdir();
  }
  String fileName = System.currentTimeMillis() + ".jpg";
  File file = new File(appDir, fileName);

  BufferedOutputStream bos = new BufferedOutputStream(new FileOutputStream(file));
  bitmap.compress(Bitmap.CompressFormat.JPEG, 80, bos);
  bos.flush();
  bos.close();

  Intent intent = new Intent(Intent.ACTION_MEDIA_SCANNER_SCAN_FILE);
  Uri uri = Uri.fromFile(file);
  intent.setData(uri);
  sendBroadcast(intent);
  return file.getAbsolutePath();
  } catch (Exception e) {
  return null;
  }
 } else {
  return null;
 }
 }

 public Bitmap createViewBitmap(View v) {
 Bitmap bitmap = Bitmap.createBitmap(v.getWidth(), v.getHeight(), Bitmap.Config.ARGB_8888);
 Canvas canvas = new Canvas(bitmap);
 v.draw(canvas);
 return bitmap;
 }
}

PermissionUtil.java

复制代码

package com.lyw.myproject.utils;

import android.Manifest;
import android.app.Activity;
import android.content.Context;
import android.content.pm.PackageManager;
import android.os.Build;
import androidx.core.app.ActivityCompat;

public class PermissionUtil {
 /**
 * 请求地理位置
 *
 * @param context
 */
 public static void requestLocationPermission(Context context) {
 if (Build.VERSION.SDK_INT >= 23) {
  if (!isHasLocationPermission(context)) {
  ActivityCompat.requestPermissions((Activity) context, PermissionManager.PERMISSION_LOCATION, PermissionManager.REQUEST_LOCATION);
  }
 }
 }

/**
 * 判断是否有地理位置
 *
 * @param context
 * @return
 */
 public static boolean isHasLocationPermission(Context context) {
 return ActivityCompat.checkSelfPermission(context, Manifest.permission.ACCESS_COARSE_LOCATION) == PackageManager.PERMISSION_GRANTED;
 }

/**
 * 判断是否有文件读写的权限
 *
 * @param context
 * @return
 */
 public static boolean isHasSDCardWritePermission(Context context) {
 return ActivityCompat.checkSelfPermission(context, Manifest.permission.WRITE_EXTERNAL_STORAGE) == PackageManager.PERMISSION_GRANTED;
 }

/**
 * 文件权限读写
 *
 * @param context
 */

public static void requestSDCardWrite(Context context) {
 if (Build.VERSION.SDK_INT >= 23) {
  if (!isHasSDCardWritePermission(context)) {
  ActivityCompat.requestPermissions((Activity) context, PermissionManager.PERMISSION_SD_WRITE, PermissionManager.REQUEST_SD_WRITE);
  }
 }
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
package com.lyw.myproject.utils;

import android.Manifest;
import android.app.Activity;
import android.content.Context;
import android.content.pm.PackageManager;
import android.os.Build;
import androidx.core.app.ActivityCompat;

public class PermissionUtil {
 /**
 * 请求地理位置
 *
 * @param context
 */
 public static void requestLocationPermission(Context context) {
 if (Build.VERSION.SDK_INT >= 23) {
  if (!isHasLocationPermission(context)) {
  ActivityCompat.requestPermissions((Activity) context, PermissionManager.PERMISSION_LOCATION, PermissionManager.REQUEST_LOCATION);
  }
 }
 }

 /**
 * 判断是否有地理位置
 *
 * @param context
 * @return
 */
 public static boolean isHasLocationPermission(Context context) {
 return ActivityCompat.checkSelfPermission(context, Manifest.permission.ACCESS_COARSE_LOCATION) == PackageManager.PERMISSION_GRANTED;
 }

 /**
 * 判断是否有文件读写的权限
 *
 * @param context
 * @return
 */
 public static boolean isHasSDCardWritePermission(Context context) {
 return ActivityCompat.checkSelfPermission(context, Manifest.permission.WRITE_EXTERNAL_STORAGE) == PackageManager.PERMISSION_GRANTED;
 }

 /**
 * 文件权限读写
 *
 * @param context
 */

 public static void requestSDCardWrite(Context context) {
 if (Build.VERSION.SDK_INT >= 23) {
  if (!isHasSDCardWritePermission(context)) {
  ActivityCompat.requestPermissions((Activity) context, PermissionManager.PERMISSION_SD_WRITE, PermissionManager.REQUEST_SD_WRITE);
  }
 }
 }
}

MemoryUtils.java

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
package com.lyw.myproject.utils;
import android.util.Log;
public class MemoryUtils {
 public static final int MIN_MEMORY = 50 * 1024 * 1024;
 /**
 * 判断有没足够内存截图
 *
 * @param size
 * @return
 */
 public static boolean hasEnoughMemory(int size) {
 //最大内存
 long maxMemory = Runtime.getRuntime().maxMemory();
 //分配的可用内存
 long freeMemory = Runtime.getRuntime().freeMemory();
 //已用内存
 long usedMemory = Runtime.getRuntime().totalMemory() - freeMemory;
 //剩下可使用的内存
 long canUseMemory = maxMemory - usedMemory;
 Log.d("Memory", "hasEnoughMemory: " +
  "maxMemory = " + maxMemory +
  ", freeMemory = " + freeMemory +
  ", usedMemory = " + usedMemory +
  ", canUseMemory = " + canUseMemory);
 if (canUseMemory >= size) {
  return true;
 }
 return false;
 }
}
