Android实现掷骰子效果

213 阅读 0 评论 141 点赞

我是靠谱客的博主可耐苗条，这篇文章主要介绍Android实现掷骰子效果，现在分享给大家，希望可以做个参考。

本文实例为大家分享了Android实现掷骰子效果的具体代码，供大家参考，具体内容如下

利用handler接受子线程的消息完成骰子点数的不断更替

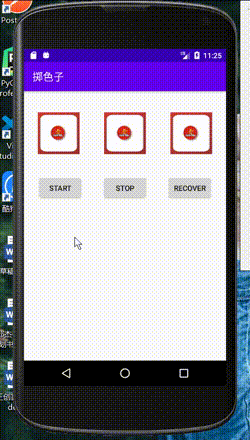

演示

START:开始游戏
STOP:停止游戏
RECOVER:重置色子到初始状态

代码

复制代码

package com.example.homeworkten;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {
 private ImageView imageView1,imageView2,imageView3;
 private Button button1,button2,button3;
 private ImageView[] imageViews;
 private Handler handler;
 //子线程
 private Thread thread;
 //记录每个色子的点数
 private int number[];
 //色子的总点数
 private int count;
 //volatile修饰符用来保证其它线程读取的总是该变量的最新的值
 public volatile boolean isStop = false;
 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main);
 number = new int[3];
 imageView1 = findViewById(R.id.imageView1);
 imageView2 = findViewById(R.id.imageView2);
 imageView3 = findViewById(R.id.imageView3);
 button1 = findViewById(R.id.button1);
 button2 = findViewById(R.id.button2);
 button3 = findViewById(R.id.button3);
 imageViews = new ImageView[]{imageView1,imageView2,imageView3};
 button1.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  //判断线程是否存在
  if (thread != null&&isStop == true){
   isStop = false;
  }
  handler = new Handler(){
   @Override
   public void handleMessage(@NonNull Message msg) {
   super.handleMessage(msg);
   for(int i = 0;i < 3;i++) {
    switch (number[i]) {
    case 1:
     imageViews[i].setImageResource(R.drawable.t1);
     break;
    case 2:
     imageViews[i].setImageResource(R.drawable.t2);
     break;
    case 3:
     imageViews[i].setImageResource(R.drawable.t3);
     break;
    case 4:
     imageViews[i].setImageResource(R.drawable.t4);
     break;
    case 5:
     imageViews[i].setImageResource(R.drawable.t5);
     break;
    case 6:
     imageViews[i].setImageResource(R.drawable.t6);
     break;
    }
   }
   }
  };
  thread = new Thread(new Runnable() {
   @Override
   public void run() {
   while (!isStop) {
    Message message = handler.obtainMessage();
    //总点数归零
    count = 0;
    for (int i = 0; i < 3; i++) {
    try {
     Thread.sleep(50);
    } catch (InterruptedException e) {
     e.printStackTrace();
    }
    //生成随机数
    int random = (int) (Math.random() * 6 + 1);
    number[i] = random;
    count += random;
    }
    handler.sendMessage(message);
   }
   }
  });
  thread.start();
  }
 });
 //停止掷筛子
 button2.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(isStop == false) {
   isStop = true;
   try {
   //当子线程执行完以后才继续执行主线程
   thread.join();
   } catch (InterruptedException e) {
   e.printStackTrace();
   }
   //显示掷出的点数
   Toast.makeText(MainActivity.this, "你掷的点数为" + count, Toast.LENGTH_SHORT).show();
  }else {
   Toast.makeText(MainActivity.this, "请点击开始键进行掷色子", Toast.LENGTH_SHORT).show();
  }
  }
 });
 //将色子还原到初始状态
 button3.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(isStop == true) {
   for (int i = 0; i < 3; i++) {
   imageViews[i].setImageResource(R.drawable.t1);
   }
  }else {
   Toast.makeText(MainActivity.this, "请先停止游戏，再重新开始", Toast.LENGTH_SHORT).show();
  }
  }
 });
 }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
package com.example.homeworkten;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;

import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {
 private ImageView imageView1,imageView2,imageView3;
 private Button button1,button2,button3;
 private ImageView[] imageViews;
 private Handler handler;
 //子线程
 private Thread thread;
 //记录每个色子的点数
 private int number[];
 //色子的总点数
 private int count;
 //volatile修饰符用来保证其它线程读取的总是该变量的最新的值
 public volatile boolean isStop = false;
 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main);
 number = new int[3];
 imageView1 = findViewById(R.id.imageView1);
 imageView2 = findViewById(R.id.imageView2);
 imageView3 = findViewById(R.id.imageView3);
 button1 = findViewById(R.id.button1);
 button2 = findViewById(R.id.button2);
 button3 = findViewById(R.id.button3);
 imageViews = new ImageView[]{imageView1,imageView2,imageView3};
 button1.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  //判断线程是否存在
  if (thread != null&&isStop == true){
   isStop = false;
  }
  handler = new Handler(){
   @Override
   public void handleMessage(@NonNull Message msg) {
   super.handleMessage(msg);
   for(int i = 0;i < 3;i++) {
    switch (number[i]) {
    case 1:
     imageViews[i].setImageResource(R.drawable.t1);
     break;
    case 2:
     imageViews[i].setImageResource(R.drawable.t2);
     break;
    case 3:
     imageViews[i].setImageResource(R.drawable.t3);
     break;
    case 4:
     imageViews[i].setImageResource(R.drawable.t4);
     break;
    case 5:
     imageViews[i].setImageResource(R.drawable.t5);
     break;
    case 6:
     imageViews[i].setImageResource(R.drawable.t6);
     break;
    }
   }
   }
  };
  thread = new Thread(new Runnable() {
   @Override
   public void run() {
   while (!isStop) {
    Message message = handler.obtainMessage();
    //总点数归零
    count = 0;
    for (int i = 0; i < 3; i++) {
    try {
     Thread.sleep(50);
    } catch (InterruptedException e) {
     e.printStackTrace();
    }
    //生成随机数
    int random = (int) (Math.random() * 6 + 1);
    number[i] = random;
    count += random;
    }
    handler.sendMessage(message);
   }
   }
  });
  thread.start();
  }
 });
 //停止掷筛子
 button2.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(isStop == false) {
   isStop = true;
   try {
   //当子线程执行完以后才继续执行主线程
   thread.join();
   } catch (InterruptedException e) {
   e.printStackTrace();
   }
   //显示掷出的点数
   Toast.makeText(MainActivity.this, "你掷的点数为" + count, Toast.LENGTH_SHORT).show();
  }else {
   Toast.makeText(MainActivity.this, "请点击开始键进行掷色子", Toast.LENGTH_SHORT).show();
  }
  }
 });
 //将色子还原到初始状态
 button3.setOnClickListener(new View.OnClickListener() {
  @Override
  public void onClick(View v) {
  if(isStop == true) {
   for (int i = 0; i < 3; i++) {
   imageViews[i].setImageResource(R.drawable.t1);
   }
  }else {
   Toast.makeText(MainActivity.this, "请先停止游戏，再重新开始", Toast.LENGTH_SHORT).show();
  }
  }
 });
 }
}

复制代码

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 xmlns:tools="http://schemas.android.com/tools"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 tools:context=".MainActivity">

</androidx.constraintlayout.widget.ConstraintLayout>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:app="http://schemas.android.com/apk/res-auto"
 xmlns:tools="http://schemas.android.com/tools"
 android:layout_width="match_parent"
 android:layout_height="match_parent"
 tools:context=".MainActivity">

 <ImageView
 android:id="@+id/imageView1"
 android:layout_width="100dp"
 android:layout_height="80dp"
 android:layout_marginStart="10dp"
 android:layout_marginLeft="10dp"
 android:layout_marginTop="40dp"
 android:layout_marginEnd="10dp"
 android:layout_marginRight="10dp"
 app:layout_constraintEnd_toStartOf="@+id/imageView2"
 app:layout_constraintHorizontal_bias="0.482"
 app:layout_constraintStart_toStartOf="parent"
 app:layout_constraintTop_toTopOf="parent"
 app:srcCompat="@drawable/t1" />

 <ImageView
 android:id="@+id/imageView2"
 android:layout_width="100dp"
 android:layout_height="80dp"
 android:layout_marginStart="10dp"
 android:layout_marginLeft="10dp"
 android:layout_marginTop="40dp"
 android:layout_marginEnd="10dp"
 android:layout_marginRight="10dp"
 app:layout_constraintEnd_toStartOf="@+id/imageView3"
 app:layout_constraintStart_toEndOf="@+id/imageView1"
 app:layout_constraintTop_toTopOf="parent"
 app:srcCompat="@drawable/t1" />

 <Button
 android:id="@+id/button1"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:layout_marginStart="10dp"
 android:layout_marginLeft="10dp"
 android:layout_marginTop="40dp"
 android:layout_marginEnd="10dp"
 android:layout_marginRight="10dp"
 android:text="start"
 app:layout_constraintEnd_toStartOf="@+id/button2"
 app:layout_constraintStart_toStartOf="parent"
 app:layout_constraintTop_toBottomOf="@+id/imageView1" />

 <Button
 android:id="@+id/button2"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:layout_marginStart="10dp"
 android:layout_marginLeft="10dp"
 android:layout_marginTop="40dp"
 android:layout_marginEnd="10dp"
 android:layout_marginRight="10dp"
 android:text="stop"
 app:layout_constraintEnd_toStartOf="@+id/button3"
 app:layout_constraintStart_toEndOf="@+id/button1"
 app:layout_constraintTop_toBottomOf="@+id/imageView2" />

 <Button
 android:id="@+id/button3"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:layout_marginStart="10dp"
 android:layout_marginLeft="10dp"
 android:layout_marginTop="40dp"
 android:layout_marginEnd="10dp"
 android:layout_marginRight="10dp"
 android:text="recover"
 app:layout_constraintEnd_toEndOf="parent"
 app:layout_constraintStart_toEndOf="@+id/button2"
 app:layout_constraintTop_toBottomOf="@+id/imageView3" />

 <ImageView
 android:id="@+id/imageView3"
 android:layout_width="100dp"
 android:layout_height="80dp"
 android:layout_marginStart="10dp"
 android:layout_marginLeft="10dp"
 android:layout_marginTop="40dp"
 android:layout_marginEnd="10dp"
 android:layout_marginRight="10dp"
 app:layout_constraintEnd_toEndOf="parent"
 app:layout_constraintStart_toEndOf="@+id/imageView2"
 app:layout_constraintTop_toTopOf="parent"
 app:srcCompat="@drawable/t1" />

</androidx.constraintlayout.widget.ConstraintLayout>
