概述

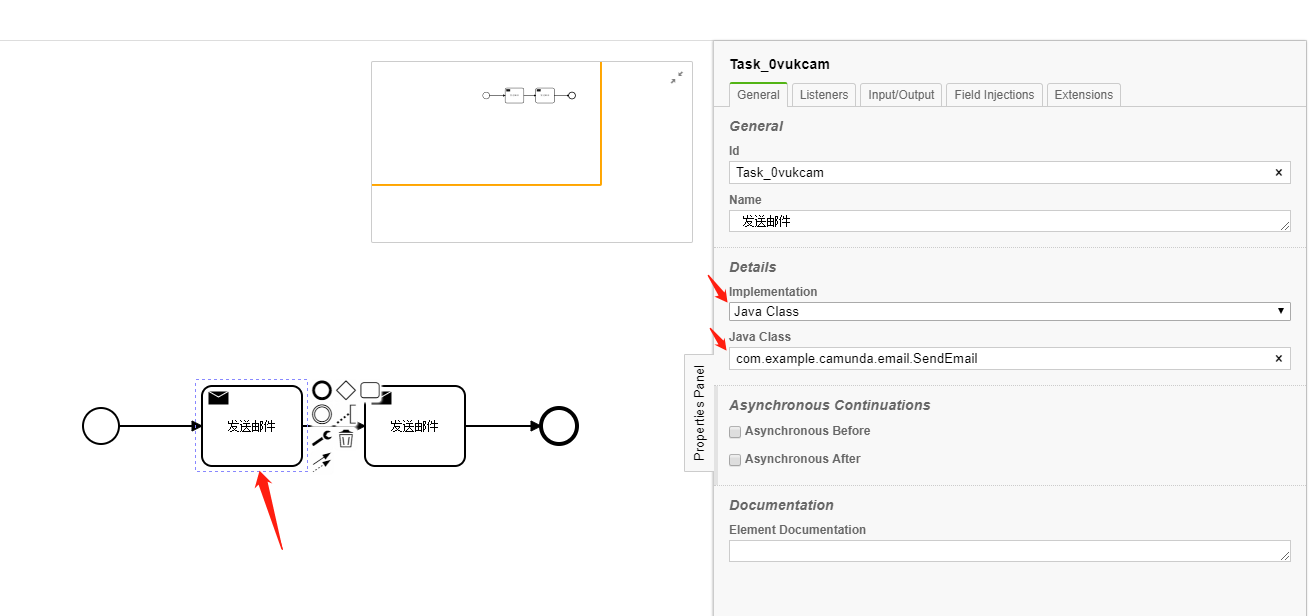

1.在camunda modeler工具里面写流程，任务执行指明Java类

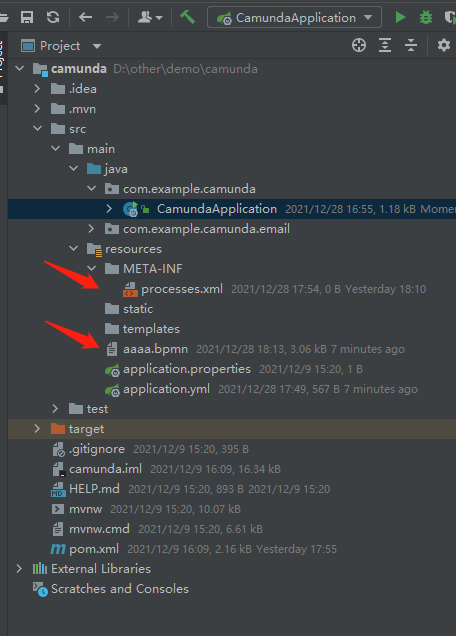

2.保存文件放在resources目录下，并建立一个processes.xml的空文件

3.依赖配置

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- camunda依赖 -->
        <dependency>
            <groupId>org.camunda.bpm.springboot</groupId>
            <artifactId>camunda-bpm-spring-boot-starter-webapp</artifactId>
            <version>3.4.1</version>
        </dependency>
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.2</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

4.yml配置：建立一个空数据库既可以，运行后会自动建表

spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/camunda
    username: root
    password: root
camunda:
  bpm:
    admin-user:
      id: admin
      password: admin
      first-name: admin
    filter:
      create: All tasks
    #指定数据库类型
      database:
          type: mysql
    #自动部署resources下面的bpmn文件
    auto-deployment-enabled: true
    #禁止index跳转到Camunda自带的管理界面，默认true
#    webapp:
#      index-redirect-enabled: false

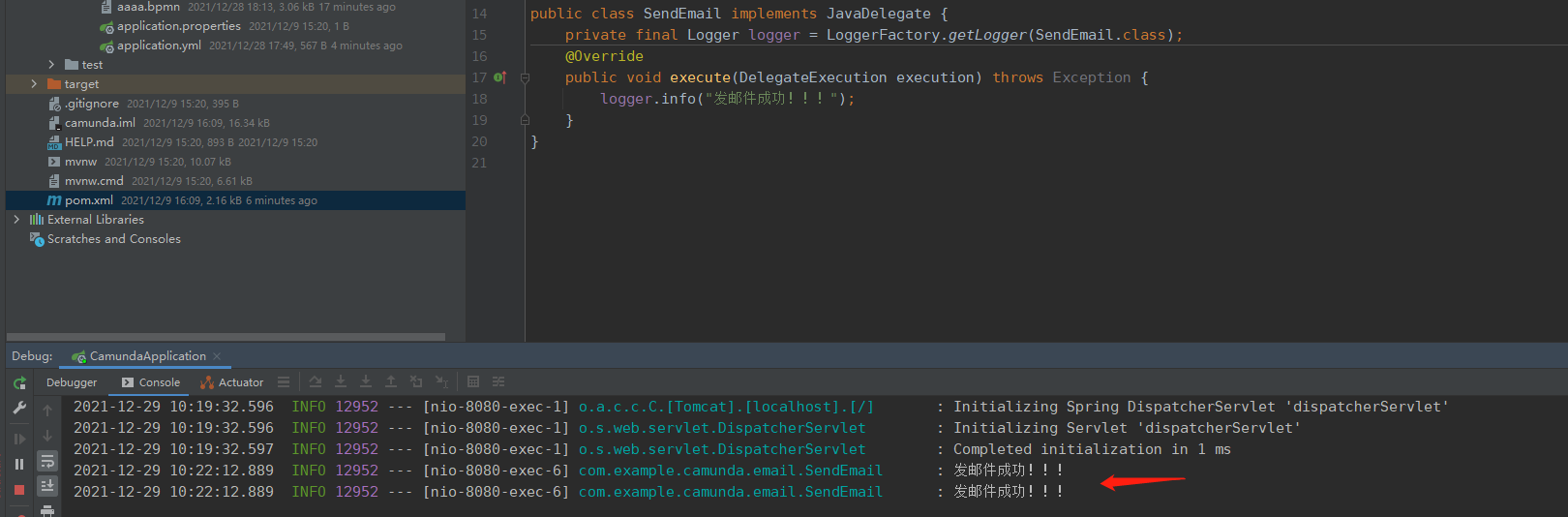

5.编写任务中的Java执行类

spring:
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/camunda
    username: root
    password: root
camunda:
  bpm:
    admin-user:
      id: admin
      password: admin
      first-name: admin
    filter:
      create: All tasks
    #指定数据库类型
      database:
          type: mysql
    #自动部署resources下面的bpmn文件
    auto-deployment-enabled: true
    #禁止index跳转到Camunda自带的管理界面，默认true
#    webapp:
#      index-redirect-enabled: false

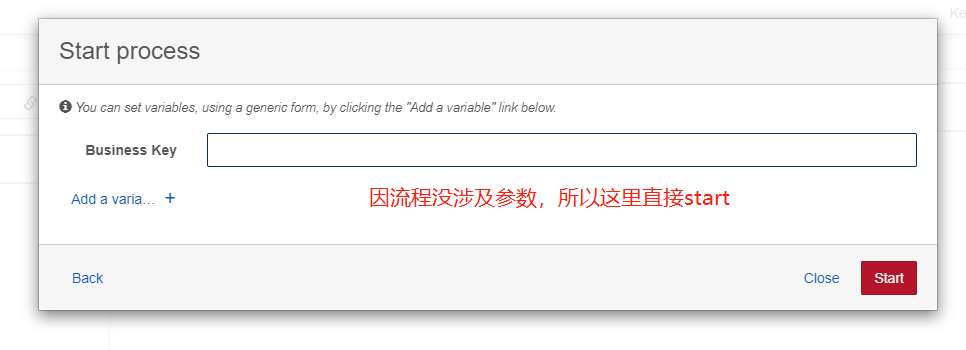

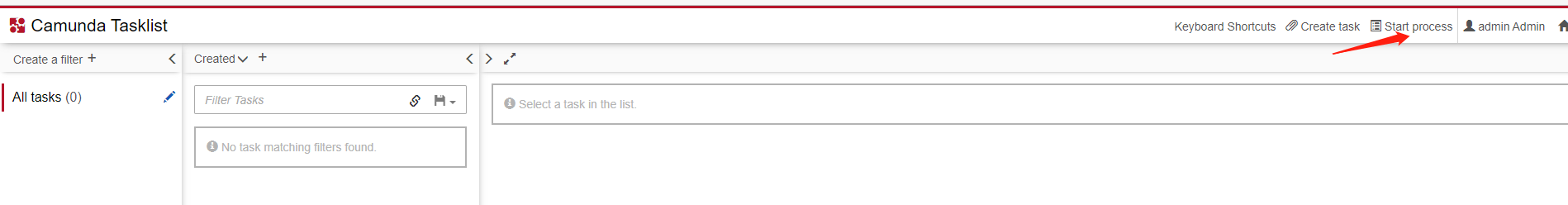

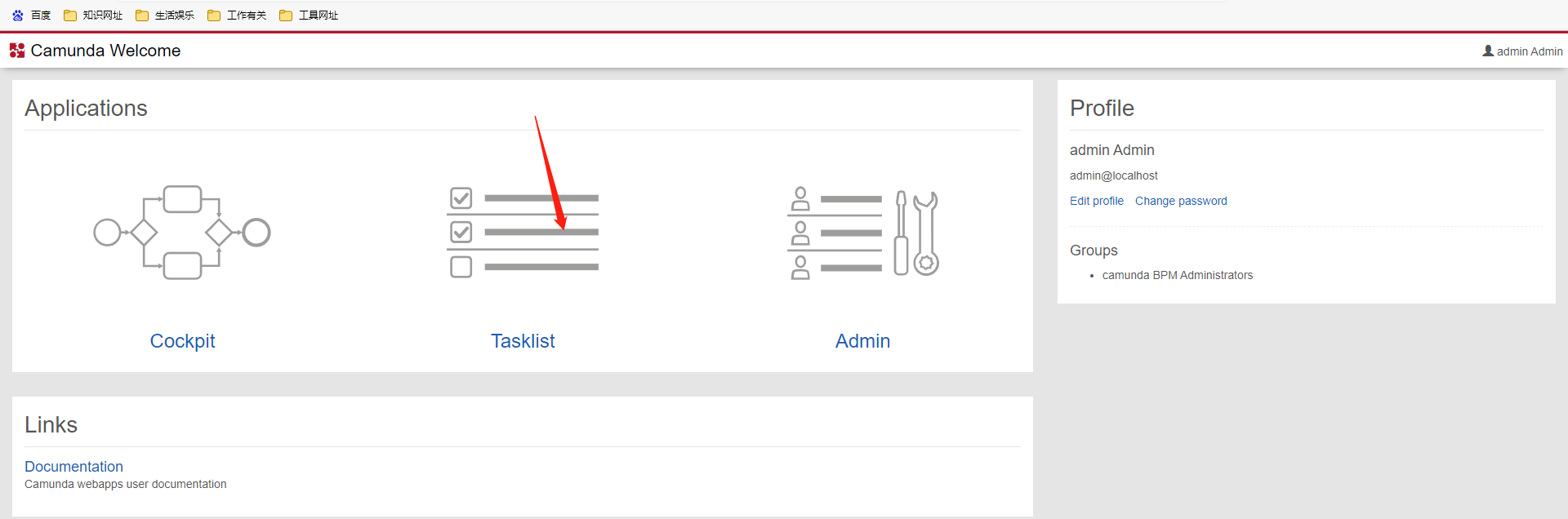

6.登录执行,点击tasklist,
