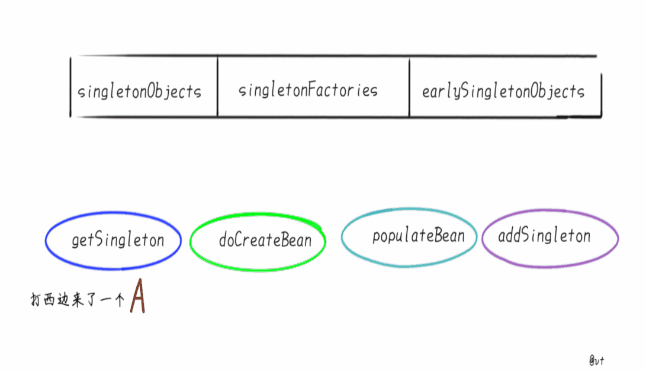

Spring三级缓存解决循环依赖

public class A {
    B b;
}
public class B {
    A a;
}

@Component
public class A {
    @Autowired
    B b;
}

@Component
public class B {
    @Autowired
    A a;
}

    @Override
    public void preInstantiateSingletons() throws BeansException {
        if (logger.isTraceEnabled()) {
            logger.trace("Pre-instantiating singletons in " + this);
        }

        // Iterate over a copy to allow for init methods which in turn register new bean definitions.
        // While this may not be part of the regular factory bootstrap, it does otherwise work fine.
        List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);

        // Trigger initialization of all non-lazy singleton beans...
        for (String beanName : beanNames) {
            RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
            if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
                if (isFactoryBean(beanName)) {
                    Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
                    if (bean instanceof FactoryBean) {
                        FactoryBean<?> factory = (FactoryBean<?>) bean;
                        boolean isEagerInit;
                        if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
                            isEagerInit = AccessController.doPrivileged(
                                    (PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit,
                                    getAccessControlContext());
                        }
                        else {
                            isEagerInit = (factory instanceof SmartFactoryBean &&
                                    ((SmartFactoryBean<?>) factory).isEagerInit());
                        }
                        if (isEagerInit) {
                            getBean(beanName);
                        }
                    }
                }
                else {
                    getBean(beanName);
                }
            }
        }

        // Trigger post-initialization callback for all applicable beans...
        for (String beanName : beanNames) {
            Object singletonInstance = getSingleton(beanName);
            if (singletonInstance instanceof SmartInitializingSingleton) {
                StartupStep smartInitialize = this.getApplicationStartup().start("spring.beans.smart-initialize")
                        .tag("beanName", beanName);
                SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
                if (System.getSecurityManager() != null) {
                    AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
                        smartSingleton.afterSingletonsInstantiated();
                        return null;
                    }, getAccessControlContext());
                }
                else {
                    smartSingleton.afterSingletonsInstantiated();
                }
                smartInitialize.end();
            }
        }
    }

    @Override
    public Object getBean(String name) throws BeansException {
        return doGetBean(name, null, null, false);
    }

    /**
     * Return an instance, which may be shared or independent, of the specified bean.
     * @param name the name of the bean to retrieve
     * @param requiredType the required type of the bean to retrieve
     * @param args arguments to use when creating a bean instance using explicit arguments
     * (only applied when creating a new instance as opposed to retrieving an existing one)
     * @param typeCheckOnly whether the instance is obtained for a type check,
     * not for actual use
     * @return an instance of the bean
     * @throws BeansException if the bean could not be created
     */
    @SuppressWarnings("unchecked")
    protected <T> T doGetBean(
            String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
            throws BeansException {

        String beanName = transformedBeanName(name);
        Object beanInstance;

        // Eagerly check singleton cache for manually registered singletons.
        Object sharedInstance = getSingleton(beanName);
        if (sharedInstance != null && args == null) {
            if (logger.isTraceEnabled()) {
                if (isSingletonCurrentlyInCreation(beanName)) {
                    logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
                            "' that is not fully initialized yet - a consequence of a circular reference");
                }
                else {
                    logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
                }
            }
            beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, null);
        }

        else {
            // Fail if we're already creating this bean instance:
            // We're assumably within a circular reference.
            if (isPrototypeCurrentlyInCreation(beanName)) {
                throw new BeanCurrentlyInCreationException(beanName);
            }

            // Check if bean definition exists in this factory.
            BeanFactory parentBeanFactory = getParentBeanFactory();
            if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
                // Not found -> check parent.
                String nameToLookup = originalBeanName(name);
                if (parentBeanFactory instanceof AbstractBeanFactory) {
                    return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
                            nameToLookup, requiredType, args, typeCheckOnly);
                }
                else if (args != null) {
                    // Delegation to parent with explicit args.
                    return (T) parentBeanFactory.getBean(nameToLookup, args);
                }
                else if (requiredType != null) {
                    // No args -> delegate to standard getBean method.
                    return parentBeanFactory.getBean(nameToLookup, requiredType);
                }
                else {
                    return (T) parentBeanFactory.getBean(nameToLookup);
                }
            }

            if (!typeCheckOnly) {
                markBeanAsCreated(beanName);
            }

            StartupStep beanCreation = this.applicationStartup.start("spring.beans.instantiate")
                    .tag("beanName", name);
            try {
                if (requiredType != null) {
                    beanCreation.tag("beanType", requiredType::toString);
                }
                RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
                checkMergedBeanDefinition(mbd, beanName, args);

                // Guarantee initialization of beans that the current bean depends on.
                String[] dependsOn = mbd.getDependsOn();
                if (dependsOn != null) {
                    for (String dep : dependsOn) {
                        if (isDependent(beanName, dep)) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
                        }
                        registerDependentBean(dep, beanName);
                        try {
                            getBean(dep);
                        }
                        catch (NoSuchBeanDefinitionException ex) {
                            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                                    "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
                        }
                    }
                }

                // Create bean instance.
                if (mbd.isSingleton()) {
                    sharedInstance = getSingleton(beanName, () -> {
                        try {
                            return createBean(beanName, mbd, args);
                        }
                        catch (BeansException ex) {
                            // Explicitly remove instance from singleton cache: It might have been put there
                            // eagerly by the creation process, to allow for circular reference resolution.
                            // Also remove any beans that received a temporary reference to the bean.
                            destroySingleton(beanName);
                            throw ex;
                        }
                    });
                    beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
                }

                else if (mbd.isPrototype()) {
                    // It's a prototype -> create a new instance.
                    Object prototypeInstance = null;
                    try {
                        beforePrototypeCreation(beanName);
                        prototypeInstance = createBean(beanName, mbd, args);
                    }
                    finally {
                        afterPrototypeCreation(beanName);
                    }
                    beanInstance = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
                }

                else {
                    String scopeName = mbd.getScope();
                    if (!StringUtils.hasLength(scopeName)) {
                        throw new IllegalStateException("No scope name defined for bean ´" + beanName + "'");
                    }
                    Scope scope = this.scopes.get(scopeName);
                    if (scope == null) {
                        throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
                    }
                    try {
                        Object scopedInstance = scope.get(beanName, () -> {
                            beforePrototypeCreation(beanName);
                            try {
                                return createBean(beanName, mbd, args);
                            }
                            finally {
                                afterPrototypeCreation(beanName);
                            }
                        });
                        beanInstance = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
                    }
                    catch (IllegalStateException ex) {
                        throw new ScopeNotActiveException(beanName, scopeName, ex);
                    }
                }
            }
            catch (BeansException ex) {
                beanCreation.tag("exception", ex.getClass().toString());
                beanCreation.tag("message", String.valueOf(ex.getMessage()));
                cleanupAfterBeanCreationFailure(beanName);
                throw ex;
            }
            finally {
                beanCreation.end();
            }
        }

        return adaptBeanInstance(name, beanInstance, requiredType);
    }

    @Override
    protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
            throws BeanCreationException {

        if (logger.isTraceEnabled()) {
            logger.trace("Creating instance of bean '" + beanName + "'");
        }
        RootBeanDefinition mbdToUse = mbd;

        // Make sure bean class is actually resolved at this point, and
        // clone the bean definition in case of a dynamically resolved Class
        // which cannot be stored in the shared merged bean definition.
        Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
        if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
            mbdToUse = new RootBeanDefinition(mbd);
            mbdToUse.setBeanClass(resolvedClass);
        }

        // Prepare method overrides.
        try {
            mbdToUse.prepareMethodOverrides();
        }
        catch (BeanDefinitionValidationException ex) {
            throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
                    beanName, "Validation of method overrides failed", ex);
        }

        try {
            // Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
            Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
            if (bean != null) {
                return bean;
            }
        }
        catch (Throwable ex) {
            throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
                    "BeanPostProcessor before instantiation of bean failed", ex);
        }

        try {
            Object beanInstance = doCreateBean(beanName, mbdToUse, args);
            if (logger.isTraceEnabled()) {
                logger.trace("Finished creating instance of bean '" + beanName + "'");
            }
            return beanInstance;
        }
        catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
            // A previously detected exception with proper bean creation context already,
            // or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
            throw ex;
        }
        catch (Throwable ex) {
            throw new BeanCreationException(
                    mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
        }
    }

    protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
            throws BeanCreationException {

        // Instantiate the bean.
        BeanWrapper instanceWrapper = null;
        if (mbd.isSingleton()) {
            instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
        }
        if (instanceWrapper == null) {
            instanceWrapper = createBeanInstance(beanName, mbd, args);
        }
        Object bean = instanceWrapper.getWrappedInstance();
        Class<?> beanType = instanceWrapper.getWrappedClass();
        if (beanType != NullBean.class) {
            mbd.resolvedTargetType = beanType;
        }

        // Allow post-processors to modify the merged bean definition.
        synchronized (mbd.postProcessingLock) {
            if (!mbd.postProcessed) {
                try {
                    applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
                }
                catch (Throwable ex) {
                    throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                            "Post-processing of merged bean definition failed", ex);
                }
                mbd.postProcessed = true;
            }
        }

        // Eagerly cache singletons to be able to resolve circular references
        // even when triggered by lifecycle interfaces like BeanFactoryAware.
        boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
                isSingletonCurrentlyInCreation(beanName));
        if (earlySingletonExposure) {
            if (logger.isTraceEnabled()) {
                logger.trace("Eagerly caching bean '" + beanName +
                        "' to allow for resolving potential circular references");
            }
            addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
        }

        // Initialize the bean instance.
        Object exposedObject = bean;
        try {
            populateBean(beanName, mbd, instanceWrapper);
            exposedObject = initializeBean(beanName, exposedObject, mbd);
        }
        catch (Throwable ex) {
            if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
                throw (BeanCreationException) ex;
            }
            else {
                throw new BeanCreationException(
                        mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
            }
        }

        if (earlySingletonExposure) {
            Object earlySingletonReference = getSingleton(beanName, false);
            if (earlySingletonReference != null) {
                if (exposedObject == bean) {
                    exposedObject = earlySingletonReference;
                }
                else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
                    String[] dependentBeans = getDependentBeans(beanName);
                    Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
                    for (String dependentBean : dependentBeans) {
                        if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                            actualDependentBeans.add(dependentBean);
                        }
                    }
                    if (!actualDependentBeans.isEmpty()) {
                        throw new BeanCurrentlyInCreationException(beanName,
                                "Bean with name '" + beanName + "' has been injected into other beans [" +
                                StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                                "] in its raw version as part of a circular reference, but has eventually been " +
                                "wrapped. This means that said other beans do not use the final version of the " +
                                "bean. This is often the result of over-eager type matching - consider using " +
                                "'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
                    }
                }
            }
        }

        // Register bean as disposable.
        try {
            registerDisposableBeanIfNecessary(beanName, bean, mbd);
        }
        catch (BeanDefinitionValidationException ex) {
            throw new BeanCreationException(
                    mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
        }

        return exposedObject;
    }

    protected Object getEarlyBeanReference(String beanName, RootBeanDefinition mbd, Object bean) {
        Object exposedObject = bean;
        if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
            for (SmartInstantiationAwareBeanPostProcessor bp : getBeanPostProcessorCache().smartInstantiationAware) {
                exposedObject = bp.getEarlyBeanReference(exposedObject, beanName);
            }
        }
        return exposedObject;
    }

public class DefaultSingletonBeanRegistry extends SimpleAliasRegistry implements SingletonBeanRegistry {

    /** Cache of singleton objects: bean name to bean instance. 一级缓存 */
    private final Map<String, Object> singletonObjects = new ConcurrentHashMap<>(256);

    /** Cache of singleton factories: bean name to ObjectFactory. 三级缓存 */
    private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);

    /** Cache of early singleton objects: bean name to bean instance. 二级缓存 */
    private final Map<String, Object> earlySingletonObjects = new ConcurrentHashMap<>(16);

    ...

    /**
     * Return the (raw) singleton object registered under the given name.
     * <p>Checks already instantiated singletons and also allows for an early
     * reference to a currently created singleton (resolving a circular reference).
     * @param beanName the name of the bean to look for
     * @param allowEarlyReference whether early references should be created or not
     * @return the registered singleton object, or {@code null} if none found
     */
    @Nullable
    protected Object getSingleton(String beanName, boolean allowEarlyReference) {
        // Quick check for existing instance without full singleton lock
        Object singletonObject = this.singletonObjects.get(beanName);
        if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
            singletonObject = this.earlySingletonObjects.get(beanName);
            if (singletonObject == null && allowEarlyReference) {
                synchronized (this.singletonObjects) {
                    // Consistent creation of early reference within full singleton lock
                    singletonObject = this.singletonObjects.get(beanName);
                    if (singletonObject == null) {
                        singletonObject = this.earlySingletonObjects.get(beanName);
                        if (singletonObject == null) {
                            ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);
                            if (singletonFactory != null) {
                                singletonObject = singletonFactory.getObject();
                                this.earlySingletonObjects.put(beanName, singletonObject);
                                this.singletonFactories.remove(beanName);
                            }
                        }
                    }
                }
            }
        }
        return singletonObject;
    }
}
