概述
CXF简介
CXF是一个开源的WebService框架。Apache CXF = Celtix + XFire,开始叫 Apache CeltiXfire,后来更名为 Apache CXF 了,以下简称为 CXF。CXF 继承了 Celtix 和 XFire 两大开源项目的精华,提供了对 JAX-WS 全面的支持,并且提供了多种 Binding 、DataBinding、Transport 以及各种 Format 的支持,并且可以根据实际项目的需要,采用代码优先(Code First)或者 WSDL 优先(WSDL First)来轻松地实现 Web Services 的发布和使用。
支持多种标准
- 支持 JAX-WS、 JAX-WSA、JSR-181 和 SAAJ;
- 支持 SOAP 1.1、1.2、WS-I BasicProfile、WS-Security、WS-Addressing、WS-RM 和 WS-Policy;
- 支持 WSDL 1.1 、2.0;
- 支持 MTOM;
它支持多种协议,比如:SOAP1.1,1,2、XML/HTTP、RESTful HTTP 或者 CORBA。CORBA(Common Object Request Broker Architecture公共对象请求代理体系结构,早期语言使用的WS。C,c++,C#)
Cxf是基于SOA总线结构,依靠spring完成模块的集成,实现SOA方式。
灵活的部署:可以运行有Tomcat,Jboss,Jetty(内置),weblogic上面。
CXF入门案例
我们还以昨天的天气服务为案例来看一下CXF的开发过程。
服务端的实现

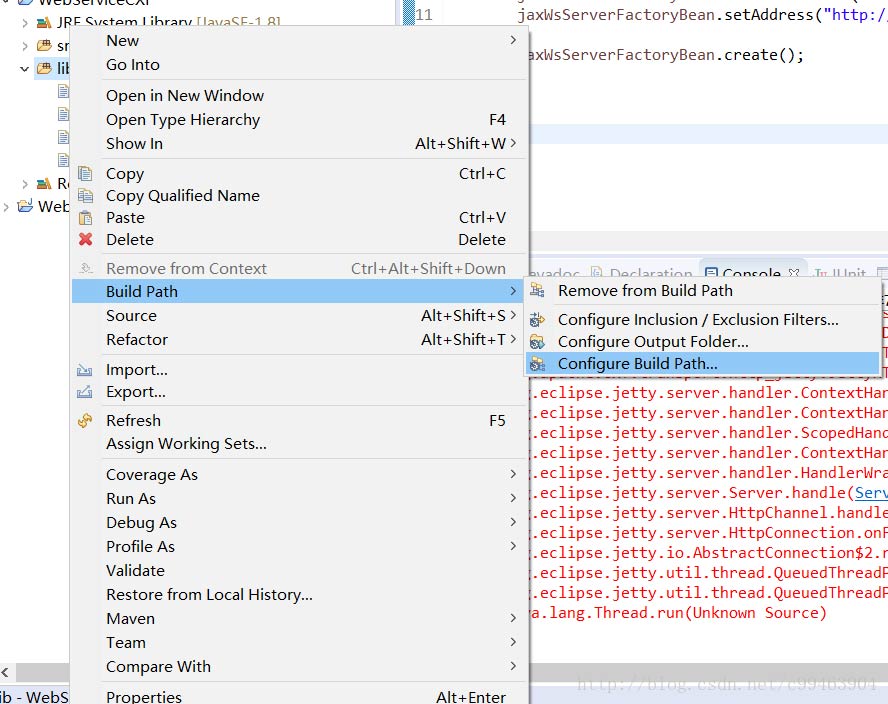

1.创建一个空的java项目,创建一个lib目录,将所有jar包放入lib目录 然后为工程引入jar包,选择build path,然后Add JARS,只用选择cxf-manifest.jar即可。
2.创建一个SEI接口,需要在接口上添加@WebService注解 @WebService public interface WeatherInterface { public String queryWeather(String cityName); }
3.创建SEI接口实现类 public class WeatherInterfaceImpl implements WeatherInterface { public String queryWeather(String cityName) { if("河南".equals(cityName)) { return "热爆炸"; }else { return "冰雹"; } } }
4.发布服务 public class WeatherServer { public static void main(String[] args) { //创建服务工厂Bean JaxWsServerFactoryBean jaxWsServerFactoryBean=new JaxWsServerFactoryBean(); //设置服务接口 jaxWsServerFactoryBean.setServiceClass(WeatherInterface.class); //设置服务实现类 jaxWsServerFactoryBean.setServiceBean(new WeatherInterfaceImpl()); //设置服务地址 jaxWsServerFactoryBean.setAddress("http://127.0.0.1:12345/weather"); //创建服务 jaxWsServerFactoryBean.create(); } }
5.访问服务的wsdl文件地址,看服务是否发布成功 http://127.0.0.1:12345/weather?wsdl
发布SOAP1.2的服务端
SOAP分为1.1版本和1.2版本。JDK1.6并不支持1.2,我们可以通过CXF来发布SOAP1.2的服务端。
只需要在接口上添加注解 @BindingType(SOAPBinding.SOAP12HTTP_BINDING)。然后重新发布服务即可
import javax.jws.WebService; import javax.xml.ws.BindingType; import javax.xml.ws.soap.SOAPBinding; @WebService @BindingType(SOAPBinding.SOAP12HTTP_BINDING) public interface WeatherInterface { public String queryWeather(String cityName); }
客户端的实现
Wsdl2java命令是CXF提供的生成客户端的工具,他和wsimport类似,可以根据WSDL生成客户端代码 Wsdl2java常用参数: -d,指定输出目录 -p,指定包名,如果不指定该参数,默认包名是WSDL的命名空间的倒序 Wsdl2java支持SOAP1.1和SOAP1.2
1.我们先创建一个客户端项目,然后引入jar包,和上面一样,使用Add JARS选择cxf-manifest.jar即可 然后使用工具生成客户端 wsdl2java -p com.cad.cxf -d . http://127.0.0.1:12345/weather?wsdl
2.创建客户端 public class WeatherClient { public static void main(String[] args) { JaxWsProxyFactoryBean jaxWsProxyFactoryBean=new JaxWsProxyFactoryBean(); //设置服务接口 jaxWsProxyFactoryBean.setServiceClass(WeatherInterface.class); //设置服务地址 jaxWsProxyFactoryBean.setAddress("http://127.0.0.1:12345/weather"); //获取服务接口实例 WeatherInterface weatherInterface=(WeatherInterface) jaxWsProxyFactoryBean.create(); //调用方法 String message=weatherInterface.queryWeather("河南"); System.out.println(message); } }
CXF+Spring整合发布SOAP模式的服务
服务端的实现
1.创建WEB项目,导入jar包
2.创建SEI接口 @WebService @BindingType(SOAPBinding.SOAP12HTTP_BINDING) public interface WeatherInterface { public String queryWeather(String cityName); }
3.创建SEI实现类 public class WeatherInterfaceImpl implements WeatherInterface { public String queryWeather(String cityName) { if("河南".equals(cityName)) { return "热爆炸"; }else { return "冰雹"; } } }
4.配置spring配置文件,applicationContext.xml <?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:jaxws="http://cxf.apache.org/jaxws" xmlns:jaxrs="http://cxf.apache.org/jaxrs" xmlns:cxf="http://cxf.apache.org/core" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://cxf.apache.org/jaxrs http://cxf.apache.org/schemas/jaxrs.xsd http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd http://cxf.apache.org/core http://cxf.apache.org/schemas/core.xsd"> <!--jaxws:server发布SOAP协议的服务 ,对JaxWsServerFactoryBean类封装--> <!--serviceClass属性是服务接口,address代表地址,因为我们是web服务,不需要输入ip。serviceBean是服务实现类--> <jaxws:server serviceClass="com.cad.cxf.WeatherInterface" address="/weather"> <jaxws:serviceBean> <ref bean="weatherInterfaceImpl"/> </jaxws:serviceBean> </jaxws:server> <bean name="weatherInterfaceImpl" class="com.cad.cxf.WeatherInterfaceImpl"></bean> </beans>
5.配置web.xml <?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5"> <display-name>CXFSpringDemo</display-name> //配置Tomcat启动时加载Spring配置文件 <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:applicationContext.xml</param-value> </context-param> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> //配置CXF提供的Servlet <servlet> <servlet-name>CXF</servlet-name> <servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>CXF</servlet-name> <url-pattern>/ws/*</url-pattern> </servlet-mapping> <welcome-file-list> <welcome-file>index.html</welcome-file> <welcome-file>index.htm</welcome-file> <welcome-file>index.jsp</welcome-file> <welcome-file>default.html</welcome-file> <welcome-file>default.htm</welcome-file> <welcome-file>default.jsp</welcome-file> </welcome-file-list> </web-app>
6.部署到Tomcat下,发布服务,并访问 http://localhost:8080/CXFSpringDemo/ws/weather?wsdl
客户端的实现
1.创建项目,导入jar包,生成客户端 wsdl2java -p com.cad.cxf -d . http://localhost:8080/CXFSpringDemo/ws/weather?wsdl
2.配置Spring文件 <?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:jaxws="http://cxf.apache.org/jaxws" xmlns:jaxrs="http://cxf.apache.org/jaxrs" xmlns:cxf="http://cxf.apache.org/core" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://cxf.apache.org/jaxrs http://cxf.apache.org/schemas/jaxrs.xsd http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd http://cxf.apache.org/core http://cxf.apache.org/schemas/core.xsd"> <!-- <jaxws:client实现客户端 ,对JaxWsProxyFactoryBean类封装--> <!-- address是服务地址,servicelass是服务接口,返回服务实现类--> <jaxws:client id="weatherClient" address="http://localhost:8080/CXFSpringDemo/ws/weather" serviceClass="com.cad.cxf.WeatherInterface"/> </beans>

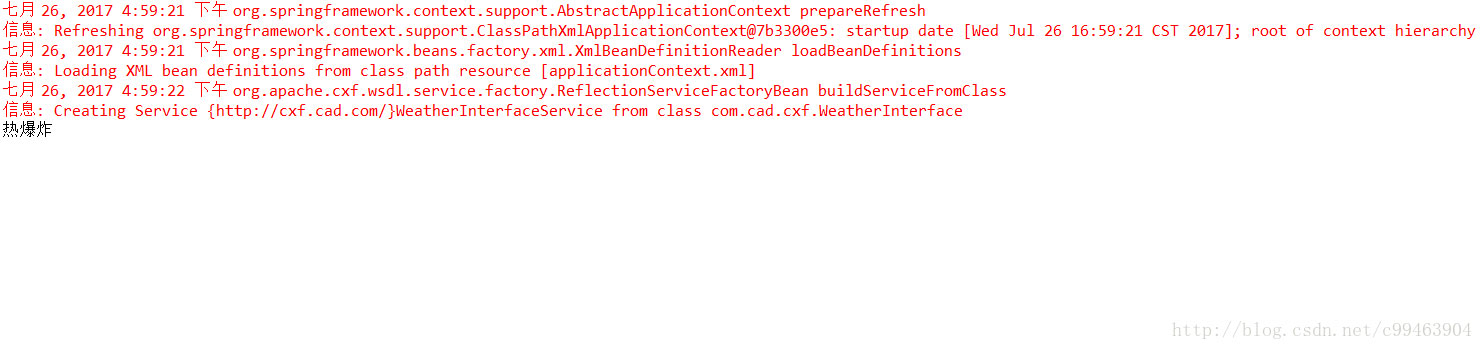

3.通过Spring容器获取服务实现类,调用方法 public class WeatherClient { public static void main(String[] args) { ApplicationContext context = new ClassPathXmlApplicationContext("classpath:applicationContext.xml"); WeatherInterface weatherInterface = (WeatherInterface) context.getBean("weatherClient"); String message=weatherInterface.queryWeather("河南"); System.out.println(message); } }
CXF发布REST模式的服务
REST即表述性状态传递(英文:Representational State Transfer,简称REST),是一种软件架构风格。
因为REST模式的Web服务与复杂的SOAP和XML-RPC对比来讲明显的更加简洁,越来越多的web服务开始采用REST风格设计和实现rest服务采用HTTP 做传输协议,REST 对于HTTP 的利用实现精确的资源定位。
例如: 非rest方式:http://ip:port/queryUser.action?userType=student&id=001 Rest方式:http://ip:port/user/student/query/001
1.创建一个项目,导入CXF jar包
2.创建一个实体类 Student @XmlRootElement(name="student")可以实现XML和对象之间的转换,name属性指定根元素 @XmlRootElement(name="student") public class Student { private int id; private String name; private Date birthday; public int getId() { return id; } public void setId(int id) { this.id = id; } public String getName() { return name; } public void setName(String name) { this.name = name; } public Date getBirthday() { return birthday; } public void setBirthday(Date birthday) { this.birthday = birthday; } }
3.创建SEI接口 @WebService //@Path("/student")就是指定访问该接口的路径 @Path("/Student") public interface StudentInterface { //指定请求方式,如果服务端发布的时候指定的是GET(POST),那么客户端访问时必须使用GET(POST @GET //指定服务数据类型,可以是XML,json等数据类型 @Produces(MediaType.APPLICATION_XML) //@Path("/query/{id}")指定该方法的路径,“{id}”指参数,多个参数,以“/”隔开,放到“{}”中 @Path("/query/{id}") public Student queryStudent(@PathParam("id")int id); @GET @Produces(MediaType.APPLICATION_XML) @Path("/queryList/{name}") public List<Student> queryList(@PathParam("name")String name); }
4.创建SEI实现类 public class StudentInterfaceImpl implements StudentInterface { @Override public Student queryStudent(int id) { Student s=new Student(); s.setId(666); s.setName("张三"); s.setBirthday(new Date()); return s; } @Override public List<Student> queryList(String name) { Student s=new Student(); s.setId(666); s.setName("张三"); s.setBirthday(new Date()); Student s2=new Student(); s2.setId(888); s2.setName("李四"); s2.setBirthday(new Date()); List<Student> l=new ArrayList<Student>(); l.add(s); l.add(s2); return l; } }
5.发布服务 public class StudentServer { public static void main(String[] args) { JAXRSServerFactoryBean jaxrsServerFactoryBean=new JAXRSServerFactoryBean(); //设置服务实现类 jaxrsServerFactoryBean.setServiceBean(new StudentInterfaceImpl()); //设置资源类,如果有多个资源类,可以以“,”隔开,例如Student.class StudentInterface.class都是资源类,但是StudentInterfaceImpl里面已经包含了Student.class StudentInterface.class,所以不用重复指定 jaxrsServerFactoryBean.setResourceClasses(StudentInterfaceImpl.class); //设置服务地址 jaxrsServerFactoryBean.setAddress("http://127.0.0.1:12345/Class"); //发布服务 jaxrsServerFactoryBean.create(); } }

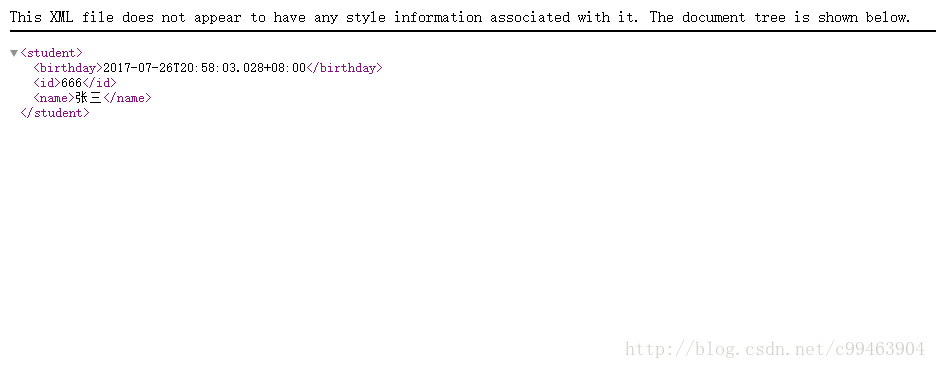

6.测试服务 访问query方法 http://127.0.0.1:12345/Class/Student/query/001

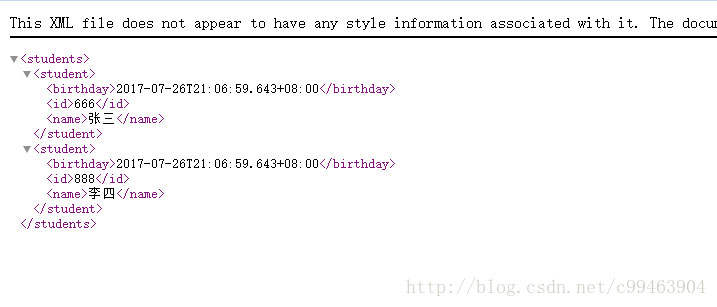

访问queryList方法 http://127.0.0.1:12345/Class/Student/queryList/xxx
如果服务端发布时指定请求方式是GET(POST),客户端必须使用GET(POST)访问服务端,否则会报异常。
如果在同一方法上同时指定XML和JSON媒体类型,在GET请求下,默认返回XML,在POST请求下,默认返回JSON
CXF+Spring整合发布REST模式的服务
1.创建web项目,引入jar包
2.创建一个实体类 Student @XmlRootElement(name="student")可以实现XML和对象之间的转换,name属性指定根元素 @XmlRootElement(name="student") public class Student { private int id; private String name; private Date birthday; public int getId() { return id; } public void setId(int id) { this.id = id; } public String getName() { return name; } public void setName(String name) { this.name = name; } public Date getBirthday() { return birthday; } public void setBirthday(Date birthday) { this.birthday = birthday; } }
3.创建SEI接口 @WebService //@Path("/student")就是指定访问该接口的路径 @Path("/Student") public interface StudentInterface { //指定请求方式,如果服务端发布的时候指定的是GET(POST),那么客户端访问时必须使用GET(POST @GET //指定服务数据类型,可以是XML,json等数据类型 @Produces(MediaType.APPLICATION_XML) //@Path("/query/{id}")指定该方法的路径,“{id}”指参数,多个参数,以“/”隔开,放到“{}”中 @Path("/query/{id}") public Student queryStudent(@PathParam("id")int id); @GET @Produces(MediaType.APPLICATION_XML) @Path("/queryList/{name}") public List<Student> queryList(@PathParam("name")String name); }
4.创建SEI实现类 public class StudentInterfaceImpl implements StudentInterface { @Override public Student queryStudent(int id) { Student s=new Student(); s.setId(666); s.setName("张三"); s.setBirthday(new Date()); return s; } @Override public List<Student> queryList(String name) { Student s=new Student(); s.setId(666); s.setName("张三"); s.setBirthday(new Date()); Student s2=new Student(); s2.setId(888); s2.setName("李四"); s2.setBirthday(new Date()); List<Student> l=new ArrayList<Student>(); l.add(s); l.add(s2); return l; } }
第五步:配置Spring配置文件,applicationContext.xml <?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:jaxws="http://cxf.apache.org/jaxws" xmlns:jaxrs="http://cxf.apache.org/jaxrs" xmlns:cxf="http://cxf.apache.org/core" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://cxf.apache.org/jaxrs http://cxf.apache.org/schemas/jaxrs.xsd http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd http://cxf.apache.org/core http://cxf.apache.org/schemas/core.xsd"> <!-- <jaxrs:server发布REST的服务 ,对JAXRSServerFactoryBean类封装--> <jaxrs:server address="/user"> <jaxrs:serviceBeans> <ref bean="studentInterface"/> </jaxrs:serviceBeans> </jaxrs:server> <!-- 配置服务实现类 --> <bean name="studentInterface" class="com.cad.rest.StudentInterfaceImpl"/> </beans>
6.配置web.xml文件 <?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0"> <display-name>ws_2_cxf_spring_server</display-name> <!-- 设置spring的环境 --> <context-param> <!--contextConfigLocation是不能修改的 --> <param-name>contextConfigLocation</param-name> <param-value>classpath:applicationContext.xml</param-value> </context-param> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 配置CXF的Servlet --> <servlet> <servlet-name>CXF</servlet-name> <servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>CXF</servlet-name> <url-pattern>/ws/*</url-pattern> </servlet-mapping> <welcome-file-list> <welcome-file>index.html</welcome-file> <welcome-file>index.htm</welcome-file> <welcome-file>index.jsp</welcome-file> <welcome-file>default.html</welcome-file> <welcome-file>default.htm</welcome-file> <welcome-file>default.jsp</welcome-file> </welcome-file-list> </web-app>
7.部署到Tomcat中,发布服务,测试一下 http://127.0.0.1:8080/CXFRestDemo/ws/user/Student/query/100
综合案例:手机归属地查询
1.创建web项目,导入 CXF jar包
2.生成公网提供的手机归属地查询的客户端 wsdl2java -p com.cad.mobile -d . http://ws.webxml.com.cn/WebServices/MobileCodeWS.asmx?wsdl
3.编写我们自己的SEI接口 @WebService public interface MobileInterface { public String queryMobile(String phoneNum); }
4.编写我们的SEI实现类 ,里面调用公网客户端的查询方法,我们在Spring配置客户端,然后注入即可 public class MobileInterfaceImpl implements MobileInterface { //公网客户端,提供set方法 以便注入 private MobileCodeWSSoap mobileClient; //调用公网的查询方法 public String queryMobile(String phoneNum) { return mobileClient.getMobileCodeInfo(phoneNum, ""); } public MobileCodeWSSoap getMobileClient() { return mobileClient; } public void setMobileClient(MobileCodeWSSoap mobileClient) { this.mobileClient = mobileClient; } }
5.配置Spring 配置文件 <?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:jaxws="http://cxf.apache.org/jaxws" xmlns:jaxrs="http://cxf.apache.org/jaxrs" xmlns:cxf="http://cxf.apache.org/core" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://cxf.apache.org/jaxrs http://cxf.apache.org/schemas/jaxrs.xsd http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd http://cxf.apache.org/core http://cxf.apache.org/schemas/core.xsd"> <!-- 配置公网客户端 --> <jaxws:client id="mobileClient" address="http://ws.webxml.com.cn/WebServices/MobileCodeWS.asmx" serviceClass="com.cad.mobile.MobileCodeWSSoap"/> <!-- <jaxws:server发布我们的服务--> <jaxws:server address="/mobile" serviceClass="com.cad.server.MobileInterface"> <jaxws:serviceBean> <ref bean="mobileServer"/> </jaxws:serviceBean> </jaxws:server> <!-- 配置我们的服务实现类 --> <bean name="mobileServer" class="com.cad.server.MobileInterfaceImpl"> <property name="mobileClient" ref="mobileClient"/> </bean> </beans>
6.创建查询页面 <body> <form action="MobileServlet" method="post"> 手机号归属地查询:<input type="text" name="phoneNum"><input type="submit" value="查询"><br> 查询结果:${result} </form> </body>
7.创建处理的Servlet @WebServlet("/MobileServlet") public class MobileServlet extends HttpServlet { private MobileInterface mobileServer; protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { //获取页面的电话号 String phoneNum = request.getParameter("phoneNum"); if(null != phoneNum && !"".equals(phoneNum)){ //获取Spring容器 ApplicationContext context = WebApplicationContextUtils.getWebApplicationContext(this.getServletContext()); //获取我们的服务实现类 mobileServer = (MobileInterface) context.getBean("mobileServer"); //调用查询方法 String result = mobileServer.queryMobile(phoneNum); request.setAttribute("result", result); } //请求转发 request.getRequestDispatcher("/index.jsp").forward(request, response); } protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { // TODO Auto-generated method stub doGet(request, response); } }
8.配置web.xml <?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd" id="WebApp_ID" version="3.1"> <display-name>MobileDemo</display-name> <welcome-file-list> <welcome-file>index.html</welcome-file> <welcome-file>index.htm</welcome-file> <welcome-file>index.jsp</welcome-file> <welcome-file>default.html</welcome-file> <welcome-file>default.htm</welcome-file> <welcome-file>default.jsp</welcome-file> </welcome-file-list> <context-param> <!--contextConfigLocation是不能修改的 --> <param-name>contextConfigLocation</param-name> <param-value>classpath:applicationContext.xml</param-value> </context-param> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- 配置CXF的Servlet --> <servlet> <servlet-name>CXF</servlet-name> <servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class> </servlet> <servlet-mapping> <servlet-name>CXF</servlet-name> <url-pattern>/ws/*</url-pattern> </servlet-mapping> </web-app>
9.部署Tomcat,访问测试
到此这篇关于Java WebService开源框架CXF详解的文章就介绍到这了。希望对大家的学习有所帮助,也希望大家多多支持靠谱客。
