概述

CSS怎么实现瀑布流？下面本篇文章给大家介绍一下使用CSS实现瀑布流的两种方式，希望对大家有所帮助！

瀑布流又称瀑布流式布局，是比较流行的一种网站页面布局方式。在手机端进行多图片展示时会经常用到。即多行等宽元素排列，后面的元素依次添加到其后，等宽不等高，根据图片原比例缩放直至宽度达到我们的要求，依次按照规则放入指定位置。

那么瀑布流式布局有哪些实现方式呢？

`column` 多行布局实现瀑布流

<!DOCTYPE html>
<html>
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>瀑布流布局-column</title>
  <style>
    .box {
          margin: 10px;
          column-count: 3;
          column-gap: 10px;
      }
      .item {
          margin-bottom: 10px;
      }
      .item img{
          width: 100%;
          height:100%;
      }
  </style>
</head>
<body>
  <div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
  </div>
</body>
</html>
登录后复制

`flex` 弹性布局实现瀑布流

<!DOCTYPE html>
<html>
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>瀑布流布局-flex</title>
  <style>
    .box {
        display: flex;
        flex-flow: column wrap;
        height: 100vh;
      }
      .item {
        margin: 10px;
        width: calc(100%/3 - 20px);
      }
      .item img{
        width: 100%;
        height:100%;
      }
  </style>
</head>
<body>
  <div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
    <div>
      <img  src="./imgs/2.jpg" alt="2" />
    </div>
    <div>
      <img  src="./imgs/3.jpg" alt="3" />
    </div>
    <div>
      <img  src="./imgs/1.jpg" alt="1" />
    </div>
  </div>
</body>
</html>
登录后复制

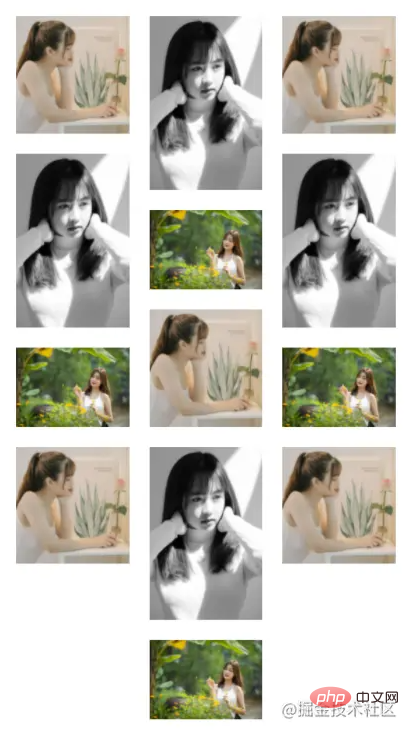

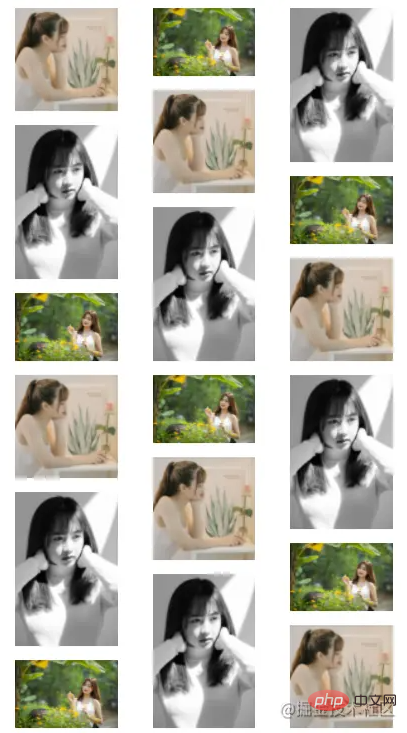

展示效果如下
