概述

这篇文章主要为大家详细介绍了HTML5 Plus的Camera、GalleryIO、Storage和Uploader，实现手机APP拍照或相册选择图片上传功能的相关资料，感兴趣的小伙伴们可以参考一下

利用HTML Plus的Camera、GalleryIO、Storage和Uploader来实现手机APP拍照或者从相册选择图片上传。Camera模块管理设备的摄像头，可用于拍照、摄像操作，通过plus.camera获取摄像头管理对象。Gallery模块管理系统相册，支持从相册中选择图片或视频文件、保存图片或视频文件到相册等功能。通过plus.gallery获取相册管理对象。IO模块管理本地文件系统，用于对文件系统的目录浏览、文件的读取、文件的写入等操作。通过plus.io可获取文件系统管理对象。Storage模块管理应用本地数据存储区，用于应用数据的保存和读取。应用本地数据与localStorage、sessionStorage的区别在于数据有效域不同，前者可在应用内跨域操作，数据存储期是持久化的，并且没有容量限制。通过plus.storage可获取应用本地数据管理对象。Uploader模块管理网络上传任务，用于从本地上传各种文件到服务器，并支持跨域访问操作。通过plus.uploader可获取上传管理对象。Uploader上传使用HTTP的POST方式提交数据，数据格式符合Multipart/form-data规范，即rfc1867（Form-based File Upload in HTML）协议。

<!doctype html>
<html class="feedback">
 <head>
  <meta charset="utf-8" />
  <meta name="viewport" content="width=device-width,initial-scale=1.0,maximum-scale=1.0,user-scalable=no" />
  <meta name="misapplication-tap-highlight" content="no" />
  <meta name="HandheldFriendly" content="true" />
  <meta name="MobileOptimized" content="320" />
  <title>HTML5 Plus 拍照或者相册选择图片上传</title>
  <link rel="stylesheet" href="../../css/mui.min.css">
  <link rel="stylesheet" type="text/css" href="../../css/app.css" />
  <link rel="stylesheet" type="text/css" href="../../css/iconfont.css" />
  <link rel="stylesheet" type="text/css" href="../../css/feedback-page.css" />
  <link rel="stylesheet" href="../../css/font-awesome.min.css">
  <script src="../../js/jquery.js"></script>
  <script type="text/javascript" src="../../js/common.js"></script>
  <script type="text/javascript" src="../../js/utitls.js"></script>
  <script type="text/javascript" src="http://api.map.baidu.com/api?ak=59PBaEOro16CiH2W4CG81zEN&v=2.0"></script>
  <style type="text/css">
   .del {
    position: absolute;
    top:1px;
    right: 1px;
    display: block;
       line-height: 1;
       cursor: pointer;
       color:#fff;
    }

   .del:hover {
    color:#ff3333;
   }
  </style>
  <style>
   .table-view {
    position: relative;
    margin-top: 0;
    margin-bottom: 0;
    padding-left: 0;
    list-style: none;
    background-color: #f5f5f5;
   }

   .table-view-cell {
    position: relative;
    overflow: hidden;
    padding: 0px 15px;
    -webkit-touch-callout: none;
    margin-bottom: 1px;
   }

   .table-view-cell:after {
    position: absolute;
    right: 0;
    bottom: 0;
    left: 0px;
    height: 1px;
    content: '';
    -webkit-transform: scaleY(.5);
    transform: scaleY(.5);
    background-color: #c8c7cc;
   }

   .table-view-cell>a:not(.btn) {
    position: relative;
    display: block;
    overflow: hidden;
    margin: -0px -15px;
    padding: inherit;
    white-space: nowrap;
    text-overflow: ellipsis;
    color: inherit;
    background-color: #75b9f4;
    height: 40px;
    line-height: 40px;
   }

   .navigate-right:after
   {
    font-family: Muiicons;
    font-size: inherit;
    line-height: 1;
    position: absolute;
    top: 50%;
    display: inline-block;
    -webkit-transform: translateY(-50%);
    transform: translateY(-50%);
    text-decoration: none;
    color: #666;
    -webkit-font-smoothing: antialiased;
   }

   .table-view-cell.collapse .collapse-content {
    position: relative;
    display: none;
    overflow: hidden;
    margin: 0px -15px 0px;
    padding: 0px 0px !important;
    -webkit-transition: height .35s ease;
    -o-transition: height .35s ease;
    transition: height .35s ease;
    background-color: transparent;
   }
   .image-item{
    position: relative;
   }
   .image-item .info{
    position: absolute;
    top:0px;
    left:4px;
    color: #ff9900;
    font-size: 12px;

   }
  </style>
 </head>
 <body>
  <header class="bar bar-nav">
   <h1 class="title">拍照或者相册选择图片上传</h1>
  </header>
  <p class="content">
   <p style="margin-top: 10px;"></p>
   <input type="hidden" id="ckjl.id" name="ckjl.id" value="429">
     <p class="collapse-content" >
      <form>
       <label class="row-label"></label>
       <p id='F_CKJLBS' class="row image-list">
        <p class="image-item " id="F_CKJLB" onclick="showActionSheet(this);"></p>
      </p>
      </form>
     </p>
  </p>
  <script src="../../js/mui.min.js"></script>
<script>
 var procinstid = 0;
 //初始化页面执行操作
 function plusReady() {
  //Android返回键监听事件
  plus.key.addEventListener('backbutton',function(){
   myclose();
  },false);
 }
 if (window.plus) {
  plusReady();
 } else {
  document.addEventListener('plusready', plusReady, false);
 }
  //加载页面初始化需要加载的图片信息
  //或者相册IMG_20160704_112620.jpg
  //imgId:图片名称：1467602809090或者IMG_20160704_112620
  //imgkey:字段例如：F_ZDDZZ
  //ID：站点编号ID,例如429
  //src：src="file:///storage/emulated/0/Android/data/io.dcloud.HBuilder/.HBuilder/apps/HBuilder/doc/upload/F_ZDDZZ-1467602809090.jpg"
  function showImgDetail (imgId,imgkey,id,src) {
   var html = "";
   html +='<p  id="Img'+imgId+imgkey+'" class="image-item ">';
   html +=' <img id="picBig" data-preview-src="" data-preview-group="1" '+src+'/>';
   html +=' <span class="del" onclick="delImg(''+imgId+'',''+imgkey+'','+id+');">';
   html +='  <p class="fa fa-times-circle"></p>';
   html +=' </span>';
   html +='</p>';
   $("#"+imgkey+"S").append(html);
  }
  //删除图片
  //imgId:图片名称：IMG_20160704_112614
  //imgkey:字段，例如F_ZDDZZ
  //ID：站点编号ID，例如429
  function delImg(imgId,imgkey,id){
   var bts = ["是", "否"];
   plus.nativeUI.confirm("是否删除图片？", function(e) {
     var i = e.index;
     if (i == 0) {
      var itemname=id+"img-"+imgkey;//429img-F_ZDDZZ
      var itemvalue=plus.storage.getItem(itemname);
      //{IMG_20160704_112614,_doc/upload/F_ZDDZZ-IMG_20160704_112614.jpg,file:///storage/emulated/0/Android/data/io.dcloud...../doc/upload/F_ZDDZZ-1467602809090.jpg}
      if(itemvalue!=null){
       var index=itemvalue.indexOf(imgId+",");
       if(index==-1){//没有找到
        delImgfromint(imgId,imgkey,id,index);
       }else{
        delImgFromLocal(itemname,itemvalue,imgId,imgkey,index); //修改，加了一个index参数
       }

      }else{
       delImgfromint(imgId,imgkey,id);
      }
     }
    },"查勘", bts);
   /*var isdel = confirm("是否删除图片？");
   if(isdel == false){
    return;
   }*/


  }
  function delImgFromLocal(itemname,itemvalue,imgId,imgkey,index){
     var wa = plus.nativeUI.showWaiting();
     var left=itemvalue.substr(0,index-1);
     var right=itemvalue.substring(index,itemvalue.length);
     var end=right.indexOf("}");
     rightright=right.substring(end+1,right.length);
     var newitem=left+right;
     plus.storage.setItem(itemname,newitem);
     myAlert("删除成功");
     $("#Img"+imgId+imgkey).remove();
     wa.close();
  }
  //选取图片的来源，拍照和相册
  function showActionSheet(conf){
     var pid = conf.id;
           var actionbuttons=[{title:"拍照"},{title:"相册选取"}];
           var actionstyle={title:"选择照片",cancel:"取消",buttons:actionbuttons};
           plus.nativeUI.actionSheet(actionstyle, function(e){
              if(e.index==1){
               getImage(pid);
              }else if(e.index==2){
               galleryImg(pid);
              }
           } );
        }
  //相册选取图片
        function galleryImg(pid) {
            plus.gallery.pick( function(p){
             //alert(p);//file:///storage/emulated/0/DCIM/Camera/IMG_20160704_112620.jpg
             plus.io.resolveLocalFileSystemURL(p, function(entry) {
              //alert(entry.toLocalURL());//file:///storage/emulated/0/DCIM/Camera/IMG_20160704_112620.jpg
     //alert(entry.name);//IMG_20160704_112620.jpg
     compressImage(entry.toLocalURL(),entry.name,pid);
    }, function(e) {
     plus.nativeUI.toast("读取拍照文件错误：" + e.message);
    });
            }, function ( e ) {
            }, {
             filename: "_doc/camera/",
             filter:"image"
            } );
        }
  // 拍照
  function getImage(pid) {
   var cmr = plus.camera.getCamera();
   cmr.captureImage(function(p) {
    //alert(p);//_doc/camera/1467602809090.jpg
    plus.io.resolveLocalFileSystemURL(p, function(entry) {
     //alert(entry.toLocalURL());//file:///storage/emulated/0/Android/data/io.dcloud...../doc/camera/1467602809090.jpg
     //alert(entry.name);//1467602809090.jpg
     compressImage(entry.toLocalURL(),entry.name,pid);
    }, function(e) {
     plus.nativeUI.toast("读取拍照文件错误：" + e.message);
    });
   }, function(e) {
   }, {
    filename: "_doc/camera/",
    index: 1
   });
  }
  //压缩图片
  function compressImage(url,filename,pid){
   var name="_doc/upload/"+pid+"-"+filename;//_doc/upload/F_ZDDZZ-1467602809090.jpg
   plus.zip.compressImage({
     src:url,//src: (String 类型 )压缩转换原始图片的路径
     dst:name,//压缩转换目标图片的路径
     quality:20,//quality: (Number 类型 )压缩图片的质量.取值范围为1-100
     overwrite:true//overwrite: (Boolean 类型 )覆盖生成新文件
    },
    function(event) {
     //uploadf(event.target,pid);
     var path = name;//压缩转换目标图片的路径
     //event.target获取压缩转换后的图片url路
     //filename图片名称
     saveimage(event.target,pid,filename,path);
    },function(error) {
     plus.nativeUI.toast("压缩图片失败，请稍候再试");
   });
  }
  //保存信息到本地
  /**
   *
   * @param {Object} url  图片的地址
   * @param {Object} pid  字段的名称
   * @param {Object} name   图片的名称
   */
  function saveimage(url,pid,name,path){
   //alert(url);//file:///storage/emulated/0/Android/data/io.dcloud...../doc/upload/F_ZDDZZ-1467602809090.jpg
   //alert(path);//_doc/upload/F_ZDDZZ-1467602809090.jpg
   var  state=0;
   var wt = plus.nativeUI.showWaiting();
    //  plus.storage.clear();
   namename=name.substring(0,name.indexOf("."));//图片名称：1467602809090
   var id = document.getElementById("ckjl.id").value;
   var itemname=id+"img-"+pid;//429img-F_ZDDZ
   var itemvalue=plus.storage.getItem(itemname);
   if(itemvalue==null){
    itemvalue="{"+name+","+path+","+url+"}";//{IMG_20160704_112614,_doc/upload/F_ZDDZZ-IMG_20160704_112614.jpg,file:///storage/emulated/0/Android/data/io.dcloud...../doc/upload/F_ZDDZZ-1467602809090.jpg}
   }else{
    itemvalueitemvalue=itemvalue+"{"+name+","+path+","+url+"}";
   }
   plus.storage.setItem(itemname, itemvalue);

   var src = 'src="'+url+'"';
   //alert("itemvalue="+itemvalue);
   showImgDetail(name,pid,id,src);
   wt.close();

  }
  //上传图片，实例中没有添加上传按钮
  function uploadimge(agree,back) {
  //plus.storage.clear();
   var wa = plus.nativeUI.showWaiting();
   var DkeyNames=[];
   var id = document.getElementById("ckjl.id").value;
   var length=id.toString().length;
   var ididnmae=id.toString();
   var numKeys=plus.storage.getLength();
   var task = plus.uploader.createUpload(getUrl() + 'url', {
        method: "POST"
       },
       function(t, status) {
        if (status == 200) {
         console.log("上传成功");
          $.ajax({
          type: "post",
          url: getUrl() + 'url',
          data: {
           taskId: taskId,
           voteAgree: agree,
           back: back,
           voteContent: $("#assign").val(),
          },
          async: true,
          dataType: "text",
          success: function(data) {
           wa.close();
           goList(data);


          },
          error: function() {
           wa.close();
           myAlert("网络错误，提交审批失败，请稍候再试");
          }
         });


        } else {
         wa.close();
         console.log("上传失败");
        }
       }
      );
   task.addData("id",id);
   for(var i=0; i<imgArray.length;i++){
    var itemkey=id+"img-"+imgArray[i];
     if(plus.storage.getItem(itemkey)!=null){
     var itemvalue=plus.storage.getItem(itemkey).split("{");
     for(var img=1;img<itemvalue.length;img++){
      var imgname=itemvalue[img].substr(0,itemvalue[img].indexOf(","));
      var imgurl=itemvalue[img].substring(itemvalue[img].indexOf(",")+1,itemvalue[img].lastIndexOf(","));
      task.addFile(imgurl,{key:imgurl});
     }
    }
   }
   task.start();

  }
</script>
</body>
</html>
登录后复制

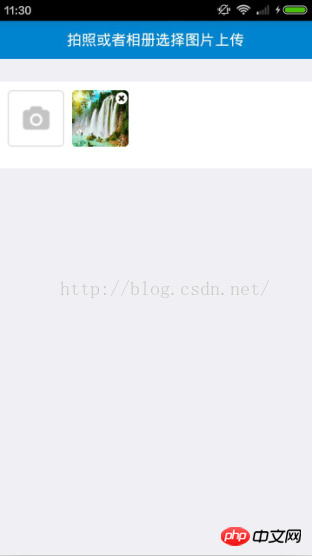

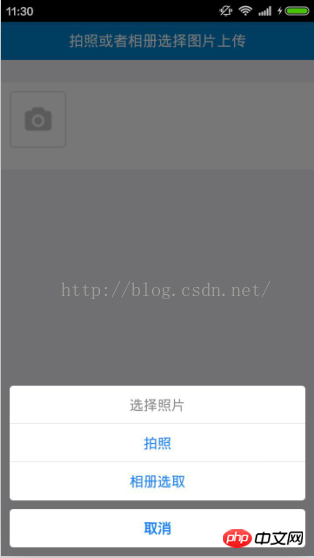

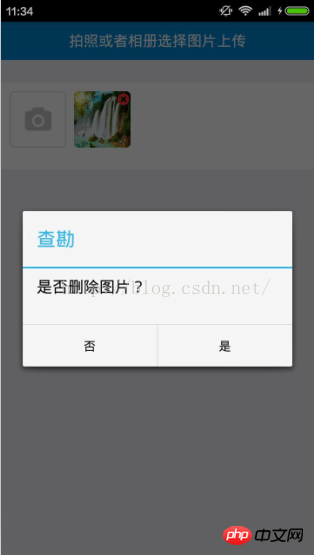

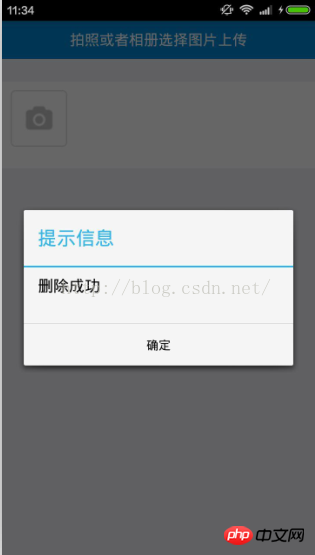

效果图：
