概述

1、设计思路

（1）了解组合图的特性以及用法，选用图的类型；

（2）设计出两根柱子和两根折线，分开展示。

2、设计步骤

（1）设计页面

Column2DLine.html：

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
  <head>
    <title>FuionCharts 2D柱状图和折线图组合图</title>

    <meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
    <meta http-equiv="description" content="this is my page">
    <meta http-equiv="content-type" content="text/html; charset=UTF-8">
    <script type="text/javascript" src="../scripts/jquery-2.0.3.js"></script>
    <script type="text/javascript" src="../scripts/Charts/FusionCharts.js"></script>
    <script type="text/javascript">
        $(function(){
              var column2DLine = new FusionCharts( "../scripts/Charts/MSCombi2D.swf", "doubleAreaId", "100%", "540", "0" );
      		  column2DLine.setXMLUrl("data/columnLine.xml");
              column2DLine.render("columnLine");
        });
    </script>

  </head>

  <body>
    <p id="columnLine"></p>
  </body>
</html>
登录后复制

（2）设计出数据源

columnLine.xml：

<?xml version="1.0" encoding="UTF-8"?>
<chart caption='2010-2013年某人年收入详细' xAxisName='月份' yAxisName='收入' showValues='0'
       baseFont='微软雅黑' baseFontSize='14' baseFontColor='#00FF00' outCnvBaseFont='宋体'
       outCnvBaseFontSize='20' outCnvBaseFontColor='#0000FF'>

   <categories>
      <category label='一月' />
      <category label='二月' />
      <category label='三月' />
      <category label='四月' />
      <category label='五月' />
      <category label='六月' />
      <category label='七月' />
      <category label='八月' />
      <category label='九月' />
      <category label='十月' />
      <category label='十一月' />
      <category label='十二月' />
   </categories>

   <dataset seriesName='2010'>
      <set value='59845' />
      <set value='36562'/>
      <set value='15421' />
      <set value='56213' />
      <set value='45121' />
      <set value='56232' />
      <set value='56121' />
      <set value='23565' />
      <set value='85656' />
      <set value='45421' />
      <set value='23561' />
      <set value='24801' />
   </dataset>

   <dataset seriesName='2011' renderAs='Line'>
      <set value='56122' />
      <set value='65121'/>
      <set value='45154' />
      <set value='20120' />
      <set value='95656' />
      <set value='46522' />
      <set value='65323' />
      <set value='62311' />
      <set value='95656' />
      <set value='65322' />
      <set value='74545' />
      <set value='56231' />
   </dataset>

   <dataset seriesName='2012'>
      <set value='95656' />
      <set value='54132'/>
      <set value='45511' />
      <set value='23200' />
      <set value='65622' />
      <set value='32600' />
      <set value='54512' />
      <set value='56232' />
      <set value='26562' />
      <set value='45421' />
      <set value='52211' />
      <set value='65623' />
   </dataset>

   <dataset seriesName='2013' renderAs='Line'>
      <set value='56444'/>
      <set value='65232'/>
      <set value='12123'/>
      <set value='21222'/>
      <set value='78454' />
      <set value='56211' />
      <set value='42422' />
      <set value='95655' />
      <set value='45455' />
      <set value='95656' />
      <set value='22900' />
      <set value='41512' />
   </dataset>

</chart>
登录后复制

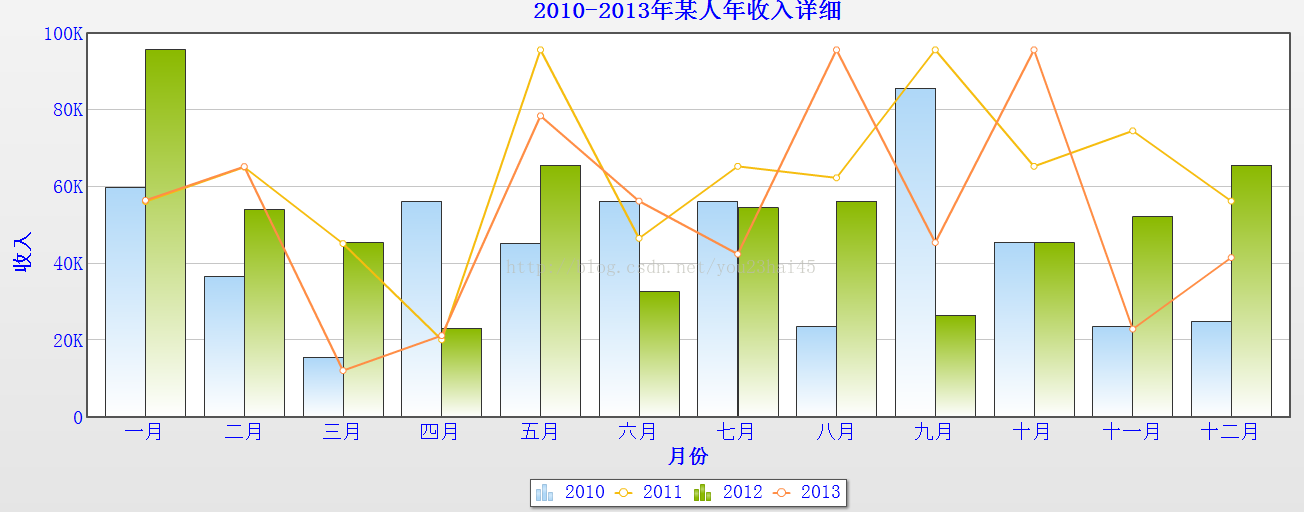

3、设计结果
