我是靠谱客的博主仁爱乌冬面，这篇文章主要介绍xml学习（8） xml增删改查，现在分享给大家，希望可以做个参考。

在项目开发中，我们经常会对某张表进行增删改查。我们根据条件刷选表中的数据放到gridview中以列表形式展现，同时给gridview添加各种样式，比如一般必用的鼠标经过，鼠标离开颜色变化，行选中等颜色加深，同时给列表数据项赋值，单击保存按钮可以修改一条已存在的数据或者添加一条新的数据，单击按钮添加，列表数据项清空，单击删除，可以删除一条数据。

由于为了方便大家把代码复制一下，在脱离数据的情况下，就可以看到效果，所以，我把数据存放在xml，所以读取数据不是通过数据库，是通过跟xml文件交互实现的。所以做了下面对xml增删改查页面。

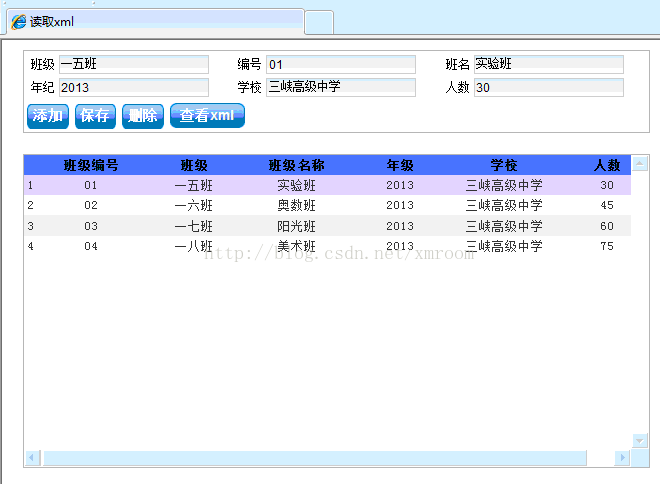

效果图：

首先列出XML文件，方便代码参照

内容.xml

复制代码<?xml version="1.0" encoding="utf-8"?>
<config>
  <Header ID="ID" class="class" class_name="class_name" year="year" school="school" count="count">
  </Header>
  <rows ID="01" class="一五班" class_name="实验班" year="2013" school="三峡高级中学" count="30">
  </rows>
  <rows ID="02" class="一六班" class_name="奥数班" year="2013" school="三峡高级中学" count="45">
  </rows>
  <rows ID="03" class="一七班" class_name="阳光班" year="2013" school="三峡高级中学" count="60">
  </rows>
  <rows ID="04" class="一八班" class_name="美术班" year="2013" school="三峡高级中学" count="75">
  </rows>
</config>1
2
3
4
5
6
7
8
9
10
11
12
13
<?xml version="1.0" encoding="utf-8"?>
<config>
  <Header ID="ID" class="class" class_name="class_name" year="year" school="school" count="count">
  </Header>
  <rows ID="01" class="一五班" class_name="实验班" year="2013" school="三峡高级中学" count="30">
  </rows>
  <rows ID="02" class="一六班" class_name="奥数班" year="2013" school="三峡高级中学" count="45">
  </rows>
  <rows ID="03" class="一七班" class_name="阳光班" year="2013" school="三峡高级中学" count="60">
  </rows>
  <rows ID="04" class="一八班" class_name="美术班" year="2013" school="三峡高级中学" count="75">
  </rows>
</config>
登录后复制

一，核心代码：

1）修改xml

复制代码   /// <summary>
        /// 修改XML
        /// </summary>
        /// <param name="xmlName">XML文件名</param>
        /// <param name="ht">存放信息哈希表</param>
        /// <param name="ID">主键值</param>
        public void saveXML(string xmlName,Hashtable ht,string ID)
        {
            string fileName=HttpContext.Current.Request.PhysicalApplicationPath+"\Xml\"+xmlName+".xml";//xml的物理路径
            XmlDocument xmlDoc=new XmlDocument ();
            xmlDoc.Load(fileName);
            XmlNode node = xmlDoc.SelectSingleNode("config/rows[@ID=" + ID + "]");
            foreach (XmlNode node1 in node.Attributes)
            {
                if (ht.ContainsKey(node1.Name)&&node1.Name!="ID")
                {
                    node1.Value = ht[node1.Name].ToString();
                }
            }
            xmlDoc.Save(fileName);
        }1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
/// <summary>
        /// 修改XML
        /// </summary>
        /// <param name="xmlName">XML文件名</param>
        /// <param name="ht">存放信息哈希表</param>
        /// <param name="ID">主键值</param>
        public void saveXML(string xmlName,Hashtable ht,string ID)
        {
            string fileName=HttpContext.Current.Request.PhysicalApplicationPath+"\Xml\"+xmlName+".xml";//xml的物理路径
            XmlDocument xmlDoc=new XmlDocument ();
            xmlDoc.Load(fileName);
            XmlNode node = xmlDoc.SelectSingleNode("config/rows[@ID=" + ID + "]");
            foreach (XmlNode node1 in node.Attributes)
            {
                if (ht.ContainsKey(node1.Name)&&node1.Name!="ID")
                {
                    node1.Value = ht[node1.Name].ToString();
                }
            }
            xmlDoc.Save(fileName);
        }
登录后复制

ht:

复制代码  Hashtable ht = new Hashtable();
        ht.Add("ID", this.txt_ID.Value);
        ht.Add("class", this.txt_class.Value);
        ht.Add("class_name", this.txt_class_name.Value);
        ht.Add("year", this.txt_year.Value);
        ht.Add("school", this.txt_school.Value);
        ht.Add("count", this.txt_count.Value);1
2
3
4
5
6
7
Hashtable ht = new Hashtable();
        ht.Add("ID", this.txt_ID.Value);
        ht.Add("class", this.txt_class.Value);
        ht.Add("class_name", this.txt_class_name.Value);
        ht.Add("year", this.txt_year.Value);
        ht.Add("school", this.txt_school.Value);
        ht.Add("count", this.txt_count.Value);
登录后复制

2）插入xml

复制代码    /// <summary>
        /// 插入xml
        /// </summary>
        /// <param name="xmlName">XML文件名</param>
        /// <param name="ht">存放信息哈希表</param>
        /// <returns></returns>
        public string insertXml(string xmlName, Hashtable ht)
        {
            string fileName = HttpContext.Current.Request.PhysicalApplicationPath + "\Xml\" + xmlName + ".xml";//xml的物理路径
            XmlDocument xmlDoc = new XmlDocument();
            xmlDoc.Load(fileName);
            XmlNode node = xmlDoc.SelectSingleNode("//rows[last()]");//最后一个行节点
            XmlNode MaxNode = xmlDoc.SelectSingleNode("//rows/@ID[not(.<//rows/@ID)]");//获取主键最大值
            if (int.Parse(ht[MaxNode.Name].ToString()) <= int.Parse(MaxNode.Value))//如果小于主键最大值，那么返回-
            {
                return "-1";
            }
            XmlElement xe = xmlDoc.CreateElement("rows");
            xe.InnerText = "";
            foreach (XmlNode node1 in node.Attributes)
            {
                if (ht.ContainsKey(node1.Name))
                {
                    xe.SetAttribute(node1.Name, ht[node1.Name].ToString());
                }
                else
                {
                    xe.SetAttribute(node1.Name,"");
                }
            }
            node.ParentNode.AppendChild(xe);
            xmlDoc.Save(fileName);
            return "1";
        }1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
/// <summary>
        /// 插入xml
        /// </summary>
        /// <param name="xmlName">XML文件名</param>
        /// <param name="ht">存放信息哈希表</param>
        /// <returns></returns>
        public string insertXml(string xmlName, Hashtable ht)
        {
            string fileName = HttpContext.Current.Request.PhysicalApplicationPath + "\Xml\" + xmlName + ".xml";//xml的物理路径
            XmlDocument xmlDoc = new XmlDocument();
            xmlDoc.Load(fileName);
            XmlNode node = xmlDoc.SelectSingleNode("//rows[last()]");//最后一个行节点
            XmlNode MaxNode = xmlDoc.SelectSingleNode("//rows/@ID[not(.<//rows/@ID)]");//获取主键最大值
            if (int.Parse(ht[MaxNode.Name].ToString()) <= int.Parse(MaxNode.Value))//如果小于主键最大值，那么返回-
            {
                return "-1";
            }
            XmlElement xe = xmlDoc.CreateElement("rows");
            xe.InnerText = "";
            foreach (XmlNode node1 in node.Attributes)
            {
                if (ht.ContainsKey(node1.Name))
                {
                    xe.SetAttribute(node1.Name, ht[node1.Name].ToString());
                }
                else
                {
                    xe.SetAttribute(node1.Name,"");
                }
            }
            node.ParentNode.AppendChild(xe);
            xmlDoc.Save(fileName);
            return "1";
        }
登录后复制

3）删除xml

复制代码   /// <summary>
        /// 删除xml节点
        /// </summary>
        /// <param name="xmlName">XML文件名</param>
        /// <param name="ID">主键值</param>
        /// <param name="primaryKey">主键名</param>
        /// <returns></returns>
        public string deleteXml(string xmlName,string ID,string primaryKey)
        {
            string rtn = string.Empty;
            string fileName = HttpContext.Current.Request.PhysicalApplicationPath + "\Xml\" + xmlName + ".xml";//xml的物理路径
            XmlDocument xmlDoc = new XmlDocument();
            xmlDoc.Load(fileName);
            XmlNode node = xmlDoc.SelectSingleNode("//rows[@"+primaryKey+"='"+ID+"']");//最后一个行节点
            if (node ==null)
            {
                rtn = "-1";
            }
            else
            {
                node.ParentNode.RemoveChild(node);
                rtn = "1";
            }
            xmlDoc.Save(fileName);
            return rtn;
        }1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
/// <summary>
        /// 删除xml节点
        /// </summary>
        /// <param name="xmlName">XML文件名</param>
        /// <param name="ID">主键值</param>
        /// <param name="primaryKey">主键名</param>
        /// <returns></returns>
        public string deleteXml(string xmlName,string ID,string primaryKey)
        {
            string rtn = string.Empty;
            string fileName = HttpContext.Current.Request.PhysicalApplicationPath + "\Xml\" + xmlName + ".xml";//xml的物理路径
            XmlDocument xmlDoc = new XmlDocument();
            xmlDoc.Load(fileName);
            XmlNode node = xmlDoc.SelectSingleNode("//rows[@"+primaryKey+"='"+ID+"']");//最后一个行节点
            if (node ==null)
            {
                rtn = "-1";
            }
            else
            {
                node.ParentNode.RemoveChild(node);
                rtn = "1";
            }
            xmlDoc.Save(fileName);
            return rtn;
        }
登录后复制
