unity 如何使用LineRenderer 动态划线

1
2
3
4
5
6
7
8
9
10
11
12
private LineRenderer line1;
//画线
line1 = this.gameObject.AddComponent<LineRenderer>();
//只有设置了材质 setColor才有作用
line1.material = new Material(Shader.Find("Particles/Additive"));
line1.SetVertexCount(2);//设置两点
line1.SetColors(Color.yellow, Color.red); //设置直线颜色
line1.SetWidth(5f, 10f);//设置直线宽度
//设置指示线的起点和终点
line1.SetPosition(0, A.transform.position);
line1.SetPosition(1, B.transform.position);
Destroy(this.gameObject.GetComponent<LineRenderer>());

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class PlayerTest : MonoBehaviour
{
    public GameObject clone;//这是个空物体  只添加了一个LineRenderer组件
    public float speed = 5;
    public float jumpSpeed = 10f;
    public float luodi = 15;
    private Vector3 movePos = Vector3.zero;
    public CharacterController controller;
    private LineRenderer line;
    Vector3[] path;
    private float time = 0;
    List<Vector3> pos=new List<Vector3> ();
    void Awake()
    {
              path = pos.ToArray();//初始化
              line = clone.GetComponent<LineRenderer>();//获得该物体上的LineRender组件
              line.SetColors(Color.blue, Color.red);//设置颜色
              line.SetWidth(0.2f, 0.1f);//设置宽度
    }
    void Update()
    {
        time += Time.deltaTime;
        if (time>0.1)//每0.1秒绘制一次
        {
            time = 0;
            pos.Add(transform.position);//添加当前坐标进链表
            path = pos.ToArray();//转成数组
        }
        if (controller.isGrounded)//判断人物是否落地
        {
            movePos = new Vector3(Input.GetAxis("Horizontal"), 0, Input.GetAxis("Vertical"));
            movePos = transform.TransformDirection(movePos);
            movePos *= speed;
            if (Input.GetButton("Jump")) {
                movePos.y = jumpSpeed;
              }
        }
        movePos.y -= luodi * Time.deltaTime;
        controller.Move(movePos * Time.deltaTime);
        if (path.Length!=0)//有数据时候再绘制
        {
            line.SetVertexCount(path.Length);//设置顶点数
            line.SetPositions(path);//设置顶点位置
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149

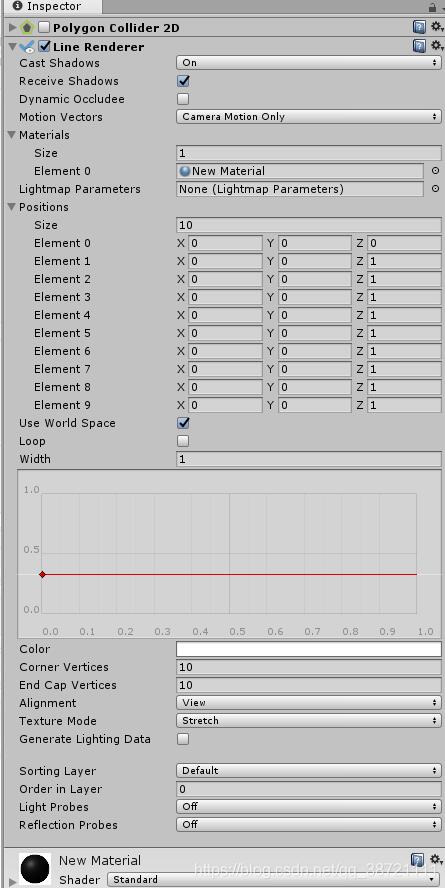

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class MouseTrack : MonoBehaviour
{
    /// <summary>
    /// 获取LineRenderer组件
    /// </summary>
    [Header("获得LineRenderer组件")]
    public LineRenderer lineRenderer;
    //获得鼠标跟踪位置
    private Vector3[] mouseTrackPositions = new Vector3[20];
    private Vector3 headPosition;   //头位置
    private Vector3 lastPosition;   //尾位置
    private int positionCount = 0;  //位置计数
    [Header("设置多远距离记录一个位置")]
    public float distanceOfPositions = 0.01f;
    private bool firstMouseDown = false;    //第一次鼠标点击
    private bool mouseDown = false;     //鼠标点击
    PolygonCollider2D polygonCollider;   //添加多边形碰撞
    void Start()
    {
        polygonCollider = gameObject.GetComponent<PolygonCollider2D>();
    }
    void Update()
    {
        //鼠标点击的时候
        if (Input.GetMouseButtonDown(0))
        {
            polygonCollider.enabled = true;
            lineRenderer.positionCount = 20;
            firstMouseDown = true;
            mouseDown = true;
        }
        if (Input.GetMouseButtonUp(0))
        {
            mouseDown = false;

            //ClearColliderAndLineRenderer();
        }
        OnDrawLine();
        firstMouseDown = false;
    }
    //画线
    private void OnDrawLine()
    {
        if (firstMouseDown == true)
        {
            positionCount = 0;
            //头坐标
            headPosition = Camera.main.ScreenToViewportPoint(Input.mousePosition + new Vector3(0, 0, 11));
            lastPosition = headPosition;
        }
        if (mouseDown == true)
        {
            headPosition = Camera.main.ScreenToWorldPoint(Input.mousePosition + new Vector3(0, 0, 11));
            //判断头坐标到尾坐标的距离是否大于记录点位
            if (Vector3.Distance(headPosition, lastPosition) > distanceOfPositions)
            {
                //用于保存位置
                SavePosition(headPosition);
                positionCount++;
            }
            lastPosition = headPosition;
        }
        //设置线性渲染器的位置
        SetLineRendererPosition(mouseTrackPositions);
    }
    //保存位置
    private void SavePosition(Vector3 pos)
    {
        pos.z = 0;
        if (positionCount <= 19)
        {
            for (int i = positionCount; i < 20; i++)
            {
                mouseTrackPositions[i] = pos;
            }
        }
        else
        {
            for (int i = 0; i < 19; i++)
            {
                mouseTrackPositions[i] = mouseTrackPositions[i + 1];
            }
        }
        mouseTrackPositions[19] = pos;

        //创建碰撞路径
        List<Vector2> colliderPath = GetColliderPath(mouseTrackPositions);
        polygonCollider.SetPath(0, colliderPath.ToArray());
    }
    //计算碰撞体轮廓
    float colliderWidth;
    List<Vector2> pointList2 = new List<Vector2>();
    List<Vector2> GetColliderPath(Vector3[] pointList3)
    {
        //碰撞体宽度
        colliderWidth = lineRenderer.startWidth;
        //Vector3转Vector2
        pointList2.Clear();
        for (int i = 0; i < pointList3.Length; i++)
        {
            pointList2.Add(pointList3[i]);
        }
        //碰撞体轮廓点位
        List<Vector2> edgePointList = new List<Vector2>();
        //以LineRenderer的点位为中心, 沿法线方向与法线反方向各偏移一定距离, 形成一个闭合且不交叉的折线
        for (int j = 1; j < pointList2.Count; j++)
        {
            //当前点指向前一点的向量
            Vector2 distanceVector = pointList2[j - 1] - pointList2[j];
            //法线向量
            Vector3 crossVector = Vector3.Cross(distanceVector, Vector3.forward);
            //标准化, 单位向量
            Vector2 offectVector = crossVector.normalized;
            //沿法线方向与法线反方向各偏移一定距离
            Vector2 up = pointList2[j - 1] + 0.5f * colliderWidth * offectVector;
            Vector2 down = pointList2[j - 1] - 0.5f * colliderWidth * offectVector;
            //分别加到List的首位和末尾, 保证List中的点位可以围成一个闭合且不交叉的折线
            edgePointList.Insert(0, down);
            edgePointList.Add(up);
            //加入最后一点
            if (j == pointList2.Count - 1)
            {
                up = pointList2[j] + 0.5f * colliderWidth * offectVector;
                down = pointList2[j] - 0.5f * colliderWidth * offectVector;
                edgePointList.Insert(0, down);
                edgePointList.Add(up);
            }
        }
        //返回点位
        return edgePointList;
    }
    //设置线条渲染器位置
    private void SetLineRendererPosition(Vector3[] position)
    {
        lineRenderer.SetPositions(position);
    }
    //用于清除碰撞和线性渲染
    void ClearColliderAndLineRenderer()
    {
        if (polygonCollider)
        {
            polygonCollider.enabled = false;
        }
        lineRenderer.positionCount = 0;
    }
}
