C# DataGridView中实现勾选存储数据和右键删除数据(示例代码)

201 阅读 0 评论 133 点赞

我是靠谱客的博主专一大树，这篇文章主要介绍C# DataGridView中实现勾选存储数据和右键删除数据(示例代码)，现在分享给大家，希望可以做个参考。

DataGridView事件CellContentClick

触发dataGridView的CellContentClick事件，并且在事件中调用Edit 方法。

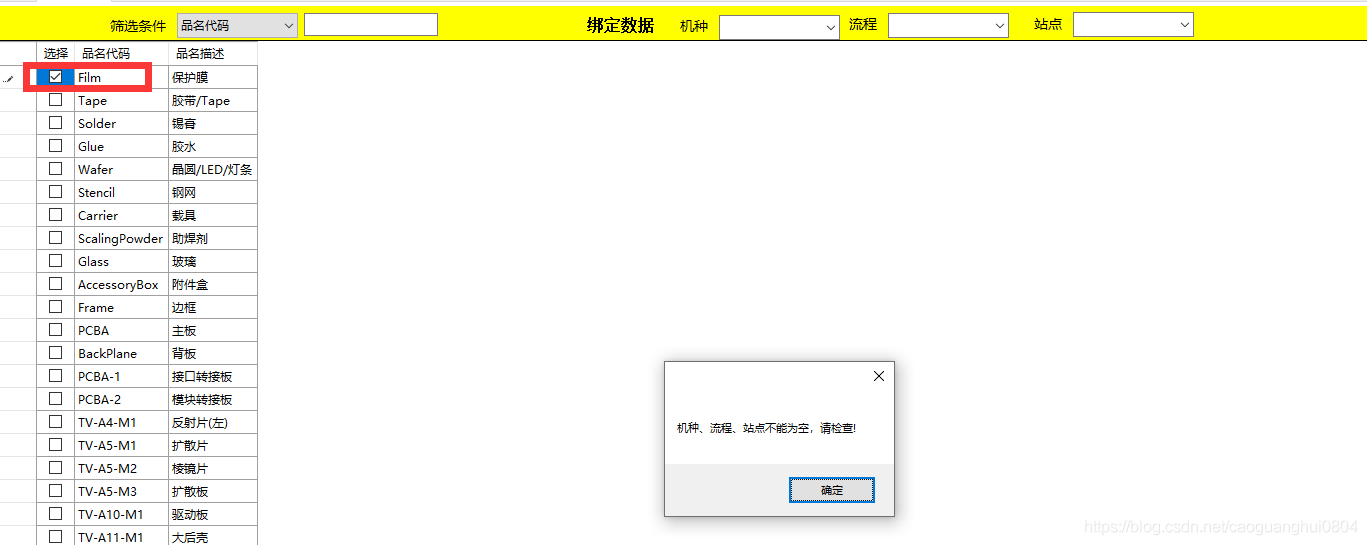

实现DataGridView中添加CheckBox后不满足条件去掉勾选
并且实现勾选后将绑定数据的存入表的动作

点击确定后去掉勾选

Main.cs

复制代码

private void tabControl1_SelectedIndexChanged(object sender, EventArgs e)
        {
            switch (this.tabControl1.SelectedIndex)
            {
                //case 0:
                //    //显示数据
                //    ShowVlues();
                //    break;

case 1:

                    TableDefine.Initial_TableE();
                    for (int i = 0; i <= TableDefine.tGridField.Length - 1; i++)
                    {
                        cboSearch.Items.Add(TableDefine.tGridField[i].sCaption);
                        cboSearchList.Items.Add(TableDefine.tGridField[i].sFieldName);
                    }
                    if (cboSearch.Items.Count > 0)
                    {
                        cboSearch.SelectedIndex = 0;
                    }
                    //取机种
                    DataTable ModelDT = fslConn.GetAllModel();
                    if (ModelDT.Rows.Count > 0)
                    {
                        foreach (DataRow item in ModelDT.Rows)
                        {
                            cboModel.Items.Add(item[0]);
                        }
                    }

//取流程
                    DataTable RouteDT = fslConn.GetAllRoute();
                    if (RouteDT.Rows.Count > 0)
                    {
                        foreach (DataRow item in RouteDT.Rows)
                        {
                            cboRoute.Items.Add(item[0]);
                        }
                    }

//显示数据
                    ShowEVlues();
                    break;
            }
        }

//取数据显示
        void ShowEVlues()
        {
            string sFieldName = string.Empty;
            string sFieldText = string.Empty;
            if (cboSearch.SelectedIndex > -1 && txtSearch.Text.Trim() != "")
            {
                sFieldName = cboSearchList.Items[cboSearch.SelectedIndex].ToString();
                sFieldText = txtSearch.Text.Trim();
            }
            if (string.IsNullOrWhiteSpace(sFieldText))
                gvDataE.DataSource = fslConn.GetAllFslEName();
            else
                gvDataE.DataSource = fslConn.GetAllFslEName(sFieldName, sFieldText);
            //栏位title
            for (int i = 0; i <= gvDataE.Columns.Count - 1; i++)
            {
                gvDataE.Columns[i].Visible = false;
            }
            for (int i = 0; i < TableDefine.tGridField.Length; i++)
            {
                string sGridField = TableDefine.tGridField[i].sFieldName;

if (gvDataE.Columns.Contains(sGridField))
                {
                    gvDataE.Columns[sGridField].HeaderText = TableDefine.tGridField[i].sCaption;
                    gvDataE.Columns[sGridField].DisplayIndex = i; //栏位显示顺序
                    gvDataE.Columns[sGridField].Visible = true;
                }
            }
            gvDataE.Focus();
            //为dgv增加复选框列
            DataGridViewCheckBoxColumn checkbox = new DataGridViewCheckBoxColumn();
            //列显示名称
            checkbox.HeaderText = "选择";
            checkbox.Name = "IsChecked";
            checkbox.TrueValue = true;
            checkbox.FalseValue = false;
            checkbox.DataPropertyName = "IsChecked";
            //列宽
            checkbox.Width = 50;
            //列大小不改变
            checkbox.Resizable = DataGridViewTriState.False;
            //添加的checkbox在dgv第一列
            this.gvDataE.Columns.Insert(0, checkbox);
        }

  //实现搜索
        private void txtSearch_KeyPress(object sender, KeyPressEventArgs e)
        {
            if (e.KeyChar != (char)Keys.Return)
                return;
            ShowEVlues();
            editFilter.Focus();
        }
   //实现通过流程取站点
        private void cboRoute_SelectedIndexChanged(object sender, EventArgs e)
        {
            if (cboRoute.Text != "")
            {
                //取站点
                DataTable StationTypeDT = fslConn.GetAllStationType(cboRoute.Text);
                if (StationTypeDT.Rows.Count > 0)
                {
                    for (int i = 0; i < StationTypeDT.Rows.Count; i++)
                    {
                        //cboStationType.Items.Add(item[0]);
                        cboStationType.Items.Add(new Metadata(StationTypeDT.Rows[i][2].ToString(), StationTypeDT.Rows[i][0].ToString(), StationTypeDT.Rows[i][1].ToString()));
                    }
                }
            }
        }
        //点击勾选事件后进行数据绑定
        private void gvDataE_CellContentClick(object sender, DataGridViewCellEventArgs e)
        {
            string Model = cboModel.Text;
            string Route = cboRoute.Text;
            if (Model == "" || Route == ""|| cboStationType.Text == "")
            {
                MessageBox.Show("机种、流程、站点不能为空，请检查!");
                //DataGridViewCheckBoxCell checkCell = (DataGridViewCheckBoxCell)this.gvDataE.Rows[e.RowIndex].Cells["IsChecked"];
                // this.gvDataE.Rows[e.RowIndex].Cells["IsChecked"].Value = false;
                //将勾选去掉
                this.gvDataE.RefreshEdit();
                return;
            }

//站点代码
            string StationType = ((Metadata)cboStationType.SelectedItem).ID;
            //站点描述
            string StationTypeDesc = ((Metadata)cboStationType.SelectedItem).NAMEDESC;

if (e.ColumnIndex == 0 && e.RowIndex != -1)
            {
                //获取控件的值
                DataGridViewCheckBoxCell checkCell = (DataGridViewCheckBoxCell)this.gvDataE.Rows[e.RowIndex].Cells["IsChecked"];
                Boolean flag = Convert.ToBoolean(checkCell.Value);
                //KP品名
                string gvFunName = gvDataE.Rows[e.RowIndex].Cells["MAT_TYPE_CODE"].Value.ToString();
                //KP品名描述
                string gvFunNameDesc = gvDataE.Rows[e.RowIndex].Cells["MAT_TYPE_DESC"].Value.ToString();

if  (flag == false)
                {
                    checkCell.Value = true;
                    //添加权限
                    fslConn.SaveFslPower(gvFunName, gvFunNameDesc, Model,StationType, StationTypeDesc);
                }
            }
        }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
private void tabControl1_SelectedIndexChanged(object sender, EventArgs e)
        {
            switch (this.tabControl1.SelectedIndex)
            {
                //case 0:
                //    //显示数据
                //    ShowVlues();
                //    break;

                case 1:

                    TableDefine.Initial_TableE();
                    for (int i = 0; i <= TableDefine.tGridField.Length - 1; i++)
                    {
                        cboSearch.Items.Add(TableDefine.tGridField[i].sCaption);
                        cboSearchList.Items.Add(TableDefine.tGridField[i].sFieldName);
                    }
                    if (cboSearch.Items.Count > 0)
                    {
                        cboSearch.SelectedIndex = 0;
                    }
                    //取机种
                    DataTable ModelDT = fslConn.GetAllModel();
                    if (ModelDT.Rows.Count > 0)
                    {
                        foreach (DataRow item in ModelDT.Rows)
                        {
                            cboModel.Items.Add(item[0]);
                        }
                    }

                    //取流程
                    DataTable RouteDT = fslConn.GetAllRoute();
                    if (RouteDT.Rows.Count > 0)
                    {
                        foreach (DataRow item in RouteDT.Rows)
                        {
                            cboRoute.Items.Add(item[0]);
                        }
                    }

                    //显示数据
                    ShowEVlues();
                    break;
            }
        }

        //取数据显示
        void ShowEVlues()
        {
            string sFieldName = string.Empty;
            string sFieldText = string.Empty;
            if (cboSearch.SelectedIndex > -1 && txtSearch.Text.Trim() != "")
            {
                sFieldName = cboSearchList.Items[cboSearch.SelectedIndex].ToString();
                sFieldText = txtSearch.Text.Trim();
            }
            if (string.IsNullOrWhiteSpace(sFieldText))
                gvDataE.DataSource = fslConn.GetAllFslEName();
            else
                gvDataE.DataSource = fslConn.GetAllFslEName(sFieldName, sFieldText);
            //栏位title
            for (int i = 0; i <= gvDataE.Columns.Count - 1; i++)
            {
                gvDataE.Columns[i].Visible = false;
            }
            for (int i = 0; i < TableDefine.tGridField.Length; i++)
            {
                string sGridField = TableDefine.tGridField[i].sFieldName;

                if (gvDataE.Columns.Contains(sGridField))
                {
                    gvDataE.Columns[sGridField].HeaderText = TableDefine.tGridField[i].sCaption;
                    gvDataE.Columns[sGridField].DisplayIndex = i; //栏位显示顺序
                    gvDataE.Columns[sGridField].Visible = true;
                }
            }
            gvDataE.Focus();
            //为dgv增加复选框列
            DataGridViewCheckBoxColumn checkbox = new DataGridViewCheckBoxColumn();
            //列显示名称
            checkbox.HeaderText = "选择";
            checkbox.Name = "IsChecked";
            checkbox.TrueValue = true;
            checkbox.FalseValue = false;
            checkbox.DataPropertyName = "IsChecked";
            //列宽
            checkbox.Width = 50;
            //列大小不改变
            checkbox.Resizable = DataGridViewTriState.False;
            //添加的checkbox在dgv第一列
            this.gvDataE.Columns.Insert(0, checkbox);
        }

  //实现搜索
        private void txtSearch_KeyPress(object sender, KeyPressEventArgs e)
        {
            if (e.KeyChar != (char)Keys.Return)
                return;
            ShowEVlues();
            editFilter.Focus();
        }
   //实现通过流程取站点
        private void cboRoute_SelectedIndexChanged(object sender, EventArgs e)
        {
            if (cboRoute.Text != "")
            {
                //取站点
                DataTable StationTypeDT = fslConn.GetAllStationType(cboRoute.Text);
                if (StationTypeDT.Rows.Count > 0)
                {
                    for (int i = 0; i < StationTypeDT.Rows.Count; i++)
                    {
                        //cboStationType.Items.Add(item[0]);
                        cboStationType.Items.Add(new Metadata(StationTypeDT.Rows[i][2].ToString(), StationTypeDT.Rows[i][0].ToString(), StationTypeDT.Rows[i][1].ToString()));
                    }
                }
            }
        }
        //点击勾选事件后进行数据绑定
        private void gvDataE_CellContentClick(object sender, DataGridViewCellEventArgs e)
        {
            string Model = cboModel.Text;
            string Route = cboRoute.Text;
            if (Model == "" || Route == ""|| cboStationType.Text == "")
            {
                MessageBox.Show("机种、流程、站点不能为空，请检查!");
                //DataGridViewCheckBoxCell checkCell = (DataGridViewCheckBoxCell)this.gvDataE.Rows[e.RowIndex].Cells["IsChecked"];
                // this.gvDataE.Rows[e.RowIndex].Cells["IsChecked"].Value = false;
                //将勾选去掉
                this.gvDataE.RefreshEdit();
                return;
            }

            //站点代码
            string StationType = ((Metadata)cboStationType.SelectedItem).ID;
            //站点描述
            string StationTypeDesc = ((Metadata)cboStationType.SelectedItem).NAMEDESC;


            if (e.ColumnIndex == 0 && e.RowIndex != -1)
            {
                //获取控件的值
                DataGridViewCheckBoxCell checkCell = (DataGridViewCheckBoxCell)this.gvDataE.Rows[e.RowIndex].Cells["IsChecked"];
                Boolean flag = Convert.ToBoolean(checkCell.Value);
                //KP品名
                string gvFunName = gvDataE.Rows[e.RowIndex].Cells["MAT_TYPE_CODE"].Value.ToString();
                //KP品名描述
                string gvFunNameDesc = gvDataE.Rows[e.RowIndex].Cells["MAT_TYPE_DESC"].Value.ToString();


                if  (flag == false)
                {
                    checkCell.Value = true;
                    //添加权限
                    fslConn.SaveFslPower(gvFunName, gvFunNameDesc, Model,StationType, StationTypeDesc);
                }
            }
        }

ComboBox取值

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
main.cs
 //取机种
                    DataTable ModelDT = fslConn.GetAllModel();
                    if (ModelDT.Rows.Count > 0)
                    {
                        foreach (DataRow item in ModelDT.Rows)
                        {
                            cboModel.Items.Add(item[0]);
                        }
                    }
 fslConn.cs
 //取机种
        public DataTable GetAllModel()
        {
            return fslDAL.GetAllModel();
        }
fslDAL.cs
 //取机种
        public DataTable GetAllModel()
        {
            string sql = "SELECT MODEL FROM IMES.M_MODEL";
            return utility.Query(sql);
        }

储存数据

复制代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
fslConn.cs
    public long SaveFslPower(string gvFunName, string gvFunNameDesc, string Model, string StationType, string StationTypeDesc )
        {
            return fslDAL.SaveFslPower(gvFunName, gvFunNameDesc, Model, StationType, StationTypeDesc);
        }
fslDAL.cs
     //存权限
        public long SaveFslPower(string gvFunName, string gvFunNameDesc, string Model, string StationType, string StationTypeDesc)
        {
            string id = GetMaxId();
            string sql = @"INSERT INTO IMES.M_STATIONTYPE_PARTSPEC  (ID,MODEL,STATION_TYPE,STATION_DESC,KP_SPEC,KP_SPEC_DESC,QTY,ENABLED,CREATE_EMPNO,CREATE_TIME,UPDATE_EMPNO)
                        VALUES(:1,:2,:3,:4,:5,:6,:7,:8,:9,:10,:11)";
            object[] para = new object[] { id, Model, StationType , StationTypeDesc,gvFunName, gvFunNameDesc, "1", "Y", utility.GlobalUserNo,DateTime.Now, utility.GlobalUserNo };
            return utility.ExecuteSql(sql, para);
        }

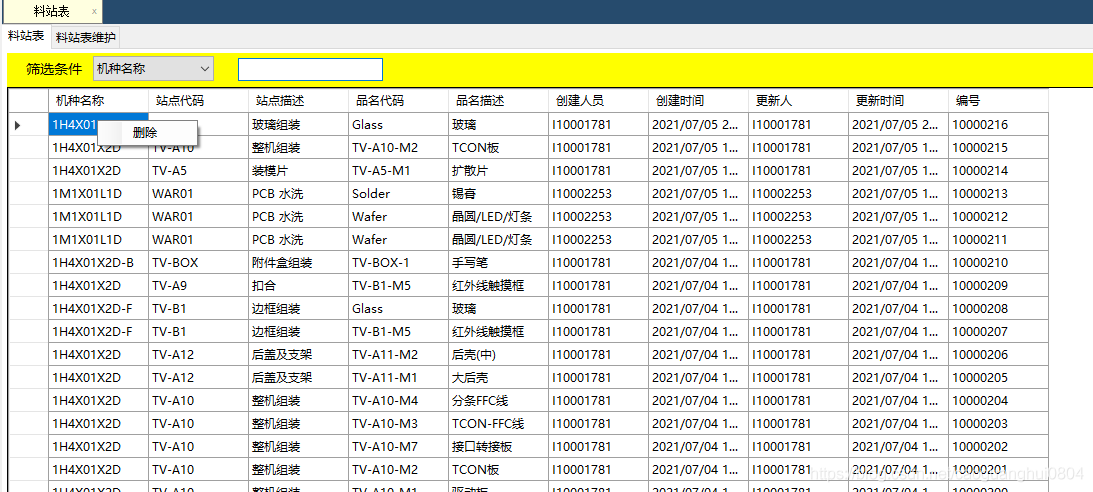

右键删除数据

实现效果

复制代码

Main.cs
   //实现DataGridView栏位右键删除数据
        private void 删除ToolStripMenuItem_Click(object sender, EventArgs e)
        {
            if (gvData.Rows.Count == 0 || gvData.CurrentRow == null)
            {
                return;
            }
            string ID = gvData.CurrentRow.Cells["ID"].Value.ToString();
            if (MessageBox.Show("ID:" + ID + " 确认删除吗?", "提示", MessageBoxButtons.YesNo, MessageBoxIcon.Question) == DialogResult.Yes)
            {
                //M_STATIONTYPE_PARTSPEC_HT写入历史库
                fslConn.SaveFslHistoryData(ID);
                移除权限
                fslConn.DeleteFslByIDAndFunc(ID);

//显示数据
                ShowVlues();
            }
        }
fslConn.cs
    //删除权限
        public long DeleteFslByIDAndFunc(string id)
        {
            return fslDAL.DeleteFslByIDAndFunc( id);
        }
fslDAL.cs
     //删除权限
        public long DeleteFslByIDAndFunc(string id)
        {
            string sql = @"Delete from  IMES.M_STATIONTYPE_PARTSPEC WHERE ID =:1";
            object[] para = new object[] { id };
            return utility.ExecuteSql(sql, para);
        }

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Main.cs
   //实现DataGridView栏位右键删除数据
        private void 删除ToolStripMenuItem_Click(object sender, EventArgs e)
        {
            if (gvData.Rows.Count == 0 || gvData.CurrentRow == null)
            {
                return;
            }
            string ID = gvData.CurrentRow.Cells["ID"].Value.ToString();
            if (MessageBox.Show("ID:" + ID + " 确认删除吗?", "提示", MessageBoxButtons.YesNo, MessageBoxIcon.Question) == DialogResult.Yes)
            {
                //M_STATIONTYPE_PARTSPEC_HT写入历史库
                fslConn.SaveFslHistoryData(ID);
                移除权限
                fslConn.DeleteFslByIDAndFunc(ID);

                //显示数据
                ShowVlues();
            }
        }
fslConn.cs
    //删除权限
        public long DeleteFslByIDAndFunc(string id)
        {
            return fslDAL.DeleteFslByIDAndFunc( id);
        }
fslDAL.cs
     //删除权限
        public long DeleteFslByIDAndFunc(string id)
        {
            string sql = @"Delete from  IMES.M_STATIONTYPE_PARTSPEC WHERE ID =:1";
            object[] para = new object[] { id };
            return utility.ExecuteSql(sql, para);
        }
