我是靠谱客的博主可爱毛衣，这篇文章主要介绍C#创建自定义控件的示例，现在分享给大家，希望可以做个参考。

在编程过程中，现有的c#控件远远不能满足我们的需要，这时候就需要我们自己来开发控件了。本人在开发自定义控件时走了一些弯路，写下此篇，希望能够给有需要的朋友一些帮助，也借此加深自己的印象。

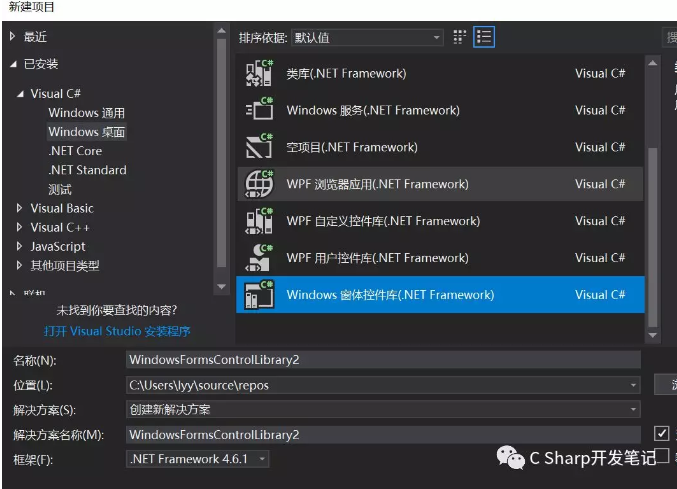

1.创建自定义控件

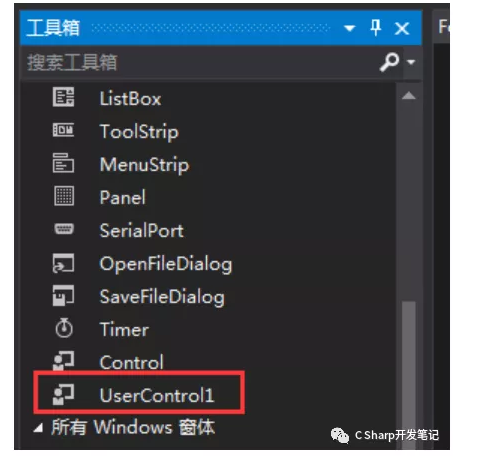

2.添加控件，组合成一个新的控件

自定义控件功能：打开一张图片，将图片展示在pictureBox控件中，并将图片的名称、大小、尺寸显示出来

控件如下：

pictureBox1：命名为picBox

label1~label6 ：左边三个显示文字，右边三个命名为：lblName lblLength lblSize

button1：命名为btnOpen

代码如下：

复制代码

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.IO;

namespace WindowsFormsControlLibrary1
{
  public partial class UserControl1: UserControl
  {
    public UserControl1()
    {
      InitializeComponent();
    }

    private void button1_Click(object sender, EventArgs e)
    {
      OpenFileDialog ofdPic = new OpenFileDialog();
      ofdPic.Filter = "JPG(*.JPG;*.JPEG);gif文件(*.GIF);PNG(*.PNG)|*.jpg;*.jpeg;*.gif;*.png";
      ofdPic.FilterIndex = 1;
      ofdPic.RestoreDirectory = true;
      ofdPic.FileName = "";
      if (ofdPic.ShowDialog() == DialogResult.OK)
      {
        string sPicPaht = ofdPic.FileName.ToString();
        FileInfo fiPicInfo = new FileInfo(sPicPaht);
        long lPicLong = fiPicInfo.Length / 1024;
        string sPicName = fiPicInfo.Name;
        string sPicDirectory = fiPicInfo.Directory.ToString();
        string sPicDirectoryPath = fiPicInfo.DirectoryName;
        Bitmap bmPic = new Bitmap(sPicPaht);
        if (lPicLong > 400)
        {
          MessageBox.Show("此文件大小為" + lPicLong + "K；已超過最大限制的K范圍！");
        }
        else
        {
          Point ptLoction = new Point(bmPic.Size);
          if (ptLoction.X > picBox.Size.Width || ptLoction.Y > picBox.Size.Height)
          {
            picBox.SizeMode = PictureBoxSizeMode.Zoom;
          }
          else
          {
            picBox.SizeMode = PictureBoxSizeMode.CenterImage;
          }
        }
        picBox.LoadAsync(sPicPaht);
        lblName.Text = sPicName;
        lblLength.Text = lPicLong.ToString() + " KB";
        lblSize.Text = bmPic.Size.Width.ToString() + "×" + bmPic.Size.Height.ToString();
      }

    }
  }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing;
using System.Data;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using System.IO;

namespace WindowsFormsControlLibrary1
{
  public partial class UserControl1: UserControl
  {
    public UserControl1()
    {
      InitializeComponent();
    }

    private void button1_Click(object sender, EventArgs e)
    {
      OpenFileDialog ofdPic = new OpenFileDialog();
      ofdPic.Filter = "JPG(*.JPG;*.JPEG);gif文件(*.GIF);PNG(*.PNG)|*.jpg;*.jpeg;*.gif;*.png";
      ofdPic.FilterIndex = 1;
      ofdPic.RestoreDirectory = true;
      ofdPic.FileName = "";
      if (ofdPic.ShowDialog() == DialogResult.OK)
      {
        string sPicPaht = ofdPic.FileName.ToString();
        FileInfo fiPicInfo = new FileInfo(sPicPaht);
        long lPicLong = fiPicInfo.Length / 1024;
        string sPicName = fiPicInfo.Name;
        string sPicDirectory = fiPicInfo.Directory.ToString();
        string sPicDirectoryPath = fiPicInfo.DirectoryName;
        Bitmap bmPic = new Bitmap(sPicPaht);
        if (lPicLong > 400)
        {
          MessageBox.Show("此文件大小為" + lPicLong + "K；已超過最大限制的K范圍！");
        }
        else
        {
          Point ptLoction = new Point(bmPic.Size);
          if (ptLoction.X > picBox.Size.Width || ptLoction.Y > picBox.Size.Height)
          {
            picBox.SizeMode = PictureBoxSizeMode.Zoom;
          }
          else
          {
            picBox.SizeMode = PictureBoxSizeMode.CenterImage;
          }
        }
        picBox.LoadAsync(sPicPaht);
        lblName.Text = sPicName;
        lblLength.Text = lPicLong.ToString() + " KB";
        lblSize.Text = bmPic.Size.Width.ToString() + "×" + bmPic.Size.Height.ToString();
      }

    }
  }
}
