概述

组件—时间线

基础用法

<div class="block">
  <div class="radio">
    排序：
    <el-radio-group v-model="reverse">
      <el-radio :label="true">倒序</el-radio>
      <el-radio :label="false">正序</el-radio>
    </el-radio-group>
  </div>

  <el-timeline :reverse="reverse">
    <el-timeline-item
      v-for="(activity, index) in activities"
      :key="index"
      :timestamp="activity.timestamp">
      {{activity.content}}
    </el-timeline-item>
  </el-timeline>
</div>

<script>
  export default {
    data() {
      return {
        reverse: true,
        activities: [{
          content: '活动按期开始',
          timestamp: '2018-04-15'
        }, {
          content: '通过审核',
          timestamp: '2018-04-13'
        }, {
          content: '创建成功',
          timestamp: '2018-04-11'
        }]
      };
    }
  };
</script>

⾃定义节点样式

<div class="block">
  <el-timeline>
    <el-timeline-item
      v-for="(activity, index) in activities"
      :key="index"
      :icon="activity.icon"
      :type="activity.type"
      :color="activity.color"
      :size="activity.size"
      :timestamp="activity.timestamp">
      {{activity.content}}
    </el-timeline-item>
  </el-timeline>
</div>

<script>
  export default {
    data() {
      return {
        activities: [{
          content: '支持使用图标',
          timestamp: '2018-04-12 20:46',
          size: 'large',
          type: 'primary',
          icon: 'el-icon-more'
        }, {
          content: '支持自定义颜色',
          timestamp: '2018-04-03 20:46',
          color: '#0bbd87'
        }, {
          content: '支持自定义尺寸',
          timestamp: '2018-04-03 20:46',
          size: 'large'
        }, {
          content: '默认样式的节点',
          timestamp: '2018-04-03 20:46'
        }]
      };
    }
  };
</script>

⾃定义时间戳

<div class="block">
  <el-timeline>
    <el-timeline-item timestamp="2018/4/12" placement="top">
      <el-card>
        <h4>更新 Github 模板</h4>
        <p>王小虎 提交于 2018/4/12 20:46</p>
      </el-card>
    </el-timeline-item>
    <el-timeline-item timestamp="2018/4/3" placement="top">
      <el-card>
        <h4>更新 Github 模板</h4>
        <p>王小虎 提交于 2018/4/3 20:46</p>
      </el-card>
    </el-timeline-item>
    <el-timeline-item timestamp="2018/4/2" placement="top">
      <el-card>
        <h4>更新 Github 模板</h4>
        <p>王小虎 提交于 2018/4/2 20:46</p>
      </el-card>
    </el-timeline-item>
  </el-timeline>
</div>

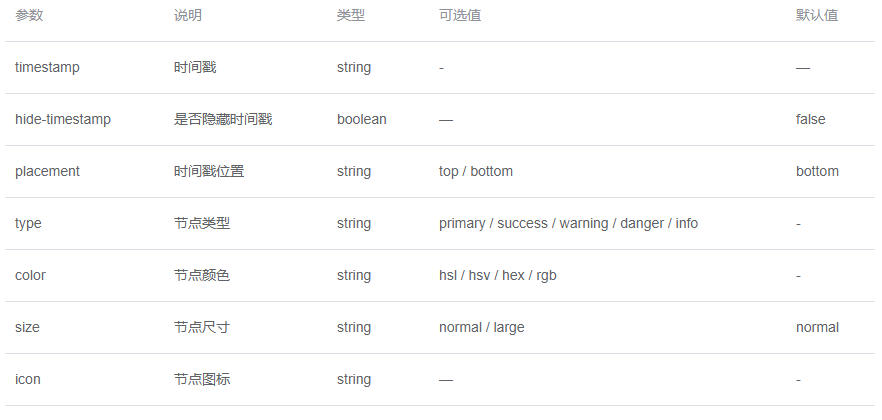

Timeline Attributes
