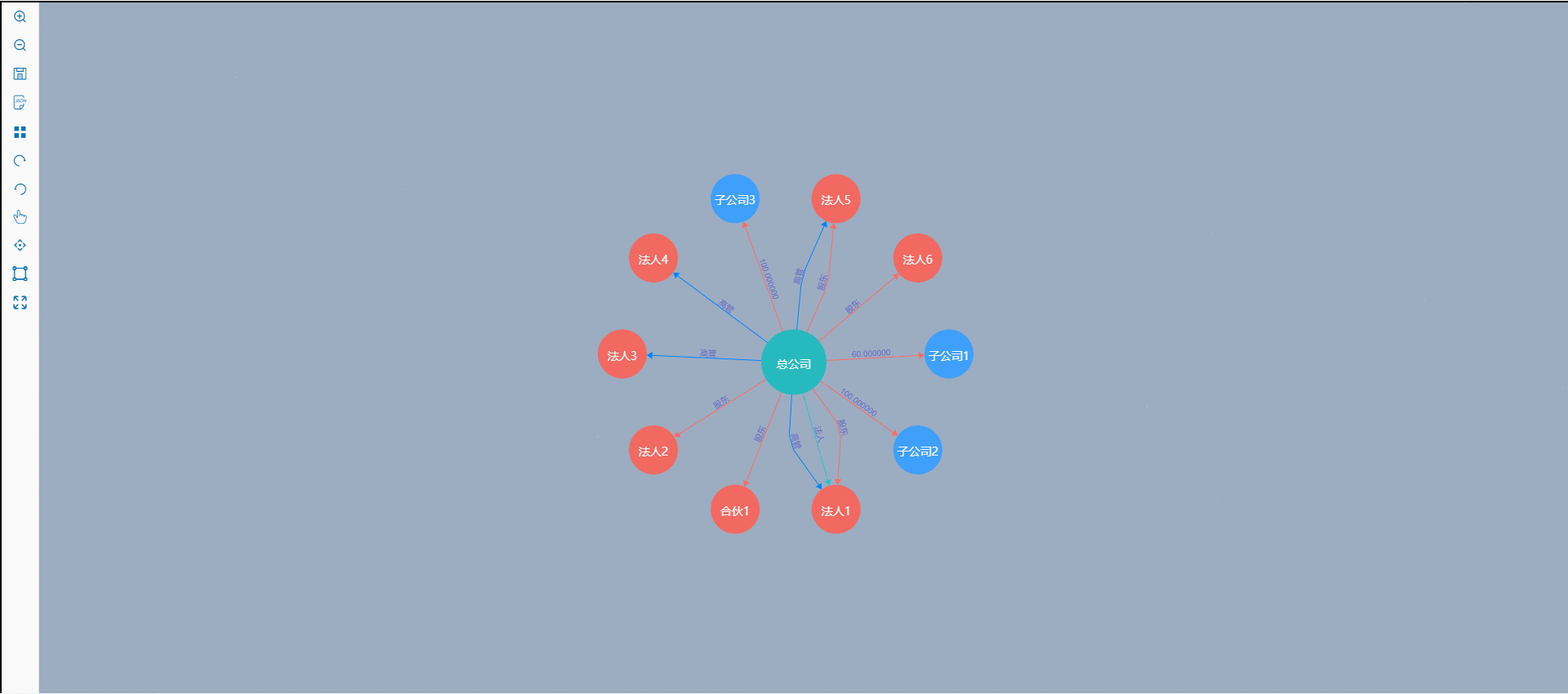

vue使用GraphVis开发无限拓展的关系图谱的实现

import VisGraph from '@/assets/js/GraphVis/old/visgraph.min.js' // 自己对应的js文件位置
import LayoutFactory from '@/assets/js/GraphVis/old/visgraph-layout.min.js' // 自己对应的js文件位置
export default { components: { VisGraph, LayoutFactory } }

config: {
  // 节点配置
          node: {
            label: { // 标签配置
              show: true, // 是否显示
              color: '250,250,250', // 字体颜色
              font: 'normal 14px Microsoft YaHei', // 字体大小及类型
              textPosition: 'Middle_Center', // 字体位置
              wrapText: true // 节点包裹文字(该属性为true时只对于字体位置为Middle_Center时有效)
            },
            shape: 'circle', // 节点形状 circle,rect,square,ellipse,triangle,star,polygon,text
            // width: 60, // 节点宽度(只对于shape为rect时有效)
            // height: 60, // 节点高度(只对于shape为rect时有效)
            color: '62,160,250', // 节点颜色
            borderColor: '62,160,250', // 节点边框颜色
            borderWidth: 0, // 节点边框宽度
            borderRadius: 0, // 节点圆角
            lineDash: [0], // 节点边框线条类型 [0] 表示实线 [5,8] 表示虚线 borderWidth > 0有效
            alpha: 1, // 节点透明度
            size: 60, // 节点大小
            selected: { // 节点选中后样式
              borderColor: '136,198,255', // 选中时边框颜色
              borderAlpha: 1, // 选中时的边框透明
              borderWidth: 3, // 选中是的边框宽度
              showShadow: true, // 是否展示阴影
              shadowColor: '136,198,255' // 选中是的阴影颜色
            }
          },
          // 线条配置
          link: {
            label: { // 标签配置
              show: true, // 是否显示
              color: '100,100,200', // 标签颜色
              font: 'normal 10px Arial' // 标签文字大小及类型
            },
            lineType: 'direct', // 线条类型direct,curver,vlink,hlink,bezier,vbezier,hbezier
            colorType: 'defined', // 连线颜色类型 source:继承source颜色,target:继承target颜色 both:用双边颜色，defined:自定义
            color: '200,200,200', // 线条颜色
            alpha: 1, // 连线透明度
            lineWidth: 1, // 连线宽度
            lineDash: [0], // 虚线间隔样式如：[5,8]
            showArrow: true, // 显示箭头
            selected: { // 选中时的样式设置
              color: '20,250,50', // 选中时的颜色
              alpha: 1, // 选中时的透明度
              lineWidth: 4, // 选中线条宽度
              showShadow: true, // 显示阴影
              shadowColor: '50,250,50' // 阴影颜色
            }
          },
          highLightNeiber: true, // 相邻节点高度标志
          wheelZoom: 0.8 // 滚轮缩放开关，不使用时不设置[0,1]
}

this.visgraph = new VisGraph(
        document.getElementById(this.canvasId),
        this.canvasConfig
      )
this.visgraph.clearAll()
this.visgraph.drawData(this.graphData)

this.visgraph.restoreHightLight() // 取消高亮
const allNodes = this.visgraph.getVisibleData()
this.currentNode.push(node.id)
allNodes.nodes.forEach(item => {
    if (this.currentNode.indexOf(item.id) === (-1)) {
         this.visgraph.deleteNode(item)
    }
})
const findNodeNum = Math.round(Math.random() * 50)
const increamData = this.buildIncreamData(node, findNodeNum)
this.visgraph.activeAddNodeLinks(increamData.nodes, increamData.links)
this.visgraph.translateToCenter()

<!--
 * @Author: CarlYang
 * @Date: 2021-07-23 15:31:51
 * @LastEditTime: 2021-07-30 09:46:05
 * @LastEditors: Please set LastEditors
 * @Description: 关系图谱
 * @FilePath: vue-g6srcviewsGraphViscompany.vue
-->
<template>
  <div id="container">
    <!-- ============================================= 画布视图 ============================================= -->
    <div
      id="graph-panel"
      ref="graphpanel"
      @contextmenu="globalClickedDispatch"
    ></div>

    <!-- ============================================= 左侧工具栏 ============================================= -->
    <div class="left-toolbar">
      <ul>
        <li @click="setZoomOut" title="放大">
          <i class="iconfont icon-zoomin"></i>
        </li>
        <li @click="setZoomIn" title="缩小">
          <i class="iconfont icon-zoomout"></i>
        </li>
        <li @click="saveImage" title="保存图片">
          <i class="iconfont icon-baocun-"></i>
        </li>
        <li @click="exportJson" title="导出JSON">
          <i class="iconfont icon-json"></i>
        </li>
        <li @click="showOverView" title="缩略图">
          <i class="iconfont icon-suolvetu" style="font-size: 14px"></i>
        </li>
        <li @click="clockwiseRotate" title="顺时针旋转">
          <i class="iconfont icon-shunshizhenfangxiangclockwise4" style="font-size: 14px"></i>
        </li>
        <li @click="counterclockwiseRotate" title="逆时针旋转">
          <i class="iconfont icon-nishizhencounterclockwise3" style="font-size: 14px"></i>
        </li>
        <li @click="setMouseModel('normal')" title="正常模式">
          <i class="iconfont icon-pointer-up"></i>
        </li>
        <li @click="setMouseModel('drag')" title="拖拽模式">
          <i class="iconfont icon-line-dragmovetuozhuai-01"></i>
        </li>
        <li @click="setMouseModel('select')" title="框选模式">
          <i class="iconfont icon-kuangxuan1"></i>
        </li>
        <li @click="fullScreen" title="全屏显示">
          <i class="iconfont icon-quanping" style="font-size: 20px"></i>
        </li>
      </ul>
    </div>

    <!-- ============================================= 右键菜单 ============================================= -->
    <div id="nodeMenuDialog" class="nodeMenuDialog">
      <ul>
        <li @click="clickNodeInfo">节点信息</li>
        <li @click="settingNode">配置节点</li>
        <li @click="selectRelation">选中关联</li>
        <li @click="deleteNode">删除节点</li>
        <li @click="contractNode">收起节点</li>
        <li @click="expandedNode">展开节点</li>
      </ul>
    </div>

    <!-- ============================================= 节点信息弹框 ============================================= -->
    <el-drawer
      title="节点信息"
      :visible.sync="nodeInfoDrawer"
      direction="rtl"
      :modal="false"
      size="20%"
    >
      <div class="nodeInfo">
        <el-form class="nodeInfoForm" ref="nodeInfoForm" :model="nodeInfoForm" label-width="80px">
          <el-form-item label="节点名称">
            <el-input v-model="nodeInfoForm.label"></el-input>
          </el-form-item>
          <el-form-item label="节点ID">
            <el-input v-model="nodeInfoForm.id"></el-input>
          </el-form-item>
        </el-form>
        <el-tabs v-model="nodeInfoActiveName" :stretch="true" class="nodeInfoTabs">
          <el-tab-pane label="关联关系" name="first">
            <div class="nodeInfoRelation">
              <el-collapse v-model="nodeInfoRelationActive">
                <el-collapse-item title="目标节点" name="1">
                  <template slot="title">
                    <el-badge :value="nodeInfoSourceList.length">目标节点</el-badge>
                  </template>
                  <table
                    border="0"
                    cellspacing="0"
                    cellpadding="0"
                    class="nodeInfo-table"
                    v-if="nodeInfoSourceList.length > 0"
                  >
                    <thead>
                      <tr>
                        <th>实体对象</th>
                        <th>关系类型</th>
                      </tr>
                    </thead>
                    <tbody>
                      <tr v-for="(item, index) in nodeInfoSourceList" :key="index">
                        <td
                          :style="{ color: item.color }"
                          style="cursor: pointer;"
                          @click="moveCenterThisNode(item.id)"
                        >{{ item.label }}</td>
                        <td>{{ item.relationType }}</td>
                      </tr>
                    </tbody>
                  </table>
                  <p v-else>无数据</p>
                </el-collapse-item>
                <el-collapse-item title="来源节点" name="2">
                  <template slot="title">
                    <el-badge :value="nodeInfoTargetList.length">来源节点</el-badge>
                  </template>
                  <table
                    border="0"
                    cellspacing="0"
                    cellpadding="0"
                    class="nodeInfo-table"
                    v-if="nodeInfoTargetList.length > 0"
                  >
                    <thead>
                      <tr>
                        <th>实体对象</th>
                        <th>关系类型</th>
                      </tr>
                    </thead>
                    <tbody>
                      <tr v-for="(item, index) in nodeInfoTargetList" :key="index">
                        <td
                          :style="{ color: item.color }"
                          style="cursor: pointer;"
                          @click="moveCenterThisNode(item.id)"
                        >{{ item.label }}</td>
                        <td>{{ item.relationType }}</td>
                      </tr>
                    </tbody>
                  </table>
                  <p v-else>无数据</p>
                </el-collapse-item>
              </el-collapse>
            </div>
          </el-tab-pane>
          <el-tab-pane label="属性" name="second">
            <div class="nodeInfoAttribute">
              <el-table :data="nodeInfoAttributeList" border style="width: 100%">
                <el-table-column prop="name" label="属性名"></el-table-column>
                <el-table-column prop="value" label="属性值"></el-table-column>
              </el-table>
            </div>
          </el-tab-pane>
        </el-tabs>
      </div>
    </el-drawer>

    <!-- ============================================= 节点配置 ============================================= -->
    <el-drawer
      title="节点配置"
      :visible.sync="nodeConfigDrawer"
      direction="rtl"
      :modal="false"
      size="20%"
    >
      <div class="nodeConfig">
        <el-form ref="form" :model="nodeConfigForm" label-width="80px" label-position="left">
          <el-form-item label="名称">
            <el-input v-model="nodeConfigForm.label" placeholder="请输入节点名称"></el-input>
          </el-form-item>
          <el-form-item label="类型">
            <el-select v-model="nodeConfigForm.shape" placeholder="请选择节点类型">
              <el-option
                v-for="(item, index) in nodeTypeList"
                :key="'node' + index"
                :label="item.label"
                :value="item.value"
              ></el-option>
            </el-select>
          </el-form-item>
          <el-form-item label="颜色">
            <div class="form-color">
              <el-input
                v-model="nodeConfigForm.fillColor"
                class="form-input"
                placeholder="请选择颜色"
                readonly
              ></el-input>
              <el-color-picker
                v-model="nodeConfigForm.hexColor"
                class="form-color-select"
                @change="colorChange(nodeConfigForm.hexColor, 'fillColor')"
              ></el-color-picker>
            </div>
          </el-form-item>
          <el-form-item label="大小">
            <el-input v-model="nodeConfigForm.size" placeholder="请输入节点大小" type="number"></el-input>
          </el-form-item>
          <el-form-item label="边框宽度">
            <el-input v-model="nodeConfigForm.borderWidth" placeholder="请输入边框宽度" type="number"></el-input>
          </el-form-item>
          <el-form-item label="边框虚线">
            <el-select v-model="nodeConfigForm.borderDash" placeholder="请选择边框虚线">
              <el-option label="否" :value="false"></el-option>
              <el-option label="是" :value="true"></el-option>
            </el-select>
          </el-form-item>
          <el-form-item label="边框颜色">
            <div class="form-color">
              <el-input
                v-model="nodeConfigForm.borderColor"
                class="form-input"
                placeholder="请选择边框颜色"
                readonly
              ></el-input>
              <el-color-picker
                v-model="nodeConfigForm.borderHexColor"
                class="form-color-select"
                @change="colorChange(nodeConfigForm.borderHexColor, 'borderColor')"
              ></el-color-picker>
            </div>
          </el-form-item>
          <el-form-item label="字体位置">
            <el-select v-model="nodeConfigForm.textPosition" placeholder="请选择字体位置">
              <el-option
                v-for="(item, index) in textPositionList"
                :key="index"
                :label="item.label"
                :value="item.value"
              ></el-option>
            </el-select>
          </el-form-item>
          <el-form-item label="字体样式">
            <el-input v-model="nodeConfigForm.font" placeholder="请输入字体样式"></el-input>
          </el-form-item>
          <el-form-item label="字体颜色">
            <div class="form-color">
              <el-input
                v-model="nodeConfigForm.fontColor"
                class="form-input"
                placeholder="请选择字体颜色"
                readonly
              ></el-input>
              <el-color-picker
                v-model="nodeConfigForm.fontHexColor"
                class="form-color-select"
                @change="colorChange(nodeConfigForm.fontHexColor, 'fontColor')"
              ></el-color-picker>
            </div>
          </el-form-item>
          <el-form-item label="字体背景">
            <div class="form-color">
              <el-input
                v-model="nodeConfigForm.fontBgColor"
                class="form-input"
                placeholder="请选择字体背景"
                readonly
              ></el-input>
              <el-color-picker
                v-model="nodeConfigForm.fontBgHexColor"
                class="form-color-select"
                @change="colorChange(nodeConfigForm.fontBgHexColor, 'fontBgColor')"
              ></el-color-picker>
            </div>
          </el-form-item>
          <el-form-item label="字体偏移">
            <el-input
              v-model="nodeConfigForm.textOffset"
              placeholder="请输入字体偏移"
              type="number"
              max="100"
              min="-100"
            ></el-input>
          </el-form-item>
        </el-form>
        <div class="save-setting">
          <el-button type="primary" @click="saveSetting">保存配置</el-button>
        </div>
      </div>
    </el-drawer>
  </div>
</template>
<script>
import VisGraph from '@/assets/js/GraphVis/old/visgraph.min.js'
import LayoutFactory from '@/assets/js/GraphVis/old/visgraph-layout.min.js'
import screenfull from 'screenfull'
import {
  company
} from '@/assets/js/company.js'
export default {
  name: 'DesignGraph',
  components: {
    VisGraph,
    LayoutFactory
  },
  data() {
    return {
      // 画布实例
      visgraph: null,
      // 中心节点
      centerNode: null,
      // 已选中节点
      currentNode: [],
      // 选中节点信息
      checkedNodeInfo: {},
      // 图谱配置
      config: {
        node: {
          label: {
            show: true,
            color: '250,250,250',
            font: 'normal 14px Microsoft YaHei',
            textPosition: 'Middle_Center',
            borderWidth: 0,
            wrapText: true
          },
          shape: 'circle',
          width: 60,
          height: 60,
          color: '62,160,250',
          borderColor: '62,160,250',
          borderWidth: 0,
          borderRadius: 0,
          lineDash: [0],
          alpha: 1,
          selected: {
            borderColor: '136,198,255',
            borderAlpha: 1,
            borderWidth: 3,
            showShadow: true,
            shadowColor: '136,198,255'
          },
          onClick: (event, node) => {
            // this.visgraph.highLightNeiberNodes(node, 1) // 高亮
          },
          ondblClick: (event, node) => {
            this.visgraph.restoreHightLight() // 取消高亮
            const allNodes = this.visgraph.getVisibleData()
            this.currentNode.push(node.id)
            allNodes.nodes.forEach(item => {
              if (this.currentNode.indexOf(item.id) === (-1)) {
                this.visgraph.deleteNode(item)
              }
            })
            const findNodeNum = Math.round(Math.random() * 50)
            const increamData = this.buildIncreamData(node, findNodeNum)
            this.visgraph.activeAddNodeLinks(increamData.nodes, increamData.links)
            this.visgraph.translateToCenter()
          },
          onMouseOver: (event, node) => { },
          onMouseOut: (event, node) => { }
        },
        link: {
          label: {
            show: true,
            color: '100,100,200',
            font: 'normal 10px Arial'
          },
          lineType: 'direct',
          colorType: 'defined',
          color: '200,200,200',
          alpha: 1,
          lineWidth: 1,
          lineDash: [0],
          showArrow: true,
          selected: {
            color: '20,250,50',
            alpha: 1,
            lineWidth: 4,
            showShadow: true,
            shadowColor: '50,250,50'
          }
        },
        highLightNeiber: true,
        wheelZoom: 0.8,
        noElementClick: (event, _graphvis) => {
          // 点击画布其他位置,弹框隐藏
          this.nodeMenuDialogClose()
        }
      },
      // 节点信息弹框
      nodeInfoDrawer: false,
      // 节点信息表单
      nodeInfoForm: {
        label: '',
        id: ''
      },
      // 节点信息弹框tab选项名称
      nodeInfoActiveName: 'first',
      // 关联关系
      nodeInfoRelationActive: ['1', '2'],
      // 目标节点列表
      nodeInfoTargetList: [],
      // 来源节点列表
      nodeInfoSourceList: [],
      // 节点属性列表
      nodeInfoAttributeList: [],
      // 节点配置弹框
      nodeConfigDrawer: false,
      // 节点配置表单
      nodeConfigForm: {
        label: '',
        shape: '',
        fillColor: '',
        hexColor: '',
        size: '',
        borderWidth: '',
        borderDash: '',
        borderColor: '',
        borderHexColor: '',
        textPosition: '',
        font: '',
        fontColor: '',
        fontHexColor: '',
        fontBgColor: '',
        fontBgHexColor: '',
        textOffset: ''
      },
      // 节点类型列表
      nodeTypeList: [
        { value: 'circle', label: '圆形' },
        { value: 'rect', label: '矩形' },
        { value: 'ellipse', label: '椭圆形' },
        { value: 'star', label: '五角形' },
        { value: 'triangle', label: '三角形' },
        { value: 'polygon', label: '六边形' }
      ],
      // 字体位置列表
      textPositionList: [
        { value: 'Middle_Center', label: '居中' },
        { value: 'Bottom_Center', label: '底部' },
        { value: 'top_Center', label: '顶部' },
        { value: 'Middle_Left', label: '左方' },
        { value: 'Middle_right', label: '右方' },
      ]
    }
  },
  mounted() {
    this.handleData(company)
    window.onresize = () => {
      if (this.visgraph) {
        this.visgraph.moveCenter()
      }
    }
  },
  methods: {
    /**
     * 处理数据
     * @date 2021-07-23
     * @param {Object} data
     */
    handleData(data) {
      const obj = {
        nodes: [],
        links: []
      }
      const nodes = data.nodes
      nodes.forEach(item => {
        if (item.label === '总公司') {
          const nodeObj = {
            id: item.id,
            label: item.label,
            properties: item,
            color: '38,186,191',
            selectedBorderColor: '131,218,228',
            shadowColor: '131,218,228'
          }
          nodeObj.size = 80
          nodeObj.x = 250
          nodeObj.y = 250
          this.centerNode = nodeObj
          this.currentNode.push(item.id)
        } else {
          const nodeObj = {
            id: item.id,
            label: item.label,
            properties: item,
            size: 60
          }
          switch (item.type) {
            case 1:
              nodeObj.color = '242,105,97'
              nodeObj.selectedBorderColor = '249,179,157'
              nodeObj.shadowColor = '249,179,157'
              break
          }
          obj.nodes.push(nodeObj)
        }
      })
      const links = data.edges
      links.forEach(item => {
        const linkObj = {
          id: item.id,
          target: item.to,
          source: item.from,
          label: item.label,
          properties: item
          // strokeColor: this.getRandomColor()
        }
        switch (item.type) {
          case 11:
            linkObj.color = '40,194,199'
            linkObj.selectedColor = '40,194,199'
            linkObj.shadowColor = '40,194,199'
            break
          case 12:
            linkObj.color = '250,108,100'
            linkObj.selectedColor = '250,108,100'
            linkObj.shadowColor = '250,108,100'
            break
          case 13:
            linkObj.color = '0,132,255'
            linkObj.selectedColor = '0,132,255'
            linkObj.shadowColor = '0,132,255'
            break
          case 15:
            linkObj.color = '250,108,100'
            linkObj.selectedColor = '250,108,100'
            linkObj.shadowColor = '250,108,100'
            break
        }
        obj.links.push(linkObj)
      })
      this.buildData(obj)
    },
    /**
     * 搭建实例
     * @date 2021-07-23
     * @param {Object} gxData
     */
    buildData(gxData) {
      this.visgraph = new VisGraph(document.getElementById('graph-panel'), this.config)
      const nodeCount = gxData.nodes.length
      const xyArr = this.getXY(this.centerNode, nodeCount, nodeCount * 20)
      gxData.nodes.forEach((n, i) => {
        n.x = xyArr[i].x
        n.y = xyArr[i].y
        n.size = 60
      })
      gxData.nodes.push(this.centerNode)
      this.visgraph.drawData(gxData)
      this.visgraph.setZoom()
    },
    /**
     * 遍布选中节点周围的点坐标
     * @date 2021-07-23
     * @param {中心节点} centerNode
     * @param {节点数量} nodeCount
     * @param {距离中心点距离} raduis
     * @returns {Array}
     */
    getXY(centerNode, nodeCount, raduis) {
      const aop = 360.0 / nodeCount
      const arr = []
      for (let i = 0; i < nodeCount; i++) {
        let r1 = raduis
        if (nodeCount > 10) {
          r1 = (i % 2 === 0 ? raduis + 35 : raduis - 35)
        }
        const ao = i * aop
        const o1 = {}
        o1.x = centerNode.x + r1 * Math.cos(ao * Math.PI / 180)
        o1.y = centerNode.y + r1 * Math.sin(ao * Math.PI / 180)
        arr[i] = o1
      }
      return arr
    },
    /**
     * 随机产生节点
     * @date 2021-07-23
     * @param {当前选中节点} centerNode
     * @param {节点数量} nodeNum
     * @returns {Object}
     */
    buildIncreamData(centerNode, nodeNum) {
      const gxData = {
        nodes: [],
        links: []
      }
      const count = nodeNum
      const nodeIdPrefix = 'node_' + Math.round(Math.random() * 1000) + '_'
      for (let i = 0; i < count; i++) {
        gxData.nodes.push({
          id: nodeIdPrefix + i,
          label: '子节点+' + i,
          size: 60
          // color: this.getRandomColor()
        })
        gxData.links.push({
          source: centerNode.id,
          target: nodeIdPrefix + i,
          label: '关系' + i
        })
      }
      return gxData
    },
    /**
     * 画布右键事件
     * @date 2021-07-26
     * @param {Object} event
     */
    globalClickedDispatch(event) {
      if (event.button === 2) {
        if (this.visgraph.currentNode) {
          this.nodeMenuDialogOpen(event, this.visgraph.currentNode)
        }
      }
    },
    /**
     * 右键节点菜单显示
     * @date 2021-07-26
     * @param {Object} event
     * @param {Object} node
     */
    nodeMenuDialogOpen(event, node) {
      let nodeMenuDialog = document.getElementById("nodeMenuDialog");
      nodeMenuDialog.style.left = event.clientX + "px";
      nodeMenuDialog.style.top = (event.clientY - 76) + "px";
      nodeMenuDialog.style.display = "block";
      this.checkedNodeInfo = node;
      event.stopPropagation();
    },
    /**
     * 关闭节点菜单
     * @date 2021-07-26
     */
    nodeMenuDialogClose() {
      let nodeMenuDialog = document.getElementById("nodeMenuDialog");
      nodeMenuDialog.style.display = "none";
    },
    /**
     * 点击节点信息
     * @date 2021-07-26
     */
    clickNodeInfo() {
      this.nodeInfoDrawer = true
      // 赋值表单
      this.nodeInfoForm = this.checkedNodeInfo
      // 关联节点
      // 出节点
      const k = this.checkedNodeInfo
      const g = (k.outLinks || []).map((link) => {
        return {
          id: link.target.id,
          label: link.target.label,
          type: link.target.type,
          color: 'rgb(' + link.target.fillColor + ')',
          relationType: link.type || link.label || '--'
        }
      })
      // 入节点
      const h = (k.inLinks || []).map((link) => {
        return {
          id: link.source.id,
          label: link.source.label,
          type: link.source.type,
          color: 'rgb(' + link.source.fillColor + ')',
          relationType: link.type || link.label || '--'
        }
      })
      this.nodeInfoTargetList = h
      this.nodeInfoSourceList = g
      // 属性赋值
      const list = []
      const nameList = ['id', 'label', 'type', 'cluster', 'fillColor', 'shape', 'size', 'font', 'fontColor', 'x', 'y']
      nameList.forEach(item => {
        const obj = {
          name: item,
          value: this.checkedNodeInfo[item]
        }
        list.push(obj)
      })
      this.nodeInfoAttributeList = list
      this.nodeMenuDialogClose()
    },
    /**
     * 选中关联操作
     * @date 2021-07-26
     */
    selectRelation() {
      this.visgraph.rightMenuOprate('selRelate')
    },
    /**
     * 删除指定节点
     * @date 2021-07-26
     * @returns {any}
     */
    deleteNode() {
      this.visgraph.deleteNode(this.visgraph.currentNode)
      this.nodeMenuDialogClose()
    },
    /**
     * 收起指定节点
     * @date 2021-07-26
     * @returns {any}
     */
    contractNode() {
      if (this.visgraph.currentNode.outLinks.length > 0) {
        this.visgraph.contract(this.visgraph.currentNode)
        this.nodeMenuDialogClose()
      } else {
        this.$message.warning('当前节点无子节点,无法收起')
      }
    },
    /**
     * 展开指定节点
     * @date 2021-07-26
     * @returns {any}
     */
    expandedNode() {
      if (this.visgraph.currentNode.outLinks.length > 0) {
        this.visgraph.expanded(this.visgraph.currentNode)
        this.nodeMenuDialogClose()
      } else {
        this.$message.warning('当前节点无子节点,无法展开')
      }
    },
    /**
     * 以指定节点为中心移动
     * @date 2021-07-26
     * @param {String} id
     */
    moveCenterThisNode(id) {
      const node = this.visgraph.findNodeById(id)
      this.visgraph.moveNodeToCenter(node)
    },
    /**
     * 节点配置
     * @date 2021-07-30
     * @returns {any}
     */
    settingNode () {
      this.nodeMenuDialogClose()
      const {
        id,
        label,
        shape,
        fillColor,
        size,
        borderWidth,
        lineDash,
        borderColor,
        textPosition,
        font,
        fontColor,
        labelBackGround,
        textOffsetX
      } = this.visgraph.currentNode
      this.nodeConfigForm.id = id
      this.nodeConfigForm.label = label
      this.nodeConfigForm.shape = shape
      this.nodeConfigForm.fillColor = 'rgb(' + fillColor + ')'
      this.nodeConfigForm.hexColor = this.rgbToHex('rgb(' + fillColor + ')')
      this.nodeConfigForm.size = size
      this.nodeConfigForm.borderWidth = borderWidth
      this.nodeConfigForm.borderDash = lineDash.length === 2
      this.nodeConfigForm.borderColor = 'rgb(' + borderColor + ')'
      this.nodeConfigForm.borderHexColor = this.rgbToHex('rgb(' + borderColor + ')')
      this.nodeConfigForm.textPosition = textPosition
      this.nodeConfigForm.font = font
      this.nodeConfigForm.fontColor = 'rgb(' + fontColor + ')'
      this.nodeConfigForm.fontHexColor = this.rgbToHex('rgb(' + fontColor + ')')
      this.nodeConfigForm.fontBgColor = labelBackGround ? 'rgb(' + labelBackGround + ')' : ''
      this.nodeConfigForm.fontBgHexColor = labelBackGround ? this.rgbToHex('rgb(' + labelBackGround + ')') : ''
      this.nodeConfigForm.textOffset = textOffsetX
      this.nodeConfigDrawer = true
    },
    /**
     * 保存节点配置
     * @date 2021-07-30
     * @returns {any}
     */
    saveSetting () {
      const {
        id,
        label,
        shape,
        fillColor,
        hexColor,
        size,
        borderWidth,
        borderDash,
        borderColor,
        borderHexColor,
        textPosition,
        font,
        fontColor,
        fontHexColor,
        fontBgColor,
        fontBgHexColor,
        textOffset
      } = this.nodeConfigForm
      const b = this.visgraph.findNodeByAttr('id', id)
      if (b) {
        b.label = label
        b.size = size
        b.shape = shape
        b.fillColor = this.getColorRgb(fillColor)
        b.textPosition = textPosition
        b.fontColor = this.getColorRgb(fontColor)
        b.labelBackGround = this.getColorRgb(fontBgColor)
        b.font = font;
        b.textOffsetY = Number(textOffset) || 2
        b.borderWidth = Number(borderWidth) || 2
        b.borderColor = this.getColorRgb(borderColor)
        b.lineDash = (borderDash ? [8, 5] : [0])
        this.visgraph.refresh()
        this.$message({
          message: '修改配置成功!',
          type: 'success',
          duration: 2000
        })
        this.nodeConfigDrawer = false
      } else {
        this.$message({
          message: '无法找到选中节点!',
          type: 'error',
          duration: 2000
        })
      }
    },
    /**
     * 随机获取颜色
     * @date 2021-07-20
     * @returns {String} 样式
     */
    getRandomColor() {
      const r = Math.floor(Math.random() * 256)
      const g = Math.floor(Math.random() * 256)
      const b = Math.floor(Math.random() * 256)
      return 'rgb(' + r + ',' + g + ',' + b + ')'
    },
    /**
     * 颜色选择框变化赋值
     * @date 2021-07-26
     * @param {String} val
     * @param {String} kay
     */
    colorChange(val, key) {
      this.nodeConfigForm[key] = this.hexToRgba(val)
    },
    /**
     * 16进制色值转rgb
     * @date 2021-07-26
     * @param {String} hex
     * @returns {String}
     */
    hexToRgba(hex) {
      return "rgb(" + parseInt("0x" + hex.slice(1, 3)) + "," + parseInt("0x" + hex.slice(3, 5)) + "," + parseInt("0x" + hex.slice(5, 7)) + ")"
    },
    /**
     * rgb色值转16进制
     * @date 2021-07-26
     * @param {String} color
     * @returns {String}
     */
    rgbToHex(color) {
      const rgb = color.split(',');
      const r = parseInt(rgb[0].split('(')[1]);
      const g = parseInt(rgb[1]);
      const b = parseInt(rgb[2].split(')')[0]);
      const hex = "#" + ((1 << 24) + (r << 16) + (g << 8) + b).toString(16).slice(1);
      return hex;
    },
    /**
     * 去掉rgb
     * @date 2021-07-30
     * @param {String} a
     * @returns {String}
     */
    getColorRgb (a) {
      if (a && a.length > 0) {
        a = a.replace('rgb(', '').replace(')', '')
      } else {
        a = null
      }
      return a
    },
    /**
     * 保存图片
     * @date 2021-07-23
     */
    saveImage() {
      this.visgraph.saveImage()
    },
    /**
     * 导出json
     * @date 2021-07-30
     */
    exportJson () {
      this.visgraph.exportJsonFile()
    },
    /**
     * 打开缩略图
     * @date 2021-07-23
     */
    showOverView() {
      console.log(this.showOverViewFlag)
      this.showOverViewFlag = !this.showOverViewFlag
      this.visgraph.showOverView(this.showOverView)
    },
    /**
     * 缩小操作
     * @date 2021-07-23
     */
    setZoomIn() {
      this.visgraph.setZoom('zoomIn')
    },
    /**
     * 放大操作
     * @date 2021-07-23
     */
    setZoomOut() {
      this.visgraph.setZoom('zoomOut')
    },
    /**
     * 顺时针旋转
     * @date 2021-07-23
     */
    clockwiseRotate() {
      this.visgraph.rotateGraph(-10)
    },
    /**
     * 逆时针旋转
     * @date 2021-07-23
     */
    counterclockwiseRotate() {
      this.visgraph.rotateGraph(10)
    },
    /**
     * 设置鼠标模式
     * @date 2021-07-23
     * @param {String} type  drag：拖动模式  select：框选模式   normal：正常模式
     */
    setMouseModel(type) {
      this.visgraph.setMouseModel(type)
    },
    /**
     * 全屏显示
     * @date 2021-07-23
     */
    fullScreen() {
      screenfull.request(this.$refs.graphpanel)
    }
  }
}
</script>

<style lang="scss" scoped>
#container {
  width: 100%;
  position: relative;
  #graph-panel {
    width:100%;
    height:100%;
    background:#9dadc1;
    position: absolute;
    z-index: 1;
  }
  /* 测试菜单栏 */
  .left-toolbar {
    position: absolute;
    top: 0;
    left: 0;
    z-index: 1000;
    width: 45px;
    height: 100%;
    background-color: #fafafa;
    border-right: 1px solid #e5e2e2;
    ul {
      li {
        text-align: center;
        height: 35px;
        color: #066fba;
        line-height: 35px;
        cursor: pointer;
        padding: 0;
        i {
          font-size: 18px;
        }
        &:hover {
          background-color: #6ea36d;
          color: #fff;
        }
      }
    }
  }

  /* 右键弹框样式 */
  .nodeMenuDialog {
    display: none;
    position: absolute;
    min-width: 100px;
    padding: 2px 3px;
    margin: 0;
    border: 1px solid #e3e6eb;
    background: #f9f9f9;
    color: #333;
    z-index: 100;
    border-radius: 5px;
    box-shadow: 1px 1px 4px rgba(0, 0, 0, 0.2);
    transform: translate(0, 15px) scale(0.95);
    transition: transform 0.1s ease-out, opacity 0.1s ease-out;
    overflow: hidden;
    cursor: pointer;
    li {
      display: block;
      position: relative;
      margin: 0;
      padding: 0 10px;
      border-radius: 5px;
      white-space: nowrap;
      line-height: 30px;
      text-align: center;
      &:hover {
        background-color: #c3e5fd;
      }
    }
  }

  /* 节点信息弹框 */
  .nodeInfo {
    .nodeInfoForm {
      padding: 20px 20px 0 20px;
      border: solid 1px #dcdfe6;
      border-left: none;
      border-right: none;
      margin: 20px 0;
    }
    .nodeInfoRelation {
      padding: 0 20px;
      .nodeInfo-table {
        width: 100%;
        overflow-y: scroll;
        th {
          width: 50%;
          border: 1px solid #ebeef5;
          padding: 9px 0 9px 9px;
          text-align: left;
          &:first-child {
            border-right: none;
          }
        }
        td {
          width: 50%;
          border: 1px solid #ebeef5;
          border-top: none;
          padding: 9px 0 9px 9px;
          &:first-child {
            border-right: none;
          }
        }
      }
      /deep/ .el-badge__content.is-fixed {
        top: 24px;
        right: -7px;
      }
      p {
        text-align: center;
        padding: 20px 0;
      }
    }

    .nodeInfoAttribute {
      padding: 0 20px;
    }
  }

  /* 节点配置弹框 */
  .nodeConfig {
    padding: 20px 20px 0 20px;
    border: solid 1px #dcdfe6;
    border-left: none;
    border-right: none;
    margin: 20px 0;
    .form-color {
      display: flex;
      justify-content: space-between;
      .form-input {
        width: calc(100% - 50px);
      }
    }
    .save-setting {
      width: 100%;
      margin-bottom: 20px;
      .el-button {
        width: 100%;
      }
    }
  }
}
</style>
