我是靠谱客的博主醉熏皮皮虾，最近开发中收集的这篇文章主要介绍基于elementUI竖向表格、和并列的案例，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

效果图如下

代码

<template>
 <div>
  <section>
  <el-table
   :show-header="false"
   :data="tableData"
   :span-method="objectSpanMethod"
   border
   :cell-style="columnStyle"
   style="width: 100%; margin-top: 20px"
  >
   <el-table-column prop="id" label="ID" width="240">
   <template slot-scope="scope">
    <div>
    <img :src="scope.row.id|setPicUrl" />
    </div>
   </template>
   </el-table-column>
   <el-table-column width="180" prop="name"></el-table-column>
   <el-table-column prop="amount1"></el-table-column>
   <el-table-column width="180" prop="amount2"></el-table-column>
   <el-table-column prop="amount3"></el-table-column>
  </el-table>
  </section>
 </div>
</template>
<script>
export default {
 name: "mallMember-detail",
 data() {
 return {
 //请求回来的数据
  dataForm: {},
 };
 },
 computed: {
 //因为数据用到了dataform中的数据，所以写在了computed中
 tableData() {
  return [
  {
   id: this.dataForm.headImg,
   name: "用户ID",
   amount1: this.dataForm.id,
   amount2: "注册时间",
   amount3: this.dataForm.createDate
  },
  {
   id: this.dataForm.headImg,
   name: "微信昵称",
   amount1: this.dataForm.nickName,
   amount2: "手机号码",
   amount3: this.dataForm.phone
  },
  {
   id: this.dataForm.headImg,
   name: "会员名称",
   amount1: this.dataForm.gradeName,
   amount2: "会员等级",
   amount3: this.dataForm.gradeCode
  },
  {
   id: this.dataForm.headImg,
   name: "用户来源",
   amount1: this.dataForm.channel,
   amount2: "常住地",
   amount3:
   this.dataForm.provinceName +
   this.dataForm.cityName +
   this.dataForm.districtName
  }
  ];
 }
 },
 methods: {
 // 自定义列背景色
 columnStyle({ row, column, rowIndex, columnIndex }) {
  if (columnIndex == 0 || columnIndex == 1 || columnIndex == 3) {
  //第三第四列的背景色就改变了2和3都是列数的下标
  return "background:#f3f6fc;";
  }else{
  return "background:#ffffff;";
  }
 },
 // 和并列
 objectSpanMethod({ row, column, rowIndex, columnIndex }) {
  if (columnIndex === 0) {
  if (rowIndex % 4 === 0) {
   return {
   rowspan: 4,
   colspan: 1
   };
  } else {
   return {
   rowspan: 0,
   colspan: 0
   };
  }
  }
 },
 }
};
</script>

补充知识：基于Vue element-ui实现支持多级纵向动态表头的仿表格布局

需求图示如下，多级纵向动态表头表格：

我的思路是用element-ui的layout实现，做出一个仿造表格，能够支持动态的、多级的、纵向的表头：

<template>
 <div>
 <!--按设备系统统计-->
 <div style="text-align:left">
  <h1>{{tableName}}</h1>
 </div>
 <!--纵向表格设计-->
 <el-row>
  <!--纵向表头设计-->
  <el-col :span="6">
  <el-row>
   <div :style="projectDivStyle">
   <p>项目名</p>
   </div>
  </el-row>
  <el-row v-if="ifAndroid">
   <el-col :span="12">
   <div :style="wordOfMouthAndroidDivStyle">
    <p>Android口碑指数</p>
   </div>
   </el-col>
   <el-col :span="12">
   <el-row v-for="(chl, i) in tableData.ratingChls"
     :key="i">
    <div :style="ratingSubDivStyle">
    <p>{{chl}}</p>
    </div>
   </el-row>
   </el-col>
  </el-row>
  <el-row v-else>
   <div :style="wordOfMouthIOSDivStyle">
   <p>AppStore口碑指数</p>
   </div>
  </el-row>
  <el-row>
   <el-col :span="12">
   <div :style="ratingDivStyle">
    <p>评分</p>
   </div>
   </el-col>
   <el-col :span="12">
   <el-row v-for="(chl, i) in tableData.ratingChls"
     :key="i">
    <div :style="ratingSubDivStyle">
    <p>{{chl}}</p>
    </div>
   </el-row>
   </el-col>
  </el-row>
  <el-row>
   <el-col :span="12">
   <div :style="rankDivStyle">
    <p>排名</p>
   </div>
   </el-col>
   <el-col :span="12">
   <el-row v-for="(chl,i) in tableData.rankChls"
     :key="i">
    <div :style="rankSubDivStyle">
    <p>{{chl}}</p>
    </div>
   </el-row>
   </el-col>
  </el-row>
  <el-row>
   <div :style="topModuleDivStyle">
   <p>TOP3好评关键词</p>
   </div>
  </el-row>
  <el-row>
   <div :style="topModuleDivStyle">
   <p>TOP3差评关键词</p>
   </div>
  </el-row>
  </el-col>
  <!--纵列数据遍历-->
  <el-col :span="colSpan"
    v-for="(col,i) in tableData.cols"
    :key="i">
  <!--项目名数据-->
  <el-row>
   <div :style="projectDivStyle">
   <p>{{col.name}}</p>
   </div>
  </el-row>
  <!--口碑数据 区分Android和iOS视图显示逻辑-->
  <el-row v-if="ifAndroid">
   <el-col :span="24">
   <el-row v-for="(each, i) in col.wordOfMouth"
     :key="i">
    <div :style="ratingSubDivStyle">
    <p>
     {{each}}
    </p>
    </div>
   </el-row>
   </el-col>
  </el-row>
  <el-row v-else>
   <div :style="wordOfMouthIOSDivStyle">
   <p>{{col.wordOfMouth[0]}}</p>
   </div>
  </el-row>
  <!--评分数据-->
  <el-row>
   <el-col :span="24">
   <el-row v-for="(each, i) in col.ratingInfo"
     :key="i">
    <div :style="ratingSubDivStyle">
    <p>
     {{each.info}}
    </p>
    <el-rate :value='Number(each.rating)'
       disabled
       show-score
       text-color="#ff9900"
       score-template="{value}">
    </el-rate>
    </div>
   </el-row>
   </el-col>
  </el-row>
  <!--排名数据-->
  <el-row>
   <el-col :span="24">
   <el-row v-for="(each,i) in col.rankInfo"
     :key="i">
    <div :style="rankSubDivStyle">
    <p>{{each.rank}} {{each.info}}</p>
    </div>
   </el-row>
   </el-col>
  </el-row>
  <el-row>
   <div :style="topModuleDivStyle">
   <p v-for="(_module,i) in modules(col.topGoodModule)"
    :key="i">
    {{_module}}
   </p>
   </div>
  </el-row>
  <el-row>
   <div :style="topModuleDivStyle">
   <p v-for="(_module,i) in modules(col.topBadModule)"
    :key="i">
    {{_module}}
   </p>
   </div>
  </el-row>
  </el-col>
 </el-row>
 </div>
</template>
<style scoped>
/*
通过布局el-row来完成表格边界样式替代式设计
*/
.el-row {
 margin-bottom: 0px; /*去除el-row之间的间距*/
 border: 1px solid #e6e6e6;
 margin: -1px -1px -1px -1px; /*解决相邻边框重叠问题就靠这行代码*/
 &:last-child {
 margin-bottom: 0px;
 }
}
.bg-purple {
}
.bg-purple-light {
 background: #121927;
}
.grid-content {
 border: 0px solid rgb(0, 0, 0);
 min-height: 50px;
}
.grid-content-sub {
 border: 0px solid rgb(0, 0, 0);
 padding: 20px;
}
.grid-content-large {
 border: 0px solid rgb(0, 0, 0);
 padding: 70px;
 height: 60px;
}
.grid-content-large-sub {
 border: 0px solid rgb(0, 0, 0);
 padding: 20px;
 height: 57.5px;
}
</style>
<script>
import { getFeedbackCompetitorData } from '@/api/feedbacks'
import { EventBus } from '@/bus.js'
export default {
 data () {
 return {
  myProjectId: this.$route.query.feedbackProject,
  largeDivHeight: 120,
  smallDivHeight: 80,
  miniDivHeight: 50,
  ratingSubDivHeight: 80,
  rankSubDivHeight: 80,
  tableName: '',
  tableData: [],
  shadowCss: 'border-radius: 15px;box-shadow: 5px 5px 2px #888888',
  borderStyle: ''
 }
 },
 methods: {
 getFbCompetitorData () {
  getFeedbackCompetitorData(this.myProjectId).then(fbCpInfo => {
  this.tableName = fbCpInfo.competitorTable.tableName
  this.tableData = fbCpInfo.competitorTable.tableData
  })
 },
 modules (someArray) {
  var newArray = []
  for (var i = 0; i < someArray.length; i++) {
  var count = someArray[i]['cou']
  var word = someArray[i]['word']
  newArray.push(word + ':' + count)
  }
  return newArray
 }
 },
 computed: {
 ifAndroid: function () {
  if (this.tableData.wordOfMouthChls[0] === 'AppStore') {
  return false
  } else {
  return true
  }
 },
 colSpan: function () {
  var count = this.tableData.cols.length
  if (count > 5) {
  return 18 / count
  } else if (count < 4) {
  return 6
  }
 },
 commonDivStyle: function () {
  var height = this.smallDivHeight
  return `padding: 20px;height: ${height}px`
 },
 projectDivStyle: function () {
  var height = this.miniDivHeight
  return `background: #E8F8F5;padding: 20px;height: ${height}px`
 },
 wordOfMouthAndroidDivStyle: function () {
  var height = this.miniDivHeight
  return `margin-top:50%;padding: 20px;height: ${height}px`
 },
 wordOfMouthIOSDivStyle: function () {
  var height = this.miniDivHeight
  return `padding: 20px;height: ${height}px`
 },
 topModuleDivStyle: function () {
  var height = this.largeDivHeight
  return `padding: 20px;height: ${height}px`
 },
 ratingDivStyle: function () {
  var height = this.ratingSubDivHeight
  // 区分Android和iOS样式
  if (this.ifAndroid) {
  var margin = 'margin-top:50%'
  }
  return `${margin};padding: 20px;height: ${height}px`
 },
 ratingSubDivStyle: function () {
  var height = this.ratingSubDivHeight
  return `padding: 20px;height: ${height}px`
 },
 rankDivStyle: function () {
  var height = this.rankSubDivHeight
  return `margin-top:30%;padding: 20px;height: ${height}px`
 },
 rankSubDivStyle: function () {
  var height = this.rankSubDivHeight
  return `padding: 20px;height: ${height}px`
 }
 },
 created () {
 let _this = this
 EventBus.$on('projectId', projectId => {
  _this.myProjectId = projectId
 })
 },
 mounted () {
 this.getFbCompetitorData()
 },
 watch: {
 myProjectId: {
  immediate: false,
  handler: function (val) {
  this.getFbCompetitorData()
  }
 }
 }
}
</script>

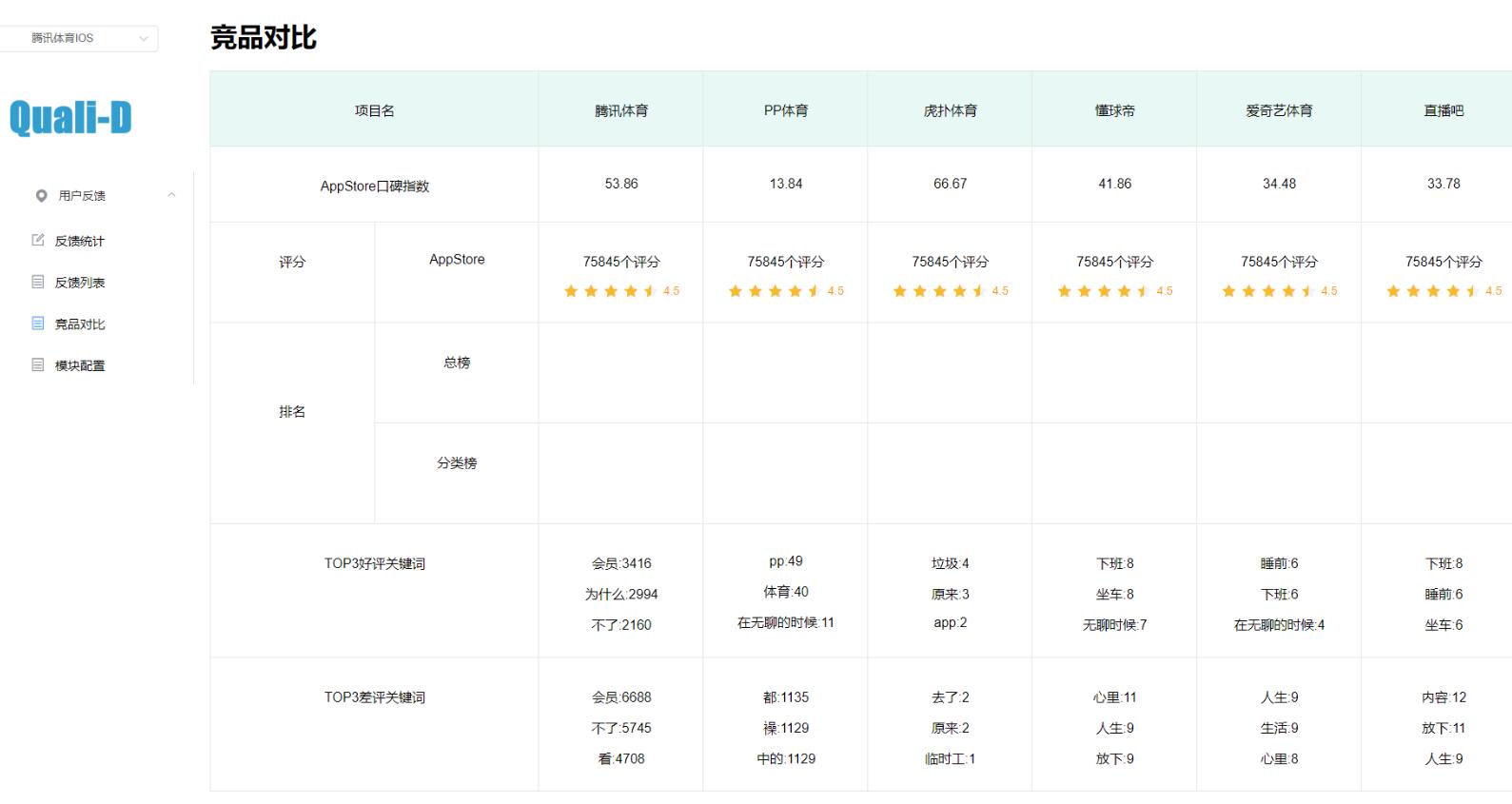

实现图如下
