Element中Slider滑块的具体使用

383 阅读 0 评论 253 点赞

我是靠谱客的博主从容皮卡丘，最近开发中收集的这篇文章主要介绍Element中Slider滑块的具体使用，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

组件—滑块

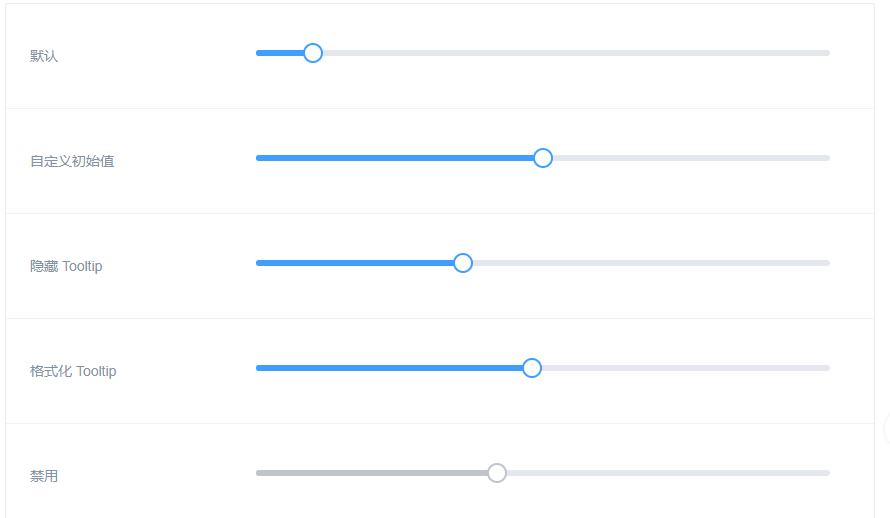

基础用法

<template>
 <div class="block">
  <span class="demonstration">默认</span>
  <el-slider v-model="value1"></el-slider>
 </div>
 <div class="block">
  <span class="demonstration">自定义初始值</span>
  <el-slider v-model="value2"></el-slider>
 </div>
 <div class="block">
  <span class="demonstration">隐藏 Tooltip</span>
  <el-slider v-model="value3" :show-tooltip="false"></el-slider>
 </div>
 <div class="block">
  <span class="demonstration">格式化 Tooltip</span>
  <el-slider v-model="value4" :format-tooltip="formatTooltip"></el-slider>
 </div>
 <div class="block">
  <span class="demonstration">禁用</span>
  <el-slider v-model="value5" disabled></el-slider>
 </div>
</template>

<script>
 export default {
  data() {
   return {
    value1: 0,
    value2: 50,
    value3: 36,
    value4: 48,
    value5: 42
   }
  },
  methods: {
   formatTooltip(val) {
    return val / 100;
   }
  }
 }
</script>

离散值

<template>
 <div class="block">
  <span class="demonstration">不显示间断点</span>
  <el-slider
   v-model="value1"
   :step="10">
  </el-slider>
 </div>
 <div class="block">
  <span class="demonstration">显示间断点</span>
  <el-slider
   v-model="value2"
   :step="10"
   show-stops>
  </el-slider>
 </div>
</template>

<script>
 export default {
  data() {
   return {
    value1: 0,
    value2: 0
   }
  }
 }
</script>

带有输入框

<template>
 <div class="block">
  <el-slider
   v-model="value"
   show-input>
  </el-slider>
 </div>
</template>

<script>
 export default {
  data() {
   return {
    value: 0
   }
  }
 }
</script>

范围选择

<template>
 <div class="block">
  <el-slider
   v-model="value"
   range
   show-stops
   :max="10">
  </el-slider>
 </div>
</template>

<script>
 export default {
  data() {
   return {
    value: [4, 8]
   }
  }
 }
</script>

竖向模式

<template>
 <div class="block">
  <el-slider
   v-model="value"
   vertical
   height="200px">
  </el-slider>
 </div>
</template>

<script>
 export default {
  data() {
   return {
    value: 0
   }
  }
 }
</script>

展示标记

<template>
 <div class="block">
  <el-slider
   v-model="value"
   range
   :marks="marks">
  </el-slider>
 </div>
</template>

<script>
 export default {
  data() {
   return {
    value: [30, 60],
    marks: {
     0: '0°C',
     8: '8°C',
     37: '37°C',
     50: {
      style: {
       color: '#1989FA'
      },
      label: this.$createElement('strong', '50%')
     }
    }
   }
  }
 }
</script>

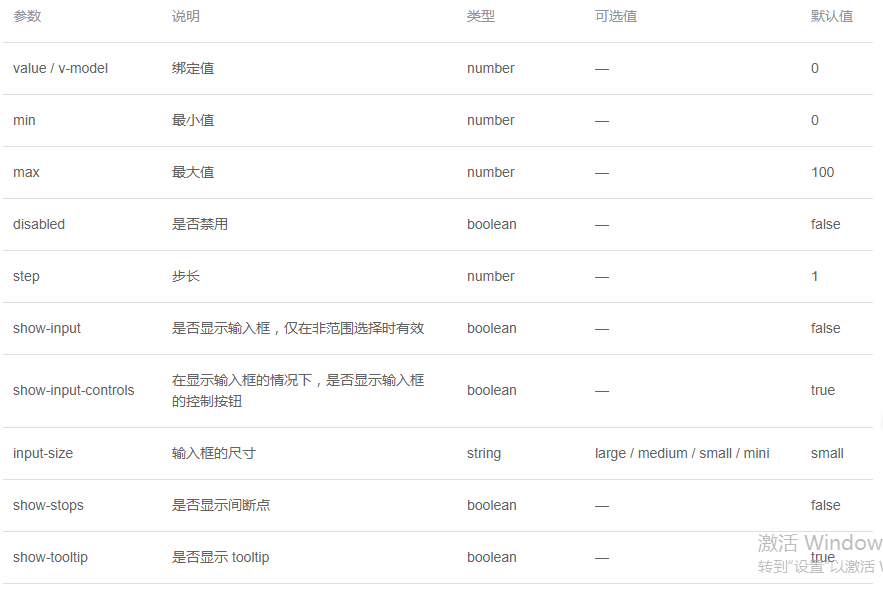

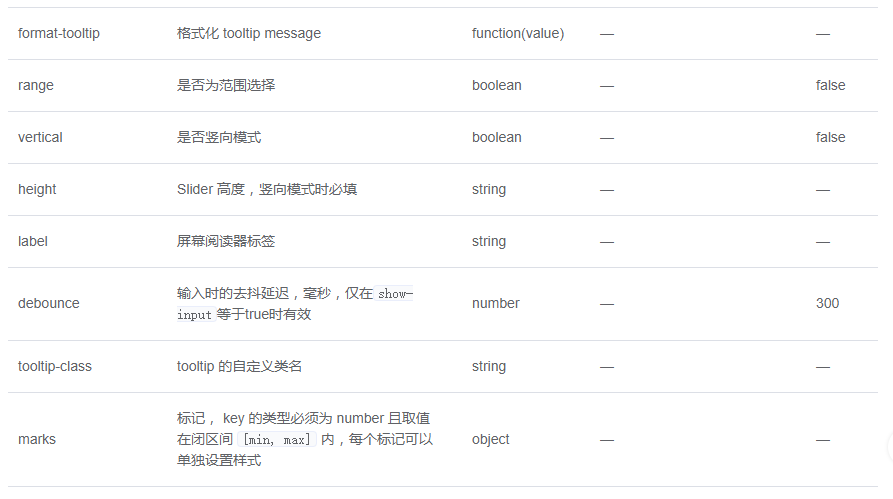

Attributes
