Bootstrap table 实现树形表格联动选中联动取消功能

224 阅读 0 评论 148 点赞

我是靠谱客的博主失眠钢笔，最近开发中收集的这篇文章主要介绍Bootstrap table 实现树形表格联动选中联动取消功能，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

公司最近有需求要做树形式table。因为是前后端不分离项目，且之前已经引入了bootstrap table插件，现把实现方式分享一下：

<!DOCTYPE HTML>
<html lang="zh-cn">

<head>
 <meta charset="utf-8" />
 <meta http-equiv="X-UA-Compatible" content="IE=edge">
 <meta content="width=device-width,initial-scale=1.0" name="viewport">
 <meta content="yes" name="apple-mobile-web-app-capable">
 <meta content="black" name="apple-mobile-web-app-status-bar-style">
 <meta content="telephone=no" name="format-detection">
 <meta content="email=no" name="format-detection">
 <title>系统管理</title>
 <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="external nofollow" rel="stylesheet">
 <link href="https://cdn.bootcss.com/bootstrap-table/1.11.1/bootstrap-table.min.css" rel="external nofollow" rel="stylesheet">
 <link rel="stylesheet" href="https://cdn.bootcss.com/jquery-treegrid/0.2.0/css/jquery.treegrid.min.css" rel="external nofollow" >
</head>

<body>
<div class="container">
 <h1>树形表格 ： Table Treegrid</h1>
 <table id="table"></table>
 <br/>
 <button onclick="test()">选择</button>
</div>
</body>
<script src="https://cdn.bootcss.com/jquery/3.1.1/jquery.min.js"></script>
<script src="https://cdn.bootcss.com/bootstrap-table/1.12.1/bootstrap-table.min.js"></script>
<script src="https://cdn.bootcss.com/bootstrap-table/1.12.0/extensions/treegrid/bootstrap-table-treegrid.js"></script>
<script src="https://cdn.bootcss.com/jquery-treegrid/0.2.0/js/jquery.treegrid.min.js"></script>
<script type="text/javascript">
 var $table = $('#table');
 var data = [{0: undefined, id: 94710, pid: 0, mode: "系统管理", permissionTag: "*", permissionMark: "所有权限", }
,{0: undefined, id: 94711, pid: 94710, mode: "营销中心管理", permissionTag: "*", permissionMark: "所有权限",}
,{0: undefined, id: 471104, pid: 94711, mode: "营销中心管理", permissionTag: "search", permissionMark: "查询",}
,{0: undefined, id: 94721, pid: 94710, mode: "工厂管理", permissionTag: "*", permissionMark: "所有权限", }
,{0: undefined, id: 472104, pid: 94721, mode: "工厂管理", permissionTag: "search", permissionMark: "查询", }
,{0: undefined, id: 94731, pid: 94710, mode: "经销商管理", permissionTag: "*", permissionMark: "所有权限", }
,{0: undefined, id: 473104, pid: 94731, mode: "经销商管理", permissionTag: "search", permissionMark: "查询", }
,{0: undefined, id: 94732, pid: 94710, mode: "产品管理", permissionTag: "*", permissionMark: "所有权限", }
,{0: undefined, id: 473201, pid: 94732, mode: "产品管理", permissionTag: "insert", permissionMark: "添加", }
,{0: undefined, id: 473202, pid: 94732, mode: "产品管理", permissionTag: "update", permissionMark: "修改", }
, {0: undefined, id: 473203, pid: 94732, mode: "产品管理", permissionTag: "delete", permissionMark: "删除", }
, {0: undefined, id: 473204, pid: 94732, mode: "产品管理", permissionTag: "search", permissionMark: "查询", }
, {0: undefined, id: 94741, pid: 94710, mode: "用户账号", permissionTag: "*", permissionMark: "所有权限", }
, {0: undefined, id: 474101, pid: 94741, mode: "用户账号", permissionTag: "insert", permissionMark: "添加", }
, {0: undefined, id: 474102, pid: 94741, mode: "用户账号", permissionTag: "update", permissionMark: "修改", }
, {0: undefined, id: 474103, pid: 94741, mode: "用户账号", permissionTag: "delete", permissionMark: "删除", }
, {0: undefined, id: 474104, pid: 94741, mode: "用户账号", permissionTag: "search", permissionMark: "查询", }
, {0: undefined, id: 474105, pid: 94741, mode: "用户账号", permissionTag: "resetPwd", permissionMark: "重置密码", }
, {0: undefined, id: 94742, pid: 94710, mode: "角色权限管理", permissionTag: "*", permissionMark: "所有权限", }
, {0: undefined, id: 474201, pid: 94742, mode: "角色权限管理", permissionTag: "insert", permissionMark: "添加", }
, {0: undefined, id: 474202, pid: 94742, mode: "角色权限管理", permissionTag: "update", permissionMark: "修改", }
, {0: undefined, id: 474203, pid: 94742, mode: "角色权限管理", permissionTag: "delete", permissionMark: "删除", }
, {0: undefined, id: 474204, pid: 94742, mode: "角色权限管理", permissionTag: "search", permissionMark: "查询", }
, {0: undefined, id: 94760, pid: 0, mode: "运营中心", permissionTag: "*", permissionMark: "所有权限", }
, {0: undefined, id: 94770, pid: 94760, mode: "跨区域调拨单", permissionTag: "*", permissionMark: "所有权限", }
, {0: undefined, id: 476104, pid: 94770, mode: "跨区域调拨单", permissionTag: "search", permissionMark: "查询", }
, {0: undefined, id: 476105, pid: 94770, mode: "跨区域调拨单", permissionTag: "download", permissionMark: "下载", }]

 $(function() {

  //控制台输出一下数据
  console.log(data);

  $table.bootstrapTable({
   data:data,
   idField: 'id',
   dataType:'jsonp',
   columns: [
    { field: 'check', checkbox: true, formatter: function (value, row, index) {
      if (row.check == true) {
       // console.log(row.serverName);
       //设置选中
       return { checked: true };
      }
     }
    },
    { field: 'mode', title: '名称' },
    { field: 'permissionTag', title: '状态', },
    { field: 'permissionMark', title: '权限值' },
   ],
   // bootstrap-table-treegrid.js 插件配置 -- start
   //在哪一列展开树形
   treeShowField: 'mode',
   //指定父id列
   parentIdField: 'pid',

   onResetView: function(data) {
    //console.log('load');
    $table.treegrid({
     // initialState: 'collapsed',// 所有节点都折叠
     initialState: 'expanded',// 所有节点都展开，默认展开
     treeColumn: 1,
     // expanderExpandedClass: 'glyphicon glyphicon-minus', //图标样式
     // expanderCollapsedClass: 'glyphicon glyphicon-plus',
     onChange: function() {
      $table.bootstrapTable('resetWidth');
     }
    });
    //只展开树形的第一级节点
    $table.treegrid('getRootNodes').treegrid('expand');
   },
   onCheck:function(row){
    event.preventDefault()
    var datas = $table.bootstrapTable('getData');
    console.log(datas)
    row.check = true
    // 勾选子类
    selectChilds(datas,row,"id","pid",true);
    // 勾选父类
    selectParentChecked(datas,row,"id","pid")

    // 刷新数据
    $table.bootstrapTable('load', datas);
   },

   onUncheck:function(row){
    event.preventDefault()
    row.check = false
    var datas = $table.bootstrapTable('getData');
    selectChilds(datas,row,"id","pid",false);
    //取消选中最后一个子元素时时查找对应父元素取消
    selectParentUnchecked(datas,row,"id","pid")
    $table.bootstrapTable('load', datas);
   },
   // bootstrap-table-treetreegrid.js 插件配置 -- end
  });
 });


</script>
<script>
 /**
  * 选中父项时，同时选中子项
  * @param datas 所有的数据
  * @param row 当前数据
  * @param id id 字段名
  * @param pid 父id字段名
  */
 function selectChilds(datas,row,id,pid,checked) {
  console.log("zi",datas,'row',row,'check',checked)
  for(var i in datas){
   if(datas[i][pid] == row[id]){
    datas[i].check=checked;
    selectChilds(datas,datas[i],id,pid,checked);
   };
  }
 }

 function selectParentUnchecked(datas,row,id,pid){
  console.log("fu--Uncheck",datas,'row',row,)
  let key = 0;
  for(var i in datas){
  if(datas[i].pid == row.pid && datas[i].check == true){
   key++
  }
  }
  console.log(key)
  if(key == 0 ){
  for(var i in datas){
   if(datas[i][id] == row[pid]){
   datas[i].check=false;
   selectParentUnchecked(datas,datas[i],id,pid);
   }
  }
  }
 }

 function selectParentChecked(datas,row,id,pid){
  for(var i in datas){
   if(datas[i][id] == row[pid]){
    datas[i].check=true;
    selectParentChecked(datas,datas[i],id,pid);
   };
  }
 }

 function test() {
  var selRows = $table.bootstrapTable("getSelections");
  if(selRows.length == 0){
   alert("请至少选择一行");
   return;
  }
  var postData = "";
  $.each(selRows,function(i) {
   postData += this.id;
   if (i < selRows.length - 1) {
    postData += "， ";
   }
  });
  alert("你选中行的 id 为："+postData);
 }
</script>
</html>

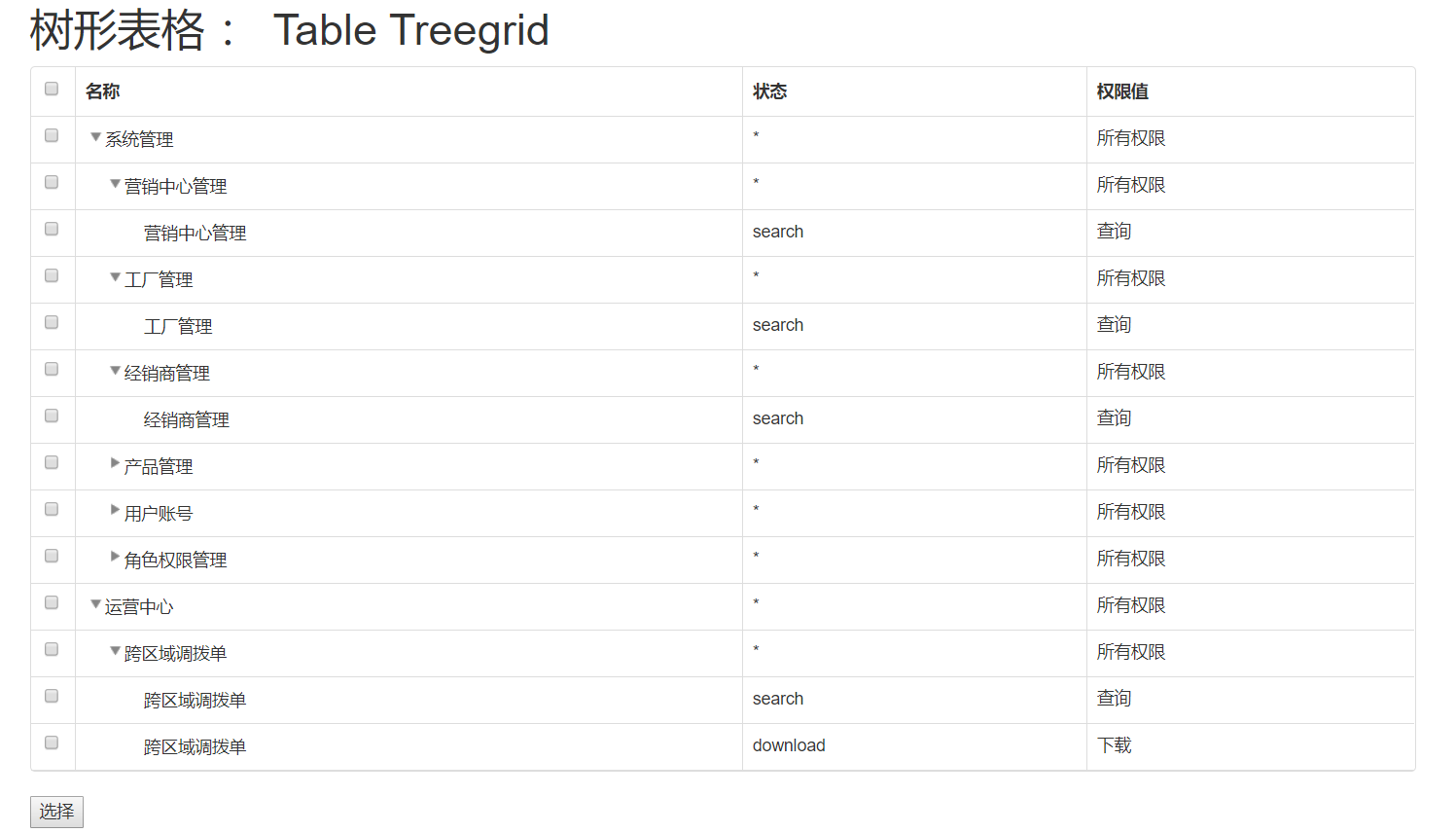

实现的效果图为：
