概述

本文实例讲述了jQuery插件HighCharts绘制的2D堆柱状图效果。分享给大家供大家参考，具体如下：

1、HighCharts之2D堆柱状图源码

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>HighCharts 2D堆柱状图</title>
<script type="text/javascript" src="js/jquery-1.7.2.min.js"></script>
<script type="text/javascript" src="js/highcharts.js"></script>
<script type="text/javascript">
$(function(){
   $('#stackedChart').highcharts({
     chart: {
       type: 'column'
     },
     title: {
       text: '堆柱状图'
     },
     xAxis: {
       categories: ['星期一', '星期二', '星期三', '星期四', '星期五','星期六','星期日']
     },
     yAxis: {
       min: 0,
       title: {
         text: '水果销量'
       },
       stackLabels: {
         enabled: true,
         style: {
           fontWeight: 'bold',
           color: (Highcharts.theme && Highcharts.theme.textColor) || 'gray'
         }
       }
     },
     legend: {
       align: 'right',
       x: -70,
       verticalAlign: 'top',
       y: 20,
       floating: true,
       backgroundColor: (Highcharts.theme && Highcharts.theme.legendBackgroundColorSolid) || 'white',
       borderColor: '#CCC',
       borderWidth: 1,
       shadow: false
     },
     tooltip: {
       formatter: function() {
         return '<b>'+ this.x +'</b><br/>'+
           this.series.name +': '+ this.y +'<br/>'+
           'Total: '+ this.point.stackTotal;
       }
     },
     plotOptions: {
       column: {
         stacking: 'normal',
         dataLabels: {
           enabled: true,
           color: (Highcharts.theme && Highcharts.theme.dataLabelsColor) || 'white',
           style: {
             textShadow: '0 0 3px black, 0 0 3px black'
           }
         }
       }
     },
     series: [{
       name: '苹果',
       data: [58, 31, 49, 12, 35,65,98]
     }, {
       name: '梨子',
       data: [12, 45, 63, 24, 17,87,35]
     }, {
       name: '桃子',
       data: [67, 89, 47, 27, 58,67,34]
     }, {
       name: '橘子',
       data: [54, 36, 78, 64, 35,78,94]
     }]
   });
 });
</script>
</head>
<body>
  <div id="stackedChart" style="width: 1200px; height: 550px; margin: 0 auto"></div>
</body>
</html>

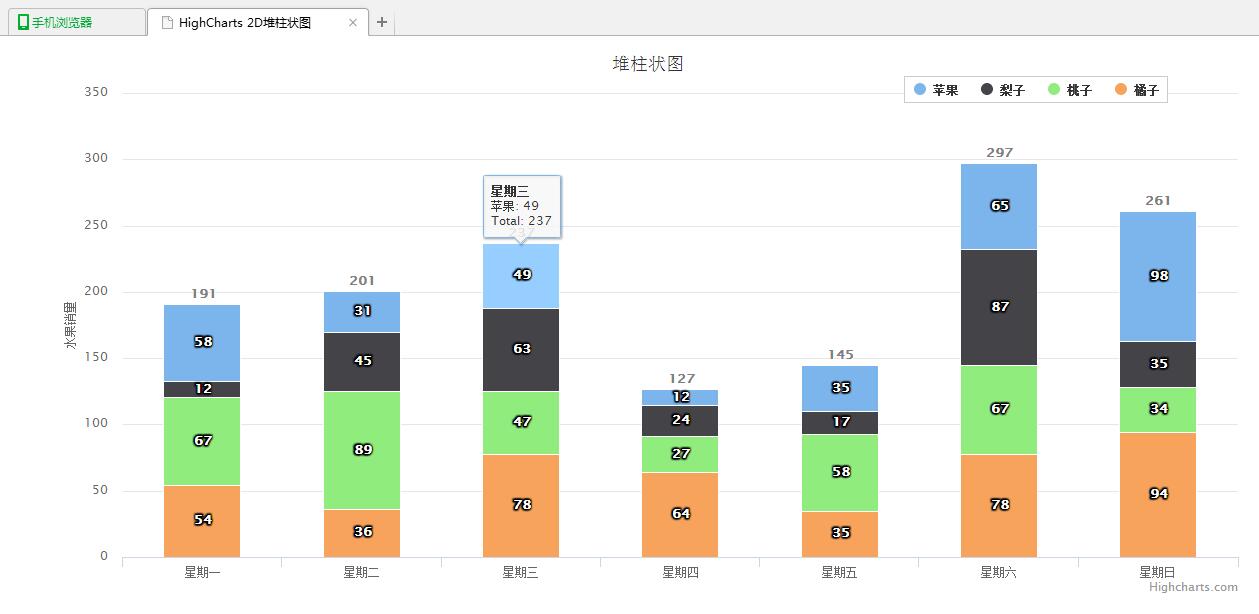

2、运行结果
