概述

一. 写在前面

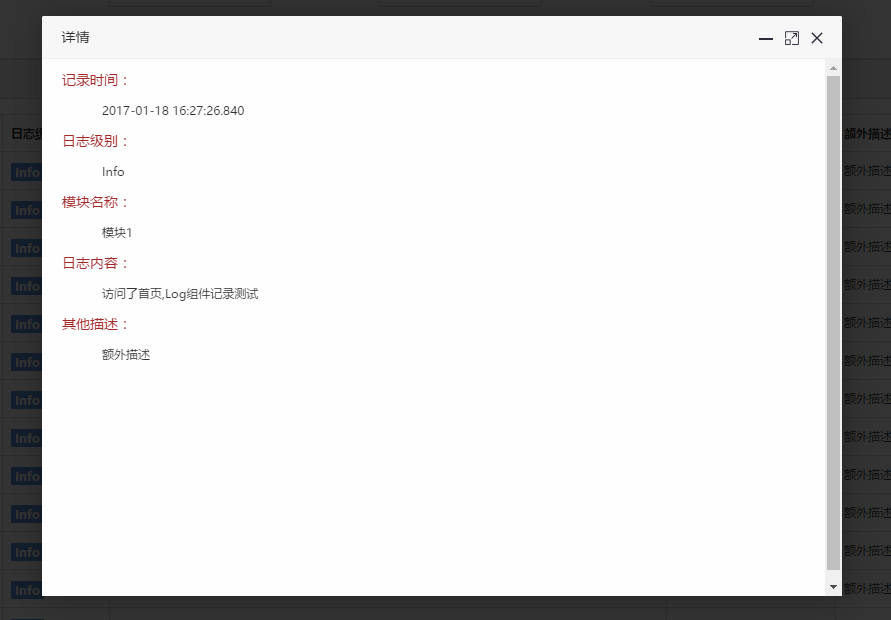

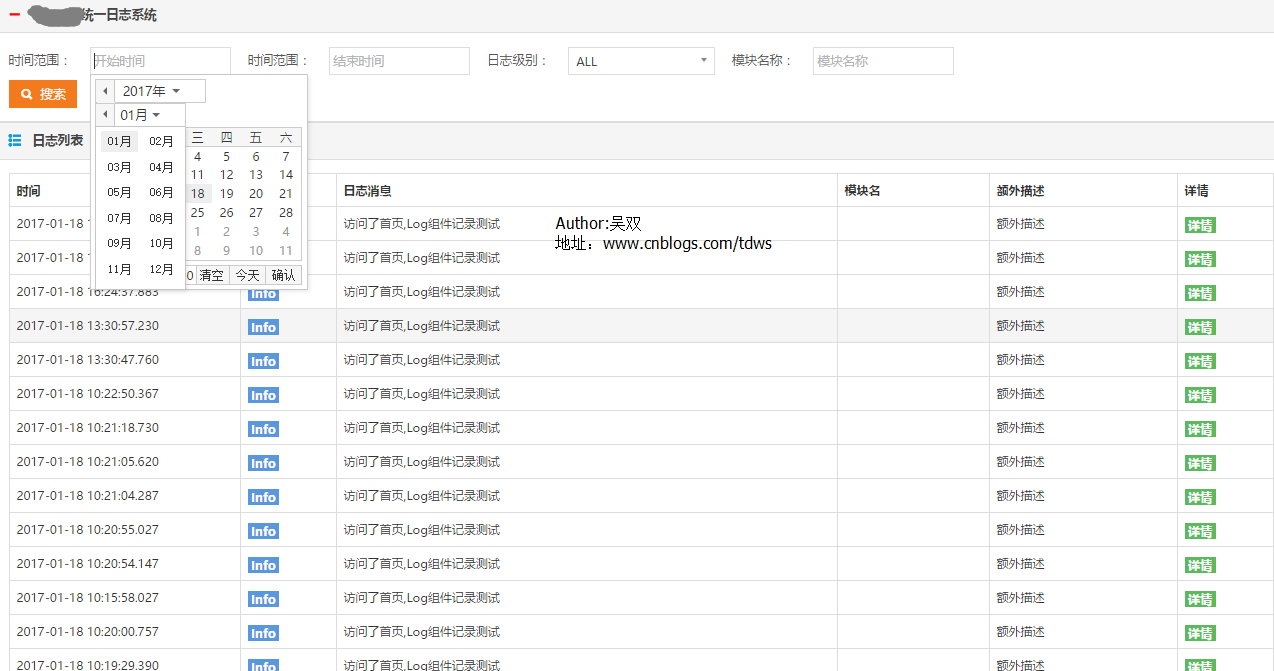

日志系统对于任何项目都是必不可少的，无论对于测试阶段的debug,性能测试，执行时间，操作记录还是线上的问题排查，访问记录等，日志系统都扮演着重要的角色。本篇分享的目的是能帮助需要的人快速搭建自己的LogSystem.，仅供参考。先上个图呗，自认为页面还算清爽吧：

我的LogSystem使用Log4net入库的方式，网上特别多的分享，但是能完整运行下来的真是很少，所以现在需要和以后用得上的小伙伴抓紧收藏咯。

二. Log4Net自定义内容入库

Log4Net存日志的方式，给人的感觉实在是不实用，IT行业不都求一个自动化吗？废话不说了，先上Log4net入库系统的代码。

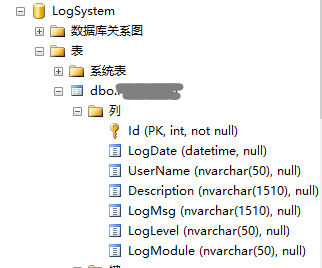

LogSystem数据库结构，我的建议是一个项目一个表。

在Log组件中，你需要这样几个类。下面分别给出代码：

LogContent.cs，这里定义了Log实体，在实体化实体的时候，通过给构造函数传参创建好这个对象。注释很详细了

using System;
namespace LogComponent
{
 public class LogContent
 {
 public LogContent(string logLevel, string logMsg, string logModule, string description, string userName)
 {
  LogLevel = logLevel;
  UserName = userName;
  Description = description;
  LogMsg = logMsg;
  LogModule = logModule;
 }
 /// <summary>
 /// 日志级别
 /// </summary>
 public string LogLevel { get; set; }
 /// <summary>
 /// 日志消息
 /// </summary>
 public string LogMsg { get; set; }
 /// <summary>
 /// 系统登陆用户
 /// </summary>
 public string UserName { get; set; }
 /// <summary>
 /// 日志描述信息
 /// </summary>
 public string Description { get; set; }
 /// <summary>
 /// 记录时间
 /// </summary>
 public DateTime LogDate { get; set; }
 /// <summary>
 /// 模块名称
 /// </summary>
 public string LogModule { get; set; }
 }
}

LogHelper.cs,定义了日志级别，和写入方法

[assembly: log4net.Config.XmlConfigurator(Watch = true,ConfigFile = "log4net.config")]
namespace LogComponent
{
 public class LogHelper
 {
 static log4net.ILog log = log4net.LogManager.GetLogger("myLogger");
 /// <summary>
 /// 异常日志
 /// </summary>
 /// <param name="logMsg">日志信息</param>
 /// <param name="logModule">代码模块</param>
 /// <param name="description">其他描述</param>
 /// <param name="userName">用户名</param>
 public static void LogError(string logMsg, string logModule, string description = "", string userName = "")
 {
  log.Error(new LogContent("Error", SubLogString(logMsg), logModule, SubLogString(description), userName));
 }
 public static void LogInfo(string logMsg, string logModule, string description = "", string userName = "")
 {
  log.Info(new LogContent("Info", SubLogString(logMsg), logModule, SubLogString(description), userName));
 }
 public static void LogWarn(string logMsg, string logModule, string description = "", string userName = "")
 {
  log.Warn(new LogContent("Warn", SubLogString(logMsg), logModule, SubLogString(description), userName));
 }
 public static void LogDebug(string logMsg, string logModule, string description = "", string userName = "")
 {
  log.Debug(new LogContent("Debug", SubLogString(logMsg), logModule, SubLogString(description), userName));
 }
 private static string SubLogString(string str)
 {
  if (str.Length > 1500)
  {
  return str.Substring(0, 1500);
  }
  return str;
 }
 }
}

MessagePartternConverter.cs

using log4net.Core;
using log4net.Layout.Pattern;
using System.IO;
using System.Reflection;
namespace LogComponent
{
 class MessagePatternConverter : PatternLayoutConverter
 {
 protected override void Convert(TextWriter writer, LoggingEvent loggingEvent)
 {
  if (Option != null)
  {
  // Write the value for the specified key
  WriteObject(writer, loggingEvent.Repository, LookupProperty(Option, loggingEvent));
  }
  else
  {
  // Write all the key value pairs
  WriteDictionary(writer, loggingEvent.Repository, loggingEvent.GetProperties());
  }
 }
 /// <summary>
 /// 通过反射获取传入的日志对象的某个属性的值
 /// </summary>
 /// <param name="property"></param>
 /// <returns></returns>
 private object LookupProperty(string property, log4net.Core.LoggingEvent loggingEvent)
 {
  object propertyValue = string.Empty;
  PropertyInfo propertyInfo = loggingEvent.MessageObject.GetType().GetProperty(property);
  if (propertyInfo != null)
  propertyValue = propertyInfo.GetValue(loggingEvent.MessageObject, null);
  return propertyValue;
 }
 }
}

MyLayout.cs

using log4net.Layout;
namespace LogComponent
{
 class MyLayout : PatternLayout
 {
 public MyLayout()
 {
  this.AddConverter("property", typeof(MessagePatternConverter));
 }
 }
}

其实看到这里，最重要的并不是代码了，核心部分Log4net都帮我们写好了，关键在于你的配置，下面是log4net.config的内容。拿到你的web项目里是一样用的。但是不要忘了在你的项目中引用nuget：log4net哟。

log4net.config如下：在其中主要配置了log入库的参数和sql语句，当然还有sql连接。注释已经很详细了

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
 <configSections>
 <section name="log4net" type="log4net.Config.Log4NetConfigurationSectionHandler, log4net"/>
 </configSections>
 <log4net>
 <root >
 <level value="Debug"/>
 <appender-ref ref="ADONetAppender"/>
 </root>
 <logger name="myLogger">
 <level value="Debug"/>
 <appender-ref ref="ADONetAppender"/>
 </logger>
 <appender name="ADONetAppender" type="log4net.Appender.ADONetAppender,log4net">
 <!--BufferSize为缓冲区大小，只有日志记录超value条才会一块写入到数据库-->
 <bufferSize value="1"/>
 <!--或写为<param name="BufferSize" value="1" />-->
 <!--引用-->
 <connectionType value="System.Data.SqlClient.SqlConnection, System.Data, Version=1.0.3300.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"/>
 <!--连接数据库字符串-->
 <connectionString value="Data Source=115.29.54.31;Initial Catalog=LogSystem;uid=sa;pwd=sa.;MultipleActiveResultSets=True"/>
 <!--插入到表Log-->
 <commandText value="INSERT INTO HdPubLog ([LogDate],[LogMsg],[UserName],[Description],[LogLevel],[LogModule]) VALUES (@log_date,@LogMsg,@UserName,@Description,@LogLevel,@LogModule)"/>
 <parameter>
 <parameterName value="@log_date"/>
 <dbType value="DateTime"/>
 <layout type="log4net.Layout.RawTimeStampLayout"/>
 <!--获取log4net中提供的日志时间RawTimeStampLayout为默认的时间输出格式-->
 </parameter>
 <parameter>
 <parameterName value="@LogMsg"/>
 <dbType value="String"/>
 <size value="1510"/>
 <layout type="LogComponent.MyLayout, LogComponent">
  <param name="ConversionPattern" value="%property{LogMsg}"/>
 </layout>
 </parameter>
 <parameter>
 <parameterName value="@UserName"/>
 <dbType value="String"/>
 <size value="50"/>
 <layout type="LogComponent.MyLayout, LogComponent">
  <param name="ConversionPattern" value="%property{UserName}"/>
 </layout>
 </parameter>
 <parameter>
 <parameterName value="@Description"/>
 <dbType value="String"/>
 <size value="1510"/>
 <layout type="LogComponent.MyLayout, LogComponent">
  <param name="ConversionPattern" value="%property{Description}"/>
 </layout>
 </parameter>
 <parameter>
 <parameterName value="@LogLevel"/>
 <dbType value="String"/>
 <size value="50"/>
 <layout type="LogComponent.MyLayout, LogComponent">
  <param name="ConversionPattern" value="%property{LogLevel}"/>
 </layout>
 </parameter>
 <parameter>
 <parameterName value="@LogModule"/>
 <dbType value="String"/>
 <size value="50"/>
 <layout type="LogComponent.MyLayout, LogComponent">
  <param name="ConversionPattern" value="%property{LogModule}"/>
 </layout>
 </parameter>
 </appender>
 </log4net>
</configuration>

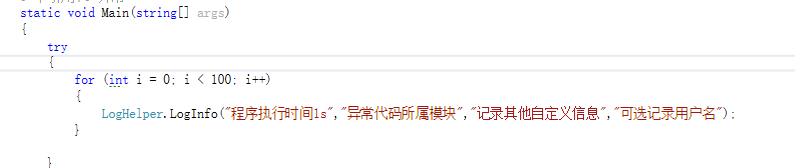

这样一来，你的配置就完成了，你可以直接测试插入的情况：

三. 把Log信息可视化

我的UI使用的是Datatables.js，弹出框是layer,日期组件好像是layDate，下拉框是修改样式后的select2。UI代码是我自己的一个框架里的，内容太多就不贴出来了，你只需要和以前一样，把数据从库里查出来，绑定给任意你喜欢的数据表格上。由于单页面的日志系统没有什么复杂操作，就用个sqlHelper查一下就算了，代码和条件拼接如下

 public class xxxDal
 {
 private SqlHelper _sqlHelper = new SqlHelper();
 /// <summary>
 /// 获取xxx的日志
 /// </summary>
 /// <param name="model"></param>
 /// <returns></returns>
 public List<LogModel> GetxxxLog(SM_LogModel model)
 {
  StringBuilder sql = new StringBuilder();
  List<SqlParameter> sqlParameters = new List<SqlParameter>();
  StringBuilder sqlWhere = new StringBuilder();
  if (!string.IsNullOrWhiteSpace(model.LogStartTime))
  {
  sqlParameters.Add(new SqlParameter("@LogStartTime", model.LogStartTime));
  sqlWhere.Append(@" AND h.LogDate > @LogStartTime");
  }
  if (!string.IsNullOrWhiteSpace(model.LogEndTime))
  {
  sqlParameters.Add(new SqlParameter("@LogEndTime", model.LogEndTime));
  sqlWhere.Append(@" AND h.LogDate < @LogEndTime");
  }
  if (!string.IsNullOrWhiteSpace(model.LogLevel))
  {
  sqlParameters.Add(new SqlParameter("@LogLevel", model.LogLevel));
  sqlWhere.Append(@" AND h.LogLevel = @LogLevel");
  }
  if (!string.IsNullOrWhiteSpace(model.LogModule))
  {
  sqlParameters.Add(new SqlParameter("@LogModule", model.LogModule));
  sqlWhere.Append(@" AND h.LogModule = @LogModule");
  }
  sql.AppendFormat(@"
   WITH t AS ( SELECT ROW_NUMBER() OVER ( ORDER BY id DESC ) AS IndexNum ,
   [Id] ,
   CONVERT(VARCHAR, [LogDate], 21) AS [LogDate] ,
   [UserName] ,
   SUBSTRING([Description], 0, 150) AS [Description] ,
   SUBSTRING([LogMsg], 0, 200) AS [LogMsg] ,
   [LogLevel] ,
   [LogModule]
  FROM [LogSystem].[dbo].[xxxLog] h
  WHERE 1 = 1
   {0}
  )
 SELECT *
 FROM t
 WHERE IndexNum > @startIndex
  AND indexnum < @endIndex", sqlWhere);
  sqlParameters.Add(new SqlParameter("@startIndex", model.Start));
  sqlParameters.Add(new SqlParameter("@endIndex", model.Start + model.Length));
  DataTable dt = _sqlHelper.ExecuteDataTable(sql.ToString(), sqlParameters.ToArray());
  return DataTableTools<LogModel>.DataTableToList(dt);
 }
 public int GetxxxLogTotalCount(SM_LogModel model)
 {
  StringBuilder sql = new StringBuilder(); List<SqlParameter> sqlParameters = new List<SqlParameter>();
  sql.Append(@"
   SELECT COUNT(*)
   FROM [HdPubLog] h where 1=1 ");
  if (!string.IsNullOrWhiteSpace(model.LogStartTime))
  {
  sqlParameters.Add(new SqlParameter("@LogStartTime", model.LogStartTime));
  sql.Append(@" AND h.LogDate > @LogStartTime");
  }
  if (!string.IsNullOrWhiteSpace(model.LogEndTime))
  {
  sqlParameters.Add(new SqlParameter("@LogEndTime", model.LogEndTime));
  sql.Append(@" AND h.LogDate < @LogEndTime");
  }
  if (!string.IsNullOrWhiteSpace(model.LogLevel))
  {
  sqlParameters.Add(new SqlParameter("@LogLevel", model.LogLevel));
  sql.Append(@" AND h.LogLevel = @LogLevel");
  }
  if (!string.IsNullOrWhiteSpace(model.LogModule))
  {
  sqlParameters.Add(new SqlParameter("@LogModule", model.LogModule));
  sql.Append(@" AND h.LogModule = @LogModule");
  }
  return _sqlHelper.ExecuteScalar<int>(sql.ToString(), sqlParameters.ToArray());
 }
 [HttpPost]
 public LogModel GetxxxxSignelLog(int id)
 {
  string sql = @"
   SELECT [Id] ,
    CONVERT(VARCHAR(30), [LogDate], 21) AS [LogDate] ,
    [UserName] ,
    [Description] ,
    [LogMsg] ,
    [LogLevel] ,
    [LogModule] ,
    [Id] IndexNum
   FROM [LogSystem].[dbo].[xxxxLog] h
   WHERE h.id = @Id";
  var row = _sqlHelper.ExecuteDataRow(sql, new SqlParameter("@Id", id));
  return DataTableTools<LogModel>.DataRowToModel(row);
 }
 }

以上就是本文的全部内容，希望本文的内容对大家的学习或者工作能带来一定的帮助，同时也希望多多支持脚本之家！
