实例解析Python设计模式编程之桥接模式的运用

159 阅读 0 评论 105 点赞

我是靠谱客的博主含蓄朋友，最近开发中收集的这篇文章主要介绍实例解析Python设计模式编程之桥接模式的运用，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

我们先来看一个例子：

#encoding=utf-8
#
#by panda
#桥接模式

def printInfo(info):
  print unicode(info, 'utf-8').encode('gbk')

#抽象类：手机品牌
class HandsetBrand():
  soft = None
  def SetHandsetSoft(self, soft):
    self.soft = soft

  def Run(self):
    pass

#具体抽象类：手机品牌1
class HandsetBrand1(HandsetBrand):
  def Run(self):
    printInfo('手机品牌1:')
    self.soft.Run()

#具体抽象类：手机品牌2
class HandsetBrand2(HandsetBrand):
  def Run(self):
    printInfo('手机品牌2:')
    self.soft.Run()


#功能类：手机软件
class HandsetSoft():
  def Run(self):
    pass

#具体功能类：游戏
class HandsetGame(HandsetSoft):
  def Run(self):
    printInfo('运行手机游戏')

#具体功能类：通讯录
class HandsetAddressList(HandsetSoft):
  def Run(self):
    printInfo('运行手机通信录')

def clientUI():
  h1 = HandsetBrand1()
  h1.SetHandsetSoft(HandsetAddressList())
  h1.Run()
  h1.SetHandsetSoft(HandsetGame())
  h1.Run()

  h2 = HandsetBrand2()
  h2.SetHandsetSoft(HandsetAddressList())
  h2.Run()
  h2.SetHandsetSoft(HandsetGame())
  h2.Run()
  return

if __name__ == '__main__':
  clientUI();

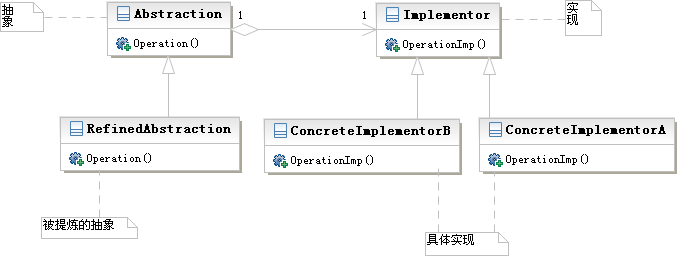

可以总结出类图是这样的：


所以，桥接模式的概念在于将系统抽象部分与它的实现部分分离，使它们可以独立地变化。
由于目标系统存在多个角度的分类，每一种分类都会有多种变化，那么就可以把多角度分离出来，让它们独立变化，减少它们之间的耦合。

下面我们再来看一个实例：

基本原理请参考相关书籍，这里直接给实例

假期旅游从目的地角度可以分为上海和大连，从方式角度可以分为跟团和独体

桥接模式把这两种分类连接起来可以进行选择。

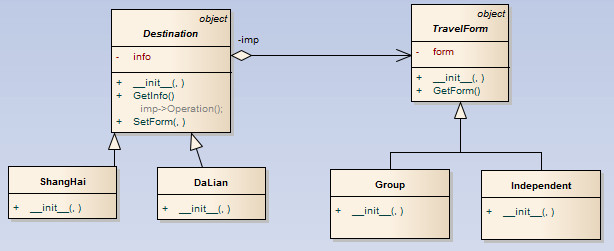

类图：


# -*- coding: utf-8 -*-
#######################################################
#
# tour.py
# Python implementation of the Class DaLian
# Generated by Enterprise Architect
# Created on:   11-十二月-2012 16:53:52
#
#######################################################

from __future__ import division
from __future__ import print_function
from __future__ import unicode_literals
from future_builtins import *


class TravelForm(object):
  """This class defines the interface for implementation classes.
  """
  def __init__(self, form="stay at home"):
    self.form=form
    pass

  def GetForm(self):
    return self.form
    pass
  pass

class Group(TravelForm):
  """This class implements the Implementor interface and defines its concrete
  implementation.
  """
  def __init__(self, form="by group"):
    super(Group,self).__init__(form)
    pass
  pass

class Independent(TravelForm):
  """This class implements the Implementor interface and defines its concrete
  implementation.
  """
  def __init__(self, form="by myself"):
    super(Independent,self).__init__(form)
    pass

class Destination(object):
  """This class (a) defines the abstraction's interface, and (b) maintains a
  reference to an object of type Implementor.
  """
  m_TravelForm= TravelForm()

  def __init__(self, info):
    self.info=info
    pass

  def GetInfo(self):
    # imp->Operation();
    return print(self.info + " " +self.form.GetForm())
    pass

  def SetForm(self, form):
    self.form=form
    pass

class DaLian(Destination):
  """This class extends the interface defined by Abstraction.
  """
  def __init__(self, info="Go to DaLian "):
    super(DaLian,self).__init__(info)
    pass

class ShangHai(Destination):
  """This class extends the interface defined by Abstraction.
  """
  def __init__(self, info="Go to ShangHai"):
    super(ShangHai,self).__init__(info)
    pass
#客户端
if(__name__=="__main__"):

  destination=ShangHai()
  destination.SetForm(Group())
  destination.GetInfo()


  destination=DaLian()
  destination.SetForm(Independent())
  destination.GetInfo()

运行结果
