我是靠谱客的博主迅速绿茶，最近开发中收集的这篇文章主要介绍Angular弹出模态框的两种方式，觉得挺不错的，现在分享给大家，希望可以做个参考。

概述

在开始我们的blog之前，我们要先安装ngx-bootstrap-modal

npm install ngx-bootstrap-modal --save

不然我们的模态框效果会难看到你想吐

一、弹出方式一(此方法来自https://github.com/cipchk/ngx-bootstrap-modal)

1.alert弹框

(1)demo目录

--------app.component.ts

--------app.component.html

--------app.module.ts

--------detail(文件夹)

------------detail.component.ts

------------detail.component.html

(2)demo代码

app.module.ts导入必要的BootstrapModalModule 和ModalModule ，再注册它们

//app.module.ts
import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
//这种模态框只需要导入下面这两个
import { BootstrapModalModule } from 'ngx-bootstrap-modal';
import { ModalModule } from 'ngx-bootstrap/modal';
import { AppComponent } from './app.component';
import { DetailComponent } from './detail/detail.component';
@NgModule({
 declarations: [
 AppComponent,
 DetailComponent
 ],
 imports: [
 BrowserModule,
 BootstrapModalModule
 ],
 providers: [],
 entryComponents: [
 DetailComponent
 ],
 bootstrap: [AppComponent]
})
export class AppModule { }

app.component.html创建一个可以弹出模态框的按钮

<div class="container">
 <div class="row">
 <button type="button" class="btn btn-primary" (click)="showAlert()">alert模态框</button>
 </div>
</div>

app.component.ts编写这个按钮的动作showAlert()

import { Component } from '@angular/core';
import { DialogService } from "ngx-bootstrap-modal";
import { DetailComponent } from './detail/detail.component'
@Component({
 selector: 'app-root',
 templateUrl: './app.component.html',
 styleUrls: ['./app.component.css']
})
export class AppComponent {
 title = 'app';
 constructor(public dialogService: DialogService) {
 }
 showAlert() {
  this.dialogService.addDialog(DetailComponent, { title: 'Alert title!', message: 'Alert message!!!' });
 }
}

detail.component.html编写alert弹框的布局

<div class="modal-dialog">
 <div class="modal-content">
  <div class="modal-header">
   <button type="button" class="close" (click)="close()" >×</button>
   <h4 class="modal-title">{{title}}</h4>
  </div>
  <div class="modal-body">
   这是alert弹框
  </div>
  <div class="modal-footer">
   <button type="button" class="btn btn-primary" (click)="close()">取消</button>
   <button type="button" class="btn btn-default">确定</button>
  </div>
 </div>
</div>

detail.component.ts创建模态框组件，我们需要创建一个组件，然后由 ngx-bootstrap-model 帮忙引导启动
对于这个组件需要继承 DialogComponent<T, T1> 类，包含两个参数：

T 外部传参给模态框的类型。

T1 模态框返回值类型。

因此，DialogService应该是DialogComponent的一个构造函数的参数。

import { Component } from '@angular/core';
import { DialogComponent, DialogService } from 'ngx-bootstrap-modal';
export interface AlertModel {
 title: string;
 message: string;
}
@Component({
 selector: 'alert',
 templateUrl: './detail.component.html',
 styleUrls: ['./detail.component.css']
})
export class DetailComponent extends DialogComponent<AlertModel, null> implements AlertModel {
 title: string;
 message: string;
 constructor(dialogService: DialogService) {
 super(dialogService);
 }
}

2.confirm弹框

(1)demo目录

--------app.component.ts
--------app.component.html
--------app.module.ts
--------confirm(文件夹)
------------confirm.component.ts
------------confirm.component.html

(2)demo代码

app.module.ts导入必要的BootstrapModalModule 和ModalModule ，再注册它们，这些都跟alert弹框一样，因为这些都是方法一的弹出方式

//app.module.ts
import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
//这种模态框只需要导入下面这两个
import { BootstrapModalModule } from 'ngx-bootstrap-modal';
import { ModalModule } from 'ngx-bootstrap/modal';
import { AppComponent } from './app.component';
import { DetailComponent } from './detail/detail.component';
@NgModule({
 declarations: [
 AppComponent,
 DetailComponent
 ],
 imports: [
 BrowserModule,
 BootstrapModalModule
 ],
 providers: [],
 entryComponents: [
 DetailComponent
 ],
 bootstrap: [AppComponent]
})
export class AppModule { }

app.component.html创建一个可以弹出模态框的按钮

<div class="container">
 <div class="row">
 <button type="button" class="btn btn-primary" (click)="showConfirm()">modal模态框</button>
 </div>
</div>

app.component.ts编写这个按钮的动作showConfirm()

import { Component } from '@angular/core';
import { DialogService } from "ngx-bootstrap-modal";
import { ConfirmComponent } from './confirm/confirm.component'
@Component({
 selector: 'app-root',
 templateUrl: './app.component.html',
 styleUrls: ['./app.component.css']
})
export class AppComponent {
 title = 'app';
 constructor(public dialogService: DialogService,private modalService: BsModalService) {
 }
 showConfirm() {
  this.dialogService.addDialog(ConfirmComponent, {
   title: 'Confirmation',
   message: 'bla bla'
  })
   .subscribe((isConfirmed) => {
   });
 }
}

confirm.component.html编写confirm弹框的布局

<div class="modal-dialog">
 <div class="modal-content">
  <div class="modal-header">
   <button type="button" class="close" (click)="close()" >×</button>
   <h4 class="modal-title">{{title}}</h4>
  </div>
  <div class="modal-body">
   这是confirm弹框
  </div>
  <div class="modal-footer">
   <button type="button" class="btn btn-primary" (click)="close()">取消</button>
   <button type="button" class="btn btn-default">确定</button>
  </div>
 </div>
</div>

confirm.component.ts创建模态框组件

import { Component } from '@angular/core';
import { DialogComponent, DialogService } from 'ngx-bootstrap-modal';
export interface ConfirmModel {
 title:string;
 message:any;
}
@Component({
 selector: 'confirm',
 templateUrl: './confirm.component.html',
 styleUrls: ['./confirm.component.css']
})
export class ConfirmComponent extends DialogComponent<ConfirmModel, boolean> implements ConfirmModel {
 title: string;
 message: any;
 constructor(dialogService: DialogService) {
 super(dialogService);
 }
 confirm() {
 // on click on confirm button we set dialog result as true,
 // ten we can get dialog result from caller code
 this.close(true);
 }
 cancel() {
 this.close(false);
 }
}

3.内置弹框

(1)demo目录

--------app.component.ts

--------app.component.html
--------app.module.ts

(2)demo代码

内置弹框也包括 alert confirm prompt 三种形态，都有一些内置的样式

app.module.ts

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { BootstrapModalModule } from 'ngx-bootstrap-modal';
import { ModalModule } from 'ngx-bootstrap/modal';
import { AppComponent } from './app.component';
@NgModule({
 declarations: [
 AppComponent
 ],
 imports: [
 BrowserModule,
 BootstrapModalModule,
 ModalModule.forRoot()
 ],
 providers: [],
 bootstrap: [AppComponent]
})
export class AppModule { }

app.component.html很简单，就一个按钮

<div class="container">
 <div class="row">
 <button type="button" class="btn btn-default" (click)="show()">内置</button>
 </div>
</div>

app.component.ts很简单，连组件的布局都不用写，传入一些参数比如图标icon，大小size等

import { Component } from '@angular/core';
import { DialogService, BuiltInOptions } from "ngx-bootstrap-modal";
@Component({
 selector: 'app-root',
 templateUrl: './app.component.html',
 styleUrls: ['./app.component.css']
})
export class AppComponent {
 title = 'app';
 constructor(public dialogService: DialogService) {
 }
 show(){
  this.dialogService.show(<BuiltInOptions>{
   content: '保存成功',
   icon: 'success',
   size: 'sm',
   showCancelButton: false
  })
 }
}

二、弹出方式二(此方法来自https://valor-software.com/ngx-bootstrap/#/modals)

还是跟上一种方法一样，先安装ngx-bootstrap-modal，然后导入bootstrap样式表

1.demo目录

--------app.component.ts
--------app.component.html
--------app.module.ts

2.demo代码

app.module.ts导入相应模块，并且注册它们

//app.module.ts
import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';
import { ModalModule } from 'ngx-bootstrap/modal';
import { AppComponent } from './app.component';
@NgModule({
 declarations: [
 AppComponent
 ],
 imports: [
 BrowserModule,
 ModalModule.forRoot()
 ],
 providers: [],
 entryComponents: [
 ],
 bootstrap: [AppComponent]
})
export class AppModule { }

app.component.ts

import { Component,TemplateRef } from '@angular/core';
import { BsModalService } from 'ngx-bootstrap/modal';
import { BsModalRef } from 'ngx-bootstrap/modal/modal-options.class';
@Component({
 selector: 'app-root',
 templateUrl: './app.component.html',
 styleUrls: ['./app.component.css']
})
export class AppComponent {
 title = 'app';
 public modalRef: BsModalRef;
 constructor(private modalService: BsModalService) {
 }
 showSecond(template: TemplateRef<any>){//传入的是一个组件
  this.modalRef = this.modalService.show(template,{class: 'modal-lg'});//在这里通过BsModalService里面的show方法把它显示出来
 };
}

app.component.html

<div class="container">
 <div class="row">
 <button type="button" class="btn btn-success" (click)="showSecond(Template)">第二种弹出方式</button>
 </div>
</div>
<!--第二种弹出方法的组件-->
<template #Template>
 <div class="modal-header tips-modal-header">
 <h4 class="modal-title pull-left">第二种模态框</h4>
 <button type="button" class="close pull-right" aria-label="Close" (click)="modalRef.hide()">
  <span aria-hidden="true">×</span>
 </button>
 </div>
 <div class="modal-body tips-modal-body">
 <div class="tips-contain"><span>第二种模态框弹出方式</span></div>
 </div>
 <div class="modal-footer">
  <button type="button" class="btn btn-default" (click)="modalRef.hide()">确定</button>
  <button type="button" class="btn btn-default" (click)="modalRef.hide()">取消</button>
 </div>
</template>

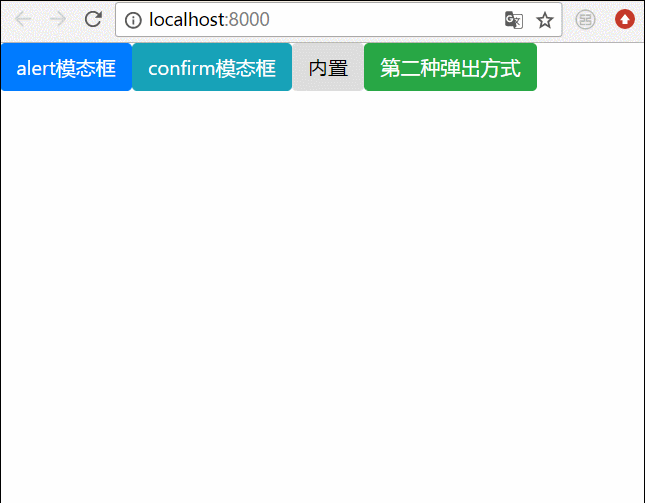

三、最终效果

我们将上面所有的弹框全部写在一起，然后效果就是这样的
