概述

说明：由于环境有限，这里只是用一台机器

一、部署环境

VMware Workstation 10
centos7

二、主机配置

主机名	ip	cpu	ram
master	192.168.137.10	2	3G

1、在 /etc/hosts 添加以下内容：

2、关闭防火墙、selinux、swap

systemctl stop firewalld
systemctl disable firewalld

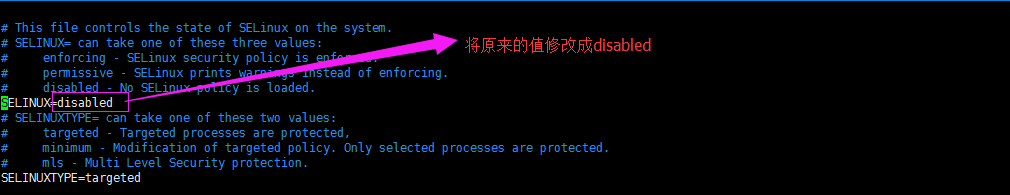

修改：vim /etc/selinux/config

3、对主机进行免密设置

1）、CentOS7默认没有启动ssh无密登录，去掉/etc/ssh/sshd_config其中1行的注释

#PubkeyAuthentication yes

然后重启ssh服务

systemctl restart sshd

2）、在master机器的/root执行：ssh-keygen -t rsa命令，一直按回车。2台机器都要执行。

[root@master ~]# ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa. Your public key has been saved in /root/.ssh/id_rsa.pub. The key fingerprint is: SHA256:aMUO8b/EkylqTMb9+71ePnQv0CWQohsaMeAbMH+t87M root@master The key's randomart image is: +---[RSA 2048]----+ | o ... . | | = o= . o | | + oo=. . . | | =.Boo o . .| | . OoSoB . o | | =.+.+ o. ...| | + o o .. +| | . o . ..+.| | E ....+oo| +----[SHA256]-----+

3）、在master上合并公钥到authorized_keys文件

[root@master ~]# cd /root/.ssh/
[root@master .ssh]# cat id_rsa.pub>> authorized_keys

测试，master上可以用ip免密直接登录，但是用名字还需要输入一次yes，输入一次之后以后就可以了

[root@master]# ssh master
The authenticity of host 'master (192.168.137.10)' can't be established.
ECDSA key fingerprint is 5c:c6:69:04:26:65:40:7c:d0:c6:24:8d:ff:bd:5f:ef.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'master,192.168.137.10' (ECDSA) to the list of known hosts.
Last login: Mon Dec 10 15:34:51 2018 from 192.168.137.1

4、配置国内 yum源地址、ceph源地址

cp -r /etc/yum.repos.d/ /etc/yum-repos-d-bak
yum install -y wget
rm -rf  /etc/yum.repos.d/*
wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
wget -O /etc/yum.repos.d/epel-7.repo http://mirrors.aliyun.com/repo/epel-7.repo
yum clean all
yum makecache

cat <<EOF > /etc/yum.repos.d/ceph.repo
[ceph]
name=Ceph packages
baseurl=http://mirrors.aliyun.com/ceph/rpm-luminous/el7/x86_64/
enabled=1
gpgcheck=1
priority=1
type=rpm-md
gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc

[ceph-noarch]
name=Ceph noarch packages
baseurl=http://mirrors.aliyun.com/ceph/rpm-luminous/el7/noarch
enabled=1
gpgcheck=1
priority=1
type=rpm-md
gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc

[ceph-source]
name=Ceph source packages
baseurl=http://mirrors.aliyun.com/ceph/rpm-luminous/el7/SRPMS
enabled=0
gpgcheck=1
type=rpm-md
gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc
priority=1
EOF

5、准备2块盘给2个osd用

三、安装ceph

1、安装ceph-deploy工具

yum install -y ceph-deploy

2、配置监控节点

ceph-deploy new master

当前工具目录会多出以下文件

3、修改ceph.conf，添加public network

4、安装ceph，监视节点和osd节点都要安装，只不过，现在只有一个节点，都在master上

ceph-deploy install master

[root@master ceph]# ceph -v
ceph version 12.2.11 (26dc3775efc7bb286a1d6d66faee0ba30ea23eee) luminous (stable)

5、配置初始 monitor(s)、并收集所有密钥

ceph-deploy mon create-initial

6、将配置文件和管理密钥复制到管理节点和你的Ceph的节点

ceph-deploy admin master

7、部署管理器守护程序

ceph-deploy mgr create master

8、添加osd

ceph-deploy osd create --data /dev/sdb master
ceph-deploy osd create --data /dev/sdc master

9、检查集群状态

[root@master ceph]# ceph -s
  cluster:
    id:     aca21f57-bcd2-4eb5-bf47-3ad1e5bb1e7a
    health: HEALTH_OK

  services:
    mon: 1 daemons, quorum master
    mgr: master(active)
    osd: 2 osds: 2 up, 2 in

  data:
    pools:   0 pools, 0 pgs
    objects: 0 objects, 0B
    usage:   2.00GiB used, 5.00GiB / 7GiB avail
    pgs:

[root@master ceph]# ceph osd tree
ID CLASS WEIGHT  TYPE NAME       STATUS REWEIGHT PRI-AFF
-1       0.00679 root default
-3       0.00679     host master
 0   hdd 0.00389         osd.0       up  1.00000 1.00000
 1   hdd 0.00290         osd.1       up  1.00000 1.00000
