Openpose环境配置

配置环境一：

系统：Win10 professional
机器：HP-Z840-Workstation
处理器：Intel® Xeon® CPU E5-2660 v3 @ 2.60GHz × 40
显卡：Quadro K5200/PCIe/SSE2
opencv 4.0.0
cuda 10.1.0
cudnn7.5.0
VS 2017 professional
openpose :1.5.0

配置环境二：

操作系统 Windows 10 64位 professional
处理器 AMD Ryzen 5 2600X 六核
显卡 Nvidia GeForce GTX 1070 Ti ( 8 GB / 索泰 )
opencv 4.0.0
cuda 10.1.0
cudnn7.5.0
VS 2015 professional
openpose :1.5.0

经验一：安装NVIDIA驱动时，网上的教程大多是cuda8.0,实际安装时会有英文提示：may not have driver for this graphic(大致是这样)，如果忽略这个提示的话就会白干一场。所以选择最新的CUDA和CUDNN.

经验二：Cmake时选择x64

经验三：VS版本太低时会有414个关于"{“和”}"的报错，原因是因为C++的版本太低导致的格式错误。解决办法，使用更高的VS2017。不必局限于VS2015。

经验四：关于curtbase.dll的异常中断，原因是显卡性能太低导致的，比如显存太小。解决办法：更换更高配置的显卡，openpose要求可用显存大于2GB。

经验五：使用Release模式，不要使用debug

openpose调参：选择程序的运行功能，比如添加手部，脸部等骨骼功能时，进到#include <openpose/flags.hpp>里

将false改为true，图片中已经改过了。
类似的脸部的可以找到

需要注意的是脸部耗源。
在这个文件里搜索write，可以找到保存结果的选项

// Result Saving
DEFINE_string(write_images,             "",             "Directory to write rendered frames in `write_images_format` image format.");
DEFINE_string(write_images_format,      "png",          "File extension and format for `write_images`, e.g., png, jpg or bmp. Check the OpenCV"
                                                        " function cv::imwrite for all compatible extensions.");
DEFINE_string(write_video,              "",             "Full file path to write rendered frames in motion JPEG video format. It might fail if the"
                                                        " final path does not finish in `.avi`. It internally uses cv::VideoWriter. Flag"
                                                        " `write_video_fps` controls FPS. Alternatively, the video extension can be `.mp4`,"
                                                        " resulting in a file with a much smaller size and allowing `--write_video_with_audio`."
                                                        " However, that would require: 1) Ubuntu or Mac system, 2) FFmpeg library installed"
                                                        " (`sudo apt-get install ffmpeg`), 3) the creation temporarily of a folder with the same"
                                                        " file path than the final video (without the extension) to storage the intermediate frames"
                                                        " that will later be used to generate the final MP4 video.");
DEFINE_double(write_video_fps,          -1.,            "Frame rate for the recorded video. By default, it will try to get the input frames producer"
                                                        " frame rate (e.g., input video or webcam frame rate). If the input frames producer does not"
                                                        " have a set FPS (e.g., image_dir or webcam if OpenCV not compiled with its support), set"
                                                        " this value accordingly (e.g., to the frame rate displayed by the OpenPose GUI).");
DEFINE_bool(write_video_with_audio,     false,          "If the input is video and the output is so too, it will save the video with audio. It"
                                                        " requires the output video file path finishing in `.mp4` format (see `write_video` for"
                                                        " details).");
DEFINE_string(write_video_3d,           "",             "Analogous to `--write_video`, but applied to the 3D output.");
DEFINE_string(write_video_adam,         "",             "Experimental, not available yet. Analogous to `--write_video`, but applied to Adam model.");
DEFINE_string(write_json,               "",             "Directory to write OpenPose output in JSON format. It includes body, hand, and face pose"
                                                        " keypoints (2-D and 3-D), as well as pose candidates (if `--part_candidates` enabled).");
DEFINE_string(write_coco_json,          "",             "Full file path to write people pose data with JSON COCO validation format. If foot, face,"
                                                        " hands, etc. JSON is also desired (`--write_coco_json_variants`), they are saved with"
                                                        " different file name suffix.");
DEFINE_int32(write_coco_json_variants,  1,              "Add 1 for body, add 2 for foot, 4 for face, and/or 8 for hands. Use 0 to use all the"
                                                        " possible candidates. E.g., 7 would mean body+foot+face COCO JSON.");
DEFINE_int32(write_coco_json_variant,   0,              "Currently, this option is experimental and only makes effect on car JSON generation. It"
                                                        " selects the COCO variant for cocoJsonSaver.");
DEFINE_string(write_heatmaps,           "",             "Directory to write body pose heatmaps in PNG format. At least 1 `add_heatmaps_X` flag"
                                                        " must be enabled.");
DEFINE_string(write_heatmaps_format,    "png",          "File extension and format for `write_heatmaps`, analogous to `write_images_format`."
                                                        " For lossless compression, recommended `png` for integer `heatmaps_scale` and `float` for"
                                                        " floating values.");
DEFINE_string(write_keypoint,           "",             "(Deprecated, use `write_json`) Directory to write the people pose keypoint data. Set format"
                                                        " with `write_keypoint_format`.");
DEFINE_string(write_keypoint_format,    "yml",          "(Deprecated, use `write_json`) File extension and format for `write_keypoint`: json, xml,"

可以看到有保存相片的，保存骨骼信息的（DEFINE_string(write_json, “”, 在双引号内填写保存路径就好了，使用双斜杠隔开，例如：DEFINE_string(write_json, “C:\Users\jack\Desktop”）,不足之处是每张图片都会保存一个json文件，所以磁盘会变得很美丽。

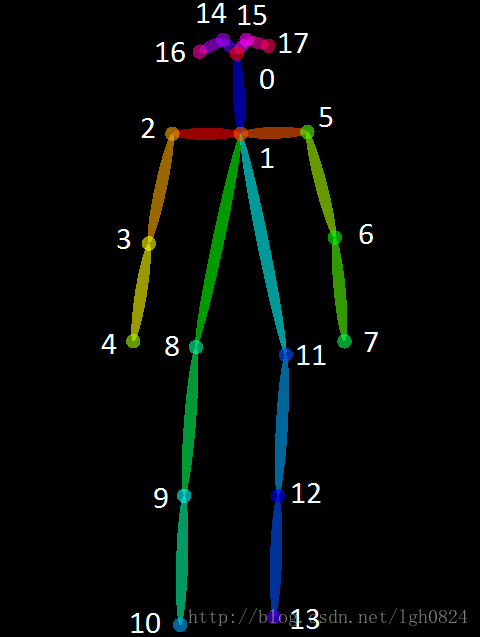

骨骼数据排序
