树莓派环境下利用mosquitto库使用C编程完成与阿里云的上行通信（Subscribe））

目录

Moswuitto库

Mosquitto基本API

常用函数介绍

C编程实现代码

Head File

C Source File

 Make File

测试案例

连接前

阿里云设备状态

连接后

运行程序

阿里云设备运行状态

​

发送下行消息

运行结果

树莓派下配置mosquitto详解，有关于如何在树莓派下配置mosquitto大家可以参考看一下这篇博客。

树莓派下mosquitto的shell命令的使用，有关如mosquitto的shell命令的使用。大家可以 参考一下这篇博客。

• Moswuitto库

Mosquitto官方库

• Mosquitto基本API

• 常用函数介绍

int mosquitto_lib_init(void);

作用：初始化mosquitto lib,必须在任何其他mosquitto函数之前调用。

返回值：MOSQ_ERR_SUCCESS

struct mosquitto *mosquitto_new(const char *id,bool clean_session,void *obj)

作用：创建新的mosquitto实例

参数：

      第一个参数id，用作mosquitto实例id的字符串。如果为空，将生成随机id。如果id为空，则clean_session必须为ture。

      第二个参数clean_session,设置为true可指示代理清除断开连接时的所有消息和订阅，设置为false可指示代理保留这些消息和订阅。

      第三个参数obj指针，作为参数传递给指定回调。

返回值：失败返回空指针，错误信息在errno，成功返回mosquitto实例。

void mosquitto_destroy(struct mosquitto *mosq);

作用：用来释放mosquitto实例关联的内存；

参数：struct mosquitto *mosq是mosquitto_new返回的实例。

int mosquitto_lib_cleanup(void);

作用：用来释放库相关的资源

int mosquitto_connect(struct mosquitto *mosq,const char *host,int port,int keepalive)；

作用：连接mqtt服务器

参数：

     第一个参数*mosq是mosquitto_new返回的实例

     第二个参数是mqtt服务器的ip地址。

     第三个参数是mqtt服务器的端口

     第四个参数是超时时间。

返回值：

      成功：MOSQ_ERR_SUCCESS

int mosquitto_publish(struct mosquitto *mosq,int *mid,const char *topic,int payloadlen,const void *payload,int qos,bool retain)；

作用：消息发布

参数：

   第一个参数*mosq是mosquitto_new返回的实例;

   第二个参数*mid是int类型的指针。如果不为NULL，函数会将其设置为此特定消息的消息ID。然后，可以将其与发布回调一起使用，以确定何时发送消息;

   第三个参数是*topic发布的主题;

   第四个参数payloadlen是载荷长度；

   第五个参数*payload是载荷；

   第六个参数qos是服务质量；

   第七个参数retain设置为true可保留消息。

返回值：

  成功：MOSQ_ERR_SUCCESS

int mosquitto_subscribe(struct 	mosquitto *mosq,int *mid,const char *sub,int qos)

作用：消息订阅

参数：

   第一个参数*mosq是mosquitto_new返回的实例;

   第二个参数*mid是int类型的指针。如果不为NULL，函数会将其设置为此特定消息的消息ID。然后，可以将其与发布回调一起使用，以确定何时发送消息;

   第三个参数是*topic订阅的主题;

   第四个参数qos是服务质量。

返回值：

  成功：MOSQ_ERR_SUCCESS

• C编程实现代码

源码Git仓库

• Head File

/********************************************************************************
 *      Copyright:  (C) 2020 ysn
 *                  All rights reserved.
 *
 *       Filename:  mosquitto_sub.h
 *    Description:  This head file is mosquitto_sub.
 *
 *        Version:  1.0.0(28/07/20)
 *         Author:  tianjincheng <473892093@qq.com>
 *      ChangeLog:  1, Release initial version on "28/07/20 05:27:49"
 *
 ********************************************************************************/

#ifndef  _MOSQUITTO_SUB_H_
#define  _MOSQUITTO_SUB_H_
#include <stdio.h>
#include <string.h>
#include <stdlib.h>
#include <getopt.h>
#include <libgen.h>
#include <unistd.h>
#include <errno.h>
#include "mosquitto.h"

#define BUF_SIZE   128
/*
 * if define MAIN:     will use this file's main func to test.
 * if not define MAIN: will use the mian file's mian func to test.
 * */

#define MAIN

typedef struct mosquitto_s
{
    char               *host;
    int                port;
    char               *topic;
    char               *client_id;
    char               *user;
    char               *password;
    int                keepalive;
    char               *recv_message;

} mosquitto_t;  /* ---  end of struct mosquitto_s  ---*/

extern int init_mosquitto_argc (int argc, char **argv, mosquitto_t *mosquitto);
extern int mosquitto_sub_init (struct mosquitto *mosqut, mosquitto_t *mosquitto);

#endif   /* ----- #ifndef _MOSQUITTO_SUB_H_  ----- */

• C Source File

/*********************************************************************************
 *      Copyright:  (C) 2020 ysn
 *                  All rights reserved.
 *
 *       Filename:  moquito.c
 *    Description:  This file is mosquit API.
 *
 *        Version:  1.0.0(27/07/20)
 *         Author:  tianjincheng <473892093@qq.com>
 *      ChangeLog:  1, Release initial version on "27/07/20 08:06:42"
 *
 ********************************************************************************/

#include "mosquitto_sub.h"
#include "mosquitto.h"
static int g_stop = 0;

static void print_usage (char *progname);
static void connect_callback (struct mosquitto *mosqut, void *obj, int rc);
static void disconnect_callback (struct mosquitto *mosqut, void *obj, int rc);
static void message_callback (struct mosquitto *mosqut,void *obj, const struct mosquitto_message *msg);
static void subscribe_callback (struct mosquitto *mosqut, void *obj, int mid, int qos_count, const int *granted_qos);
static void mosquitto_sub_clean (struct mosquitto *mosqut, void (disconnect_callback)(struct mosquitto *mosqut, void *, int));

/**************************************************************************************
 *  Description: Start to mosquitto subscribe func.
 *   Input Args:
 *               mosqut: The mosquitto lib provide the struct of mosquitto.
 *               mosquitto :The uesr provide arguments.
 *  Output Args: No.
 * Return Value: 0:SUCCESS; other: ERROR.
 *************************************************************************************/
int mosquitto_sub_start (struct mosquitto *mosqut, mosquitto_t *mosquitto)
{
    int               rv = 1;

    rv = mosquitto_lib_init();
    if (rv)
    {
        printf("Init mosquitto lib error:%sn", strerror(errno));
        return rv;
    }

    mosqut = mosquitto_new(mosquitto->client_id, true, (void *)mosquitto);
    if (!mosqut)
    {
        printf("Mosquitto new error:%sn", strerror(errno));
        return rv;
    }
    else
        printf("Mosquitto new success.n ");

    mosquitto_connect_callback_set(mosqut, connect_callback);
    mosquitto_message_callback_set(mosqut, message_callback);
    mosquitto_username_pw_set(mosqut, mosquitto->user, mosquitto->password);
    mosquitto_subscribe_callback_set(mosqut, subscribe_callback);

    while (!g_stop)
    {
        rv = mosquitto_connect(mosqut, mosquitto->host, mosquitto->port, mosquitto->keepalive);
        if (rv)
        {
            printf("Connect server error:%sn", strerror(errno));
            sleep(1);
            continue;
        }
        else
            printf("mosquitto connect success.n");

        mosquitto_loop_forever(mosqut, -1, 1);
        if( rv != MOSQ_ERR_SUCCESS )
        {
            printf("%sn", strerror(errno));
            mosquitto_sub_clean(mosqut, disconnect_callback);
        }
    }

    return 0;
} /* ----- End of mosquitto_sub_start()  ----- */

/**************************************************************************************
 *  Description: To clean after mosquitto subscribe get disconnected.
 *   Input Args:
 *               mosqut: The mosquitto lib provide the struct of mosquitto.
 *               disconnect_callback: The func pointer which is point disconnect_callback func.
 *  Output Args: No.
 * Return Value: No.
 *************************************************************************************/
static void mosquitto_sub_clean (struct mosquitto *mosqut, void (disconnect_callback)(struct mosquitto *mosqut, void *, int))
{
    mosquitto_disconnect_callback_set(mosqut, disconnect_callback);
    mosquitto_destroy(mosqut);
    mosquitto_lib_cleanup();
} /* ----- End of mosquitto_sub_clean()  ----- */

#ifdef MAIN

int main (int argc, char **argv)
{
    int               rv = -1;
    mosquitto_t       mosquitto;
    struct mosquitto  *mosqut;

    memset(&mosquitto, 0, sizeof(mosquitto_t));

    rv = init_mosquitto_argc(argc, argv, &mosquitto);
    if (rv)
    {
        printf("Init mosquitto arguments error:%sn", strerror(errno));
    }

    rv = mosquitto_sub_start(mosqut, &mosquitto);
    if (rv)
    {
        printf("mosquitto subscribe start error:%sn", strerror(errno));
    }

    mosquitto_sub_clean(mosqut, disconnect_callback);
    return 0;
} /* ----- End of main() ----- */
#endif

/**************************************************************************************
 *  Description: Init mosquitto argcs.
 *   Input Args: agrc & argv : form main func, mosquitto: the struct of mosquitto need init argc.
 *  Output Args: NO.
 * Return Value: -1: ERROR, 0: SUCCESS.
 *************************************************************************************/
int init_mosquitto_argc (int argc, char **argv, mosquitto_t *mosquitto)
{
    if (argc < 0 )
        return -1;

    int   ch = -1;

    struct option        opts[] = {
        {"--host",      required_argument, NULL, 'H'},
        {"--port",      required_argument, NULL, 'p'},
        {"--topic",     required_argument, NULL, 't'},
        {"--client_id", required_argument, NULL, 'i'},
        {"--user",      required_argument, NULL, 'u'},
        {"--password",  required_argument, NULL, 'P'},
        {"--keepalive", required_argument, NULL, 'l'},
        {"help",        no_argument,       NULL, 'h'},
        {NULL,          0,                 NULL,  0 }
    };

    while((ch=getopt_long(argc, argv, "H:p:t:i:u:P:l:h", opts, NULL)) != -1 )
    {
        switch(ch)
        {
            case 'H':
                mosquitto->host = optarg;
                break;
            case 'p':
                mosquitto->port = atoi(optarg);
                break;
            case 't':
                mosquitto->topic = optarg;
                break;
            case 'i':
                mosquitto->client_id = optarg;
                break;
            case 'u':
                mosquitto->user = optarg;
                break;
            case 'P':
                mosquitto->password = optarg;
                break;
            case 'l':
                mosquitto->keepalive = atoi(optarg);
                break;
            case 'h':
                print_usage(argv[0]);
                return -1;
        }
    }

    mosquitto->recv_message = NULL;

    if (NULL == mosquitto->host || !mosquitto->keepalive ||!mosquitto->port || NULL == mosquitto->client_id || NULL == mosquitto->password || NULL == mosquitto->user || NULL == mosquitto->topic)
    {
        print_usage(argv[0]);
        return -1;
    }

    return 0;
} /* ----- End of inin_mosquitto_argc()  ----- */


/**************************************************************************************
 *  Description: Print usage help information.
 *   Input Args: The program name.
 *  Output Args: NO.
 * Return Value: NULL.
 *************************************************************************************/
static void print_usage (char *progname)
{
    printf("%s usage : n", progname);
    printf("-H(--host):Input the Aliyun equioment host name.n");
    printf("-p(--port):Input the Aliyun equioment host port.n");
    printf("-i(--client_id):Input the Aliyun equioment client id.n");
    printf("-t(--topic):Input the Aliyun equioment subscribe topic.n");
    printf("-u(--user):Input the Aliyun equioment user name.n");
    printf("-P(--password):Input the Aliyun equioment user's password name.n");
    printf("-l(--keepalive):Input the keepalive.n");
    printf("-h(--help): print this help information.n");

    return ;
} /* ----- End of print_usage()  ----- */

/**************************************************************************************
 *  Description: mosquitto subscribe connect call back func.
 *   Input Args:
 *               mosquitto: the struct of mosquitto argc;
 *               obj: mosquitto_new provide argument;
 *               rc: 0: connect success, else connect error.
 *  Output Args: NO.
 * Return Value: -1: ERROR, 1: SUCCESS.
 *************************************************************************************/
static void connect_callback (struct mosquitto *mosqut, void *obj, int rc)
{
    if (NULL == obj)
        return ;

    mosquitto_t    *mosquitto;
    int            mid;
    mosquitto = (mosquitto_t *)obj;

    if (!rc)
    {
        if (mosquitto_subscribe(mosqut, &mid, mosquitto->topic, 0) != MOSQ_ERR_SUCCESS)
        {
            printf("Set the topic error:%sn", strerror(errno));
            return ;
        }
        else
            printf("subscribe topic:%s success.n", mosquitto->topic);
    }
    else
        printf("connect_callback errorn");

} /* ----- End of connect_callback()  ----- */


/**************************************************************************************
 *  Description: mosquitto subscribe disconnect call back func.
 *   Input Args:
 *               mosqut: the struct of mosquitto argc;
 *               obj: mosquitto_new provide argument;
 *               rc:  0: connect success, else connect error.
 *  Output Args: NO.
 * Return Value: -1: ERROR, 0: SUCCESS.
 *************************************************************************************/
static void disconnect_callback (struct mosquitto *mosqut, void *obj, int rc)
{
    g_stop = 1;
} /* ----- End of disconnect_callback()  ----- */


/**************************************************************************************
 *  Description: The subscribe callback func.
 *   Input Args: The system provide agrcs.
 *  Output Args: No;
 * Return Value: No.
 *************************************************************************************/
static void subscribe_callback (struct mosquitto *mosqut, void *obj, int mid, int qos_count, const int *granted_qos)
{
    printf("Call the function: on_subscriben");
} /* ----- End of subscribe_callback()  ----- */


/**************************************************************************************
 *  Description: The message callback func.
 *   Input Args:
 *               mosqut: the struct of mosquitto;
 *               obj:    the subscribe new provide user argument;
 *               msg:    the recv broker informations.
 *  Output Args: No.
 * Return Value: No.
 *************************************************************************************/
static void message_callback (struct mosquitto *mosqut,void *obj, const struct mosquitto_message *msg)
{
    mosquitto_t *mosquitto;
    mosquitto = (mosquitto_t *)obj;
    memcpy(&mosquitto-> recv_message, (char *)&msg->payload, strlen((char *)msg->payload));
    printf("recv_message: %sn", mosquitto->recv_message);

    if (0 == strcmp(msg->payload, "quit"))
        mosquitto_disconnect(mosqut);

} /* ----- End of message_callback()  ----- */

•  Make File

C = gcc
OBJ= mosquitto_sub.o
OUTPUT = mosquitto_sub

ALL: ${OBJ}
	${CC} ${CFLAGS}${OBJ}  -o ${OUTPUT} -lmosquitto ${LDFLAGS}
.PHONY: clean

clean:
	-rm -rf *.o ${OUTPUT}

• 测试案例

• 连接前

• 阿里云设备状态

• 连接后

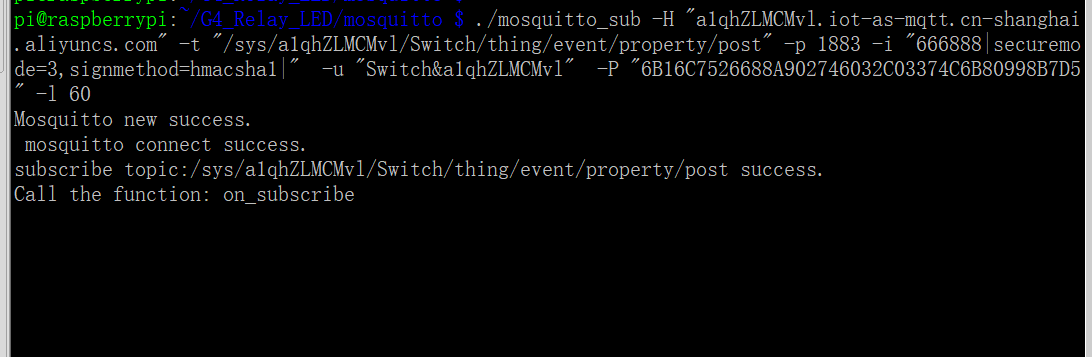

• 运行程序

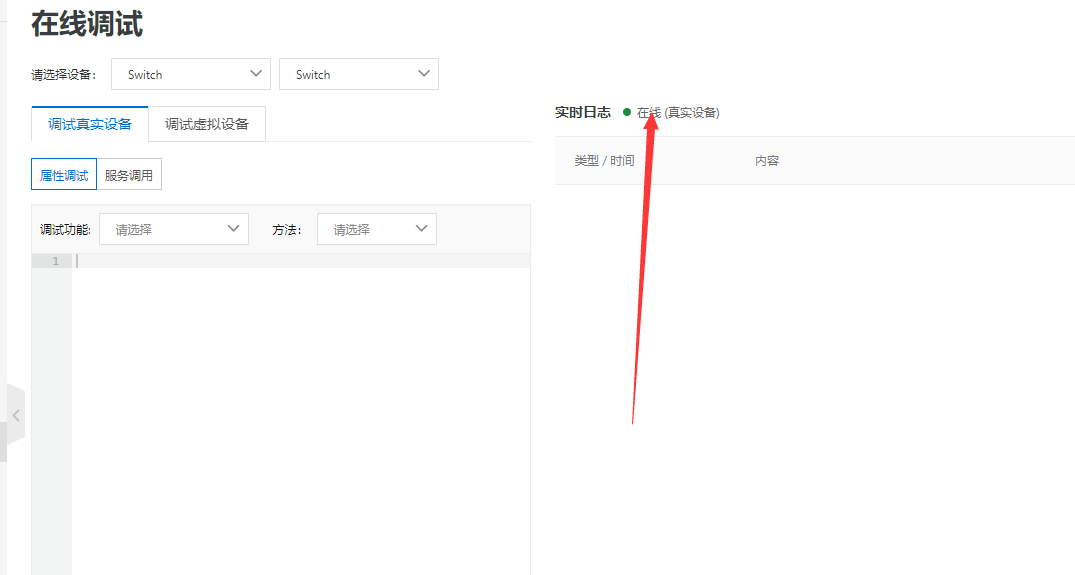

• 阿里云设备运行状态

• 发送下行消息

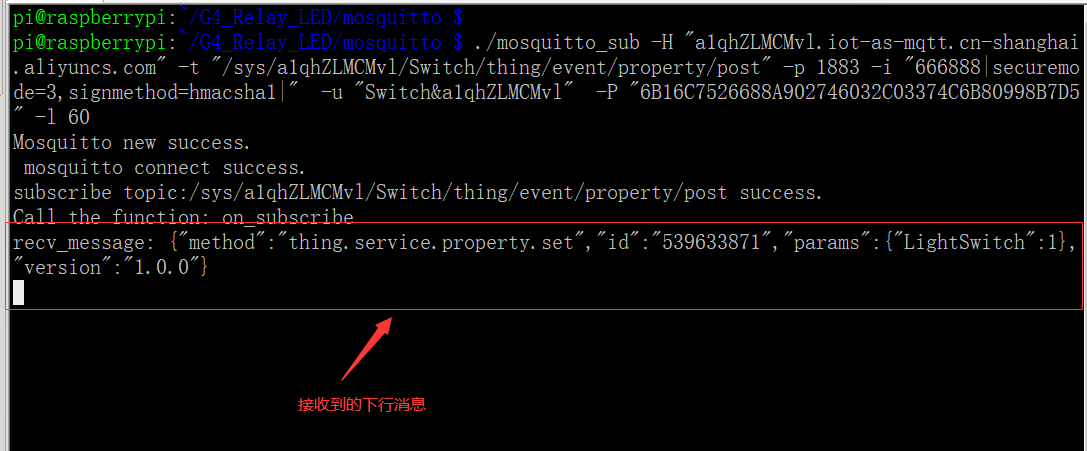

• 运行结果
