概述

一、前言：

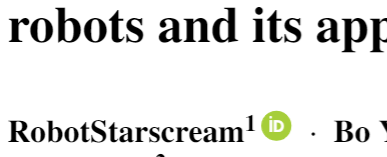

小白正在投Springer文章，遇“在作者右上角插入ORCID图标”问题，经挣扎后得此经验。成功后如下图：

二、技术实现

1. 插入库，代码如下：

usepackage{tikz,xcolor,hyperref}

2. 插入图标，代码如下：

definecolor{lime}{HTML}{A6CE39}
DeclareRobustCommand{orcidicon}{
	begin{tikzpicture}
	draw[lime, fill=lime] (0,0)
	circle [radius=0.16]
	node[white] {{fontfamily{qag}selectfont tiny ID}};
	draw[white, fill=white] (-0.0625,0.095)
	circle [radius=0.007];
	end{tikzpicture}
	hspace{-2mm}
}

*官网给的参数设定，可以按需修改。

3. 定义编号，代码如下：

foreach x in {A, ..., Z}{expandafterxdefcsname orcidxendcsname{noexpandhref{https://orcid.org/csname orcidauthorxendcsname
			{noexpandorcidicon}}
}

*可能用不上这么多，但不建议改动。

4. 建立ORCID调用库，代码如下：

newcommand{orcidauthorA}{0000-0002-1707-7122} % For author A
newcommand{orcidauthorB}{0000-0001-7246-8612} % For author B
newcommand{orcidauthorC}{0000-0002-6416-6320} % For author C

*各位研友可以关注第一个人。

5. 作者调用，代码如下：

author[Author One]{Robot_StarscreamorcidA{}}

三、实例

documentclass{amsart}

usepackage{lipsum} % To generate some text for the article via lipsum

%------------------------------------------------------------------------------
% Code for ORCID iD
%------------------------------------------------------------------------------
usepackage{tikz,xcolor,hyperref}

% Make Orcid icon
definecolor{lime}{HTML}{A6CE39}
DeclareRobustCommand{orcidicon}{%
	begin{tikzpicture}
	draw[lime, fill=lime] (0,0)
	circle [radius=0.16]
	node[white] {{fontfamily{qag}selectfont tiny ID}};
	draw[white, fill=white] (-0.0625,0.095)
	circle [radius=0.007];
	end{tikzpicture}
	hspace{-2mm}
}

foreach x in {A, ..., Z}{%
	expandafterxdefcsname orcidxendcsname{noexpandhref{https://orcid.org/csname orcidauthorxendcsname}{noexpandorcidicon}}
}

% Define the ORCID iD command for each author separately. Here done for two authors.
newcommand{orcidauthorA}{0000-0001-5316-8964}
newcommand{orcidauthorB}{0000-0002-6963-295X}

begin{document}

title{Lorem ipsum dolor sit amet}

% First author
author[Author One]{Author OneorcidA{}}
% IMPORTANT: specify explicitly the running author name via the option [ ],
% otherwise the ORCID logo will be generated at every occurence of the author name in the pdf file
% at the top of the page. Clearly not what one would like to see.

% Second author
author[Author Two]{Author TwoorcidB{}}

maketitle

begin{abstract}
lipsum[1] % Generate some random text
end{abstract}

section{Lorem ipsum dolor sit amet}

lipsum % Generate some random text

end{document}

*亲测有效
