微服务限流容错降级Sentinel实战

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
// 第一步：设置RestTemplate的超时时间
@Configuration
public class WebConfig {

    @Bean
    public RestTemplate restTemplate() {
        //设置restTemplate的超时时间
        SimpleClientHttpRequestFactory requestFactory = new SimpleClientHttpRequestFactory();
        requestFactory.setReadTimeout(1000);
        requestFactory.setConnectTimeout(1000);
        RestTemplate restTemplate = new RestTemplate(requestFactory);
        return restTemplate;
    }
}

// 第二步：进行超时异常处理
try{
    ResponseEntity<ProductInfo> responseEntity= restTemplate.getForEntity(uri+orderInfo.getProductNo(), ProductInfo.class);
    productInfo = responseEntity.getBody();
}catch (Exception e) {
    log.info("调用超时");
    throw new RuntimeException("调用超时");
}


// 设置全局异常处理
@ControllerAdvice
public class NiuhExceptionHandler {

    @ExceptionHandler(value = {RuntimeException.class})
    @ResponseBody
    public Object dealBizException() {
        OrderVo orderVo = new OrderVo();
        orderVo.setOrderNo("-1");
        orderVo.setUserName("容错用户");
        return orderVo;
    }
}

1
2
3
4
5
6
7
<!--导入Sentinel的相关jar包-->
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-core</artifactId>
    <version>1.7.1</version>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
@RestController
@Slf4j
public class HelloWorldSentinelController {

    @Autowired
    private BusiServiceImpl busiService;

    /**
     * 初始化流控规则
     */
    @PostConstruct
    public void init() {

        List<FlowRule> flowRules = new ArrayList<>();

        /**
         * 定义 helloSentinelV1 受保护的资源的规则
         */
        //创建流控规则对象
        FlowRule flowRule = new FlowRule();
        //设置流控规则 QPS
        flowRule.setGrade(RuleConstant.FLOW_GRADE_QPS);
        //设置受保护的资源
        flowRule.setResource("helloSentinelV1");
        //设置受保护的资源的阈值
        flowRule.setCount(1);

        flowRules.add(flowRule);

        //加载配置好的规则
        FlowRuleManager.loadRules(flowRules);
    }


    /**
     * 频繁请求接口 http://localhost:8080/helloSentinelV1
     * 这种做法的缺点:
     * 1)业务侵入性很大,需要在你的controoler中写入 非业务代码..
     * 2)配置不灵活 若需要添加新的受保护资源 需要手动添加 init方法来添加流控规则
     * @return
     */
    @RequestMapping("/helloSentinelV1")
    public String testHelloSentinelV1() {

        Entry entity =null;
        //关联受保护的资源
        try {
            entity = SphU.entry("helloSentinelV1");
            //开始执行 自己的业务方法
            busiService.doBusi();
            //结束执行自己的业务方法
        } catch (BlockException e) {

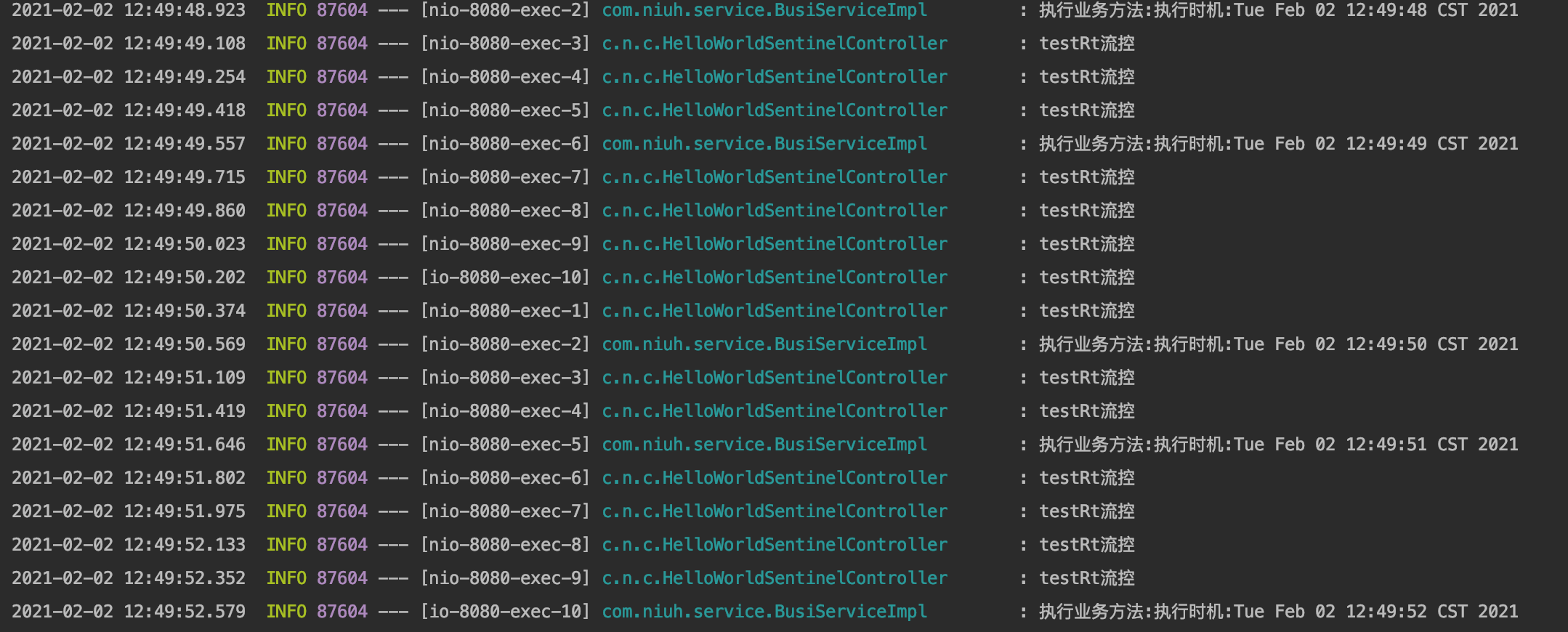

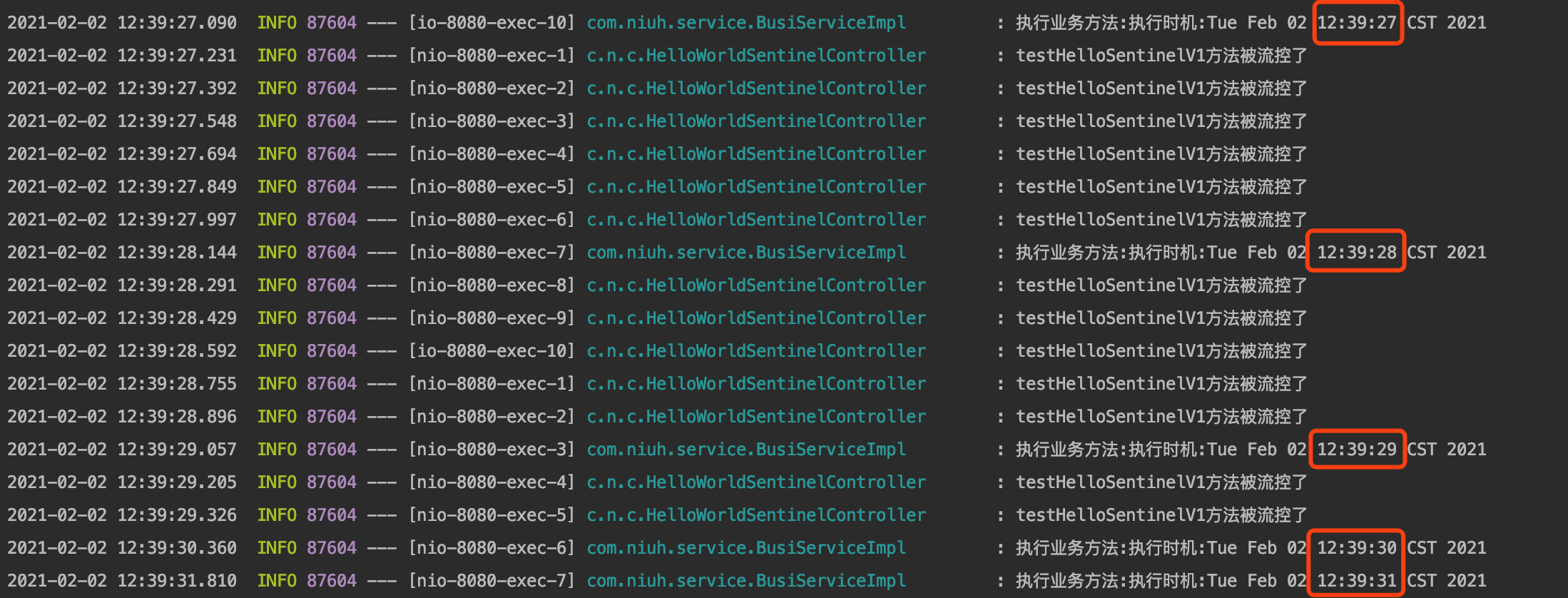

            log.info("testHelloSentinelV1方法被流控了");
            return "testHelloSentinelV1方法被流控了";
        }finally {
            if(entity!=null) {
                entity.exit();
            }
        }
        return "OK";
    }
}

1
2
3
4
5
6
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-annotation-aspectj</artifactId>
    <version>1.7.1</version>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
// 配置一个切面
@Configuration
public class SentinelConfig {

    @Bean
    public SentinelResourceAspect sentinelResourceAspect() {
        return new SentinelResourceAspect();
    }

}

/**
 * 初始化流控规则
 */
@PostConstruct
public void init() {

    List<FlowRule> flowRules = new ArrayList<>();

    /**
     * 定义 helloSentinelV2 受保护的资源的规则
     */
    //创建流控规则对象
    FlowRule flowRule2 = new FlowRule();
    //设置流控规则 QPS
    flowRule2.setGrade(RuleConstant.FLOW_GRADE_QPS);
    //设置受保护的资源
    flowRule2.setResource("helloSentinelV2");
    //设置受保护的资源的阈值
    flowRule2.setCount(1);

    flowRules.add(flowRule2);
}

/**
 * 频繁请求接口 http://localhost:8080/helloSentinelV2
 * 优点: 需要配置aspectj的切面SentinelResourceAspect ,添加注解@SentinelResource
 *     解决了v1版本中 sentinel的业务侵入代码问题,通过blockHandler指定被流控后调用的方法.
 * 缺点: 若我们的controller中的方法逐步变多,那么受保护的方法也越来越多，会导致一个问题
 * blockHandler的方法也会越来越多   引起方法急剧膨胀 怎么解决
 *
 * 注意点:
 *   blockHandler 对应处理 BlockException 的函数名称，
 *   可选项。blockHandler 函数访问范围需要是 public，返回类型需要与原方法相匹配，
 *   参数类型需要和原方法相匹配并且最后加一个额外的参数，
 *   类型为 BlockException。blockHandler 函数默认需要和原方法在同一个类中
 * @return
 */
@RequestMapping("/helloSentinelV2")
@SentinelResource(value = "helloSentinelV2",blockHandler ="testHelloSentinelV2BlockMethod")
public String testHelloSentinelV2() {
    busiService.doBusi();
    return "OK";
}

public String testHelloSentinelV2BlockMethod(BlockException e) {
    log.info("testRt流控");
    return "testRt降级 流控...."+e;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
/**
 * 初始化流控规则
 */
@PostConstruct
public void init() {

    List<FlowRule> flowRules = new ArrayList<>();

    /**
     * 定义 helloSentinelV3 受保护的资源的规则
     */
    //创建流控规则对象
    FlowRule flowRule3 = new FlowRule();
    //设置流控规则 QPS
    flowRule3.setGrade(RuleConstant.FLOW_GRADE_QPS);
    //设置受保护的资源
    flowRule3.setResource("helloSentinelV3");
    //设置受保护的资源的阈值
    flowRule3.setCount(1);



    flowRules.add(flowRule3);
}

/**
 * 我们看到了v2中的缺点,我们通过blockHandlerClass 来指定处理被流控的类
 * 通过testHelloSentinelV3BlockMethod 来指定blockHandlerClass 中的方法名称
 * ***这种方式 处理异常流控的方法必须要是static的
 * 频繁请求接口 http://localhost:8080/helloSentinelV3
 * @return
 */
@RequestMapping("/helloSentinelV3")
@SentinelResource(value = "helloSentinelV3",blockHandler = "testHelloSentinelV3BlockMethod",blockHandlerClass = BlockUtils.class)
public String testHelloSentinelV3() {
    busiService.doBusi();
    return "OK";
}

// 异常处理类
@Slf4j
public class BlockUtils {


    public static String testHelloSentinelV3BlockMethod(BlockException e){
        log.info("testHelloSentinelV3方法被流控了");
        return "testHelloSentinelV3方法被流控了";
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
<!--加入sentinel-->
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>


<!--加入actuator-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

1
2
3
4
5
6
7
8
server:
  port: 8080
management:
  endpoints:
    web:
      exposure:
        include: '*'

1
2
3
4
5
6
spring:
  cloud:
    sentinel:
      transport:

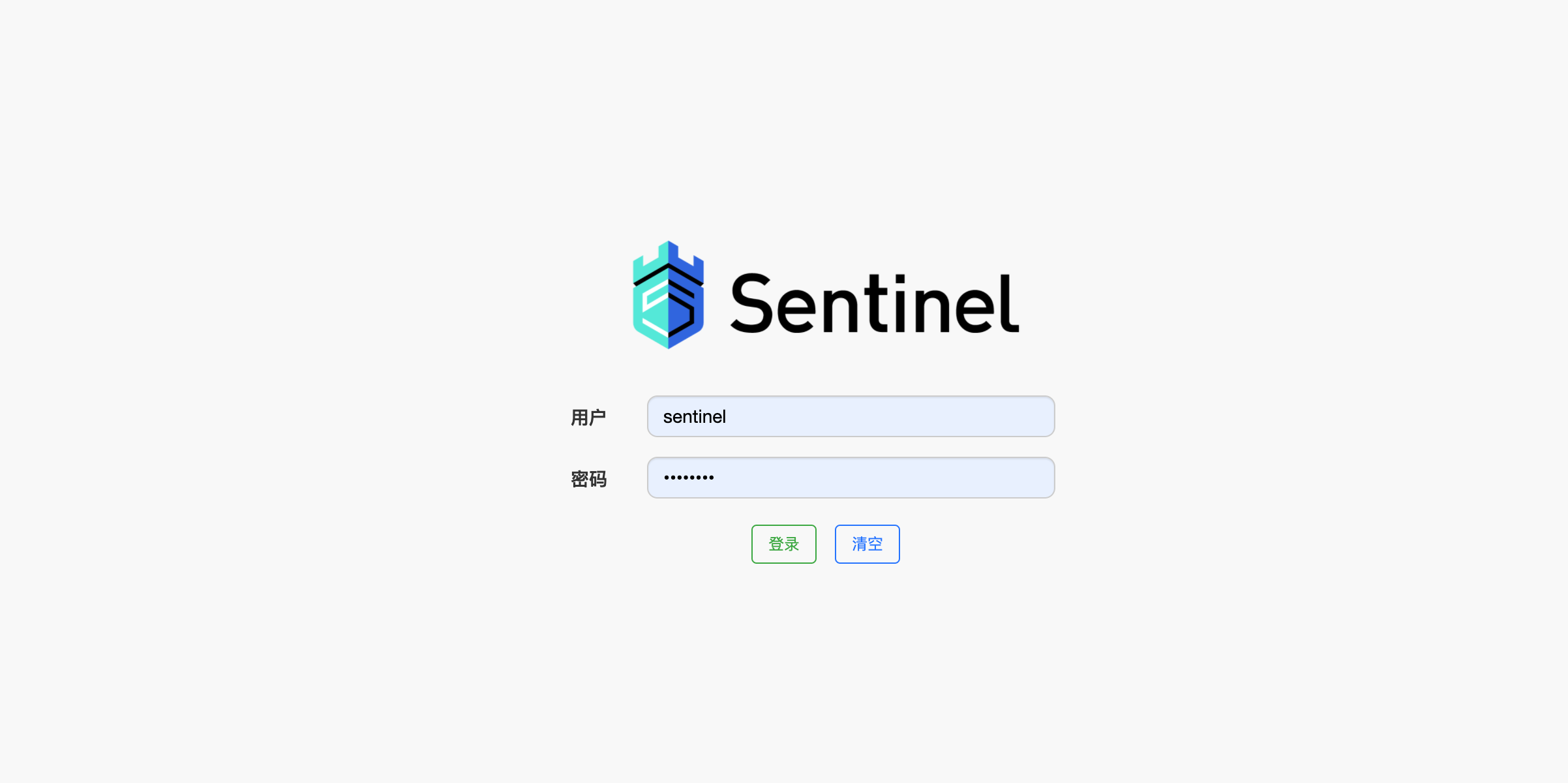

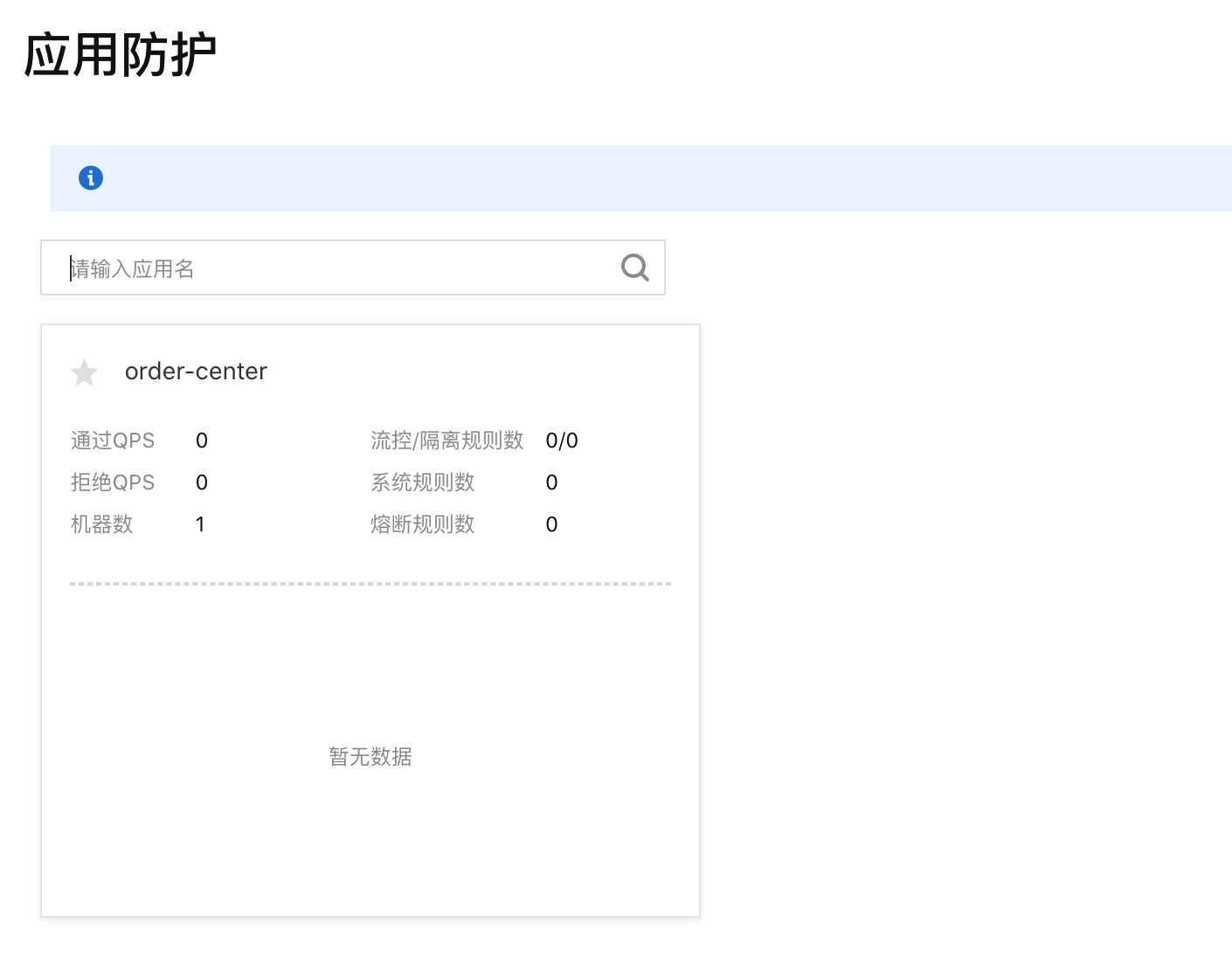

        dashboard: localhost:9999

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
/**

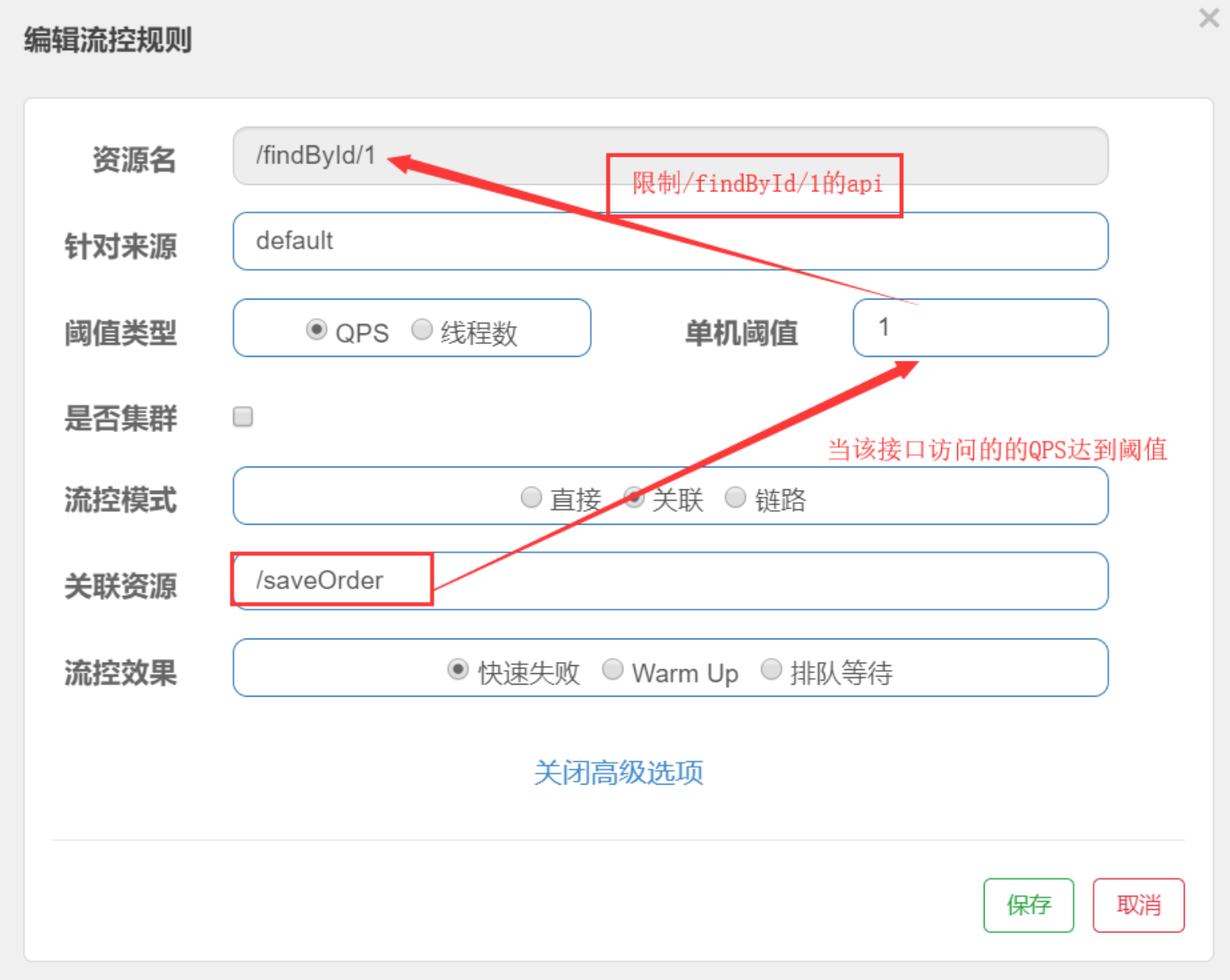

 * 方法实现说明:模仿  流控模式【关联】  读接口
 * @author:hejianhui
 * @param orderNo
 * @return:
 * @exception:
 * @date:2019/11/24 22:06
 */

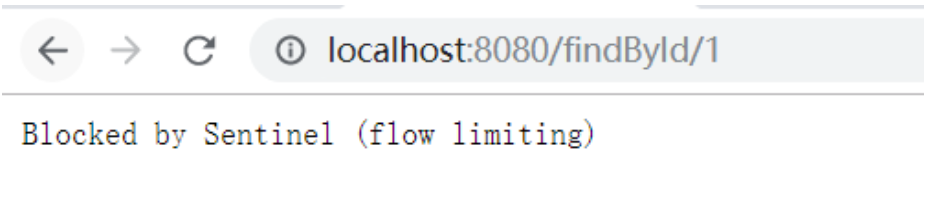

@RequestMapping("/findById/{orderNo}")
public Object findById(@PathVariable("orderNo") String orderNo) {
    log.info("orderNo:{}","执行查询操作"+System.currentTimeMillis());
    return orderInfoMapper.selectOrderInfoById(orderNo);
}


/**
 * 方法实现说明:模仿流控模式【关联】   写接口(优先)
 * @author:hejianhui
 * @return:
 * @exception:
 * @date:2019/11/24 22:07
 */
@RequestMapping("/saveOrder")
public String saveOrder() throws InterruptedException {
    //Thread.sleep(500);
    log.info("执行保存操作,模仿返回订单ID");
    return UUID.randomUUID().toString();
}

1
2
3
4
5
6
7
8
9
10
11
public class TestSentinelRule {

    public static void main(String[] args) throws InterruptedException {
        RestTemplate restTemplate = new RestTemplate();
        for(int i=0;i<1000;i++) {
            restTemplate.postForObject("http://localhost:8080/saveOrder",null,String.class);
            Thread.sleep(10);
        }
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

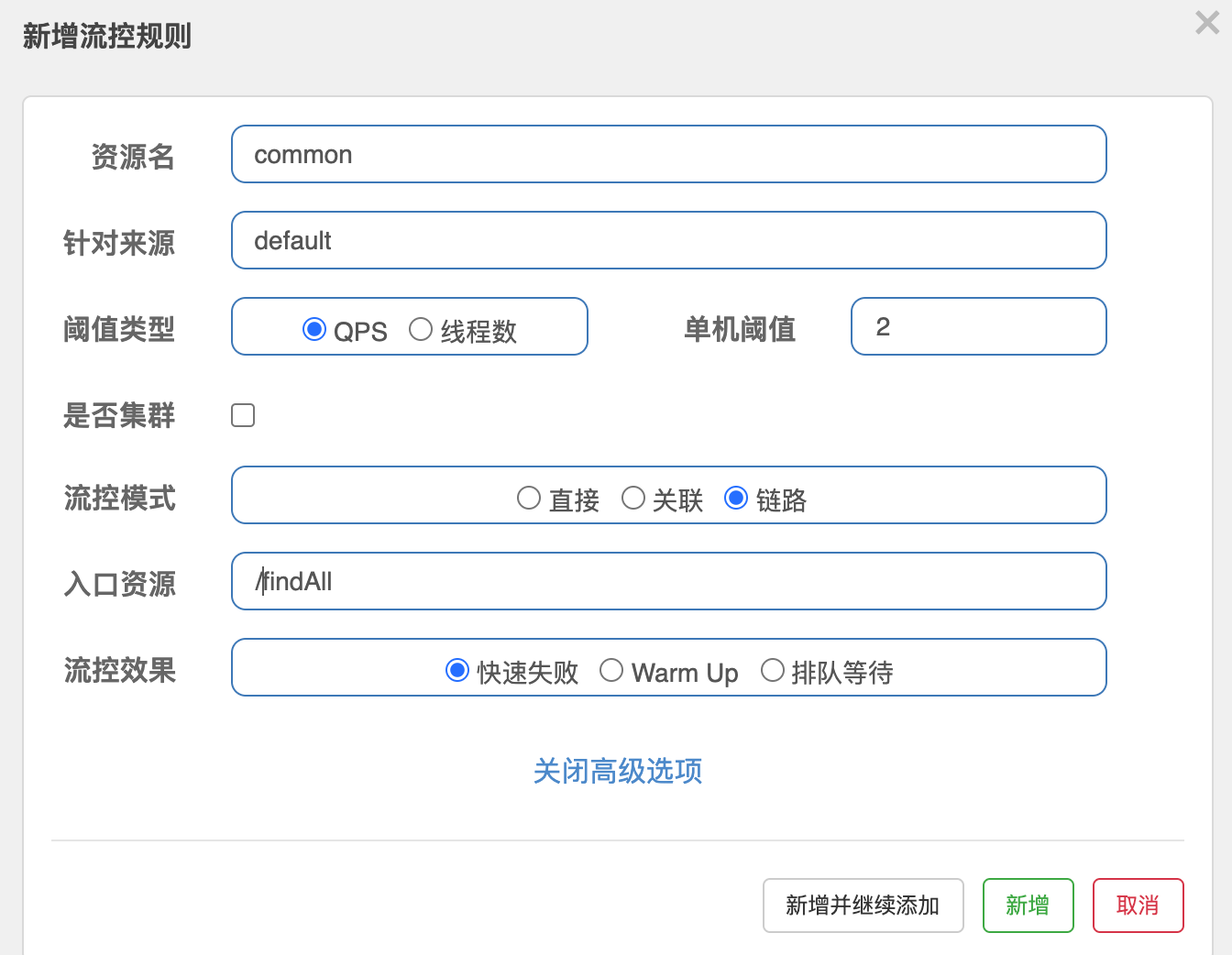

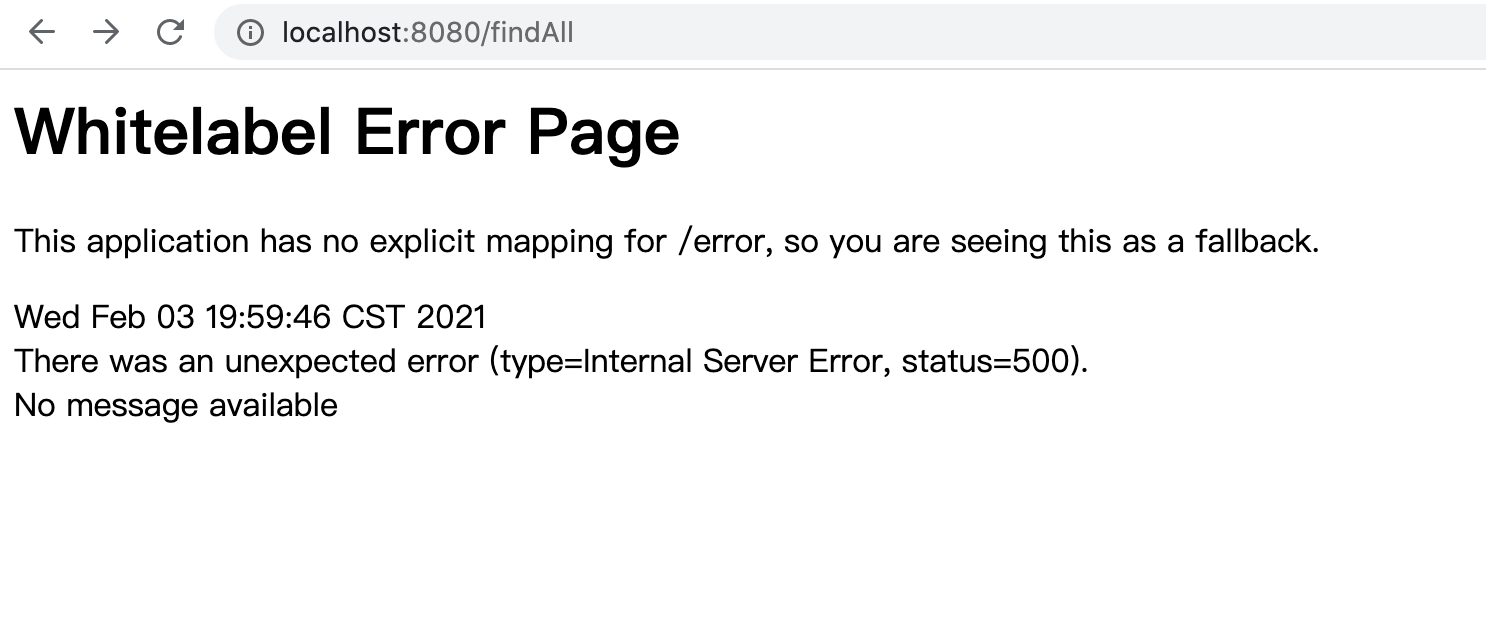

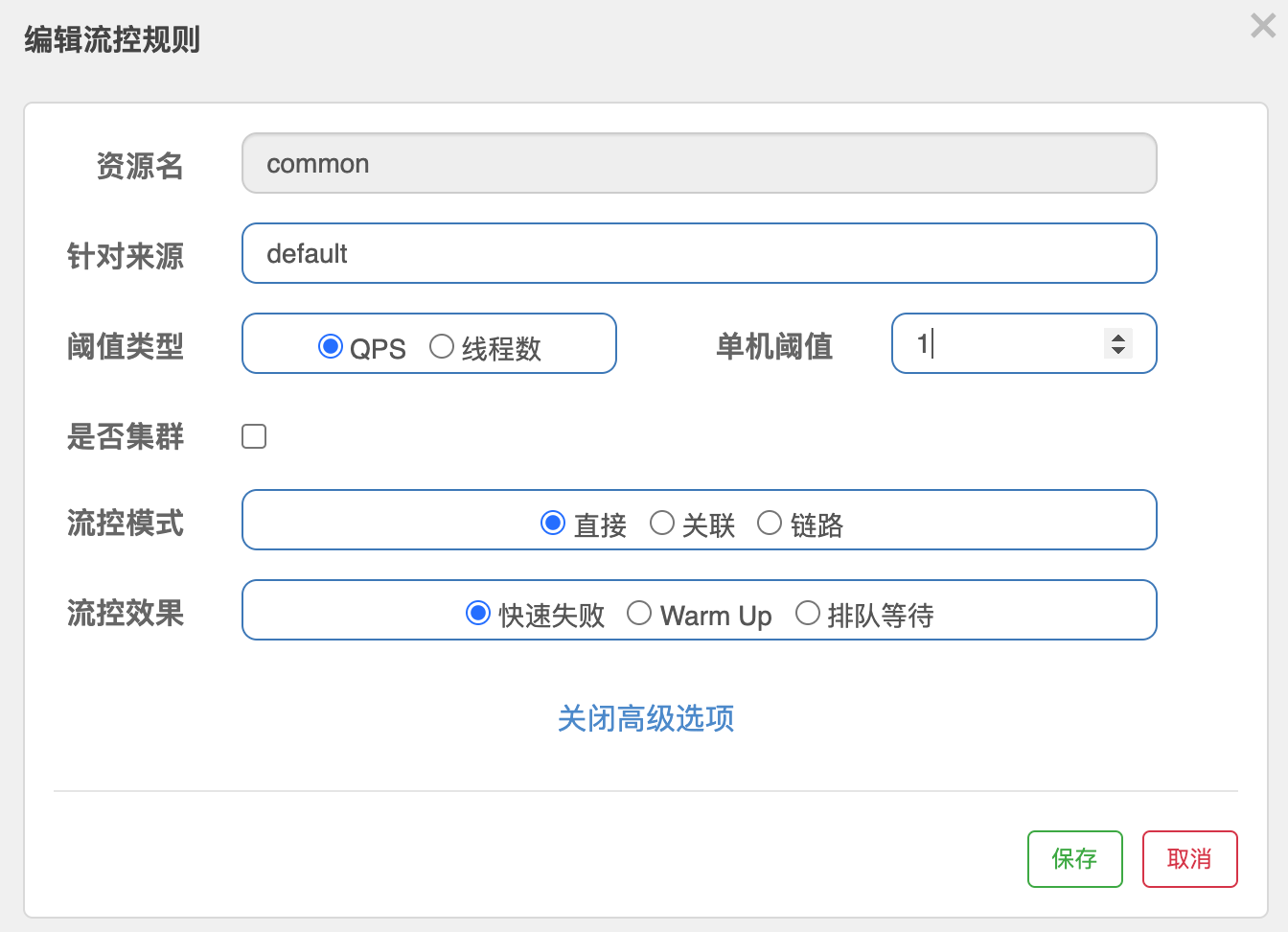

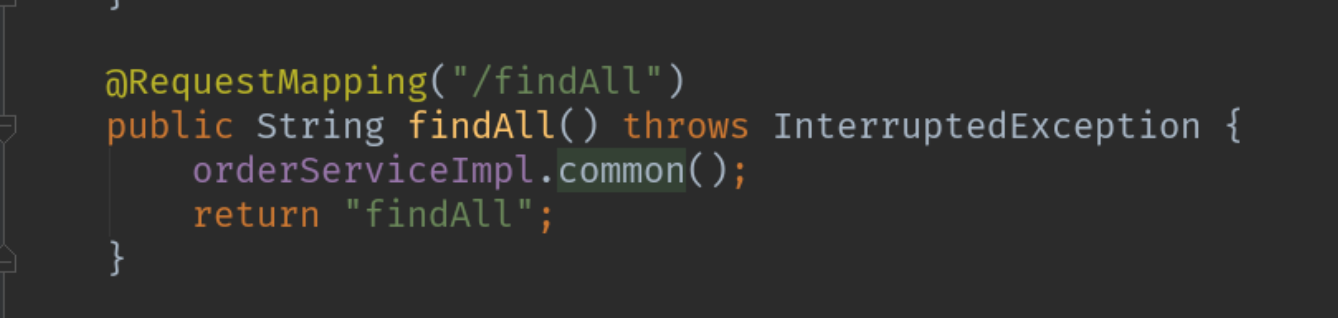

@RequestMapping("/findAll")
public String findAll() throws InterruptedException {
    orderServiceImpl.common();
    return "findAll";
}

@RequestMapping("/findAllByCondtion")
public String findAllByCondtion() {
    orderServiceImpl.common();
    return "findAllByCondition";
}

@Service
public class OrderServiceImpl {

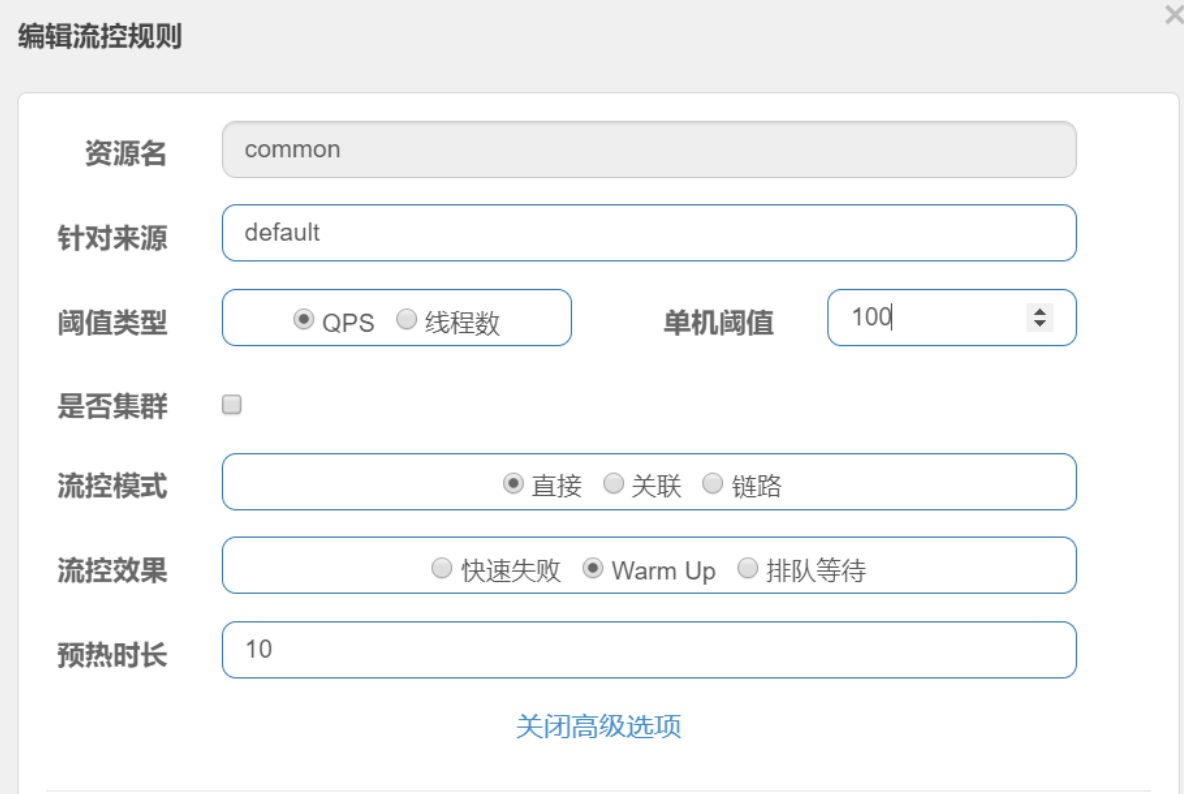

    @SentinelResource("common")
    public String common() {
        return "common";
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

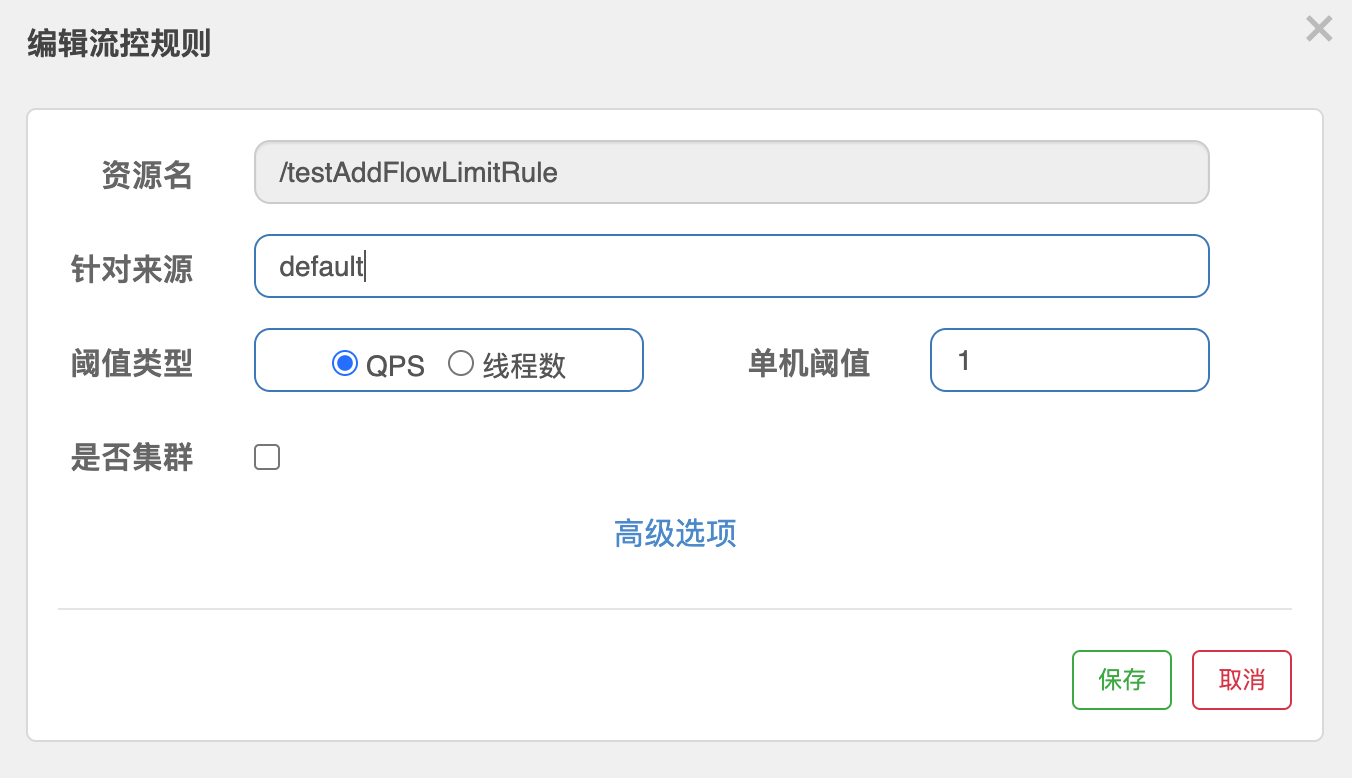

@RestController
public class AddFlowLimitController {

    @RequestMapping("/addFlowLimit")
    public String addFlowLimit() {
        List<FlowRule> flowRuleList = new ArrayList<>();

        FlowRule flowRule = new FlowRule("/testAddFlowLimitRule");

        //设置QPS阈值
        flowRule.setCount(1);

        //设置流控模型为QPS模型
        flowRule.setGrade(RuleConstant.FLOW_GRADE_QPS);

        flowRuleList.add(flowRule);

        FlowRuleManager.loadRules(flowRuleList);

        return "success";

    }

    @RequestMapping("/testAddFlowLimitRule")
    public String testAddFlowLimitRule() {
        return "testAddFlowLimitRule";
    }
}

1
2
3
4
5
6
7
8
9
10
11
spring:
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:
        dashboard: localhost:9999
      filter:
        enabled: true  #关闭Spring mvc的端点保护

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<!--加入ribbon-->
<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
</dependency>

<!--加入sentinel-->
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>


<!--加入actuator-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
@Configuration
public class WebConfig {

    @Bean
    @LoadBalanced
    @SentinelRestTemplate(
            blockHandler = "handleException",blockHandlerClass = GlobalExceptionHandler.class,
            fallback = "fallback",fallbackClass = GlobalExceptionHandler.class

    )
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }
}

*****************全局异常处理类*****************
@Slf4j
public class GlobalExceptionHandler {


    /**
     * 限流后处理方法
     * @param request
     * @param body
     * @param execution
     * @param ex
     * @return
     */
    public static SentinelClientHttpResponse handleException(HttpRequest request,
                                                             byte[] body, ClientHttpRequestExecution execution, BlockException ex)  {

        ProductInfo productInfo = new ProductInfo();
        productInfo.setProductName("被限制流量拉");
        productInfo.setProductNo("-1");
        ObjectMapper objectMapper = new ObjectMapper();

        try {
            return new SentinelClientHttpResponse(objectMapper.writeValueAsString(productInfo));
        } catch (JsonProcessingException e) {
            e.printStackTrace();
            return null;
        }
    }

    /**
     * 熔断后处理的方法
     * @param request
     * @param body
     * @param execution
     * @param ex
     * @return
     */
    public static SentinelClientHttpResponse fallback(HttpRequest request,
                                                      byte[] body, ClientHttpRequestExecution execution, BlockException ex) {
        ProductInfo productInfo = new ProductInfo();
        productInfo.setProductName("被降级拉");
        productInfo.setProductNo("-1");
        ObjectMapper objectMapper = new ObjectMapper();

        try {
            return new SentinelClientHttpResponse(objectMapper.writeValueAsString(productInfo));
        } catch (JsonProcessingException e) {
            e.printStackTrace();
            return null;
        }
    }
}

1
2
3
4
5
#是否开启@SentinelRestTemplate注解
resttemplate:
  sentinel:
    enabled: true

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<!--加入sentinel-->
<dependency>
    <groupId>com.alibaba.cloud</groupId>
    <artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
</dependency>


<!--加入actuator-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
</dependency>

<dependency>
    <groupId>com.niuh</groupId>
    <artifactId>niuh03-ms-alibaba-feign-api</artifactId>
    <version>0.0.1-SNAPSHOT</version>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
@FeignClient(name = "product-center",fallback = ProductCenterFeignApiWithSentinelFallback.class)
public interface ProductCenterFeignApiWithSentinel {

    /**
     * 声明式接口,远程调用http://product-center/selectProductInfoById/{productNo}
     * @param productNo
     * @return
     */
    @RequestMapping("/selectProductInfoById/{productNo}")
    ProductInfo selectProductInfoById(@PathVariable("productNo") String productNo) throws InterruptedException;
}

1
2
3
4
5
6
7
8
9
10
@Component
public class ProductCenterFeignApiWithSentinelFallback implements ProductCenterFeignApiWithSentinel {
    @Override
    public ProductInfo selectProductInfoById(String productNo) {
        ProductInfo productInfo = new ProductInfo();
        productInfo.setProductName("默认商品");
        return productInfo;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
package com.niuh.feignapi.sentinel;

import com.niuh.entity.ProductInfo;
import com.niuh.handler.ProductCenterFeignApiWithSentielFallbackFactoryasdasf;
import com.niuh.handler.ProductCenterFeignApiWithSentinelFallback;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

/**
 * Created by hejianhui on 2019/11/22.
 */

@FeignClient(name = "product-center",fallbackFactory = ProductCenterFeignApiWithSentielFallbackFactoryasdasf.class)
public interface ProductCenterFeignApiWithSentinel {

    /**
     * 声明式接口,远程调用http://product-center/selectProductInfoById/{productNo}
     * @param productNo
     * @return
     */
    @RequestMapping("/selectProductInfoById/{productNo}")
    ProductInfo selectProductInfoById(@PathVariable("productNo") String productNo) throws InterruptedException;
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
@Component
@Slf4j
public class ProductCenterFeignApiWithSentielFallbackFactoryasdasf implements FallbackFactory<ProductCenterFeignApiWithSentinel> {
    @Override
    public ProductCenterFeignApiWithSentinel create(Throwable throwable) {
        return new ProductCenterFeignApiWithSentinel(){

            @Override
            public ProductInfo selectProductInfoById(String productNo) {
                ProductInfo productInfo = new ProductInfo();
                if (throwable instanceof FlowException) {
                    log.error("流控了....{}",throwable.getMessage());
                    productInfo.setProductName("我是被流控的默认商品");
                }else {
                    log.error("降级了....{}",throwable.getMessage());
                    productInfo.setProductName("我是被降级的默认商品");
                }

                return productInfo;
            }
        };
    }
}

1
2
3
4
5
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
spring:
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    sentinel:
      transport:
        dashboard: localhost:9999
        #namespace: bc7613d2-2e22-4292-a748-48b78170f14c  #指定namespace的id
      datasource:
        # 名称随意
        flow:
          nacos:
            server-addr: 47.111.191.111:8848
            dataId: ${spring.application.name}-flow-rules
            groupId: SENTINEL_GROUP
            rule-type: flow
        degrade:
          nacos:
            server-addr: localhost:8848
            dataId: ${spring.application.name}-degrade-rules
            groupId: SENTINEL_GROUP
            rule-type: degrade
        system:
          nacos:
            server-addr: localhost:8848
            dataId: ${spring.application.name}-system-rules
            groupId: SENTINEL_GROUP
            rule-type: system
        authority:
          nacos:
            server-addr: localhost:8848
            dataId: ${spring.application.name}-authority-rules
            groupId: SENTINEL_GROUP
            rule-type: authority
        param-flow:
          nacos:
            server-addr: localhost:8848
            dataId: ${spring.application.name}-param-flow-rules
            groupId: SENTINEL_GROUP
            rule-type: param-flow

1
2
3
4
5
6
7
<!-- for Nacos rule publisher sample -->
<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>sentinel-datasource-nacos</artifactId>
   <!-- <scope>test</scope>--> // 需要把test注释掉
</dependency>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
/**
 * @author Eric Zhao
 * @since 0.2.1
 */
@RestController
@RequestMapping(value = "/paramFlow")

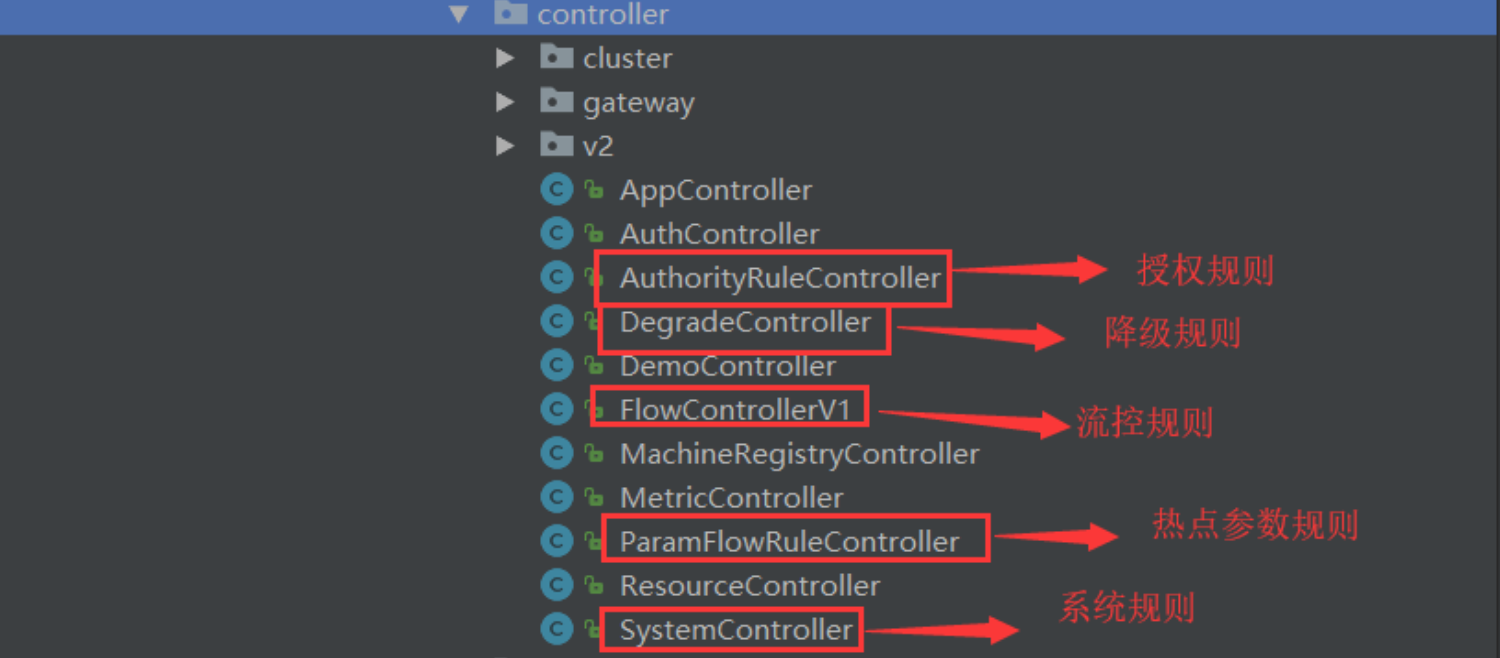

public class ParamFlowRuleController {

    private final Logger logger = LoggerFactory.getLogger(ParamFlowRuleController.class);

    @Autowired
    private SentinelApiClient sentinelApiClient;
    @Autowired
    private AppManagement appManagement;
    @Autowired
    private RuleRepository<ParamFlowRuleEntity, Long> repository;

    @Autowired
    @Qualifier("niuhHotParamFlowRuleNacosPublisher")
    private DynamicRulePublisher<List<ParamFlowRuleEntity>> rulePublisher;

    @Autowired
    @Qualifier("niuhHotParamFlowRuleNacosProvider")
    private DynamicRuleProvider<List<ParamFlowRuleEntity>> ruleProvider;

    @Autowired
    private AuthService<HttpServletRequest> authService;

    private boolean checkIfSupported(String app, String ip, int port) {
        try {
            return Optional.ofNullable(appManagement.getDetailApp(app))
                .flatMap(e -> e.getMachine(ip, port))
                .flatMap(m -> VersionUtils.parseVersion(m.getVersion())
                    .map(v -> v.greaterOrEqual(version020)))
                .orElse(true);
            // If error occurred or cannot retrieve machine info, return true.
        } catch (Exception ex) {
            return true;
        }
    }

    @GetMapping("/rules")
    public Result<List<ParamFlowRuleEntity>> apiQueryAllRulesForMachine(HttpServletRequest request,
                                                                        @RequestParam String app,
                                                                        @RequestParam String ip,
                                                                        @RequestParam Integer port) {
        AuthUser authUser = authService.getAuthUser(request);
        authUser.authTarget(app, PrivilegeType.READ_RULE);
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app cannot be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip cannot be null or empty");
        }
        if (port == null || port <= 0) {
            return Result.ofFail(-1, "Invalid parameter: port");
        }
        if (!checkIfSupported(app, ip, port)) {
            return unsupportedVersion();
        }
        try {
/*            return sentinelApiClient.fetchParamFlowRulesOfMachine(app, ip, port)
                .thenApply(repository::saveAll)
                .thenApply(Result::ofSuccess)
                .get();*/
            List<ParamFlowRuleEntity> rules = ruleProvider.getRules(app);
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (ExecutionException ex) {
            logger.error("Error when querying parameter flow rules", ex.getCause());
            if (isNotSupported(ex.getCause())) {
                return unsupportedVersion();
            } else {
                return Result.ofThrowable(-1, ex.getCause());
            }
        } catch (Throwable throwable) {
            logger.error("Error when querying parameter flow rules", throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

    private boolean isNotSupported(Throwable ex) {
        return ex instanceof CommandNotFoundException;
    }

    @PostMapping("/rule")
    public Result<ParamFlowRuleEntity> apiAddParamFlowRule(HttpServletRequest request,
                                                           @RequestBody ParamFlowRuleEntity entity) {
        AuthUser authUser = authService.getAuthUser(request);
        authUser.authTarget(entity.getApp(), PrivilegeType.WRITE_RULE);
        Result<ParamFlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        if (!checkIfSupported(entity.getApp(), entity.getIp(), entity.getPort())) {
            return unsupportedVersion();
        }
        entity.setId(null);
        entity.getRule().setResource(entity.getResource().trim());
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            //publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get();
            publishRules(entity.getApp());
            return Result.ofSuccess(entity);
        } catch (ExecutionException ex) {
            logger.error("Error when adding new parameter flow rules", ex.getCause());
            if (isNotSupported(ex.getCause())) {
                return unsupportedVersion();
            } else {
                return Result.ofThrowable(-1, ex.getCause());
            }
        } catch (Throwable throwable) {
            logger.error("Error when adding new parameter flow rules", throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

    private <R> Result<R> checkEntityInternal(ParamFlowRuleEntity entity) {
        if (entity == null) {
            return Result.ofFail(-1, "bad rule body");
        }
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getIp())) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (entity.getPort() == null || entity.getPort() <= 0) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (entity.getRule() == null) {
            return Result.ofFail(-1, "rule can't be null");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource name cannot be null or empty");
        }
        if (entity.getCount() < 0) {
            return Result.ofFail(-1, "count should be valid");
        }
        if (entity.getGrade() != RuleConstant.FLOW_GRADE_QPS) {
            return Result.ofFail(-1, "Unknown mode (blockGrade) for parameter flow control");
        }
        if (entity.getParamIdx() == null || entity.getParamIdx() < 0) {
            return Result.ofFail(-1, "paramIdx should be valid");
        }
        if (entity.getDurationInSec() <= 0) {
            return Result.ofFail(-1, "durationInSec should be valid");
        }
        if (entity.getControlBehavior() < 0) {
            return Result.ofFail(-1, "controlBehavior should be valid");
        }
        return null;
    }

    @PutMapping("/rule/{id}")
    public Result<ParamFlowRuleEntity> apiUpdateParamFlowRule(HttpServletRequest request,
                                                              @PathVariable("id") Long id,
                                                              @RequestBody ParamFlowRuleEntity entity) {
        AuthUser authUser = authService.getAuthUser(request);
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        ParamFlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofFail(-1, "id " + id + " does not exist");
        }
        authUser.authTarget(oldEntity.getApp(), PrivilegeType.WRITE_RULE);
        Result<ParamFlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        if (!checkIfSupported(entity.getApp(), entity.getIp(), entity.getPort())) {
            return unsupportedVersion();
        }
        entity.setId(id);
        Date date = new Date();
        entity.setGmtCreate(oldEntity.getGmtCreate());
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            //publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get();
            publishRules(entity.getApp());
            return Result.ofSuccess(entity);
        } catch (ExecutionException ex) {
            logger.error("Error when updating parameter flow rules, id=" + id, ex.getCause());
            if (isNotSupported(ex.getCause())) {
                return unsupportedVersion();
            } else {
                return Result.ofThrowable(-1, ex.getCause());
            }
        } catch (Throwable throwable) {
            logger.error("Error when updating parameter flow rules, id=" + id, throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

    @DeleteMapping("/rule/{id}")
    public Result<Long> apiDeleteRule(HttpServletRequest request, @PathVariable("id") Long id) {
        AuthUser authUser = authService.getAuthUser(request);
        if (id == null) {
            return Result.ofFail(-1, "id cannot be null");
        }
        ParamFlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }
        authUser.authTarget(oldEntity.getApp(), PrivilegeType.DELETE_RULE);
        try {
            repository.delete(id);
            /*publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort()).get();*/
            publishRules(oldEntity.getApp());
            return Result.ofSuccess(id);
        } catch (ExecutionException ex) {
            logger.error("Error when deleting parameter flow rules", ex.getCause());
            if (isNotSupported(ex.getCause())) {
                return unsupportedVersion();
            } else {
                return Result.ofThrowable(-1, ex.getCause());
            }
        } catch (Throwable throwable) {
            logger.error("Error when deleting parameter flow rules", throwable);
            return Result.ofFail(-1, throwable.getMessage());
        }
    }

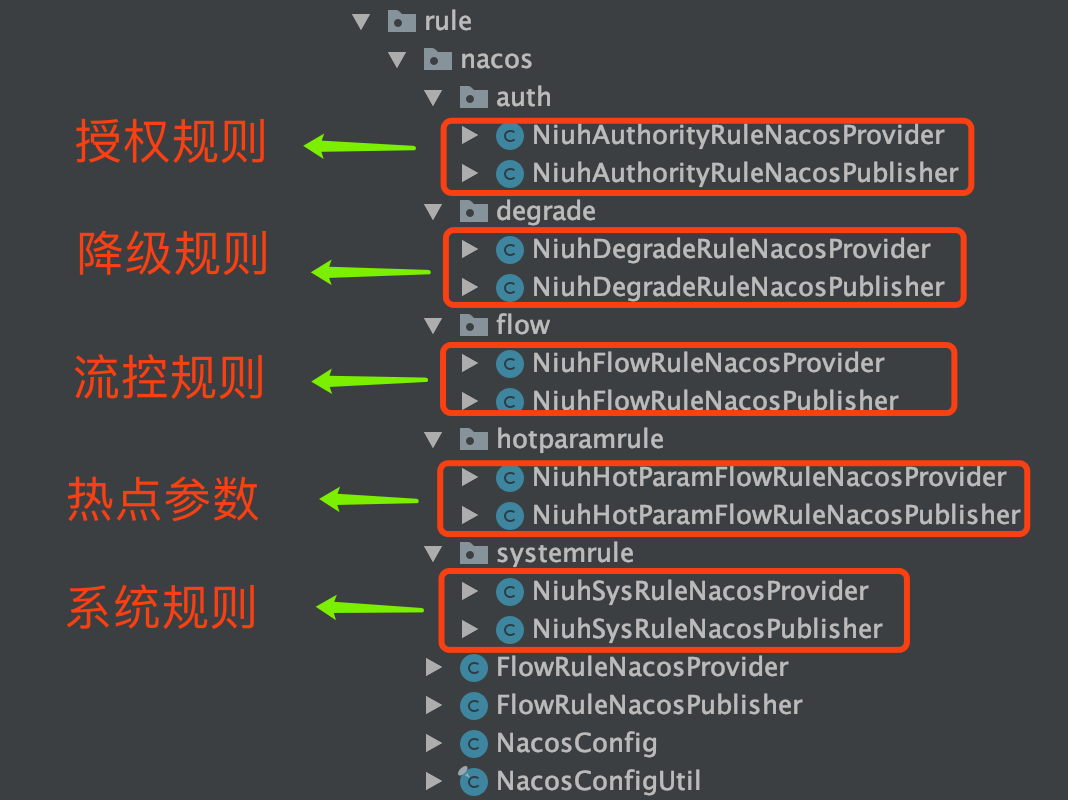

    private CompletableFuture<Void> publishRules(String app, String ip, Integer port) {
        List<ParamFlowRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setParamFlowRuleOfMachine(app, ip, port, rules);
    }

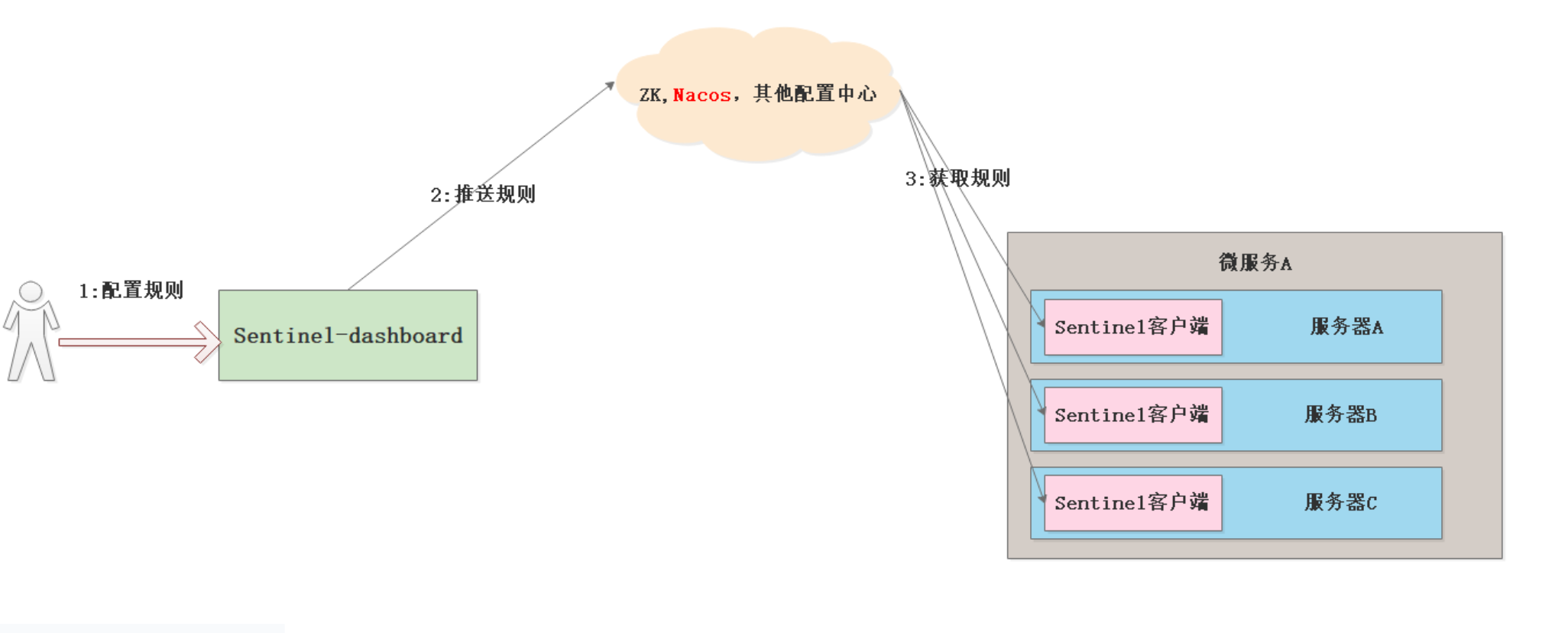

    private void publishRules(String app) throws Exception {
        List<ParamFlowRuleEntity> rules = repository.findAllByApp(app);
        rulePublisher.publish(app, rules);
    }

    private <R> Result<R> unsupportedVersion() {
        return Result.ofFail(4041,
            "Sentinel client not supported for parameter flow control (unsupported version or dependency absent)");
    }

    private final SentinelVersion version020 = new SentinelVersion().setMinorVersion(2);
}

1
2
3
4
5

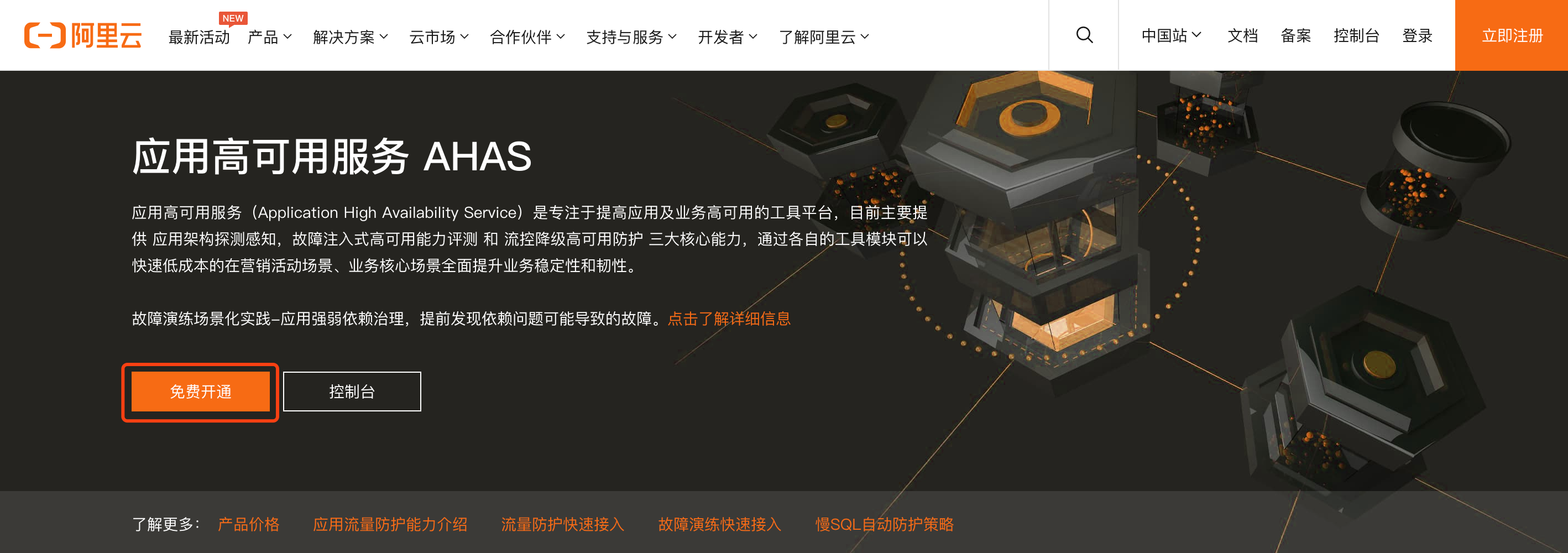

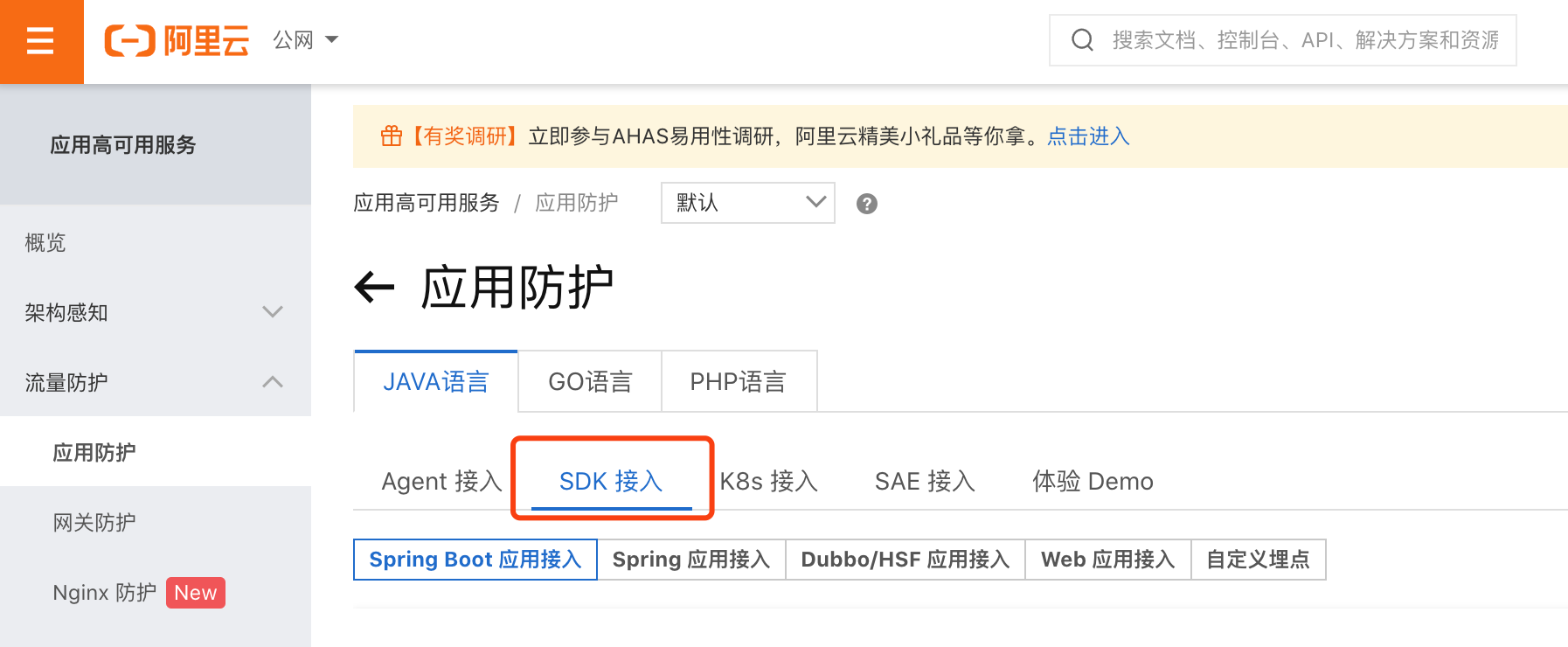

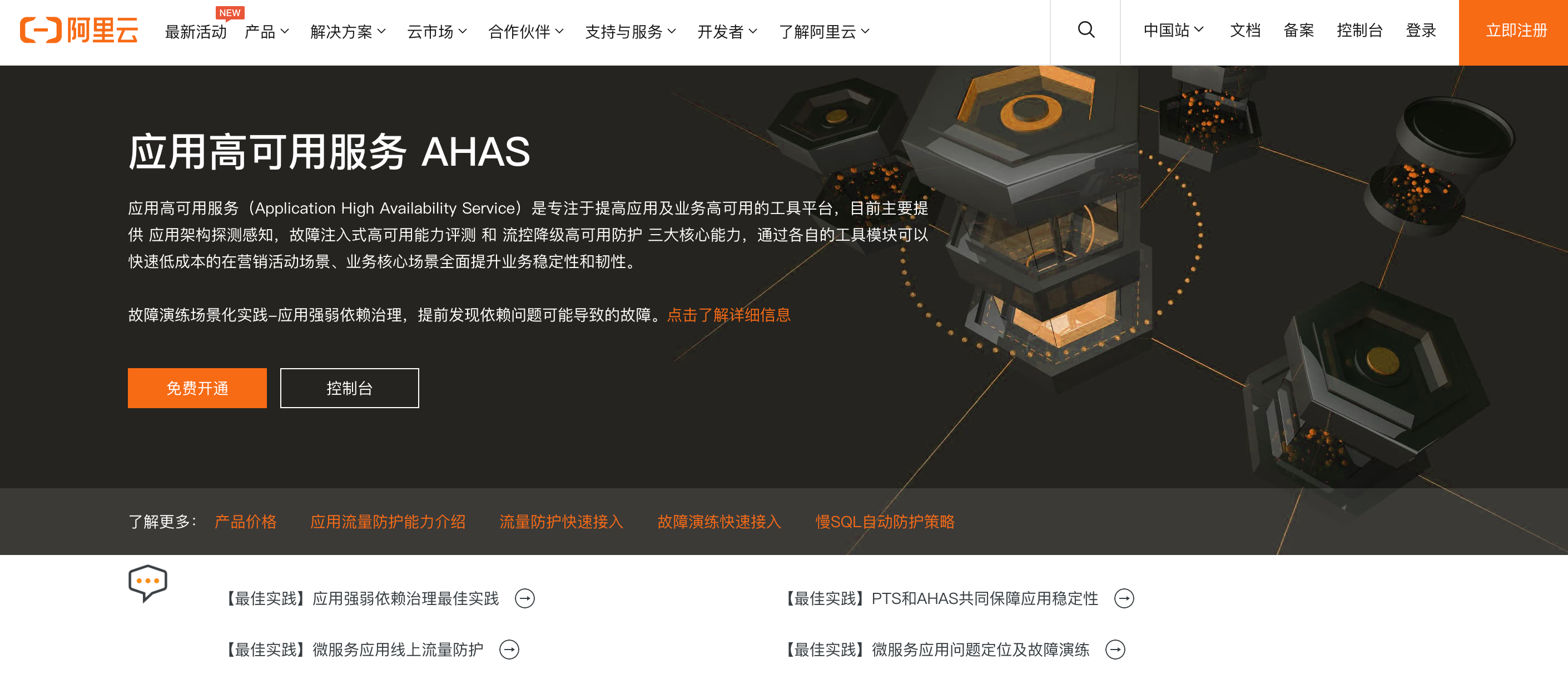

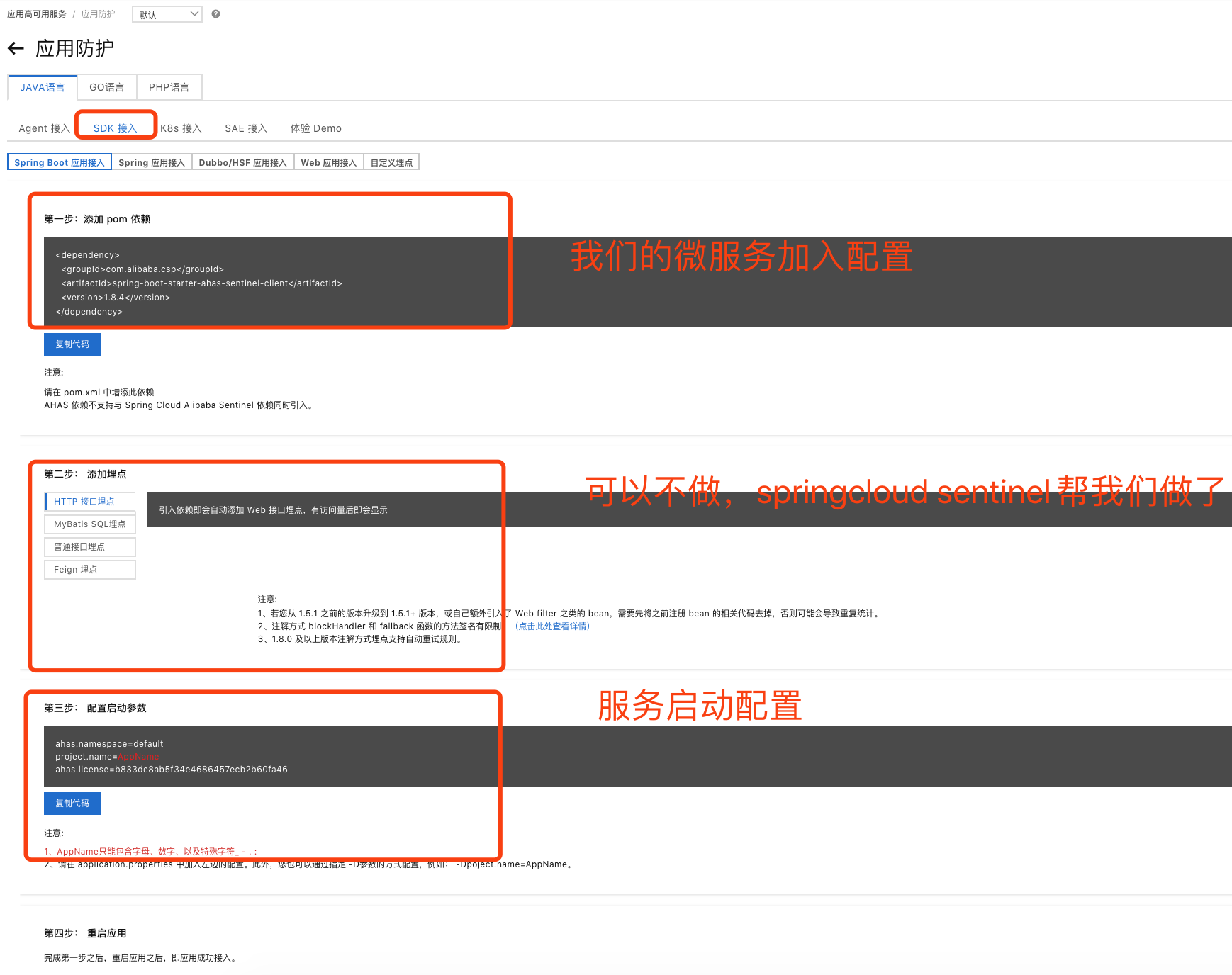

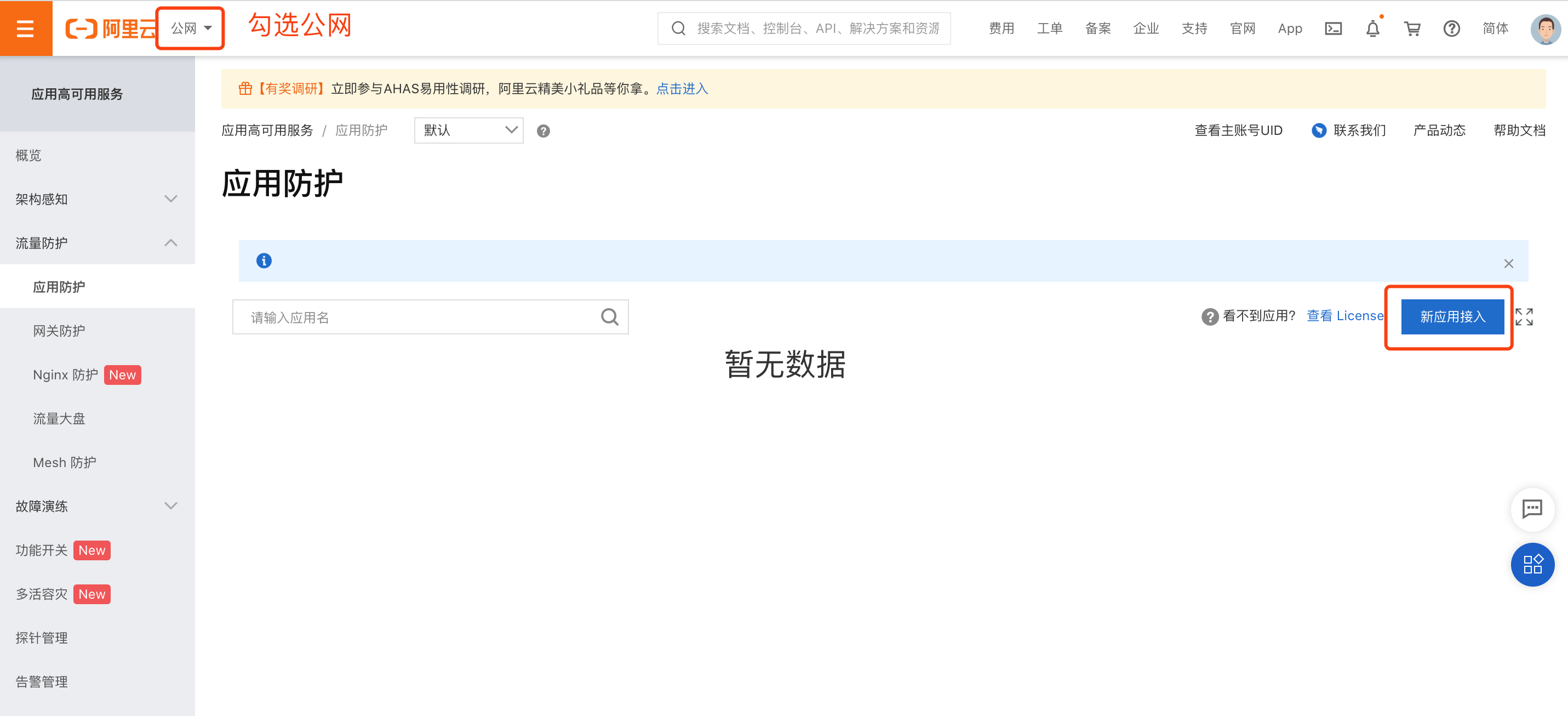

<dependency>
    <groupId>com.alibaba.csp</groupId>
    <artifactId>spring‐boot‐starter‐ahas‐sentinel‐client</artifactId> 4 <version>1.5.0</version>
</dependency>

1
2
3
4
ahas.namespace: default
project.name: order-center
ahas.license: b833de8ab5f34e4686457ecb2b60fa46

1
2
3
4
5
6

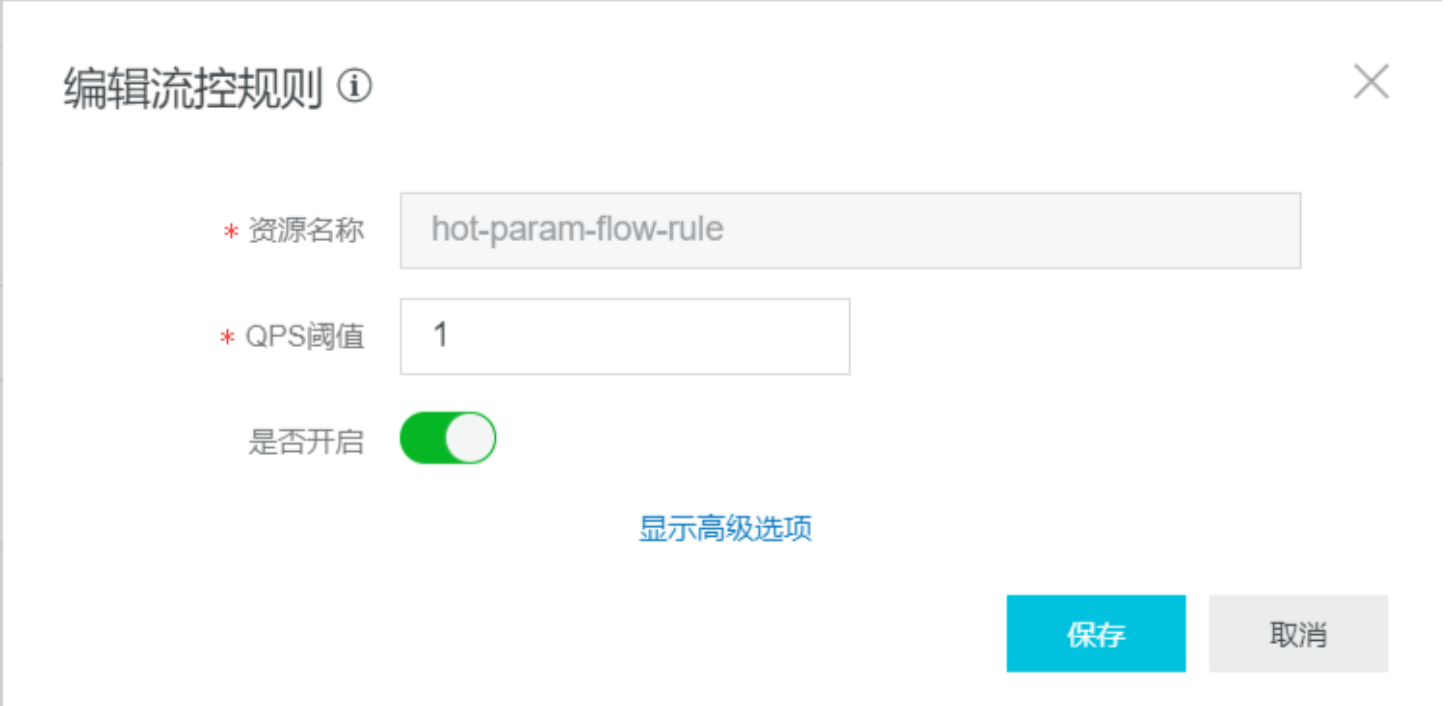

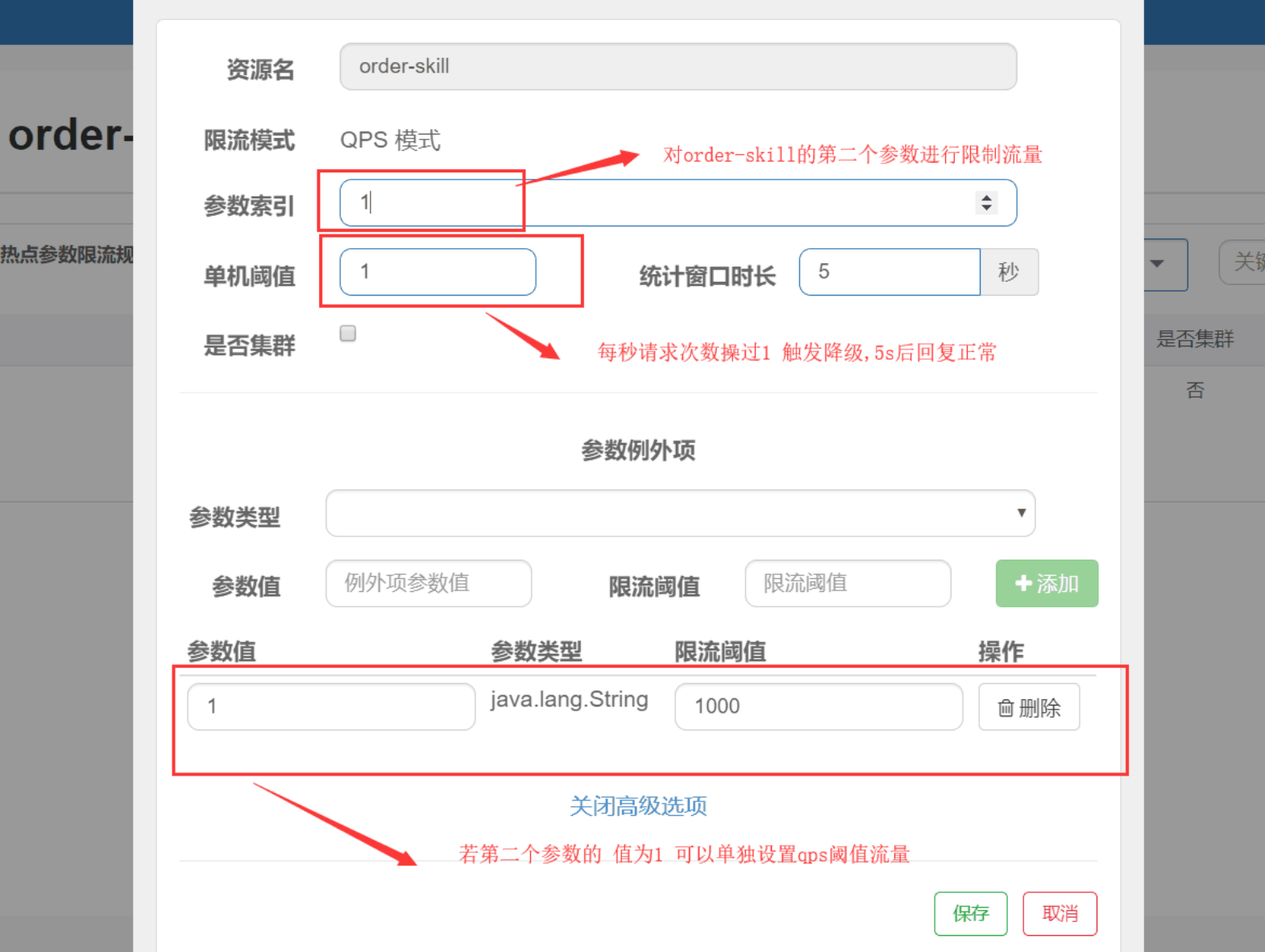

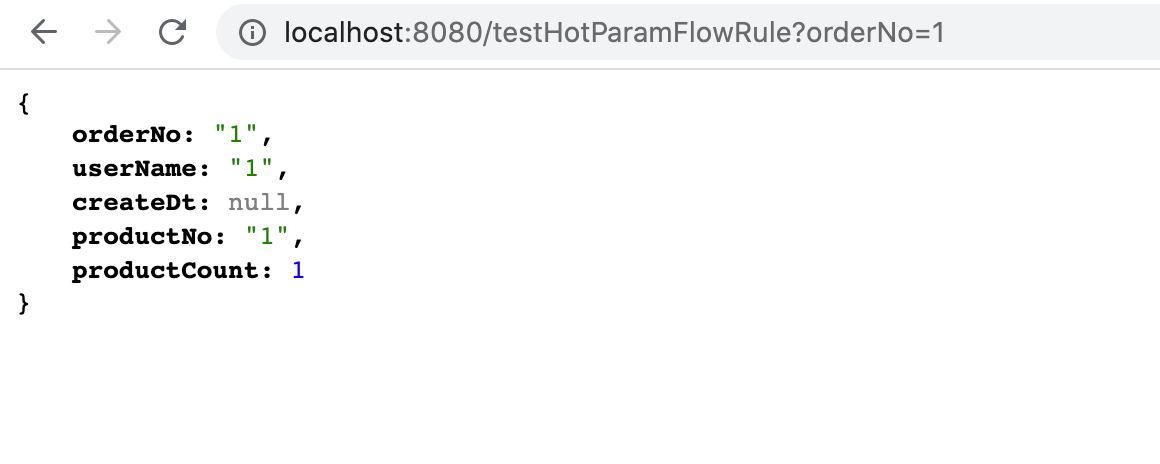

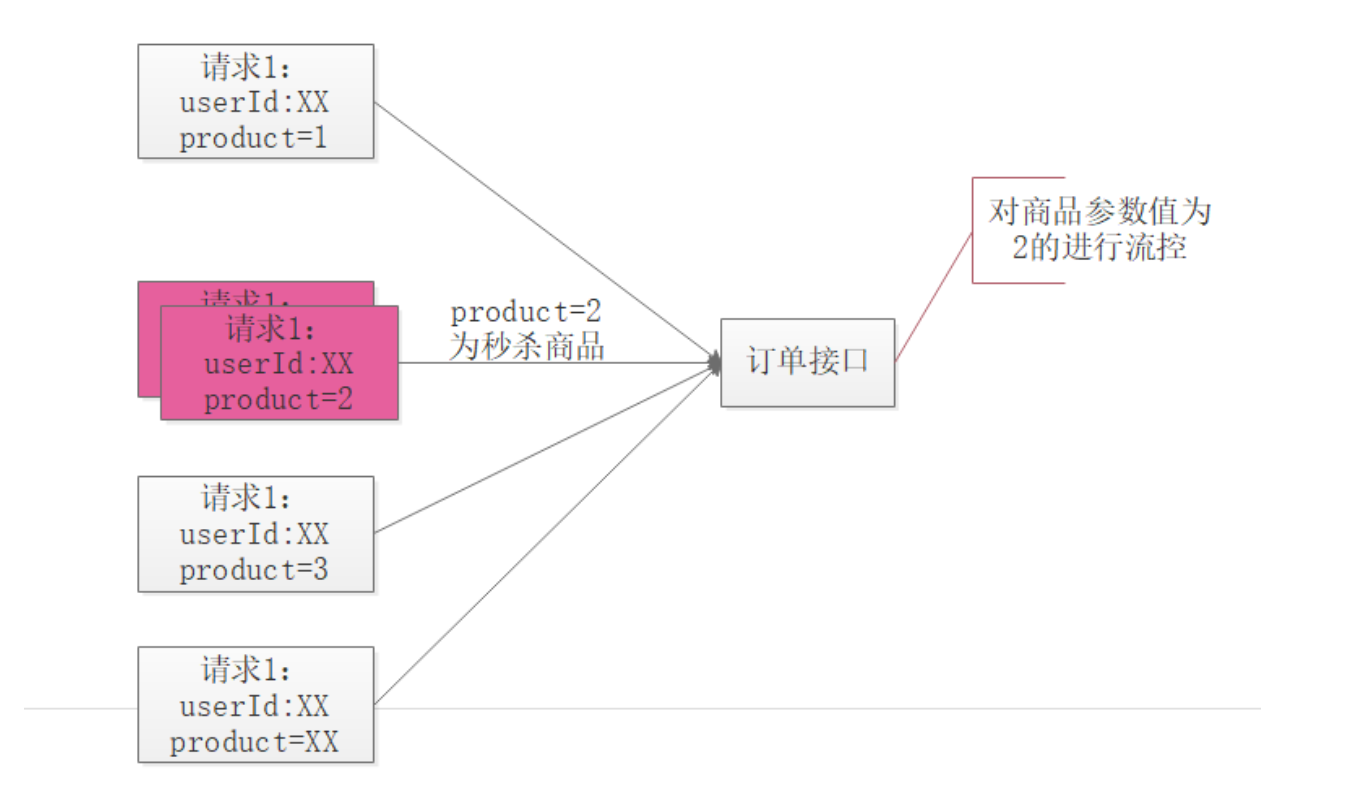

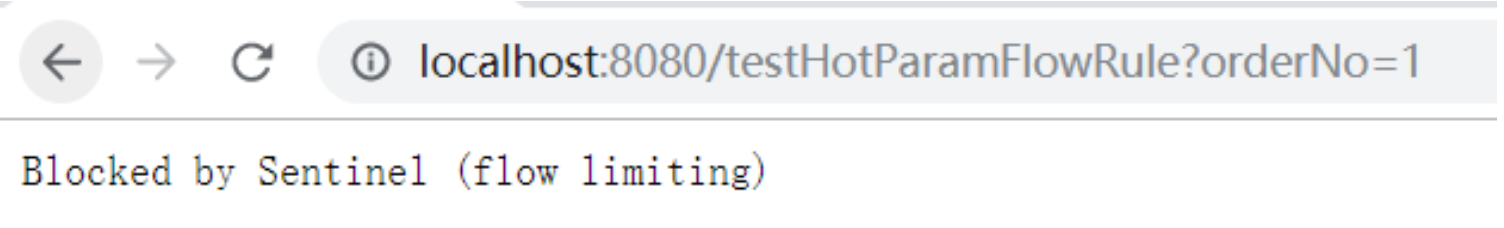

@SentinelResource("hot-param-flow-rule")
@RequestMapping("/testHotParamFlowRule")
public OrderInfo testHotParamFlowRule(@RequestParam("orderNo") String orderNo) {
    return orderInfoMapper.selectOrderInfoById(orderNo);
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
/**
* @vlog: 高于生活，源于生活
* @desc: 类的描述:处理流控,降级规则
* @author: hejianhui
* @createDate: 2019/12/3 16:40
* @version: 1.0
*/
@Component

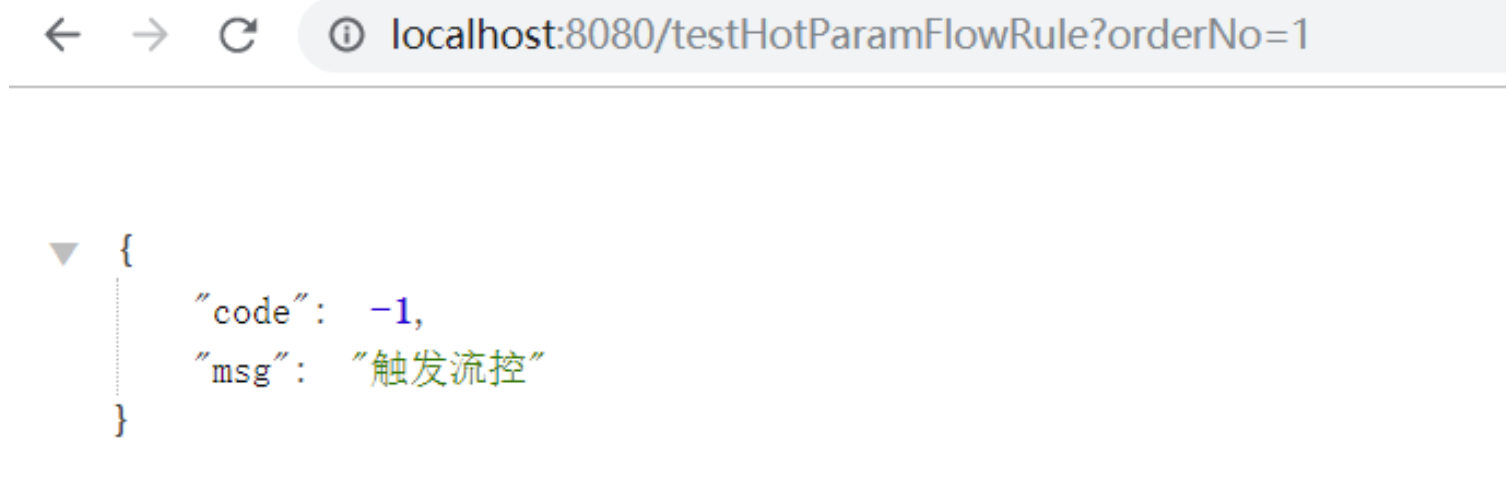

public class NiuhUrlBlockHandler implements UrlBlockHandler {

    public static final Logger log = LoggerFactory.getLogger(NiuhUrlBlockHandler.class);

    @Override
    public void blocked(HttpServletRequest request, HttpServletResponse response, BlockException ex) throws IOException {

        if(ex instanceof FlowException) {
            log.warn("触发了流控");
            warrperResponse(response,ErrorEnum.FLOW_RULE_ERR);
        }else if(ex instanceof ParamFlowException) {
            log.warn("触发了参数流控");
            warrperResponse(response,ErrorEnum.HOT_PARAM_FLOW_RULE_ERR);
        }else if(ex instanceof AuthorityException) {
            log.warn("触发了授权规则");
            warrperResponse(response,ErrorEnum.AUTH_RULE_ERR);
        }else if(ex instanceof SystemBlockException) {
            log.warn("触发了系统规则");
            warrperResponse(response,ErrorEnum.SYS_RULE_ERR);
        }else{
            log.warn("触发了降级规则");
            warrperResponse(response,ErrorEnum.DEGRADE_RULE_ERR);
        }
    }


    private void warrperResponse(HttpServletResponse httpServletResponse, ErrorEnum errorEnum) throws IOException {
        httpServletResponse.setStatus(500);
        httpServletResponse.setCharacterEncoding("UTF-8");
        httpServletResponse.setHeader("Content-Type","application/json;charset=utf-8");
        httpServletResponse.setContentType("application/json;charset=utf-8");

        ObjectMapper objectMapper = new ObjectMapper();
        String errMsg =objectMapper.writeValueAsString(new ErrorResult(errorEnum));
        httpServletResponse.getWriter().write(errMsg);
    }

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
/**
* @vlog: 高于生活，源于生活
* @desc: 类的描述:区分来源接口
* @author: hejianhui
* @createDate: 2019/12/4 13:13
* @version: 1.0
*/
/*@Component*/
@Slf4j

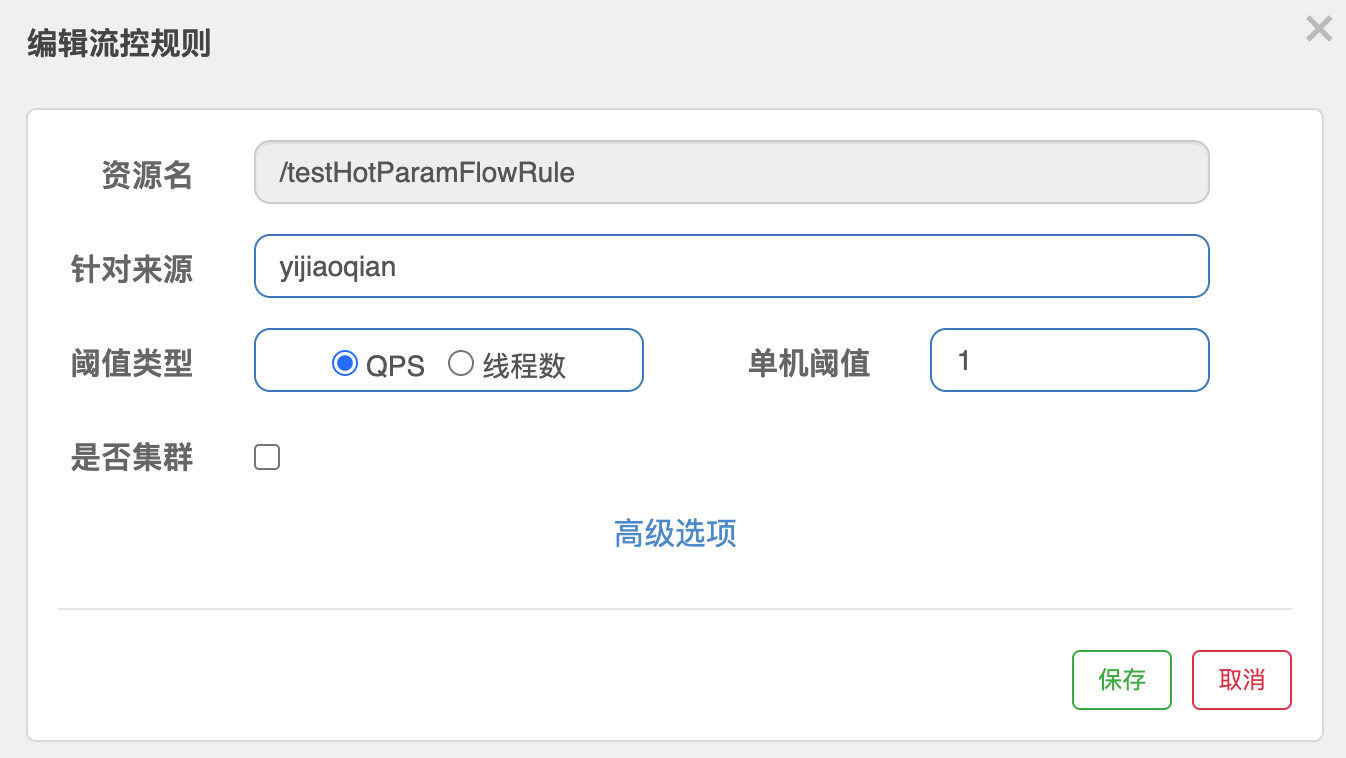

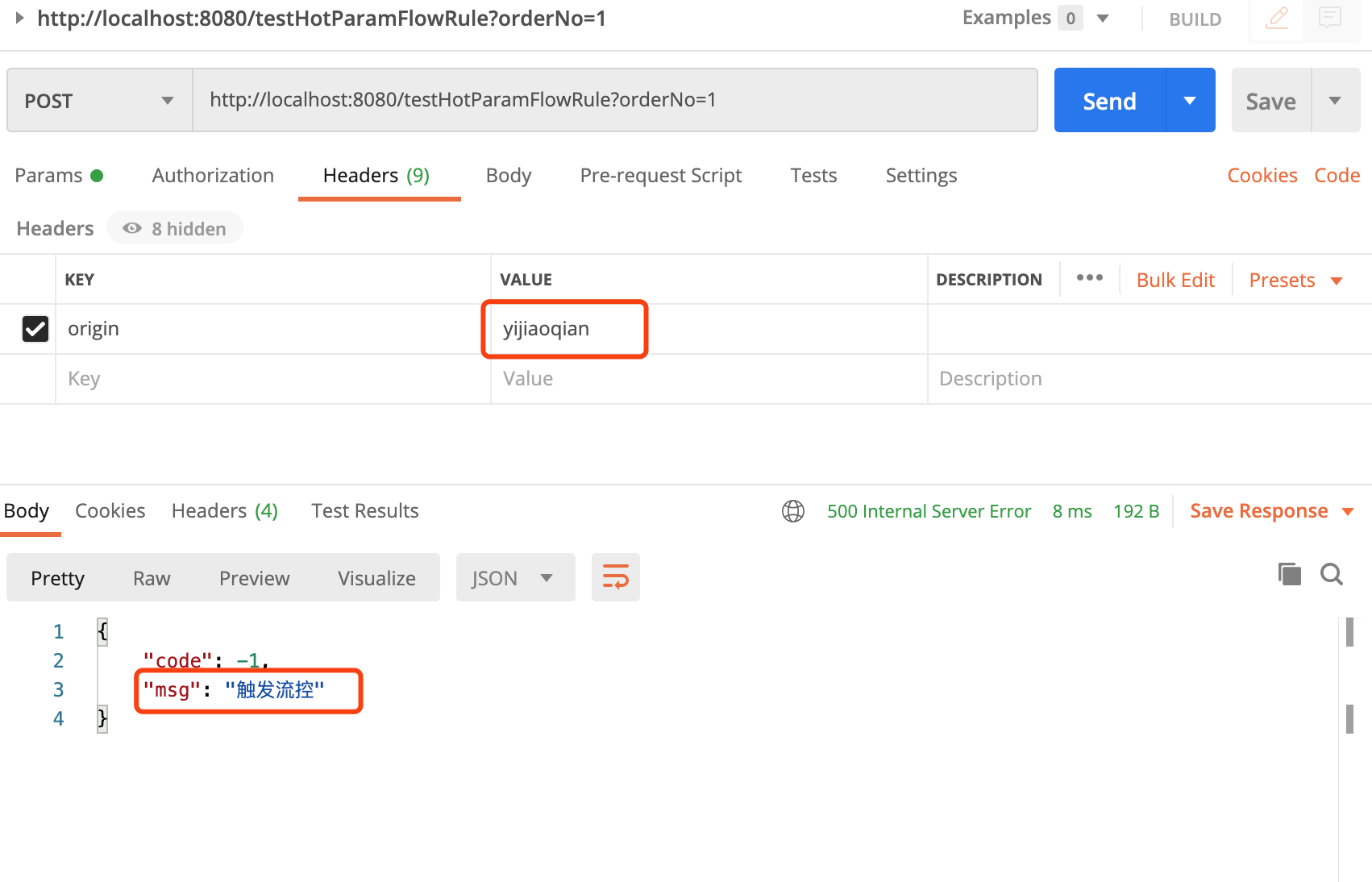

public class NiuhRequestOriginParse implements RequestOriginParser {

    @Override
    public String parseOrigin(HttpServletRequest request) {
        String origin = request.getHeader("origin");
        if(StringUtils.isEmpty(origin)) {
            log.warn("origin must not null");
            throw new IllegalArgumentException("request origin must not null");
        }
        return origin;
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
/**
* @vlog: 高于生活，源于生活
* @desc: 类的描述:解决RestFule风格的请求
 *       eg:    /selectOrderInfoById/2     /selectOrderInfoById/1 需要转为/selectOrderInfoById/{number}
* @author: hejianhui
* @createDate: 2019/12/4 13:28
* @version: 1.0
*/
@Component
@Slf4j
public class NiuhUrlClean implements UrlCleaner {
    @Override
    public String clean(String originUrl) {
        log.info("originUrl:{}",originUrl);

        if(StringUtils.isEmpty(originUrl)) {
            log.error("originUrl not be null");
            throw new IllegalArgumentException("originUrl not be null");
        }
        return replaceRestfulUrl(originUrl);
    }

    /**
     * 方法实现说明:把/selectOrderInfoById/2 替换成/selectOrderInfoById/{number}
     * @author:hejianhui
     * @param sourceUrl 目标url
     * @return: 替换后的url
     * @exception:
     * @date:2019/12/4 13:46
     */
    private String replaceRestfulUrl(String sourceUrl) {
        List<String> origins = Arrays.asList(sourceUrl.split("/"));
        StringBuffer targetUrl = new StringBuffer("/");

        for(String str:origins) {
            if(NumberUtils.isNumber(str)) {
                targetUrl.append("/{number}");
            }else {
                targetUrl.append(str);
            }

        }
        return targetUrl.toString();
    }
}
