概述

最近在统计资产，正好看到了xlsxwriter这个表格生成模块，借此机会，熟悉一下，写点有趣的小案例，一开始想使用C++ QT图形化开发一套自动化运维平台，但后来发现不仅消耗时间而且需要解决QT Qssh远程模块的一些问题，后来没有使用QT做，xlsxwriter模块来做非常的简单，所以使用它。

绘制磁盘统计(封装表格)

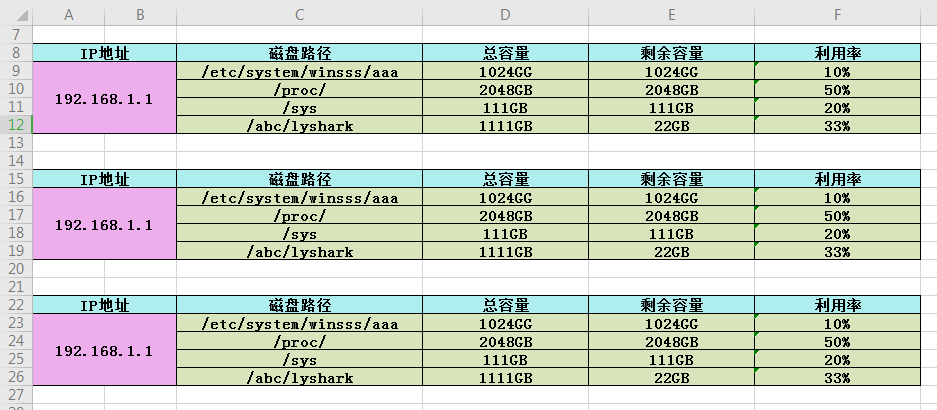

封装前需要先来找出规律: 先找到表格生成坐标与大小之间的比值关系，这是第一步。

import xlsxwriter

workbook = xlsxwriter.Workbook('chart_line.xlsx')

worksheet3 = workbook.add_worksheet("系统磁盘统计")
merge_format = workbook.add_format({
    'bold':     True,
    'border':   1,
    'align':    'center',
    'valign':   'vcenter',
    'fg_color': '#EEAEEE',
})

worksheet3.merge_range('A9:B12', '192.168.1.1', merge_format)
# -------------------------------------------------------------------------

head = ["IP地址","IP地址","路径","总容量","剩余容量","利用率"]
merge_format1 = workbook.add_format({
    'bold':     True,
    'border':   1,
    'align':    'center',#水平居中
    'valign':   'vcenter',#垂直居中
    'fg_color': '#AEEEEE',#颜色填充
})
worksheet3.write_row("A8:B12",head,merge_format1)        #显示表头
worksheet3.merge_range('A8:B8',"IP地址",merge_format1)   # 合并表头(合并第一个元素)


data1 = ["/etc/system/winsss/aaa","/proc/","/sys","/abc/lyshark"]
merge_format2 = workbook.add_format
        ({'bold': True,'border': 1,'valign': 'vcenter','fg_color': '#D7E4BC','align': 'center'})

worksheet3.write_column("C9",data1,merge_format2)
worksheet3.set_column("C9:C9",30)


data2 = ["1024GG","2048GB","111GB","1111GB"]
merge_format3 = workbook.add_format
        ({'bold': True,'border': 1,'valign': 'vcenter','fg_color': '#D7E4BC','align': 'center'})
worksheet3.write_column("D9",data2,merge_format3)
worksheet3.set_column("D9:D9",20)


data3 = ["1024GG","2048GB","111GB","22GB"]
merge_format4 = workbook.add_format
        ({'bold': True,'border': 1,'valign': 'vcenter','fg_color': '#D7E4BC','align': 'center'})
worksheet3.write_column("E9",data3,merge_format4)
worksheet3.set_column("E9:E9",20)


data4= ["10%","50%","20%","33%"]
merge_format5 = workbook.add_format
        ({'bold': True,'border': 1,'valign': 'vcenter','fg_color': '#D7E4BC','align': 'center'})
worksheet3.write_column("F9",data4,merge_format5)
worksheet3.set_column("F9:F9",20)

'''
val =
[
    ["IP地址","IP地址","路径","总容量","剩余容量","利用率"]，
    ["/etc/","/proc","/user","/test","lyshark"],
    ["1GB","2GB","3GB","4GB","5GB"],
    ["1GB","2GB","3GB","4GB","5GB"],
    ["10%","10%","10%","10%","10%"]
]

SetDiskTable(address,val)
'''
workbook.close()

接着对其进行封装:找到规律后就要对其进行封装，封装成一个可直接调用的方法。

import xlsxwriter

workbook = xlsxwriter.Workbook('chart_line.xlsx')
worksheet = workbook.add_worksheet("系统磁盘统计")

def CreateDiskTable(address,data,section):
    merge_format = workbook.add_format(
        {'bold': True, 'border': 1, 'align': 'center', 'valign': 'vcenter', 'fg_color': '#EEAEEE'})

    header_count = len(data[1])
    merge_format1 = workbook.add_format(
        {'bold': True, 'border': 1, 'align': 'center', 'valign': 'vcenter', 'fg_color': '#AEEEEE'})

    # 根据磁盘路径计算出表格大小
    header_range = "A{}:B{}".format(section,section+header_count)
    worksheet.write_row(header_range, data[0], merge_format1)  # 显示表头

    # 计算合并表头偏移
    header_merge_range = "A{}:B{}".format(section,section)
    worksheet.merge_range(header_merge_range, "IP地址", merge_format1)  # 合并表头(合并第一个元素)

    # 计算出地址所占总单元格大小
    address_merge_range = "A{}:B{}".format(section+1,section+header_count)
    worksheet.merge_range(address_merge_range, address , merge_format)  #需要计算出来，根据传入分区数量

    # 通过计算得到磁盘路径所对应到表中的位置
    merge_format2 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})

    index_range = "C{}".format(section+1)
    worksheet.write_column(index_range, data[1], merge_format2)
    index_range = "C{}:C{}".format(section+1,section+1)
    worksheet.set_column(index_range, 30)

    # 计算出总容量对应到表中的位置
    merge_format3 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})

    index_range = "D{}".format(section + 1)
    worksheet.write_column(index_range, data[2], merge_format3)

    index_range = "D{}:D{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 计算出剩余容量对应到表中的位置
    merge_format4 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})
    index_range = "E{}".format(section + 1)
    worksheet.write_column(index_range, data[3], merge_format4)
    index_range = "E{}:E{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 计算出利用率对应到表中的位置
    merge_format5 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})

    index_range = "F{}".format(section + 1)
    worksheet.write_column(index_range, data[4], merge_format5)
    index_range = "F{}:F{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 返回计算后的表格的下两个单元的实际偏移位置
    return section + header_count + 3

if __name__ == "__main__":
    val =
    [
        ["IP地址", "IP地址", "磁盘路径", "总容量", "剩余容量", "利用率"],
        ["/etc/system/winsss/aaa", "/proc/", "/sys", "/abc/lyshark"],
        ["1024GG", "2048GB", "111GB", "1111GB"],
        ["1024GG", "2048GB", "111GB", "22GB"],
        ["10%", "50%", "20%", "33%"]
    ]

    ref = CreateDiskTable("192.168.1.1",val,8)
    print(ref)
    ref = CreateDiskTable("192.168.1.1", val, ref)
    CreateDiskTable("192.168.1.1", val, ref)
    workbook.close()

继续更新一下

import xlsxwriter
import json,os,sys,math
import argparse
import paramiko

workbook = xlsxwriter.Workbook('disk.xlsx')
worksheet = workbook.add_worksheet("系统磁盘统计")

ssh = paramiko.SSHClient()
ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())

def BatchCMD(address,username,password,port,command):
    try:
        ssh.connect(hostname=address,username=username,password=password,port=port,timeout=2)
        stdin , stdout , stderr = ssh.exec_command(command)
        result = stdout.read()
        if len(result) != 0:
            result = str(result).replace("\n", "n")
            result = result.replace("b'", "").replace("'", "")
            return result
        else:
            return None
    except Exception:
        return None

def GetAllDiskSpace(address,username,password,port):
    ref = []
    cmd_dict = {"Linuxn" : "df | grep -v 'Filesystem' | awk '{print $6 ":" $3 ":" $4 ":" $5}'",
                "AIXn" : "df | grep -v 'Filesystem' | awk '{print $4 ":" $7}'"
                }
    os_version = BatchCMD(address,username,password,port,"uname")
    for version,run_cmd in cmd_dict.items():
        if(version == os_version):
            os_ref = BatchCMD(address,username,password,port,run_cmd)
            ref_list= os_ref.split("n")
            for each in ref_list:
                if each != "":
                    ref_list = []
                    ref_list = str(each.split(":"))
                    ref.append(eval(ref_list))
    return ref

def CreateDiskTable(address,data,section):
    merge_format = workbook.add_format(
        {'bold': True, 'border': 1, 'align': 'center', 'valign': 'vcenter', 'fg_color': '#EEAEEE'})

    header_count = len(data[1])
    merge_format1 = workbook.add_format(
        {'bold': True, 'border': 1, 'align': 'center', 'valign': 'vcenter', 'fg_color': '#AEEEEE'})

    # 根据磁盘路径计算出表格大小
    header_range = "A{}:B{}".format(section,section+header_count)
    worksheet.write_row(header_range, data[0], merge_format1)  # 显示表头

    # 计算合并表头偏移
    header_merge_range = "A{}:B{}".format(section,section)
    worksheet.merge_range(header_merge_range, "IP地址", merge_format1)  # 合并表头(合并第一个元素)

    # 计算出地址所占总单元格大小
    address_merge_range = "A{}:B{}".format(section+1,section+header_count)
    worksheet.merge_range(address_merge_range, address , merge_format)  #需要计算出来，根据传入分区数量

    # 通过计算得到磁盘路径所对应到表中的位置
    merge_format2 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})

    index_range = "C{}".format(section+1)
    worksheet.write_column(index_range, data[1], merge_format2)
    index_range = "C{}:C{}".format(section+1,section+1)
    worksheet.set_column(index_range, 30)

    # 计算出总容量对应到表中的位置
    merge_format3 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})

    index_range = "D{}".format(section + 1)
    worksheet.write_column(index_range, data[2], merge_format3)

    index_range = "D{}:D{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 计算出剩余容量对应到表中的位置
    merge_format4 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})
    index_range = "E{}".format(section + 1)
    worksheet.write_column(index_range, data[3], merge_format4)
    index_range = "E{}:E{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 计算出利用率对应到表中的位置
    merge_format5 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})

    index_range = "F{}".format(section + 1)
    worksheet.write_column(index_range, data[4], merge_format5)
    index_range = "F{}:F{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 返回计算后的表格的下两个单元的实际偏移位置
    return section + header_count + 3

if __name__ == "__main__":

    '''
    val =
    [
        ["IP地址", "IP地址", "磁盘路径", "总容量", "剩余容量", "利用率"],
        ["/etc/system/winsss/aaa", "/proc/", "/sys", "/abc/lyshark"],
        ["1024GG", "2048GB", "111GB", "1111GB"],
        ["1024GG", "2048GB", "111GB", "22GB"],
        ["10%", "50%", "20%", "33%"]
    ]
    ref = CreateDiskTable("192.168.1.1",val,3)
    ref = CreateDiskTable("192.168.1.2", val, ref)
    CreateDiskTable("192.168.1.3", val, ref)
    '''

    ref = GetAllDiskSpace("192.168.191.4","root","1233",22)

    # 恒矩阵转树矩阵
    ref_xor = list ( map(list,zip(*ref)) )

    header = ["IP地址", "IP地址", "磁盘路径", "已使用", "剩余容量", "利用率"]

    ref_xor.insert(0,header)
    print(ref_xor)

    CreateDiskTable("192.168.191.4", ref_xor, 2)
    workbook.close()

增加SSH功能遵循调用规范：

import xlsxwriter
import paramiko
import os,sys,datetime

disk_name = "disk_" + str(datetime.datetime.now()).split(" ")[0] + ".xlsx"

workbook = xlsxwriter.Workbook(disk_name)
worksheet = workbook.add_worksheet("系统磁盘统计")

ssh = paramiko.SSHClient()
ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())

# 封装远程命令执行
def BatchCMD(address,username,password,port,command):
    try:
        ssh.connect(hostname=address,username=username,password=password,port=port,timeout=2)
        stdin , stdout , stderr = ssh.exec_command(command)
        result = stdout.read()
        if len(result) != 0:
            result = str(result).replace("\n", "n")
            result = result.replace("b'", "").replace("'", "")
            return result
        else:
            return None
    except Exception:
        return None

# 获取磁盘数据
def GetAllDiskSpace(address,username,password,port):
    ref = []
    cmd_dict = {"Linuxn" : "df | grep -v 'Filesystem' | awk '{print $6 ":" $3 ":" $4 ":" $5}'",
                "AIXn" : "df | grep -v 'Filesystem' | awk '{print $7 ":" $5 ":" $3 ":" $4}'"
                }
    os_version = BatchCMD(address,username,password,port,"uname")
    for version,run_cmd in cmd_dict.items():
        if(version == os_version):
            os_ref = BatchCMD(address,username,password,port,run_cmd)
            ref_list= os_ref.split("n")
            for each in ref_list:
                if each != "":
                    ref_list = str(each.split(":"))
                    ref.append(eval(ref_list))
    return ref

# 封装的绘制主机表格方法
def CreateDiskTable(address,data,section):
    merge_format = workbook.add_format(
        {'bold': True, 'border': 1, 'align': 'center', 'valign': 'vcenter', 'fg_color': '#EEAEEE'})

    header_count = len(data[1])
    merge_format1 = workbook.add_format(
        {'bold': True, 'border': 1, 'align': 'center', 'valign': 'vcenter', 'fg_color': '#AEEEEE'})

    # 根据磁盘路径计算出表格大小
    header_range = "A{}:B{}".format(section,section+header_count)
    worksheet.write_row(header_range, data[0], merge_format1)  # 显示表头

    # 计算合并表头偏移
    header_merge_range = "A{}:B{}".format(section,section)
    worksheet.merge_range(header_merge_range, "巡检IP地址", merge_format1)  # 合并表头(合并第一个元素)

    # 计算出地址所占总单元格大小
    address_merge_range = "A{}:B{}".format(section+1,section+header_count)
    worksheet.merge_range(address_merge_range, address , merge_format)  #需要计算出来，根据传入分区数量

    # 通过计算得到磁盘路径所对应到表中的位置
    merge_format2 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC'})

    index_range = "C{}".format(section+1)
    worksheet.write_column(index_range, data[1], merge_format2)
    index_range = "C{}:C{}".format(section+1,section+1)
    worksheet.set_column(index_range, 30)

    # 计算出总容量对应到表中的位置
    merge_format3 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})

    index_range = "D{}".format(section + 1)
    worksheet.write_column(index_range, data[2], merge_format3)

    index_range = "D{}:D{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 计算出剩余容量对应到表中的位置
    merge_format4 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})
    index_range = "E{}".format(section + 1)
    worksheet.write_column(index_range, data[3], merge_format4)
    index_range = "E{}:E{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 计算出利用率对应到表中的位置
    merge_format5 = workbook.add_format(
        {'bold': True, 'border': 1, 'valign': 'vcenter', 'fg_color': '#D7E4BC', 'align': 'center'})

    index_range = "F{}".format(section + 1)
    worksheet.write_column(index_range, data[4], merge_format5)
    index_range = "F{}:F{}".format(section + 1, section + 1)
    worksheet.set_column(index_range, 20)

    # 返回计算后的表格的下两个单元的实际偏移位置
    return section + header_count + 3

if __name__ == "__main__":
    with open("./unix_disk.db","r") as fp:
        fp_file = fp.readlines()

        ref_index = 2
        for each in fp_file:
            data = eval(each)
            ref = GetAllDiskSpace(data[0], data[2], data[3], 22)
            try:
                print("[+] 正在绘制 {} 表格数据,这是一台: {} 主机".format(data[0],data[1]))
                # 恒矩阵转树矩阵
                ref_xor = list(map(list, zip(*ref)))
                header = ["IP地址", "IP地址", "磁盘路径", "已使用", "剩余容量", "利用率"]

                # 将表头追加到矩阵头部
                ref_xor.insert(0, header)

                # 绘制表格,ref_index 递归自身,每次定位到下一个需要更新的表
                ref_index = CreateDiskTable(data[0], ref_xor, ref_index)
            except Exception:
                pass
    workbook.close()

绘制内存统计图(柱状图)

简单的案例： 主要统计前十计数信息，先远程拉取数据，然后内部矩阵排序，关联柱状图前十个元素，即可。

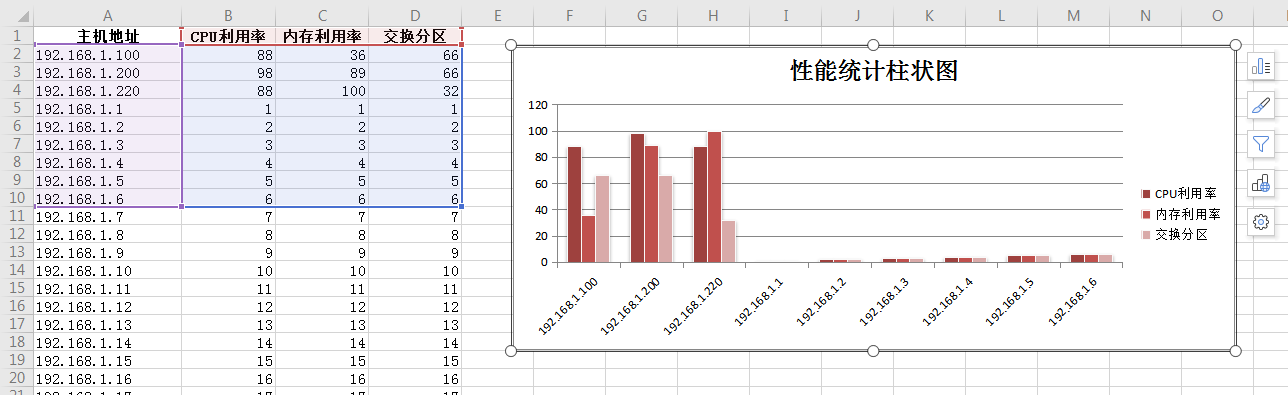

import xlsxwriter

workbook = xlsxwriter.Workbook("xxx.xlsx")
worksheet = workbook.add_worksheet()

headings = ["主机地址", "CPU利用率", "内存利用率","交换分区"]
data = [["192.168.1.100", 88, 36,66], ["192.168.1.200", 98, 89,66], ["192.168.1.220", 88, 100,32]]

# 循环添加模拟数据
for i in range(1,100):
    s = ["192.168.1.{}".format(i),i,i,i]
    data.append(s)

# 定义表格样式
head_style = workbook.add_format({"bold": True, "align": "center", "font": 13})

# 逐条写入数据
worksheet.write_row("A1", headings, head_style)
for i in range(0, len(data)):
    worksheet.write_row("A{}".format(i + 2), data[i])

# 添加柱状图
chart = workbook.add_chart({"type": "column"})
chart.add_series({
    "name": "=Sheet1!$B$1",             # 图例项
    "categories": "=Sheet1!$A$2:$A$10",  # X轴 Item名称
    "values": "=Sheet1!$B$2:$B$10"       # X轴Item值
})
chart.add_series({
    "name": "=Sheet1!$C$1",
    "categories": "=Sheet1!$A$2:$A$10",
    "values": "=Sheet1!$C$2:$C$10"
})
chart.add_series({
    "name": "=Sheet1!$D$1",
    "categories": "=Sheet1!$A$2:$A$10",
    "values": "=Sheet1!$D$2:$D$10"
})

# 添加柱状图标题
chart.set_title({"name": "性能统计柱状图"})
chart.set_style(12)

# 在G2处绘制
worksheet.insert_chart("G2", chart)
workbook.close()

先来获取到CPU数据： 通过SSH拉取CPU数据，然后按照最后一个值进行排序，由大到小以此放入二维数组中。

import xlsxwriter
import paramiko

ssh = paramiko.SSHClient()
ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())

def BatchCMD(address,username,password,port,command):
    try:
        ssh.connect(hostname=address,username=username,password=password,port=port,timeout=2)
        stdin , stdout , stderr = ssh.exec_command(command)
        result = stdout.read()
        if len(result) != 0:
            result = str(result).replace("\n", "n")
            result = result.replace("b'", "").replace("'", "")
            return result
        else:
            return None
    except Exception:
        return None

def GetMemLoad(address,username,password,port):
    ref = []
    cmd_dict = {"Linuxn" : "free | grep "Mem" | awk '{print $2 ":" $4}'",
                "AIXn" : "svmon | grep "memory" | awk '{print $2 ":" $4}'"
                }
    # aix 总大小、剩余大小 需要x4
    os_version = BatchCMD(address,username,password,port,"uname")
    for version,run_cmd in cmd_dict.items():
        if(version == os_version):
            os_ref = BatchCMD(address,username,password,port,run_cmd)
            ref_list= os_ref.split("n")
            for each in ref_list:
                if each != "":
                    print(each)
    return ref

def GetCPULoad(address,username,password,port):
    ref = []
    # 用户占用，系统占用，空闲
    cmd_dict = {"Linuxn" : "vmstat | tail -n 1 | awk '{print $13 ":" $14 ":" $15}'",
                "AIXn" : "vmstat | tail -n 1 | awk '{print $14 ":" $15 ":" $16}'"
                }
    os_version = BatchCMD(address,username,password,port,"uname")
    for version,run_cmd in cmd_dict.items():
        if(version == os_version):
            os_ref = BatchCMD(address,username,password,port,run_cmd)
            ref_list= os_ref.split("n")
            for each in ref_list:
                if each != "":
                    ref = each.split(":")
            ref[2] = str(100 - int(ref[2]))
            ref.insert(0,address)
    return ref


# 排序函数,以第三列为条件排列
def takeSecond(elem):
    return int(elem[3])


if __name__ == "__main__":
    workbook = xlsxwriter.Workbook("test1111.xlsx")
    worksheet = workbook.add_worksheet()

    # 设置头部数据
    headings = ["主机地址", "CPU内核态", "CPU用户态", "总利用率"]
    head_style = workbook.add_format({"bold": True, "align": "center" ,"fg_color":"#D7E4BC"})
    worksheet.write_row("A1", headings, head_style)

    # 设置头部列宽
    worksheet.set_column("A1:D1",15)

# 统计数据并排序
    cpu_data = []
    with open("./unix_disk.db","r") as fp:
        fp_file = fp.readlines()
        for each in fp_file:
            try:
                data = eval(each)
                ref = GetCPULoad(data[0], data[2], data[3], 22)

                if(len(ref) !=0):
                    cpu_data.append(ref)
                else:
                    continue
            except Exception:
                pass

    # 排序,统计第三列数据，将最大的放在最前面，以此向下
    cpu_data.sort(key=takeSecond, reverse=True)
    print(cpu_data)

    for i in range(0, len(cpu_data)):
        worksheet.write_row("A{}".format(i + 2), cpu_data[i])
    workbook.close()

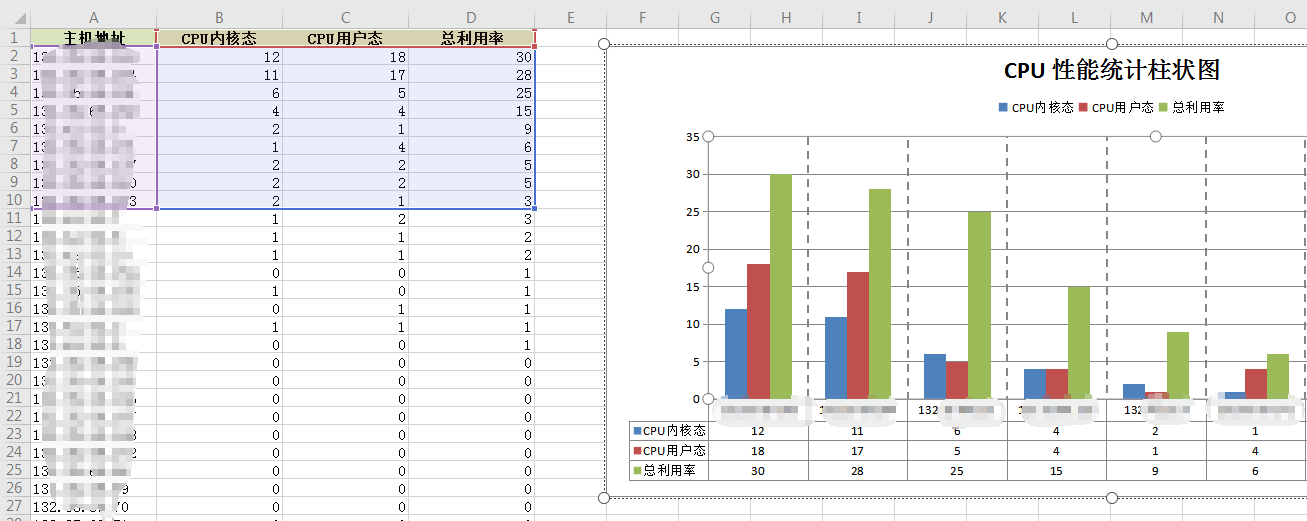

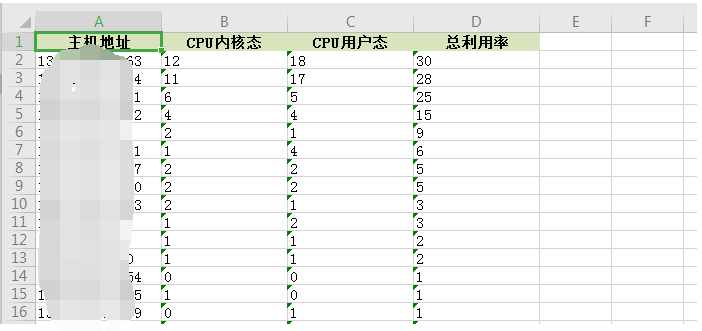

将绘图方法与SSH结合： 运行后即可统计出机器的所有CPU数据，并将排名前十的机器使用情况列出来。

import xlsxwriter
import paramiko

ssh = paramiko.SSHClient()
ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())

workbook = xlsxwriter.Workbook("test333.xlsx")
worksheet = workbook.add_worksheet()

def BatchCMD(address,username,password,port,command):
    try:
        ssh.connect(hostname=address,username=username,password=password,port=port,timeout=2)
        stdin , stdout , stderr = ssh.exec_command(command)
        result = stdout.read()
        if len(result) != 0:
            result = str(result).replace("\n", "n")
            result = result.replace("b'", "").replace("'", "")
            return result
        else:
            return None
    except Exception:
        return None

def GetCPULoad(address,username,password,port):
    ref = []
    # 用户占用，系统占用，空闲
    cmd_dict = {"Linuxn" : "vmstat | tail -n 1 | awk '{print $13 ":" $14 ":" $15}'",
                "AIXn" : "vmstat | tail -n 1 | awk '{print $14 ":" $15 ":" $16}'"
                }
    os_version = BatchCMD(address,username,password,port,"uname")
    for version,run_cmd in cmd_dict.items():
        if(version == os_version):
            os_ref = BatchCMD(address,username,password,port,run_cmd)
            ref_list= os_ref.split("n")
            for each in ref_list:
                if each != "":
                    ref = each.split(":")
            ref[2] = str(100 - int(ref[2]))
            ref.insert(0,address)

    ref[1] = int(ref[1])
    ref[2] = int(ref[2])
    ref[3] = int(ref[3])
    return ref


# 排序函数,以第三列为条件排列
def takeSecond(elem):
    return int(elem[3])

# 添加柱状统计图
def AddGraphical():
    # 添加柱状图
    chart = workbook.add_chart({"type": "column"})
    chart.add_series({
        "name": "=Sheet1!$B$1",  # 图例项(也就是CPU内核态)
        "categories": "=Sheet1!$A$2:$A$10",  # X轴 Item名称
        "values": "=Sheet1!$B$2:$B$10"  # X轴Item值
    })
    chart.add_series({
        "name": "=Sheet1!$C$1",
        "categories": "=Sheet1!$A$2:$A$10",
        "values": "=Sheet1!$C$2:$C$10"
    })
    chart.add_series({
        "name": "=Sheet1!$D$1",
        "categories": "=Sheet1!$A$2:$A$10",
        "values": "=Sheet1!$D$2:$D$10"
    })

    # 添加柱状图标题
    chart.set_title({"name": "CPU 性能统计柱状图"})
    # chart.set_style(8)

    chart.set_x_axis({
        'major_gridlines': {
            'visible': True,
            'line': {'width': 1.25, 'dash_type': 'dash'}
        },
    })

    chart.set_size({'width': 900, 'height': 500})
    chart.set_legend({'position': 'top'})
    chart.set_table({'show_keys': True})

    # 在F2处绘制
    worksheet.insert_chart("F2", chart)

if __name__ == "__main__":
    # 设置头部数据
    headings = ["主机地址", "CPU内核态", "CPU用户态", "总利用率"]
    head_style = workbook.add_format({"bold": True, "align": "center" ,"fg_color":"#D7E4BC"})
    worksheet.write_row("A1", headings, head_style)

    # 设置头部列宽
    worksheet.set_column("A1:D1",15)

# 统计数据并排序
    cpu_data = []
    with open("./unix_disk.db","r") as fp:
        fp_file = fp.readlines()
        for each in fp_file:
            try:
                data = eval(each)
                ref = GetCPULoad(data[0], data[2], data[3], 22)
                if(len(ref) !=0):
                    print(ref)
                    cpu_data.append(ref)
                else:
                    continue
            except Exception:
                pass

    # 排序,统计第三列数据，将最大的放在最前面，以此向下
    cpu_data.sort(key=takeSecond, reverse=True)
    print(cpu_data)

    # 将数据批量添加到表格中
    for i in range(0, len(cpu_data)):
        worksheet.write_row("A{}".format(i + 2), cpu_data[i])

    # 开始绘图
    AddGraphical()
    workbook.close()

收集主机负载(条形图)

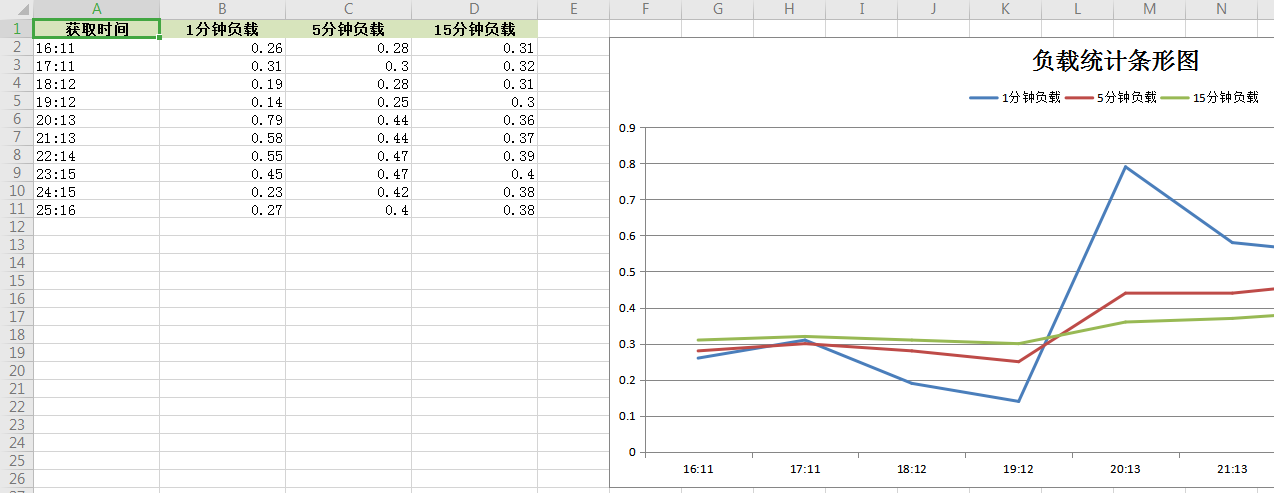

制作Excel绘图：

import xlsxwriter

workbook = xlsxwriter.Workbook("xxx.xlsx")
worksheet = workbook.add_worksheet()

headings = ["获取时间", "1分钟负载", "5分钟负载","15分钟负载"]
data = [["12:01", 0.05, 0.7,0.006], ["12:02", 0.5, 0.08,0.06], ["12:03", 0.7, 1,2.1]]

# 定义表格样式
head_style = workbook.add_format({"bold": True, "align": "center" ,"fg_color":"#D7E4BC"})
worksheet.set_column("A1:D1",15)

# 逐条写入数据
worksheet.write_row("A1", headings, head_style)
for i in range(0, len(data)):
    worksheet.write_row("A{}".format(i + 2), data[i])

# 添加条形图，显示前十个元素
chart = workbook.add_chart({"type": "line"})
chart.add_series({
    "name": "=Sheet1!$B$1",              # 图例项
    "categories": "=Sheet1!$A$2:$A$10",  # X轴 Item名称
    "values": "=Sheet1!$B$2:$B$10"       # X轴Item值
})
chart.add_series({
    "name": "=Sheet1!$C$1",
    "categories": "=Sheet1!$A$2:$A$10",
    "values": "=Sheet1!$C$2:$C$10"
})
chart.add_series({
    "name": "=Sheet1!$D$1",
    "categories": "=Sheet1!$A$2:$A$10",
    "values": "=Sheet1!$D$2:$D$10"
})

# 添加柱状图标题
chart.set_title({"name": "负载统计条形图"})
# chart.set_style(8)

chart.set_size({'width': 1000, 'height': 500})
chart.set_legend({'position': 'top'})

# 在F2处绘制
worksheet.insert_chart("F2", chart)
workbook.close()

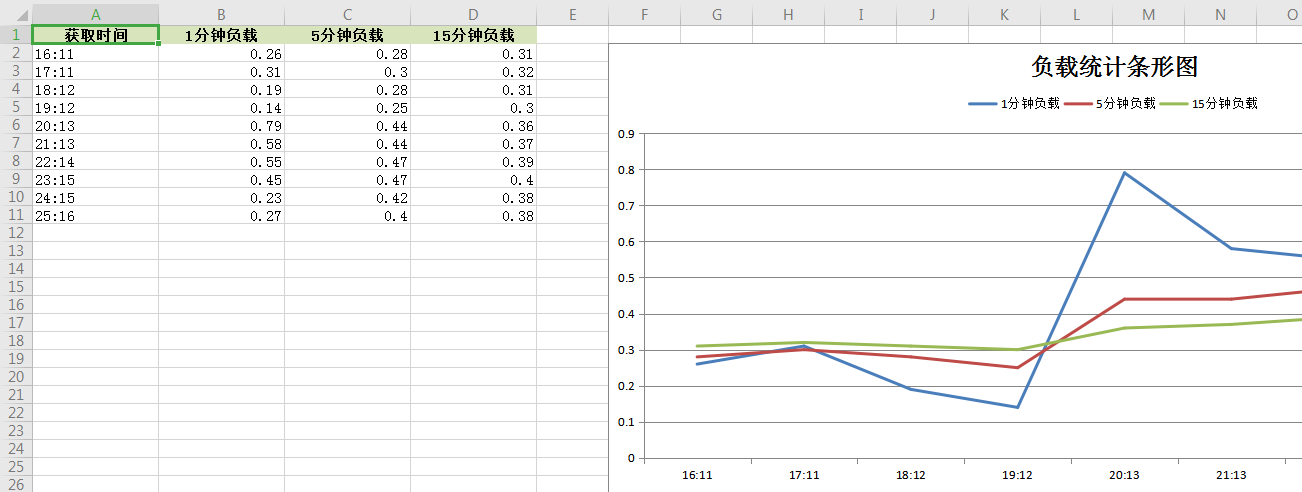

封装SSH执行模块： 封装上方的绘图模块，与SSH模块实现图形绘制，收集十分钟负载。

import xlsxwriter
import paramiko
import datetime
import time

ssh = paramiko.SSHClient()
ssh.set_missing_host_key_policy(paramiko.AutoAddPolicy())

workbook = xlsxwriter.Workbook("load_avg.xlsx")
worksheet = workbook.add_worksheet()

def BatchCMD(address,username,password,port,command):
    try:
        ssh.connect(hostname=address,username=username,password=password,port=port,timeout=2)
        stdin , stdout , stderr = ssh.exec_command(command)
        result = stdout.read()
        if len(result) != 0:
            result = str(result).replace("\n", "n")
            result = result.replace("b'", "").replace("'", "")
            return result
        else:
            return None
    except Exception:
        return None

def GetCPUAvg(address,username,password,port):
    ref = []
    cmd_dict = {"Linuxn" : "cat /proc/loadavg | awk '{print $1 ":" $2 ":" $3}'",
                "AIXn" : "vmstat | tail -n 1 | awk '{print $14 ":" $15 ":" $16}'"
                }
    os_version = BatchCMD(address,username,password,port,"uname")
    for version,run_cmd in cmd_dict.items():
        if(version == os_version):
            os_ref = BatchCMD(address,username,password,port,run_cmd)
            ref_list= os_ref.split("n")
            for each in ref_list:
                if each != "":
                    ref = each.split(":")

    str_to_date = datetime.datetime.now()
    now_date = str(str_to_date.minute) + ":" + str(str_to_date.second)
    ref.insert(0,now_date)
    ref[1] = float(ref[1])
    ref[2] = float(ref[2])
    ref[3] = float(ref[3])
    return ref

# 绘制聚合图形
def AddGraphical(data):
    #data = [["12:01", 0.05, 0.7, 0.006], ["12:02", 0.5, 0.08, 0.06], ["12:03", 0.7, 1, 2.1]]

    # 定义表格样式
    head_style = workbook.add_format({"bold": True, "align": "center", "fg_color": "#D7E4BC"})
    worksheet.set_column("A1:D1", 15)

    # 逐条写入数据
    headings = ["获取时间", "1分钟负载", "5分钟负载", "15分钟负载"]
    worksheet.write_row("A1", headings, head_style)
    for i in range(0, len(data)):
        worksheet.write_row("A{}".format(i + 2), data[i])

    # 添加条形图，显示前十个元素
    chart = workbook.add_chart({"type": "line"})
    chart.add_series({
        "name": "=Sheet1!$B$1",  # 图例项
        "categories": "=Sheet1!$A$2:$A$10",  # X轴 Item名称
        "values": "=Sheet1!$B$2:$B$10"  # X轴Item值
    })
    chart.add_series({
        "name": "=Sheet1!$C$1",  # 第一个线条(图例)
        "categories": "=Sheet1!$A$2:$A$10",
        "values": "=Sheet1!$C$2:$C$10"
    })
    chart.add_series({
        "name": "=Sheet1!$D$1",  # 第二个线条(图例)
        "categories": "=Sheet1!$A$2:$A$10",
        "values": "=Sheet1!$D$2:$D$10"
    })

    # 添加柱状图标题
    chart.set_title({"name": "负载统计条形图"})
    # chart.set_style(8)

    chart.set_size({'width': 900, 'height': 500})
    chart.set_legend({'position': 'top'})

    # 在F2处绘制
    worksheet.insert_chart("F2", chart)

# 收集10分钟的负载数据
def GetLoad():
    ref_date = []
    for item in range(10):
        ret = GetCPUAvg("192.168.1.11", "root", "123123", "22")
        ref_date.append(ret)
        time.sleep(60)
        print(ret)
    return ref_date

if __name__ == "__main__":
    date = []
    date = GetLoad()
    AddGraphical(date)
    workbook.close()

绘制设备种类(饼状图)

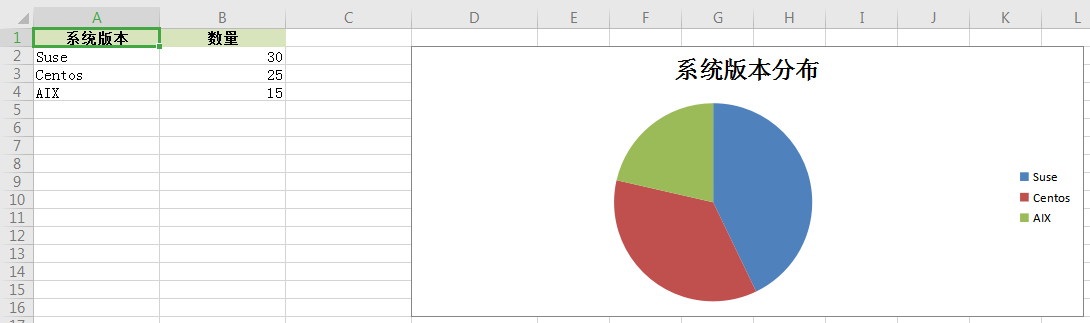

制作Excel绘图： 先来实现绘图。

import xlsxwriter

workbook = xlsxwriter.Workbook("pie.xlsx")
worksheet = workbook.add_worksheet()

data = [["Suse", 30 ], ["Centos",25], ["AIX",15]]

# 定义表格样式
head_style = workbook.add_format({"bold": True, "align": "center" ,"fg_color":"#D7E4BC"})
worksheet.set_column("A1:D1",15)

# 逐条写入数据
headings = ["系统版本", "数量"]
worksheet.write_row("A1", headings, head_style)
for i in range(0, len(data)):
    worksheet.write_row("A{}".format(i + 2), data[i])

# 添加条形图，显示前十个元素
chart = workbook.add_chart({"type": "pie"})
chart.add_series({
    "name": "=Sheet1!$B$1",              # 图例项
    "categories": "=Sheet1!$A$2:$A$4",  # X轴 Item名称
    "values": "=Sheet1!$B$2:$B$4"       # X轴Item值
})

# 添加饼状图
chart.set_title({"name": "系统版本分布"})
chart.set_size({'width': 600, 'height': 300})
chart.set_legend({'position': 'right'})

# 在D2处绘制
worksheet.insert_chart("D2", chart)
workbook.close()

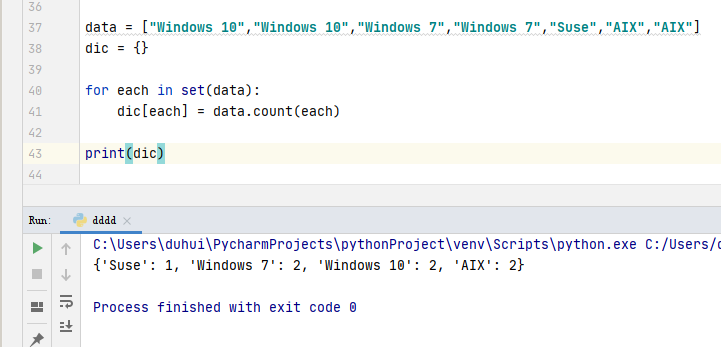

实现收集数据并绘图： 收集数据就不写了，主要说说统计个数，我们可以每次收集到数据后放入一个列表中，最后使用set集合将其自动去重，去重后在对特定的值进行计数统计即可。

data = ["Windows 10","Windows 10","Windows 7","Windows 7","Suse","AIX","AIX"]
dic = {}

for each in set(data):
    dic[each] = data.count(each)

print(dic)

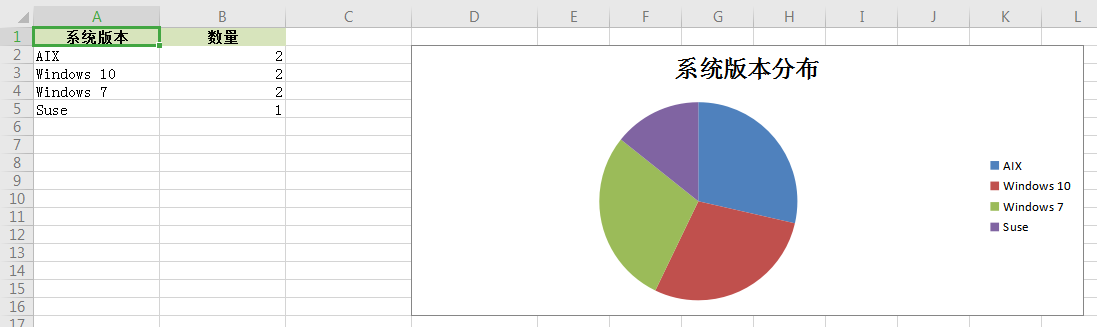

继续实现绘图即可。

import xlsxwriter

workbook = xlsxwriter.Workbook("pie.xlsx")
worksheet = workbook.add_worksheet()

# 去重后的数据在dic
data = ["Windows 10","Windows 10","Windows 7","Windows 7","Suse","AIX","AIX"]
dic = {}

for each in set(data):
    dic[each] = data.count(each)
print("构建字典: {}".format(dic))
print("字典数: {}".format(len(dic)))


# 字典转列表
new_data = []
for k,v in dic.items():
    new_list = [k,v]
    new_data.append(new_list)
print("字典转为列表：{}".format(new_data))

#data = [["Suse", 30 ], ["Centos",25], ["AIX",15]]

# 定义表格样式
head_style = workbook.add_format({"bold": True, "align": "center" ,"fg_color":"#D7E4BC"})
worksheet.set_column("A1:D1",15)

# 逐条写入数据
headings = ["系统版本", "数量"]
worksheet.write_row("A1", headings, head_style)
for i in range(0, len(new_data)):
    worksheet.write_row("A{}".format(i + 2), new_data[i])

# 添加饼状图图例
chart = workbook.add_chart({"type": "pie"})
chart.add_series({
    "name": "=Sheet1!$B$1",              # 图例项
    "categories": "=Sheet1!$A$2:$A${}".format(len(dic)+1),  # X轴 Item名称
    "values": "=Sheet1!$B$2:$B${}".format(len(dic)+1)       # X轴Item值
})

# 添加饼状图
chart.set_title({"name": "系统版本分布"})
chart.set_size({'width': 600, 'height': 300})
chart.set_legend({'position': 'right'})

# 在D2处绘制
worksheet.insert_chart("D2", chart)
workbook.close()
