概述

本文实例为大家分享了Canvas时钟效果展示的具体代码，供大家参考，具体内容如下

<html lang="en">
<head>
 <meta charset="UTF-8">
 <title></title>
 <style>
  canvas{
   display: block;
   margin: 0 auto;
   background-color: #fdffad;
   border: 1px solid #000;
  }
 </style>
 <script type="text/javascript">

  document.addEventListener('DOMContentLoaded',function(){
   var oC=document.querySelector('canvas');
   var gd=oC.getContext('2d');
   var r=oC.width/2;

   function drawBackground() {
    gd.save();
    //渐变

    var ra = gd.createLinearGradient(600, 0, 400, 0);
    ra.addColorStop(1, '#2dd9ff');
    ra.addColorStop(0, '#8c48dd');

    //表盘
    gd.translate(r, r);
    gd.beginPath();
    gd.fillStyle = ra;
    gd.lineWidth = 10;
    gd.strokeStyle = '#211f4e';
    gd.arc(0, 0, r-5, 0, Math.PI *2, false);
    gd.fill();
    gd.stroke();
    //数字
    for (var i = 1; i < 13; i++) {
     var rad=i * Math.PI * 2 / 12;
     var x = Math.sin(rad)*(r-70);
     var y= -Math.cos(rad)*(r-70);
     gd.fillStyle = "red";
     gd.font = "bold 80px Calibri";
     gd.lineWidth = 1;
     gd.textAlign = 'center';
     gd.textBaseline = 'middle';
     gd.strokeText(i, x, y);
    }
    //点
    for (var i = 0; i < 60; i++) {
     gd.beginPath();
     var rad=i * Math.PI * 2 / 60;
     var x = Math.sin(rad)*(r-30);
     var y= -Math.cos(rad)*(r-30);
     if (i % 5 == 0) {
      gd.fillStyle = 'red';
     }
     else {
      gd.fillStyle = '#ccc'
     }
     gd.lineWidth = 2;
     gd.arc(x, y, 6, 0, Math.PI * 2, false);
     gd.fill();
     gd.stroke();
     gd.closePath();
    }
   }
   //时针
   function drawHour(h,m){
    gd.save();
    gd.beginPath();
    var rad=2*Math.PI/12*h;
    var mrad=2*Math.PI/12/60*m;
    gd.rotate(rad+mrad);
    gd.lineWidth=20;
    gd.lineCap='round';
    gd.moveTo(0,10);
    gd.lineTo(0,-r/3);
    gd.stroke();
    gd.closePath();
    gd.restore();
   }
   //分针
   function drawMinutes(m){
    gd.save();
    gd.beginPath();
    var rad=2*Math.PI/60*m;
    gd.rotate(rad);
    gd.lineWidth=10;
    gd.lineCap='round';
    gd.moveTo(0,10);
    gd.lineTo(0,-r/2);
    gd.stroke();
    gd.closePath();
    gd.restore();
   }
   //秒针
   function drawSeconds(s){
    gd.save();
    gd.beginPath();
    var rad=2*Math.PI/60*s;
    gd.rotate(rad);
    gd.fillStyle='red';
    gd.moveTo(-2,20);
    gd.lineTo(2,20);
    gd.lineTo(1,-r+100);
    gd.lineTo(-1,-r+100);
    gd.fill();
    gd.closePath();
    gd.restore();
   }
   //圆点
   function drawPoint(){
    gd.beginPath();
    gd.fillStyle='#fff';
    gd.arc(0,0,5,Math.PI*2,false);
    gd.fill();
   }

   function drawClock(){
    gd.clearRect(0,0,oC.width,oC.height);
    var oDate=new Date();
    var h=oDate.getHours();
    var m=oDate.getMinutes();
    var s=oDate.getSeconds();
    drawBackground();
    drawHour(h,m);
    drawMinutes(m);
    drawSeconds(s);
    drawPoint();
    gd.restore();

   }
   drawClock();
   setInterval(drawClock,1000);
  },false);
 </script>
</head>
<body>
<canvas width="800" height="800"></canvas>
</body>
</html>

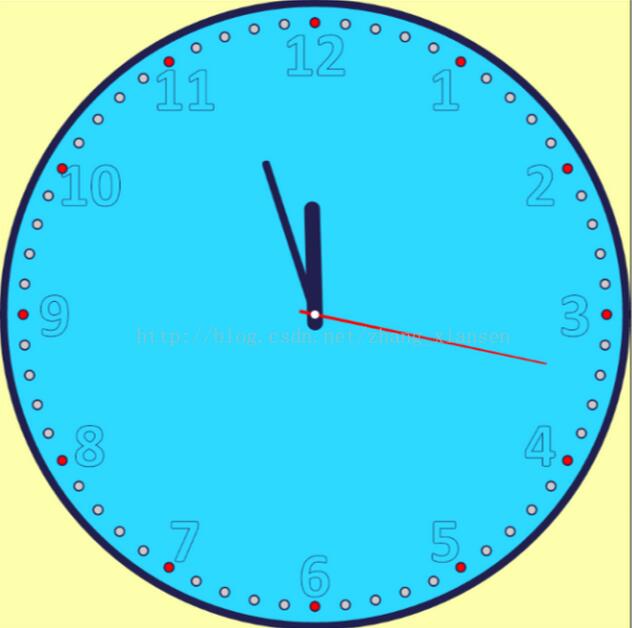

效果图：
