概述

一步步教大家如何搭建Asp.Net Core2.0网站，以下所有都是建立在.NETCore2.0环境已经搭建好

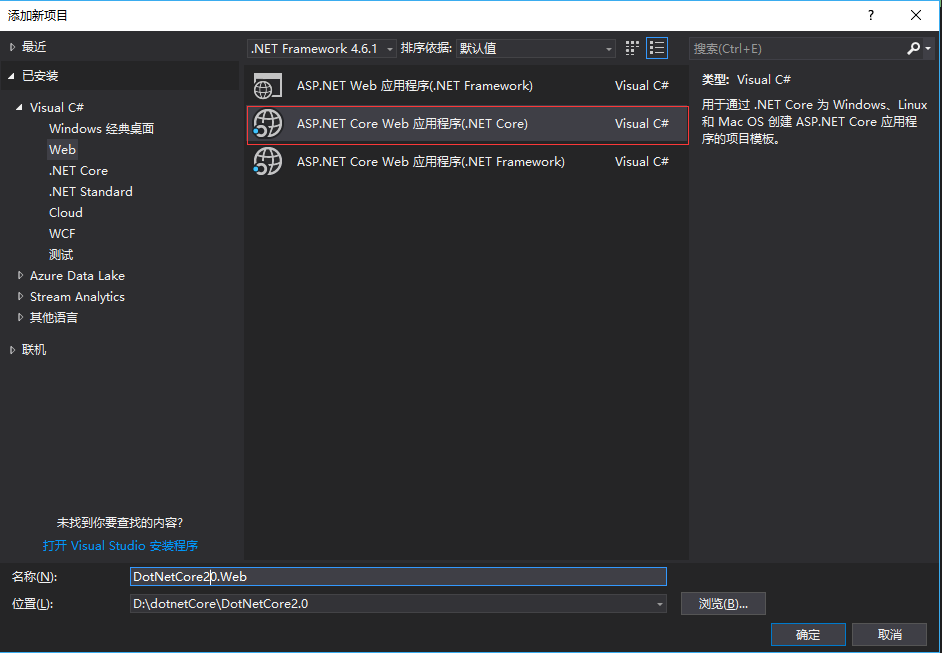

右键解决方案>新建项目>

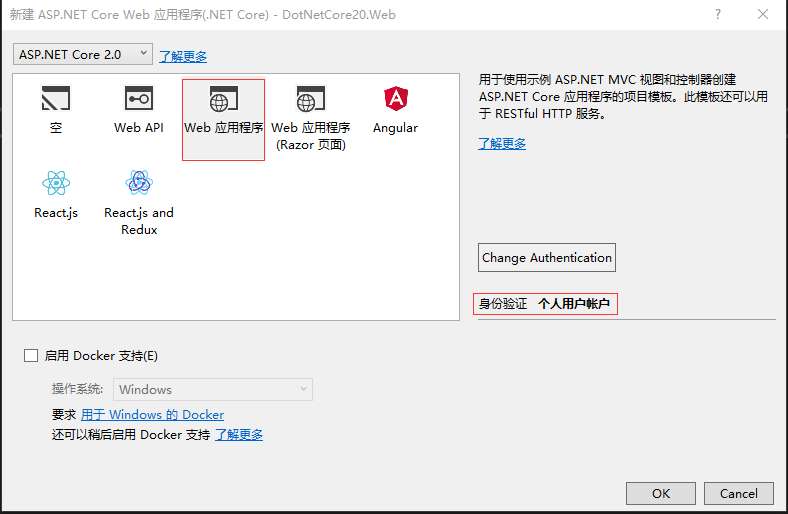

选择Web>ASP.NETCoreWeb应用程序(.NET Core)

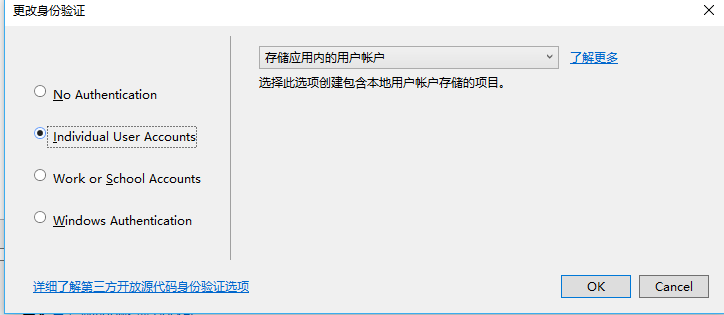

选择Web应用程序,暂时不选择启用Docker,身份验证选择个人用户账户(会自动生成一系列和用户认证的代码)

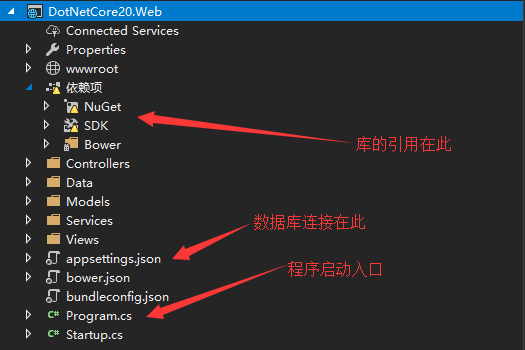

随后生代码层次目录如下:

其中会包含身份信息的相关实现,比如相关实体信息(user)之类的,如果想对扩展微软自动的生成的用户实体类,可在Models中的ApplicationUser下扩展,在此ApplicationUser中添加属性即可:比如添加叫WeChatId属性,添加后如下:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Identity;

namespace DotNetCore20.Web.Models
{
  // Add profile data for application users by adding properties to the ApplicationUser class
  public class ApplicationUser : IdentityUser
  {
    /// <summary>
    /// 微信Id
    /// </summary>
    public string WeChatId { get; set; }
  }
}

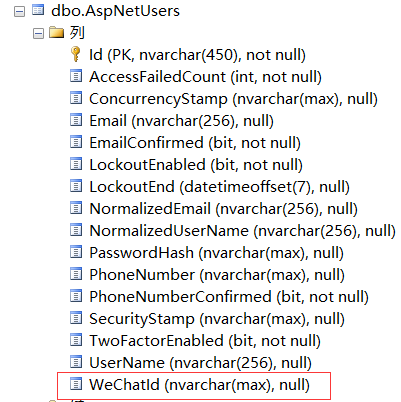

在之后生成运行并迁移,数据库的AspNetUsers中就会多出WeChatId 属性.

一:安装引用

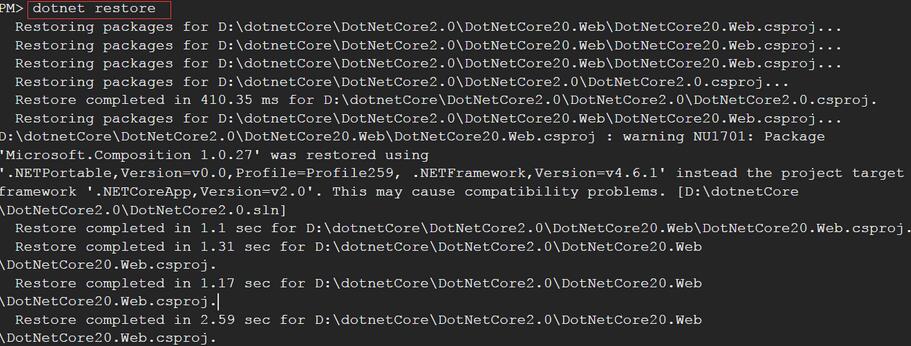

nugnet恢复引用失效时,可在程序包管理控制台输入:

dotnet restore 即可

会发现在恢复指令后在NuGet中会有一个Microsoft.VisualStudio.Web.CodeGeneration.Design的报错,信息如下:

已使用“.NETPortable,Version=v0.0,Profile=Profile259, .NETFramework,Version=v4.6.1”而不是项目目标框架“.NETCoreApp,Version=v2.0”还原了包“Microsoft.Composition 1.0.27”。这可能会导致兼容性问题

这个库是ASP.NET Core的代码生成工具。包含用于生成控制器和视图的dotnet-aspnet-codegenerator命令,暂时可先卸载,不影响项目运行.

对项目类库的引用有以下几种方式

1.Nuget去安装(官网https://www.nuget.org/packages/)

2.右键依赖项点击菜单中的添加引用

3.可在程序包管理控制台输入:Install-Package引用类库名称

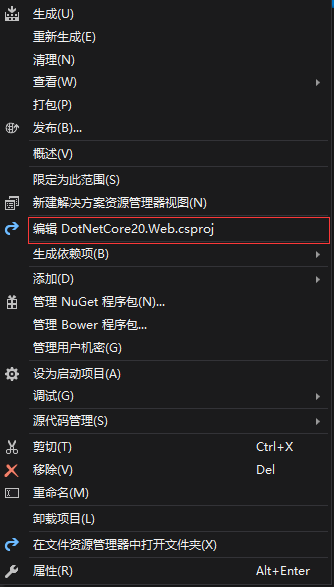

4.可右键编辑csproj工程文件进行添加，然后执行dotnet restore

二.创建实体程序集

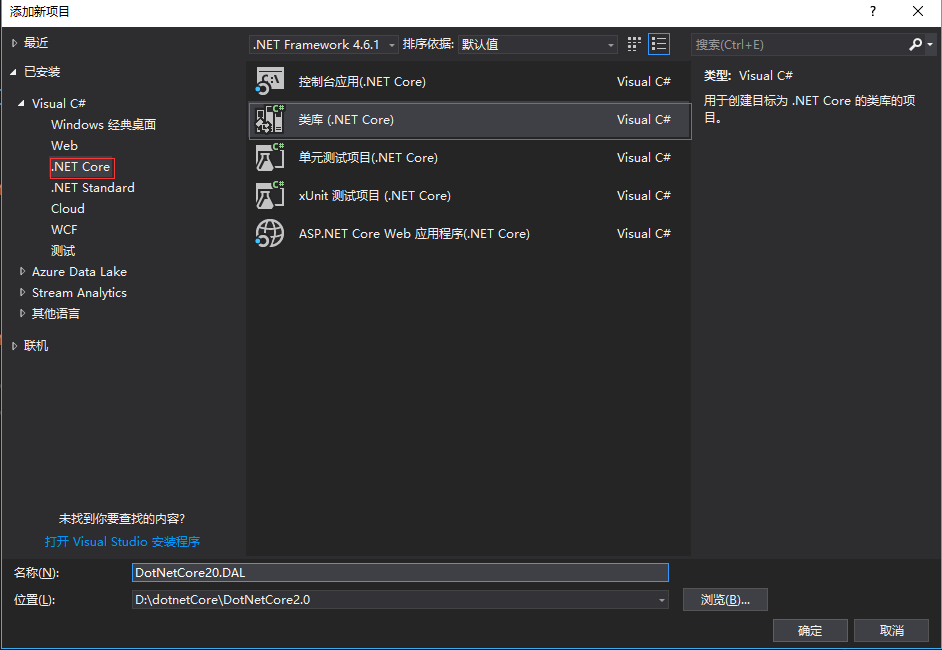

右键解决方案>添加项目>

首先创建抽象类,供Entity实体继承,主要为每个实体提供公用属性

using System;
using System.Collections.Generic;
using System.ComponentModel.DataAnnotations;
using System.Runtime.Serialization;
using System.Text;

namespace DotNetCore20.Entity.Core
{
  /// <summary>
  /// DB表基底
  /// </summary>
  [Serializable]
  public abstract partial class BaseEntity
  {
    /// <summary>
    /// Id
    /// </summary>
    [DataMember]
    public long Id { get; set; }

    /// <summary>
    /// DB 資料版號
    /// </summary>
    1523517082
    public byte[] RowVersion { get; set; }

    /// <summary>
    /// 创建时间
    /// </summary>
    [DataMember]
    public DateTime CreateTime { get; set; }

    /// <summary>
    /// 更新时间
    /// </summary>
    [DataMember]
    public DateTime UpdateTime { get; set; }

    /// <summary>
    /// 状态
    /// </summary>
    [DataMember]
    public EnumState State { get; set; }
  }

  /// <summary>
  /// 状态
  /// </summary>
  public enum EnumState
  {
    /// <summary>
    /// 删除
    /// </summary>
    Delete = 1,

    /// <summary>
    /// 正常
    /// </summary>
    Normal = 0,
  }
}

添加一个UserExtend用户扩展类(Entity):

using DotNetCore20.Entity.Core;
using System;
using System.Runtime.Serialization;

namespace DotNetCore20.Entity
{
  [DataContract]
  public class UserExtend : BaseEntity
  {
    /// <summary>
    /// 用户Id
    /// </summary>
    [DataMember]
    public long UserId { get; set; }

    /// <summary>
    /// 昵称
    /// </summary>
    [DataMember]
    public long NickName { get; set; }

  }
}

三.创建数据层

添加引用

DAL层需要用到EF实体映射相关和我们自己前面定义的Entity中的UserExtend实体表,所以要添加相关引用,DotNetCore20.Entity和 Microsoft.EntityFrameworkCore.Tools

快捷键:Ctrl+Alt+o 打开程序包管理器输入以下:

install-package Microsoft.EntityFrameworkCore.Tools

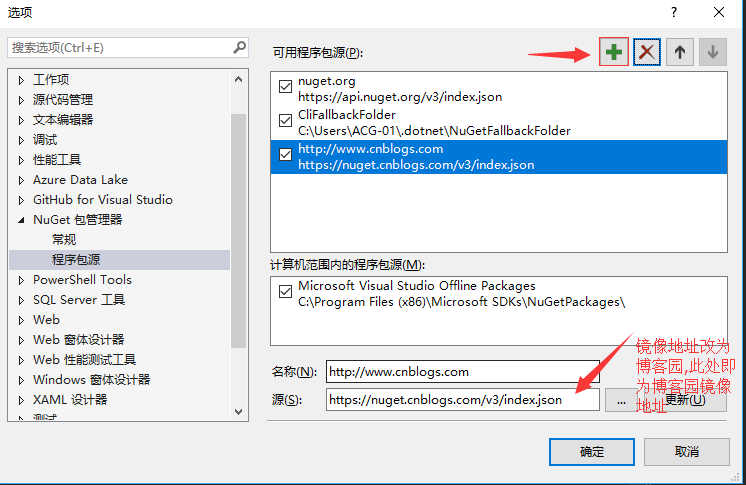

如果是网络限制下载失败,推荐把nuget镜像改为博客园资源,方法如下:

右键解决方案>管理解决方案的nuget程序包.显示如下:

新建一个数据上下文类,目录结构如下:

DotNetCoreDbContext内部代码改为以下:

using DotNetCore20.Entity;
using Microsoft.EntityFrameworkCore;

namespace DotNetCore20.DAL.DbContext
{
  public class DotNetCoreDbContext : Microsoft.EntityFrameworkCore.DbContext
  {
    public DotNetCoreDbContext(DbContextOptions<DotNetCoreDbContext> options) : base(options)
    {
    }
    public DbSet<UserExtend> UserExtend { get; set; }
  }
}

在此基本的实体映射相关的代码都完毕,现在还有一步,就是数据库连接字符串的配置

首先打开appsettings.json文件,在ConnectionStrings节点下增加以下

复制代码代码如下:

"DotNetCoreConnection": "Server=(localdb)\\mssqllocaldb;Database=DotNetCoreDb;Trusted_Connection=True;MultipleActiveResultSets=true"

增加后如下:

{
  "ConnectionStrings": {
    "DefaultConnection": "Server=(localdb)\\mssqllocaldb;Database=DotNetCoreDefaultDb;Trusted_Connection=True;MultipleActiveResultSets=true",
    "DotNetCoreConnection": "Server=(localdb)\\mssqllocaldb;Database=DotNetCoreDb;Trusted_Connection=True;MultipleActiveResultSets=true"
  },
 "Logging": {
  "IncludeScopes": false,
  "Debug": {
   "LogLevel": {
    "Default": "Warning"
   }
  },
  "Console": {
   "LogLevel": {
    "Default": "Warning"
   }
  }
 }
}

再打开web网站下的Startup文件,在ConfigureServices方法中添加一下行:

//自定义数据库连接字符串
services.AddDbContext<DotNetCoreDbContext>(options =>
 options.UseSqlServer(Configuration.GetConnectionString("DotNetCoreConnection")));

增加后如下:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Diagnostics.EntityFrameworkCore;
using Microsoft.AspNetCore.Identity;
using Microsoft.AspNetCore.Http;
using Microsoft.EntityFrameworkCore;
using Microsoft.AspNetCore.Hosting;
using Microsoft.Extensions.Configuration;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Options;
using DotNetCore20.Web.Data;
using DotNetCore20.Web.Models;
using DotNetCore20.Web.Services;
using DotNetCore20.DAL.DbContext;


namespace DotNetCore20.Web
{
  public class Startup
  {
    public Startup(IConfiguration configuration)
    {
      Configuration = configuration;
    }

    public IConfiguration Configuration { get; }

    // This method gets called by the runtime. Use this method to add services to the container.
    public void ConfigureServices(IServiceCollection services)
    {
      services.AddDbContext<ApplicationDbContext>(options =>
        options.UseSqlServer(Configuration.GetConnectionString("DefaultConnection")));

      //自定义数据库连接字符串
      services.AddDbContext<DotNetCoreDbContext>(options =>
        options.UseSqlServer(Configuration.GetConnectionString("DotNetCoreConnection")));

      services.AddIdentity<ApplicationUser, IdentityRole>()
        .AddEntityFrameworkStores<ApplicationDbContext>()
        .AddDefaultTokenProviders();

      // Add application services.
      services.AddTransient<IEmailSender, AuthMessageSender>();
      services.AddTransient<ISmsSender, AuthMessageSender>();

      services.AddMvc();
    }

    // This method gets called by the runtime. Use this method to configure the HTTP request pipeline.
    public void Configure(IApplicationBuilder app, IHostingEnvironment env)
    {
      if (env.IsDevelopment())
      {
        app.UseDeveloperExceptionPage();
        app.UseBrowserLink();
        app.UseDatabaseErrorPage();
      }
      else
      {
        app.UseExceptionHandler("/Home/Error");
      }

      app.UseStaticFiles();

      app.UseAuthentication();

      app.UseMvc(routes =>
      {
        routes.MapRoute(
          name: "default",
          template: "{controller=Home}/{action=Index}/{id?}");
      });
    }
  }
}

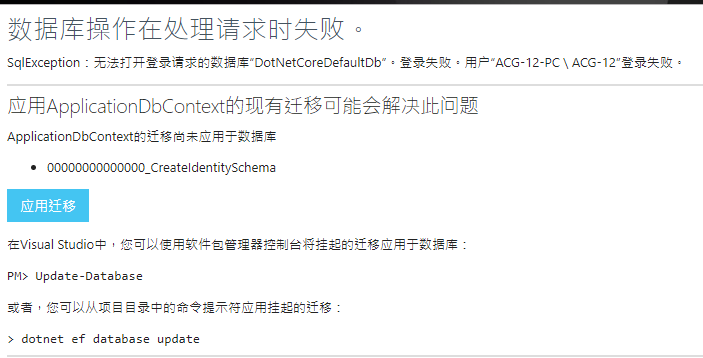

运行程序,点击登陆(只要访问数据库的操作都可),出现错误页面:
